10mm hollow shaft rotary encoder motor dc 5V NPN Output 3600 P/R incremental rotary encoder
- Category: >>>
- Supplier: Changchun Donghe Optics & Electronics Co. Ltd.
Share on (1601201708923):
Product Overview
Description
Product Description
Specifications

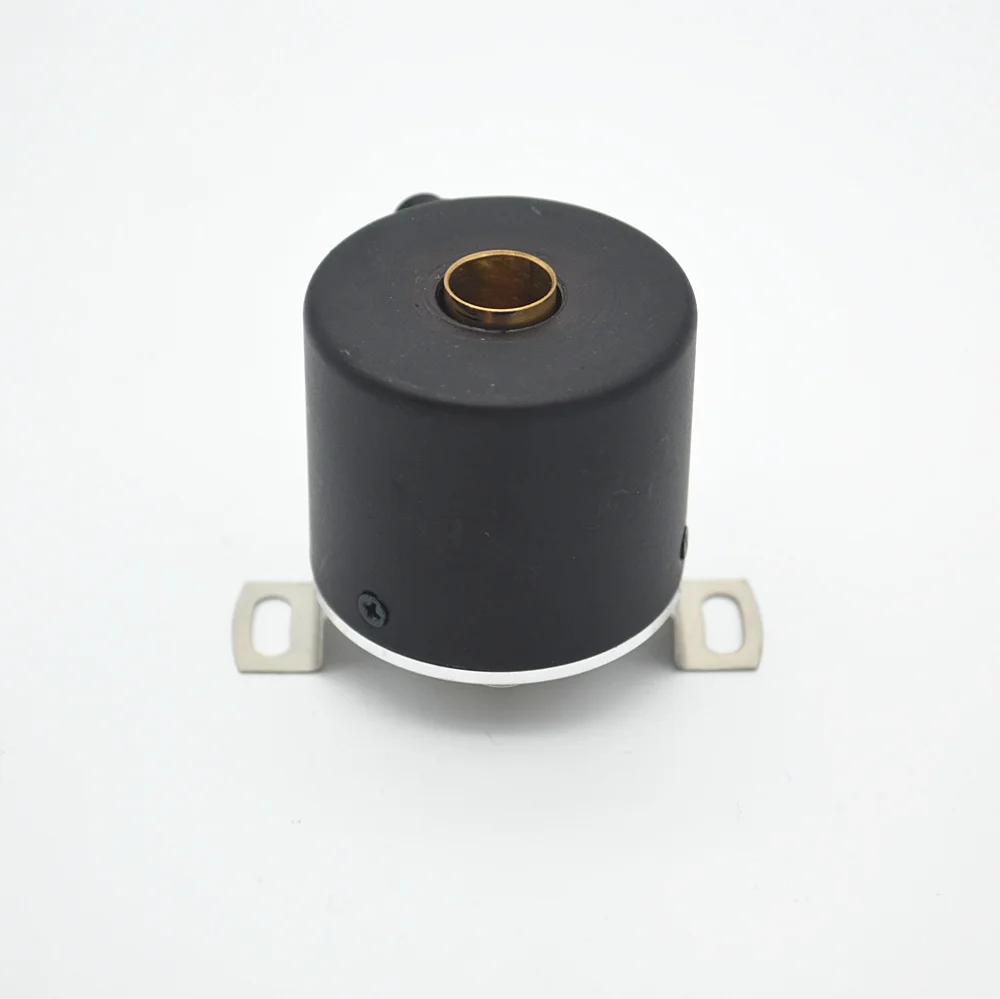

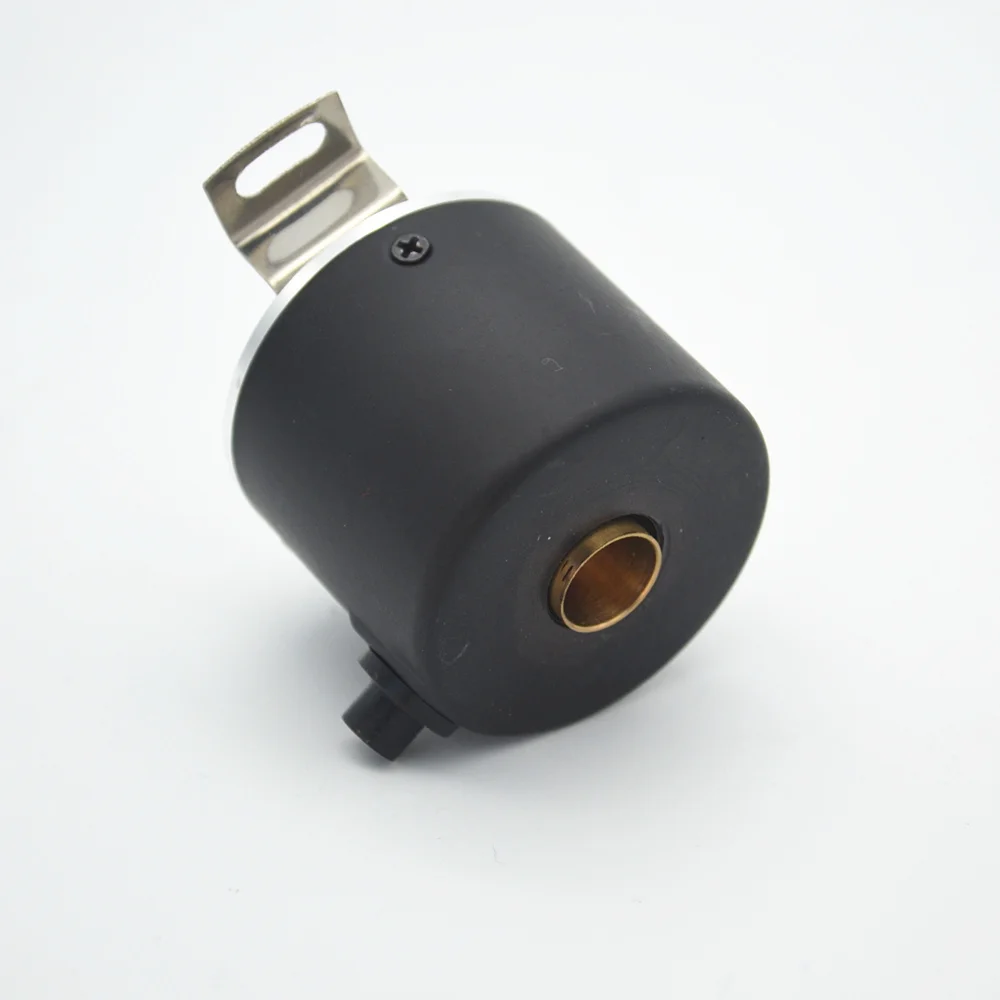

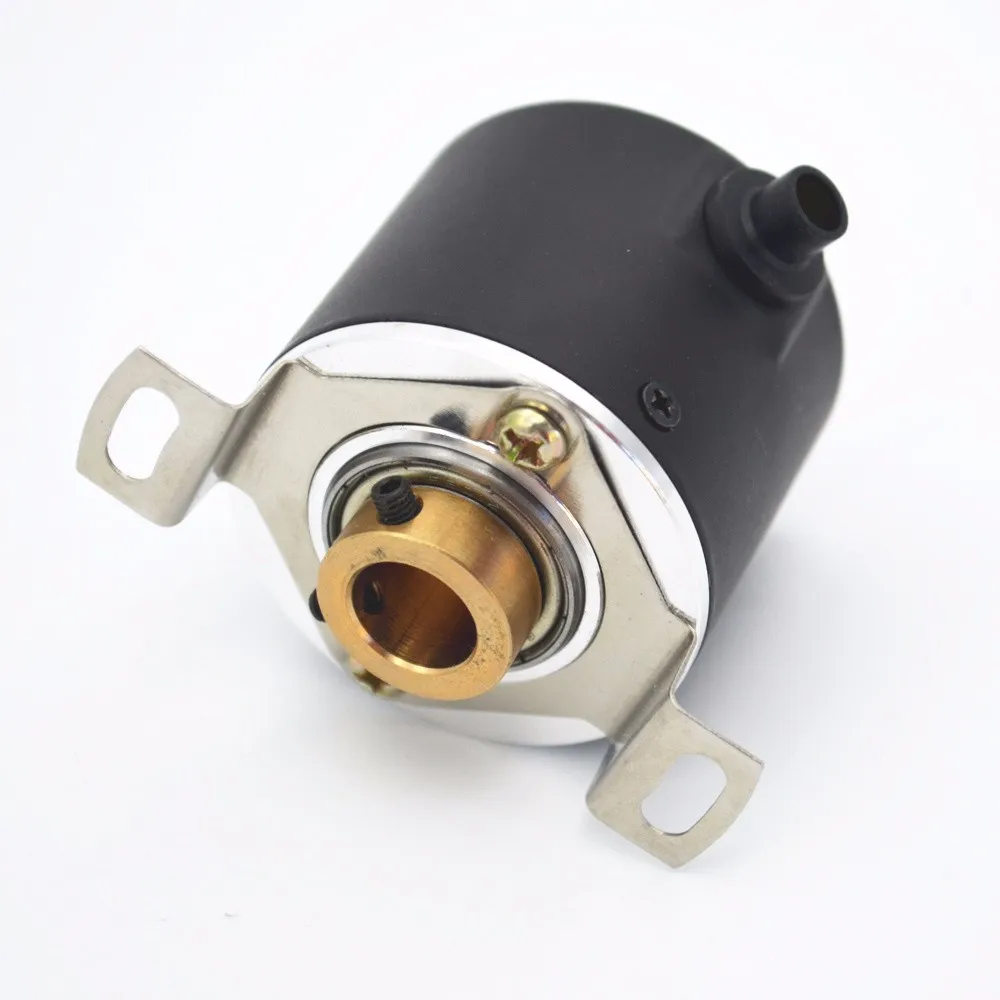

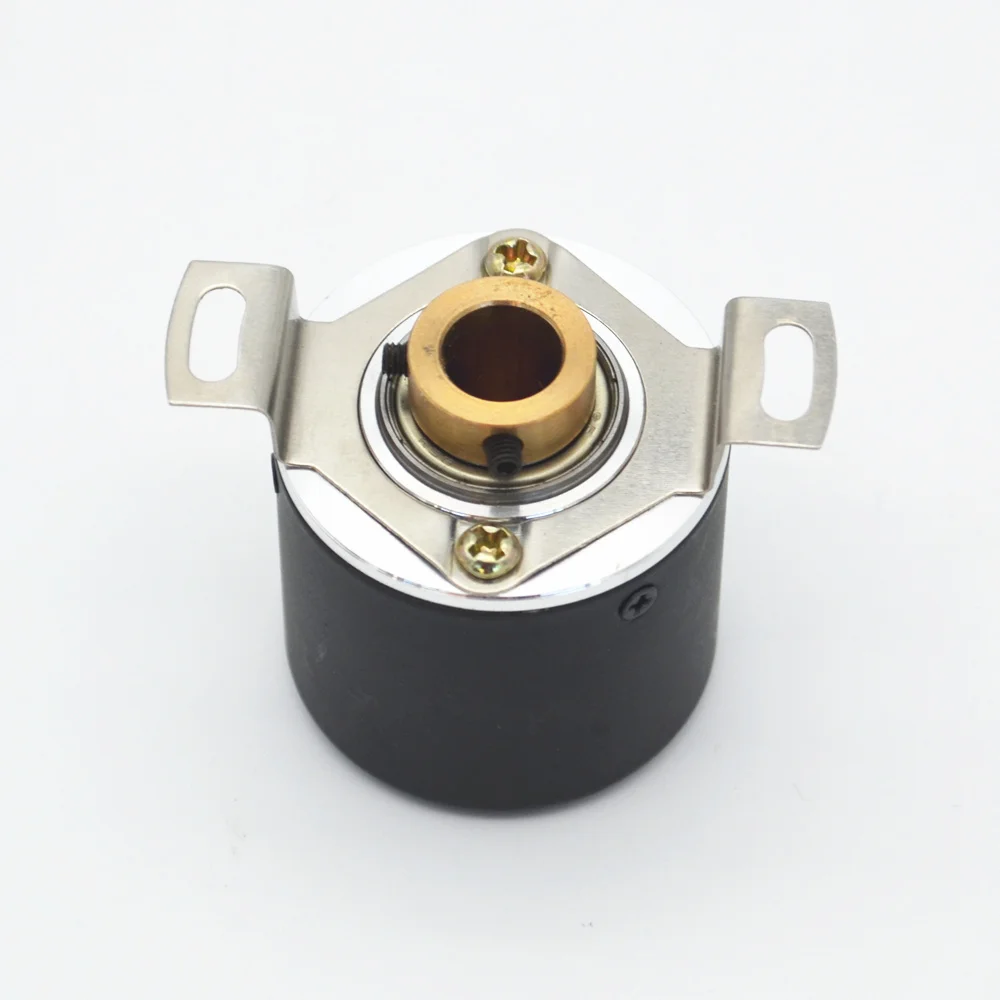

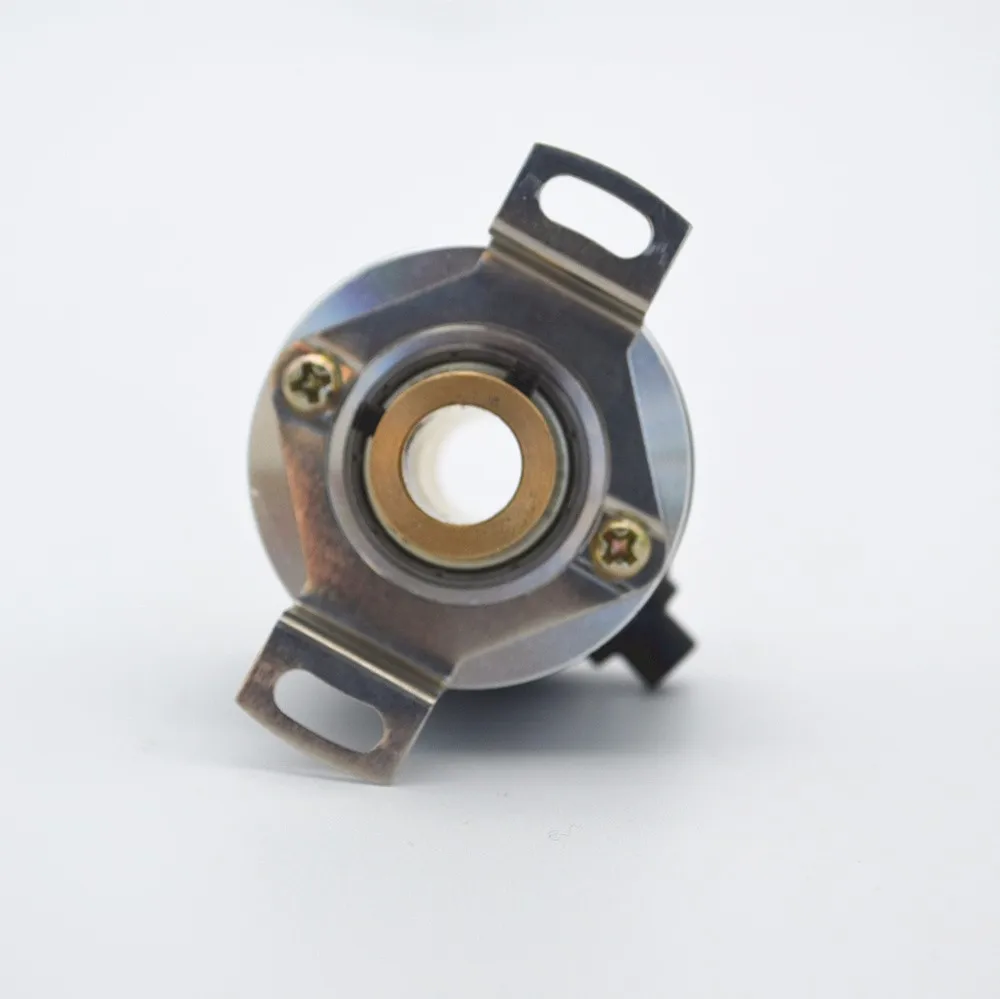

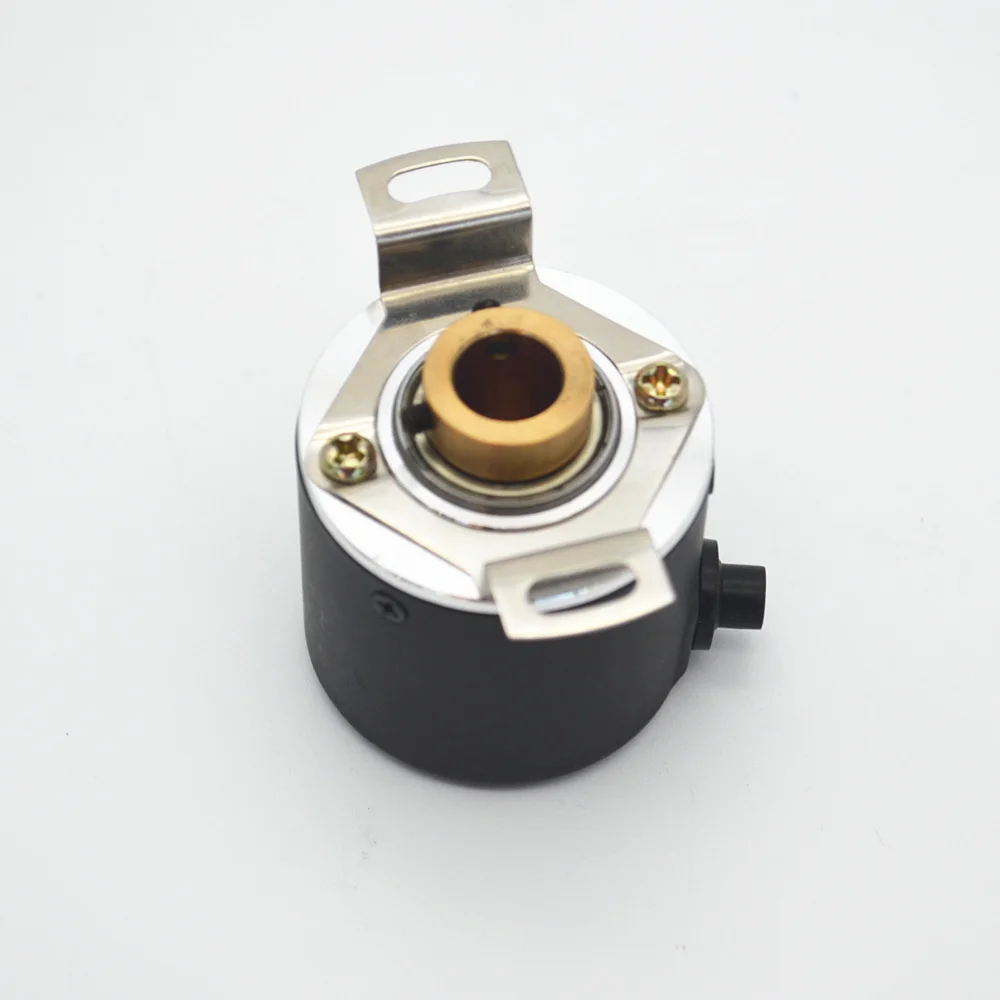

10mm hollow shaft rotary encoder motor dc 5V NPN Output 3600 P/R incremental rotary encoder
1.1000P/r,DC5V,voltage,hollow shaft inner diameter:10mm
2.Widely used on the elevator, electric motor
Protection class | IP54(Standard) | Output frequency | 0-100KHz |
Rise/Fall time | ≤1μS | Starting torque | 2×10-3N·m |
Working temperature | -10°C~+70°C | Max.shaft load radial | 20N |
Supply voltage | DC 5Vor 5V-24V | Max.shaft load axial | 10N |
Storage temperature | -20°C~+80°C | Max.speed | 5000r/min |
Current consumption | 80mA | Weight | 0.12kg(without cable) |
Shock resistance | 980m/S2 | Cable Length | Optional |
Vibration resistance | 50m/S2 | Warranty | 12 month |
Detailed Images
Other Products
We produce encoder,optical encoder,magnetic encoder,motor encoder,encoder wheel,incremental encoder,rotary encoder,photoelectric encoder,absolute encoder,handwheel encoder,hollow shaft encoder,solid shaft encoder,optical encoder disk,encoder sensor,mini rotary encoder,servo motor encoder,absolute rotary encoder,quadrature encoder,dc motor encoder,elevator encoder,cnc spindle encoder,motorized rotary encoder and etc.
DONGHE rotary encoder waterproof 10mm shaft encoder incremental sensor
OMB rotary encoder 5mm axis encoder equivalent to encoder ISC3806
Donghe Solid Shaft Rotary Encoder 5000 PPR Incremental Optical Encoder 5000 pulse 5000ppr Line driver 24V
PKT6312-360-G10-30F optical rotary incremental encoder 360 PPR optical rotary encoder disc
LG Elevator Encoder LG/PKT1040-1024-C15C for elevator parts
Donghe 6mm Plastic Flexible Coupling Coupler Rotary Encoder coupling electric Stepper motor shaft coupling
Our Company
Changchun Donghe Optics & Electronics Co., Ltd was established in June 1992. It has been in the field of encoder for 25 years. It engaged in product development, manufacturing, sales and after-sales services, is the leading manufacturer of encoder in China. The company focuses on the development of new products and has a professional R & D team of 20 technicians, who will continue to develop high-tech encoders. Meanwhile, customized encoders are also available.
The company manufactures hundreds of encoders. The LF, LMA, LEC, PKT and PAW series are widely used on CNC, electric motor, lift, textile equipment and etc. The products have passed the certification of GB/T19001-2000 and ISO9001:2000.
Donghe has been the domestic supplier for over 20 years for many famous companies such as Shenyang Machine Tools, SIGMA elevator, Suzhou Fuji precision elevator and so on.
From the year of 2017, Changchun Donghe Optics & Electronics Co., Ltd has come to the global market. Hoping to establish a friendly and long term cooperation with friends from all over the world.
Packing & Delivery
Our Service
1. The questions about the encoder will be answered within 24 hours.
2. One-stop solution will offer to meet all your requirements on budget, designing and shipment.
3. Update the procession of manufacturing.
4. Warranty 12 months: Free replacement of defective products within 12 months.
FAQ
Q1:Can I have a sample for testing?
A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you.
Q2:Can I add my logo on the encoder ?
A:Yes,OEM and customized encoder are available for us.
Q3:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us. If it is the men-made problems,we also send the spare parts,but you should pay.
Q4 :Do you have inspection procedures for encoder ?
A:100% self-inspection before packing
Q5:Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Here is our factory address: No. 1906 04D Nanhu Road,Changchun City ,Jinlin Province.We can pick you up in the airport.
