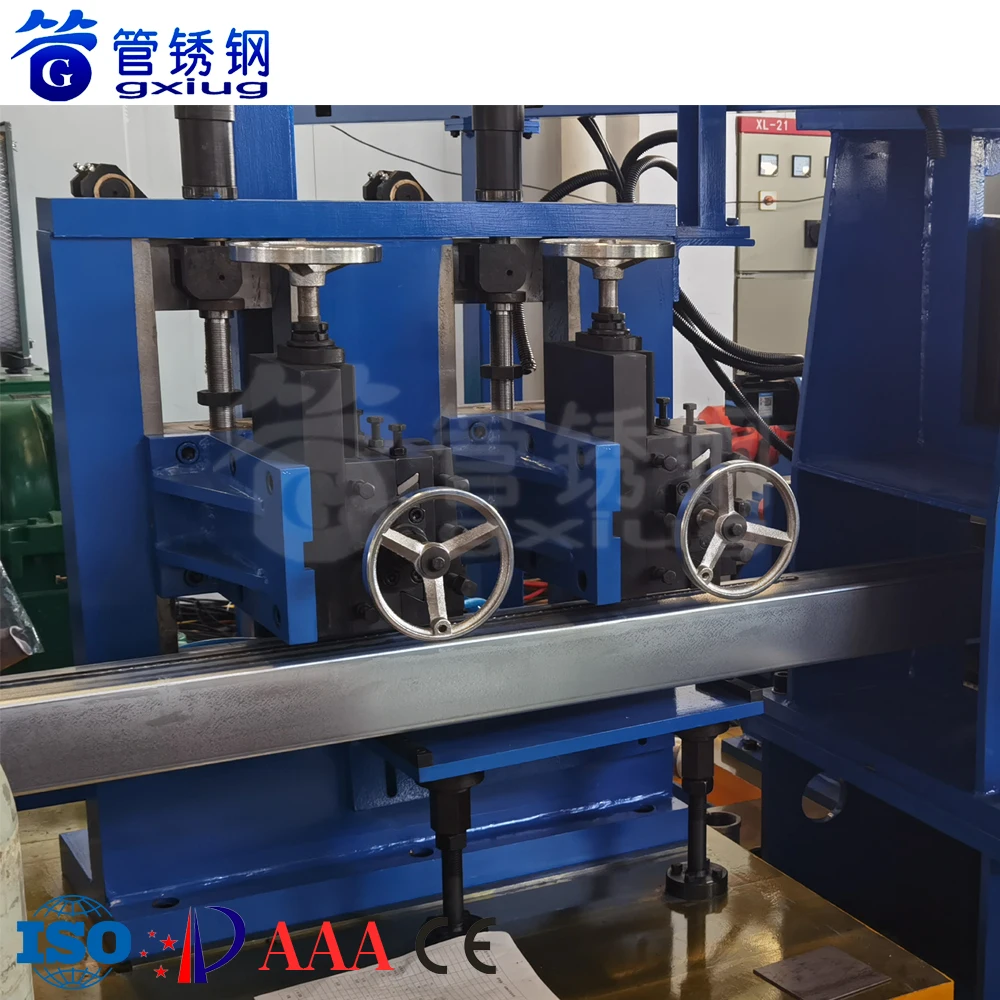

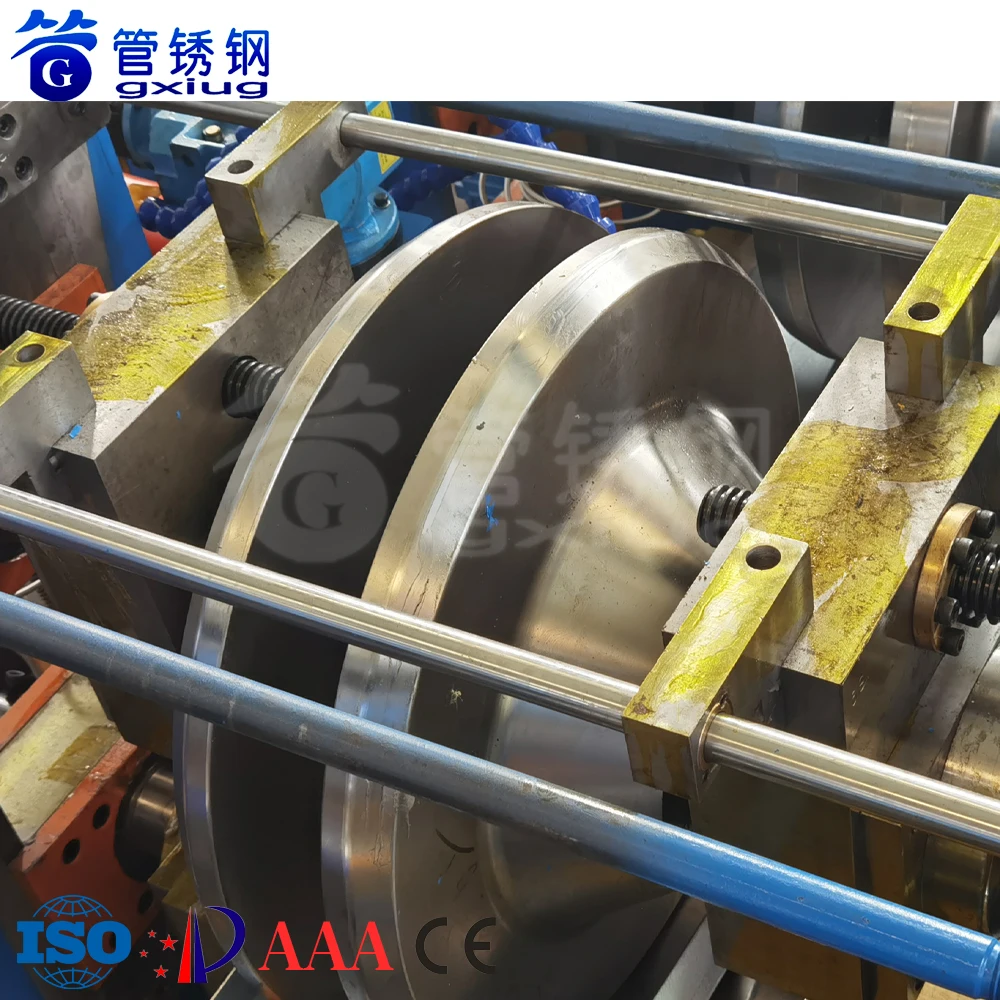

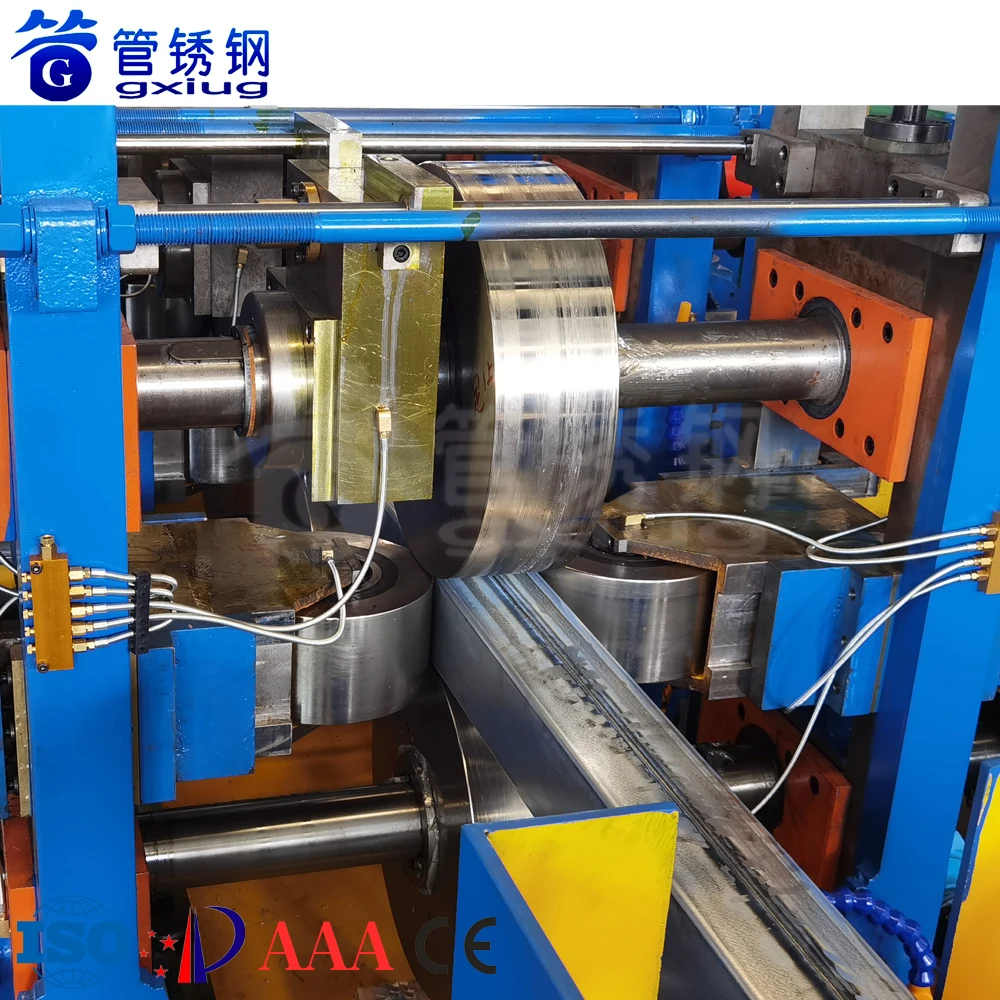

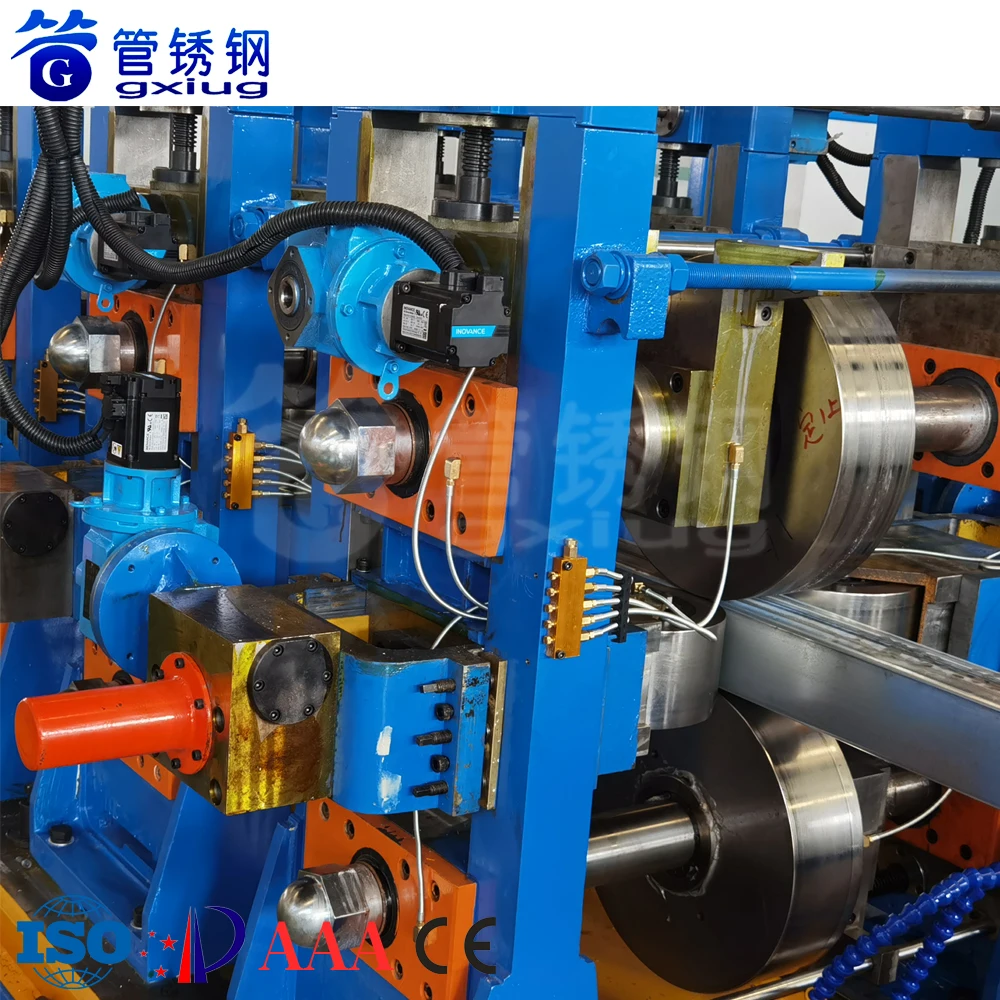

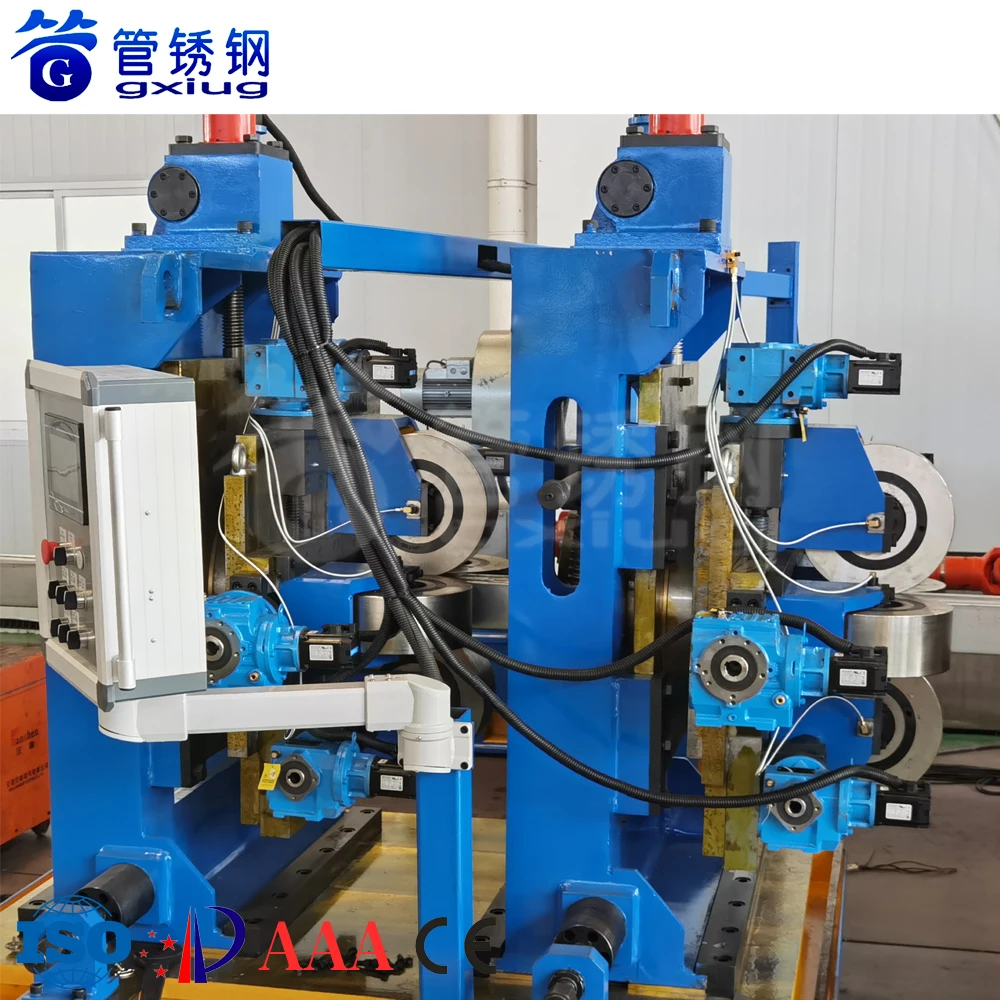

GXG Direct Square Forming Of Carbon Steel Galvanized High Frequency Pipe Welding Machine ERW Tube Mill Without Change Mold

Product Overview

Description



TUBE MATERRIAL:Stainless steel, Iron, Carbon steel, Galvanized, etc.

PIPE SHAPE:Round Circle, Square, Rectangle, Special shape, etc.

50*50 — 100*100 mm

1 — 5 mm

USDAGE:Water pipe / Fluid pipe / Petrochemical pipe / Aerospace Automobile pipe /Drinking food grade pipe/Hygienic grade pipes Etc

MODEL	GXG-25	GXG-32	GXG-50	GXG-65	GXG-76	GXG-114	GXG-127
Round Tube Range (mm)	Ø8-25	Ø12-32	Ø20-50	Ø32-65	Ø32-76	Ø50-114	Ø65-127
Square Tube Range (mm)	20*20	10*10- 25*25	15*15-40*40	25*25-50*50	25*25- 60*60	40*40-90*90	50*50-100*100
Wall Thickness Range (mm)	0.2-1.0/0.7	0.3-1.2/0.8	0.5-1.8 / 1.2	0.5-2.0 / 1.5	0.5-2.5 / 2.0	1.0-4.0 / 3.0	1.0-4.5 / 3.5
Horizontal Shaft Diameter(mm)	Ø40	Ø40	Ø45	Ø50	Ø60	Ø70	Ø80
Vertical Shaft Diameter(mm)	Ø25	Ø25	Ø25	Ø30	Ø35	Ø50	Ø55
Main Motor Power(kw)	37	45	90	110	132	200	132*2
High Frequency Power(kw)	100	100	150	150	200	300	350
Speed(m/min)	110	110	100	100	100	80	70
Installation Dimension(L*W  m)	30*4	32*4	35*4.5	37*5	40*5.5	55*6	60*6
Rated Voltage(v)	220 / 380/ 415 / 440
