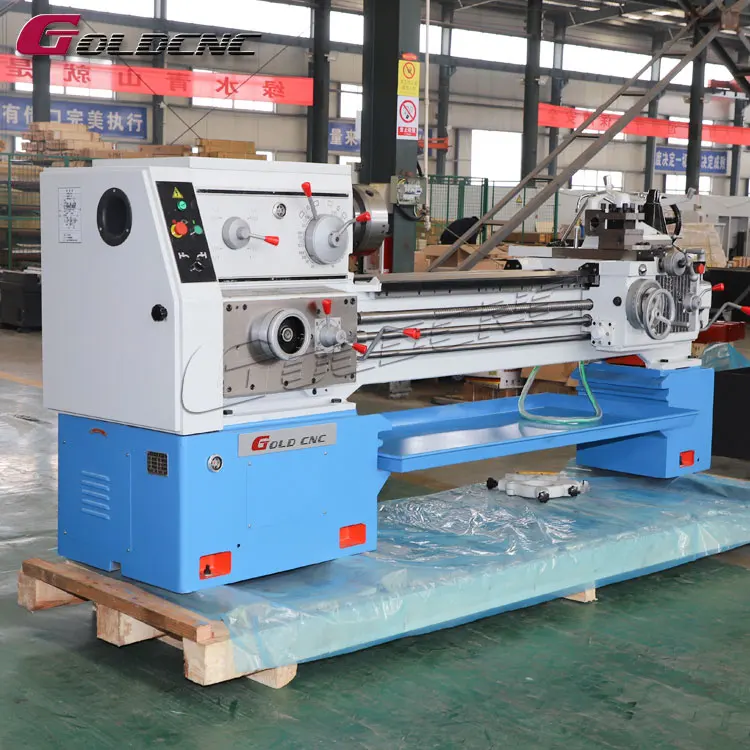

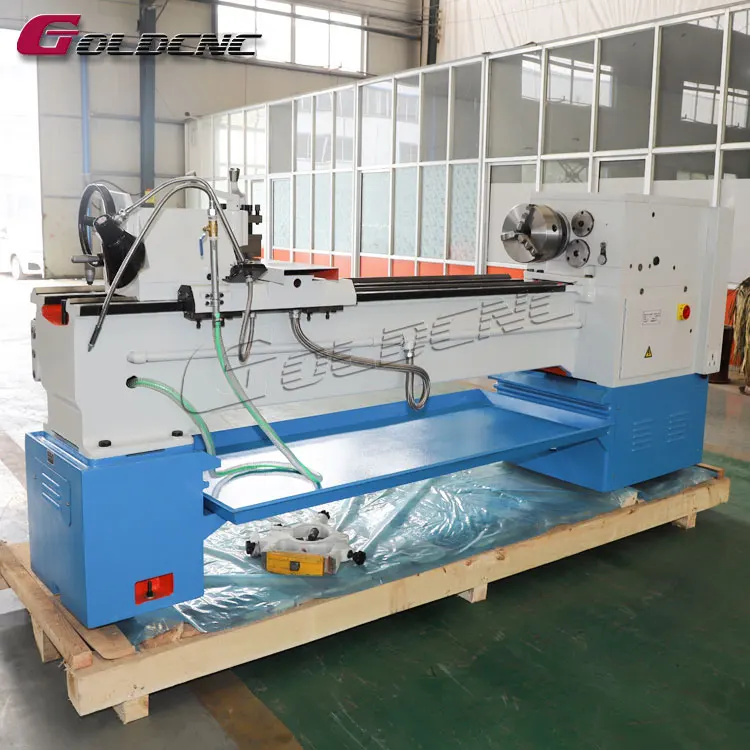

GOLDCNC Best Industrial Metal Lathe CA6150 Manual Precision Horizontal Lathe Machine
- Category: >>>
- Supplier: Shandong GOLD CNC Machine Tool Co. Ltd.
Share on (1601201749515):
Product Overview
Description
Products Description
GOLDCNC have a well-developed lathe machine production system to meet various proces-sing demands.
Flat Bed Lathe Machine Series:
CA--Horizontal lathe machine;
CAK--CNC lathe machine;
Slant Bed CNC Lathe Machine Series:
DS--Dual Spindle lathe machine;
TMC--CNC turning and milling combination;
Flat Bed Lathe Machine Series:
CA--Horizontal lathe machine;
CAK--CNC lathe machine;
Slant Bed CNC Lathe Machine Series:
DS--Dual Spindle lathe machine;
TMC--CNC turning and milling combination;
Product Parameters
Specifications | CA6140 | CA6150 | CA6161 | CA6180 | |||||
Max. Workpiece Diameter of Bed | 400mm | 500mm | 610mm | 800mm | |||||
Max. workpiece diameter of tool holder | 220mm | 300mm | 370mm | 540mm | |||||
Max.Workpiece Length | 750/1000/1500/2000/2200/3000/4000mm | ||||||||
width of bed | 400mm | ||||||||
Cutter rod section | 25×25mm | ||||||||
Spindle axis | Spindle speed range | 16-1400rpm(24steps) | |||||||
Spindle bore | 52mm 、(80mm)、[105mm] | ||||||||
Mores | No.6(MT6)(Φ90 1:20)[Φ113:20] | ||||||||
feed | Feed Quantity | (64 kinds)(for each) | |||||||
Metric thread | (1-192mm) (44 kinds) | ||||||||
English thread | (1-24tpi) (21kinds) | ||||||||
Modular thread | 0.25-48(module 39 kinds) | ||||||||
Diameter thread | 1-96DP(37 kinds) | ||||||||
Tailstock | Tailstock spindle travel | 150mm | |||||||
Tailstock spindle diameter | 75mm | ||||||||
Taper of tailstock spindle hole | Morse NO.5 (MT5) | ||||||||
Main motor | 7.5KW(10HP) | ||||||||
Package dimensions | length 750mm | 2440×1140×1750 | |||||||
length 1000mm | 2650×1140×1750 | ||||||||
length 1500mm | 3150×1140×1750 | ||||||||
length 2000mm | 3650×1140×1750 | ||||||||
length 2200mm | 4030×1140×1750 | ||||||||
length 3000mm | 4800×1140×1750 | ||||||||
length 4000mm | 4800×1140×1750 | ||||||||
weight | Length | G.W./N.W.(KG) | |||||||
Length 750mm | 2170 /2060 | ||||||||
Length 1000mm | 2260/ 2140 | ||||||||
Length 1500mm | 2420 /2290 | ||||||||
Length 2000mm | 2790/ 2640 | ||||||||
Length 2200mm | 2940/ 2790 | ||||||||
Length 3000mm | 3450/ 3300 | ||||||||
Length 4000mm | 3750/ 3600 | ||||||||

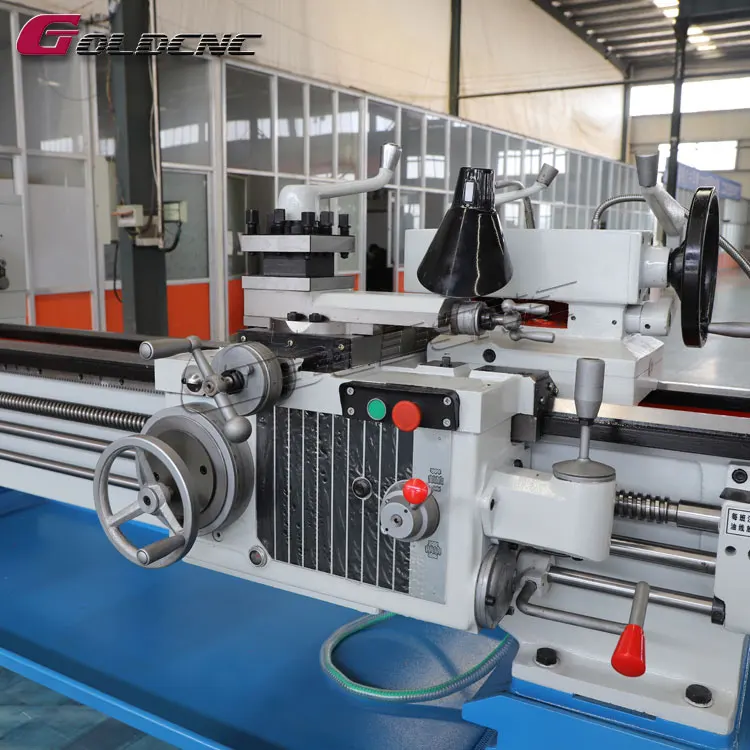

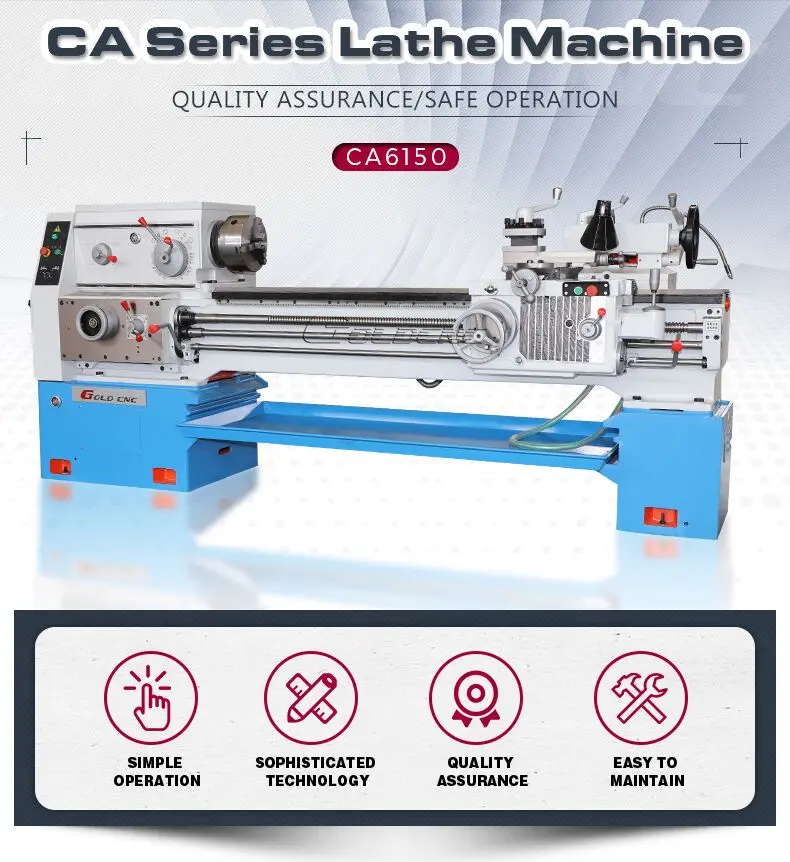

Horizontal Lathe Machine Features:
Horizontal lathe is suitable for internal and external turning. tapering. and other rotating faces, metric. module and inch threads,as well as drilling and pull oil slot. The lathe bed is wider than normal machine, owns high rigidity, guide face after high frequency quenching. with high durability.Easy operated, one handle to operate quite convenient.Own high rigidity in both structure and transfer parts, high percent the use of power make the machine cutting easily.Detailed Images
Headstock：
●High rigidity and high rotation accuracy.
●Automatic transmission control box.
●High rigidity and high rotation accuracy.
●Automatic transmission control box.
Tool Holder ：
●Machine tool adopts four-station high strength tool holder.
●Tool-handle size:25x25mm.
●Tool-handle size:25x25mm.

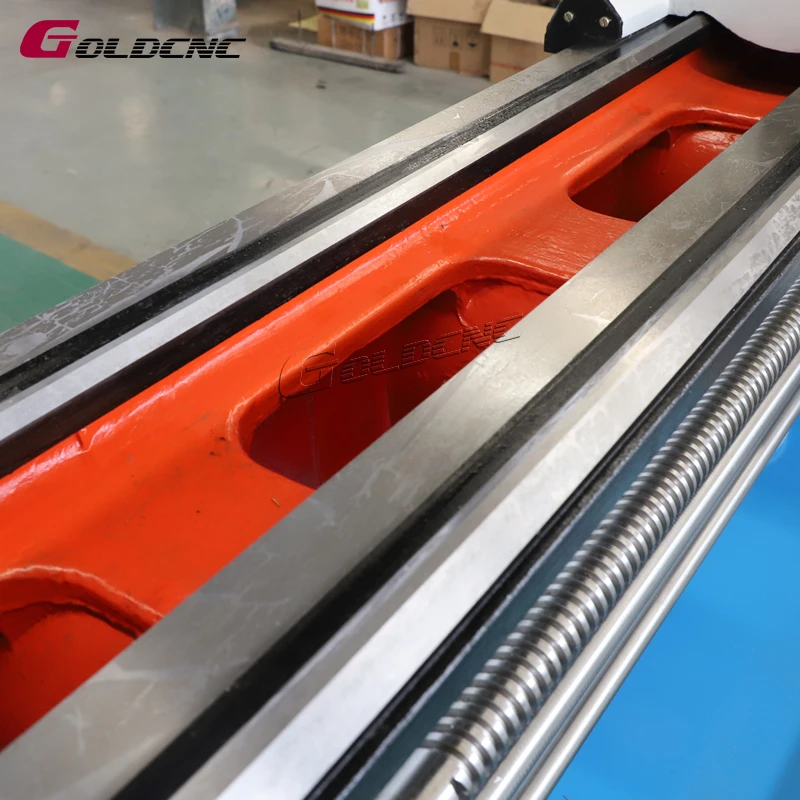

Bed Guideway：
●Super audio frequency quenching guide rail.
●Good wear resistance.
●Good wear resistance.

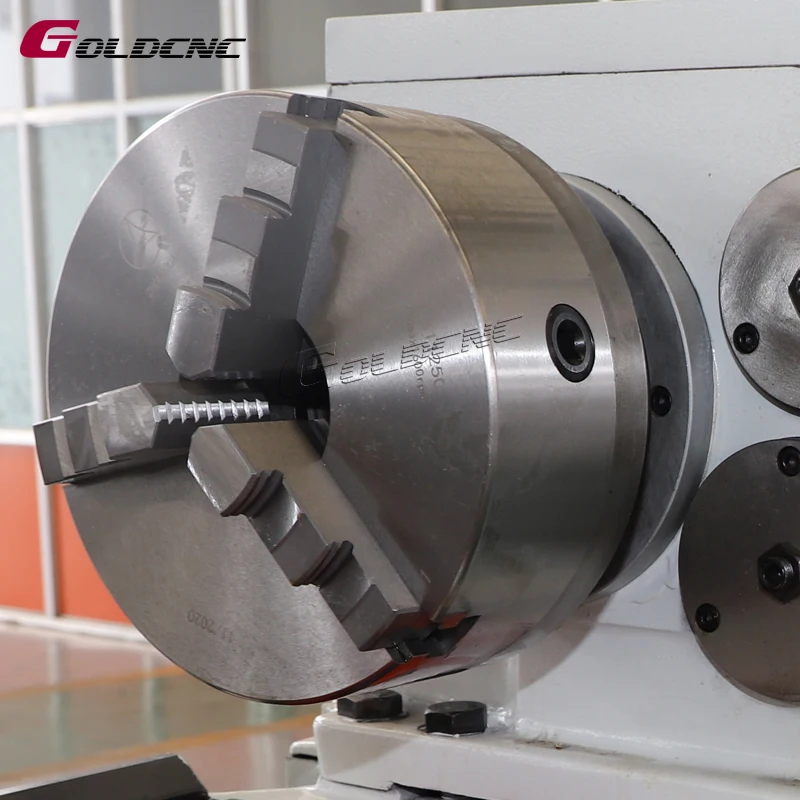

Chuck：
●Metal three jaw chuck .
●Conducive to clamping irregular workpiece for rapid production.
●Metal three jaw chuck .
●Conducive to clamping irregular workpiece for rapid production.

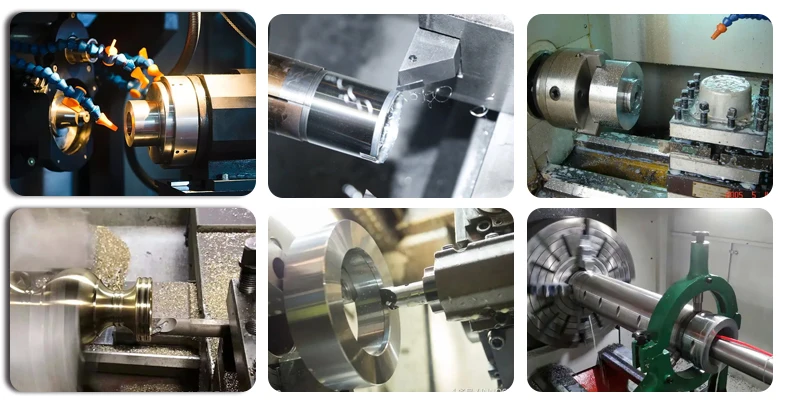

One-site Demonstration
GOLDCNC CA series ordinary horizontal lathe is suitable for turning internal and external cylindrical surfaces, conical surfaces and other rotating surfaces, turning all kinds of metric, British, modulus and diameter pitch threads, drilling and broaching oil grooves. It is a highly versatile horizontal lathe, which is widely applicable to the batch processing of various shaft and disc parts.
More Lathe Macahine

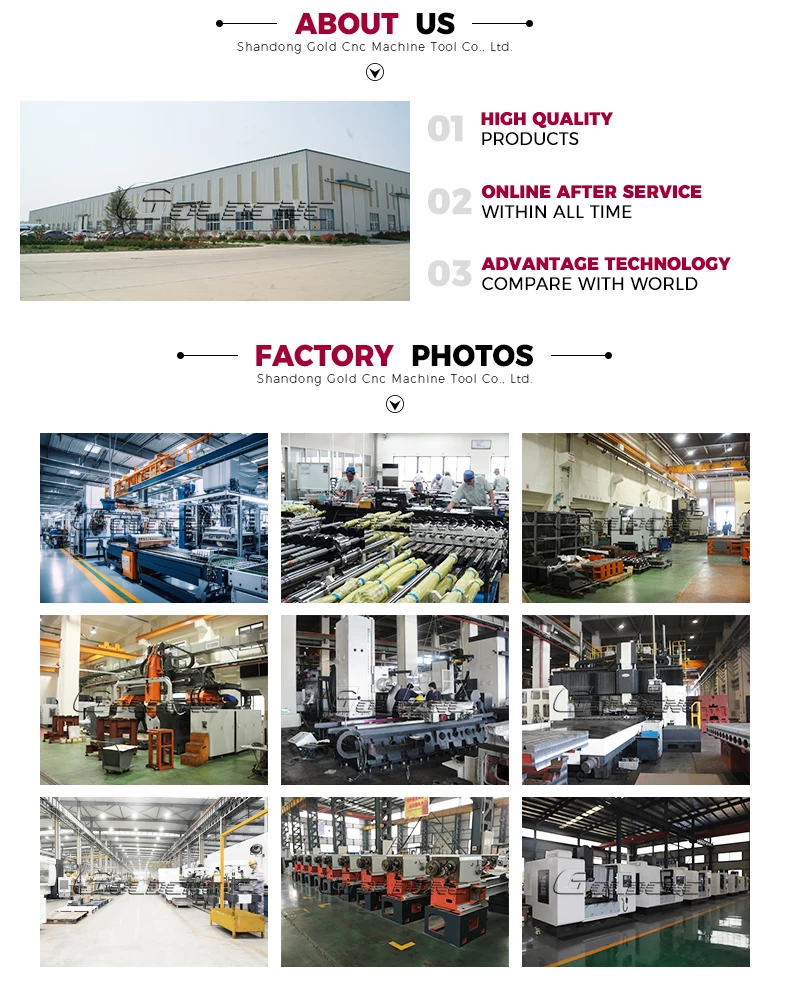

Company Profile
VR
Established in 1988,Shandong GOLD CNC Machine Tool Co.， Ltd. ， a machine tool manufacturer with more than 30 years experience， is a professional manufacturer engaged in the research, development, production, sale and service of CNC milling machine, CNC sawing machine, CNC bending machine，milling machine, drilling machine, lathe.Selling well wordwide, we have obtained CE certificates, our products are also exported to more than 80 countries and regions , such as the Argentina, Peru,Brazil, Chile and Colombia.We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
Packing&Shipping
Our Services
1.About Placing An Order：
We accept T/T payment.
You can pay via bank transfer.
Alibaba:Citibank,JPMorgan
China Construction Bank RMB Account ,China Construction Bank USD Account.
China Construction Bank RMB Account ,China Construction Bank USD Account.
2.About Freight Service:
Assemble and debug before delivery.We have our cooperative forwarders which can provide shipping solutions.Both ocean shipping and land transportation are available.
3.About Shipping：
Our ocean freight services cover major ports around the world, with a wide variety of routes to meet your different needs, and a route coverage rate of 95%!
4.About Inspection：
Please open the box and inspect the goods on the spot after receiving the goods. If there is any damage or other problems, please contact us as soon as possible.
5.About After-Sales Service
Provide 2- year Warranty.
In the warranty time , free for breakdown parts.
24-hours technical support .
Equipment for life maintenance.
6.About The Cooperation
Our mechanical company's R&D team has over 36 years of industry experienc-e and has successfully launched over 50 best-selling products, which are highly recognized by the market.
FAQ
1. What is your company positioning?
GOLDCNC, dedicated to precision equipment manufacturing. Intelligent manufacturing, innovation sharing.
2. What is your manufacturing foundation?
GOLDCNC has a 15,000 square meter constant temperature assembly workshop and 100 tons of medium temperature ash tempering effect furnace. Kuraki boring and milling machine from Kurashiki, Japan, DIXI precision coordinate boring machine from Switzerland, precision rail grinder, high-speed laser cutting machine, fully computerized automatic sheet metal spraying line and other processing machines and complete sets of equipment are provided to provide strong guarantee for production machine tools.
3. How do you do quality control?
GOLDCNC develops and implements strict quality management internal control standards to achieve close monitoring of the entire machine tool design and manufacturing process. 45 inspection and testing items, 632 quality control points, 48-hour high-speed full-stroke load processing test. Germany's ZEISS three-coordinate measuring instrument, Britain's RENISHAW laser interferometer and other world-quality precision testing equipment are used to ensure the precise control of machine tool details.
4. What are your specific product processes?
Our machine tool bed, saddle, table, column, headstock and other main castings are made of cast iron and resin sand, and processed through multiple aging processes to make the machine tool extremely rigid and stable. The guide rail of the machine tool adopts a rectangular sliding guide rail, and the guide surface is subjected to high-frequency hardening treatment, and is grinded by a guide rail grinding machine. Has good accuracy retention. The guide rail is attached with anti-wearing sheet, which has small friction coefficient and strong bearing capacity.
5. What is your market advantage?
We provide not only machine tools, but one-stop solutions for machine tools.
6. Do you have after-sales service, and how to do it?
The whole machine is guaranteed for 2 years, and the service is responded immediately. Currently, we have established service agencies in some countries. In countries and regions that have not been established, we will actively and promptly solve problems for users as appropriate, and provide technical service support through telephone and video. If necessary, they will go to the customer site for on-site service.
7.What's the trade assurance?
When you look at our alibaba website, you will see the trade security, its purpose is to let every buyer confidence, it can
protect your payment, ensure that the suppliers fulfill their commitment to the date of shipment and the quality of the products (as you stated in the purchase order).If the supplier finds breach of these contractual obligations, alibaba will indemnify you for 100% of your trade guarantee.Therefore, I believe that through trade guarantees, you will have greater confidence to cooperate with us. Our company has US $300000 trade assurance limit, it can guarantee your interests.
8.Do your products support trade assurance?
Yes, our products are all supported.
GOLDCNC, dedicated to precision equipment manufacturing. Intelligent manufacturing, innovation sharing.
2. What is your manufacturing foundation?
GOLDCNC has a 15,000 square meter constant temperature assembly workshop and 100 tons of medium temperature ash tempering effect furnace. Kuraki boring and milling machine from Kurashiki, Japan, DIXI precision coordinate boring machine from Switzerland, precision rail grinder, high-speed laser cutting machine, fully computerized automatic sheet metal spraying line and other processing machines and complete sets of equipment are provided to provide strong guarantee for production machine tools.
3. How do you do quality control?
GOLDCNC develops and implements strict quality management internal control standards to achieve close monitoring of the entire machine tool design and manufacturing process. 45 inspection and testing items, 632 quality control points, 48-hour high-speed full-stroke load processing test. Germany's ZEISS three-coordinate measuring instrument, Britain's RENISHAW laser interferometer and other world-quality precision testing equipment are used to ensure the precise control of machine tool details.
4. What are your specific product processes?
Our machine tool bed, saddle, table, column, headstock and other main castings are made of cast iron and resin sand, and processed through multiple aging processes to make the machine tool extremely rigid and stable. The guide rail of the machine tool adopts a rectangular sliding guide rail, and the guide surface is subjected to high-frequency hardening treatment, and is grinded by a guide rail grinding machine. Has good accuracy retention. The guide rail is attached with anti-wearing sheet, which has small friction coefficient and strong bearing capacity.
5. What is your market advantage?
We provide not only machine tools, but one-stop solutions for machine tools.
6. Do you have after-sales service, and how to do it?
The whole machine is guaranteed for 2 years, and the service is responded immediately. Currently, we have established service agencies in some countries. In countries and regions that have not been established, we will actively and promptly solve problems for users as appropriate, and provide technical service support through telephone and video. If necessary, they will go to the customer site for on-site service.
7.What's the trade assurance?
When you look at our alibaba website, you will see the trade security, its purpose is to let every buyer confidence, it can
protect your payment, ensure that the suppliers fulfill their commitment to the date of shipment and the quality of the products (as you stated in the purchase order).If the supplier finds breach of these contractual obligations, alibaba will indemnify you for 100% of your trade guarantee.Therefore, I believe that through trade guarantees, you will have greater confidence to cooperate with us. Our company has US $300000 trade assurance limit, it can guarantee your interests.
8.Do your products support trade assurance?
Yes, our products are all supported.
