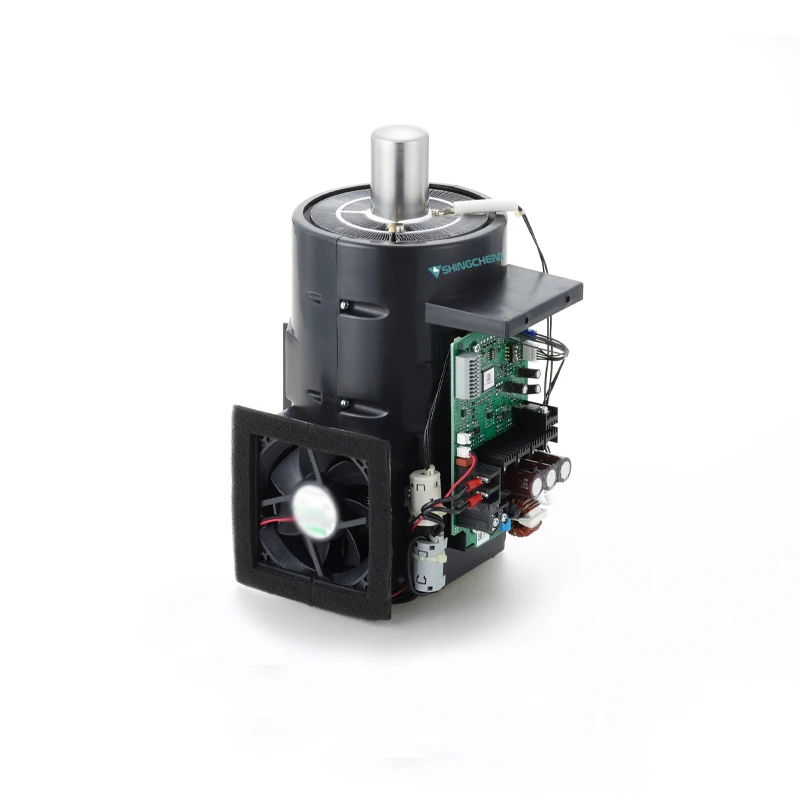

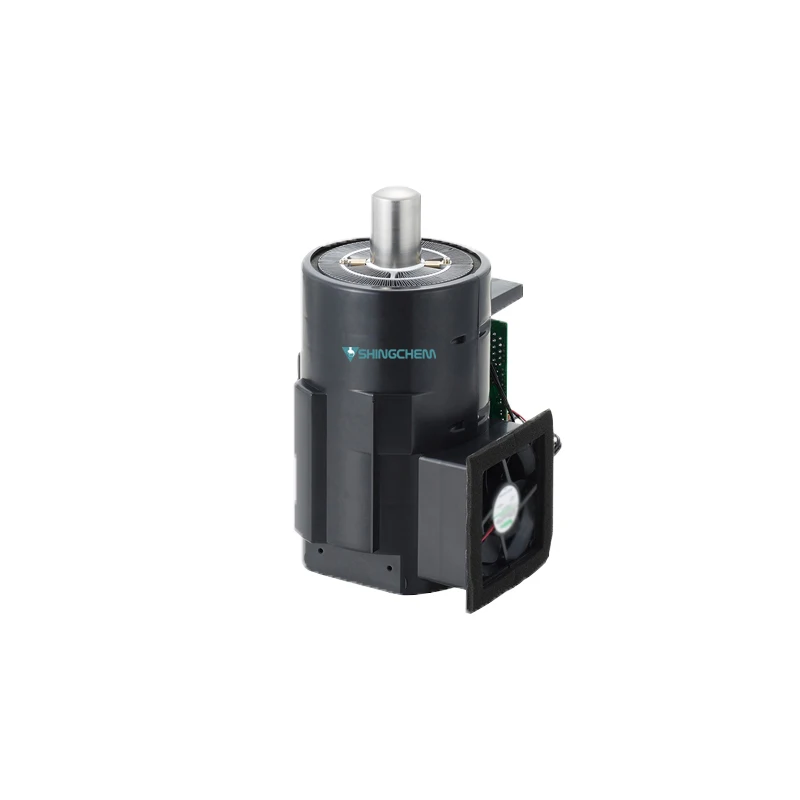

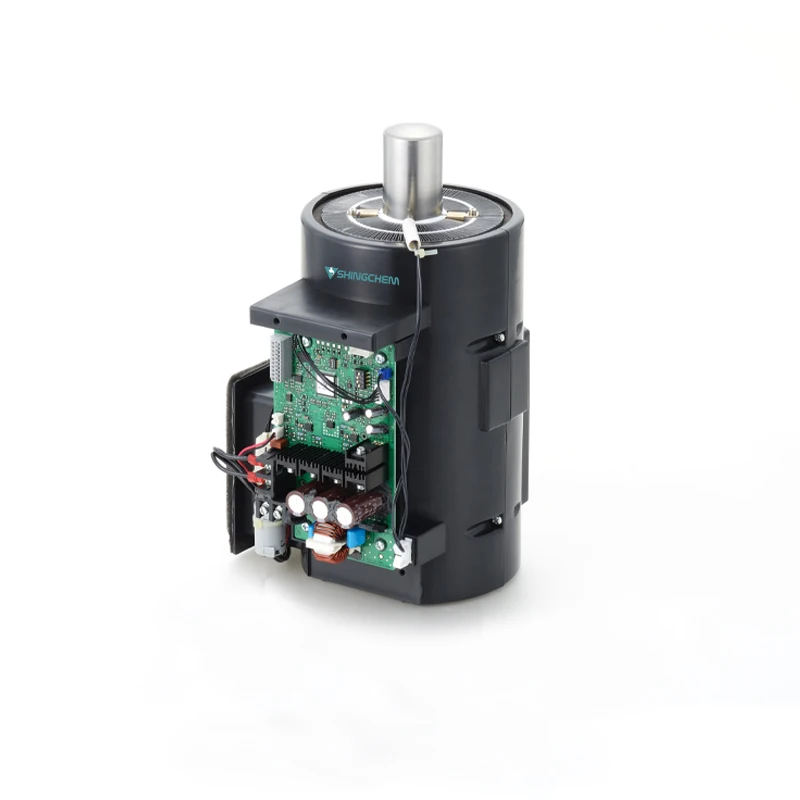

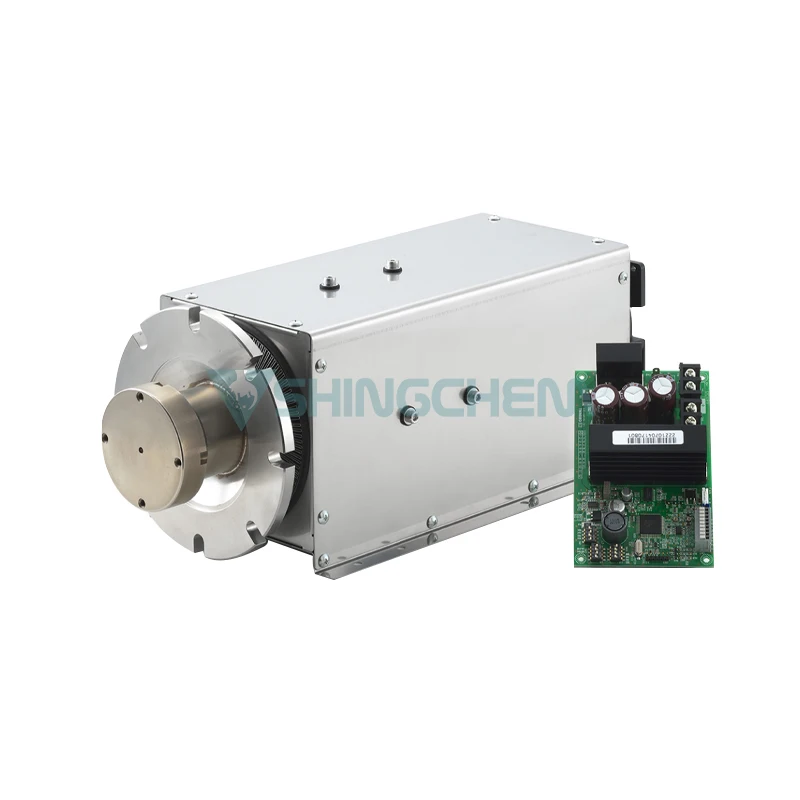

3.6kg Cryocooler 24V Standard Sterling Cryocooler 3.6 kg from China Compact Cryocooler
- Category: >>>
- Supplier: Shandong Shing Chemical Co. Ltd.
Share on (1601201755612):
Product Overview
Description
PRODUCT DESCRIPTION
The Use Of Safe And Environmentally Friendly Helium As a Refrigerant, The International Advanced Free Piston Stirling Technology, Wide Temperature Zone, ±01℃ Accurate Temperature Control, Small Size And Convenient To
Carry, Is Very Suitable For The Development And Use Of Miniaturized Deep Temperature Transport Applications.
Carry, Is Very Suitable For The Development And Use Of Miniaturized Deep Temperature Transport Applications.
This Product Uses Helium As The Refrigerant, So It Is a Green Product. It Is Small In Size, Light In Weight And Easy To Carry, And Is Widely Used In Fields Requiring Precise Temperature Control.

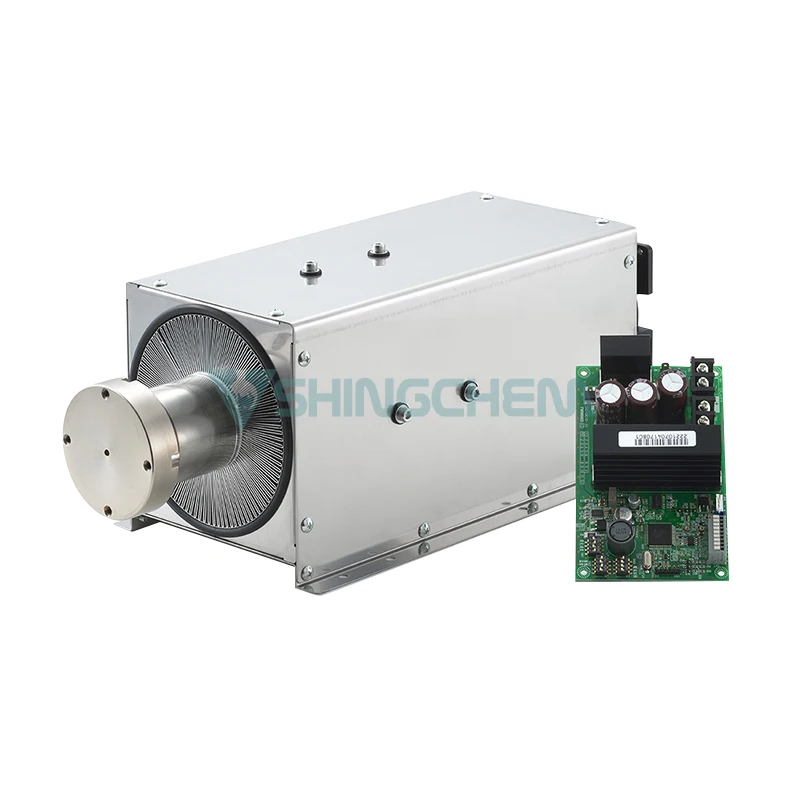

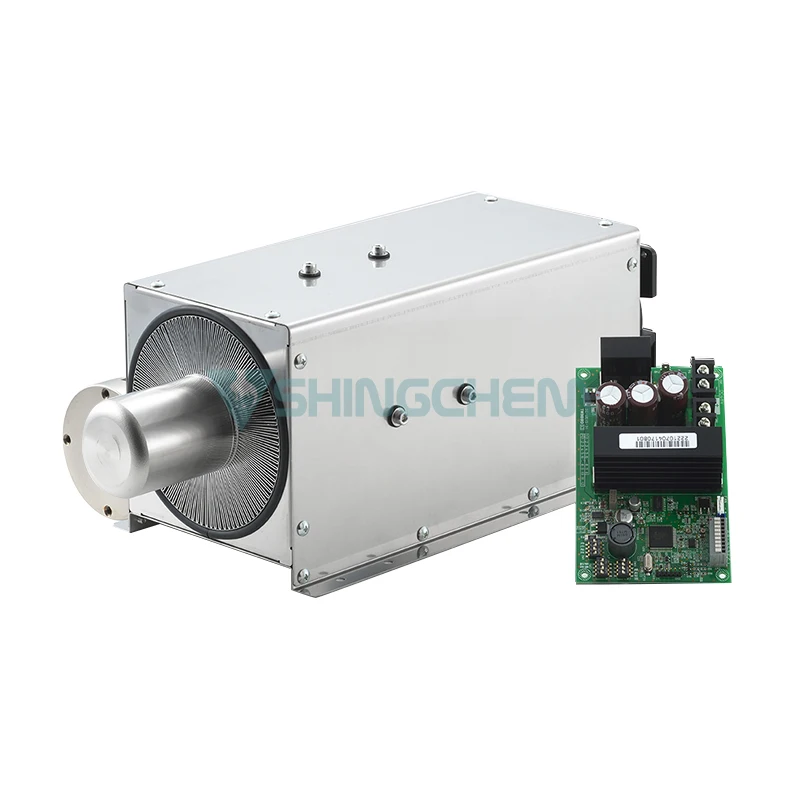

Product Specifications | Standard Sterling Cryocooler | High Power Sterling Cryocooler For Vacuum Space | High Power Sterling Cryocooler With Cooling Head Installed As Standard | High Power Sterling Cryocooler |
Size | WDH：175 x 190 x 290（mm） | W H L: 180 x 170 x 435 (mm) | WHL：180 x 160 x 435（mm） | WHL：180 x 160 x 430（mm） |
Weight | 3.6 kg | 12 kg | 9 kg | 8.5 kg |
Power Supply Voltage | DC 24 V | DC 48 V | DC 48 V | DC 48 V |
Maximum Current | 10 A | 9 A | 9 Amp | 9 Amp |
Cooling Capacity | 25 W (at -80°C cooling unit temperature) (Ambient temperature: 25°C) | 15 Watts At -100°C At Cooling Head(Ambient Temperature: 25°C) | 42.5 Watts At -80°C At Cooling Head (Ambient Temperature: 25°C) | 42.5 Watts At -80°C At Cooling Head (Ambient Temperature: 25°C) |
Operating Temperature Range | 0℃〜35℃ | 0℃～40℃ | 0℃〜40℃ | 0℃〜40℃ |
The Set Temperature Of The Cooling Unit | -20°C Or Less | -20°C Or Less | -20°C Or Less | -20°C Or Less |
Noise | 50 dB(A) (Steady, 1 m Distance From Cooler) | 55 dB(A) (Steady, Distance: 1 m Horizontally From Cooler) | 55 dB(A) (Steady, Distance: 1 m Horizontally From Cooler) | 55 dB(A) (Steady, Distance: 1 m Horizontally From Cooler) |
Accessory | Drive Board/Cold Side Adapter | Drive Board | Drive Board | Drive Board |
COMPANY PROFILE
SHINGCHEM IS THE BIGGEST REFRIGERANT GAS SUPPLIER IN NORTH CHINA, AND TOP 5 FAMOUS BRAND IN CHINA, IT EXPORTS TO OVER 120 COUNTRIES. THE MAIN PRODUCTS INCLUDE R134A, R134A REPLACEMENTS, R404A, R407C, R410A, R507 AND R600A. MOST OF OUR PRODUCTS HAVE INTERNATIONAL APPROVALS, SUCH AS CE, DOT, KGS, SGS AND REACH. OUR GOOD QUALITY AND PERFECT SERVICES HELP US EARN A HIGH REPUTATION FROM CLIENTS IN EUROPE, SOUTH AMERICA, THE MIDDLE EAST, SOUTHEAST ASIA AND AFRICA.
CERTIFICATIONS
EXHIBITION
OUR TEAM GROUP
CONTACT US
FAQ
1. WHAT IS THE PRICE?
PRICE OF REFRIGERANT DEPENDS ON SEASONS AND THE MARKET. IT CHANGES CONSTANTLY. HOWEVER, AS A MANUFACTURER, THE PRICE WE GIVE IS WORTH ITS QUALITY.
PRICE OF REFRIGERANT DEPENDS ON SEASONS AND THE MARKET. IT CHANGES CONSTANTLY. HOWEVER, AS A MANUFACTURER, THE PRICE WE GIVE IS WORTH ITS QUALITY.
2. QUALITY
WE CAN PROVIDE DIFFERENT STANDARDS AS YOUR REQUIREMENT. WE HAVE SUPERIOR QUALITY AND FIRST GRADE QUALITY.
WE CAN PROVIDE DIFFERENT STANDARDS AS YOUR REQUIREMENT. WE HAVE SUPERIOR QUALITY AND FIRST GRADE QUALITY.
3.PAYMENT
WE CAN ACCEPT T/T AND L/C, OTHER METHODS NEGOTIABLE.
WE CAN ACCEPT T/T AND L/C, OTHER METHODS NEGOTIABLE.
4. DO YOU HAVE DIFFERENT PACKAGE?
WE CAN PROVIDE FAMILIAR 30LB/50LB CYLINDER, 926L TON-TANK AND ISO TANK. AND THE PRINT ON THE BOX AND CYLINDER CAN BE MADE BY YOUR REQUIREMENT.
5.CAN WE BUY A SAMPLE?
NOT RECOMMEND. REFRIGERANT IS HAZARDOUS GOODS THAT CAN'T BE SENT BY AIR. WE CAN ONLY SEND TO YOU BY SEA. SO THE FREIGHT COST IS BETTER TO BE TAKEN INTO CONSIDERATION.
WE CAN PROVIDE FAMILIAR 30LB/50LB CYLINDER, 926L TON-TANK AND ISO TANK. AND THE PRINT ON THE BOX AND CYLINDER CAN BE MADE BY YOUR REQUIREMENT.
5.CAN WE BUY A SAMPLE?
NOT RECOMMEND. REFRIGERANT IS HAZARDOUS GOODS THAT CAN'T BE SENT BY AIR. WE CAN ONLY SEND TO YOU BY SEA. SO THE FREIGHT COST IS BETTER TO BE TAKEN INTO CONSIDERATION.
