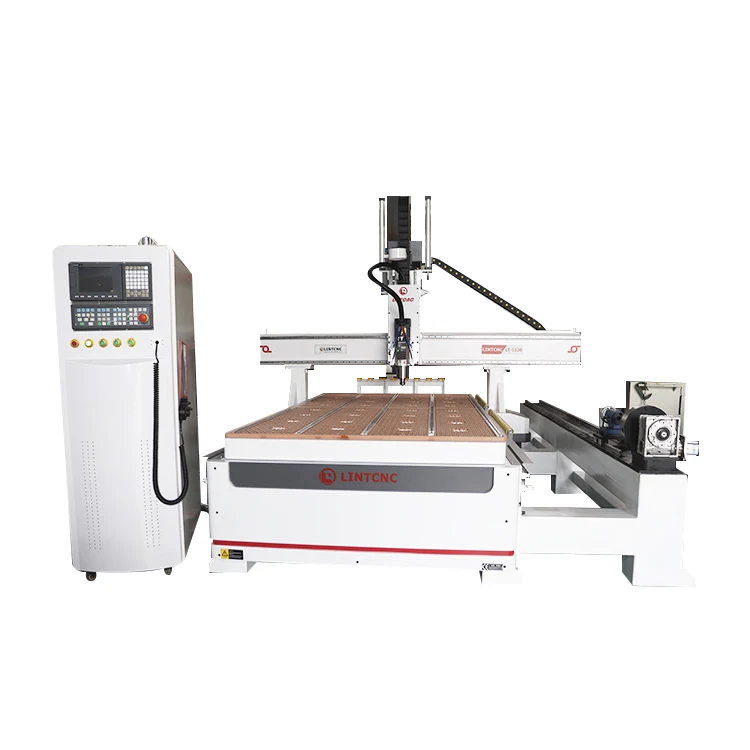

4*10ft Discount 1325 2130 ATC automatic Desktop Wood Cnc Router Milling Machine For Shoes Mold Woodworking Metal Aluminum
4*10ft Discount 1325 2130 ATC automatic Desktop Wood Cnc Router Milling Machine For Shoes Mold Woodworking Metal Aluminum
4*10ft Discount 1325 2130 ATC automatic Desktop Wood Cnc Router Milling Machine For Shoes Mold Woodworking Metal Aluminum
4*10ft Discount 1325 2130 ATC automatic Desktop Wood Cnc Router Milling Machine For Shoes Mold Woodworking Metal Aluminum
4*10ft Discount 1325 2130 ATC automatic Desktop Wood Cnc Router Milling Machine For Shoes Mold Woodworking Metal Aluminum
4*10ft Discount 1325 2130 ATC automatic Desktop Wood Cnc Router Milling Machine For Shoes Mold Woodworking Metal Aluminum
4*10ft Discount 1325 2130 ATC automatic Desktop Wood Cnc Router Milling Machine For Shoes Mold Woodworking Metal Aluminum

4*10ft Discount 1325 2130 ATC automatic Desktop Wood Cnc Router Milling Machine For Shoes Mold Woodworking Metal Aluminum

Share on (1601201765729):


Price:$10,000.00 - $11,000.00

Quantity:


Product Overview

Description



Products Description


4*10ft Discount 1325 2130 ATC automatic Desktop Wood Cnc Router Milling Machine For Shoes Mold Woodworking Metal Aluminum

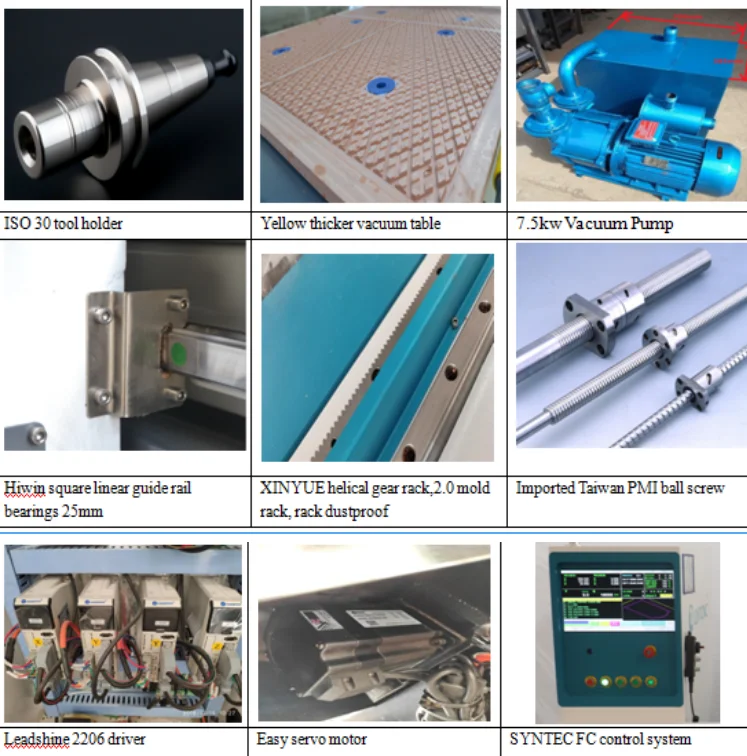

Main configuration:
1.Working table: Thicker vacuum table
2.Machine structure: Thickened strong steel gantry with steel square tube frame 8mm thickness with 6 legs and the level base
3.Spindle: 9kw ATC air cooling spindle
4.Tools magazine: Linear type automatic tool changer magazine with 8 tools
5.Control system: Leadshine KL control system
6.Motors&drives: Leadshine1500w servo drives&hybrid servo motors
7.Reducer: Japan Shimpo reducer
8.Tool sensor: Automatic tool sensor
9.Guide rail: Hiwin linear square guide rail
10.Lubrication system: Automatic lubrication system
11.Dust collector: Dual bags dust collector














Specification


Model

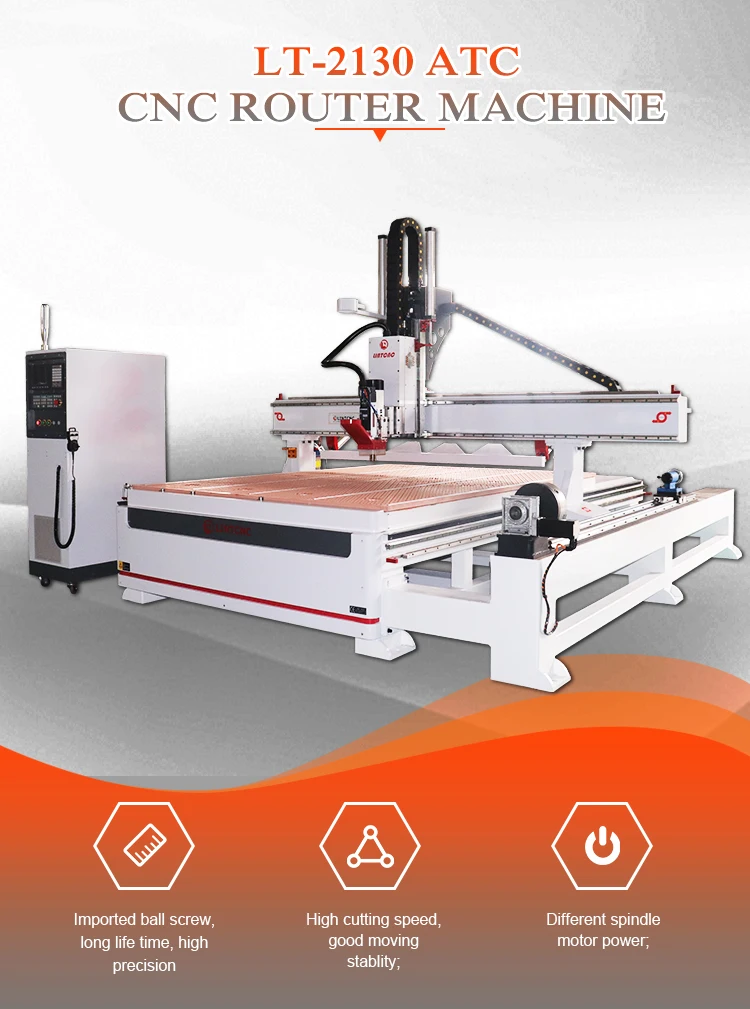

LT-2130 ATC wood CNC Router
Working area
2100(X)*3000(Y)*200(Z)mm
Machine structure
Thickened strong steel gantry with steel square tube frame 8mm thickness with 6 legs and the level base
Table surface
Yellow thicker vacuum table with 7.5kw vacuum pump
Spindle
9.0KW ATC air cooling spindle
Spindle rotating speed
0-24000 rpm
Tool holder size
ISO 30 tool holder
Tools magazine
Linear tool changer magazine on the gantry with 8 tools
Driving method
X,Y axis structure: Xinyue Helical rack and pinion drive, Taiwan Hiwin rail linear bearing 25mm(HGR)
Z axis structure: Taiwan TBI ball screw 25mm, Taiwan Hiwin rail linear bearing 25mm(HGR)
Motors and drivers
Leadshine 1500w servo drive & hybrid servo motor
Control system
Leadshine KL control system
Reducer
Japan SHIMPO reducer
Invert
Shenzhen ET invert
Tool sensor
Automatic tool sensor
Lubrication system
Automatic lubrication system
Dust collector
Dual bag dust collector to suck the processing dust
Max. idling speed
60m/min
Max. working speed
25m/min
Working Accuracy
<0.05/300mm
Instruction format
G code *.u00 *.mmg *.plt
Working voltage
AC380V,3 phase,50-60Hz
Standard software
Artcam2010
Compatible software
Type3/Castmate/Coreldraw/AutoCAD and other CAM/CAD software
Control Cabinet
Big Independent control cabinet
Accessories
Oiling system; English Manuals; Tool Box
44 Switch and emergency stop: Switch and emergency stop: SCHNERDER switch,
Om Omron emergency stop from Japan.
Optional parts
1. Italian 9KW HSD air cooling spindle:+US$3000
2. X2+Y3 position cylinder:+US200
3. Pushing device:+US$200
4. Syntec 6MA control system: +US$750
5. Tool Magazine with 10 tools+US$200/ with 12 tools+US$300;

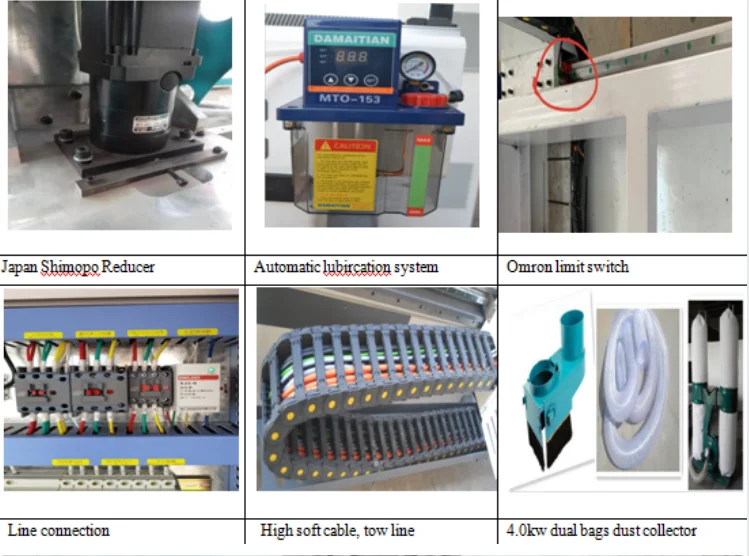

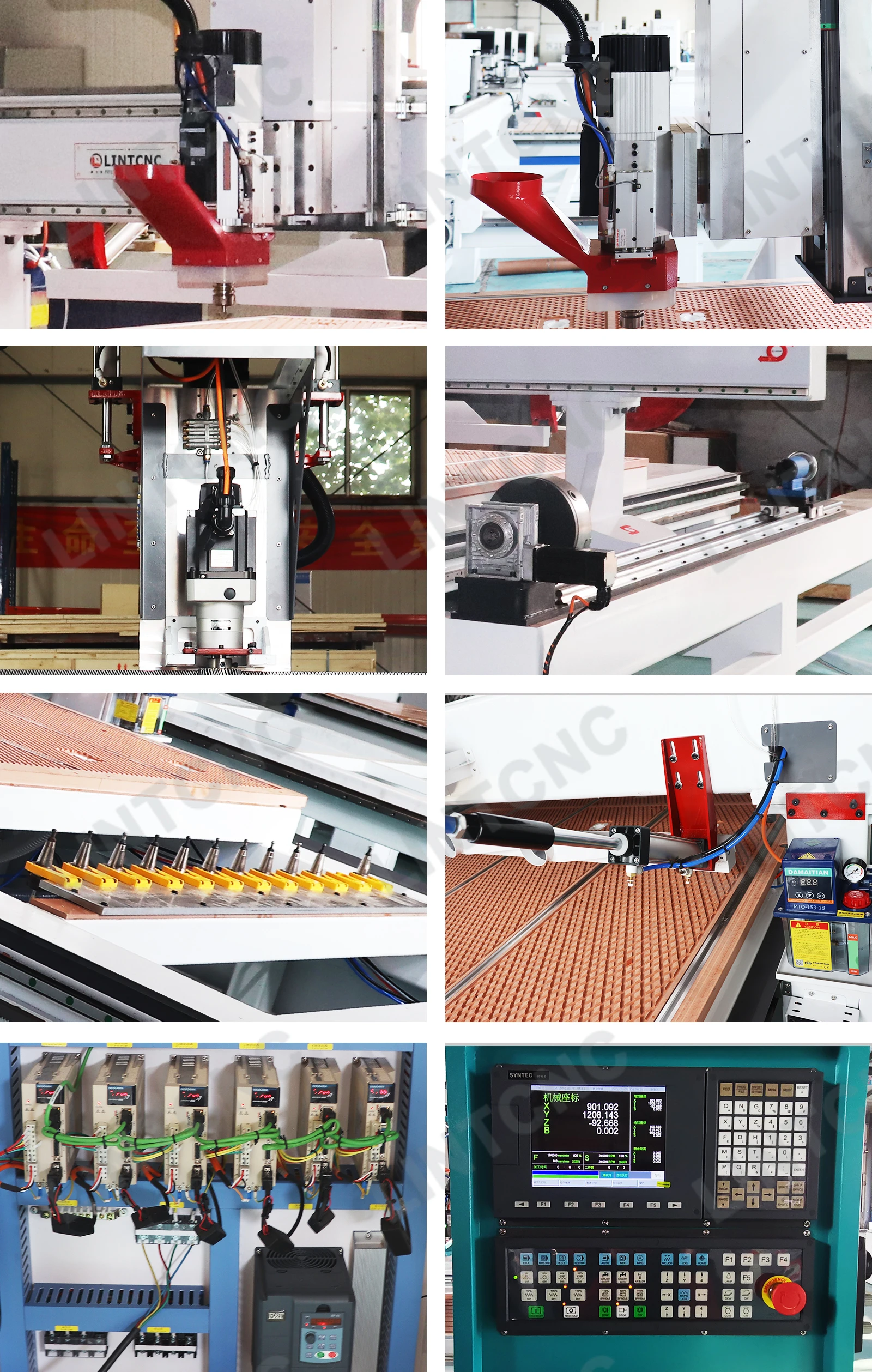

Machine details









1. Advertising industries: engraving, milling and cutting processing for acrylic, PVC, density board, artificial stone, organic glass, plastic and soft metal sheet such as copper and aluminum
2.Arts and crafts industries: engrave on artificial stone, wood, bamboo, marble, organic board, double color board and so on for achieving effects of exquisite patterns and characters
3.Furniture industries:cabinet door, wooden door, solid wood, plate, antique furniture, door, window, desk and chair.
















Sample exhibition


Related video






Our company


Shandong Lintianzhiyuan CNC Equipment Co.,ltd is famous CNC equipment manufacture, located in Jinan, Shangdong. Our company integrates the R&D, product, sale and maintain service. We depend on high tech and quality products to build the world brand.

Our main products:Large-scale(automatic tool change) CNC woodworking engraving machine, CNC advertising machine, CNC stone engraving machine, CNC plasma cutting machine, CNC glass engraving machine, CNC jade engraving machine, CNC metal mold machine,laser cutting&engraving machine, laser seal engraving machine and computer plotter product.

We provide one-stop service, including design, installation, training, commissioning, maintenance and consulting. Your satisfaction is always what we pursue.




Feedback








FAQ




1. I never use this kind of machine before, is it easy to learn?
User-friendly English manual and operation video will be sent together with the machine, if there is still any question, we can talk through phone or Skype.
Morever, you could come to our factory to learn how to use it before shipment. our technicant will give you professional guidance.

2. If the machine has problem, what can you do to help?
Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone. our after-sales staff can come to your workshop if the problem still cannot be fixed.

3. How could I know if this machine is suitable for me?
Before ordering, we will provided every details of the machine for your reference, or you could tell us your work piece, our techniciant will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided.
