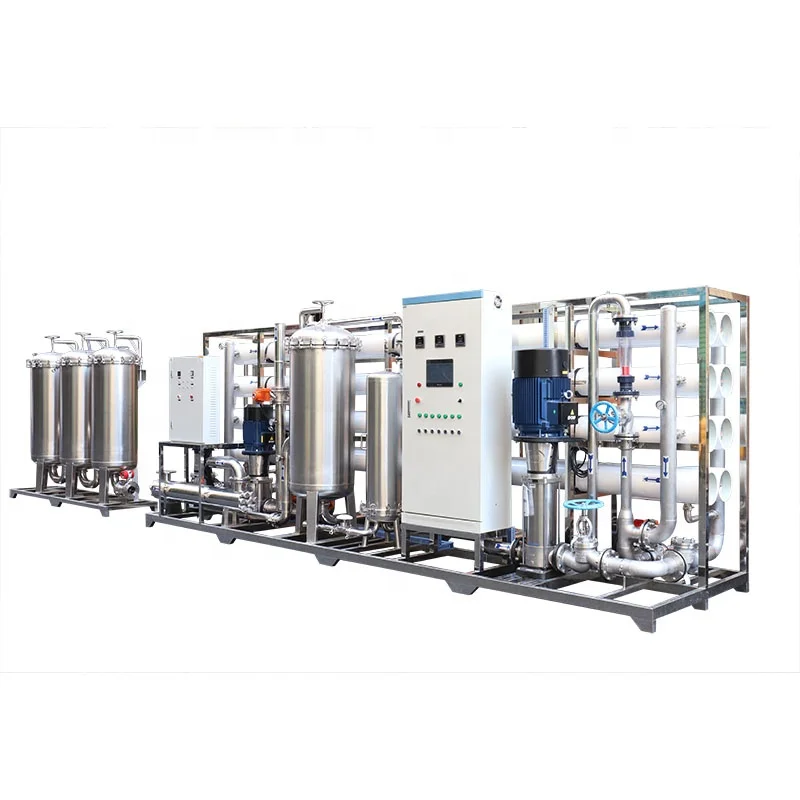

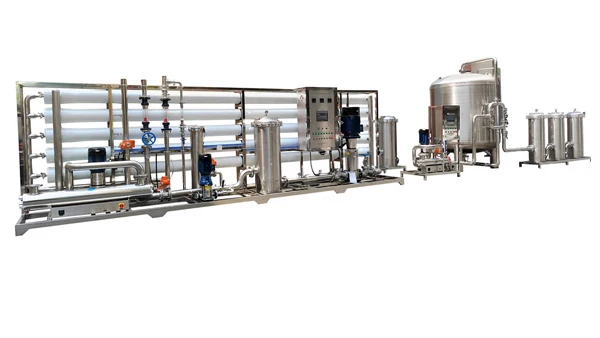

reverse osmosis permeate ro plant 30tph 30 cumbic meter per hour water treatment purifier for brackish well water
- Category: >>>
- Supplier: Guangzhou Kaiyuan Water Treatment Equipment Co. Ltd.
Share on (1601201774574):
Product Overview
Description
reverse osmosis permeate ro plant 30tph 30 cumbic meter per hour water treatment purifier for brackish well water

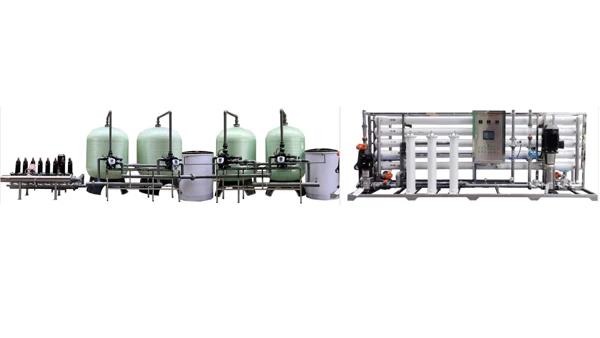

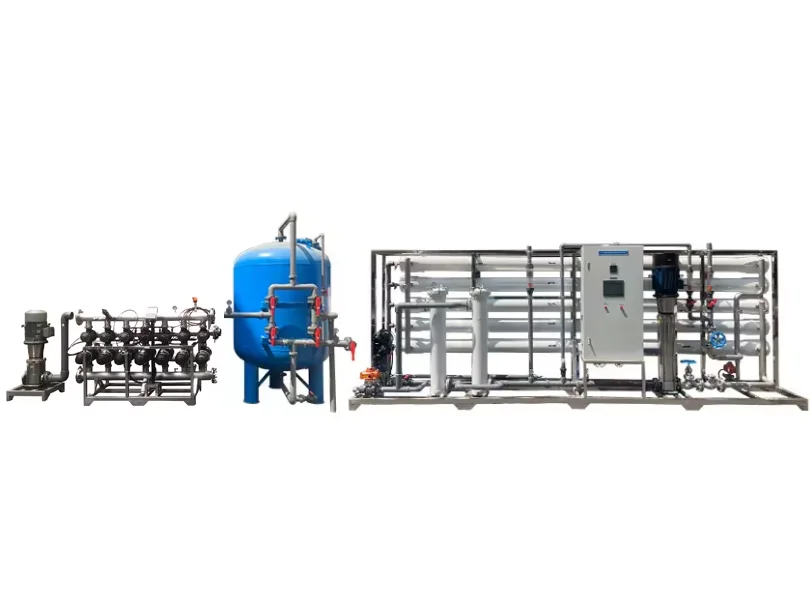

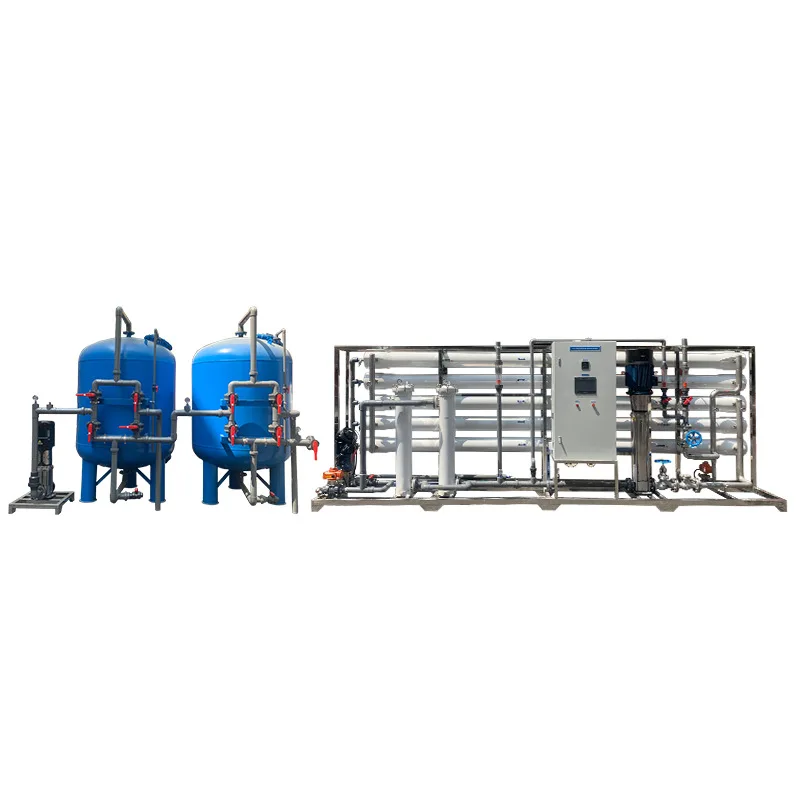

1.System Photos, Brief Introduction
Main and Basis Point for this system:
1.Source water inlet: City tap or river or borehole source water TDS is less than 10000ppm.
2.Capacity: 30Tons per hour
3.Ro output pure water application:Daily consumption or irrigating or food manufacturing ect.
If your source water or capacity or output water application is not same as above, please kindly send the following details to this supplier for suggesting most suitable quotation.1.Your source water details(city water or well water,river/lake water....?). If well/lake/river water, do you have water analysis report for it? better to send water TDS/conductivity?
2.What's the capacity for the RO system you need? (we have experience from 500lph to 180000lph)
3.What's the output water application?(industrial/commercial/agricultural? drinking water? irrigating water? food&beverage company......?
More Technical Points for 1 Stages Ro System | ||||||||
1.Electricity supply: can be 110v-480v, 50hz or 60hz,1 or 3 phases Total power: about 4kw Can be customized | ||||||||
2.Membranes Brands:DOW(Dupont) or Toray, Hydraunatics or Vontron | ||||||||
3.Pre-treatment includes: Raw water pump, multi-media filter, carbon filter and security filters | ||||||||
4.Main Core Part: High pressure pump, Ro system, Uv sterilizer | ||||||||
5.Membranes Protect system: CIP washing system, SEKO Brand anti-scale dosing system | ||||||||
Main Features for the System Design--Convenient and Low Cost but High Efficiency
1.Can run and produce water continuously, highly automatically.
2.No need chemical to regeneration,easy operation and maintain.3.RO system uses imported USA DOW membrane\t
4.Automatic switch on when lack of water,and switch off when no water or full of water\t
5.RO membrane auto wash and reduce the pollution speed.\t
6.Low-pressure switch protects high-pressure pump from damage cause by water supply stops.\t
7.Production water conductivity meter and PH monitors water quality online continuously.
8.Input water and dense water pressure meters, monitor the RO differential pressure and remind the time of washing.

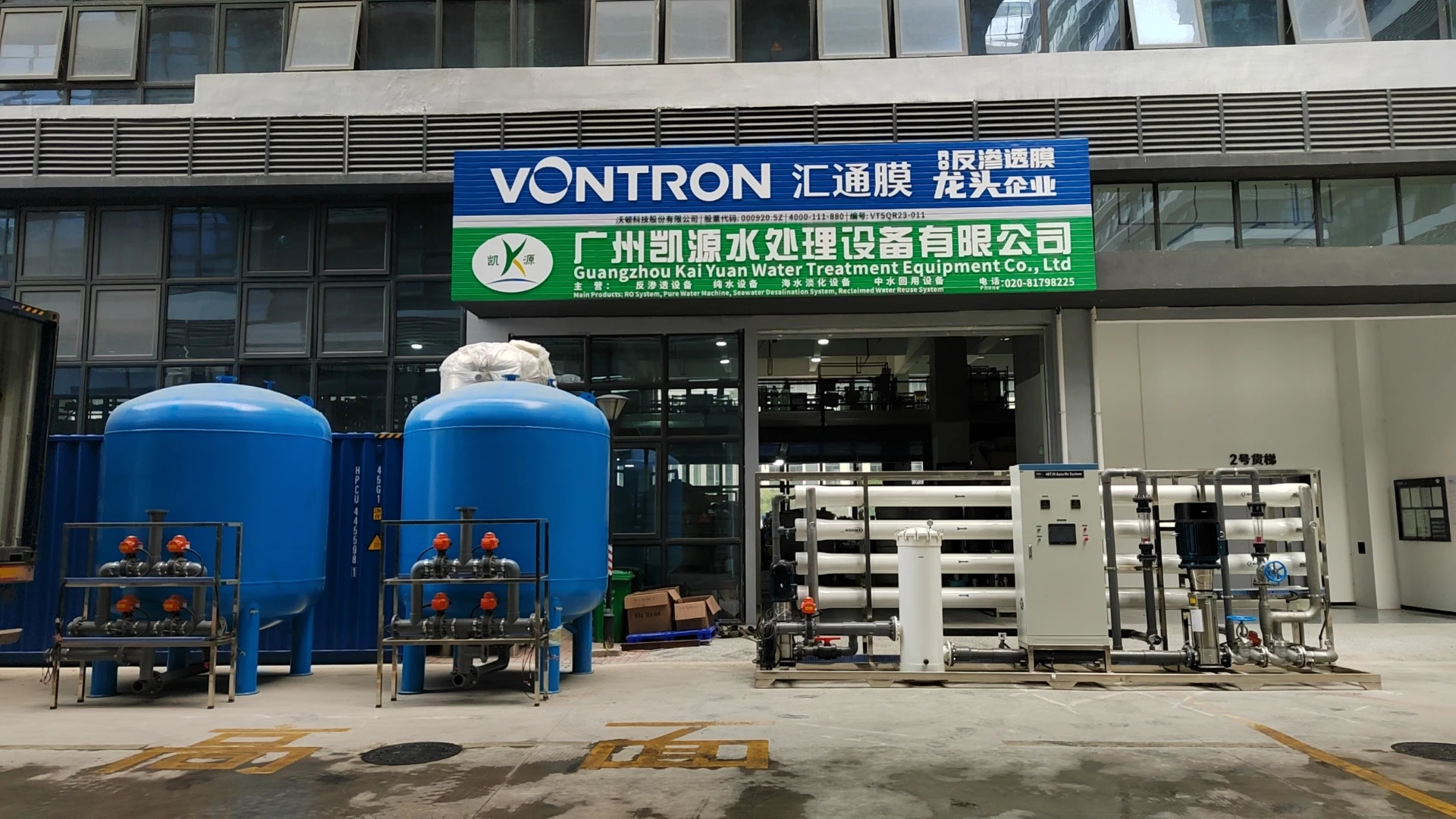

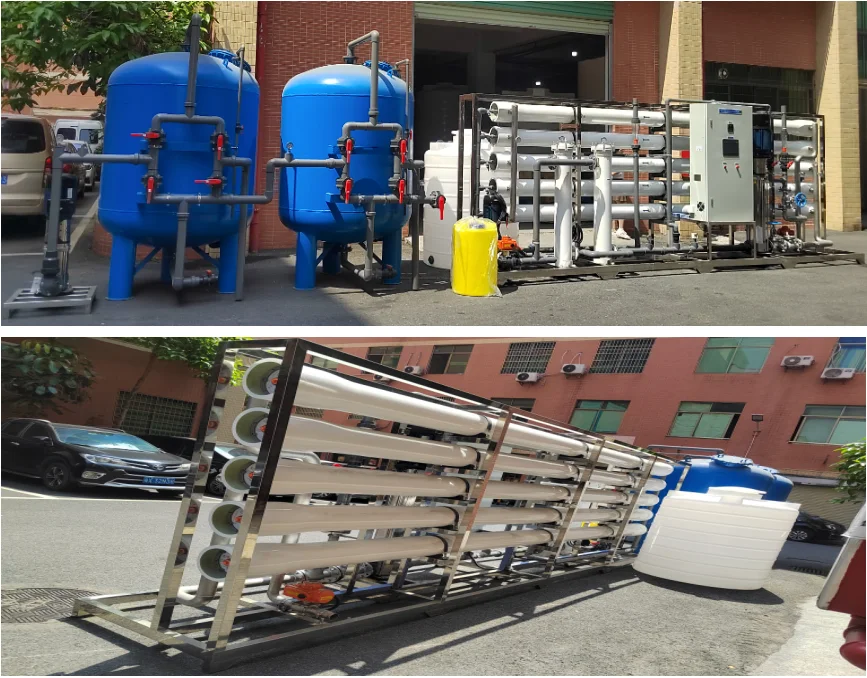

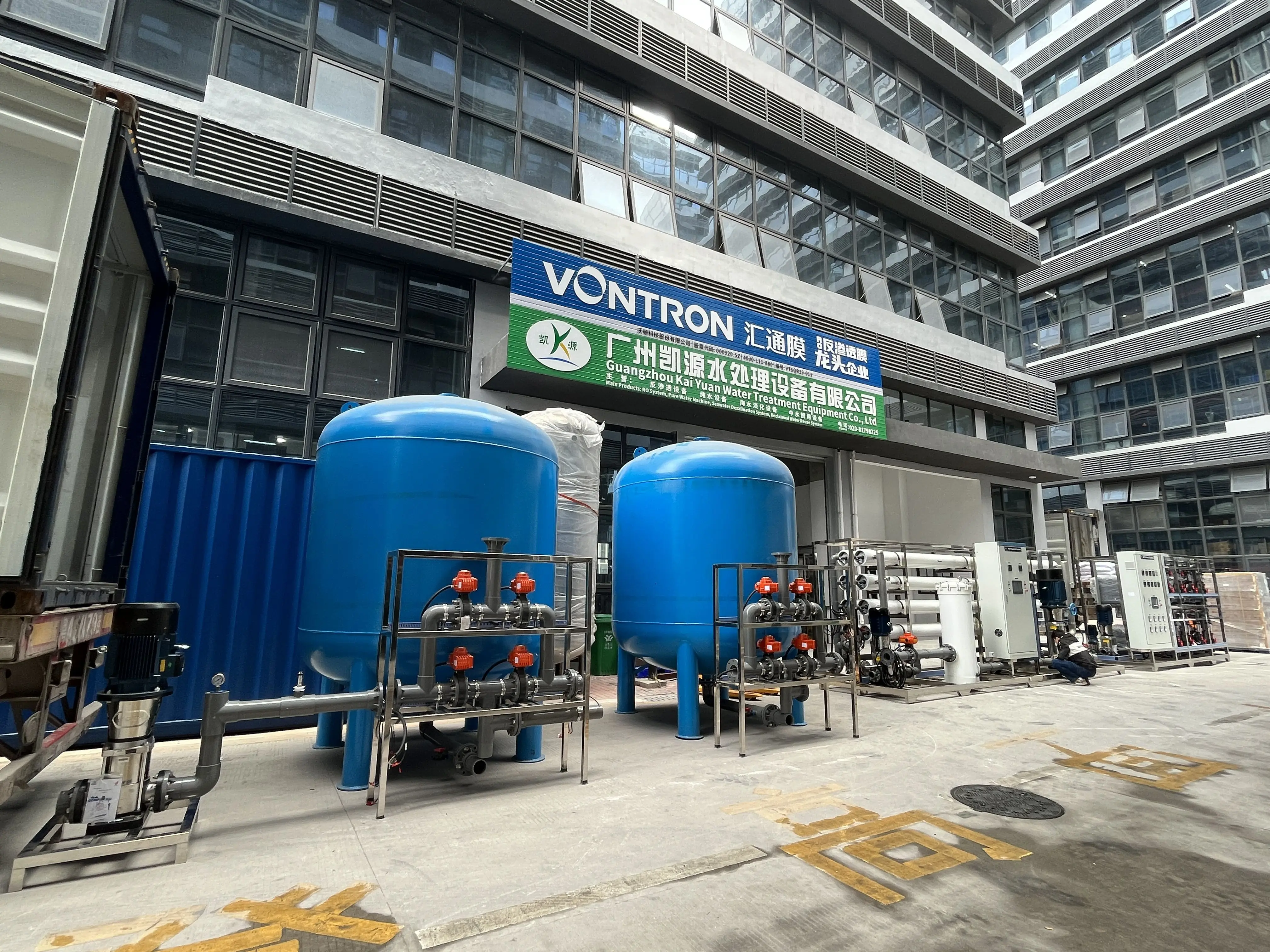

2.Field Installation Photos and Operation Guidance
Operation Guidance |
3 Details Description for this System
The Whole Ro System Working Process Diagram
Part 1: Water Pumps---Raw Water Pumps, CIP washing pumps and High Pressure Pumps
1.Brand: We can offer standard CNP brand, Grundfos or Danfoss.
2.Material: Can be SUS-304 for fresh water purification, or SUS-316 for salty/brackish water desalination.
3.Name and Function: Raw water pump to provide pressure for pre-treatment part, High pressure pump to provide pressure for Ro membranes, CIP Washing pump for membranes maintenance.
Part 2-1: Pre-treatment Filter Tanks--Multi-media filter, Activated carbon filter and Iron(boron, arsenic) removal
Part2-2: Rinse and Backwash Flushing valves for filter tanks--Manual and automatic one for options.
1.Brand: China Rongxintai tanks, and RUNXIN Valves.
2. Material: Can be fiberglass or SUS-304 or SUS-316
Part 3-2: PLC panel--The left photo is inductive operating panel,
For this section, we can customize your company logo and other details outside the electric box.
The inner electricity side, we have SIEMENS program control, Frequency inverter(if necessary), AC contactors, Thermal relay, Fuse box, Air switch, Indicator light, Knob switch, Power switch, Intermediate relay, Sound and light alarm, electrical miscellaneous items, etc.
Part 4: Membrane protection system(Anti-scale dosing) and membrane maintenance system(CIP washing)
1.Anti-scale dosing system(SEKO Italy brand metering pump and yellow PE material tank) to protect the Ro membranes being blocked shortly by using anti-scalant, which will be fully automatically.
2.CIP washing system(CNP washing pump and PE washing tank) to maintain the Ro membranes by adding NaOH and HCL after using about half year, and the membrane are blocked.
4. Spare Parts and Consumbles Descriptions

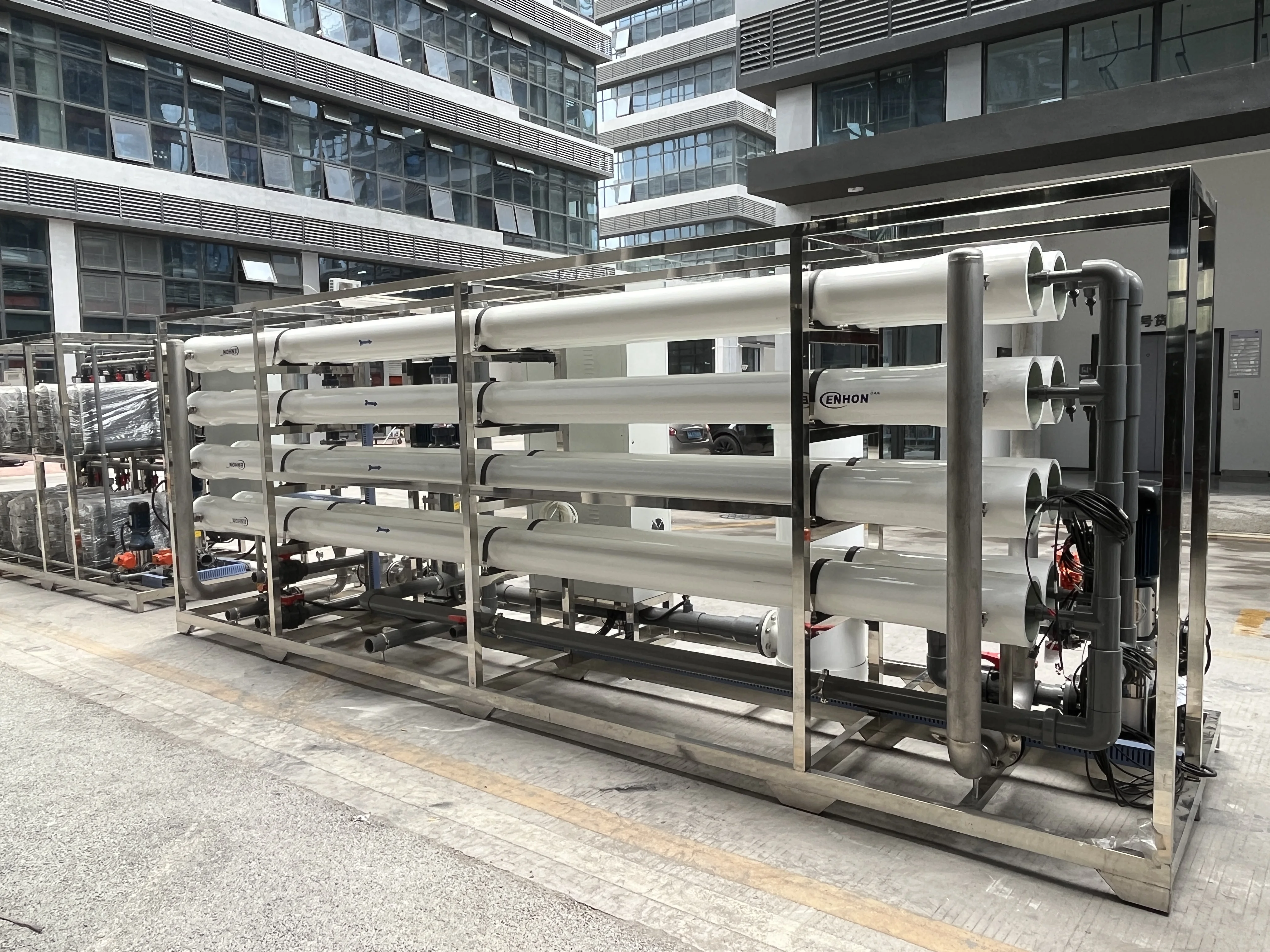

RO membrane housing(vessel) and RO membranes
1.Ro membrane housing(vessel) can be SUS-304 or SUS-316, or FRP, which will suggest according to your requirements or the source water quality.
2.RO membranes: we will have USA DUPONT, or Japanese TORAY and China VONTRON brands for clients choosing.
Security Filter(5um Micro filter) housing and pp filter cartridges(wound filter cartridges, PEFT)
1.Security filter housing:Can be U-PVC for 500lph and 1000lph standard system, or FRP, SUS-304, SUS-316, different material for clients' choosing or design based on clients' source water quality.
2.PP filter cartridges(wound filter cartridges and PEFT) with 5um, 2um, 1um, 0.2um ect. put inside the security filter to remove impurities like colloid or small dirty size large than 5um.--replace every 1 to 3 months.
Consumbles--sand, resin, carbon,manganese sand
1.Quart sand(1-4mm): replace about 2 years, to remove large particles.
2.Cation resin: replace about 3 years, to remove hardness.
3.Activated carbon(2-4mm): replace about 2 years, to remove smell,odor,color, residual chlorine ect.
4.Manganese sand (1-4mm): replace about 2 years, to remove irons.
5.Our Certificates and Suppliers
6. More Successful Projects Sharing Since 2007
50T/H(50000LPH) Standard and Brackish Ro system for Foreign Company
Domestic 180T/H(180000LPH) Standard Ro system
7.Application for Ro Output Water
Our system produce pure water for drinking or lab, or chemical, beverage ect. industry, and ultra-pure water for medical industry or boiler ect, and also mineral or alkaline water for bottled drinking water stores.

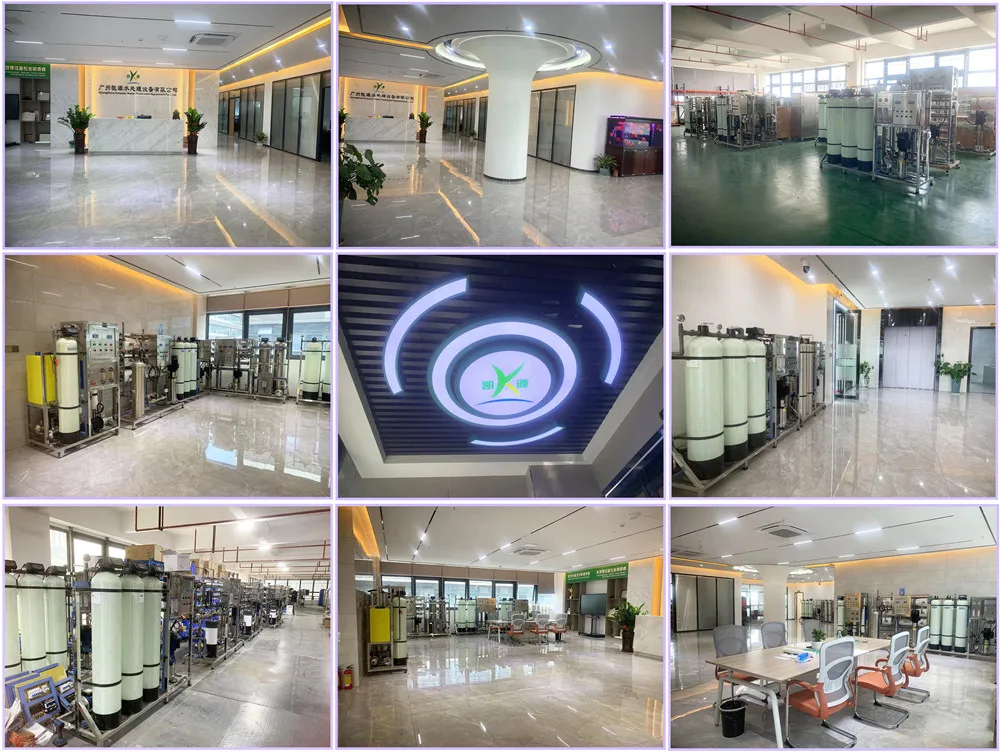

8.Our Company and our Team with our Clients
