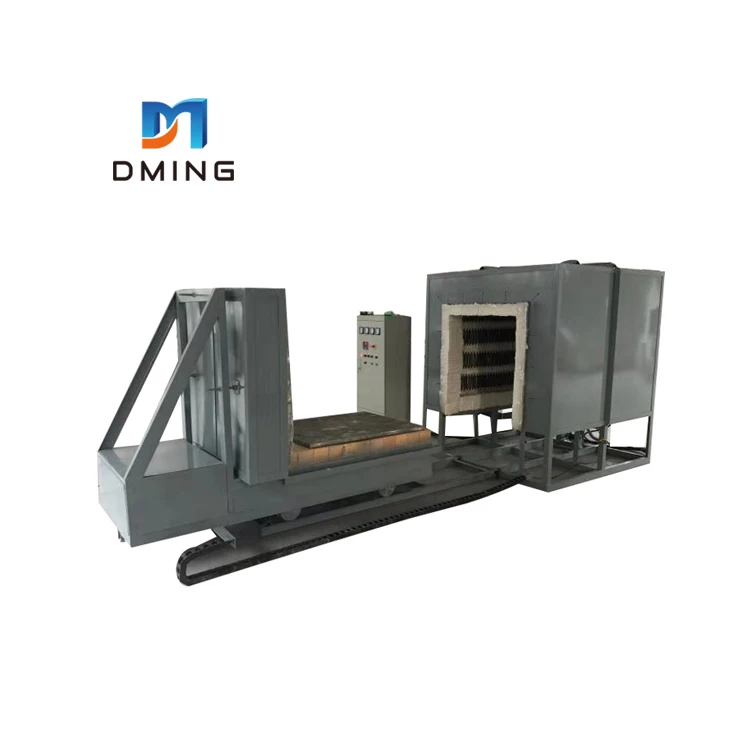

Stainless Steel Annealing heat Treatment car Bottom Furnace electric kiln for ceramic
- Category: >>>
- Supplier: Henan Dming Technology Co. Ltd.
Share on (1601201782698):
Product Overview
Description
Product Description
Stainless Steel Annealing heat Treatment car Bottom Furnace electric kiln for ceramic
The design of ceramic shuttle furnace is divided into two types: medium temperature (0~ 950℃) and high temperature (0~1200℃), which is mainly used for High chromium, high manganese steel castings, gray cast iron parts, ductile iron parts, rolls, steel balls, crusher hammers, wear-resistant linings quenching, annealing, aging and heat treatment of various mechanical parts.
Features:
l Maximum temperature 950℃ and 1200℃.
l All-fiber ceramic lining, high thermal efficiency, low heat loss and long lifetime.
l Four-side heating device achieves excellent temperature uniformity
l Japanese ceramic nails, ensure the installation of heating elements with long lifetime.
l Build horizontal silicon carbide plate/high temperature cast steel plate for trolley.
l Intelligent program temperature controller, which is available to edit and save multi-segment program.
Additional accessories:
l Electrical hydraulic lift furnace door
l Circulating hot air blower and thermal deflector
l Horizontal moveable auxiliary trolley
l Automatically turn-able trolley easy for quenching
l Temperature control by different zones to improve temperature uniformity
l Visualized PLC automatic control system to monitor and record in real time
l Top exhaust valve, and inlet valves on both sides
1. Medium temperature trolley (0~950℃)
Model | Chamber size (LWH)mm | Power (KW) | Dimensions (LWH)mm |
DM-CBF-45 | 1100×550×450 | 45 | 3040×1480×1620 |
DM-CBF-50 | 1300×650×450 | 50 | 3240×1580×1620 |
DM-CBF-75 | 1500×700×600 | 75 | 3440×1630×1770 |
DM-CBF-90 | 1500×800×600 | 90 | 3440×1730×1770 |
DM-CBF-105 | 1800×900×700 | 105 | 3740×1830×1870 |
DM-CBF-135 | 2100×1050×750 | 135 | 4060×2010×1980 |
DM-CBF-150 | 2300×1200×650 | 150 | 4260×2560×1880 |
DM-CBF-300 | 2500×1500×1500 | 300 | 4690×2860×2750 |
1. High temperature trolley furnace (0~1200℃)
Model | Chamber size (LWH)mm | Power (KW) | Dimensions (LWH)mm |
DM-CBF-65 | 1100×550×450 | 65 | 3100×1600×1750 |
DM-CBF-75 | 1300×650×450 | 75 | 3300×1700×1750 |
DM-CBF-110 | 1500×700×600 | 110 | 3500×1750×1900 |
DM-CBF-120 | 1500×800×600 | 120 | 3500×1850×1900 |
DM-CBF-150 | 1800×900×700 | 150 | 3800×1950×2000 |
DM-CBF-210 | 2100×1050×750 | 210 | 4120×2130×2110 |
DM-CBF-220 | 2300×1200×650 | 220 | 4320×2680×2010 |
DM-CBF-450 | 2500×1500×1500 | 450 | 4750×2980×2870 |
Company Information
Packing and Shipping
Contact Us
FAQ
Q1. How is your company's product after-sales service system?
A. We have professional pre-sales and after-sales departments and
can respond to you within 8 hours to resolve any technical issues.
Q2. How about the quality guarantee period?
A:2 years, exclude irrationally operating and consumable parts.
Q3. How about your products quality?
CE certification available and twice test before shipping.
Q4. What's your delivery time?
Conventional model needs 3 days.35 days for customized products
Q5. Are you a manufacturer or a trading company?
We are a factory with 10 years experience in the field.
