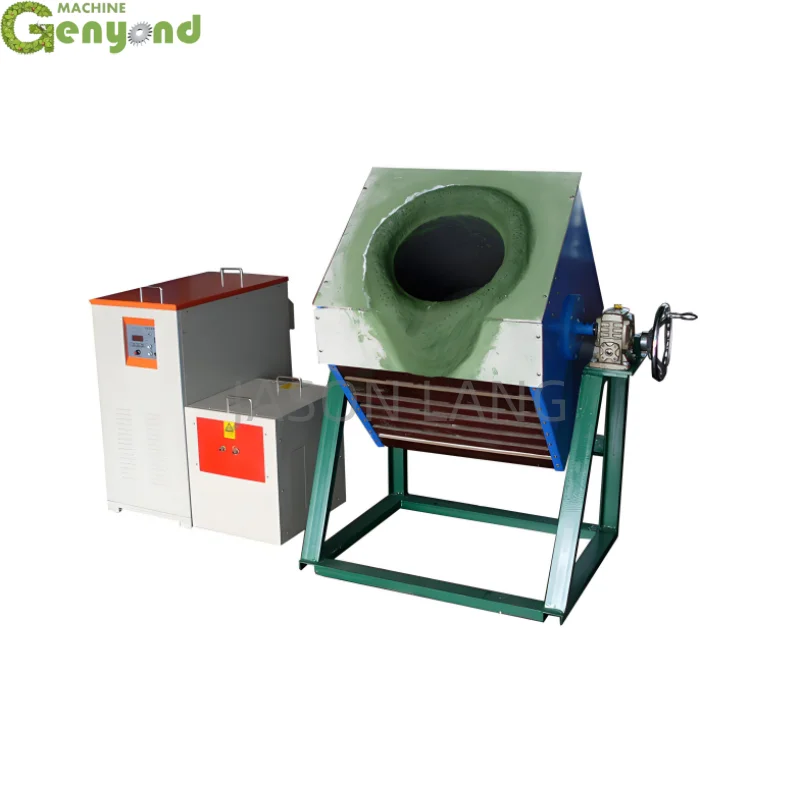

70kw 150kw 200kw 300kw Induction Melting Furnace/Machine for Scrap Aluminum
- Category: >>>
- Supplier: Shanghai Genyond Technology Co. Ltd.
Share on (1601201789796):
Product Overview
Description
Product Description
Induction Heating machine melting Aluminum stainless steel Melting furnace
Application for Induction melting Furnace:
Induction heater is mainly used to melt precious metal, such as gold, silver, copper, aluminum, zinc, nickel, tin, brass, alloy,
titanium, alloy cast iron and a variety of non-ferrous metals, and steel etc.
1. For the small amount of melting, a crucible is enough. For the large amount of melting, a titling furnace will be more
convenient for you to pour the solution.
2. The melting time is about 20-30min for hot furnace and 40-50min for cold furnace.
3. Precious metal melting, like gold, sliver, platinum, etc.
4. Semiconductor material melting
5. Specialized steel, iron, copper melting
6. Metal alloy melting, like aluminum alloy, zinc alloy, copper alloy, etc.
7. Sponge iron,glass
8. Other metal melting applications
Induction heater is mainly used to melt precious metal, such as gold, silver, copper, aluminum, zinc, nickel, tin, brass, alloy,
titanium, alloy cast iron and a variety of non-ferrous metals, and steel etc.
1. For the small amount of melting, a crucible is enough. For the large amount of melting, a titling furnace will be more
convenient for you to pour the solution.
2. The melting time is about 20-30min for hot furnace and 40-50min for cold furnace.
3. Precious metal melting, like gold, sliver, platinum, etc.
4. Semiconductor material melting
5. Specialized steel, iron, copper melting
6. Metal alloy melting, like aluminum alloy, zinc alloy, copper alloy, etc.
7. Sponge iron,glass
8. Other metal melting applications
Product Introduction
Main features of Melting Furnace machines:
1. Melting Furnace machines can be used for the melting of steel, stainless steel, brass, aluminium, gold, silver and so on.
2. Because of the stirring effect which caused by the magnetic force, the melting pool can be stirred during the melting course to ease the floating of the flux and oxides to produce high quality casting parts.
3. Wide frequency range from 1kHz to 20kHz, working frequency can be designed by changing the coil and compensating capacitor according to the melting material, quantity, stirring effect desire, working noise, melting efficiency and other factors.
4.100% duty cycle
5. Power efficiency is 20% higher than the SCR medium frequency machines;
6. Small and light, a lot of models can be selected to melt different amount of metals. Not only is it suitable for the factory,
but also suitable for the college and researching companies to use.
1. Melting Furnace machines can be used for the melting of steel, stainless steel, brass, aluminium, gold, silver and so on.
2. Because of the stirring effect which caused by the magnetic force, the melting pool can be stirred during the melting course to ease the floating of the flux and oxides to produce high quality casting parts.
3. Wide frequency range from 1kHz to 20kHz, working frequency can be designed by changing the coil and compensating capacitor according to the melting material, quantity, stirring effect desire, working noise, melting efficiency and other factors.
4.100% duty cycle
5. Power efficiency is 20% higher than the SCR medium frequency machines;
6. Small and light, a lot of models can be selected to melt different amount of metals. Not only is it suitable for the factory,
but also suitable for the college and researching companies to use.
Specification
Model | Max power | Melting steel and stainless steel | Melting brass copper silver gold | Melting aluminium |
GYMF-15 | 15kw | 3kg | 10kg | 3kg |
GYMF-25 | 25kw | 5kg | 20kg | 5kg |
GYMF-35 | 35kw | 10kg | 30kg | 10kg |
GYMF-45 | 45kw | 18kg | 50kg | 18kg |
GYMF-70 | 70kw | 25kg | 100kg | 25kg |
GYMF-90 | 90kw | 40kg | 120kg | 40kg |
GYMF-110 | 110kw | 50kg | 150kg | 50kg |
GYMF-160 | 160kw | 100kg | 250kg | 100kg |
GYMF-240 | 240kw | 150kg | 400kg | 150kg |
GYMF-300 | 300kw | 200kg | 500kg | 200kg |

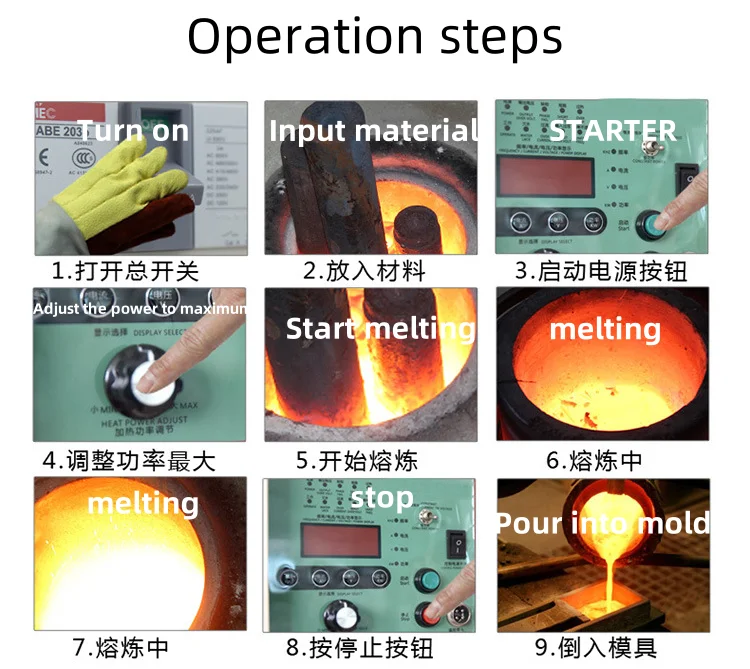

Processing flow

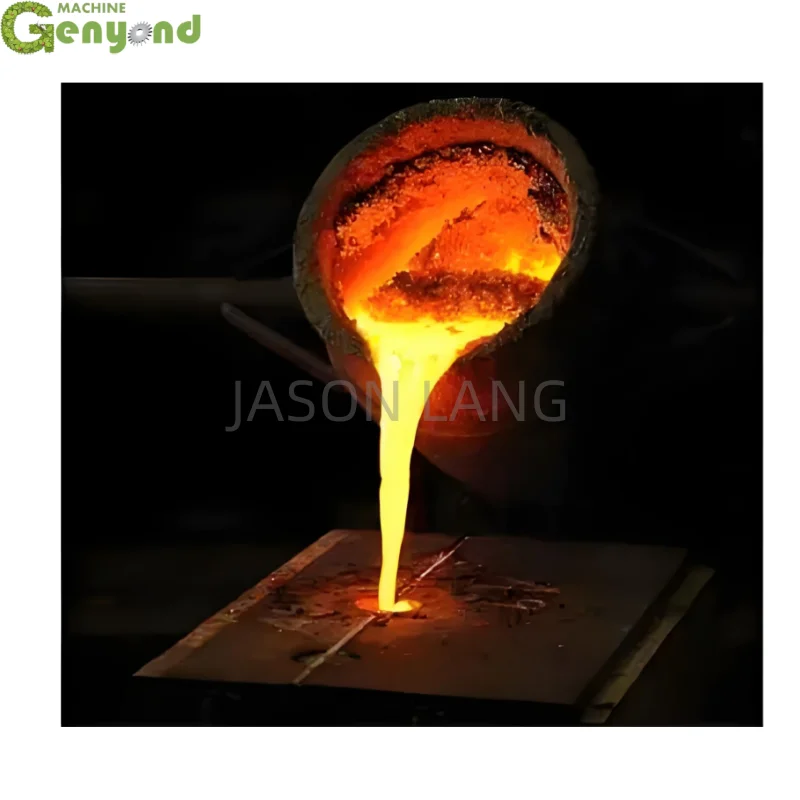

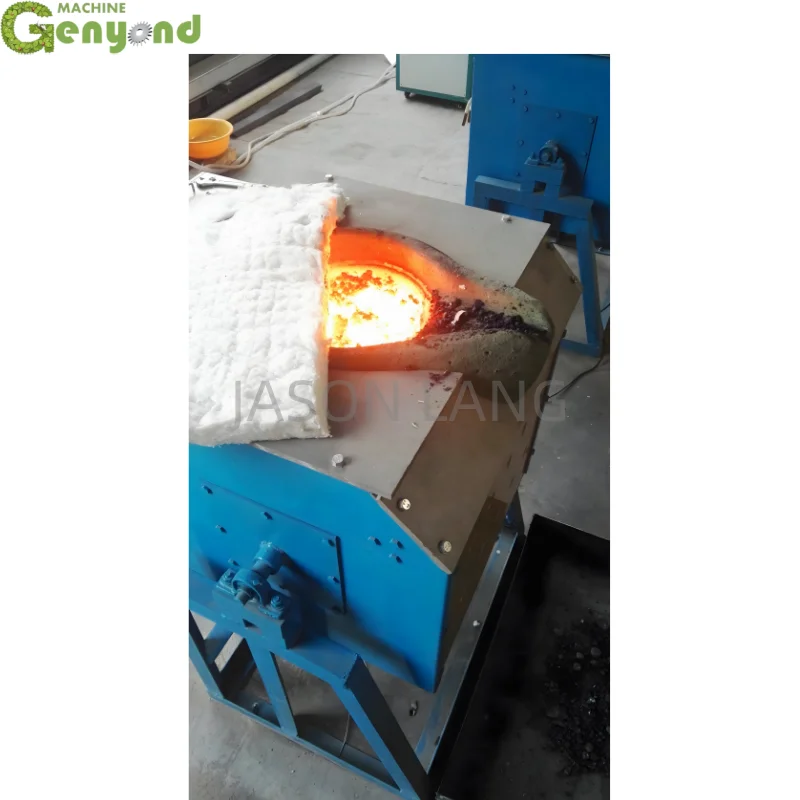

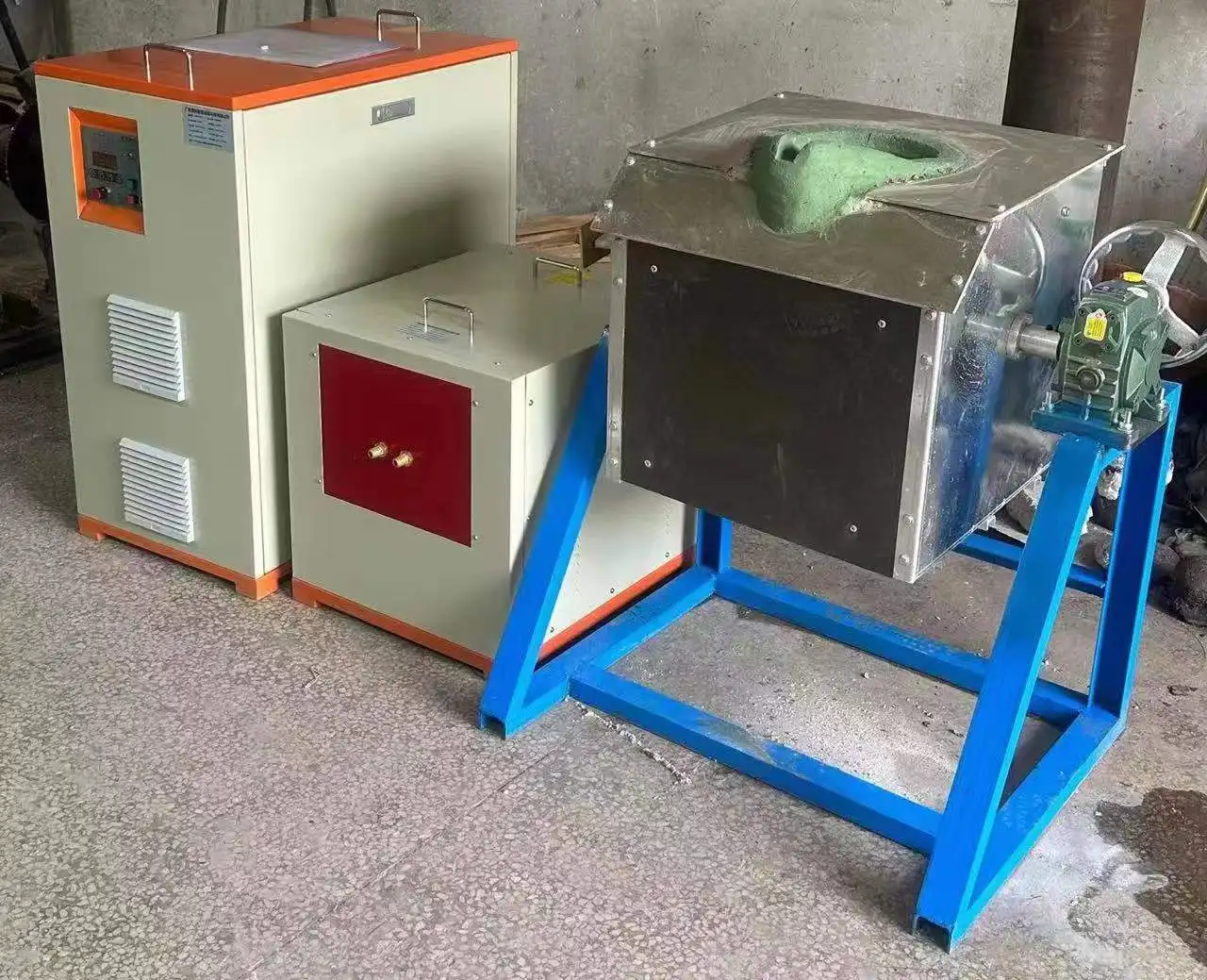

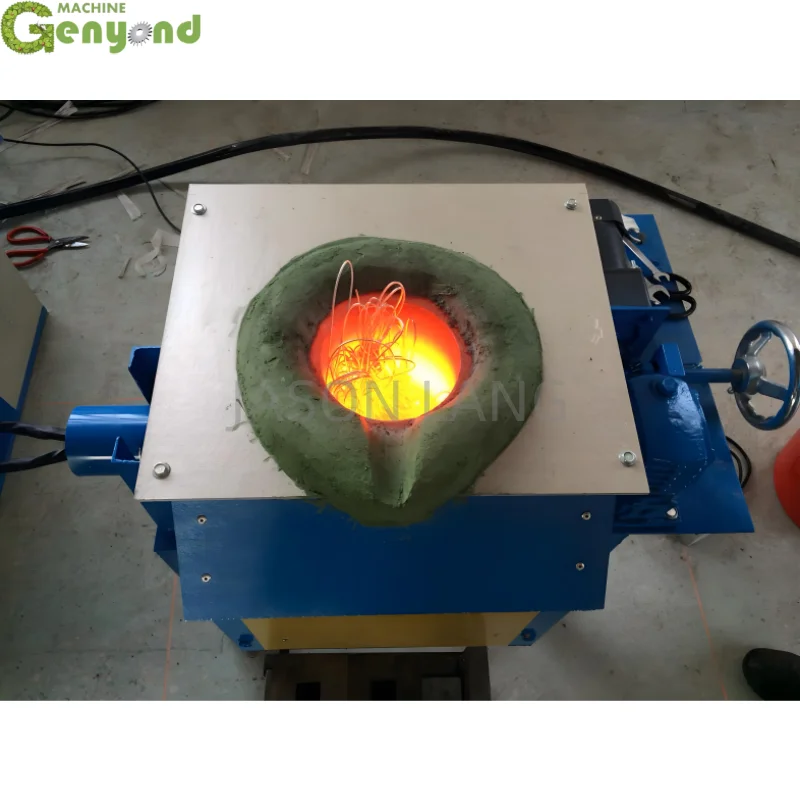

Detail Pictures

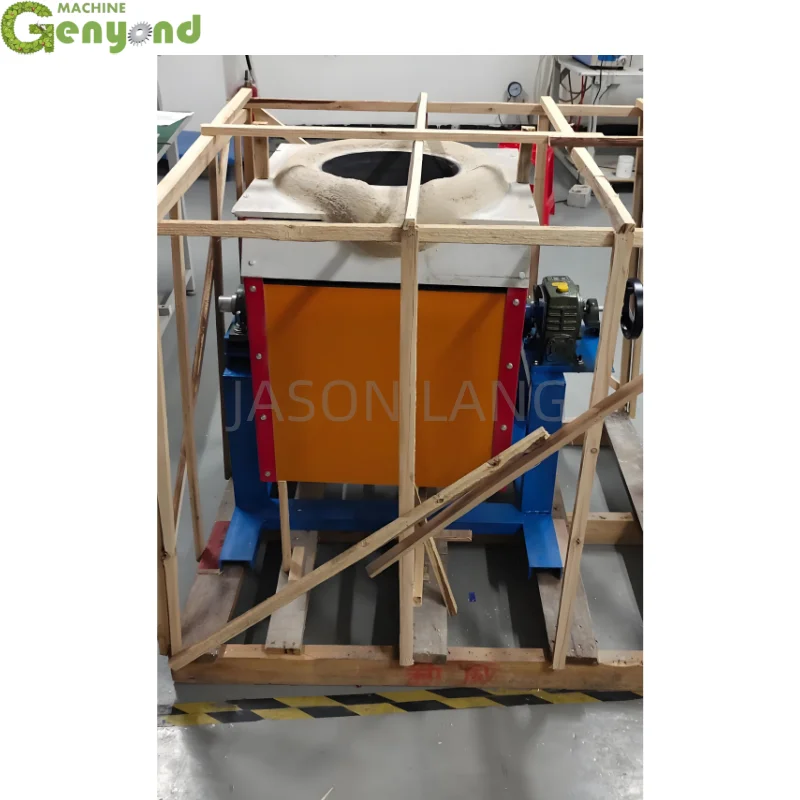

Packing & Delivery

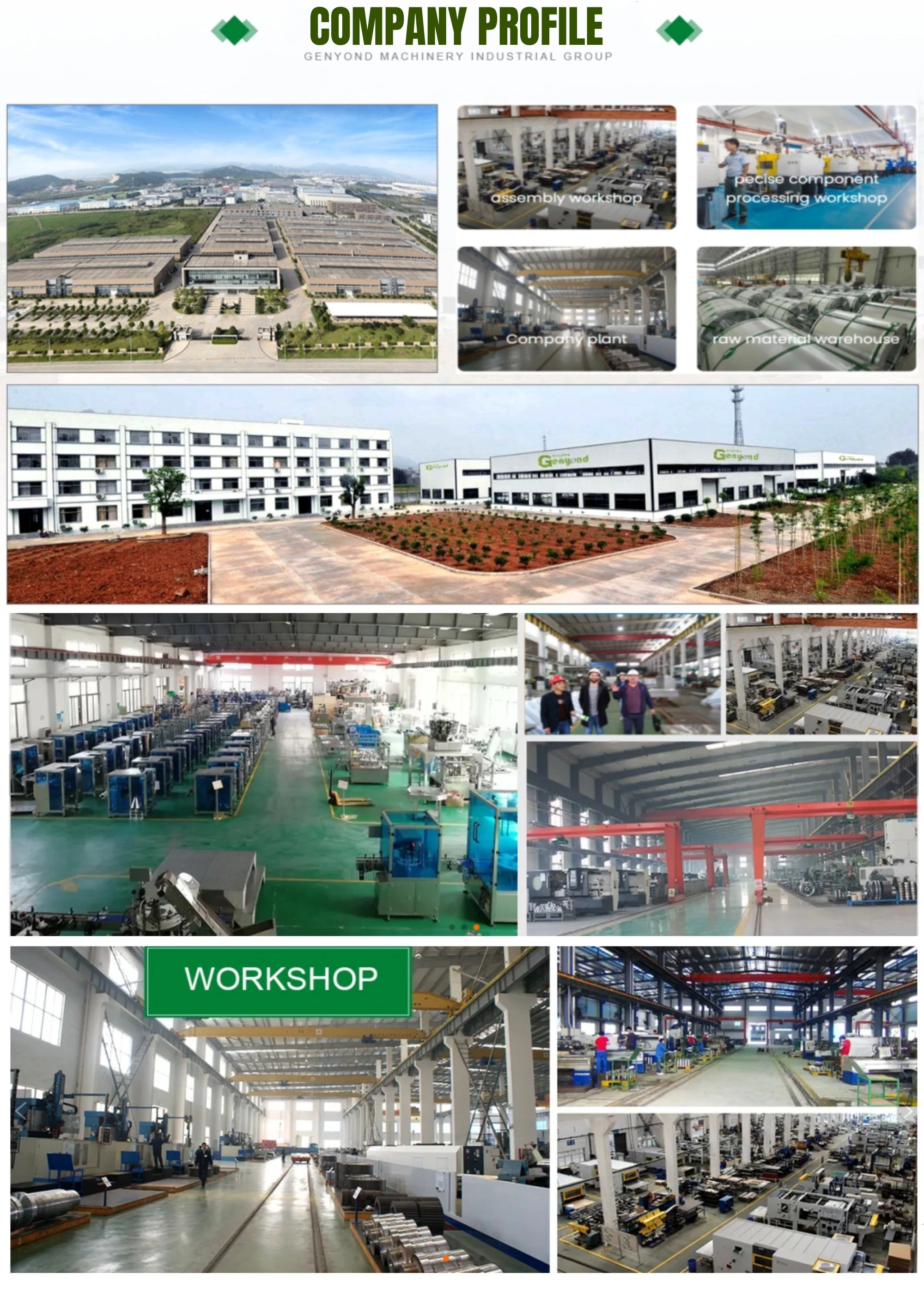

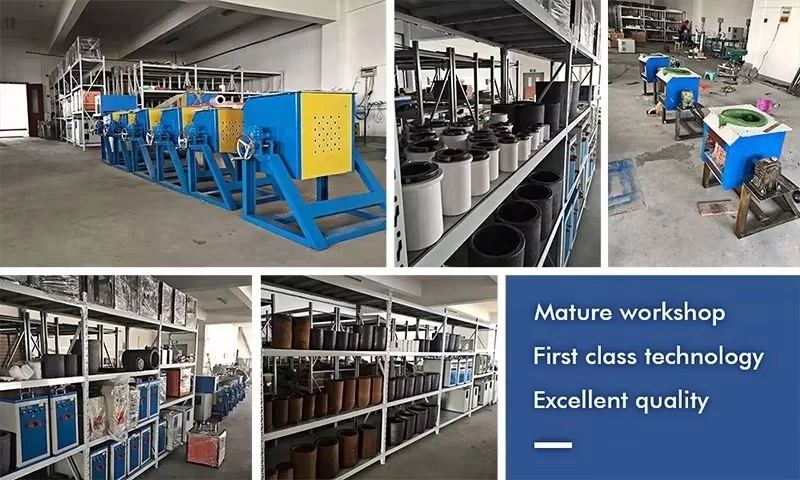

Company Profile
FAQ
