Automatic Steel Coil Double Head Uncoiler levelling Metal Sheet Cutter Straightening Flat Shearing Machine Cut To Length Line
Automatic Steel Coil Double Head Uncoiler levelling Metal Sheet Cutter Straightening Flat Shearing Machine Cut To Length Line
Automatic Steel Coil Double Head Uncoiler levelling Metal Sheet Cutter Straightening Flat Shearing Machine Cut To Length Line
Automatic Steel Coil Double Head Uncoiler levelling Metal Sheet Cutter Straightening Flat Shearing Machine Cut To Length Line
Automatic Steel Coil Double Head Uncoiler levelling Metal Sheet Cutter Straightening Flat Shearing Machine Cut To Length Line
Automatic Steel Coil Double Head Uncoiler levelling Metal Sheet Cutter Straightening Flat Shearing Machine Cut To Length Line
Automatic Steel Coil Double Head Uncoiler levelling Metal Sheet Cutter Straightening Flat Shearing Machine Cut To Length Line

Automatic Steel Coil Double Head Uncoiler levelling Metal Sheet Cutter Straightening Flat Shearing Machine Cut To Length Line

Share on (1601201800336):


Price:$575,000.00 - $580,000.00

Quantity:


Product Overview

Description



New Automatic Carbon Galvanized Metal Sheet Steel Coil Leveling Cutting Cut To Length Cuttolength Cut To Length Lines Machine






Products Description


key selling points
1.High quality finished products, with a deformation rate of less than 2% after cutting with plasma, laser and other cutting equipment.
2.High production efficiency, Annual production can reach 300,000T.
3.Steel coils with a yield strength of over 1300MPa that can be processed.
4.High degree of automation, with a minimum of one person operating the entire line.
5.ISO19001/24001/45001/CE certification.


Double head uncoiler
Load bearing capacity of 40 tons
Cantilever uncoiler
Load bearing capacity of 40 tons

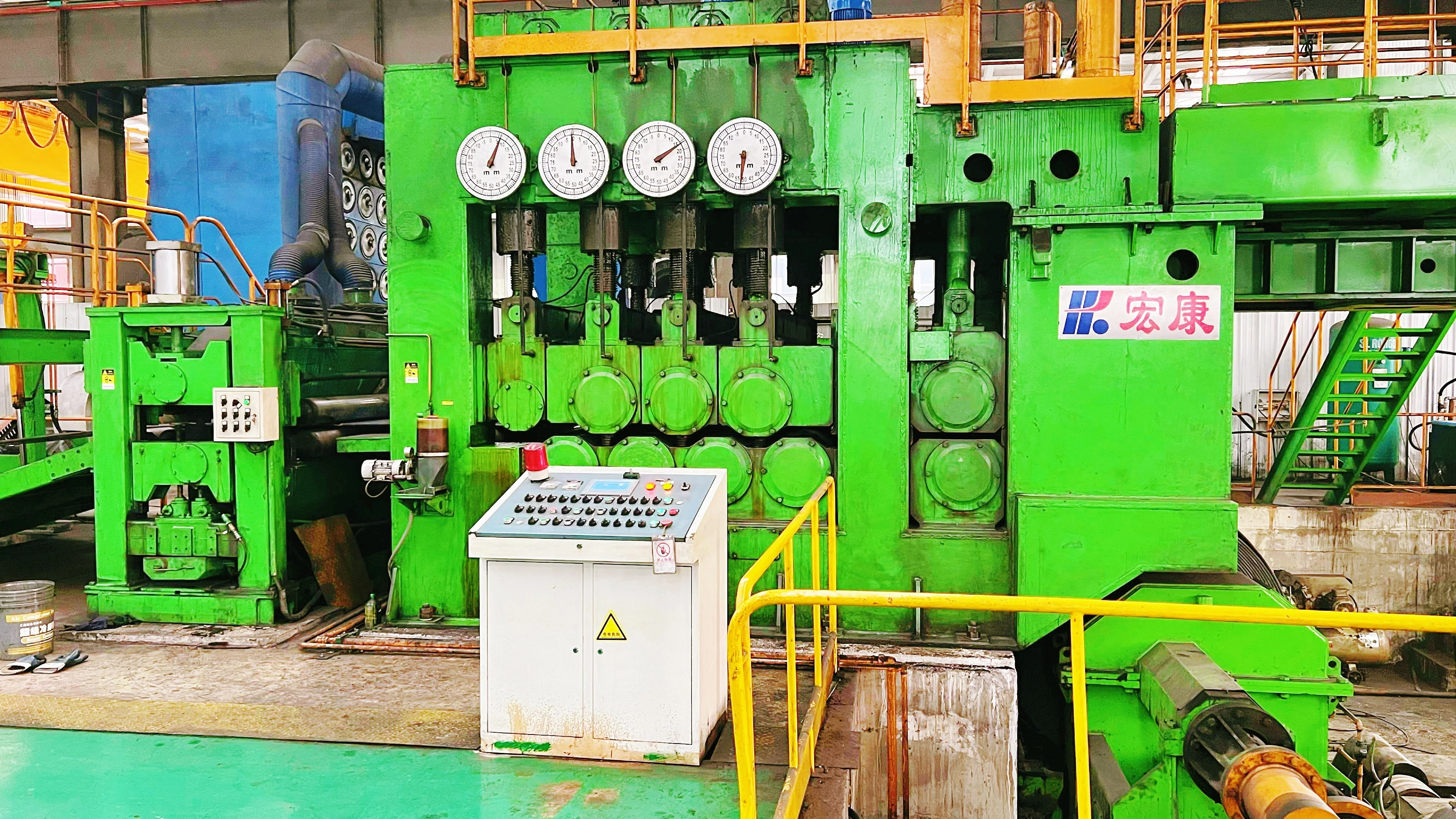

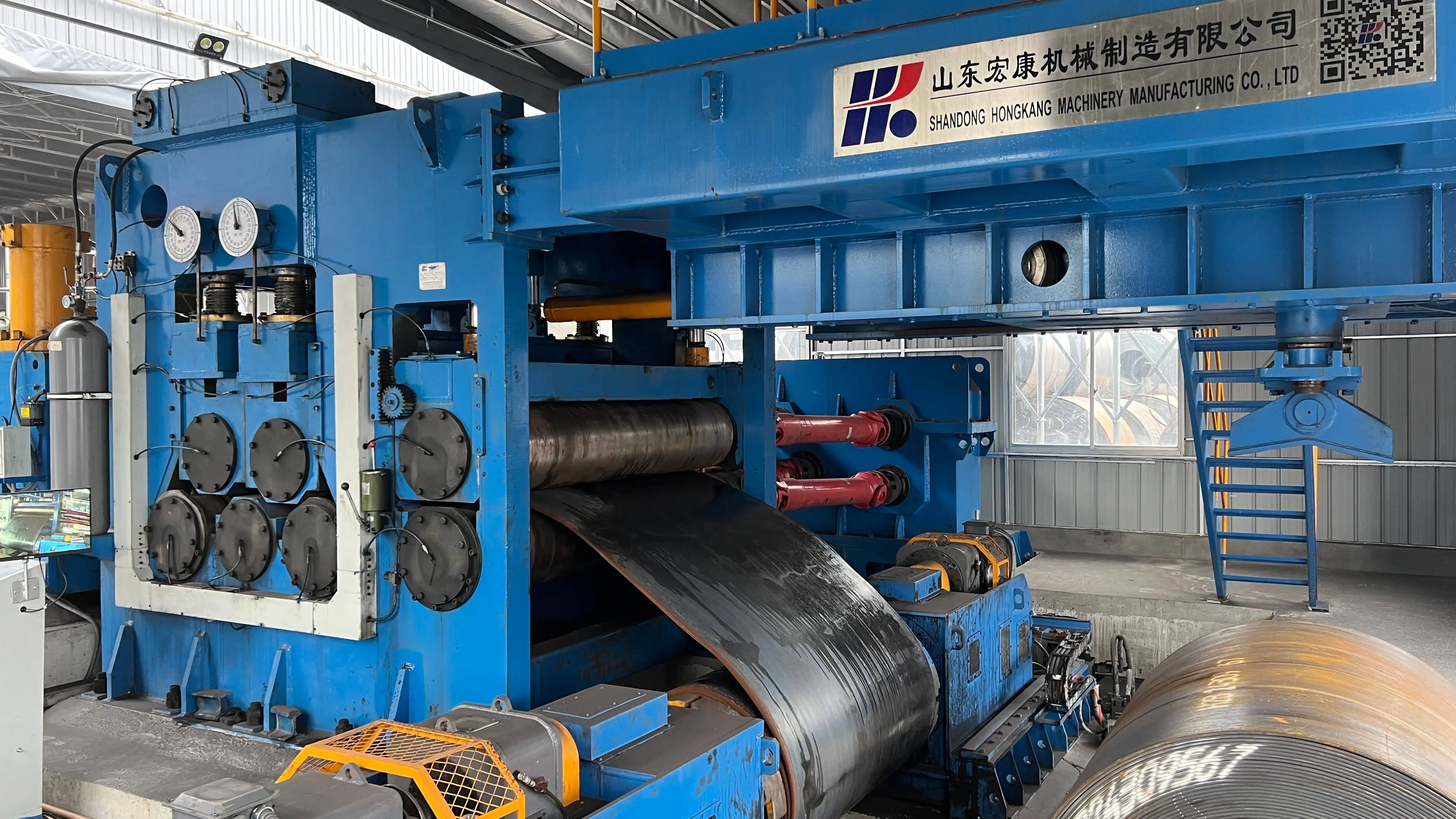

Nine roll rough leveling machine

The rough straightening machine can release the stress of the steel plate to the maximum extent.
It mainly consists of 2 pinch rollers, 5 leveling rollers, 1 reverse bending roller, and 1 support roller.
Material: 60CrMo

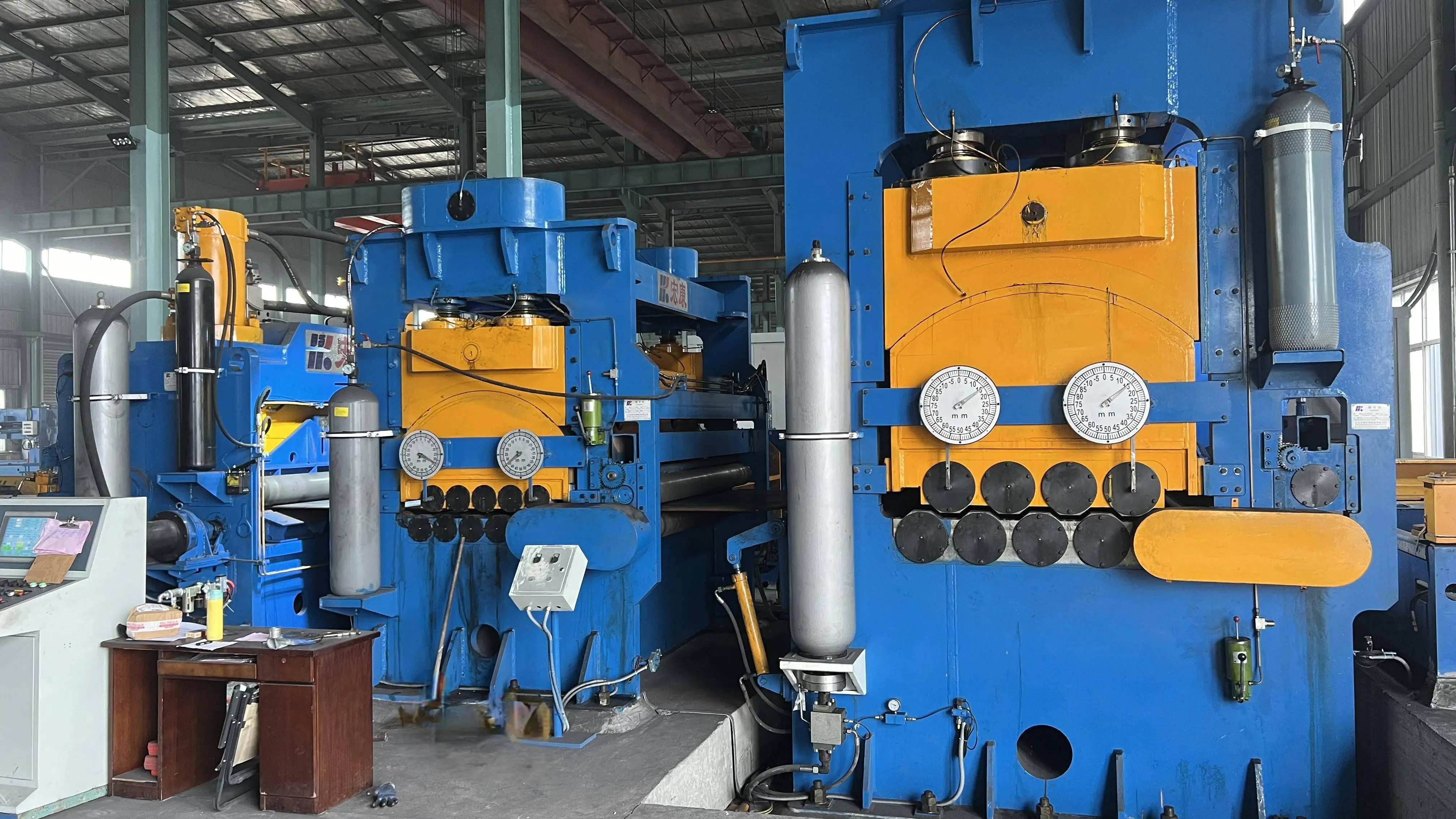

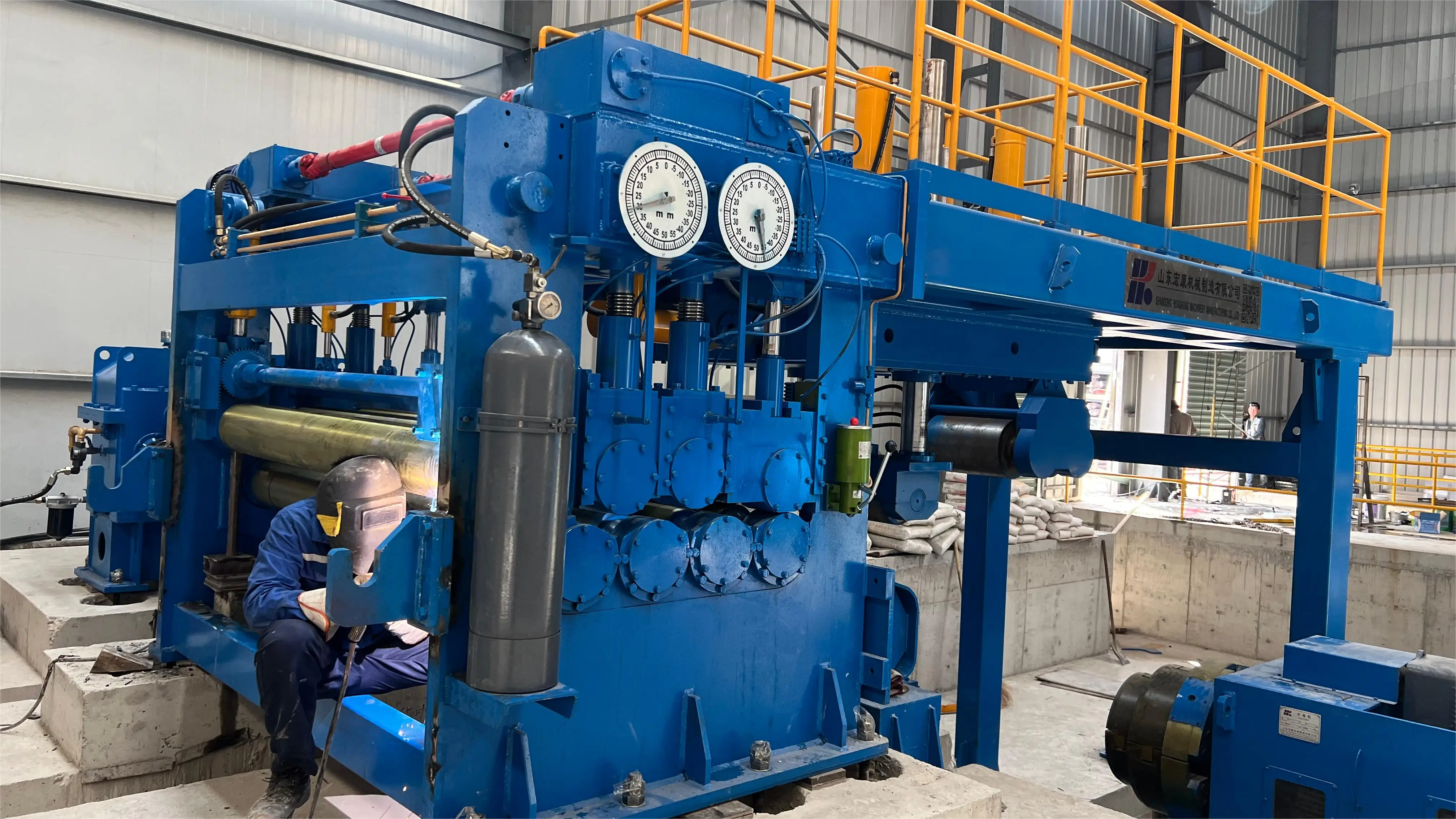

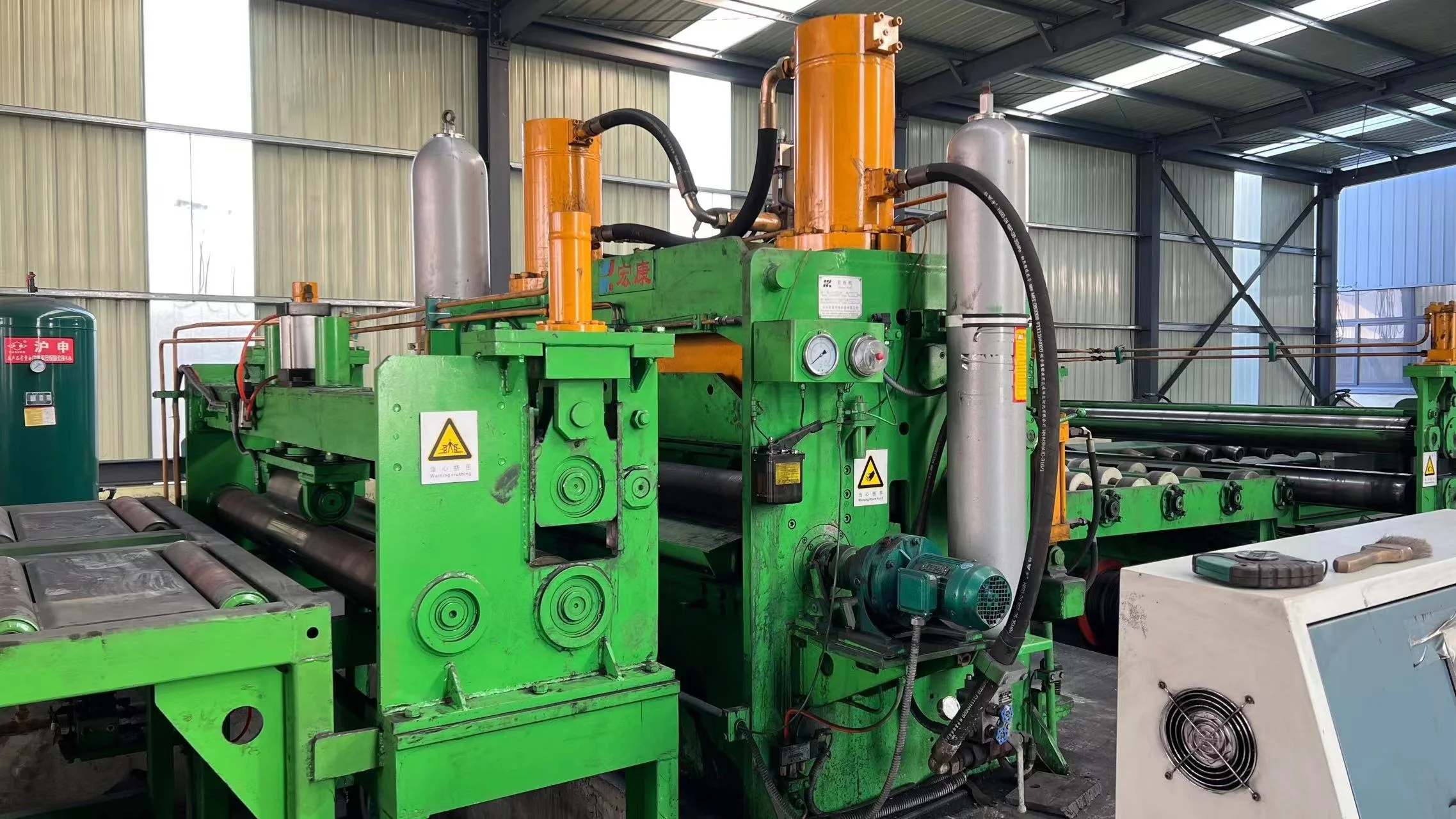

Double precision straightening machine
The double precision straightening machine can further release the stress of the steel and improve the flatness of the steel.
The upper work roller system can be adjusted eccentrically to make the upper and lower roller systems not parallel, generally low in the front and high in the back, which plays a role in organizing the plate shape.
Material: 9Cr2Mo

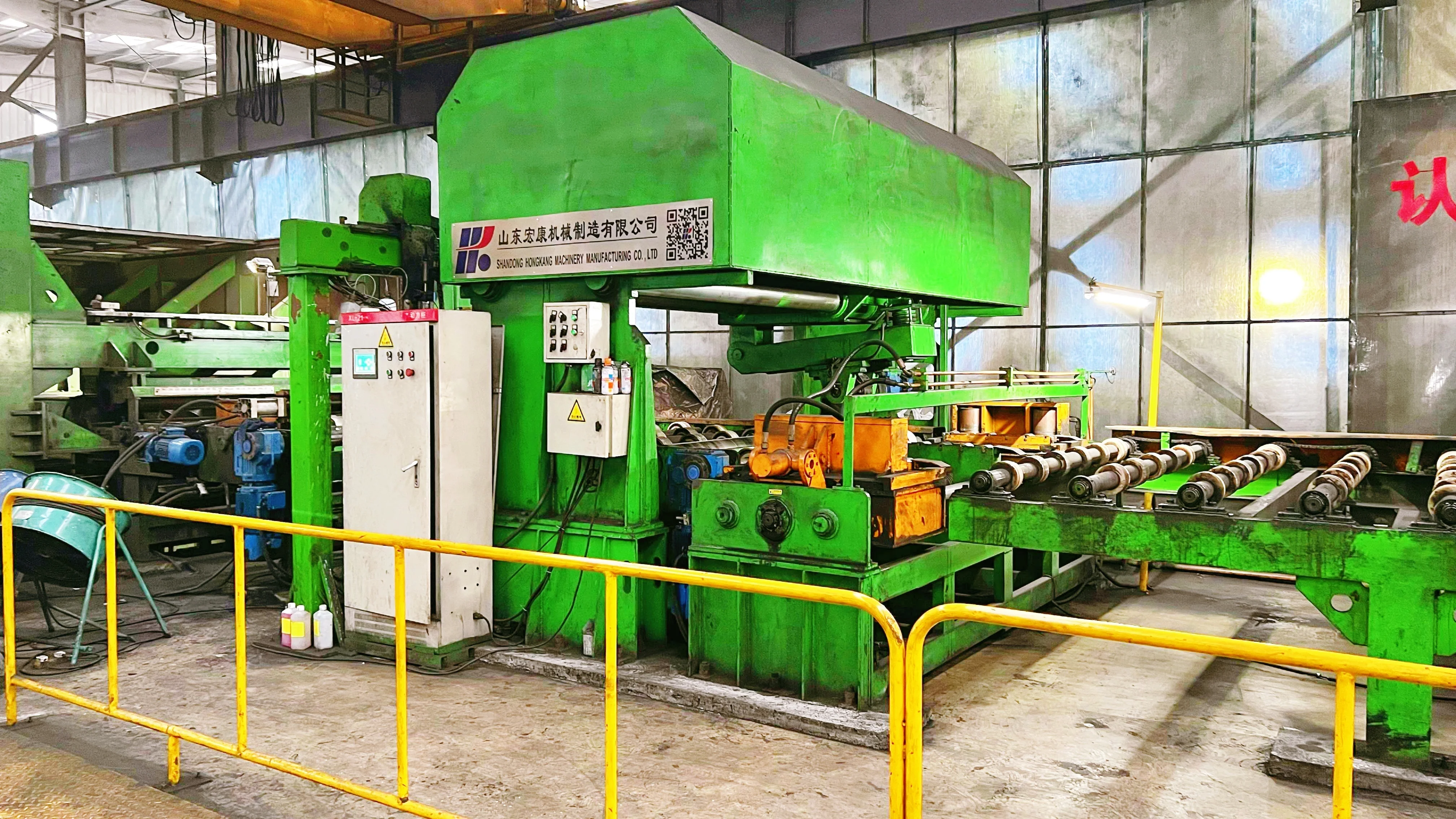

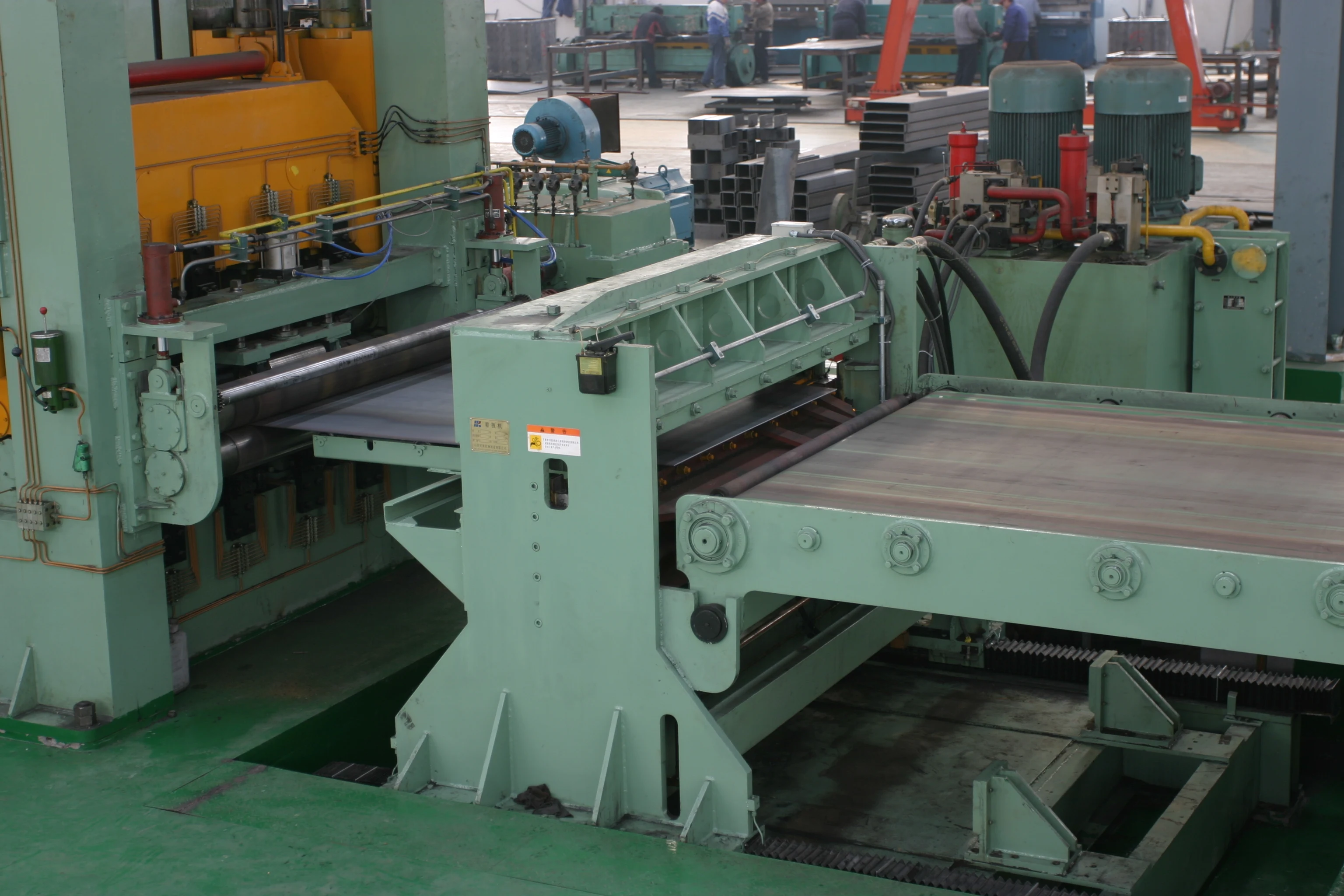

Mobile shearing machine
Tracking scissors, the production line does not stop.
Fast cutting speed and small burrs.

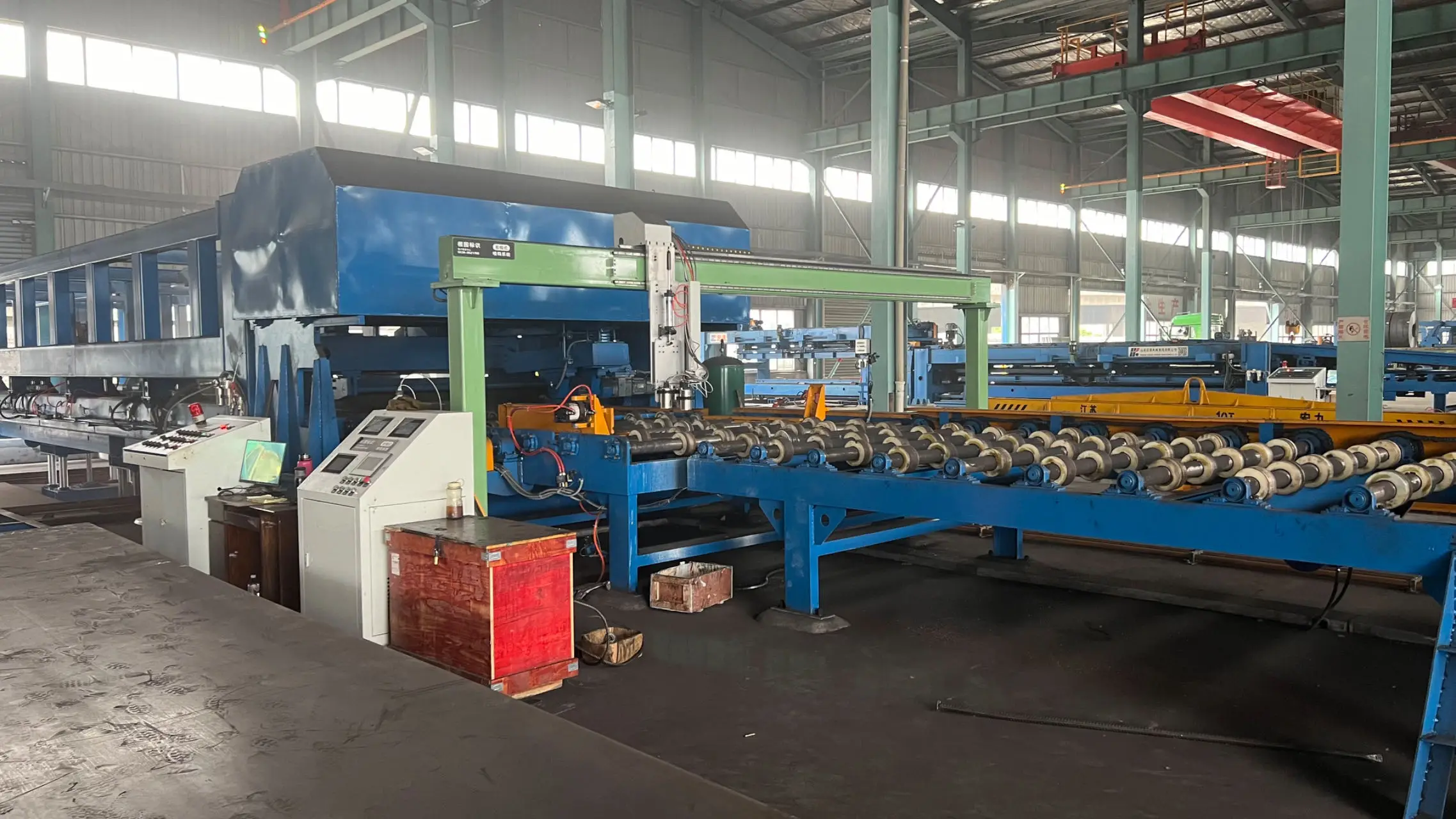

Encoder and conveyor roller conveyor Flip stacker crane

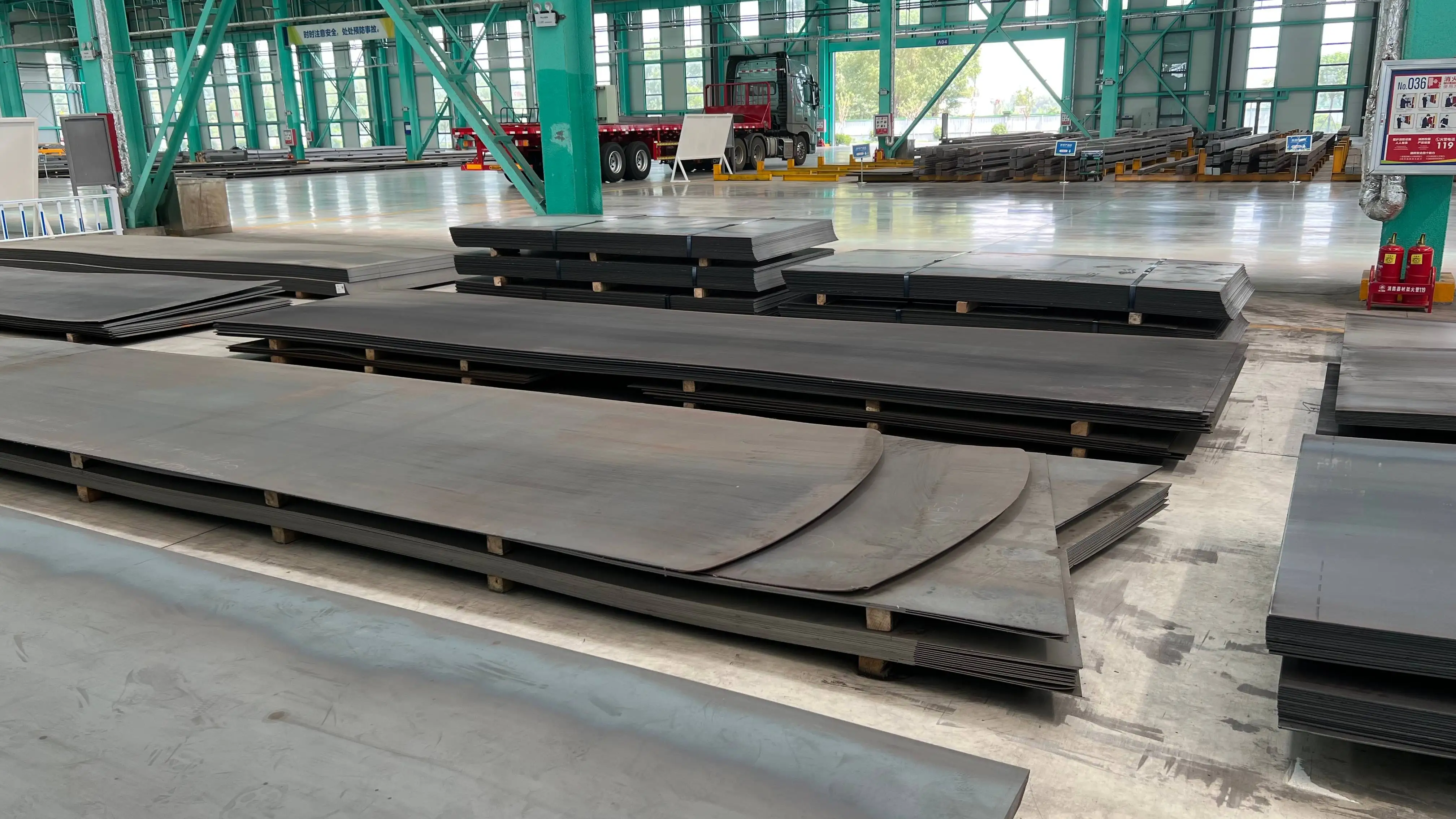

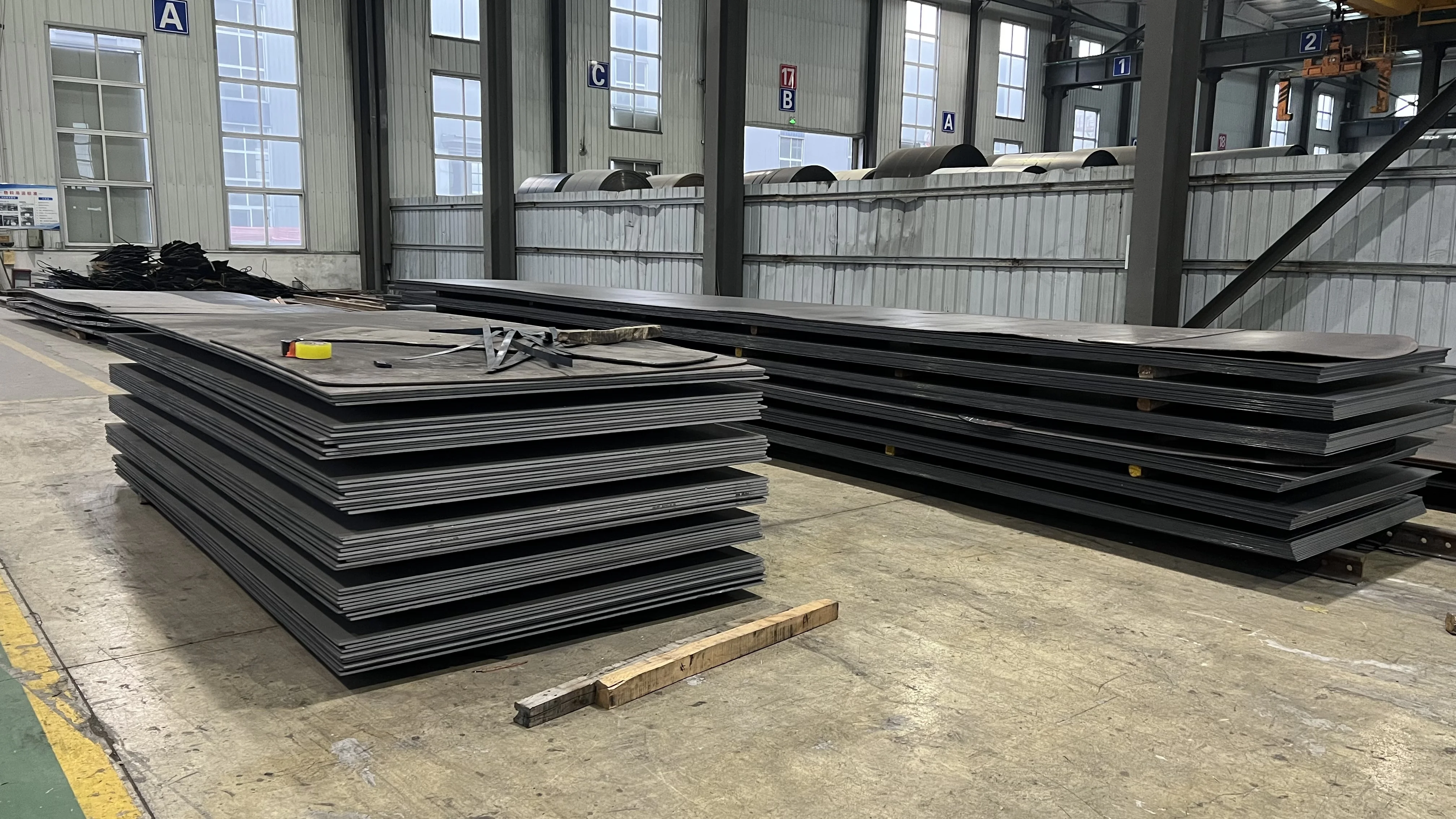

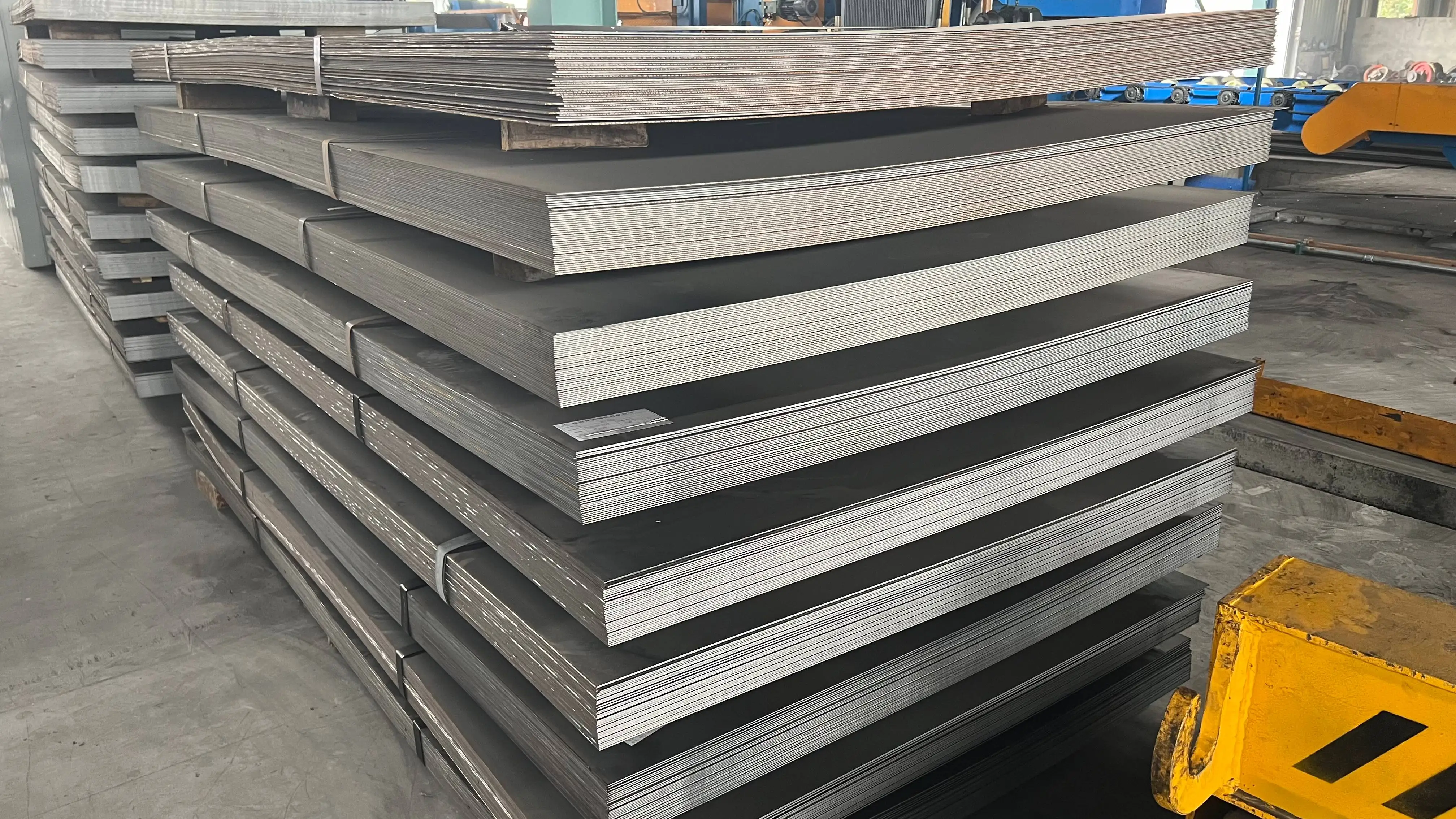

Finished board display

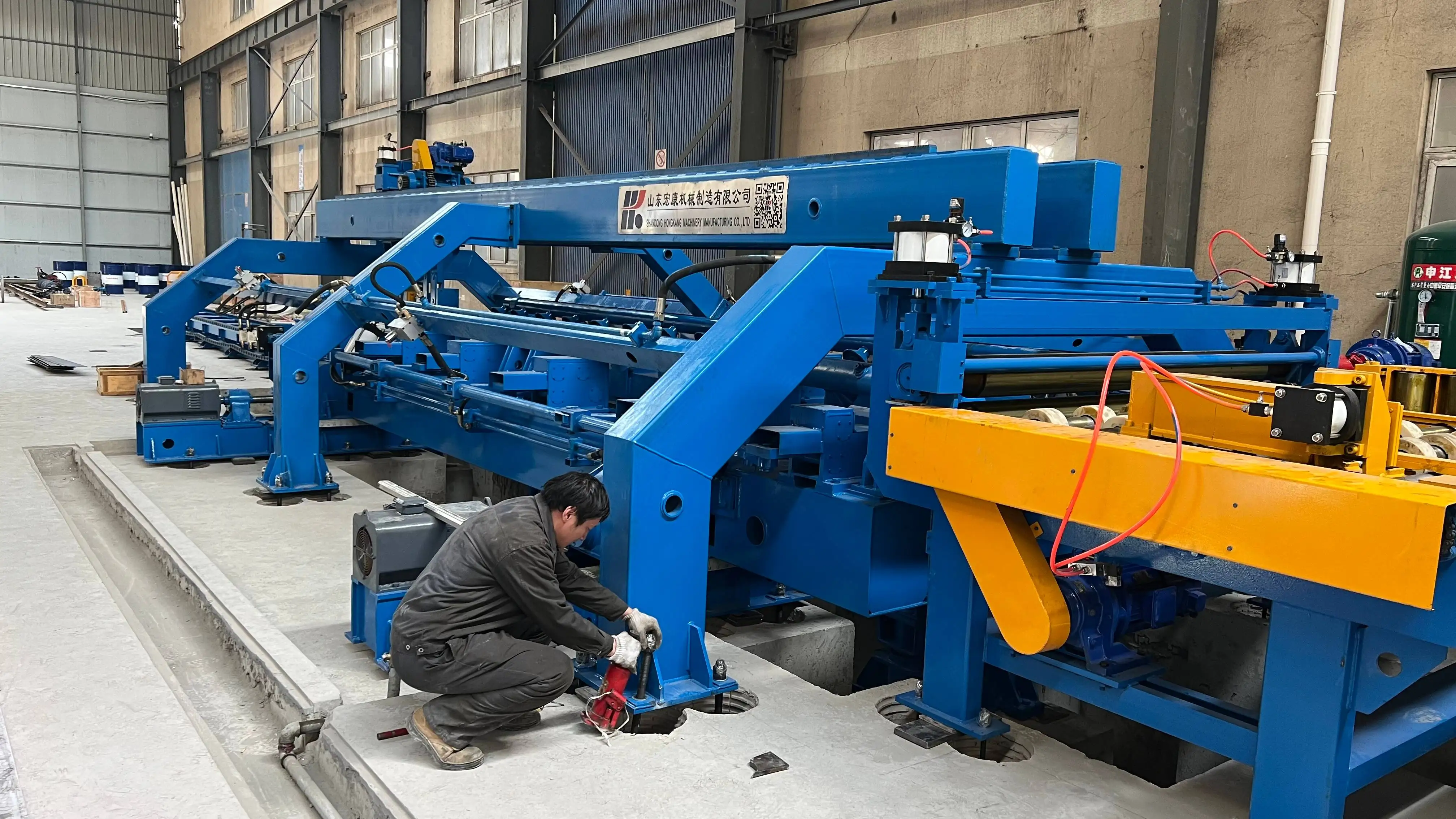

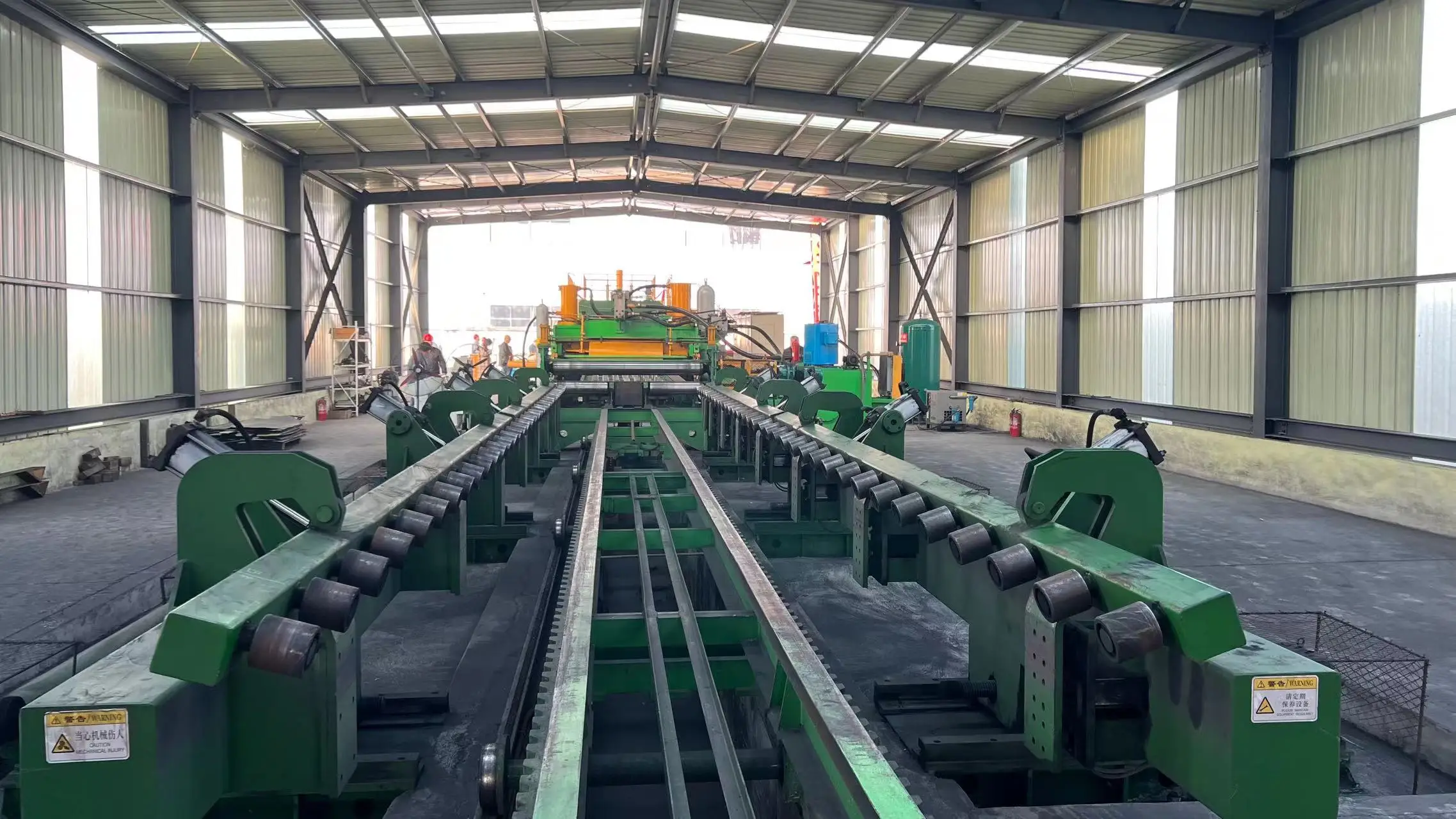

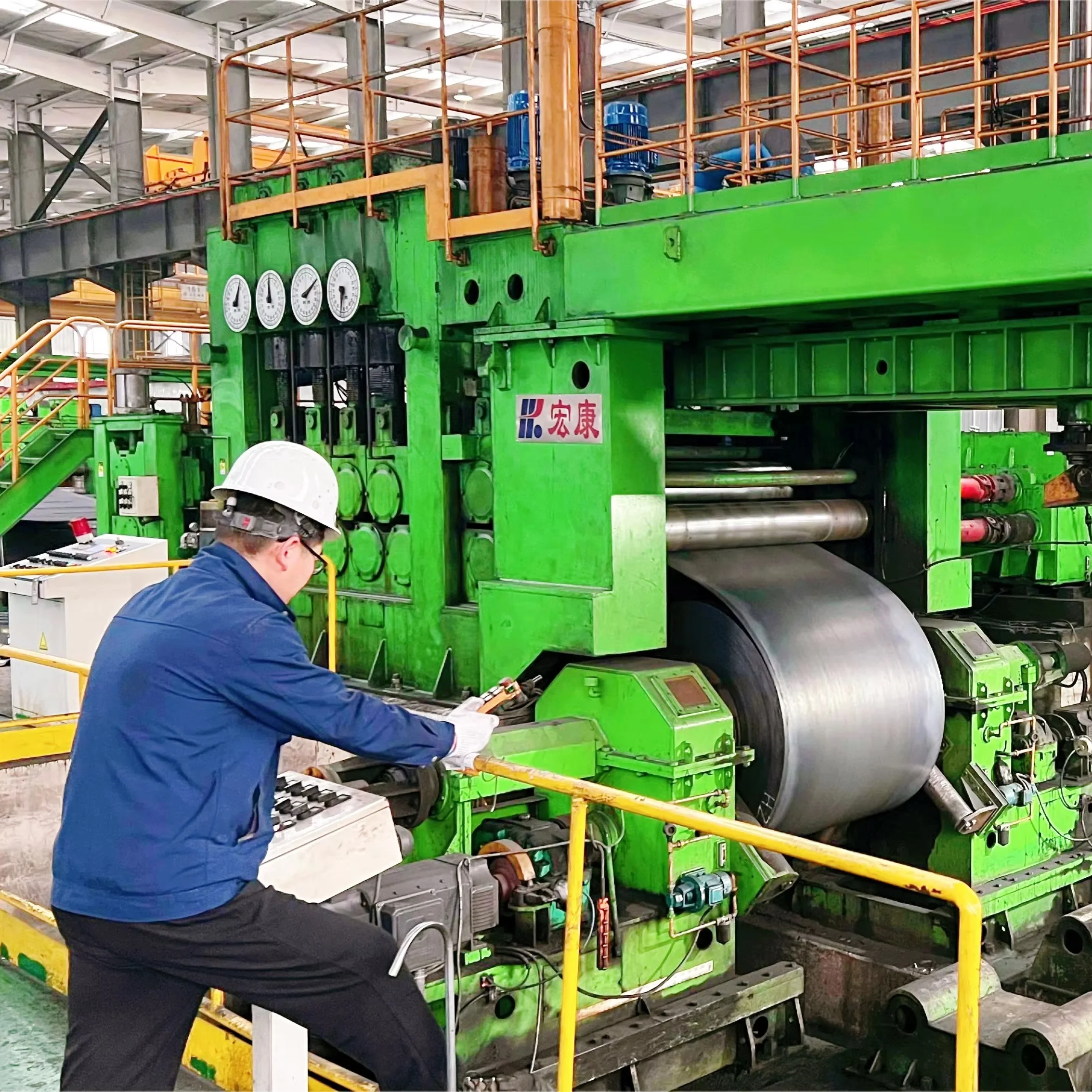

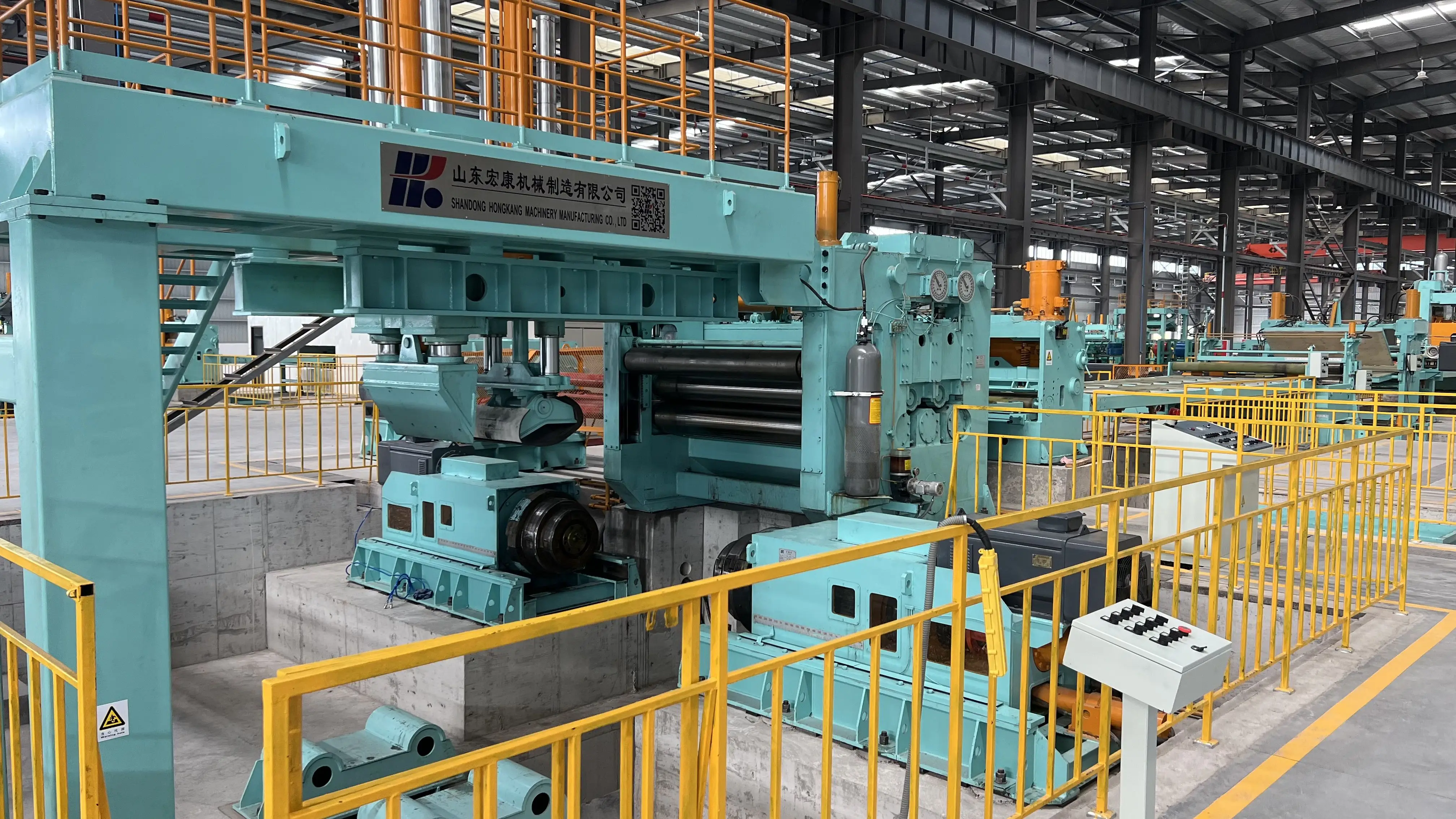

Installation and commissioning site




Specification


item
value
Cutting Width (mm)
300mm - 10000mm
Material Thickness(mm)
8mm - 25mm
Cutting Speed(m/min)
0m/min - 40m/min
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
New Product 2024
Warranty of core components
1 Year
Core Components
PLC, Bearing, Gearbox, Motor
Coil Weight (T)
35
Leveling Precision(±mm/m)
0.5±mm/m
Place of Origin
China
Shandong
Brand Name
HONGKANG
Condition
New
Voltage
380V
Rated Power
527KW
Dimension(L*W*H)
5.1mLx3.2mWx2.5H
Weight
35
Year
2024
Key Selling Points
High Productivity
Warranty
1 Year
Applicable Industries
Energy & Mining, Construction works , Other, Manufacturing Plant
Showroom Location
None


Product packaging




Recommend Products

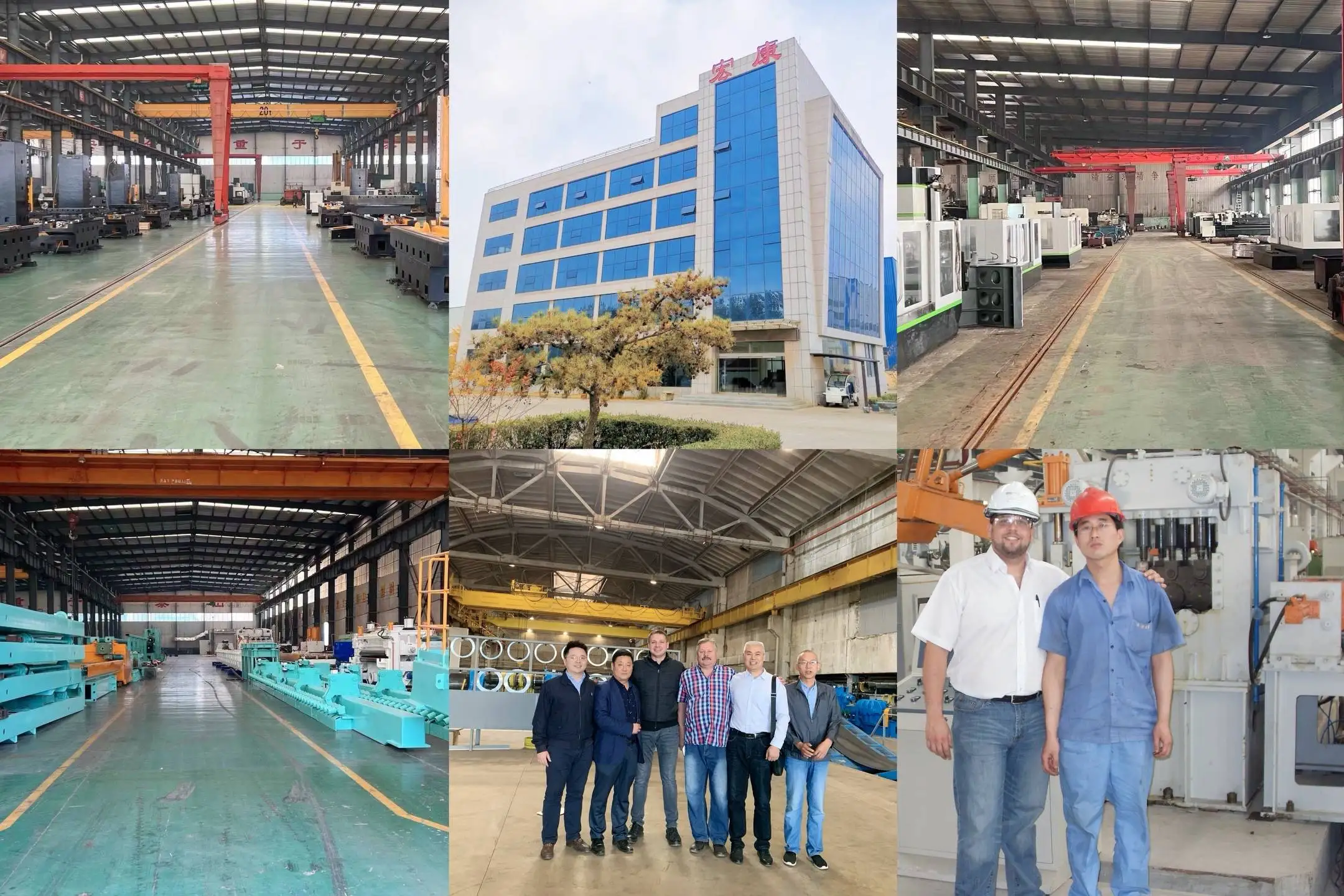

Company Profile






Shandong Hongkang Machinery Manufacturing Co., Ltd. is a manufacturer and exporter of machinery and equipment integrating R&D design, manufacturing and sales service, located at the western foot of the famous Mount Tai, founded in 1998.The leading products are CNC sheet uncoiling, leveling and shearing production line, CNC gold cutting machine tool, frequency conversion motor, planetary gear reducer and crane.
The company has strong production, processing and manufacturing capabilities, with various types of advanced, professional processing and testing equipment to ensure processing quality and delivery time to meet customer needs.The company pays attention to the introduction, training and use of talents, and the proportion of engineering and technical personnel with middle and senior titles and skilled workers increases year by year.
The company is a national high-tech enterprise with six provincial innovation platforms such as Shandong Provincial Enterprise Technology Center and Shandong Industrial Design Center, and more than 100 national invention and utility model patents. Successively passed three management system certifications of quality (ISO9001), environment (ISO14001) and occupational health and safety (ISO45001) and CE certification. Responsible for the development of 17 national and industry standards of leading products.






FAQ


1. who are we?
We are based in Shandong, China, start from 1998,sell to Domestic Market(70.00%),South Asia(5.00%),Eastern Asia(5.00%),South
America(5.00%),Africa(5.00%),Eastern Europe(5.00%),Southeast Asia(5.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Plate Uncoiling, Leveling And Shearing Production Line, CNC Boring And Milling Machine, CNC Metal Plate Leveler, Mobile Sheet
Metal Shears, Sheet Metal Slitting Machine
4. why should you buy from us not from other suppliers?
We have more than 20 years of design and R&D experience, strong production, processing and manufacturing capabilities, various
advanced and professional processing and testing equipment, and rich after-sales experience.
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
