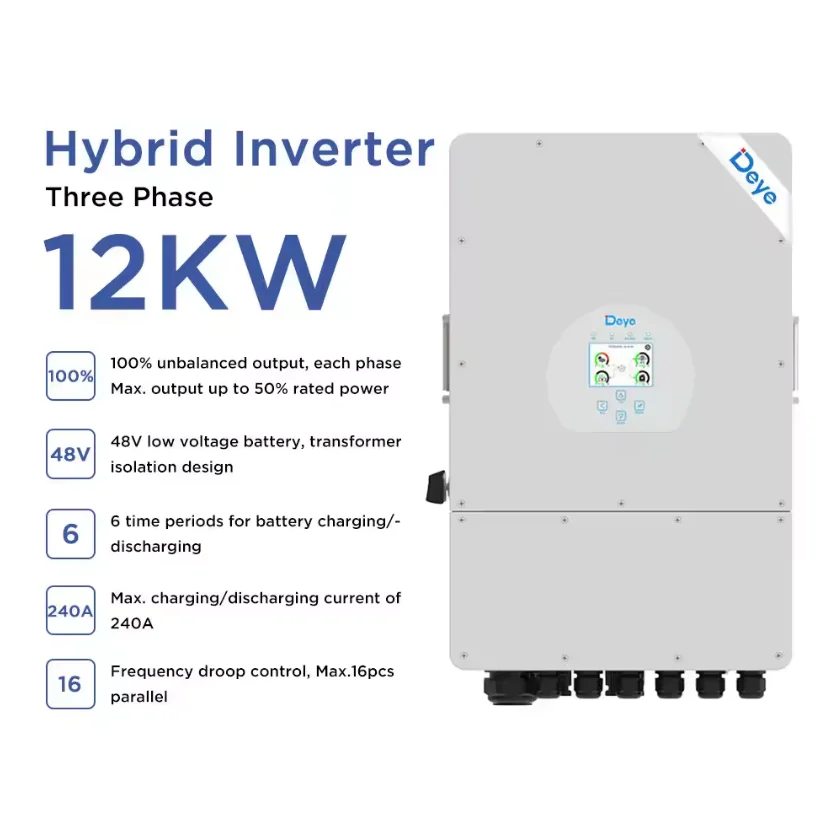

Deye Hybrid Solar Power Inverter 8KW with 48V Battery Volta EU Hybrid Solar Inverter Three Phase Output 10KW and 12KW Options
Deye Hybrid Solar Power Inverter 8KW with 48V Battery Volta EU Hybrid Solar Inverter Three Phase Output 10KW and 12KW Options
Deye Hybrid Solar Power Inverter 8KW with 48V Battery Volta EU Hybrid Solar Inverter Three Phase Output 10KW and 12KW Options
Deye Hybrid Solar Power Inverter 8KW with 48V Battery Volta EU Hybrid Solar Inverter Three Phase Output 10KW and 12KW Options
Deye Hybrid Solar Power Inverter 8KW with 48V Battery Volta EU Hybrid Solar Inverter Three Phase Output 10KW and 12KW Options
Deye Hybrid Solar Power Inverter 8KW with 48V Battery Volta EU Hybrid Solar Inverter Three Phase Output 10KW and 12KW Options
Deye Hybrid Solar Power Inverter 8KW with 48V Battery Volta EU Hybrid Solar Inverter Three Phase Output 10KW and 12KW Options

Deye Hybrid Solar Power Inverter 8KW with 48V Battery Volta EU Hybrid Solar Inverter Three Phase Output 10KW and 12KW Options

Share on (1601201808327):


Price:$910.00

Quantity:


Product Overview

Description



Products Description

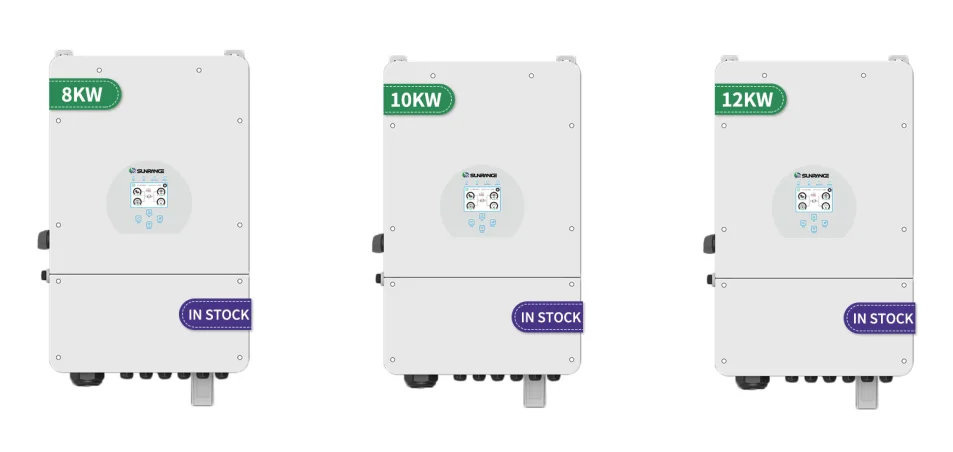

Model
SUN-8K-SG04LP3
SUN-10K-SG04LP3
SUN-12K-SG04LP3
Battery Input Data
Battery Type
Lead-acid or Li-lon
Battery Voltage Range (V)
40~60V
Max. Charging Current (A)
190A
210A
240A
Max. Discharging Current (A)
190A
210A
240A
Charging Curve
3 Stages / Equalization
External Temperature Sensor
Optional
Charging Strategy for Li-Ion Battery
Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)
10400W
13000W
15600W
PV Input Voltage (V)
550V (150V~800V)
MPPT Range (V)
200V-650V
Start-up Voltage (V)
160V
PV Input Current (A)
13A+13A
26A+13A
26A+13A
No.of MPPT Trackers
2
No.of Strings Per MPPT Tracker
1+1
2+1
2+1
AC Output Data
Rated AC Output and UPS Power (W)
8000W
10000W
12000W
Max. AC Output Power (W)
8800W
11000W
12000W
Peak Power (off grid)
2 times of rated power, 10 S
AC Output Rated Current (A)
12A
15A
18A
Max. AC Current (A)
18A
23A
27A
Max. Continuous AC Passthrough (A)
50A
Output Frequency and Voltage
50/60Hz; 230/400Vac (Three phase)
Grid Type
Current Harmonic Distortion
Current Harmonic Distortion
THD<3% (Linear load<1.5%)
Efficiency
Max. Efficiency
97.60%
Euro Efficiency
97.00%
MPPT Efficiency
99.90%
Certififications and Standards
Grid Regulation
IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1
Safety EMC / Standard
IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12
General Data
Operating Temperature Range (℃ )
-25~60℃ , >45℃ Derating
Cooling
Smart cooling
Noise (dB)
<30 dB
Communication with BMS
RS485; CAN
Weight (kg)
36.8
Size (mm)
422W×658H×281D
Protection Degree
IP65
Installation Style
Wall-mounted
Warranty
5 years

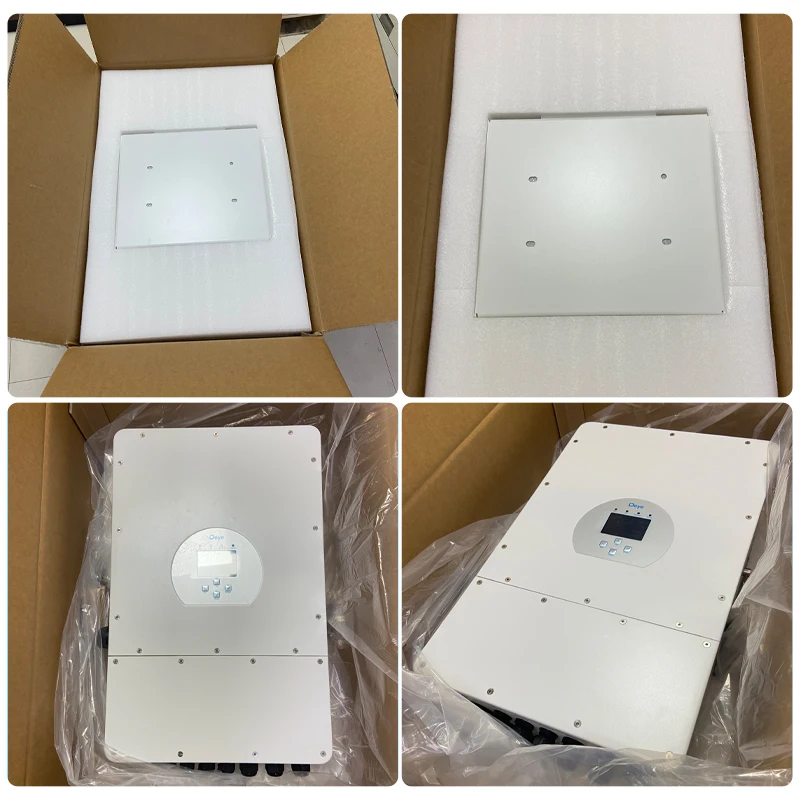

Product packaging

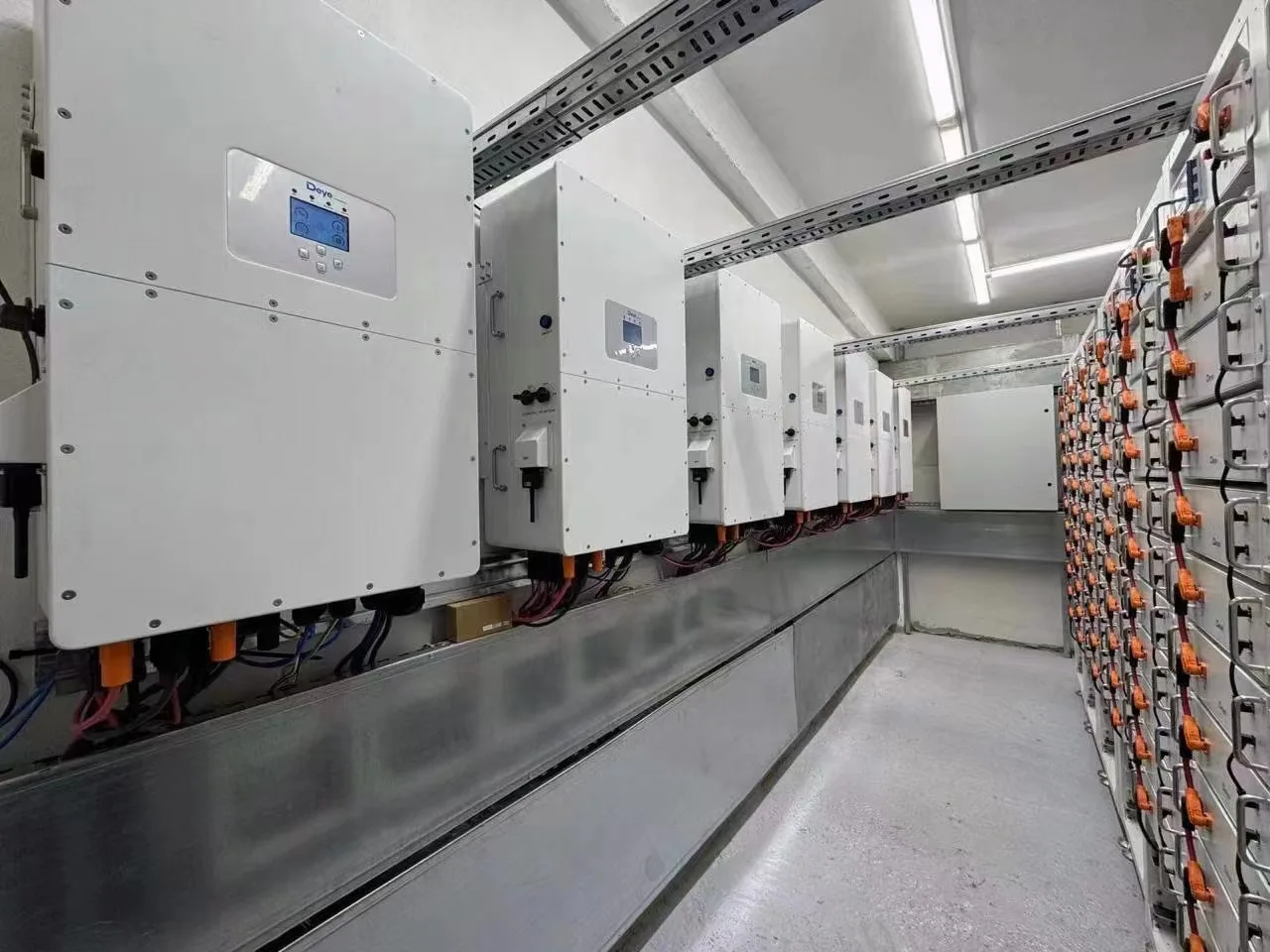

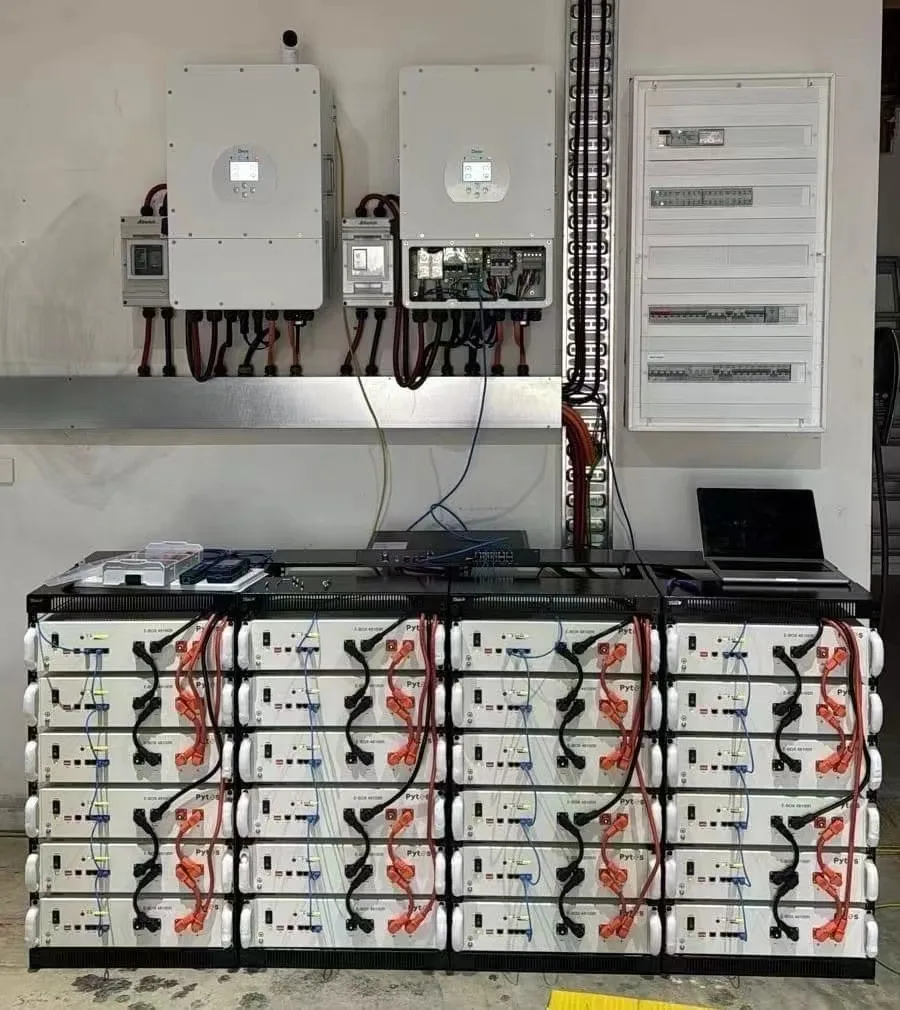

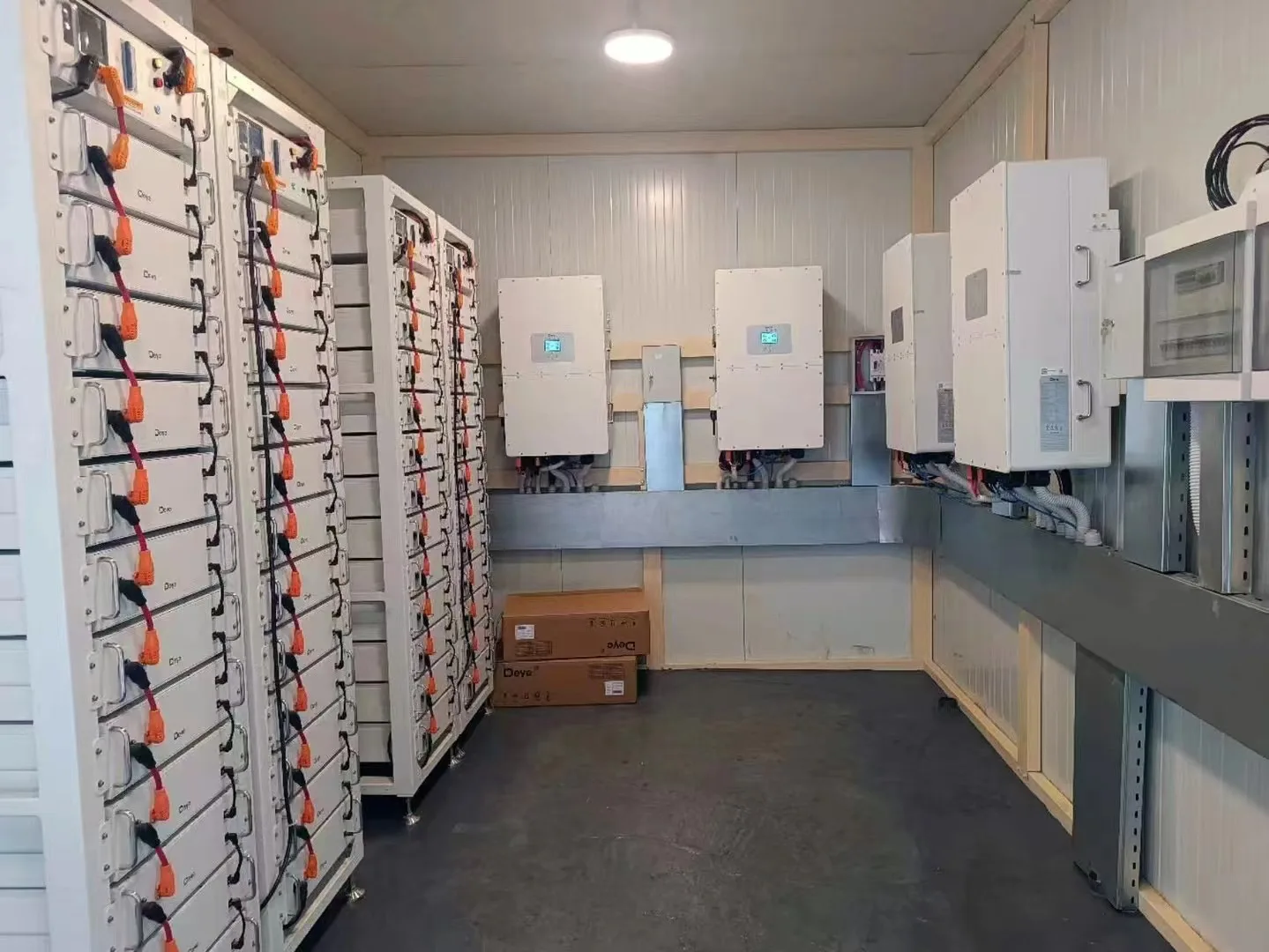

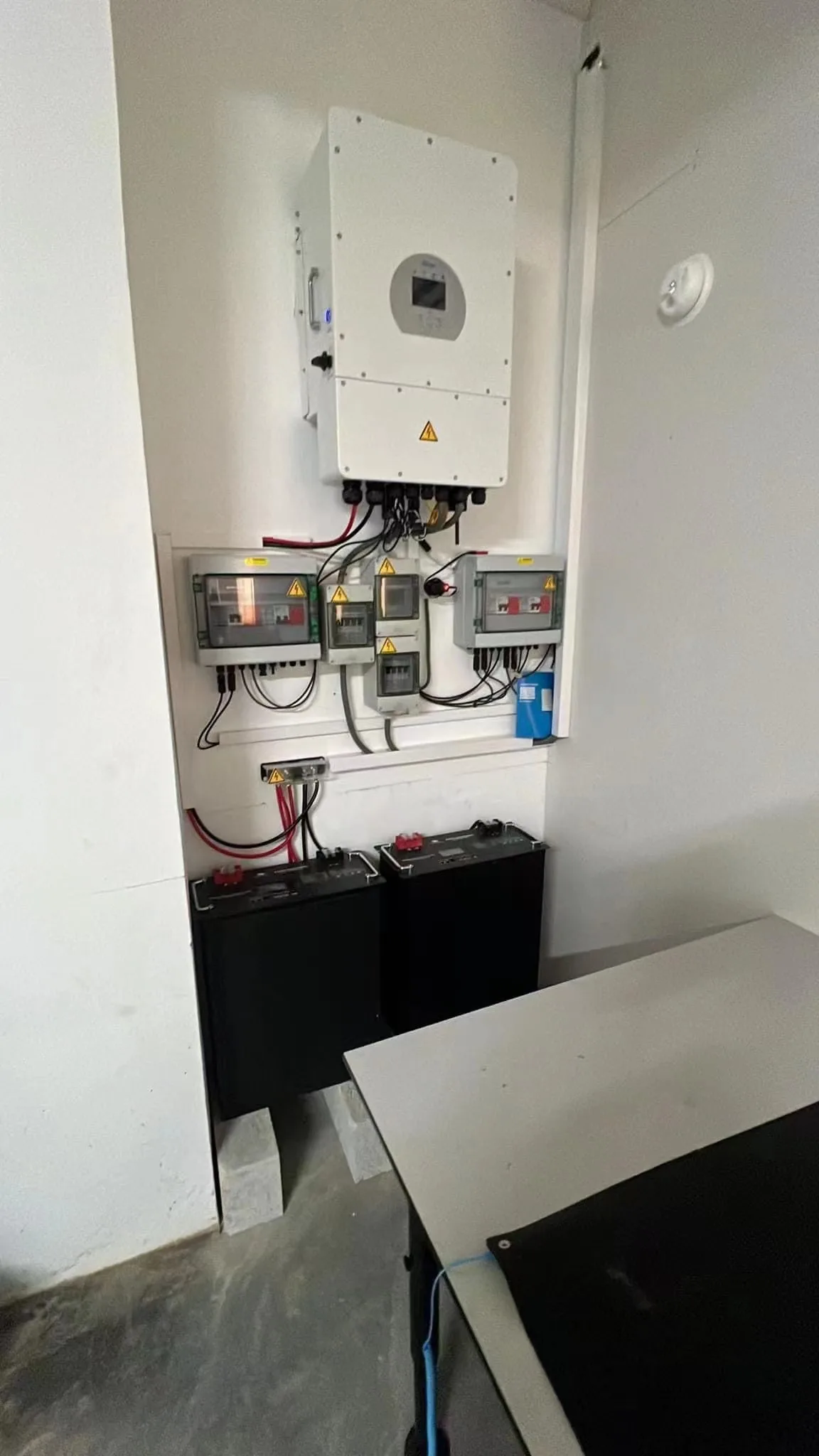

SUNRANGE Project Show






Certifications
