Civintec touch Keyboard QR Code RFID NFC/ BLE Access Control with POE remotely controlled cellphone access control system
- Category: >>>
- Supplier: CiVinTec Intelligence & Technology Co. Ltd.
Share on (1601201813284):
Product Overview
Description
Cloud Server TCP/IP Ethernet WiFi Time Attendance Door Controller keypad with Access Controller
Product Overview

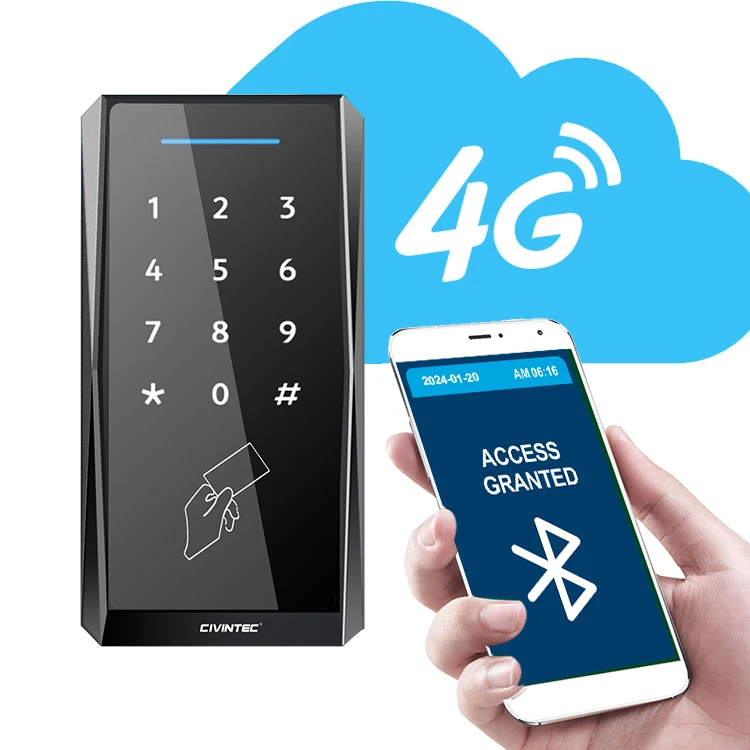

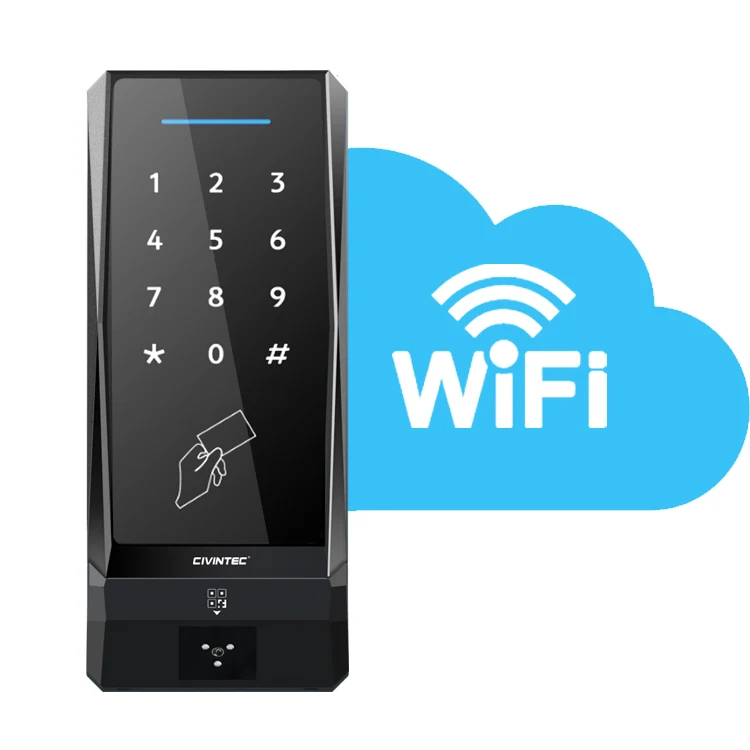

CT9 E is Linux based HTTP/HTTPs server centralized terminal with wireless WiFi, 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication, with embedded reply to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz, BLE & NFC mobile access, QR CODE/barcode by using mobile phone.
HTTP Server Centralized Access Control & IOT
System with RFID / QR CODE / Mobile id Reader
Touch Keypad Reader with
Embedded LINUX OS & SDK
Embedded LINUX OS & SDK
+
Embedded WIFI，4G & TCP/IP Ethernet HTTP/HTTPs
for both LAN & Internet Server Software
+
Embedded Relay Control for Lock & Facility Control
Support both of HOST Mode & Local Mode
for both LAN & Internet Server Software
+
Embedded Relay Control for Lock & Facility Control
Support both of HOST Mode & Local Mode
CT9 FAMILY | CT9 E | ||
IDENTIFICATION TECHNOLOGIES | |||
RFID Contactless Cards | - 125KHz PROx, 125KHz EM - 13 . 56MHz Mifare® Classic, Ultralight®, Mifare® Plus, DESFire® EV1/ EV2/ EV3, NFC tags | ||
Mobile Credential | BLE (2.4Ghz), NFC | ||
Barcode / QR scanner | 1D & 2D QR Code, Micro QR code, PDF417, Code 128, Code 39 and most mainstream 1D and 2D barcodes | ||
INTERFACE | |||
Communication Interfaces | - TCP/ IP(RJ45) - 4G - WiFi 2 .4GHz IEEE802.11b/g/n - RS485, wiegand input | ||
I/ O port | Door contact, Door exit, Buzzer control, Fire alarm, Tamper alarm switch, Output Buzzer control, Access Granted, Access Denied, 1~2 relay outputs | ||
GENERAL | |||
Operating System | LINUX | ||
Display | ----- | ||
Keypad | 12 digit Touch keypad with backlit | ||
Online Card Users / Event logs | Unlimited | ||
Offline Card Users / Event logs | 10,000 users / 50,000 logs (more on request) | ||
APB access control | Yes, external wiegand reader | ||
Indicators | - LEDs - Buzzer and speaker | ||
Power supply | - 12~ 24V DC - PoE IEEE 802 . 3af | ||
Protection Class | IP65 electric epoxy potted (request waterproof spacer) Resistant to UV ray (suitable for UV-resistance model) | ||
* The specifications are subject to change without notice .
Product Features

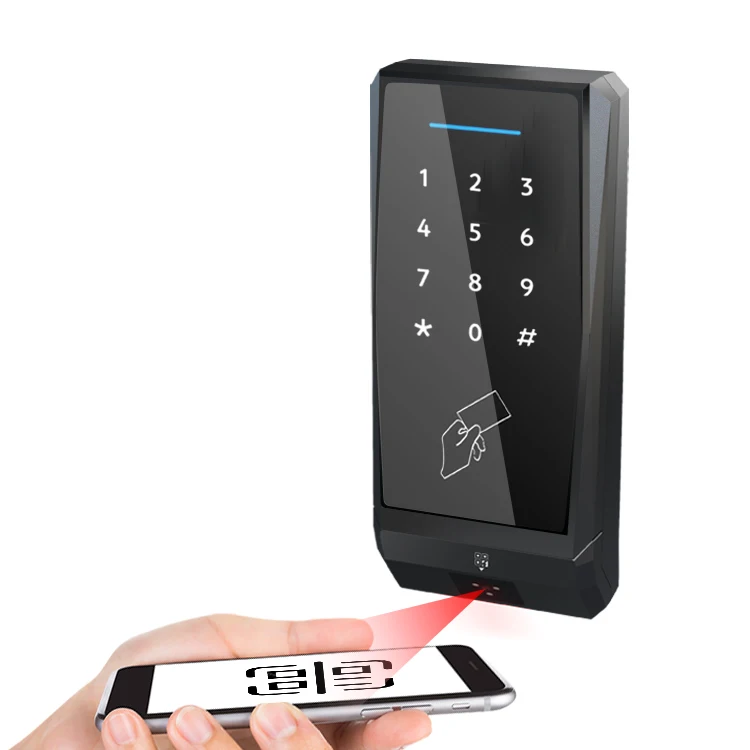

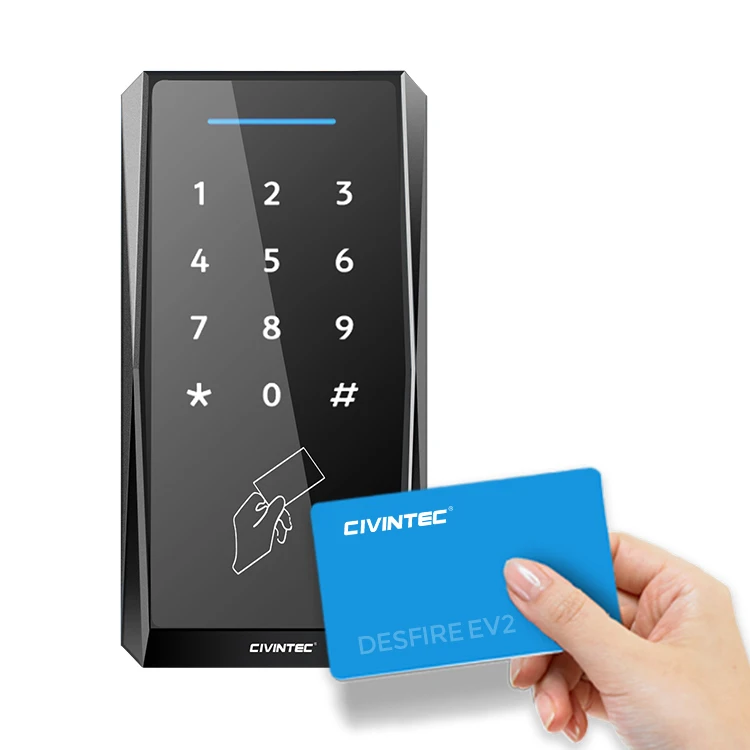

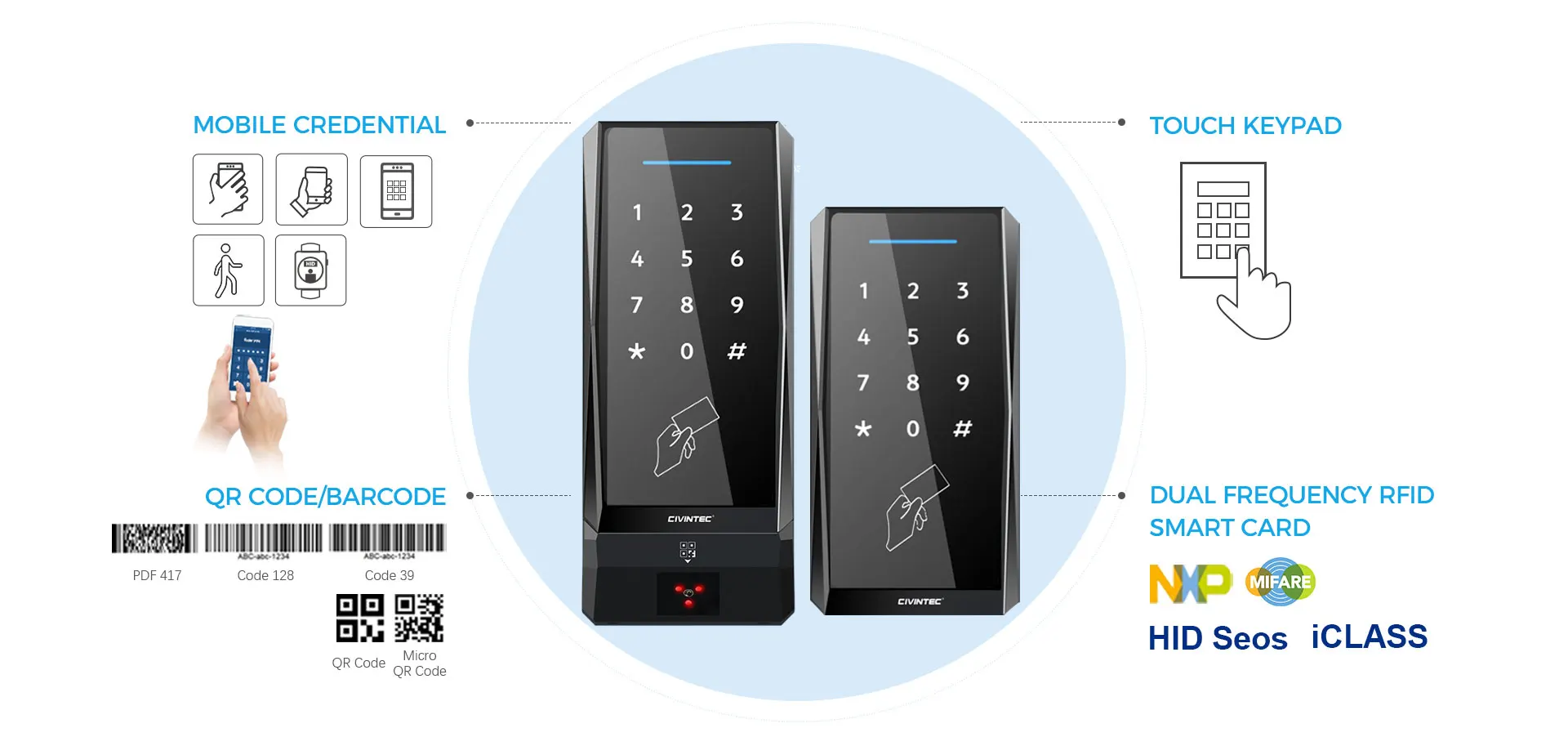

CT9 E incorporates with 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE/barcode by using mobile phone for visitor access control management.

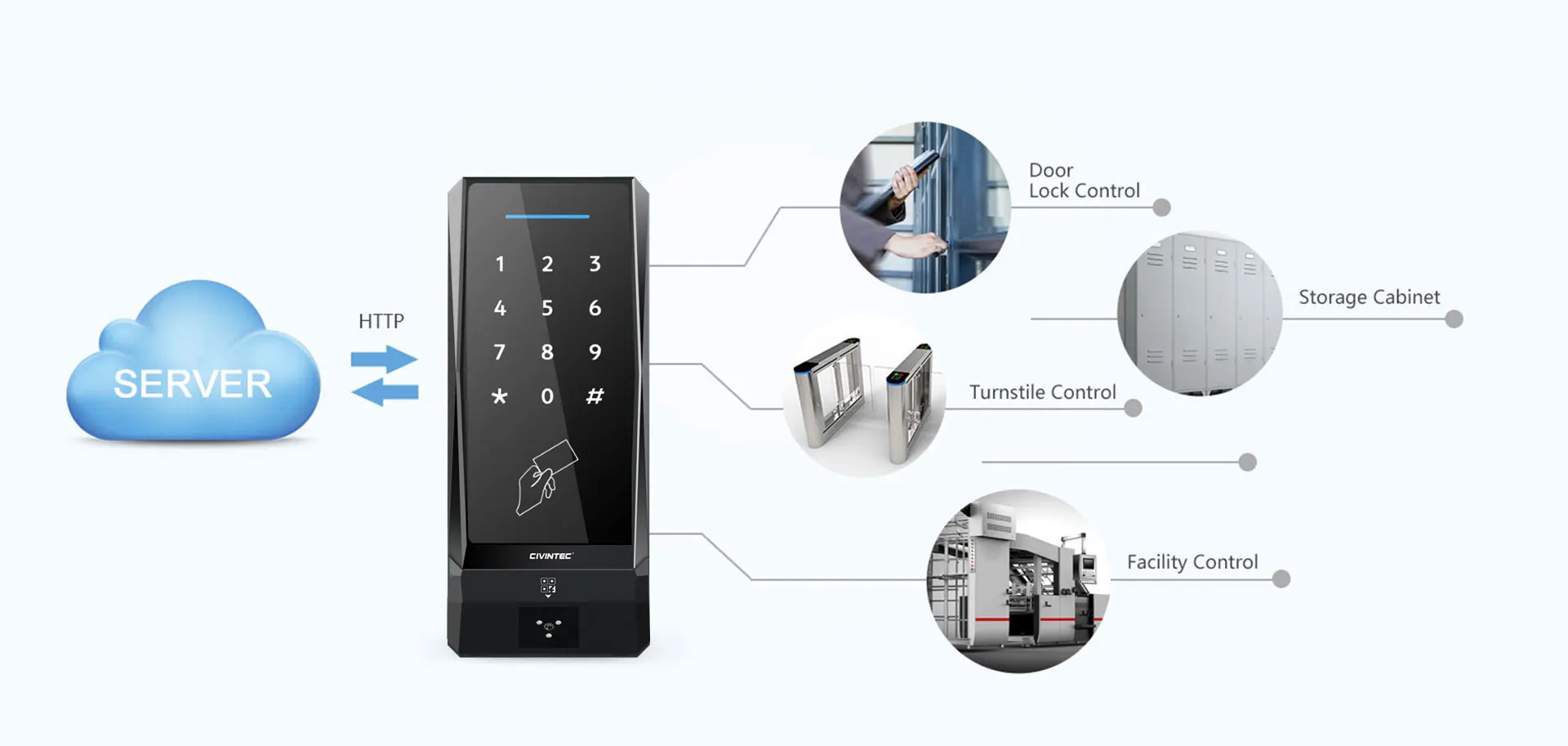

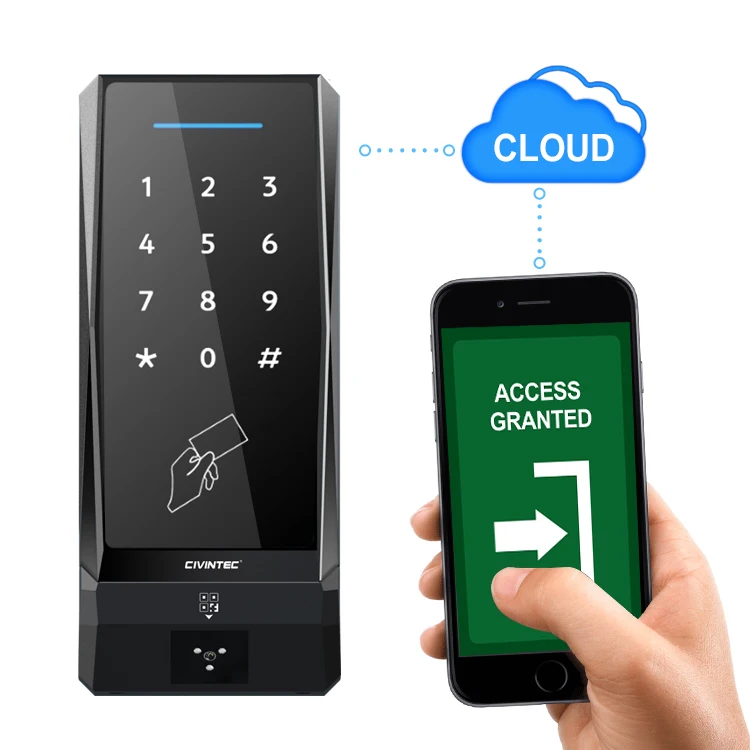

Cloud Server Remote Control for Security & IoT System
Bio-direction communication via standard HTTP & HTTPs between CT9 E and server to remotely control door lock and various IoT facility management
Multiple Application Solutions
Crystal Touch CT9 E is IP access control door reader remotely controlled by cloud web based software in real time via HTTP or HTTPs encrypted communication. It is with embedded relay output to control door lock as ACCESS DENIED or ACCESS GRANTED. It can also control facility to build IoT solution.
Weather-Resistant Protection
With IP65 ratings, CT9 E is weather resistant to rain, dust, strong sunlight, ideal for outdoor use, low temperature various rugged working environments.

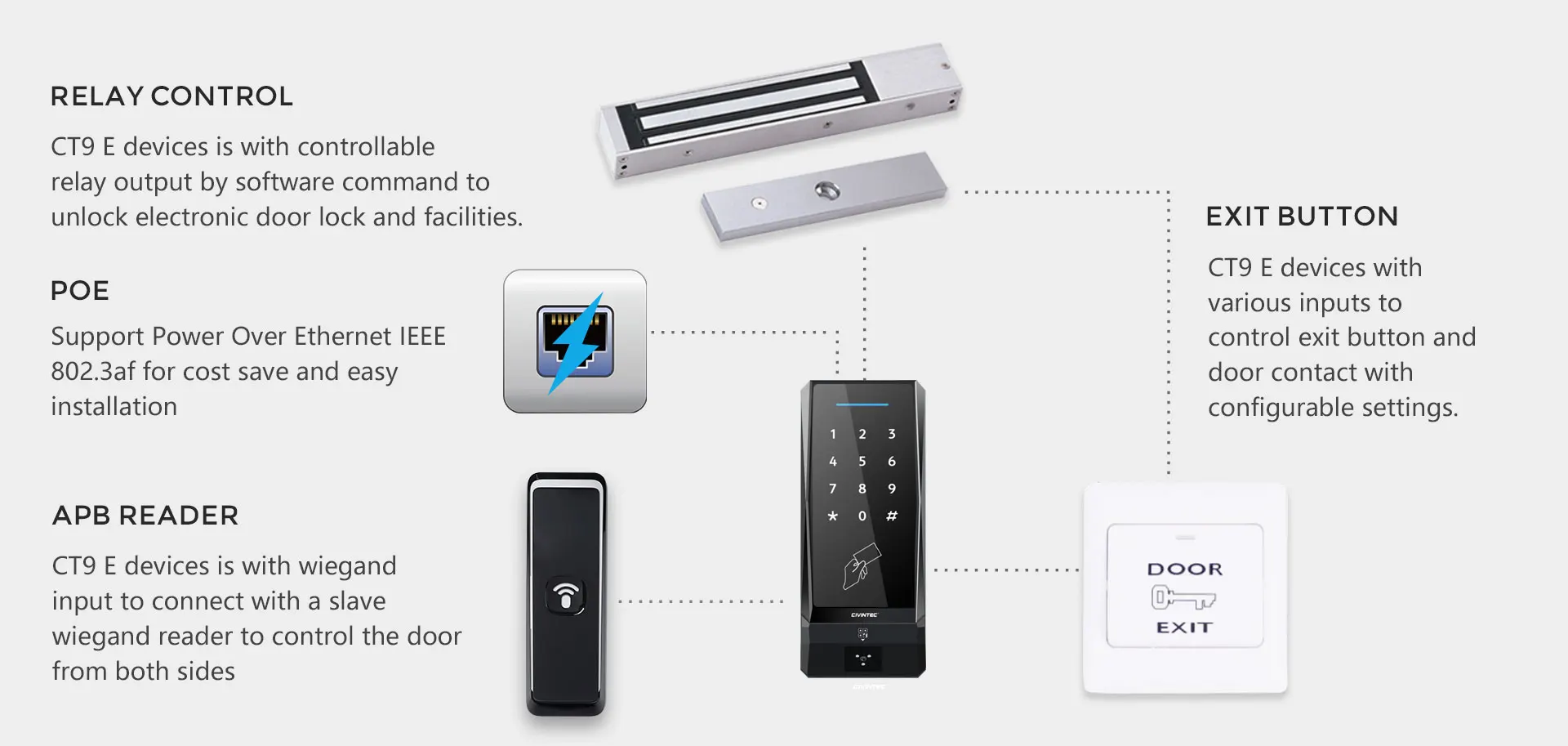

System Configuration
Our Service
Civintec is leading designer and manufacturer of access control device, we offer ODM customization on both hardware, reader housing, firmware and software design service，User can free program and display own LOGO on 3.5” touch screen. Civintec also offer OEM LOGO printing on reader body.
