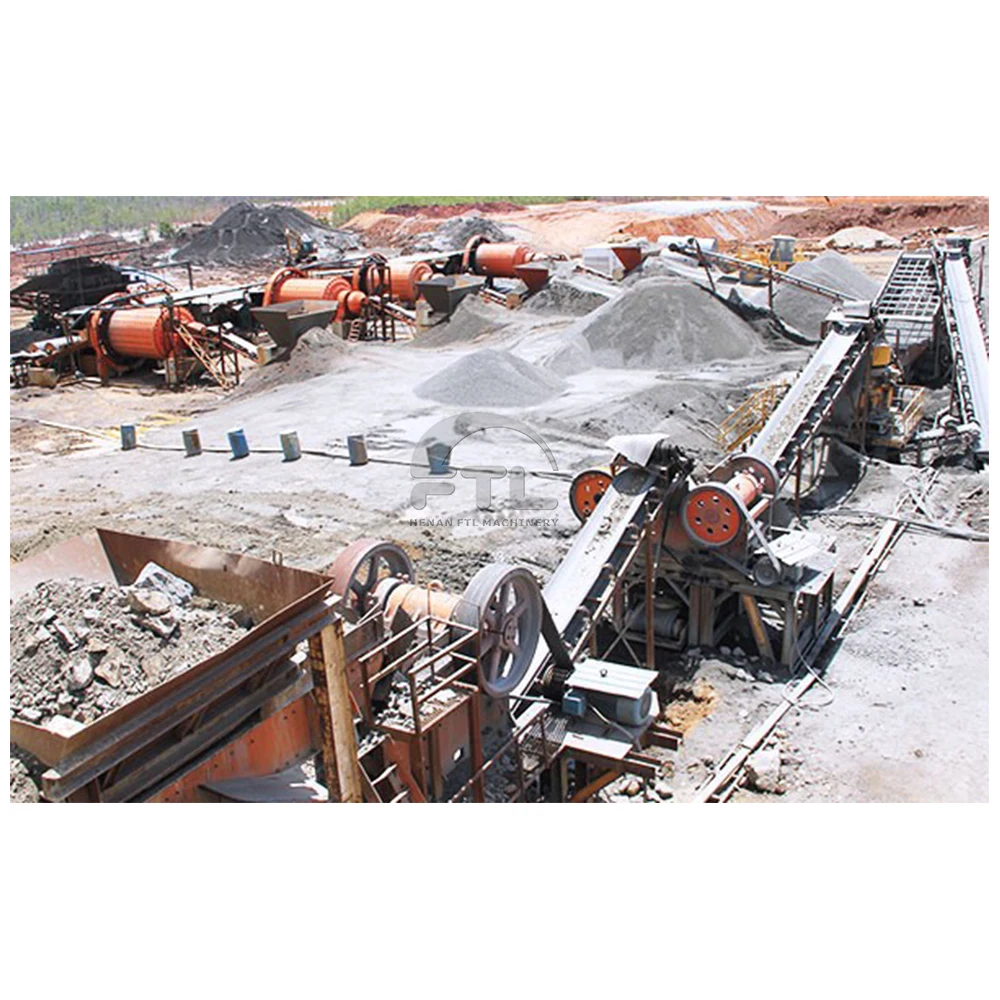

Gold mine CIL processing and carbon leaching processing plant
The ore after grinding is fed to agritation and leaching tanks of cyanide solution, where the gold is dissolved in the cyanide. The pregnant solution is then transferred to a series of tanks, where carbon is added. The gold is adsorbed onto the surface of the carbon. The carbon, with gold attached, is removed by screening. The gold bearing carbon is then introduced into a heated sodium hydroxide-cyanide-water solution where the gold is dissovled. This concentrated solution is passed through a series of electrowinning cells, where the gold quickly plates (in about 3 minutes) onto the stainless steel cathodes. The gold is washed from the cathodes, with high pressure sprays, dried and melted, to be poured into molds for gold bricks, or ingots.
Main equipment
Crushing, Screening Process

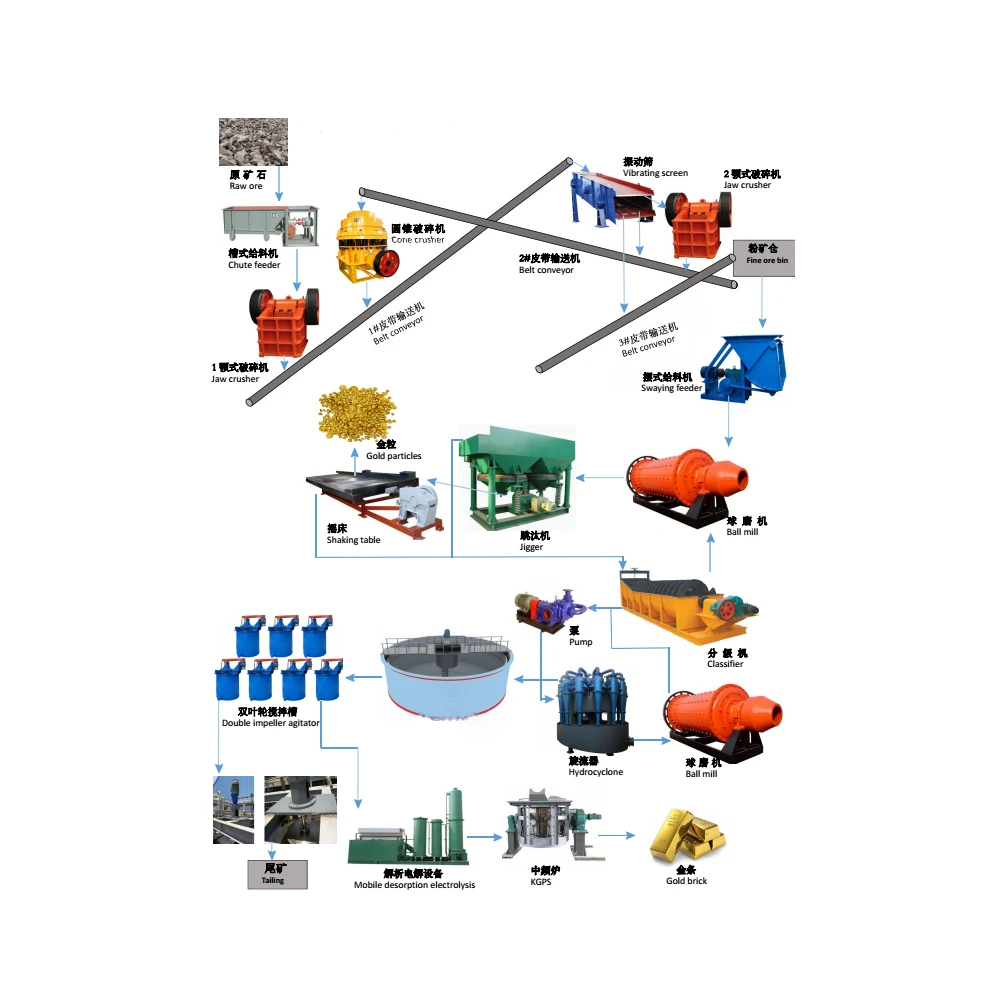

The raw ore is fed into the primary crusher by a vibrating feeder, and then into the secondary crusher by a belt conveyor. The crushed ore is sent to the vibrating screen for sorting, the ore under the screen is sent to the powder silo, and the ore above the screen is sent to the third crusher by a belt conveyor for re-crushing. The crushed ore is then sent to the screening machine for sorting, which is a three-stage one-closed-loop crushing flow chart.
Grinding, Classification Process

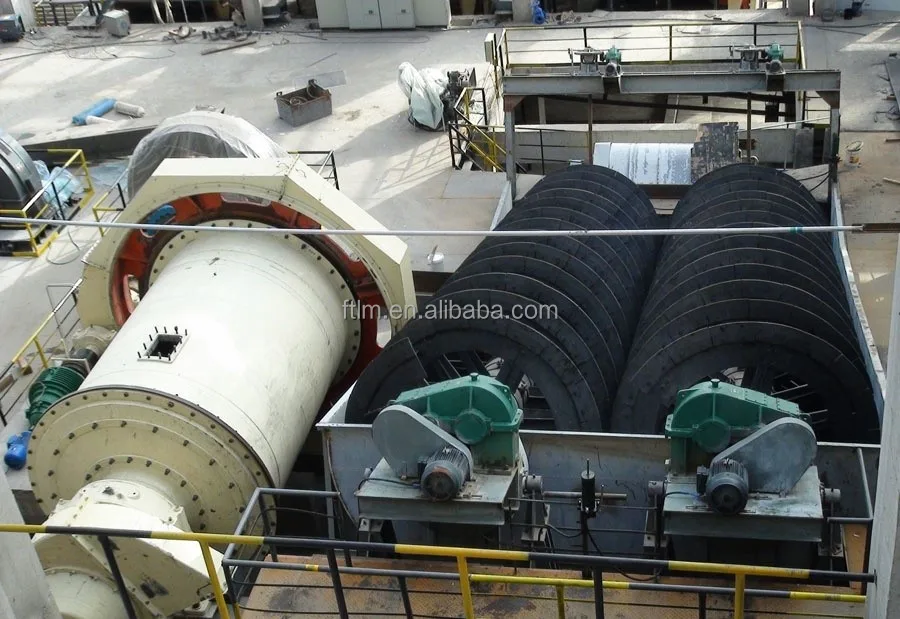

The raw material from the powder silo is sent to the first ball mill through the feeder and belt conveyor. The ball mill discharges to the spiral classifier, and the slurry with larger particle size is returned for re-grinding. The overflow is pumped to the hydrocyclone for the second classifier, and the slurry with larger particle size enters the second ball mill, and the discharge returns to the second classifier. This is a two-step two-closed-loop grinding flow chart. The overflow of the
hydrocyclone is sent to the slag screen and thickener.
hydrocyclone is sent to the slag screen and thickener.
Concentrated

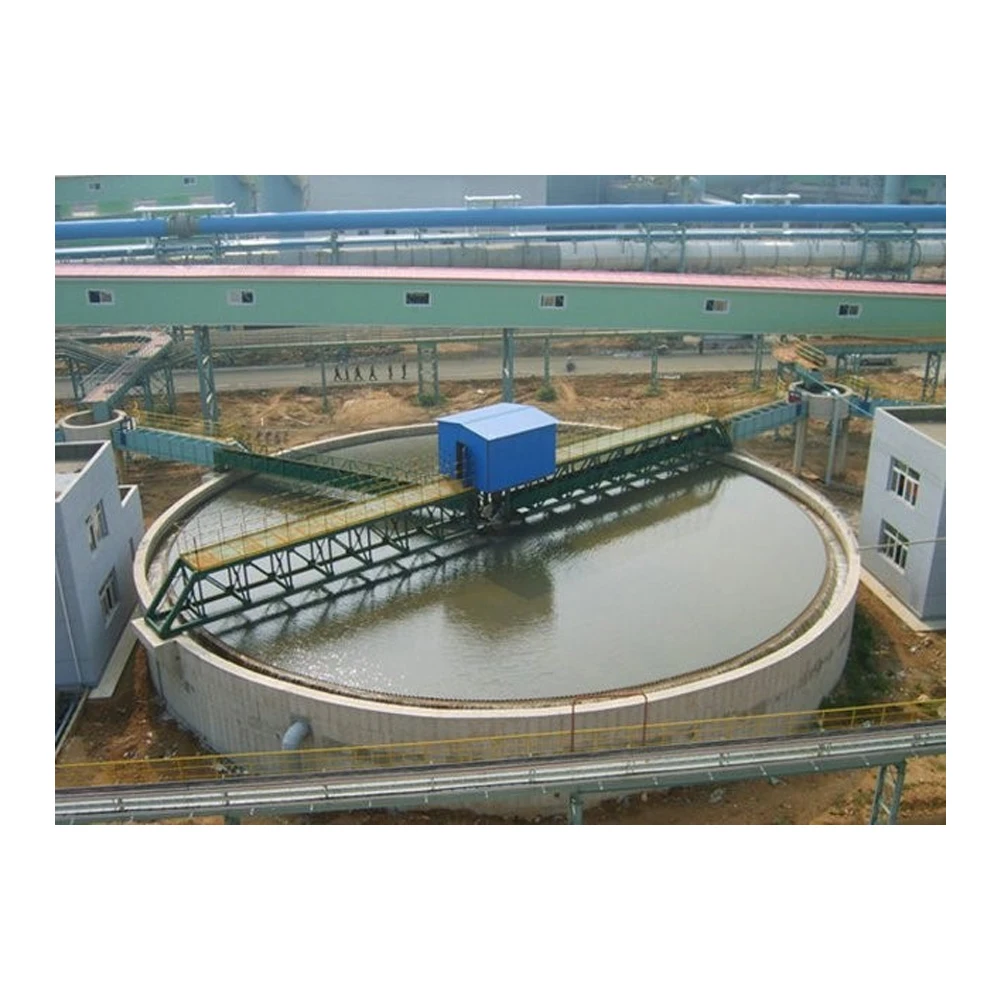

After dewatering and thickening by thickener, overflow pulp density of the classifier will be adjusted to the required concentration of the leaching reaction (40%), and to ensure uniform leaching process, continuous feeding.
Leaching And Adsorption

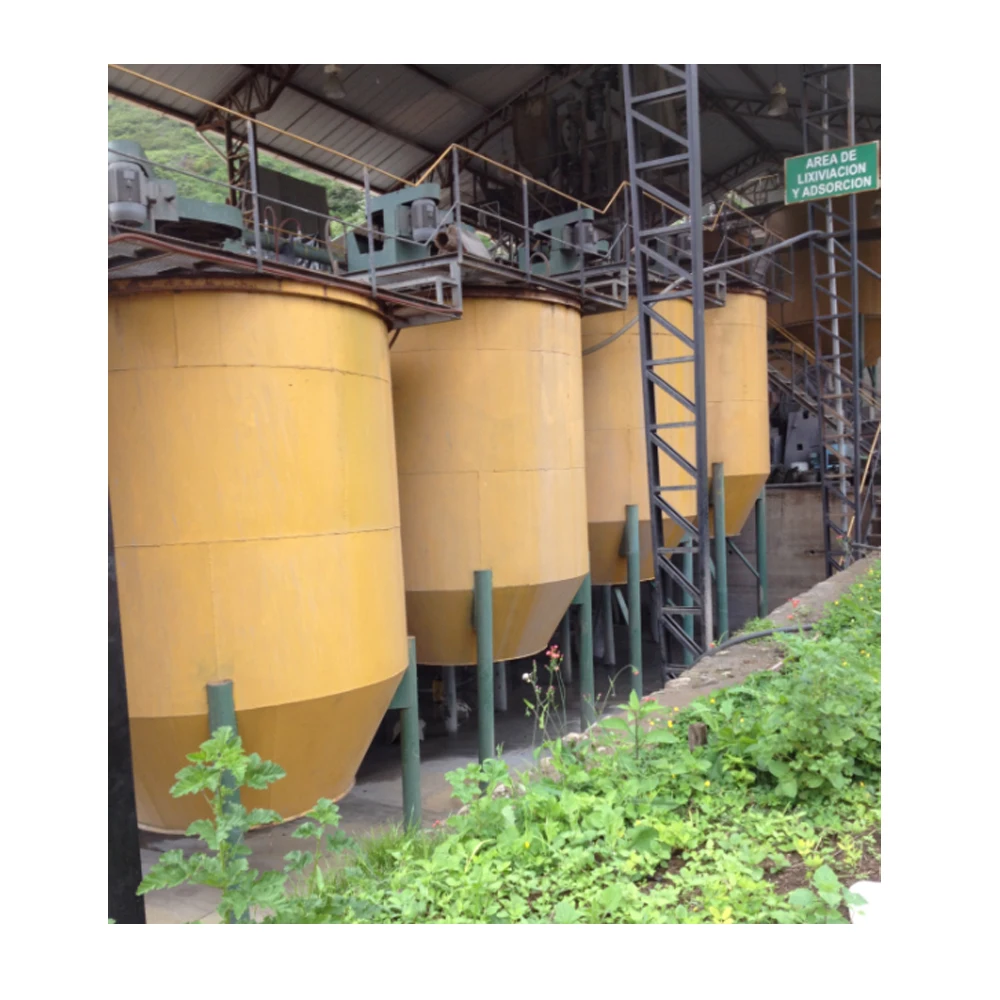

Concentrated pulp by thickener fed to the leaching tank by slurry pump, adding sodium cyanide stirred 20-24 hours. Gold with cyanide to form gold cyanide complexes, gold-cyanide complex is adsorpted by activated carbon, gold loaded carbon is formed, when carbon reaches a certain grade gold, with air lifter gold loaded carbon will mention to carbon lifting sieve to dewatering, and transported to desorption electrolysis systems by pump.

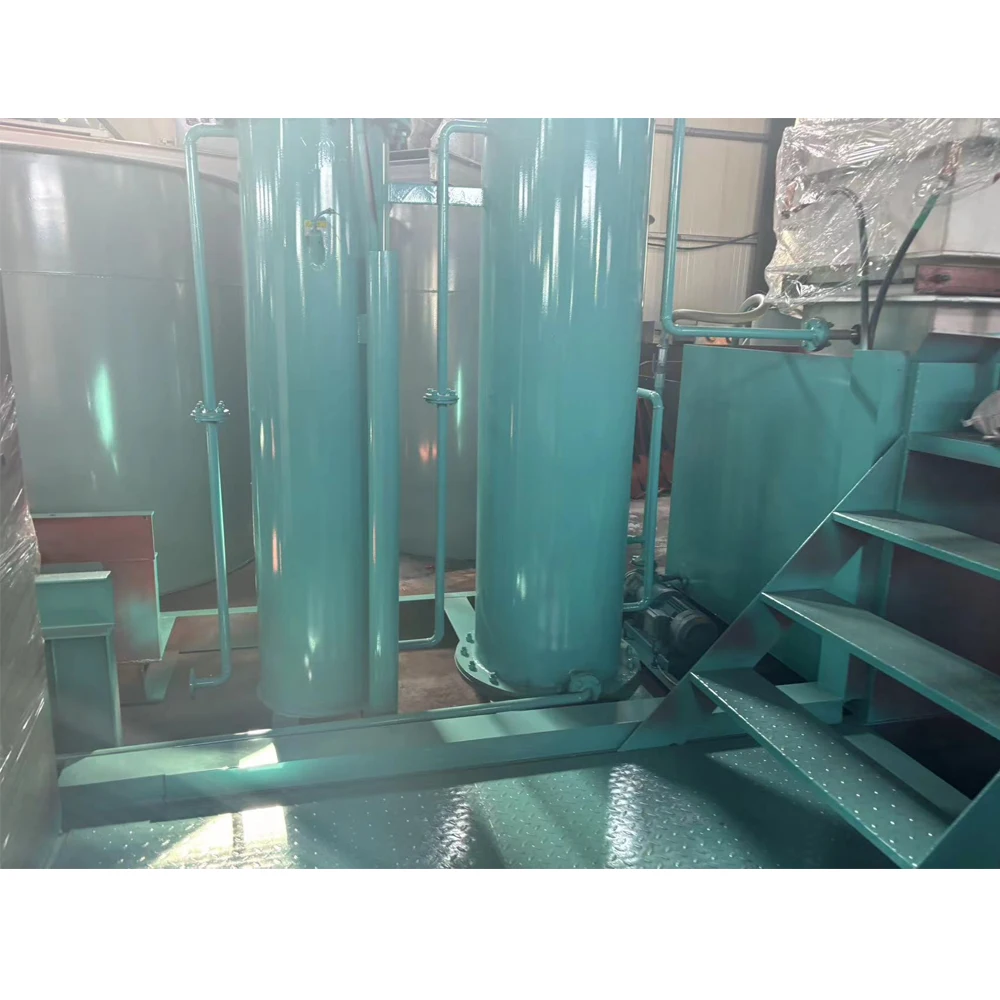

Desorption And Electrowinning
Desorption solution through heating delivered to the analytical column which loaded gold loader carbon, the desorption column will be temperatured, pressured, the gold precipitated from carbon. After desorbed, the bare carbon returned to the leach adsorption section.
After desorption, the gold contained pregnant solution come into electrowinning cell, get gold powder, electrolysis lean solution
can be returned for elution.
Smelting

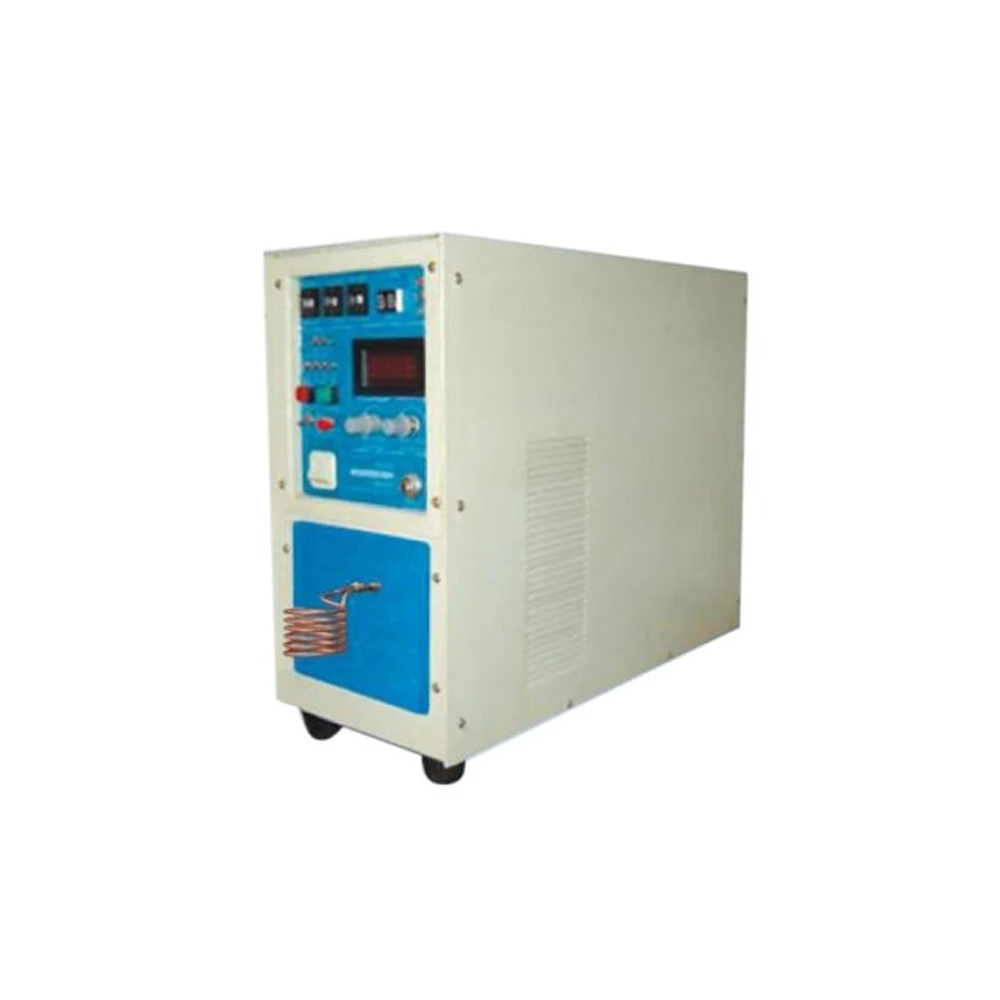

The electrolysis powder through washing, drying, and then smelting, get the gold silver bullion. Reactor with the nitric acid treatment to separate the gold and silver bullion Crude, will get gold, silver, respectively, finally by a high-frequency furnace refined into gold bullion and silver bullion.
No. | Name |
1 | Feeder |
2 | jaw crusher, cone crusher |
3 | vibration screen |
4 | belt conveyor |
5 | ball mill |
6 | spiral classifier |
7 | hydrocyclone |
8 | thickener |
9 | leaching tanks |
10 | Electrowinning and desorption device |
11 | Gold smelting furnace |
