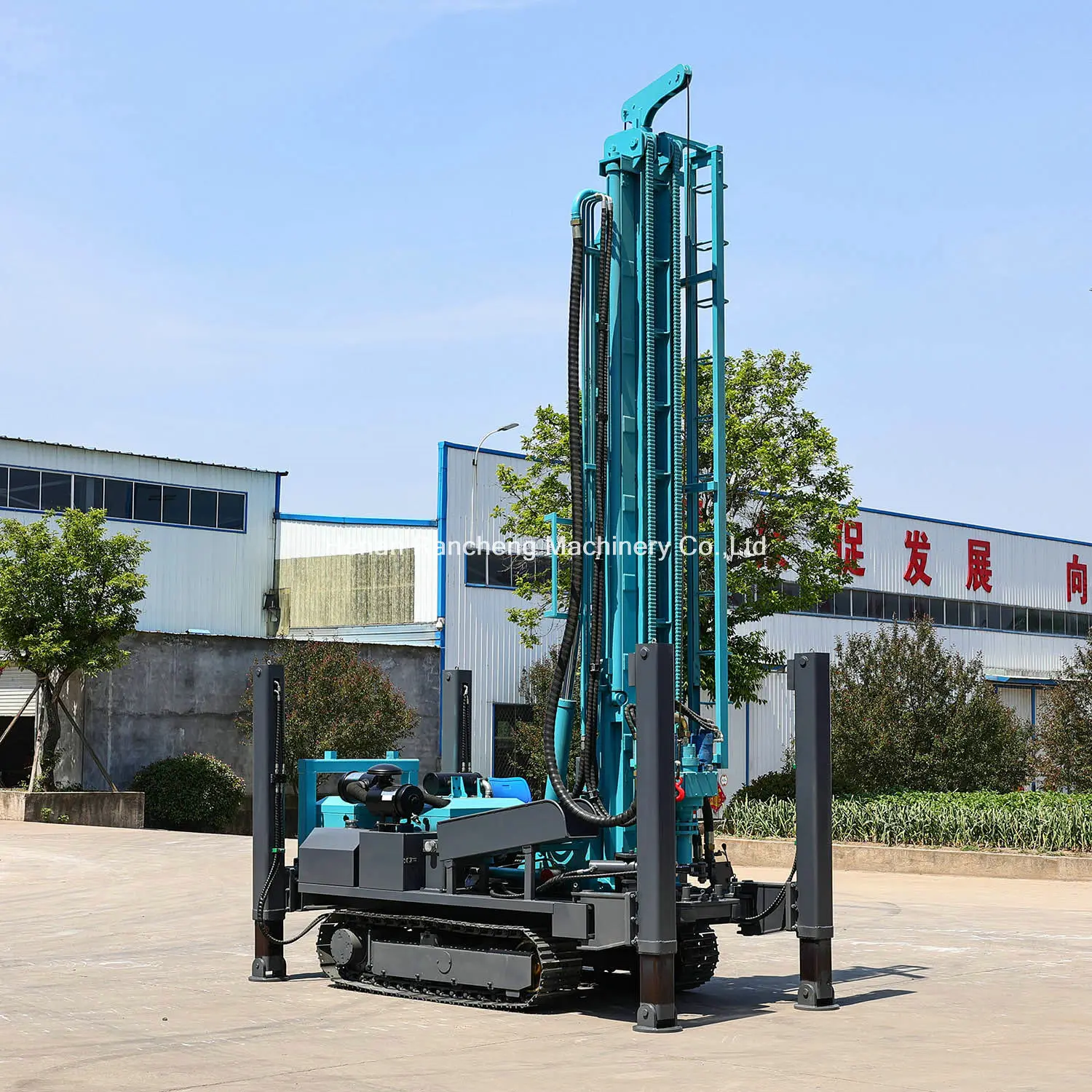

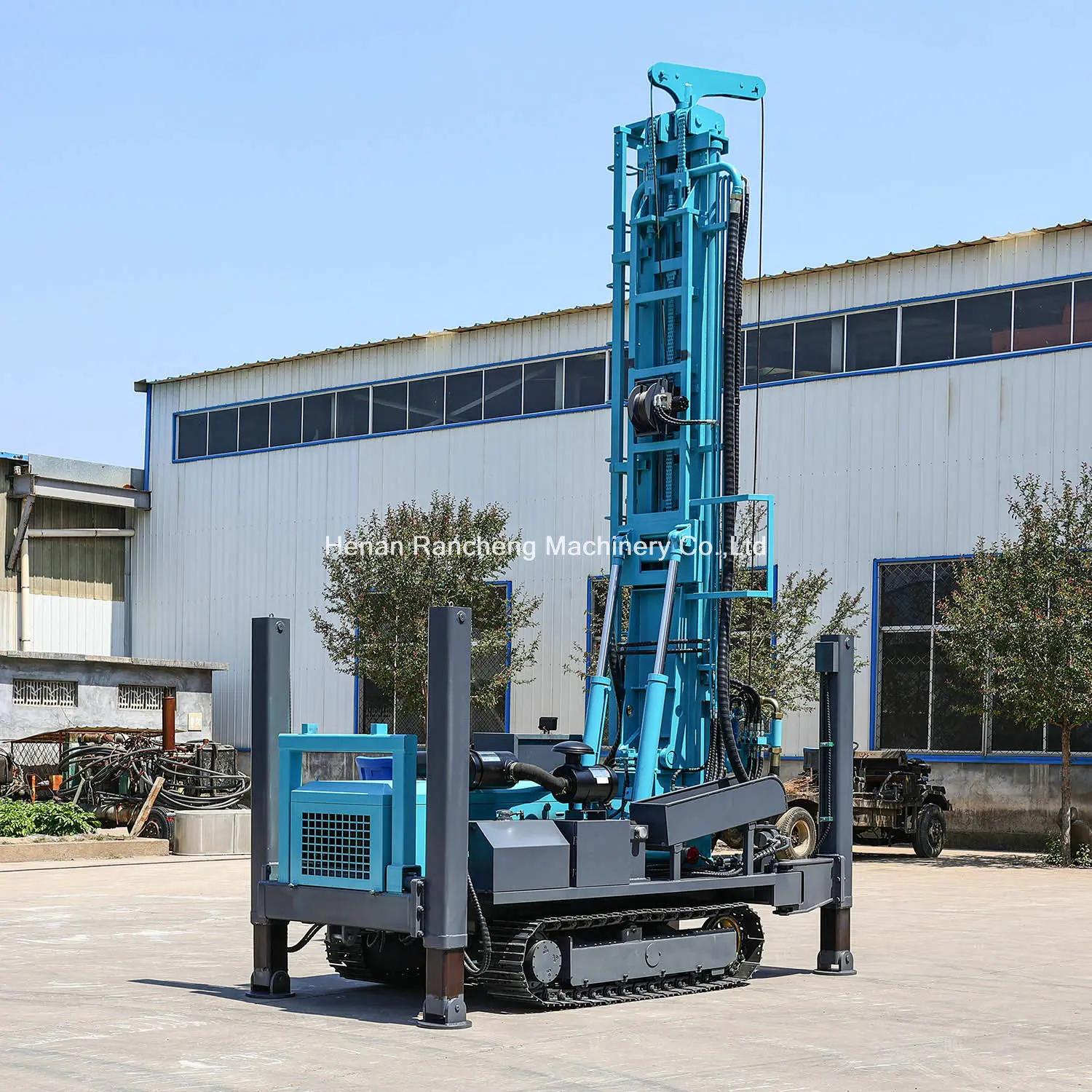

RCF680C hydraulic drilling water well machine
RCF680C deep water well drilling rig is our independent research and development product. This new generation DTH is coupled to higher airpower, and thus plays a significant role in leading to faster drilling rates.
FEATURES AT A GLANCE
Engine: turbocharged engine of Guangxi Yuchai, a well-known brand,70KW
Walking device: equipped with new walking motor and reducer, with long service life;
Hydraulic oil pump: imported from the United States, the parallel gearbox is designed to separate the oil pump, providing
sufficient and reasonable power distribution. The unique design of the advanced hydraulic system, simple maintenance, and low
cost;
Powerhead device; The gearbox body is made of one body, the twin motors provide more power, more torque, more durable, less
maintenance cost;
Walking device: equipped with new walking motor and reducer, with long service life;
Hydraulic oil pump: imported from the United States, the parallel gearbox is designed to separate the oil pump, providing
sufficient and reasonable power distribution. The unique design of the advanced hydraulic system, simple maintenance, and low
cost;
Powerhead device; The gearbox body is made of one body, the twin motors provide more power, more torque, more durable, less
maintenance cost;
Drilling rig chassis; Professional excavator chassis, classic durable, large weight-bearing, wide chain plate width, small damage
to the hard pavement;
Lifting power; Adopt the designed composite big arm, the big arm is small in volume, long in travel, double oil cylinder lifting
force, the large tonnage of drilling rig lifting;
The lifting arm configured with the body of the drill is equipped with a limited bit device, which is used to protect the safety
of the oil cylinder and ensure the safety at work;
Each hydraulic oil pipe is covered with a thick protective jacket, making the oil pipe have a longer service life;
to the hard pavement;
Lifting power; Adopt the designed composite big arm, the big arm is small in volume, long in travel, double oil cylinder lifting
force, the large tonnage of drilling rig lifting;
The lifting arm configured with the body of the drill is equipped with a limited bit device, which is used to protect the safety
of the oil cylinder and ensure the safety at work;
Each hydraulic oil pipe is covered with a thick protective jacket, making the oil pipe have a longer service life;
Left elevation
Right elevation
Back elevation
PRODUCT SPECIFICATIONS
Item | Data |
Bore diameter（hammer） | 140-400mm |
Bore depth | 680m |
Air consumption | 17-42m³/min |
Air pressure | 1.7-3.5Mpa |
Pipe diameter | 102/108/114mm |
Pipe length | 3m/6m |
Lifting force | 28T |
Lifting speed | 3m/min |
Feeding speed | 0.5-5m/min |
Fast lifting speed | 30m/min |
Max torque of the rotary | 8850-13150Nm |
Rotary speed | 45-140r/min |
Hoist lifting capacity | 2T |
Mud Pump flow | 600L/min (option) |
High hydraulic leg | 1.5m |
Feeding efficiency | 10-35m/h |
Travel speed | 2.5Km/h |
Climb ability | 30° |
Dimension（L*W*H) | 6300×2200×2650mm |
Weight | 13000Kg |
Diesel engine | 153KW Cummins engine |
Drilling way | Air compressor drilling or mud pump drilling |
Packaging & Shipping
This RCF680C drilling machine can be loaded into 40" container
delivery time :10-15days
standard exporting packing
delivery time :10-15days
standard exporting packing
After Sales Service
1,24/7 service by chat online and phone.
2,Lifelong and free technical support.
3,Service overseas: if you need, we can dispatch an engineer to your door.
2,Lifelong and free technical support.
3,Service overseas: if you need, we can dispatch an engineer to your door.
Company Profile
Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China ,we are dedicated in designing and
manufacture water well drilling rigs ,rotary drilling rig ,anchor drilling rig ,DTH drilling rig ,solar pile driver,mud pump ,air
compressor and drilling tools etc,we have advanced technology ,Modern equipment, first-class team and rich experience ,our products passed ISO9001 ,CE etc certificated ,they are exported to around 200 countries and areas in the world ,get very good feedbacks from our clients. We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!
manufacture water well drilling rigs ,rotary drilling rig ,anchor drilling rig ,DTH drilling rig ,solar pile driver,mud pump ,air
compressor and drilling tools etc,we have advanced technology ,Modern equipment, first-class team and rich experience ,our products passed ISO9001 ,CE etc certificated ,they are exported to around 200 countries and areas in the world ,get very good feedbacks from our clients. We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!
FAQ
1.Why choose us ?
Rancheng Machinery is a very professional drilling rig supplier in China. We have rich experience in this industry for 11
years.Now our products are serving around the world.we have High Quality, Competitive Price, and Fast Shipment.
2.Do you offer any custom designs?
Yes,we have our own trade factory. We provide services to top range partners.Produce a superior product for you by your designs.
3,How to make sure the quality we sent to you is same with what we said?
We are the Golded supplier on Alibaba, order through the alibaba trade assurance, will ganrantee the safe of your money and the quality of the goods.
4.How To Order ?
Step 1, please tell us what model and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment;
Step 4, finally we deliver the goods within the stipulated time.
5. When will make delivery ?
About 10-15 work days after receipt of the payment.
6.After-sales Service
1 year warranty for all kinds of products;
If you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an
experienced manufacturer, you can rest assured of the quality and after-sales service.
7,whether we can visit your factory
Yes ,you are warmly welcome to visit us.
Rancheng Machinery is a very professional drilling rig supplier in China. We have rich experience in this industry for 11
years.Now our products are serving around the world.we have High Quality, Competitive Price, and Fast Shipment.
2.Do you offer any custom designs?
Yes,we have our own trade factory. We provide services to top range partners.Produce a superior product for you by your designs.
3,How to make sure the quality we sent to you is same with what we said?
We are the Golded supplier on Alibaba, order through the alibaba trade assurance, will ganrantee the safe of your money and the quality of the goods.
4.How To Order ?
Step 1, please tell us what model and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment;
Step 4, finally we deliver the goods within the stipulated time.
5. When will make delivery ?
About 10-15 work days after receipt of the payment.
6.After-sales Service
1 year warranty for all kinds of products;
If you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an
experienced manufacturer, you can rest assured of the quality and after-sales service.
7,whether we can visit your factory
Yes ,you are warmly welcome to visit us.
