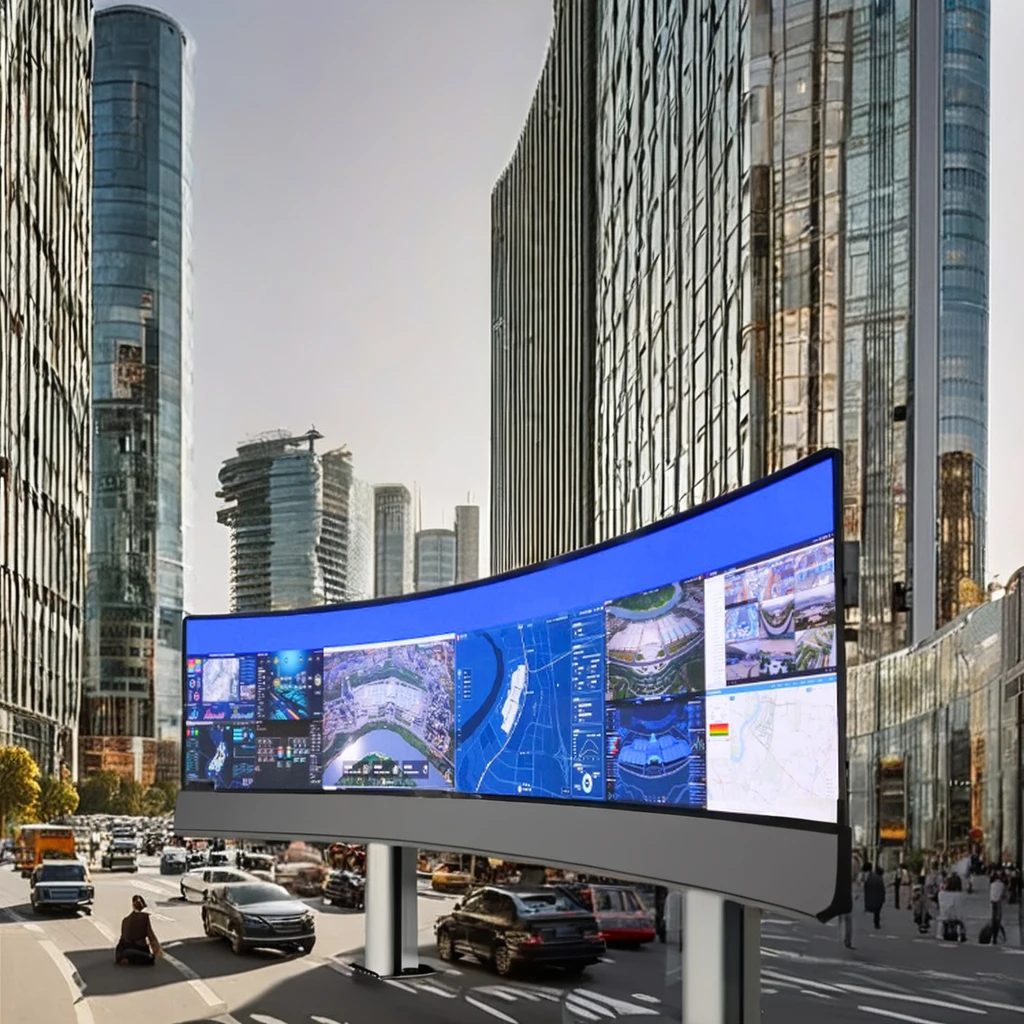

600*337.5mm COB Mini 4K Indoor Micro Thin LED Video Wall Display Screen P0.9 P1.2 P1.5 Elevator Use 1.5mm Pixel Pitch SDK
- Category: >>>
- Supplier: Shenzhen Jiulong Optoelectronics Co. Ltd.
Share on (1601201838238):
Product Overview
Description
Products Description
Product Paramenters
Pitch | P0.9375 | P1.25 | P1.5625 | P1.875 | |||
LED Type | Mini4合1 | SMD1010 | SMD1010/1212 | SMD1010/1515 | |||
Physical density(Dot/sqm) | 1137778 | 640000 | 409600 | 284444 | |||
Module resolution | 320X180 | 240X135 | 192X108 | 160x90 | |||

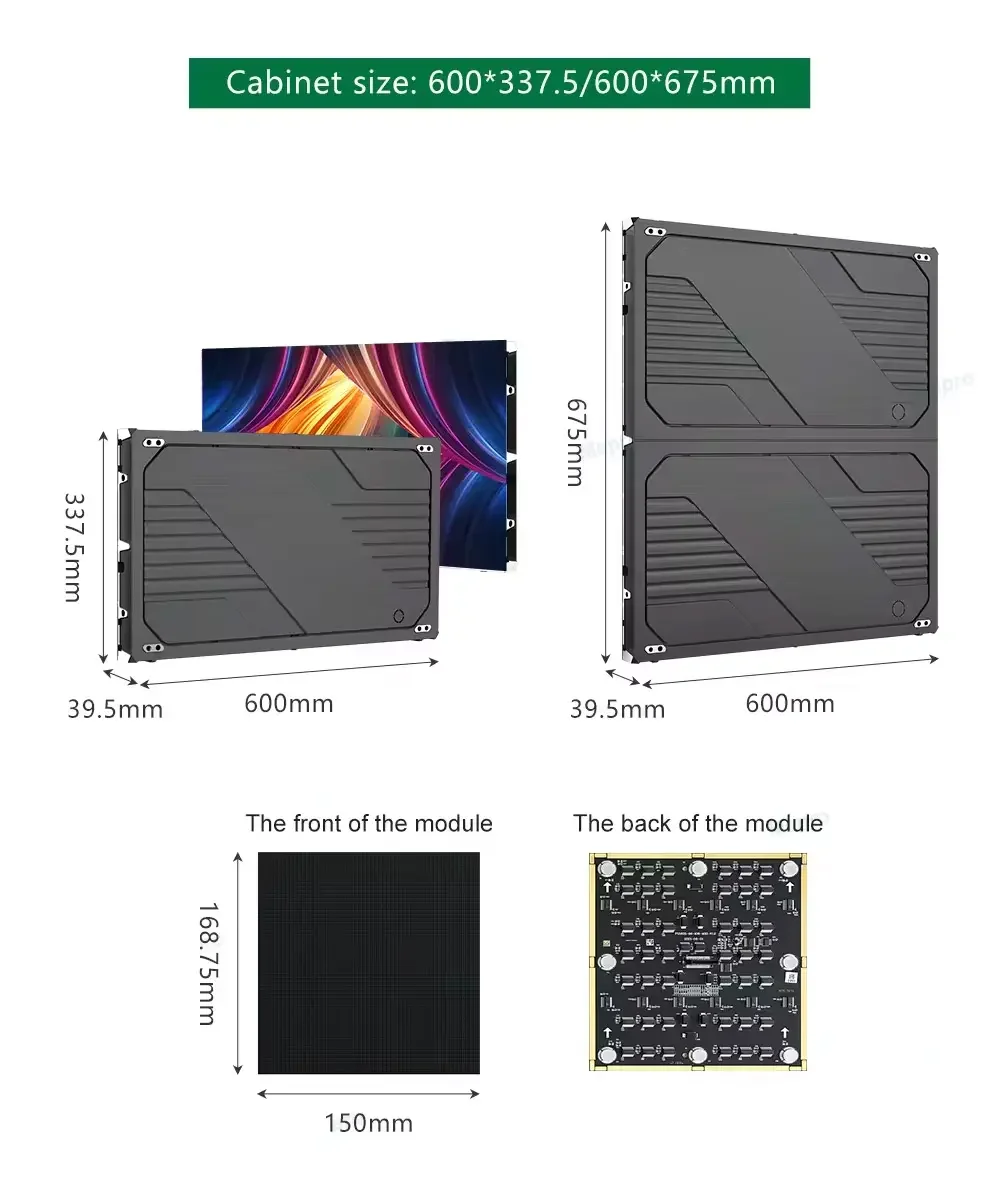

Module size(mm) | 300X168.75 | 300X168.75 | 300X168.75 | 300X168.75 | |||
Panel Dimension (WXHXD/mm) | 600X337.5X27.5 | 600X337.5X27.5 | 600X337.5X27.5 | 600X337.5X27.5 | |||
Panel Resolution | 640X360 | 480X270 | 384X216 | 320x180 | |||
Module QTY(WXH) | 2X2 | 2X2 | 2X2 | 2X2 | |||
Panel weight(kg) | 4.5 | 4.5 | 4.5 | 4.5 | |||

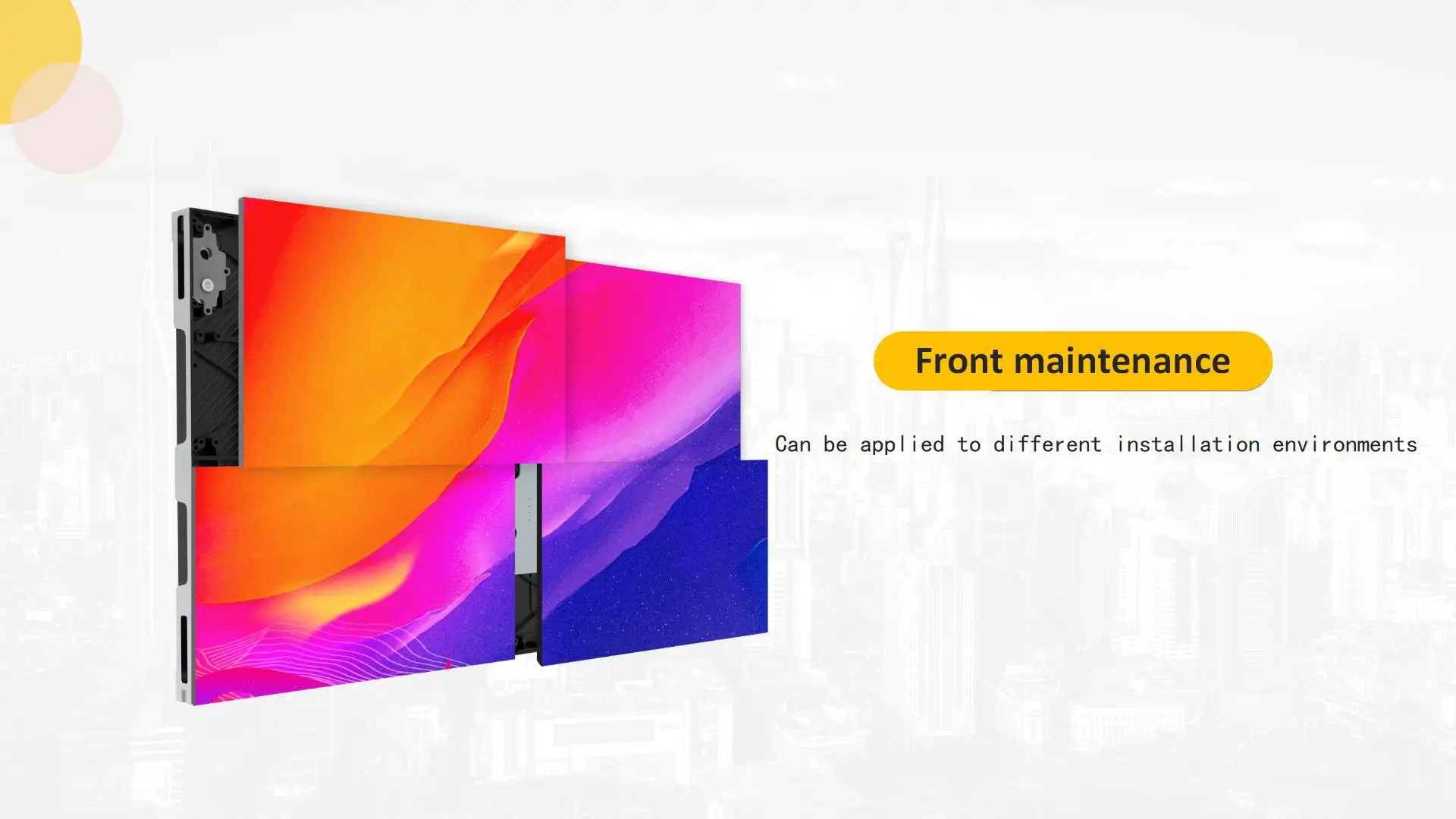

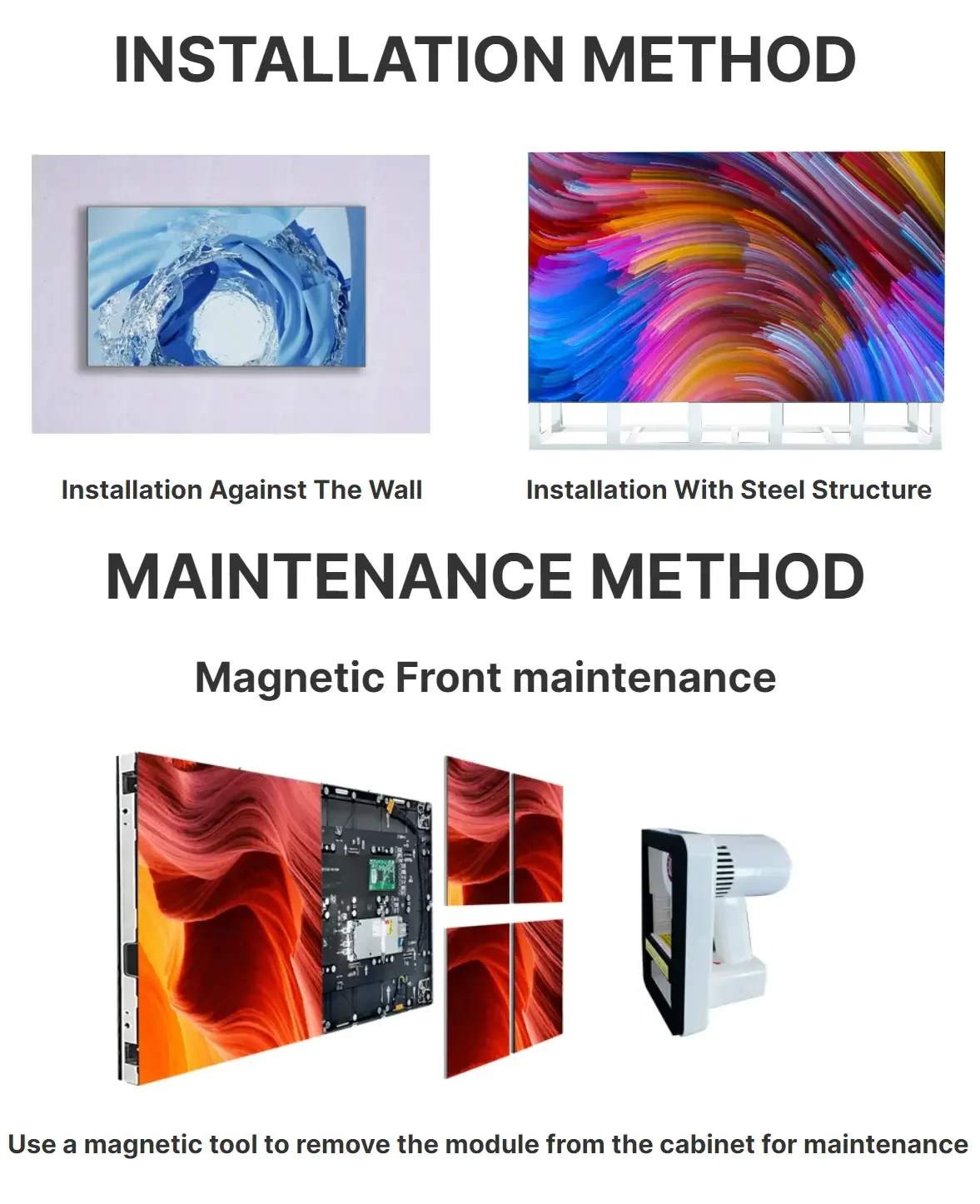

Maintenance Mode | Front maintenance | Front maintenance | Front maintenance | Front maintenance | |||
Cabinet Material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | |||
Brightness Carlibration | Have | Have | Have | Have | |||
Brightness(Nits) | ≥600 | ≥600 | ≥600 | ≥600 | |||
Color temperature(K) | 1000-18500 Optional | 1000-18500 Optional | 1000-18500 Optional | 1000-18500 Optional | |||
Viewing angle(V/H) | 170°/170° | 170°/170° | 170°/170° | 170°/170° | |||
Brightness/Color uniformity | ≥99.8% | ≥99.8% | ≥99.8% | ≥99.8% | |||
Contrast ratio | 10000 : 1 | 10000 : 1 | 10000 : 1 | 10000 : 1 | |||
Frame frequency | 50/60 | 50/60 | 50/60 | 50/60 | |||
Drive mode | 1/46 scan | 1/45 scan | 1/48 scan | 1/45 scan | |||
Grey level | 16bit | 16bit | 16bit | 16bit | |||
Refresh rate(Hz) | 3840 | 3840 | 3840 | 3840 | |||
Max. power consumption(W/sqm) | 350 | 350 | 350 | 350 | |||
Avg. power consumption(W/sqm) | 100 | 100 | 100 | 100 | |||
Protection level | IP31 | IP31 | IP31 | IP31 | |||
Power input | AC90-264V,47-63Hz | ||||||
Wroking temperature/humidity(℃/RH) | -20~60℃/10%~85% | ||||||
Storage temperature/humidity(℃/RH) | -20~60℃/10%~85% | ||||||

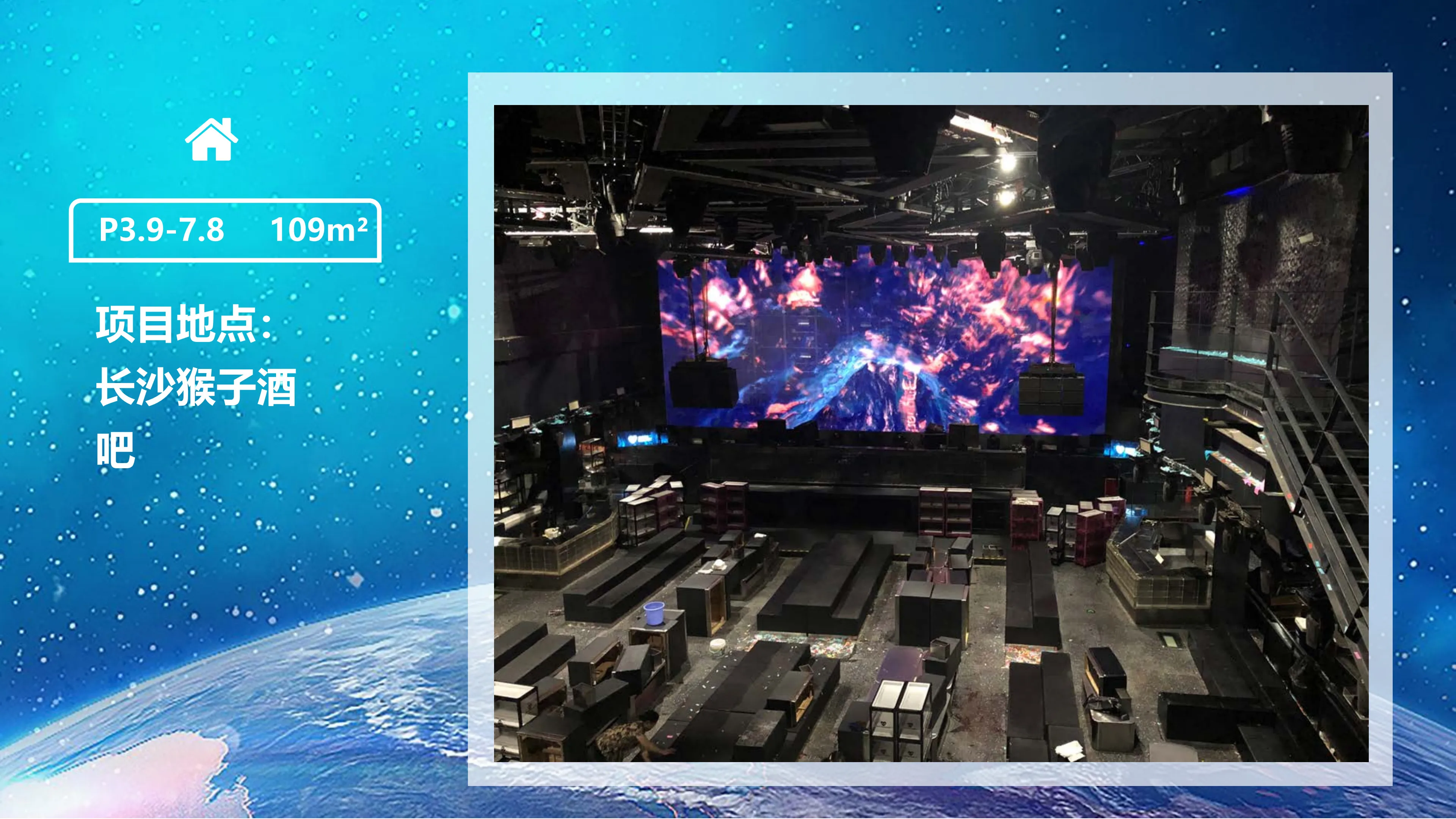

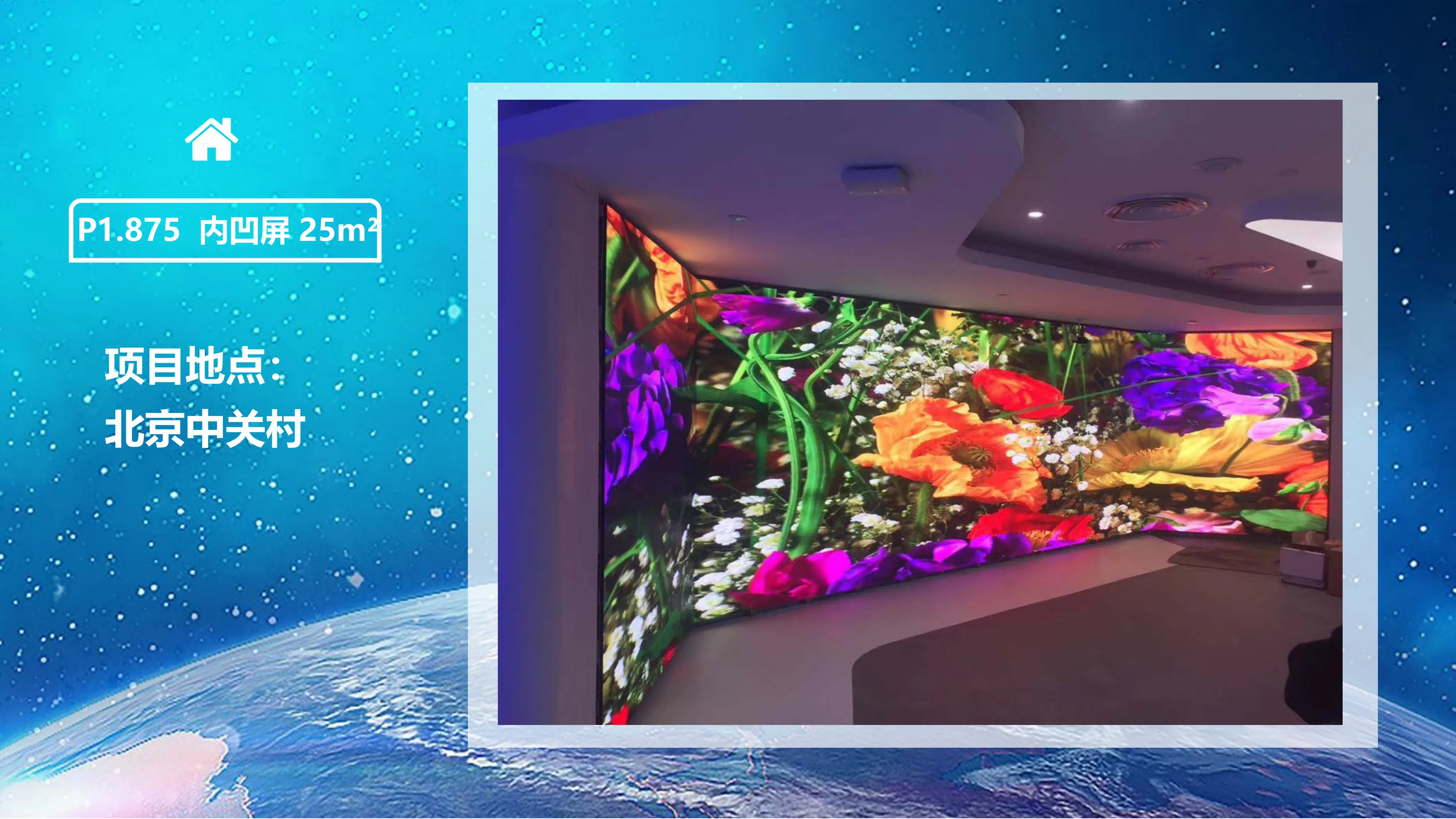

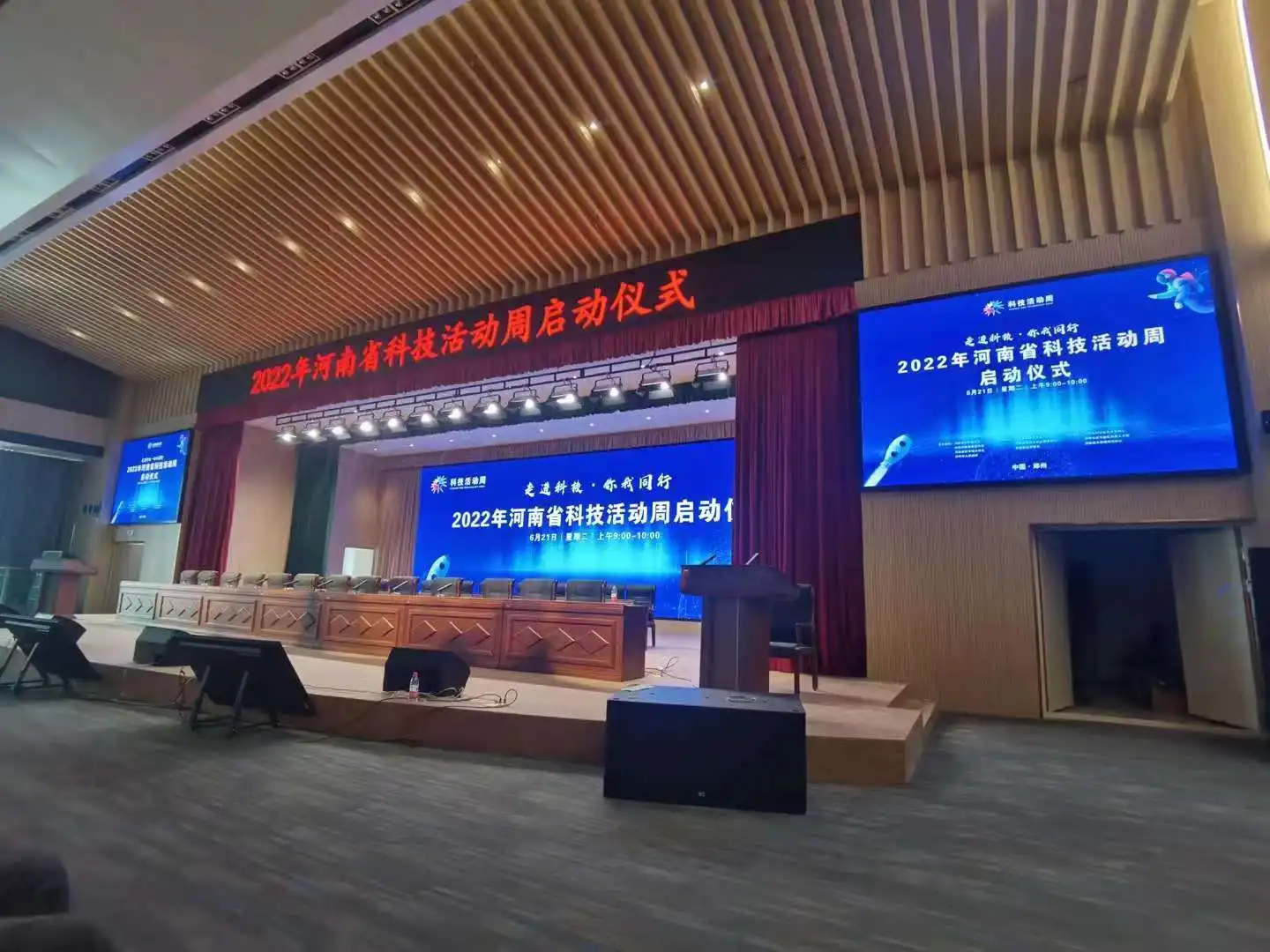

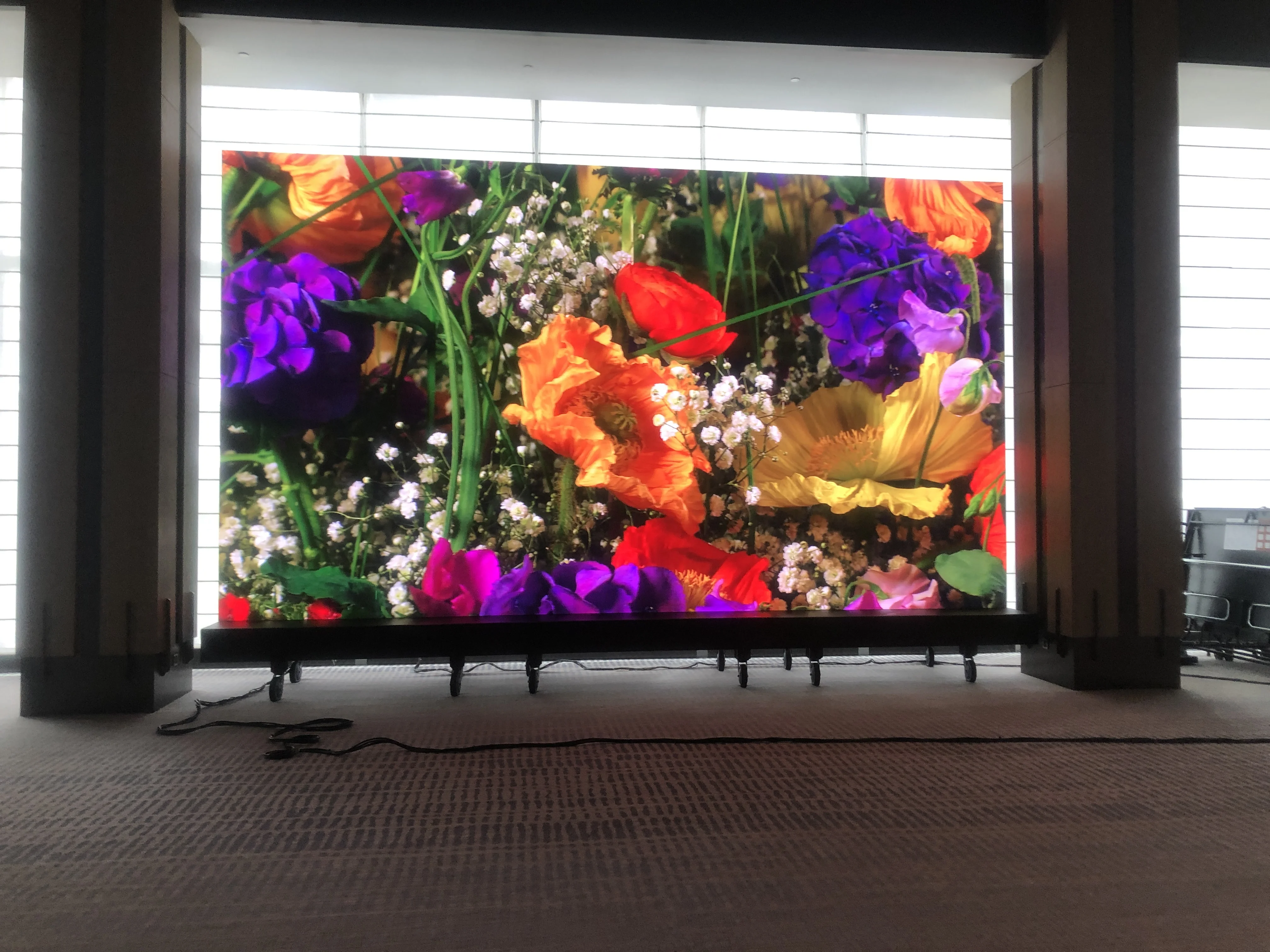

Customer Photos
Certifications
Product packaging
Company Profile
Shenzhen Jiulong Optoelectronics Co., Ltd. was established in 2012. It is a high-tech enterprise specializing in full-color LED display and led display related products.We maily produce indoor and outdoor full colour led display screen,rental led display screen,advertising led screen and so on. Our company Located in Guangming New District,Shenzhen, with an operating area of more than 3,000 square meters.

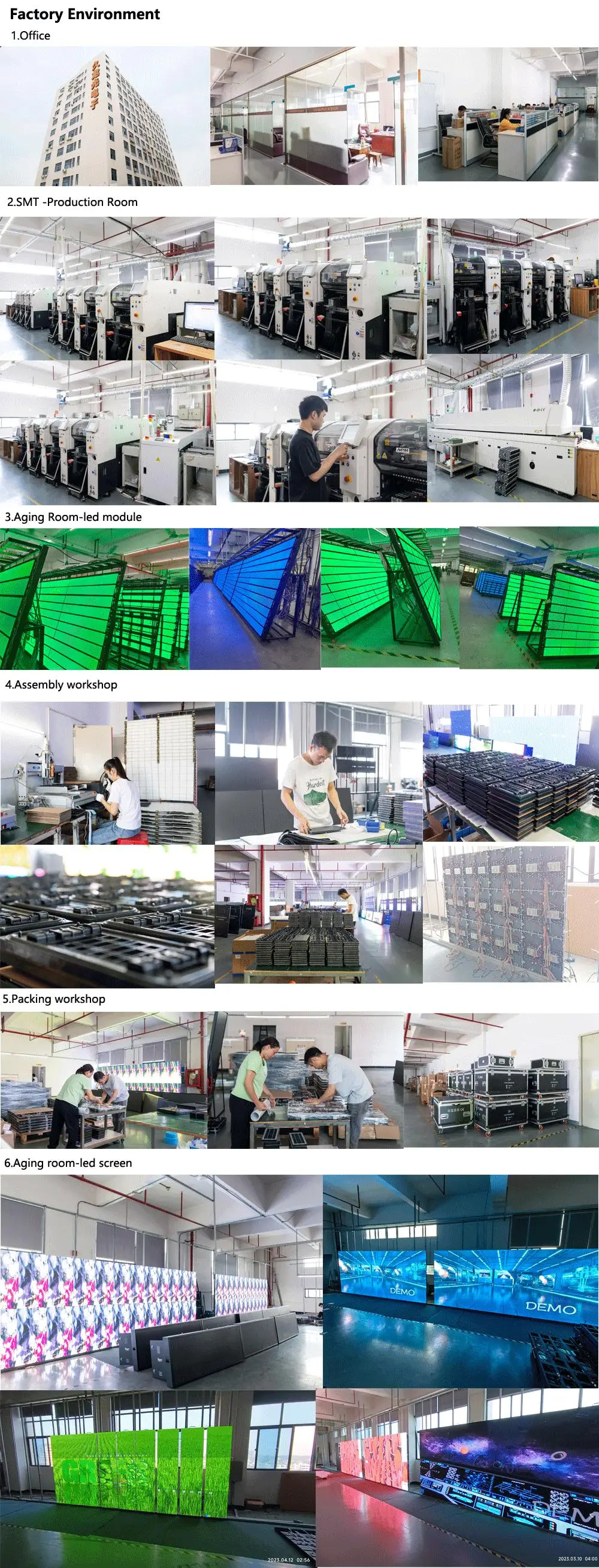

Since its establishment, the company has focused on the research and production, sales, and rental services in the field of LED displays, and is committed to providing customers with a full range of solutions. Jiulong Optoelectronics has modern production lines, SMT high-speed placement machines, high temperature reflow soldering, glue filling machines and standardized product aging production lines and other modern production equipment and inspection equipment to ensure product batch, large-scale production and first-class product quality.
Jiulong Optoelectronics has passed the national patent certification and obtained the ISO9001:2008 quality certification
system.All products have passed the CCC, FCC, CE, RoHS and other certifications. Products cover engineering modules, leasing, media and other fields.
Jiulong Optoelectronics has always provided customers with all-round and diversified services. The products are exported to the United States, Mexico, Spain, Australia, Europe and other countries, and have won unanimous praise. In the future, the company will continue to provide our customers with better and more suitable display solutions.
Since its establishment, the company has focused on the research and production, sales, and rental services in the field of LED displays, and is committed to providing customers with a full range of solutions. Jiulong Optoelectronics has modern production lines, SMT high-speed placement machines, high temperature reflow soldering, glue filling machines and standardized product aging production lines and other modern production equipment and inspection equipment to ensure product batch, large-scale production and first-class product quality.
Jiulong Optoelectronics has passed the national patent certification and obtained the ISO9001:2008 quality certification
system.All products have passed the CCC, FCC, CE, RoHS and other certifications. Products cover engineering modules, leasing, media and other fields.
Jiulong Optoelectronics has always provided customers with all-round and diversified services. The products are exported to the United States, Mexico, Spain, Australia, Europe and other countries, and have won unanimous praise. In the future, the company will continue to provide our customers with better and more suitable display solutions.
FAQ
1.Where is your factory?
2.Can you provide sample?
We can provide 1-2 pcs of led module for testing if you can kindly to pay for the freight charge
3.What kinds of led screen do you have?
a.indoor&outdoor fixed led display P1.25-P10
b.indoor&outdoor rental led display P1.953,P2.604,P2.976,P3.076,P3.91,P4.81
c.led poster display P1.25 P1.667 P1.86 P1.953 P2 P2.5 P3
d.Transparent led screen
4.What is your payment terms?
We accept T/T,western-union,or alibaba-Assurance -order
5.What is your delivery time?
Normaly 7-10 days according to your quantity
6.What is your control system?
We use Nova system
7.Do you have any discount for the order?
Yes,we have,we will offer much discount according to your quantity and requirements.
8.What is your warranty time?
Actually we offer you 1-2 years warranty,but we can help to solve the problem once you have any problem about the led scrren,no
matter the warranty time or not.
Welcome to send message or inquiry to me,we will reply you at any time.
our factory are located in Guangming new district,shenzhen
2.Can you provide sample?
We can provide 1-2 pcs of led module for testing if you can kindly to pay for the freight charge
3.What kinds of led screen do you have?
a.indoor&outdoor fixed led display P1.25-P10
b.indoor&outdoor rental led display P1.953,P2.604,P2.976,P3.076,P3.91,P4.81
c.led poster display P1.25 P1.667 P1.86 P1.953 P2 P2.5 P3
d.Transparent led screen
4.What is your payment terms?
We accept T/T,western-union,or alibaba-Assurance -order
5.What is your delivery time?
Normaly 7-10 days according to your quantity
6.What is your control system?
We use Nova system
7.Do you have any discount for the order?
Yes,we have,we will offer much discount according to your quantity and requirements.
8.What is your warranty time?
Actually we offer you 1-2 years warranty,but we can help to solve the problem once you have any problem about the led scrren,no
matter the warranty time or not.
Welcome to send message or inquiry to me,we will reply you at any time.
