LD40 Lithium-ion battery tool
This electric nail gun, using 20V super battery life, has a long working time and greatly improves work efficiency. Power tools are easy to carry and can be used in a wide range.


FEATURES AT A GLANCE


20V LITHIUM-ION BATTERY POWER

BRUSHLESS MOTOR TECHNOLOGY

ADJUSTABLE NAILING POWER

LED LIGHT LNDICATOR

BELT HOOK

DIRVES UP TO 750 NAILS/CHARGE

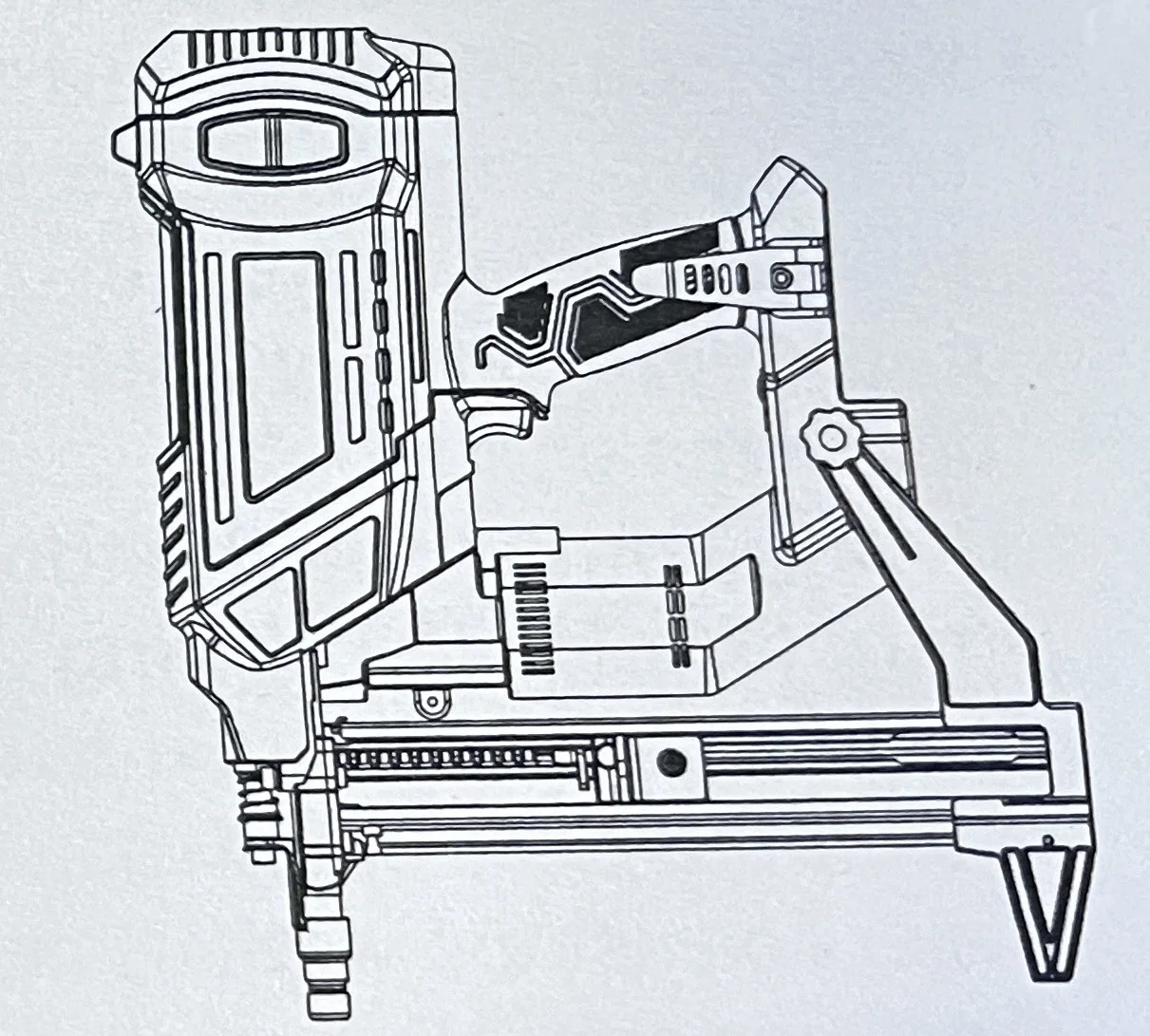

Left view
Tip details
Right view


PRODUCT SPECIFICATIONS


No
Item
Data
1
Model
LD40
2
Input voltage
DC 20V Max
3
Battery type
Freeman F20
4
Magazine capacity
30 pcs
5
Weight
4.37 kgs
6
Fastener type
Concrete nails in plastic
7
Fastener range
16-38mm
8
Firing speed
90 pcs/min

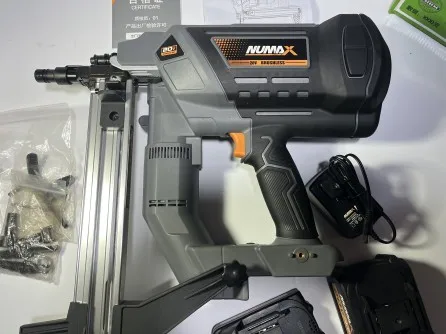

PRODUCT CONFIGURATION


20V LITHIUM-ION BATTERY POWER
ADDITIONALLY CONFIGURED TUBES
PORTABLE BACKPACK


OPERATION

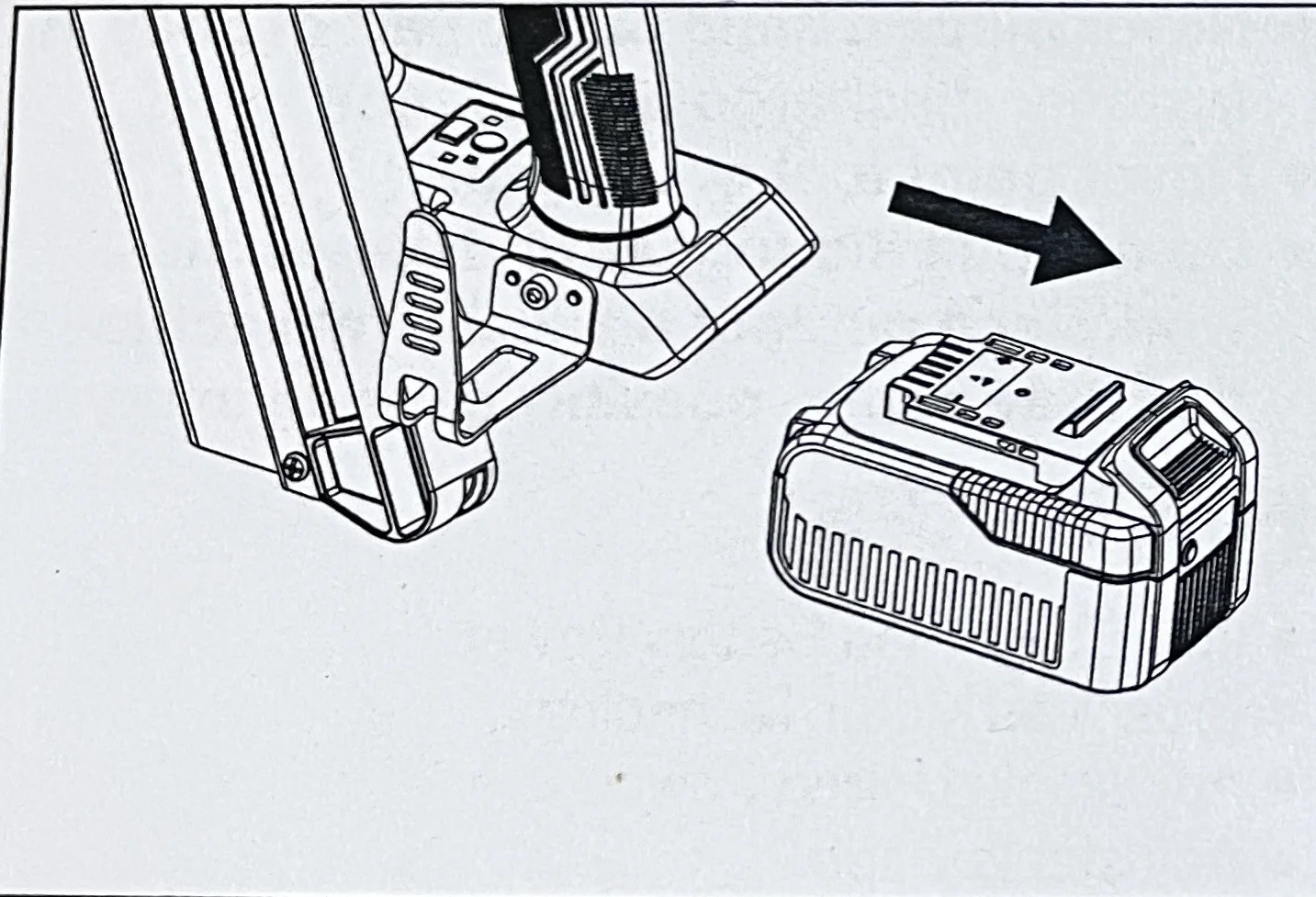

REMOVING BATTERY PACK
1. Press battery release button.
2. Pull battery free of the tool body.

WARNING:
Do not allow familiarity with products to make you careless. Remember that a careless fraction of a second is sufficient to inflict severe injury.
Always remove battery pack from the tool when you are assembling parts, making adjustments, cleaning, or when not in use. Removing battery pack will prevent accidental starting that could cause serious personal injury.

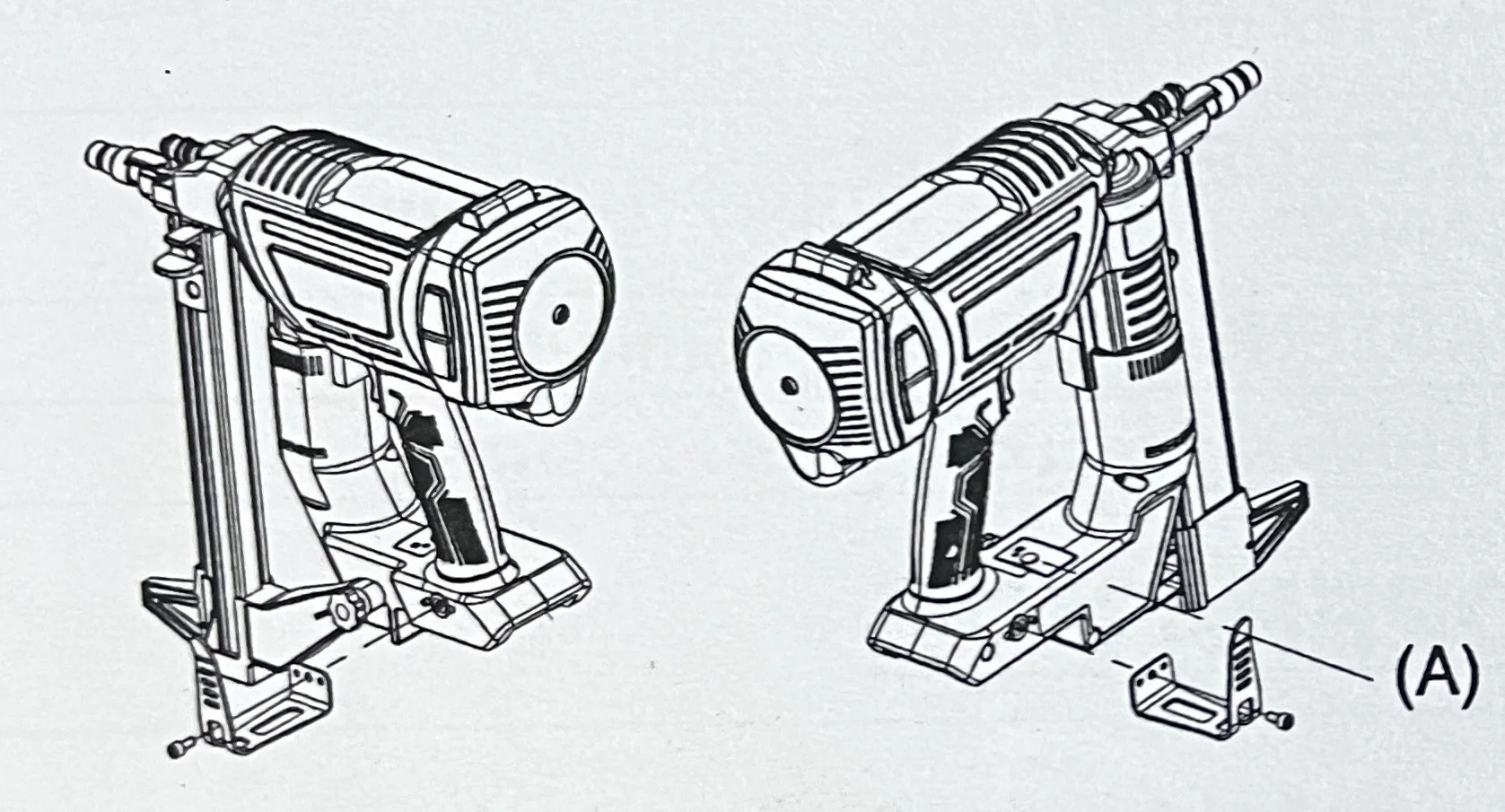

ATTACH BELT HOOK
The belt hook can be installed on either side of the nailer depending on operator preference.
1.Remove the battery pack of press the Power Button(A) to turn off the tool before installing belt clip or handing the tool on your belt.
2. Align belt clip and screw tightly with side screw hole.
3. Tighten securely using a M4  Hex Wrench (Included).


LOADING FASTENERS

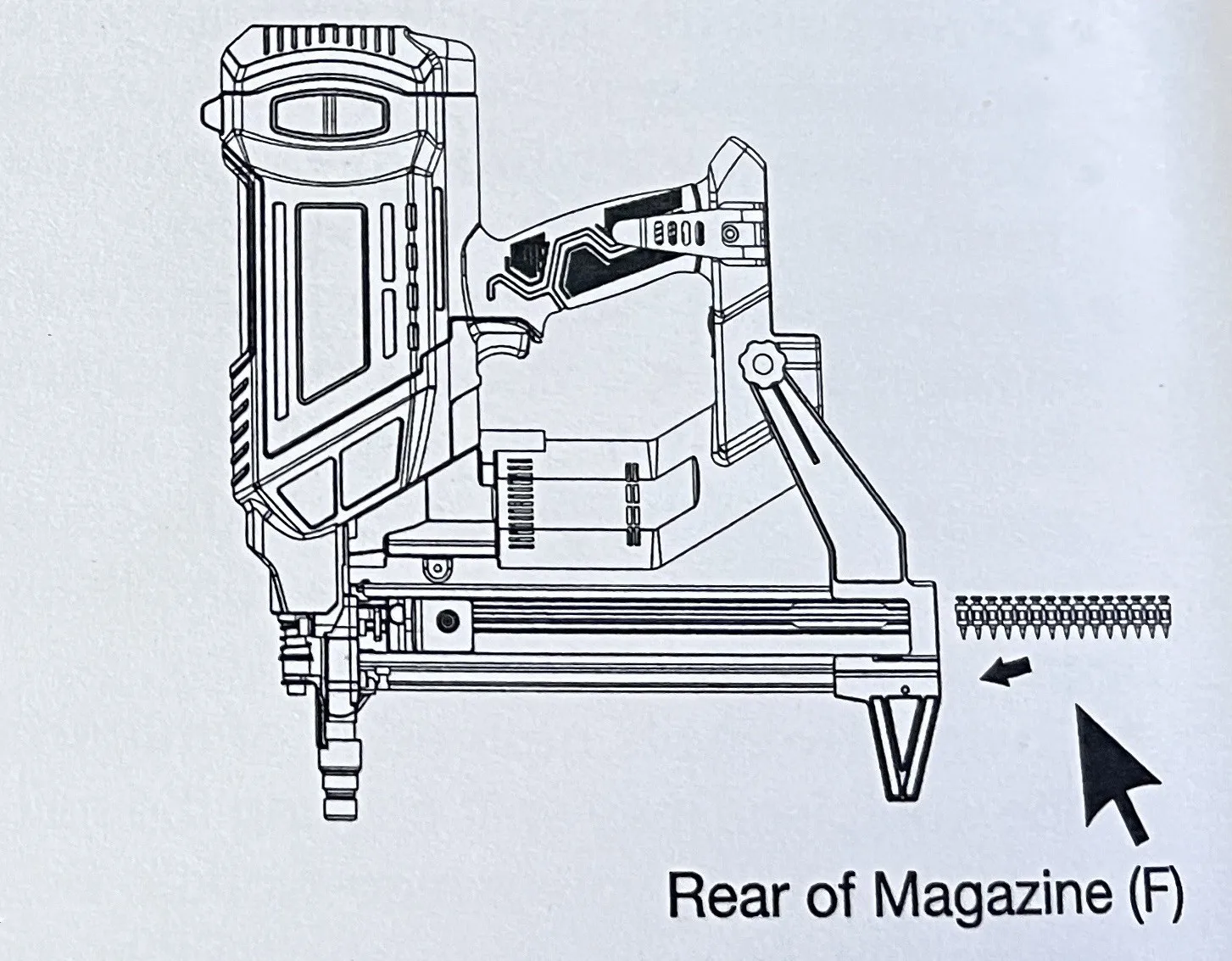

1.Insert strip of fasteners from the rear of magazine(F).Be sure the fasteners are pointed downward.
2.The tool uses a spring loaded bypass lever in order to load and unload the nails. Once the nails are properly inserted,

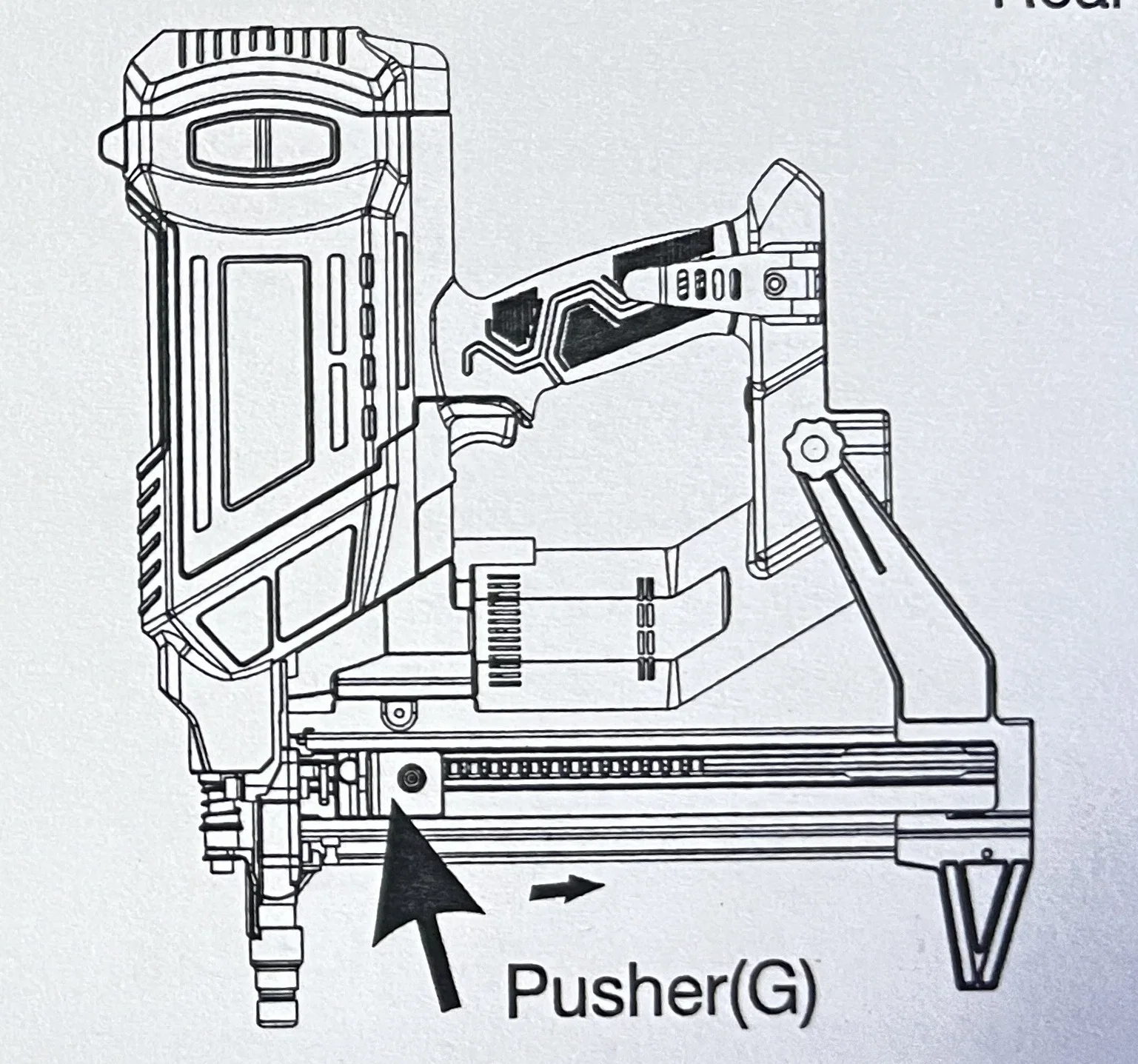

pull the pusher(G) completely back.
3.Once the pusher hits the back of magazine,allow the pusher to slide forward and engage the nails, pushing them to the nose of the tool.

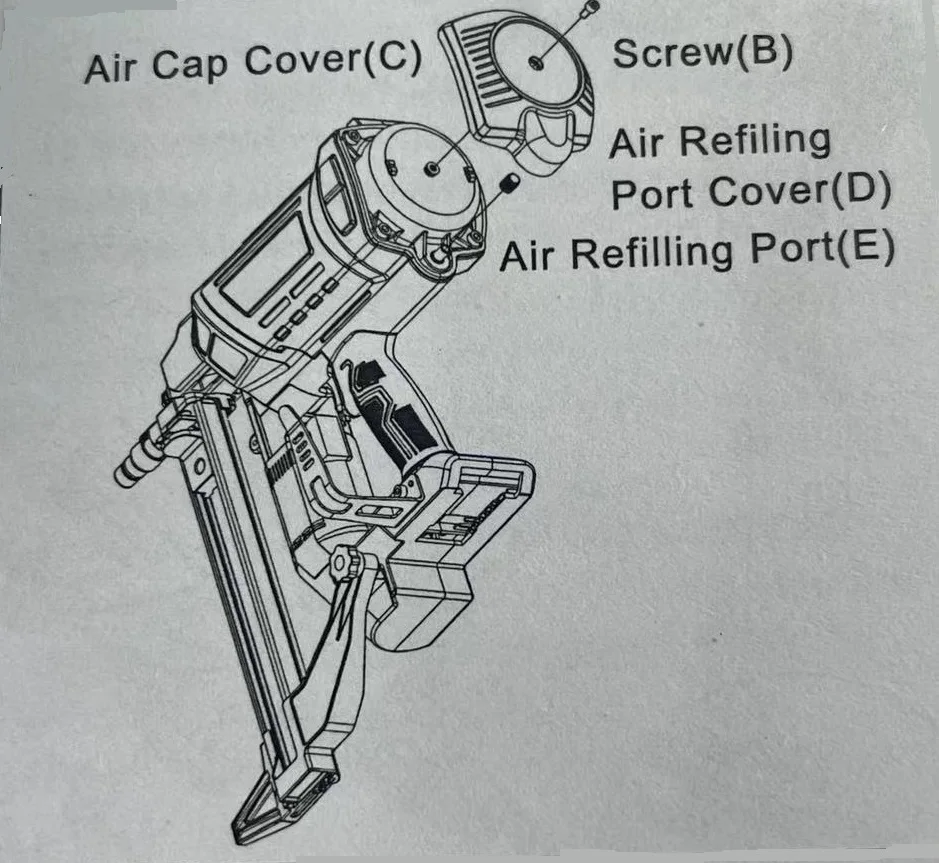

Title goes here.REFILLING THE AIR TANK PRESSURE
After the initial use, you may notice a decrease in performance.Refilling the air pressure tank to 100 psi can help restore the tool's performance.
1.Remove battery pack.
2.Remove fastener strip from magazine.
3.loosen the Screw(B) with included wrench.
4. Take off the Air Cap Cover(C).
5. Twist slightly and remove the Air Refilling Port Cover(D).
6. Connect an inflator to the Air Refilling Port(E)and pressurize the tank to a maximum of 100 psi.
7. Disconnect the air compressor and relacer the Air Refilling Port Cover(D).
8. Screw the Air Cap Cover(C) to the top of the tool with included wrench.
