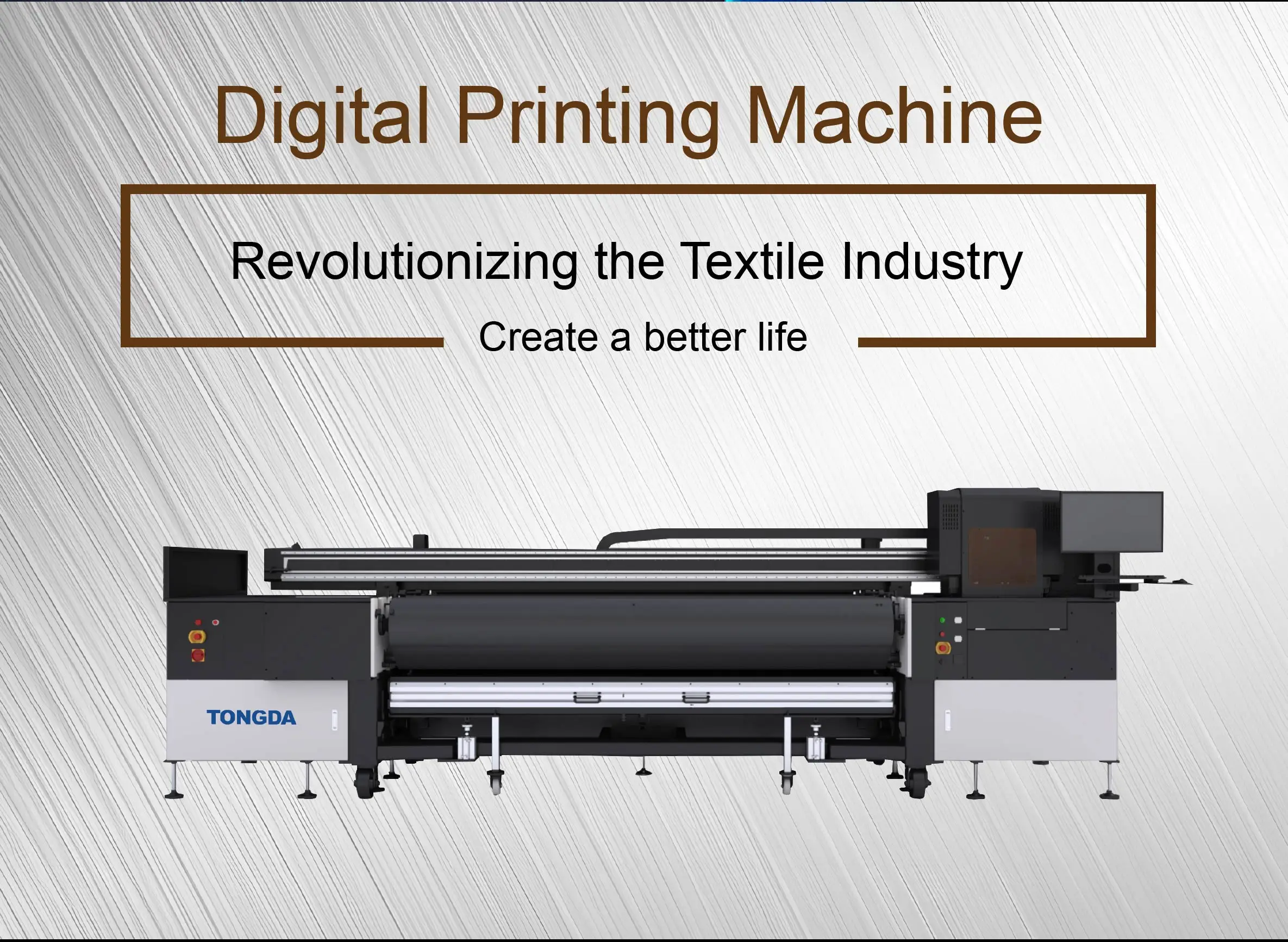

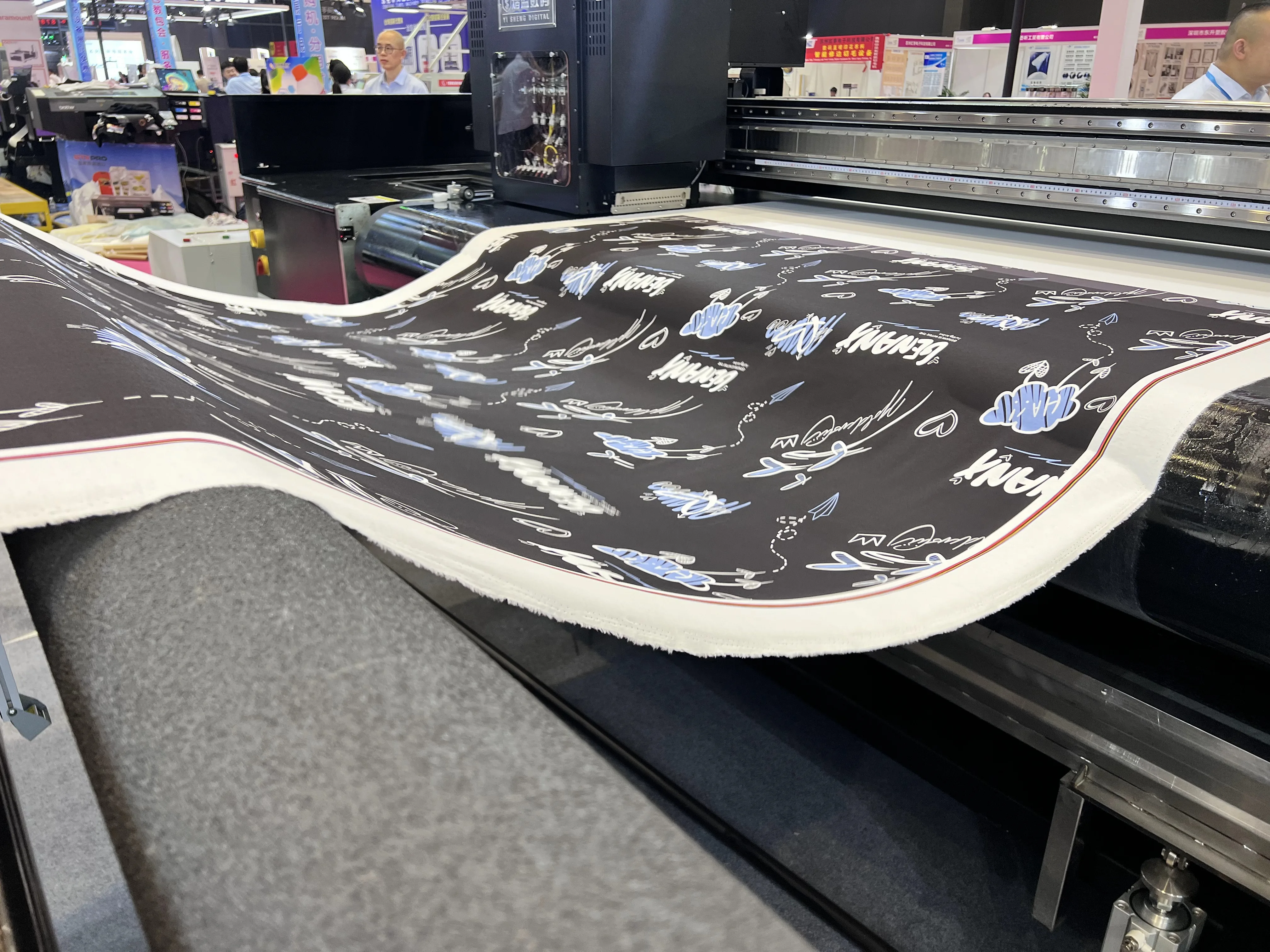

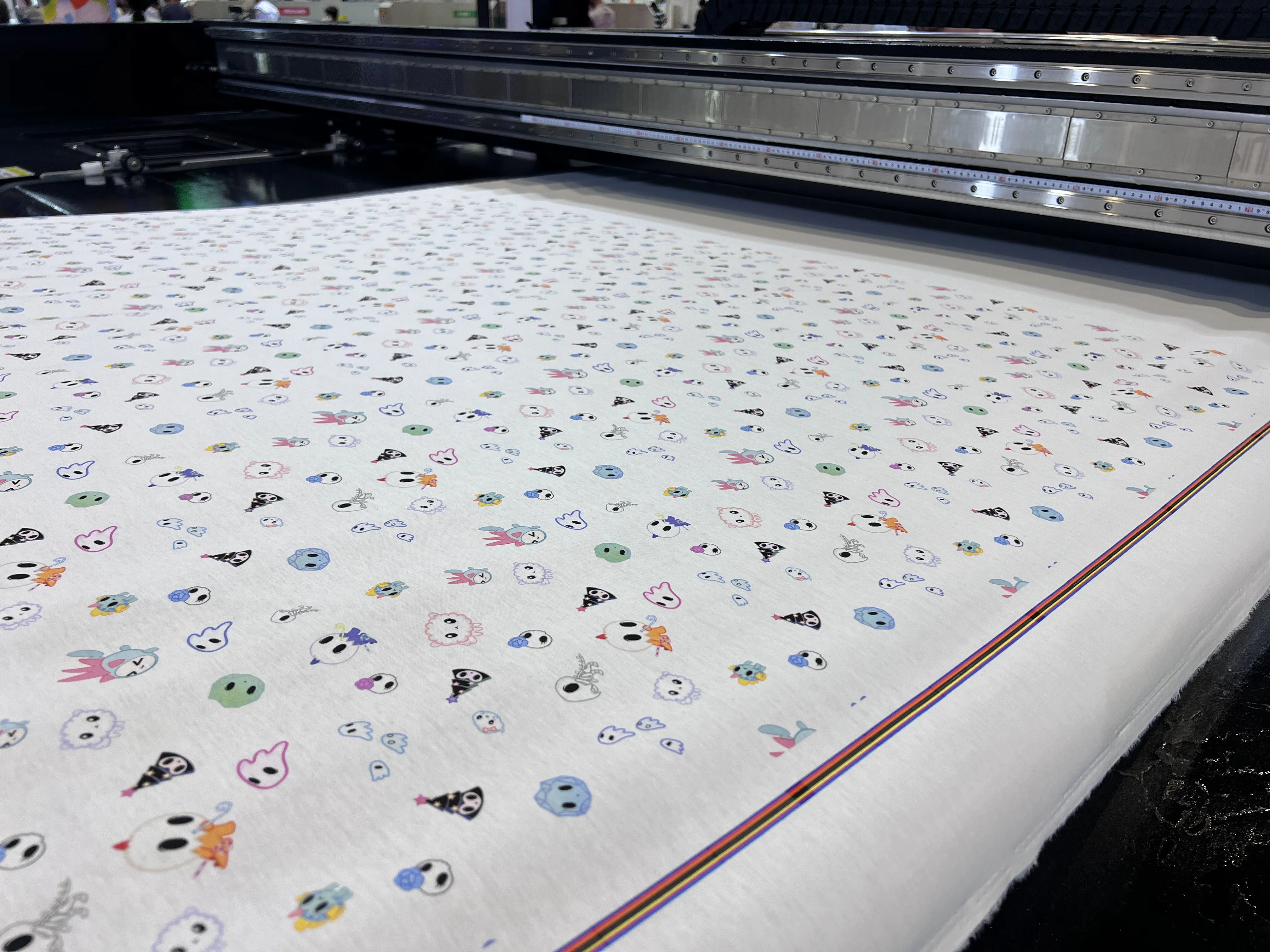

Tongda digital inkjet printer for textile fabrics printing machine with japan RICOH brand printhead
- Category: >>>
- Supplier: Qingdao Tongda Textile Machinery Co. Ltd.
Share on (1601201848493):
Product Overview
Description
Main Technical Parameters
Product mode | TD1808/1816/1832 |

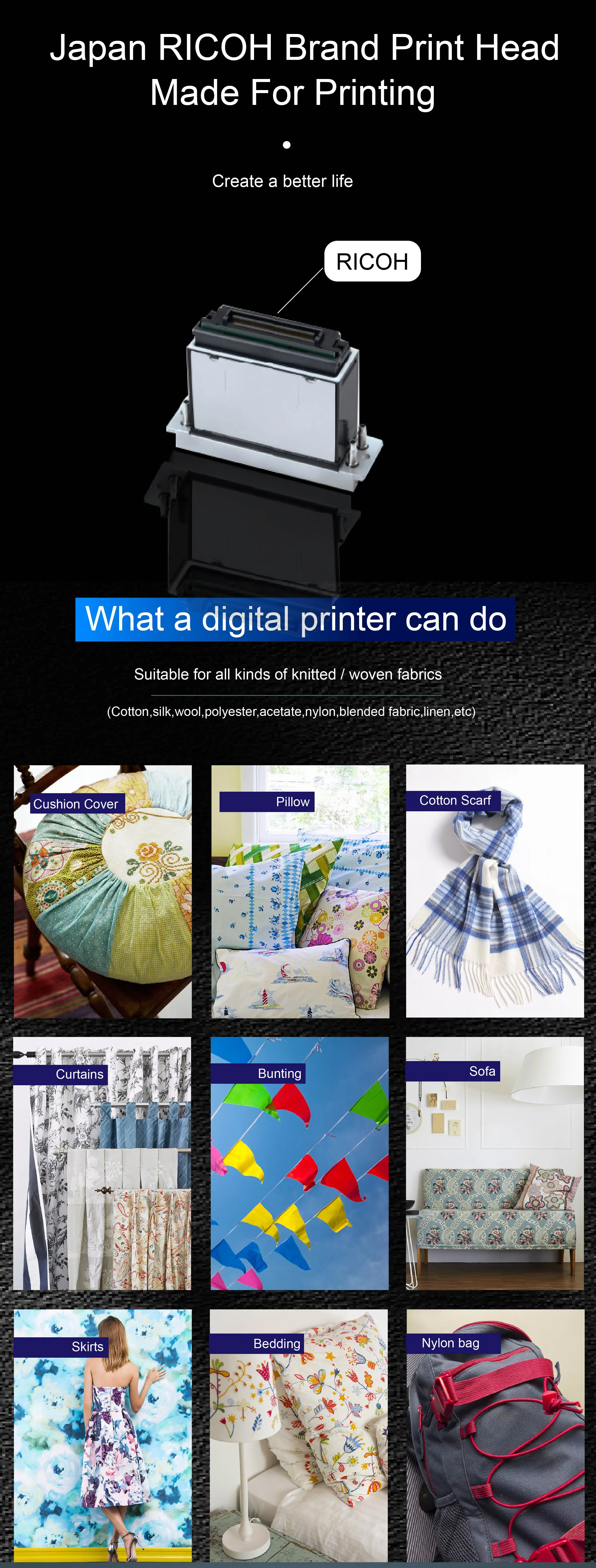

Print head | Ricoh GEN5E/GEN6 |

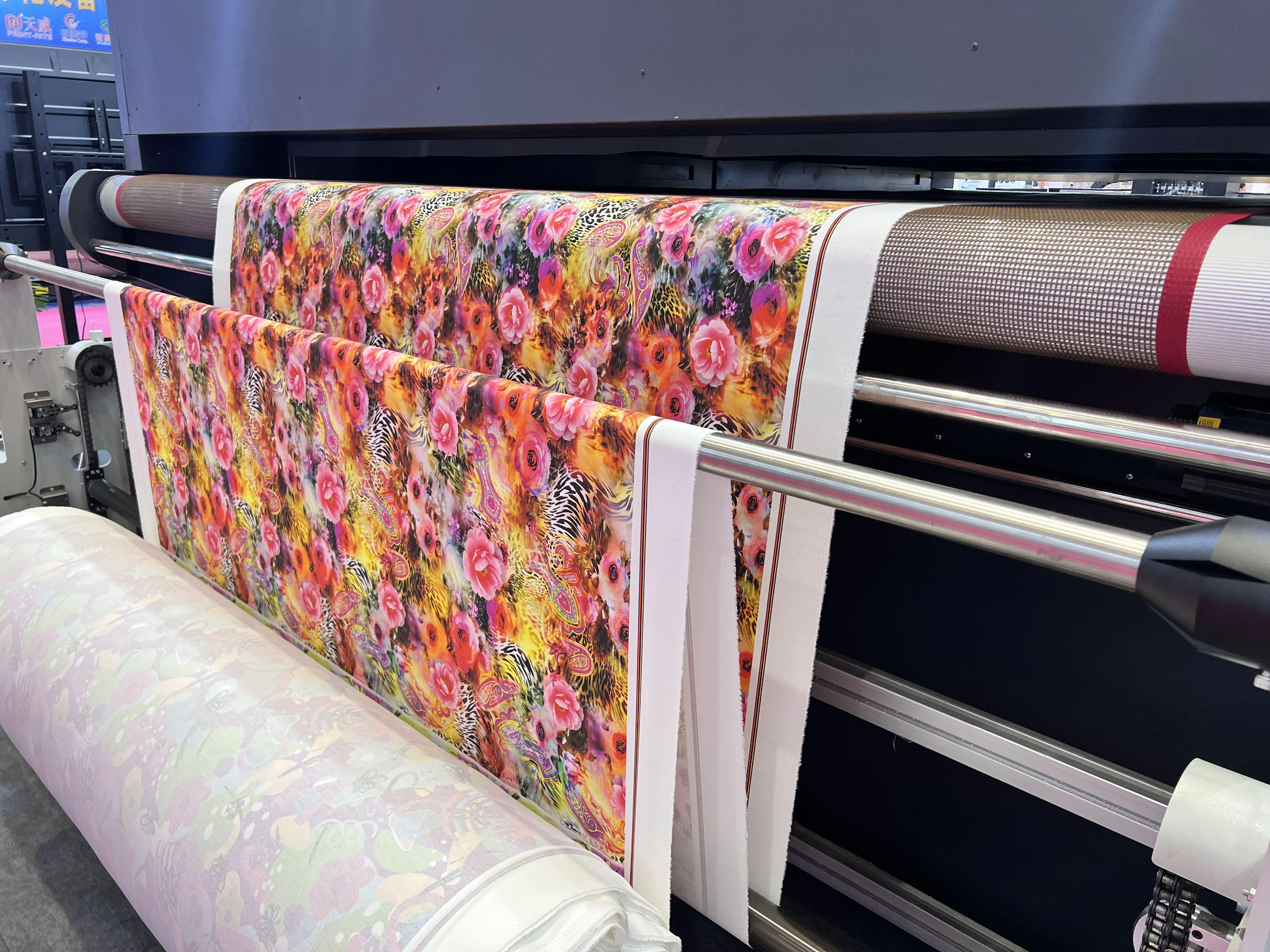

Fabric conveyance mode | Adhesive belt with cleaning and heating system |
Effective print width | 1900/2200/2600mm |
Maximum printing resolution | 2400DPI |
Speed | Gen6 1 pass:1300m2/h 2 pass:650m2/h |
RIP software | Neostampa/Texprint(ORIGIN) |

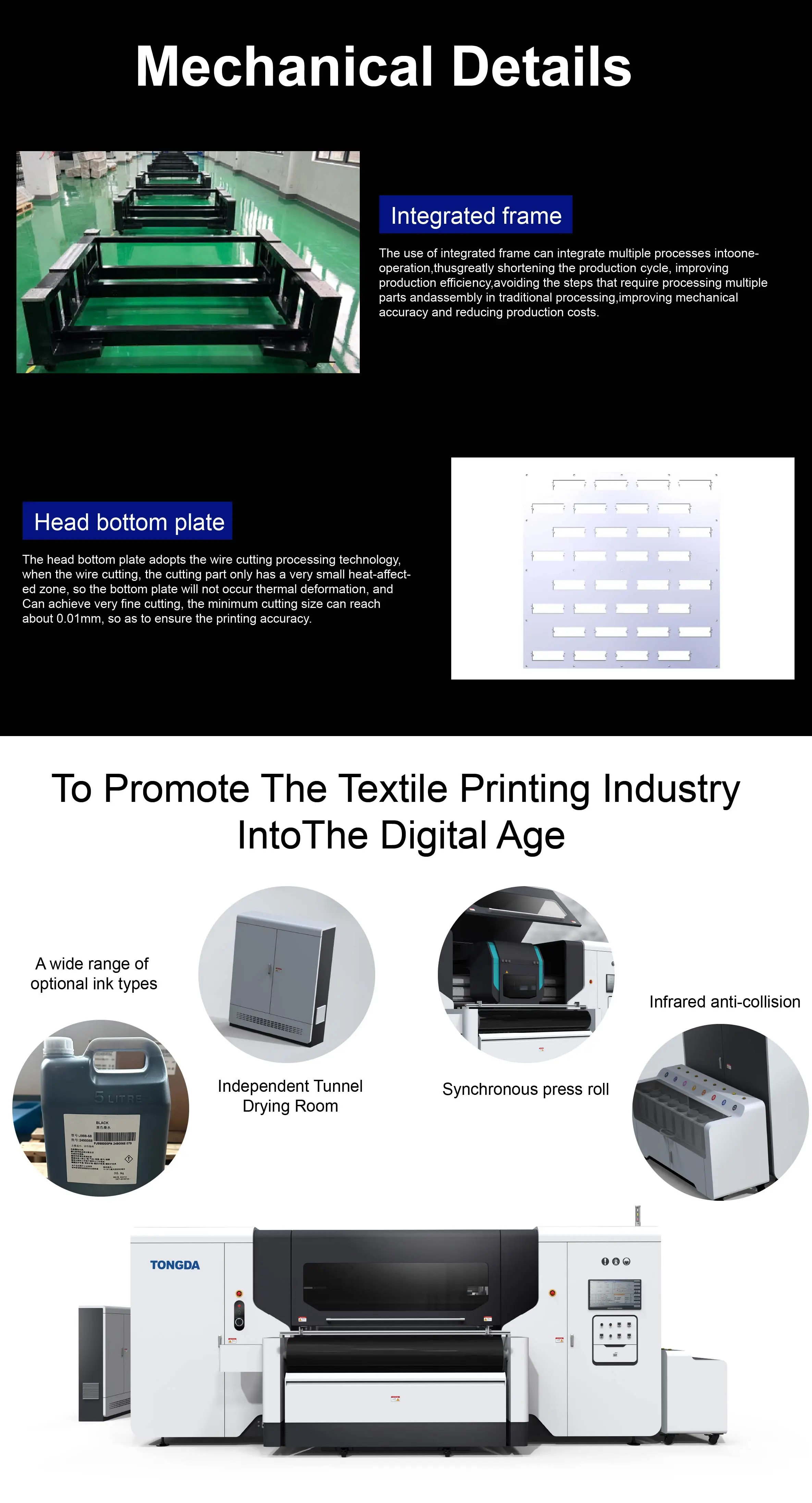

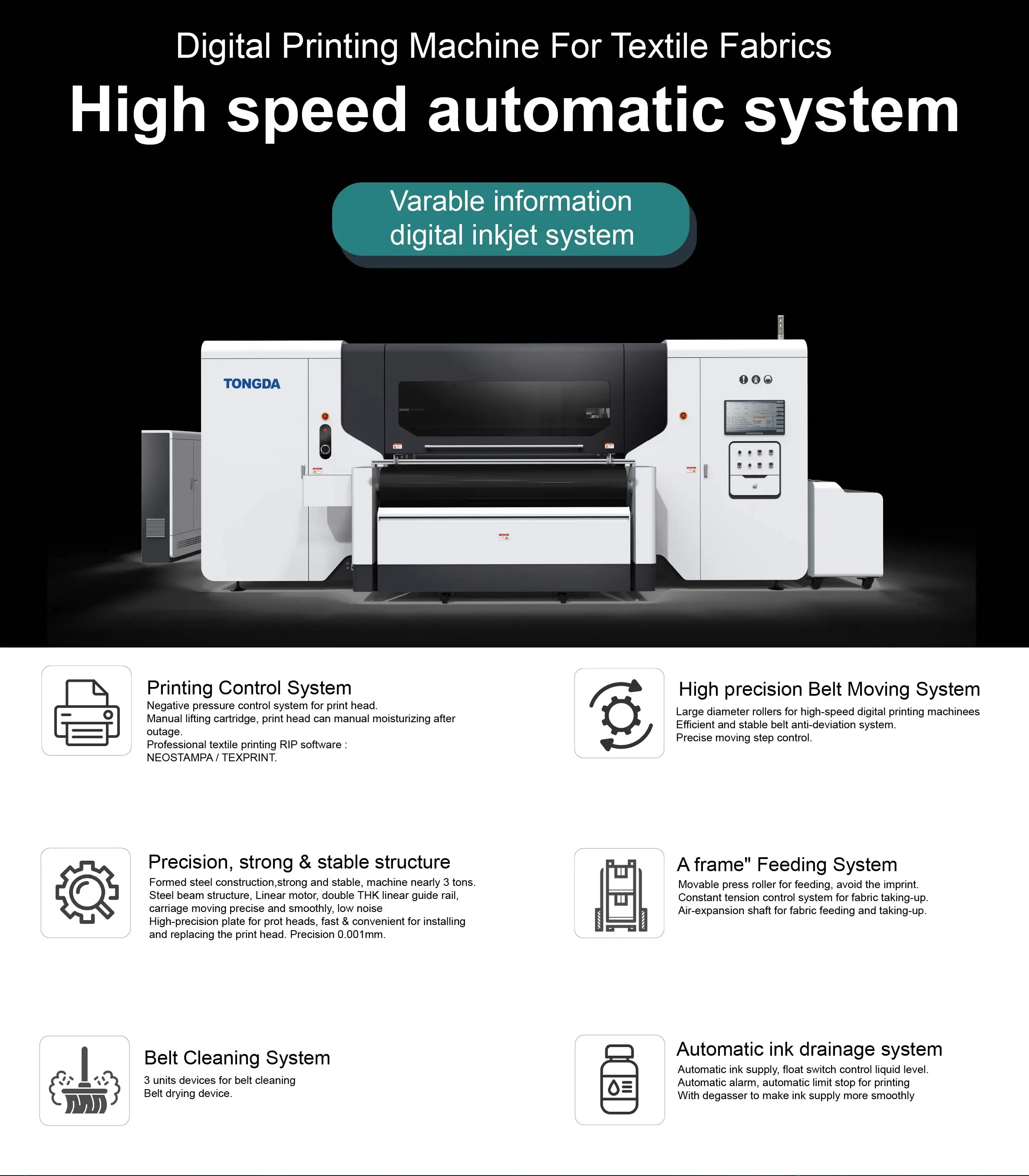

Printing part introduction | Automatic negative pressure ink supply, automatic car lifting,automatic positive pressure cleaning, automatic moisturizing,sprinkler anti-collision system. |
Main ink tank | 15L |
Belt system introduction | Automatic drying and winding system, automatic cleaning guide belt system, anti-pressure roller print, synchronous pressure roller |
Dryer unit | 3 tiers industry dryer with off plane |

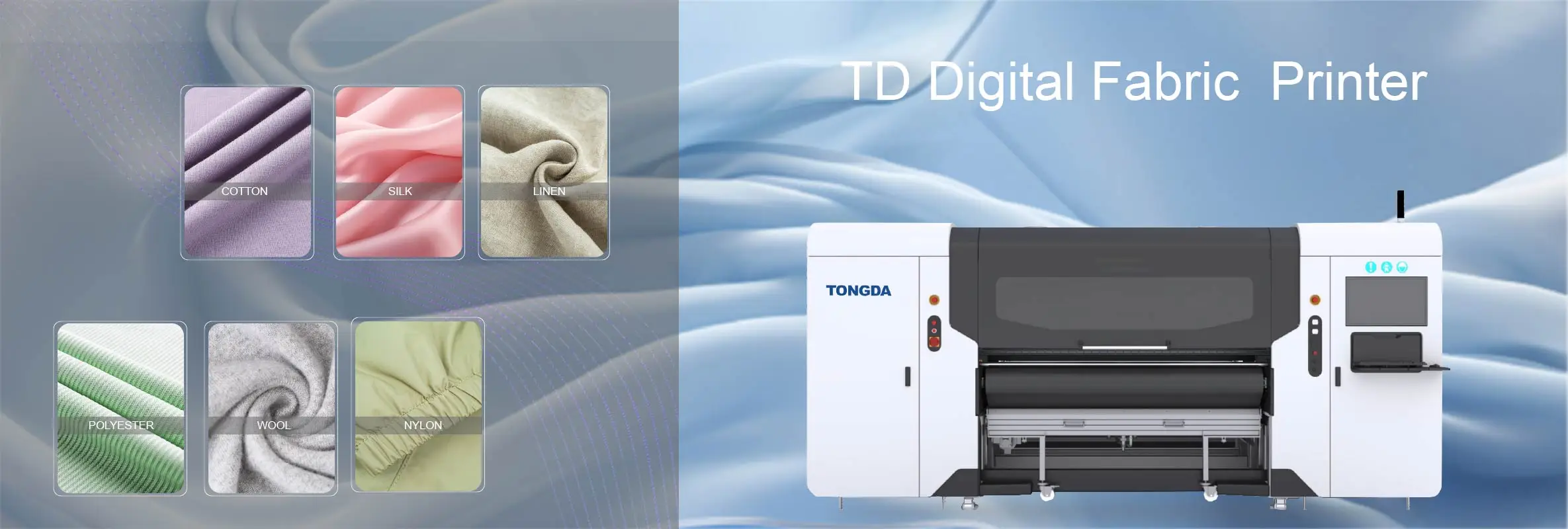

Ink Type | reactive/disperse/acid/pigment ink |
InterfacePower voltage | Optical fiber |
Print head height | Height adjustable 1.5-30mm,to adapt medium of different thickness |
Power voltage | 380V, 3L+N+G(with independent reliable effective earth wire) |
Power frequency | 50HZ/60HZ+1HZ |
Power Consumption | Printer: 40kw; oven:6KW |
Workshop Condition | Temperature:20-30°C, humidity: 50-65% |

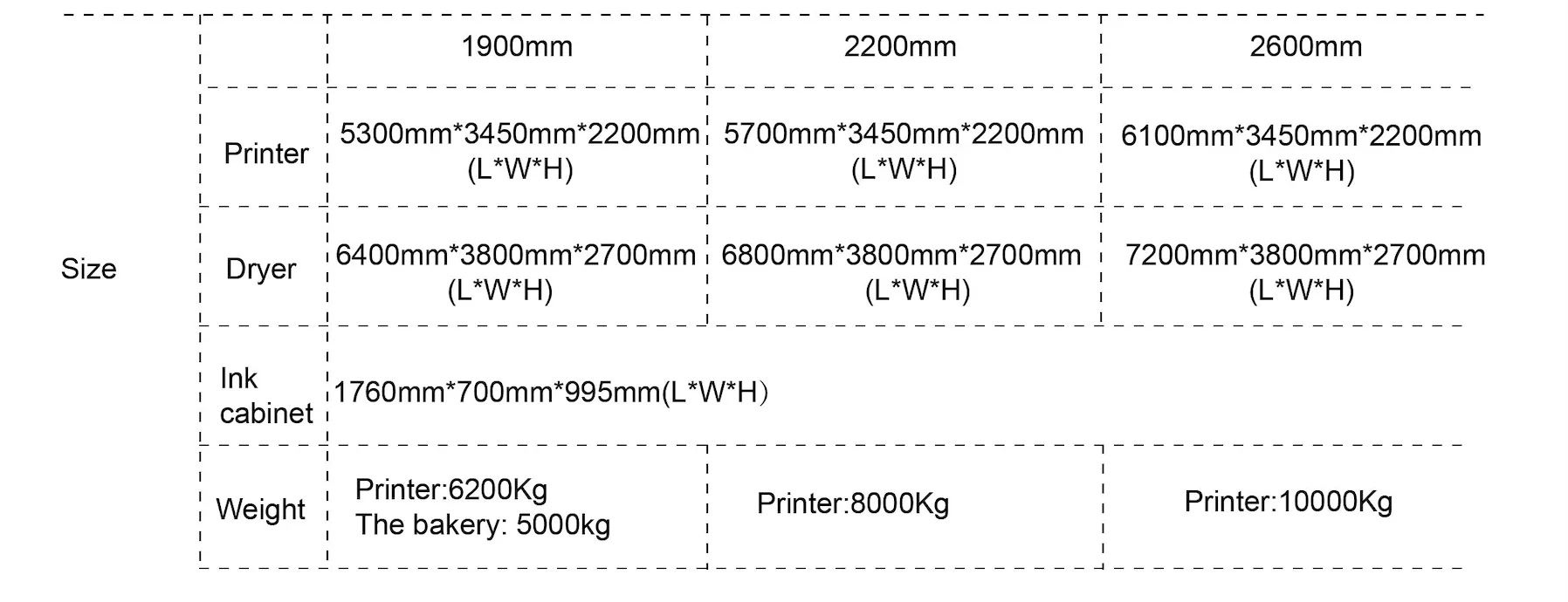

Effective width
