vinyl cutter machine cutting plotter
US $258.00-$308.00
Digital Automatic paper flatbed die cutting machine flatbed cutter plotter machine
- Category: >>>
- Supplier: Zhengzhou Ximenger Machinery Co. Ltd.Zhengzhou Ltd.
Share on (1601201850459):
Product Overview
Description
Specification

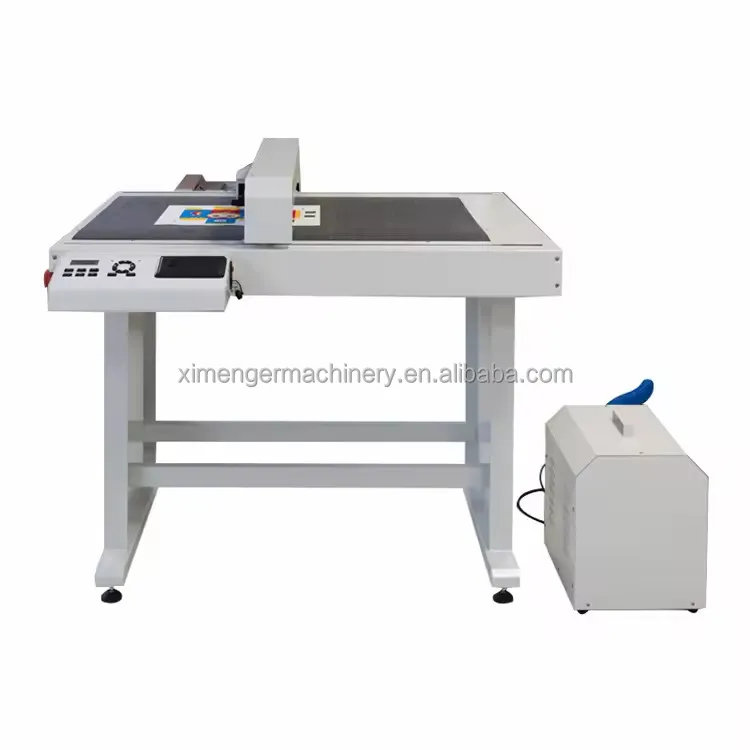

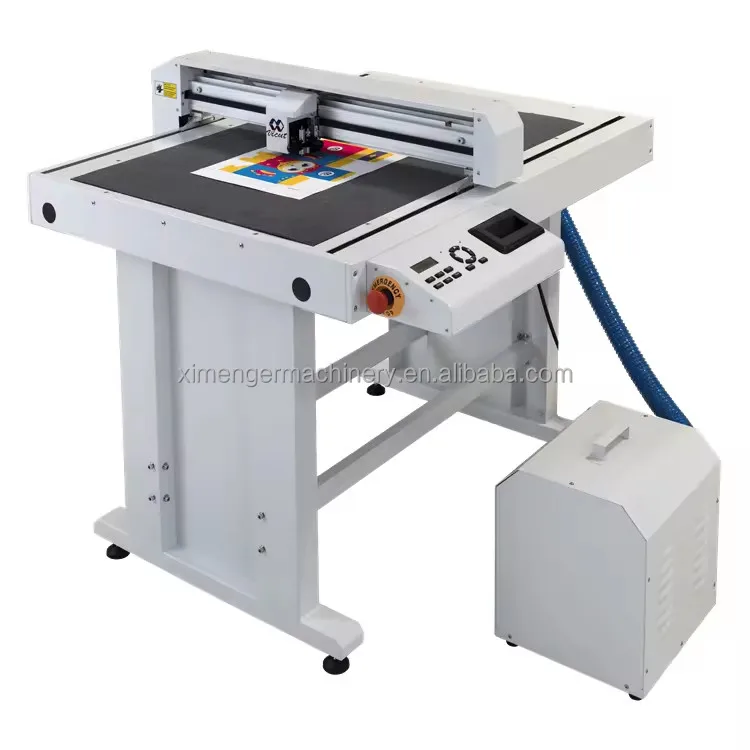

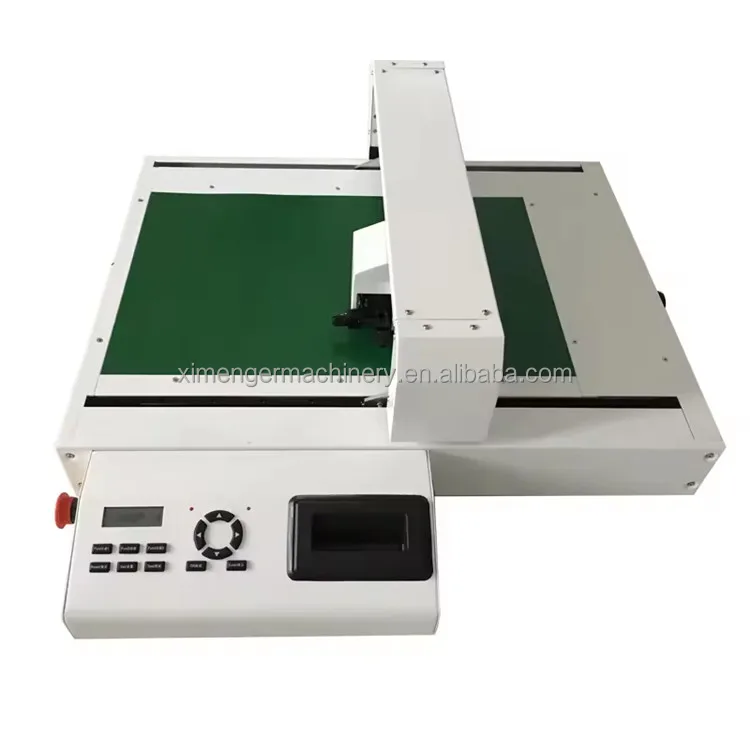

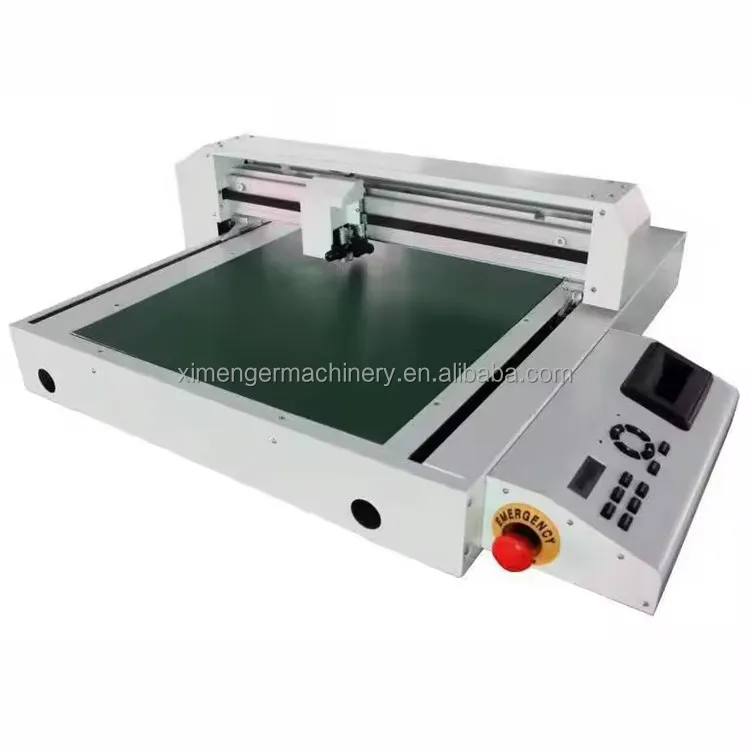

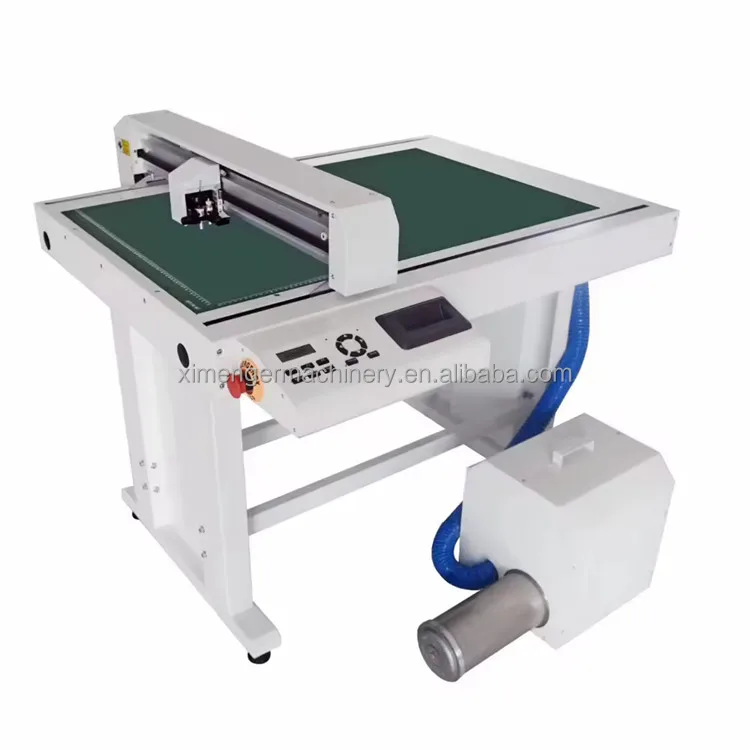

Digital Automatic paper flatbed die cutting machine flatbed cutter plotter machine
Model | JC-FC6090A |
Cutting Media Types | Self-adhesive sticker, cardboard, corrugated paper, pvc etc. |
Maximum cutting size | 597mm*887mm |
Max. Cutting Thickness | 1.2mm |
Media hold method | Vacuum suction with Vacuum Pump |
Control system | Servo |
Scanning speed | 5-10s |
Maximum actual cutting speed | 600mm/s |
Maximum Paper Weight | 450g（Varies from different cutting materials） |
Minimum character cutting size | About 5mm2 (varies from contour pater ns and medias) |
Maximum Cutting Force | 510g |
Positioning sensor type | Red light sensor |
Mechanical resolution | 0.02mm |
Repeat Precision | ≤0.05mm |
Programmable resolution | HPGL0.025mm |
Connectivity | USB , TCP , WiFi, U disk , Interface |
Software and compatibility | corel Draw/ I lust rat or plug-in (u disk Interface) |
Power | 110V-240V 1.1kw |
Net weight | 150KG |
Dimension | 1175*1130*1030mm |
Product Description
Digital Automatic paper flatbed die cutting machine flatbed cutter plotter machine
1.Flatbed cutters are ideal for designers and prototyping in offset printing, digital printing, packaging industry, fashion
industry, as well as road sign making, stone and glass sandblasting and etching, and more.
Application Field: Prototype and light production, on - demand packaging and sheet card cutting system - also suitable for sheet labels.
2.
PVC: Less than 0.4mm (0.0157in)
reflective film: All types
Sandblast, Hard paper: Less than 450gsm
Magnetic Sticker: Less than 600micron
PET: Less than 0.3mm (0.0118in), vinyl, etc.
Features:

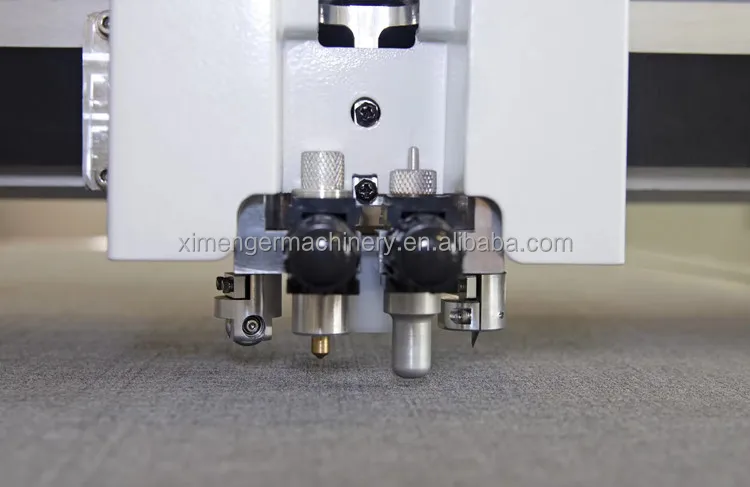

• Dual cutting head, perforated cutting, half cutting and creasing in one compact unit.
• Servo drivers control. Silent, precise and powerful servo drives for best cutting results.
• No cutting dies required, it can avoid the customer's constant modifications in designs which cause cost in sampling or
proofing.
• Red light positioning, automatic patrol edge, can automatically scan points in cutting different shapes of designs, high
precision, the real effects cut out same as the bit molded products.
• Comes with DragonCut Software, which reduces media waste and processing time. Compatible with a variety of different software,different computer operating systems, supporting independent research and development of dragon cutting software, unique contour recognition technology for JPG, PNG, BMP and other image format files without contouring operation but can accurate extraction with one-click generation of contours.
Suitable for cardboard, PVC, spray film, and a variety of flexible materials
• Pneumatic vacuum suction of media. With usage of the vacuum adsorption technology to firmly hold the medium and cut it more stably, and the paper doesn’t run around.
• Direct USB makes the flat bed cutter reliable and convenient. Plug and play, simple installation, no additional drivers needed.
• The linear guide of the flat bed cutter ensures high speed and few errors.
• The flat bed cutter has an LCD touch screen in English.
• Contour cutter cuts thin films and card up to 500gsm / 600micron. Cutting speed pressure can be adjusted as needed.
• Fast speed: 10 seconds automatic positioning, one image can be completed in a few minutes, the machine is workable in 24 hours operation, possible for small volume production and no need of cutting die.
Comparing with the laser cutting machine, it doesn’t make black edges on cutting material, no burnt on thin cutting
material,during working time there is no glare light as well as no smells.
industry, as well as road sign making, stone and glass sandblasting and etching, and more.
Application Field: Prototype and light production, on - demand packaging and sheet card cutting system - also suitable for sheet labels.
2.
PVC: Less than 0.4mm (0.0157in)
reflective film: All types
Sandblast, Hard paper: Less than 450gsm
Magnetic Sticker: Less than 600micron
PET: Less than 0.3mm (0.0118in), vinyl, etc.
Features:
• Dual cutting head, perforated cutting, half cutting and creasing in one compact unit.
• Servo drivers control. Silent, precise and powerful servo drives for best cutting results.
• No cutting dies required, it can avoid the customer's constant modifications in designs which cause cost in sampling or
proofing.
• Red light positioning, automatic patrol edge, can automatically scan points in cutting different shapes of designs, high
precision, the real effects cut out same as the bit molded products.
• Comes with DragonCut Software, which reduces media waste and processing time. Compatible with a variety of different software,different computer operating systems, supporting independent research and development of dragon cutting software, unique contour recognition technology for JPG, PNG, BMP and other image format files without contouring operation but can accurate extraction with one-click generation of contours.
Suitable for cardboard, PVC, spray film, and a variety of flexible materials
• Pneumatic vacuum suction of media. With usage of the vacuum adsorption technology to firmly hold the medium and cut it more stably, and the paper doesn’t run around.
• Direct USB makes the flat bed cutter reliable and convenient. Plug and play, simple installation, no additional drivers needed.
• The linear guide of the flat bed cutter ensures high speed and few errors.
• The flat bed cutter has an LCD touch screen in English.
• Contour cutter cuts thin films and card up to 500gsm / 600micron. Cutting speed pressure can be adjusted as needed.
• Fast speed: 10 seconds automatic positioning, one image can be completed in a few minutes, the machine is workable in 24 hours operation, possible for small volume production and no need of cutting die.
Comparing with the laser cutting machine, it doesn’t make black edges on cutting material, no burnt on thin cutting
material,during working time there is no glare light as well as no smells.
Similar Products
Packing & Delivery

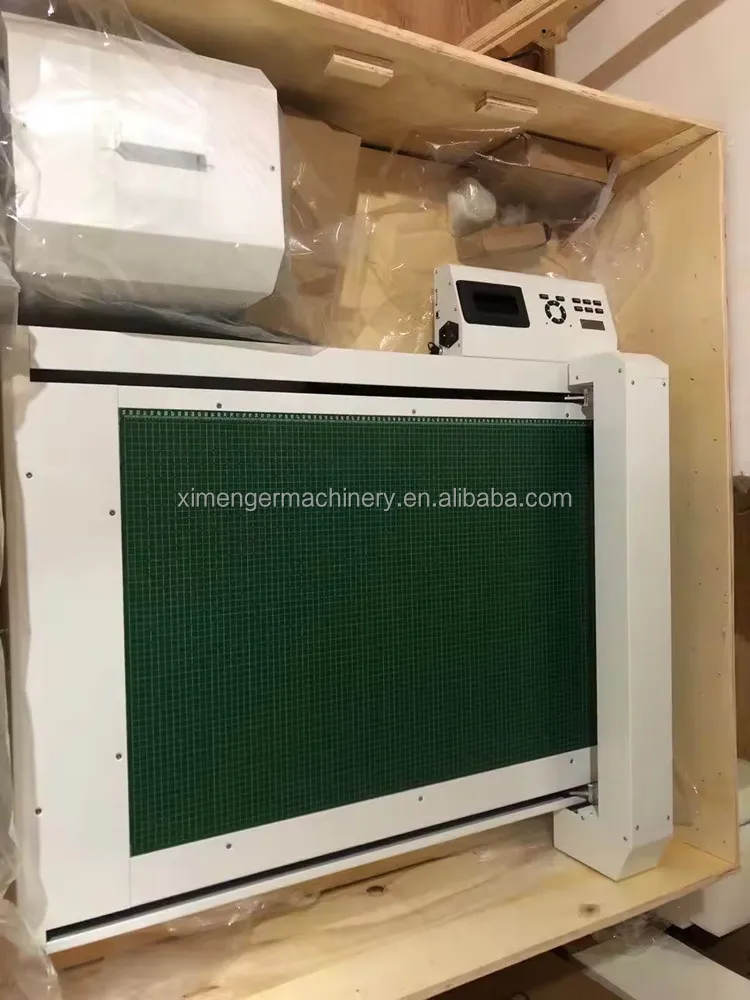

1.Professional, environmentally friendly, convenient and efficient packaging services
