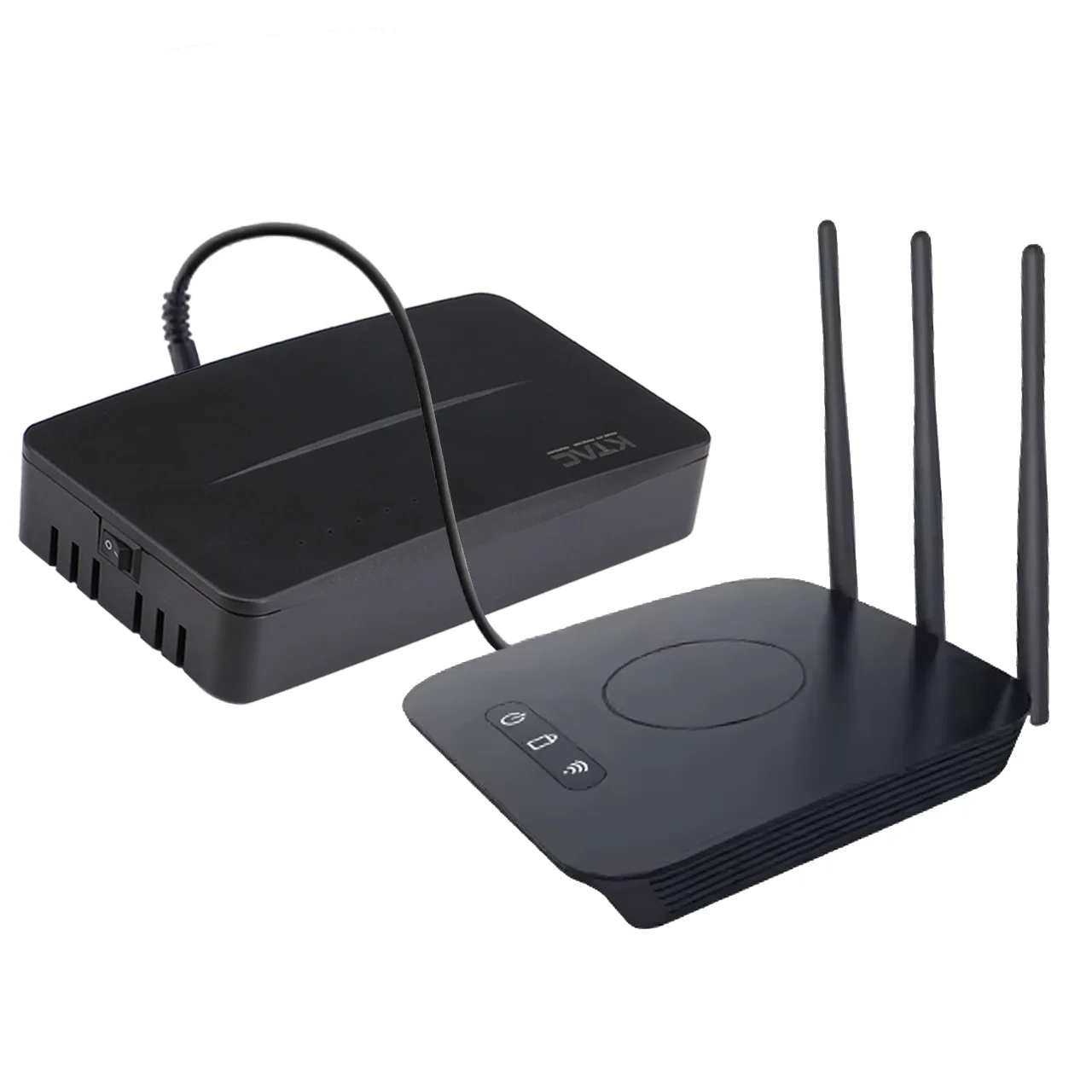

mini ups for wifi router 10000mah lithium battery
- Category: >>>
- Supplier: Foshan Ktac Technology Co. Ltd.
Share on (1601201867440):
Product Overview
Description
More and more electronics devices are powered by DC power source. when there is a power outage, POE Sensor, router, WIFI, LED, Monitor, time recorder, DC cameras stops work and may also lost their data. The 30 series mini UPS (DC UPS) are designed to power these critical DC appliances during unexpected power outage. This series DC UPS are featured with:

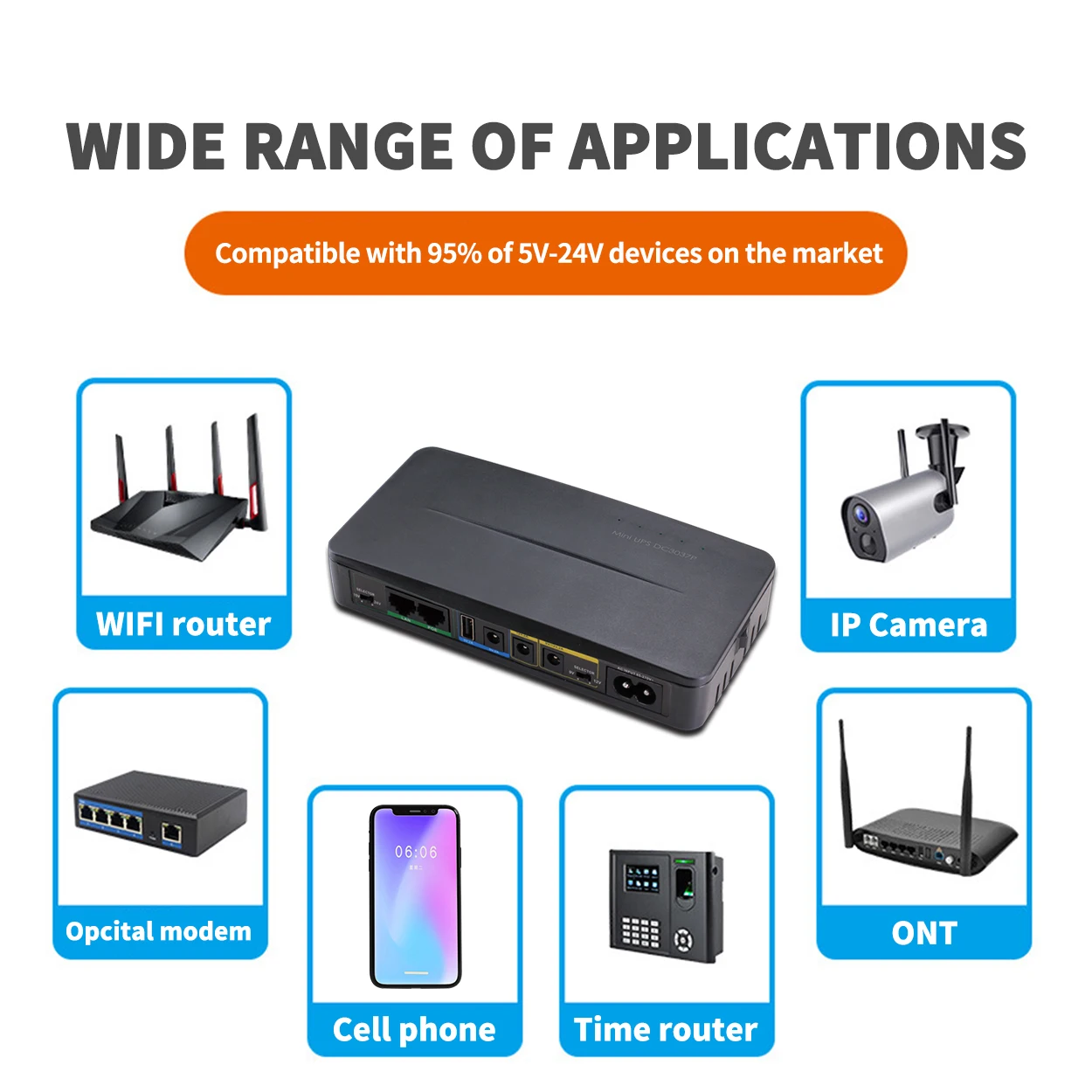

Suitable for the POE SENSOR,router,WIFI ,monitor, time recorder, cameras etc.

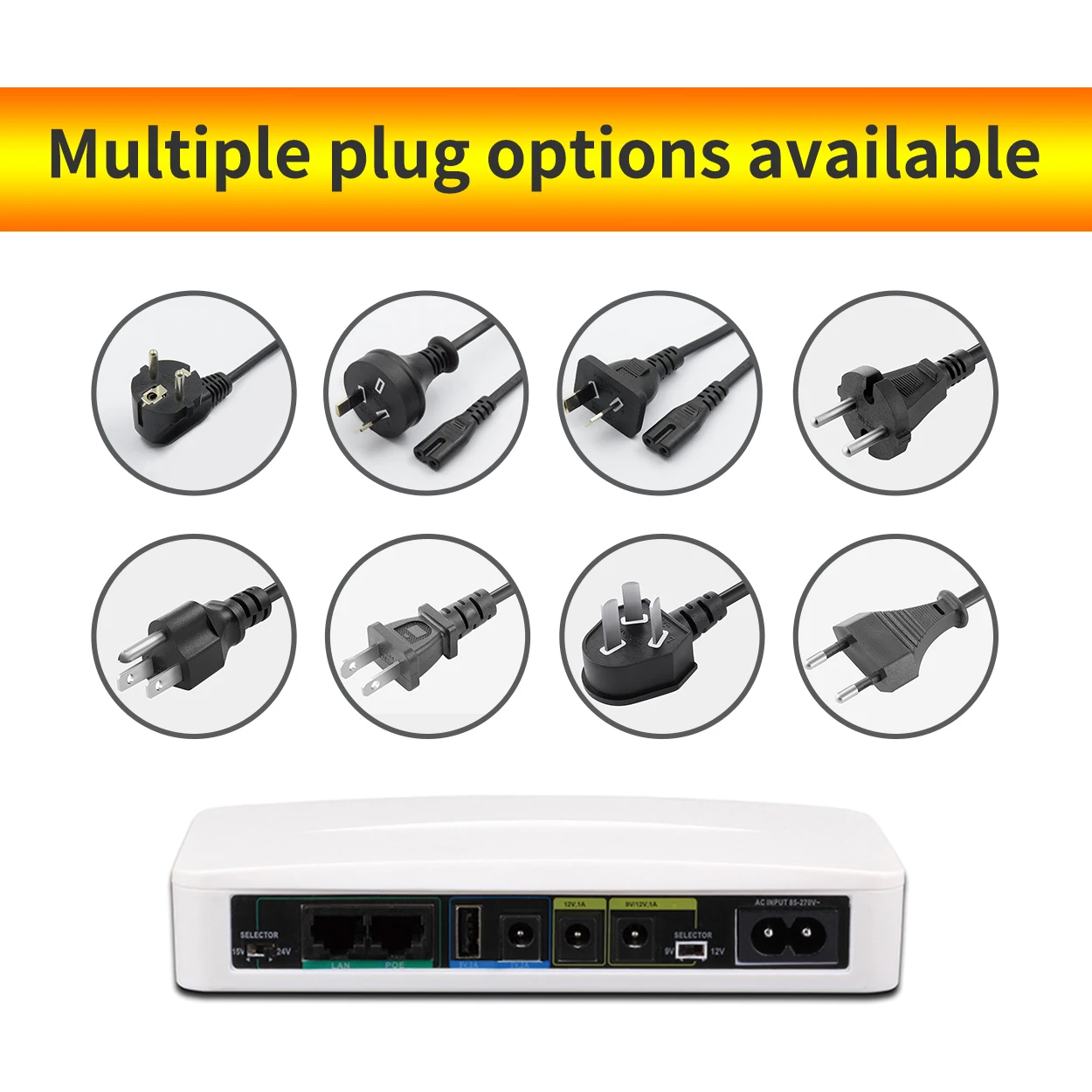

Built-in adapter allows wide AC voltage range 85Vac ~265Vac.
Built-in high capacity lithium batteries, provides long backup time to loads.
Power over Ethernet (POE) can transmit the data and power at the same time to
simplify wiring.
5V USB output, can provide charging for mobile phone, PSP, PDA, IPOD, MP4….etc.
Intelligent circuit design with over charging, over discharging and short circuit protections.
| COMPARISON | KTAC MINI UPS 3637 | VS | COMPETITORS'36W mini UPSDC1036P 6-1 |
| POWER | Real 36W full power for constant usage. | maximum power 30W for a few seconds, cannot power 36W at all, continuous power 28W | |
| Output Voltage | Output votlage of all ports are stabilized, for example, 12V, it always keep 12V output from the beginning till the protection port, the lowest voltage at 2A load is recorded as 11.85V at the end of discharge | Output voltage not stabilized, take 12V for example, the output voltage drops quickly from 12V to 10.72V at 75% battery capacity level. it even goes as low as 9.39V at the end of discharge. | |
| Application combination | It can support 4 combination of different voltage rated modem and router: 9V+12V, 5V+12, 5V+9V, 12V+12V | It only supports 3 combination of different voltage rated modem and router: 9V+12V, 5V+12, 5V+9V,Do not support 12V+12V combination. | |
| Battery | Brand new 26650 Lithium battery 4000mAH*2 4500mAH*2 5000mAH*2 | Recycled 18650 lithium battery 4*2200mAH | |
| Output DC cables | 2 seperate DC cables, Each cable can carry minimum 18W | 1 DC cable with 2 ports(which means if 2 devices connnected, the total power cannot exceed 12W)because the 12V output maximum current is 1A. | |
| Gift box Customization | 1000PCS | 5000PCS |

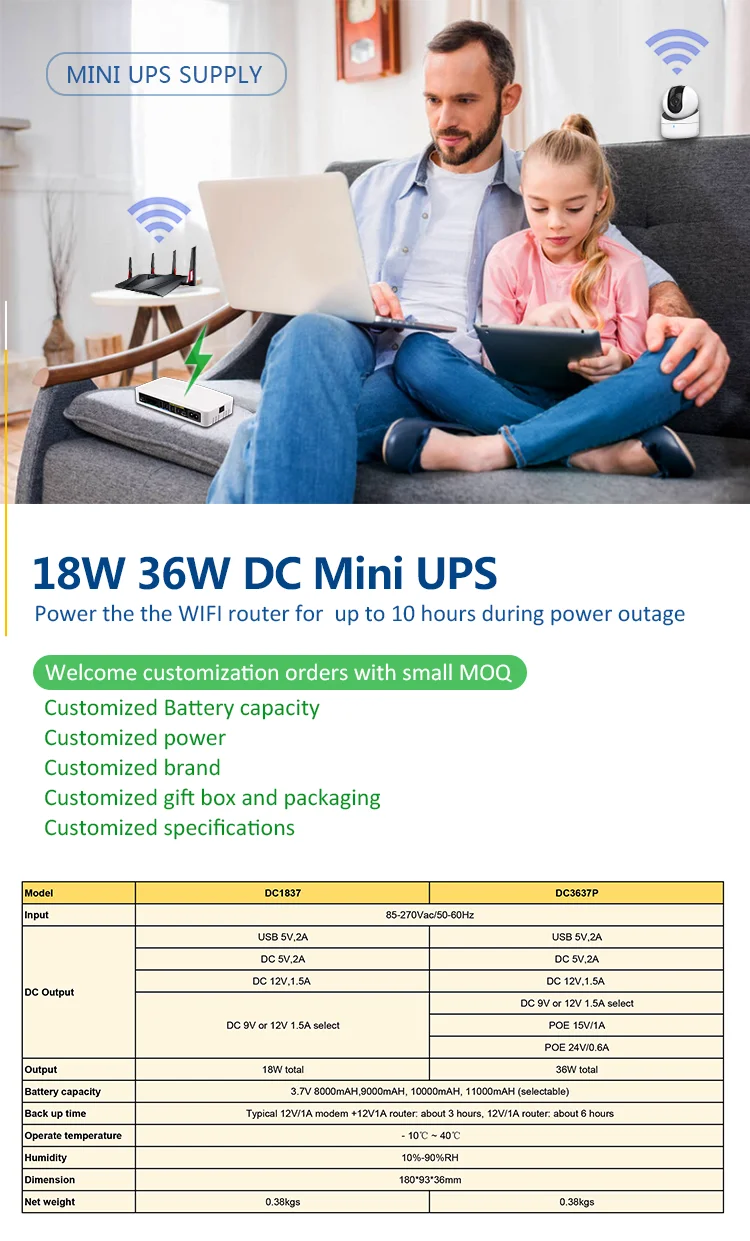

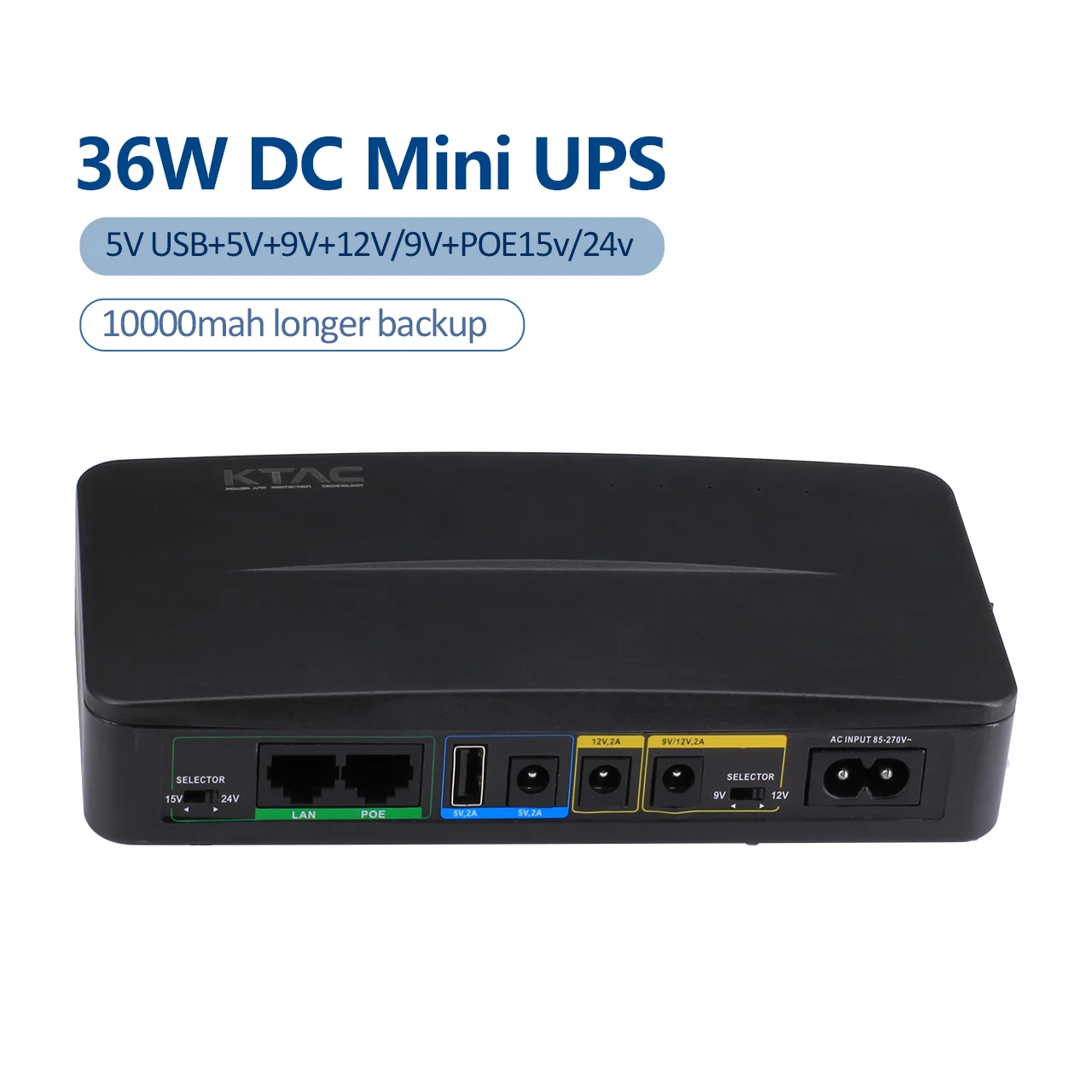

36W Power
The DC3037 series has a total output power of 36W for continuous use which
makes it very good mini UPS to power either a 12V 2A DC device or 2pcs of 12V
1A device( typically for a modem and a Wifi router).
CPU Controlled
5 advanced CPU or ICs are used in this circuit to control the output of each port
with stable voltage output.
Resettable Thermal Protection
Apart from over current and thermal protection by the IC, each output DC port
is protected by a resettable thermal fuse.

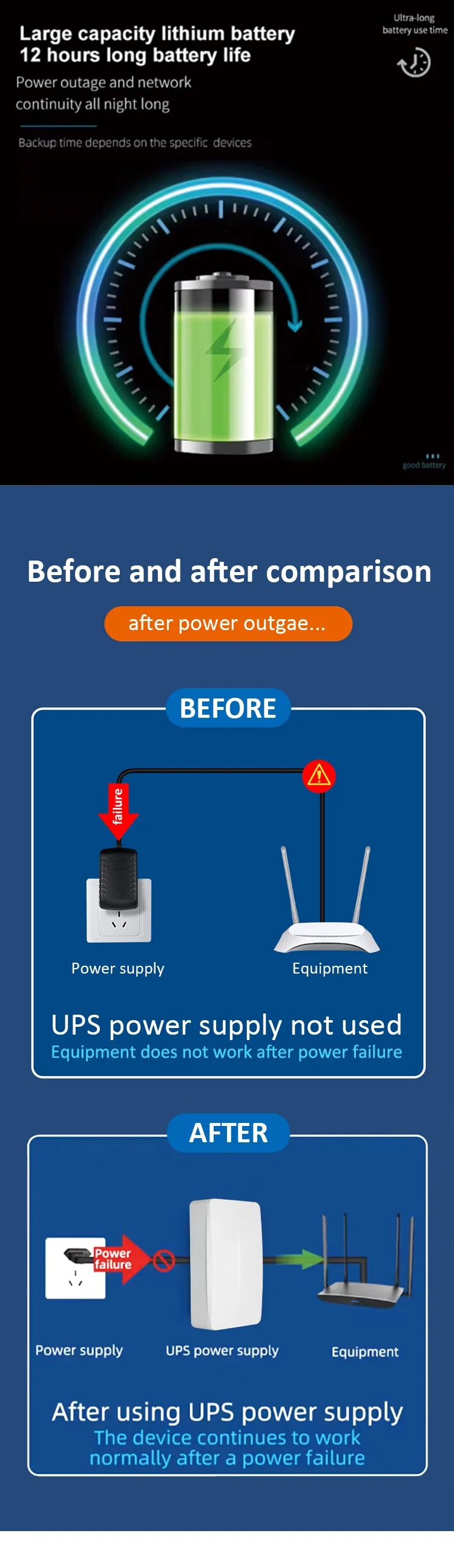

Uninterruptible Power Supply
When the grid power is available, this mini UPS automatically charge the batter
-ies and delivery power to the connected DC devices, when the grid power fail,
It switches to battery power automatically without restarting the devices.

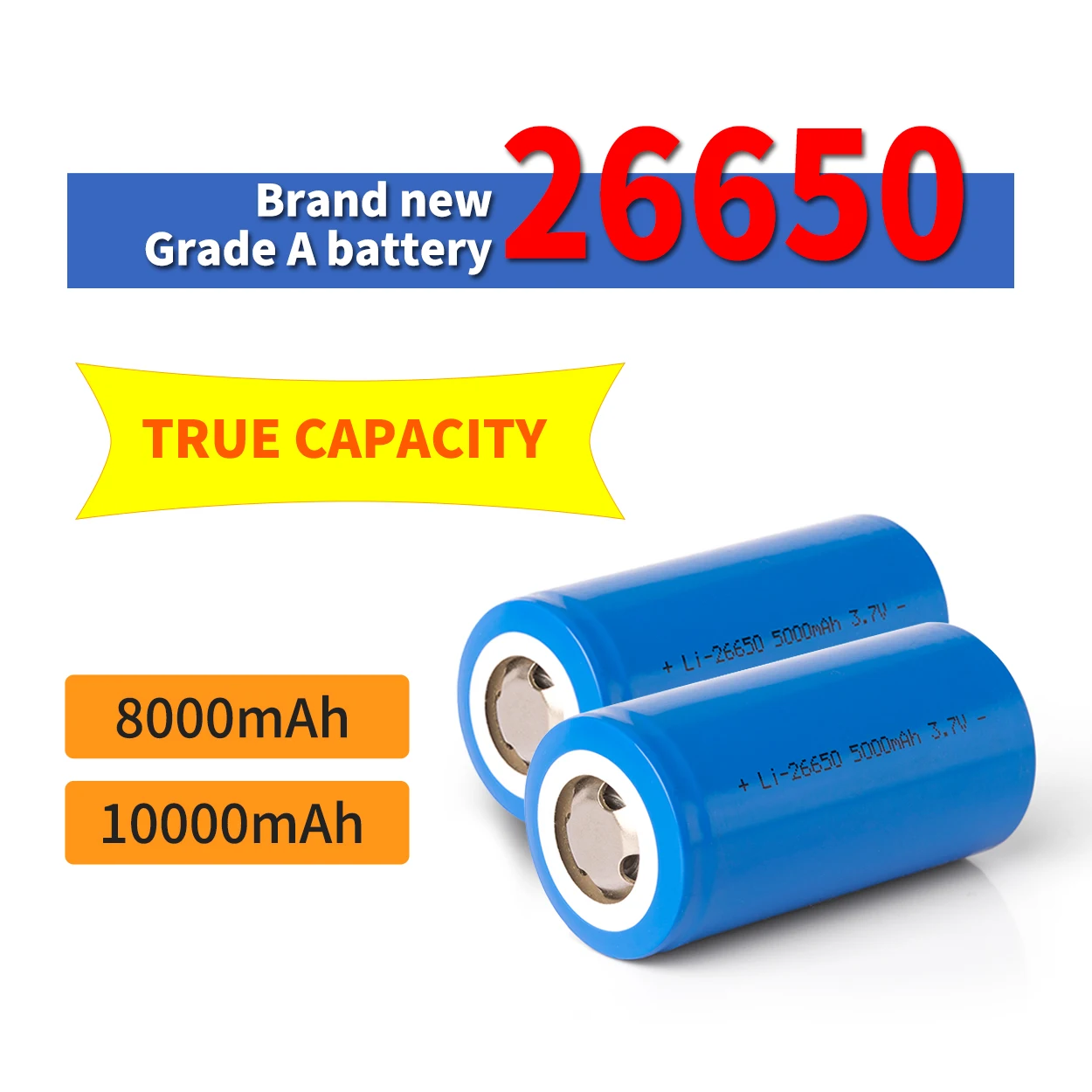

Brand New 26650 Batteries
2pcs of brand new 3.7V 4500mAH(16.65WH) or 5000mAH(18.5WH) power
26650 cylinder type lithium batteries are used inside the mini UPS to ensure
long backup time. We don’t compromise to use recycled 18650 batteries.
SMT power indicators
SMT Power indicators, showing actual power capacity of the mini UPS.
