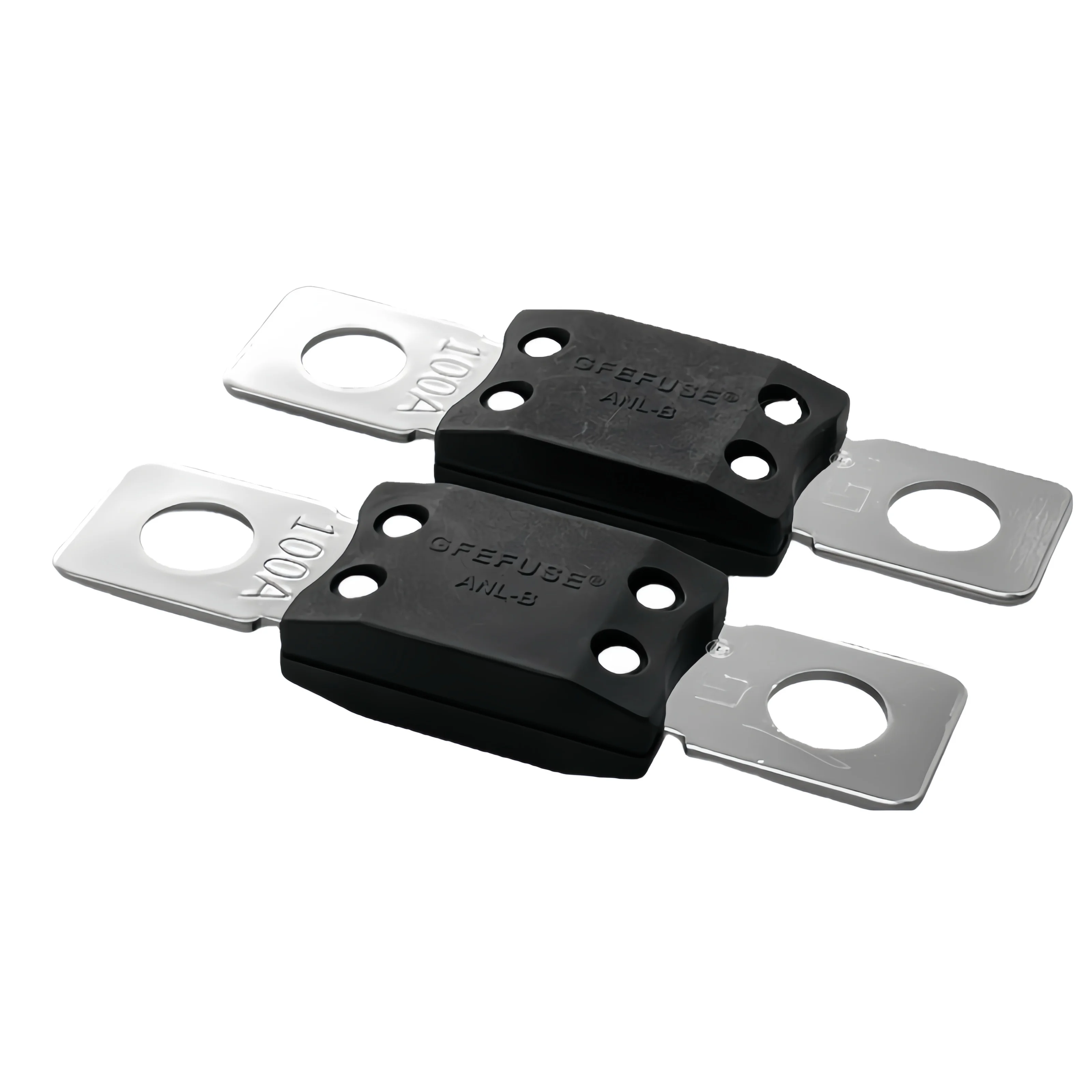

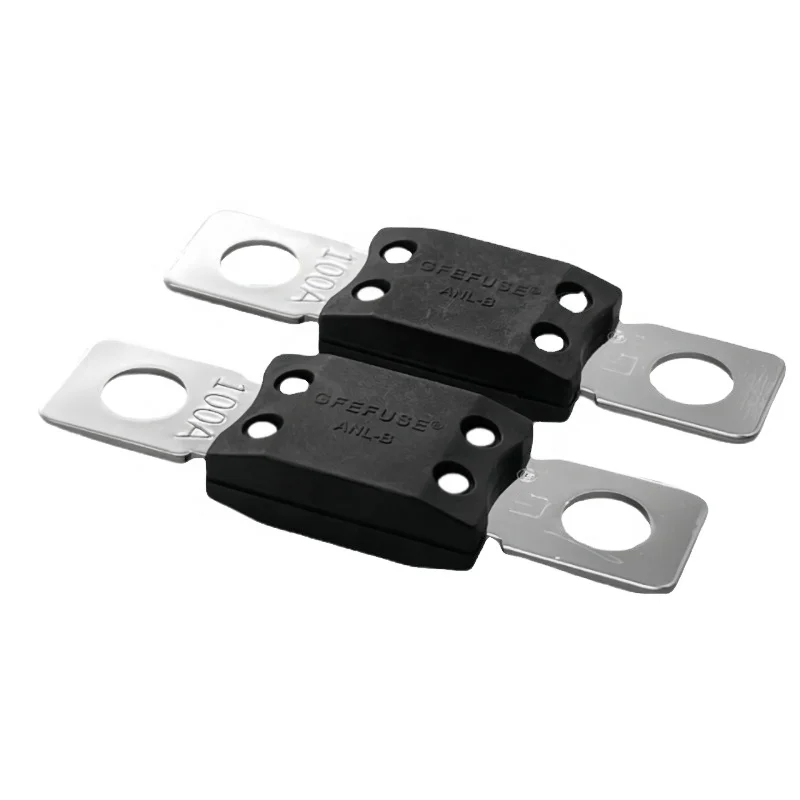

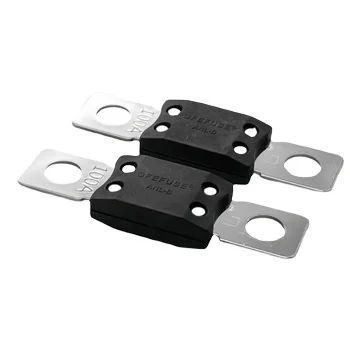

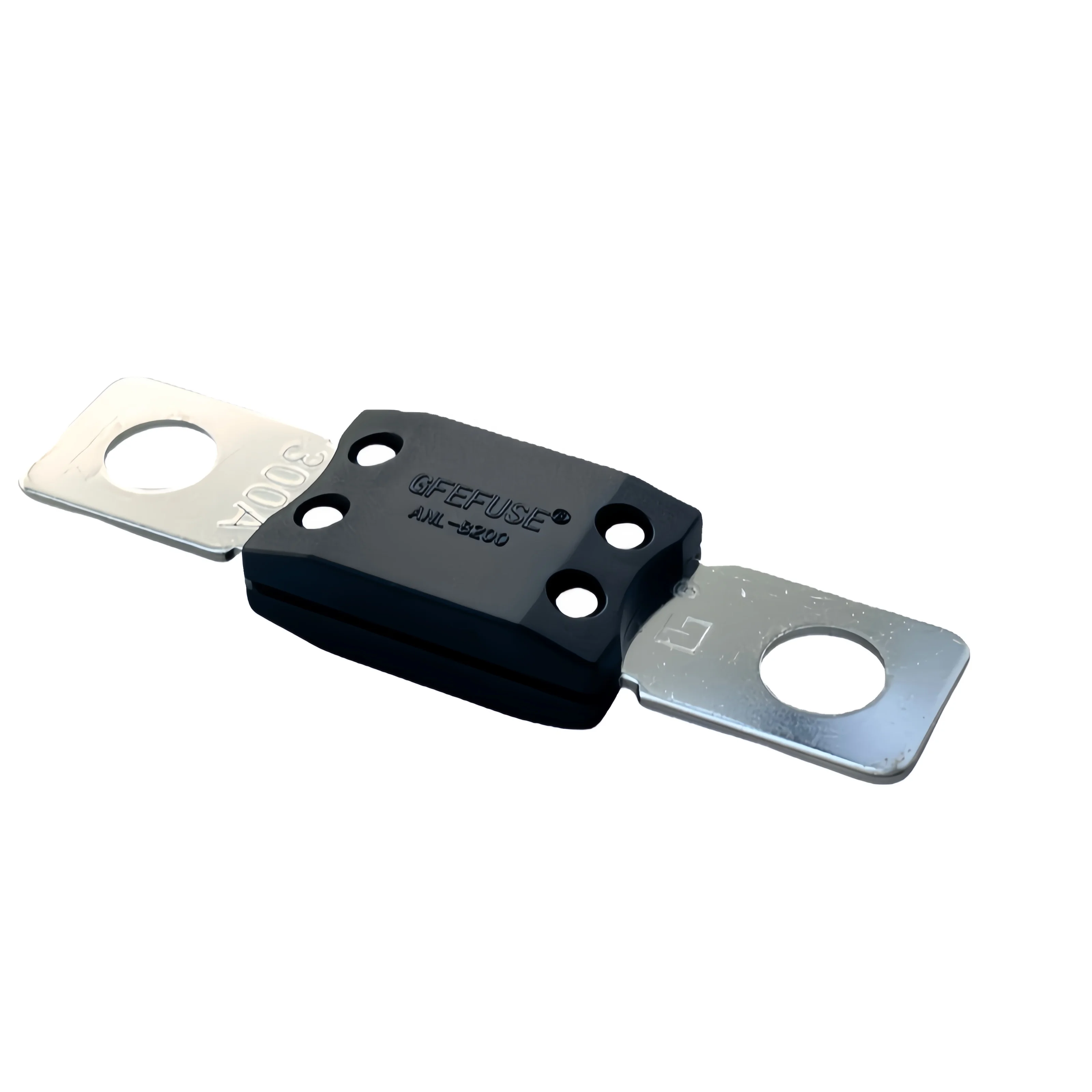

ATO FUSE ANL B200SF56 40A 700A 125V Maxi fuse EV Battery fuse
- Category: >>>
- Supplier: Dongguan Gongfu Electronics Co. Ltd.
Share on (1601201871136):
Product Overview
Description
ATO FUSE ANL-B200SF56 40A-700A 125V Maxi fuse EV Battery fuse
Product Description
| Housing | Out of thermoplastic (UL 94-V0, heat-resistant) Visible melting element |
| Terminal | Copper alloy, gal. Sn 2 x M8 bolts, Distance 51 mm |
| Mounting Torque | 12.0 Nm +/- 1Nm |
| Breaking Capacity | 32V 12V24V58V48V100V80V70V125V150V200V250VDC |
| Voltage | according to the different needs of customized 12V-1500V range DC |
| Complies with | ISO 8820-5 UL 248 Special Purpose Fuses |
| Medium Current | (68.7) 40A50A60A70A80A100A125A150A175A200A250A275A300A350A 400A450A500A550A600A650A700A |
Time-Current Characteristics
| Opening Time Min / Max (s) | ||
| % of Rating | ||
| 40A - 250A | 300A-700A | |
| 100 | 4 h / – | 4 h / – |
| 135 | 120 s / 1,800 s | – / – |
| 220 | 1 s / 60 s | 1 s / 60s |
| 350 | 0.300 s / 5 s | 0.500 s / 5 s |
| 600 | 0.100 s / 1 s | 0.100 s / 1 s |
Current Models
| TYPE | Rating Current(A) Typ | Voltage drop | TYPE | Rating Current(A) Typ | Voltage drop |
| ANL-B50 | 50A | ≤130Mv | ANL-B225 | 225A | ≤90mV |
| ANL-B80 | 80A | ≤110Mv | ANL-B250 | 250A | ≤90mV |
| ANL-B100 | 100A | ≤110Mv | ANL-B275 | 275A | ≤90mV |
| ANL-B125 | 125A | ≤110mV | ANL-B300 | 300A | ≤90mV |
| ANL-B150 | 150A | ≤100mV | ANL-B350 | 350A | ≤90mV |
| ANL-B175 | 175A | ≤100mV | ANL-B400 | 400A | ≤90mV |
| ANL-B200 | 200A | ≤90mV | ANL-B500 | 500A | ≤90mV |
