Annular compression load cells force transducer weight sensor loadcell for clamping forces bolt loading forces compressive loads

Product Overview

Description

Model	YGXD133
Type	Ring type force sensor
Material	Stainless steel
Diameter	OD:34~95mm; ID:16~50mm
MOQ	1pc
Packing	Carton
Lead time	5-30 days
OEM ODM	Welcome
Quality guarantee	12months
Place of Origin	Shenzhen,Chinacompression washer load cell ring force sensor transducer
Payment	T/T,  Alipay , Western Union, Credit card etc.
Transportation	By DHL,UPS,Fedex,EMS,Air transportation,By Sea etc.



300kg 1000kg 5000kg 10T 20T 30T 45T Annular compression load cells force transducer weight sensor loadcell for clamping forces bolt loading forces compressive loads





Features & Applications:

Thru hole structure

Stainless steel, low deflection

Metal foil strain gauge technology

Compression only

Press-in force measurement



Propeller shafts and the measurement of bolt forces

Post or leg mount

Industrial auto machine and system, such as testing machine, rolling mill system etc

Clamping force, press-in force measurement

Overload detecting

Axial force measurement for shaft pins, axle pins.



Capacity :    0.3~45T



Specification

Rated output	1.0±10% mV / V
Zero balance	± 2 % F.S.
Non-linearity	≤5 % F.S.
Hysteresis	1 % F.S.
Repeatability	0.5% F.S.
Creep (30min)	0.5 % F.S.
Temp. effect on output	0.05 % F.S. / 10ºC
Temp. effect on zero	0.05 % F.S. / 10ºC
Input impedance	385±30Ω
Output impedance	350±5Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	5 V
Maximum excitation	10 V
Compensated temp range	- 10 ~ 60 ºC
Operation temp range	- 20 ~ 80ºC
Safe overload	150% F.S.
Ultimate overload	200 % F.S.
Cable size	Ø3×1500 mm
Protection class	IP65
Wiring	Red: + Excitation   Black: - Excitation Green: + Signal    White: - Signal

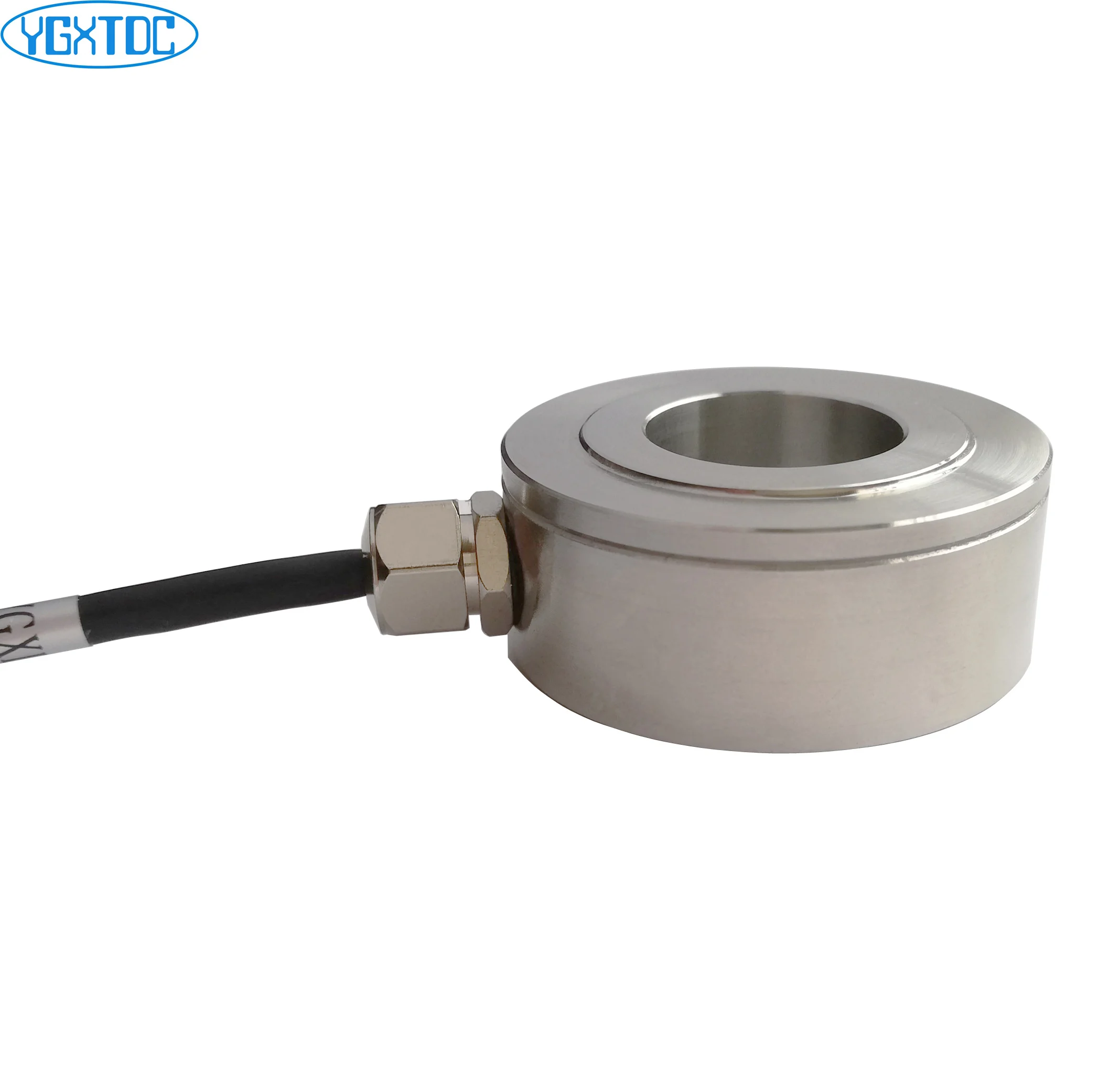

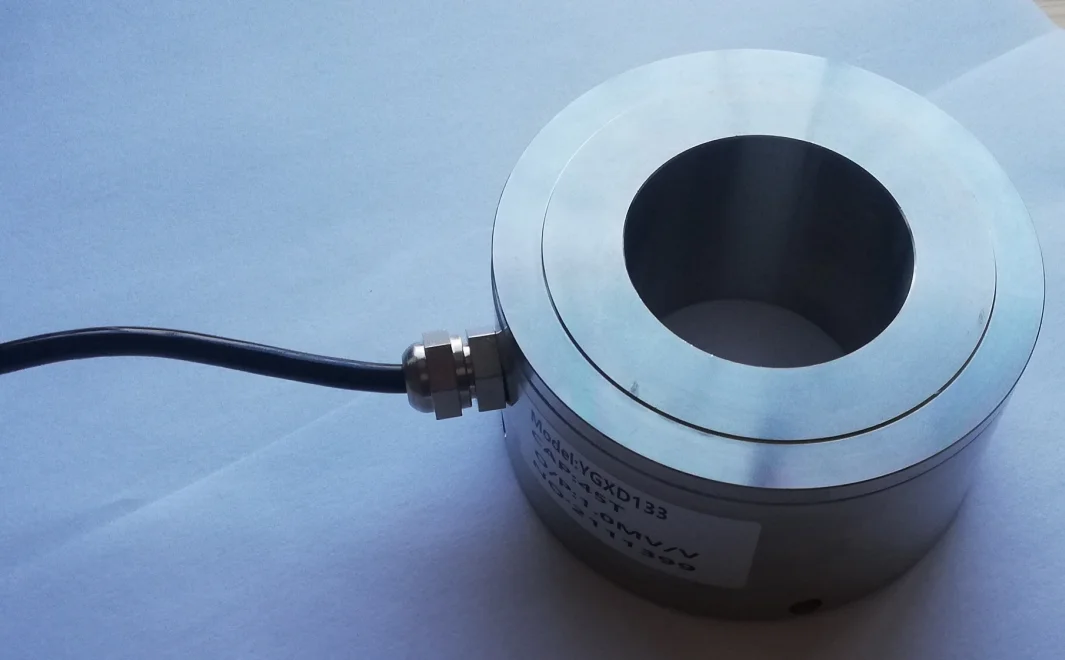

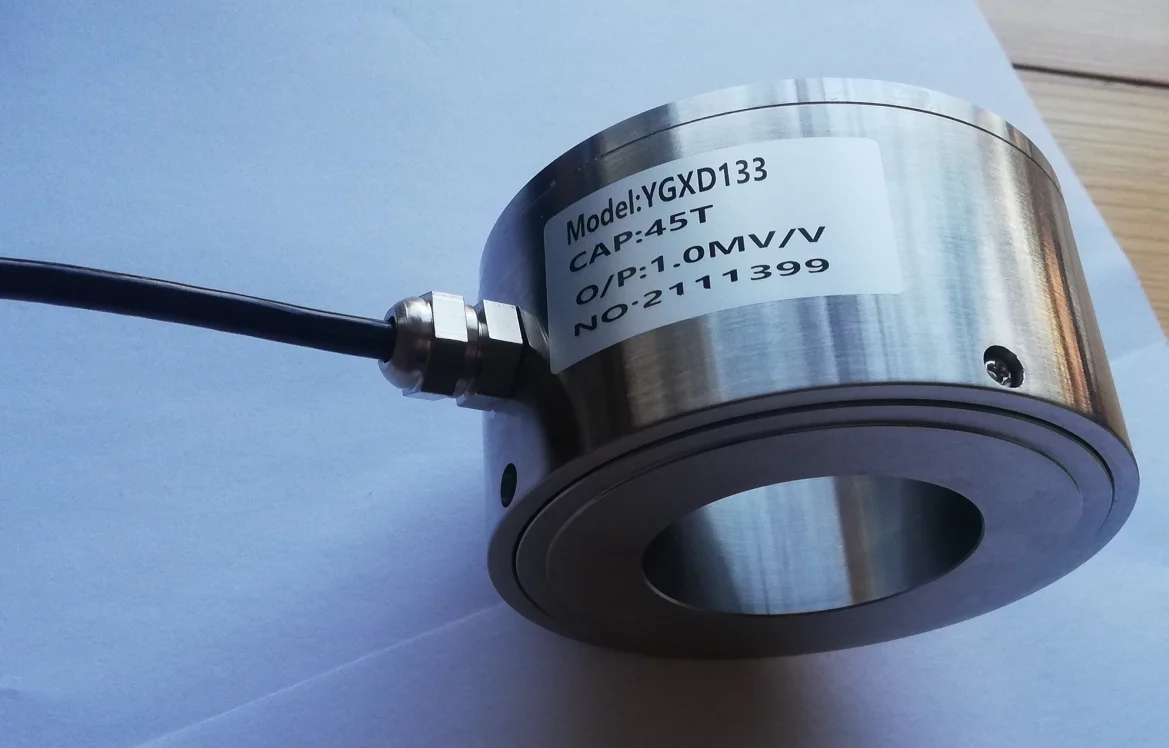

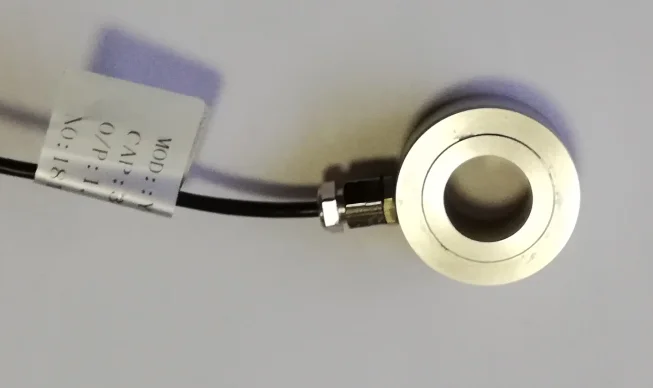

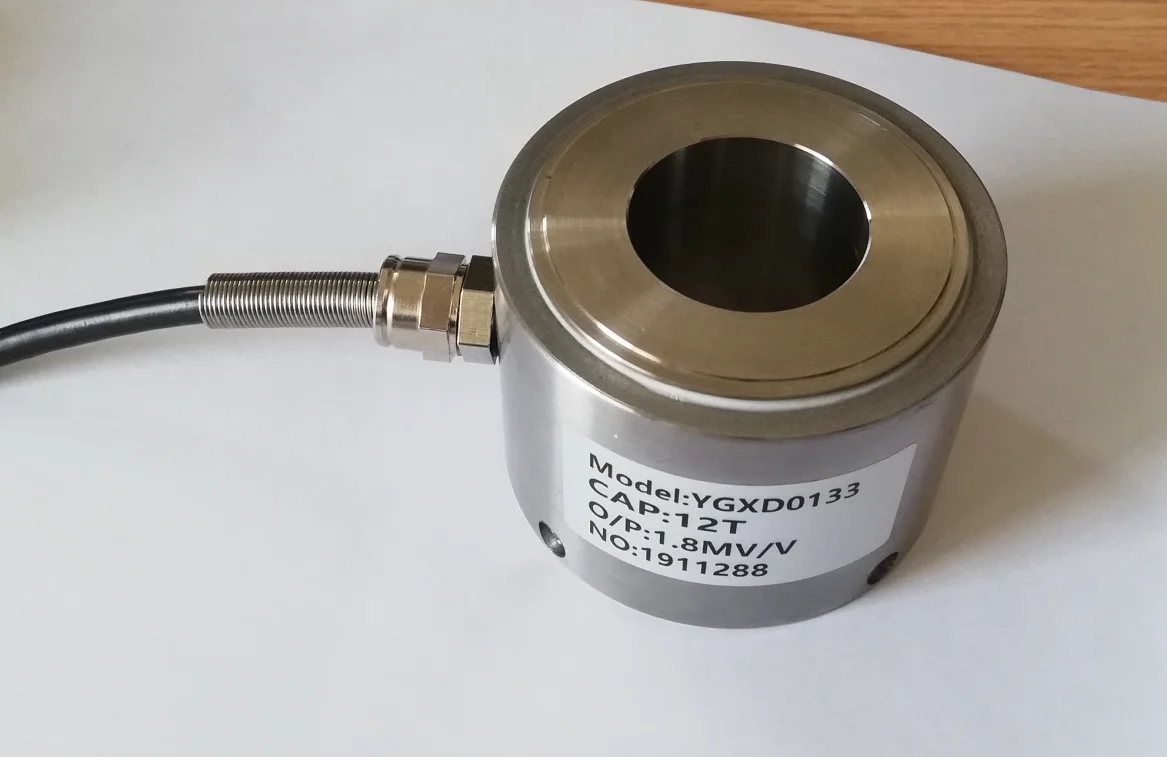

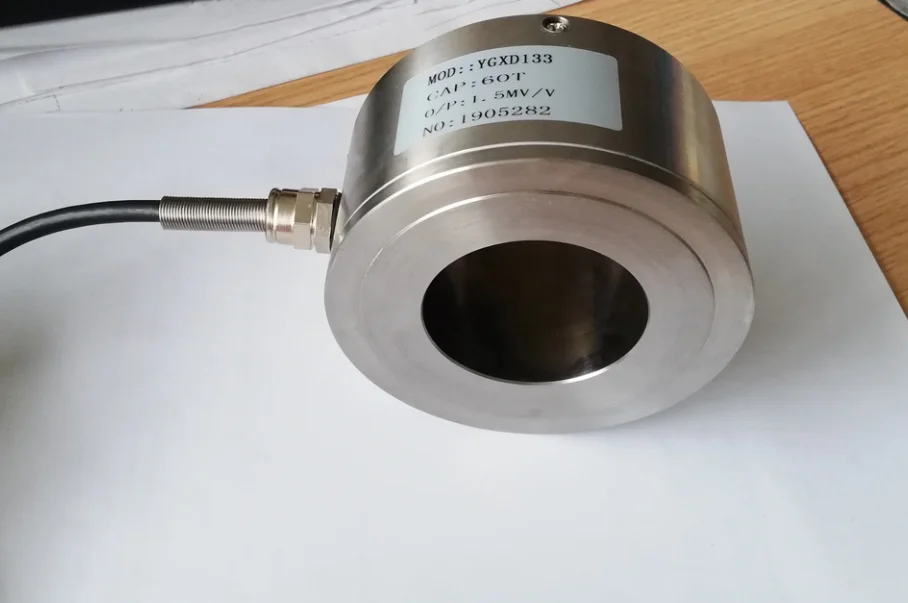

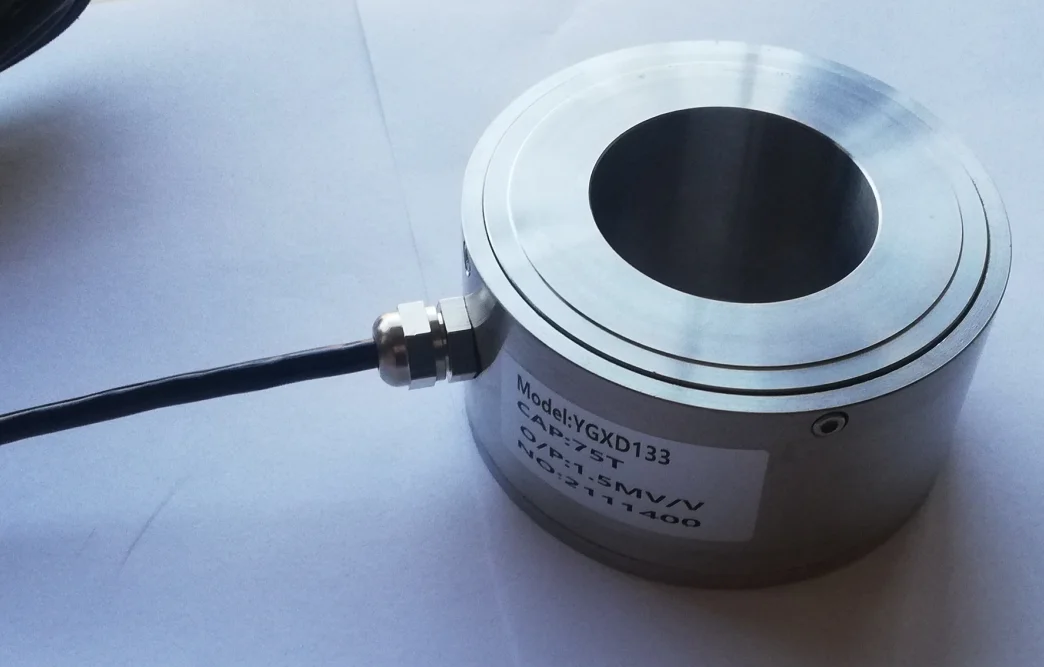

YGXD133   Product picture









Dimensions





SIZE(mm) CAP (t)	A	B	C	D	E	Material	Weight
0.3, 0.5, 1, 2	34	24	16	15	14	Stainless steel	0.1kg
5, 10, 15, 20	69	54	32	50	49		1.1kg
10,20, 30, 45	95	78	50	50	49		1.9kg



Custom made is available.

We can produce the products according your requirements.
