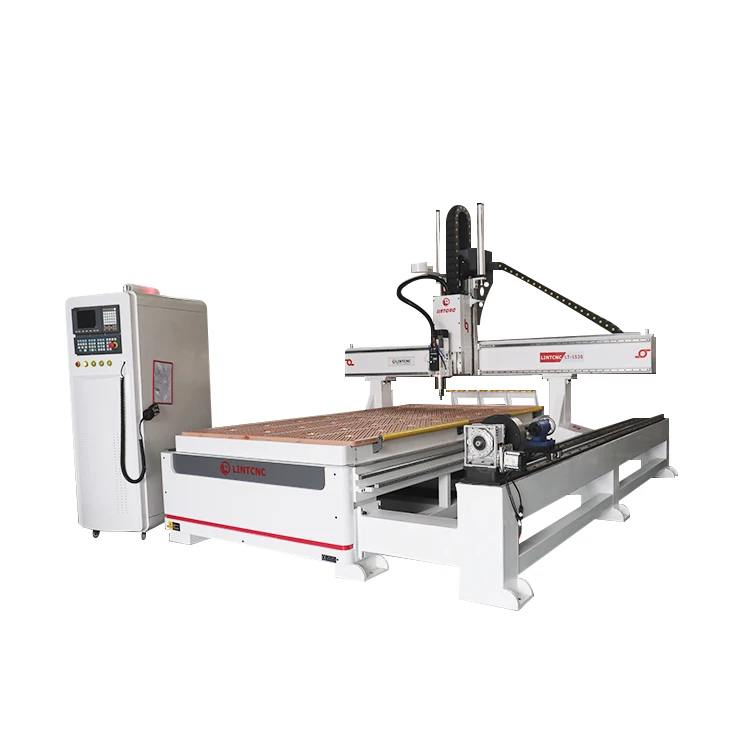

High Configuration 1300*2500mm tool changer ATC cnc nesting machine router machine for plywood mdf cutting milling engraving
High Configuration 1300*2500mm tool changer ATC cnc nesting machine router machine for plywood mdf cutting milling engraving
High Configuration 1300*2500mm tool changer ATC cnc nesting machine router machine for plywood mdf cutting milling engraving
High Configuration 1300*2500mm tool changer ATC cnc nesting machine router machine for plywood mdf cutting milling engraving
High Configuration 1300*2500mm tool changer ATC cnc nesting machine router machine for plywood mdf cutting milling engraving
High Configuration 1300*2500mm tool changer ATC cnc nesting machine router machine for plywood mdf cutting milling engraving
High Configuration 1300*2500mm tool changer ATC cnc nesting machine router machine for plywood mdf cutting milling engraving

High Configuration 1300*2500mm tool changer ATC cnc nesting machine router machine for plywood mdf cutting milling engraving

Share on (1601201891756):


Price:$2,000.00 - $2,500.00

Quantity:


Product Overview

Description



Products Description

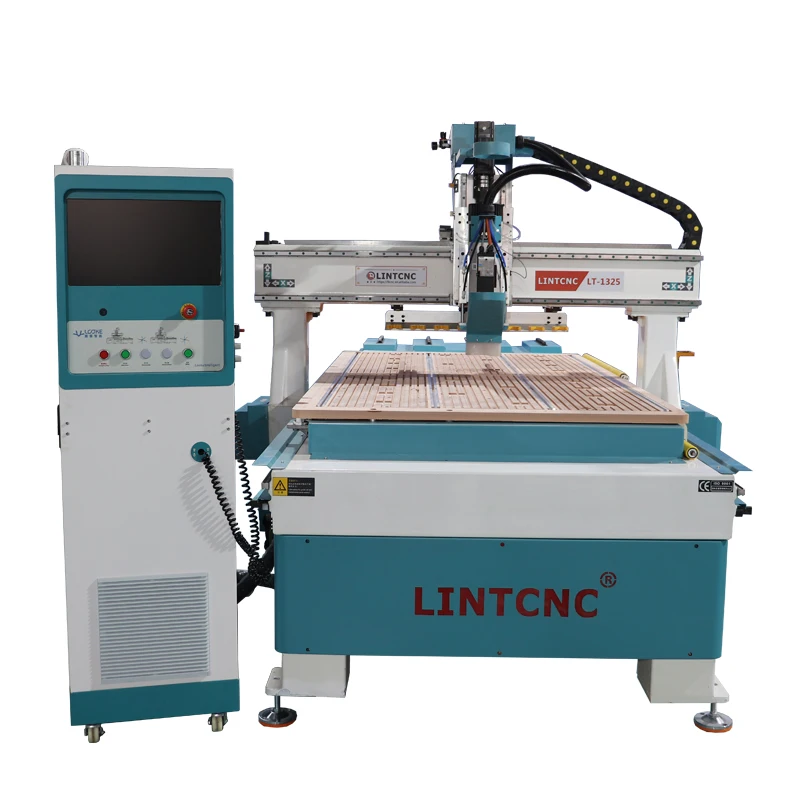

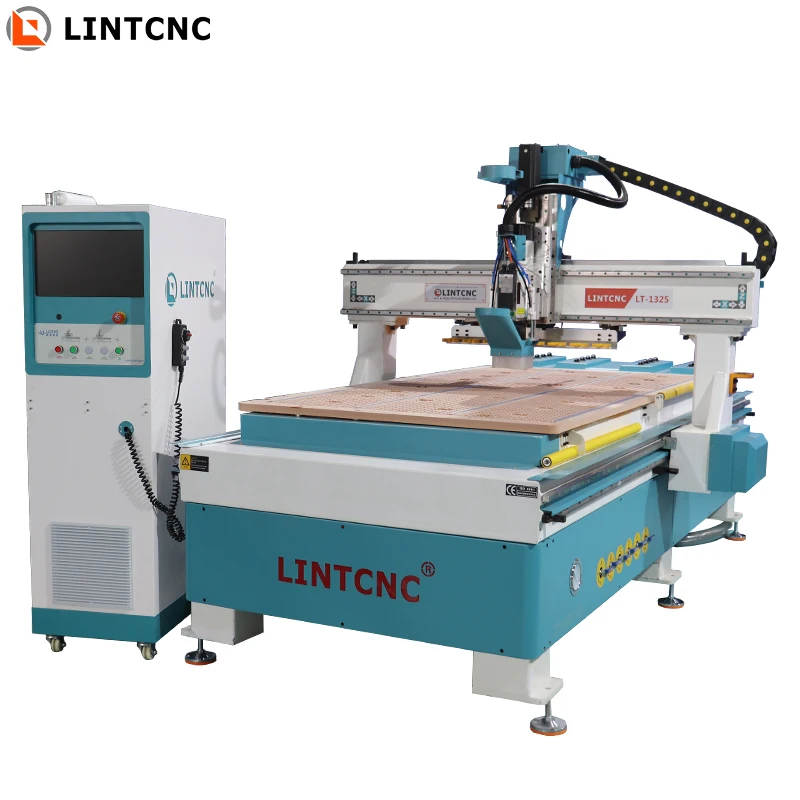

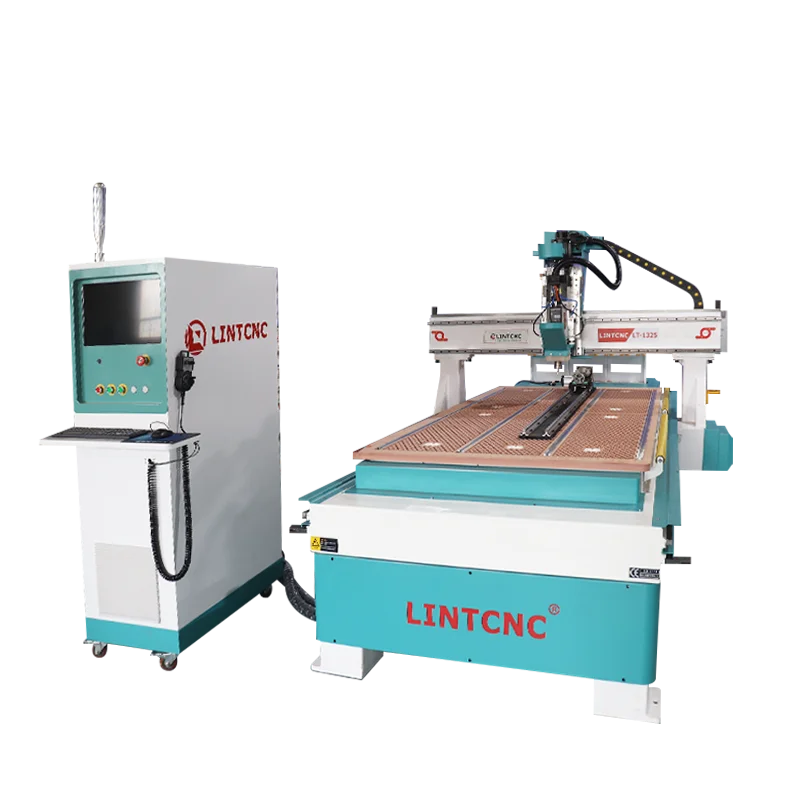

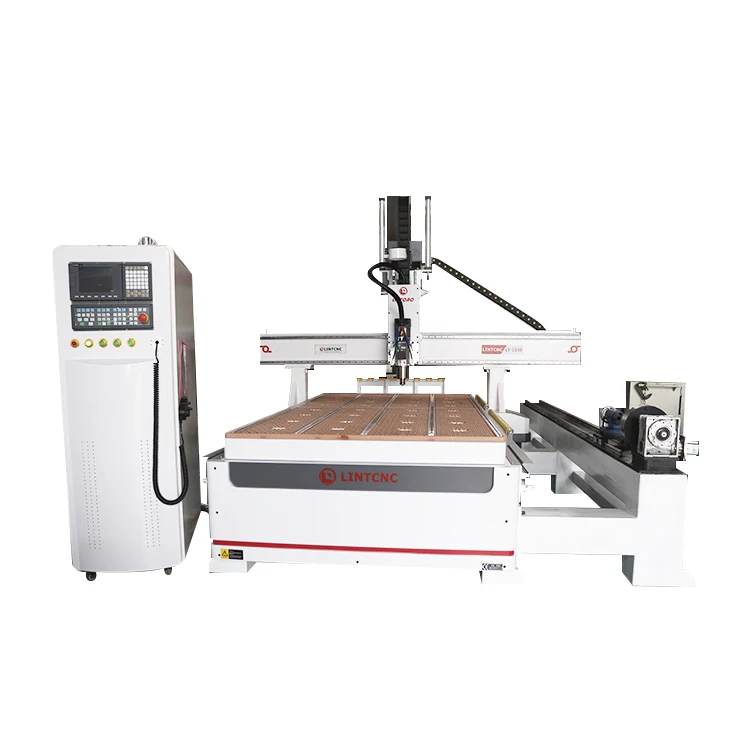

High Configuration 1300*2500mm tool changer ATC cnc nesting machine router machine for plywood mdf cutting milling engraving
Main configuration:
1. welded steel tube bed structure
2. Customized working area, such as 600*900/600*1200/1200*1200mm etc;
3. 1.5kw/2.2kw/3.0kw water cooling spindle;
4. Hiwin square linear guide rail 20#;
5. Stepper motor & Leadshine driver (servo motor is optional);
6. NCStudio control system ( MACH3 USB/ DSP are optional);
7. 4 Axis/ rotary device put on the side of machine;
Other Optional parts:
1. Vacuum T-slot table with vacuum pump;
2. Water cooling sprayer or oil cooling system for soft metal processing;
















Specification


Model

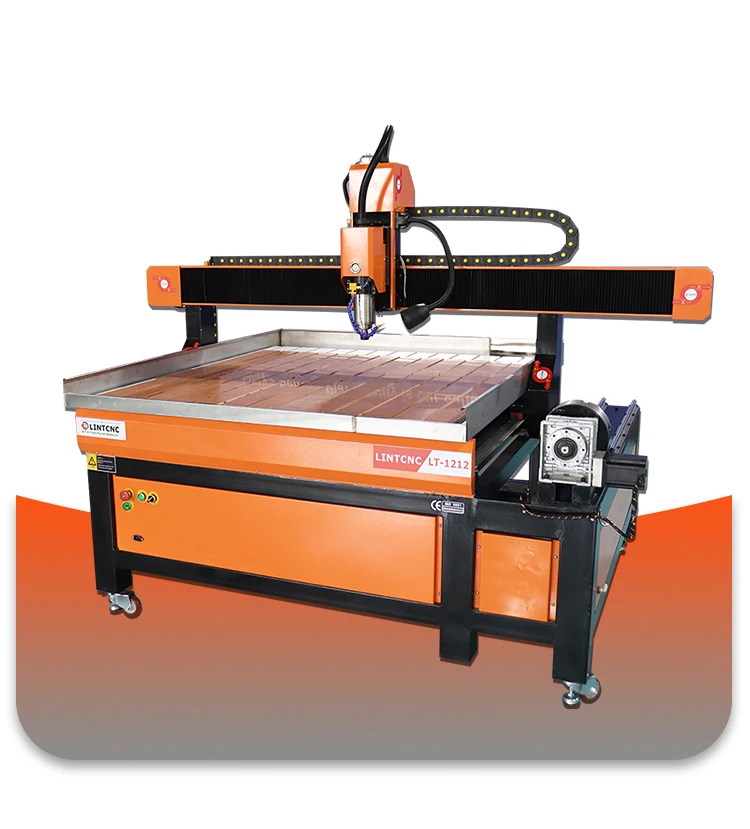

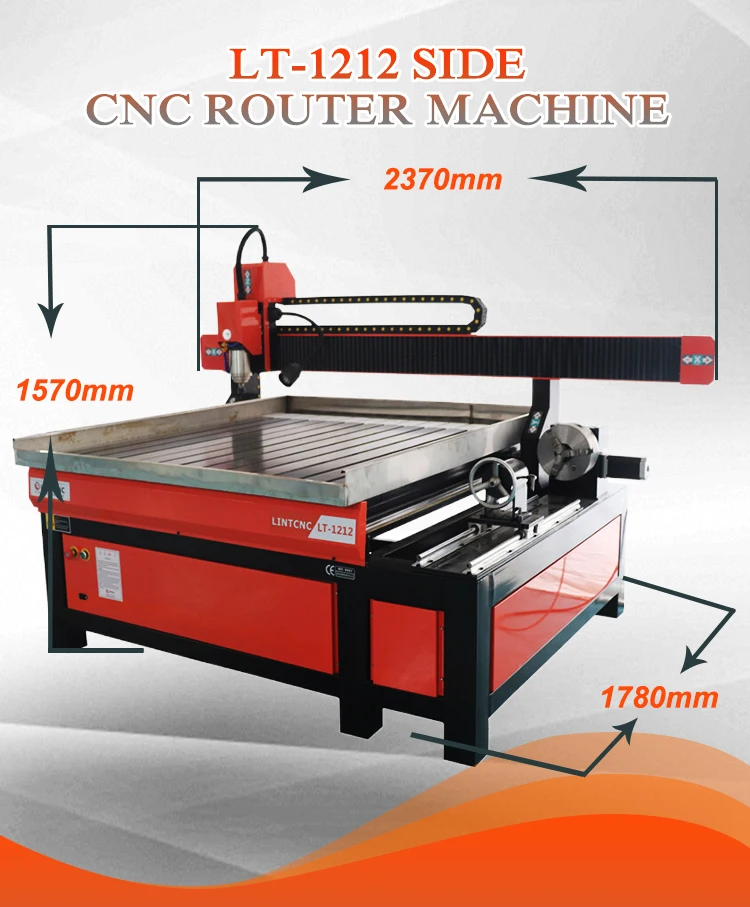

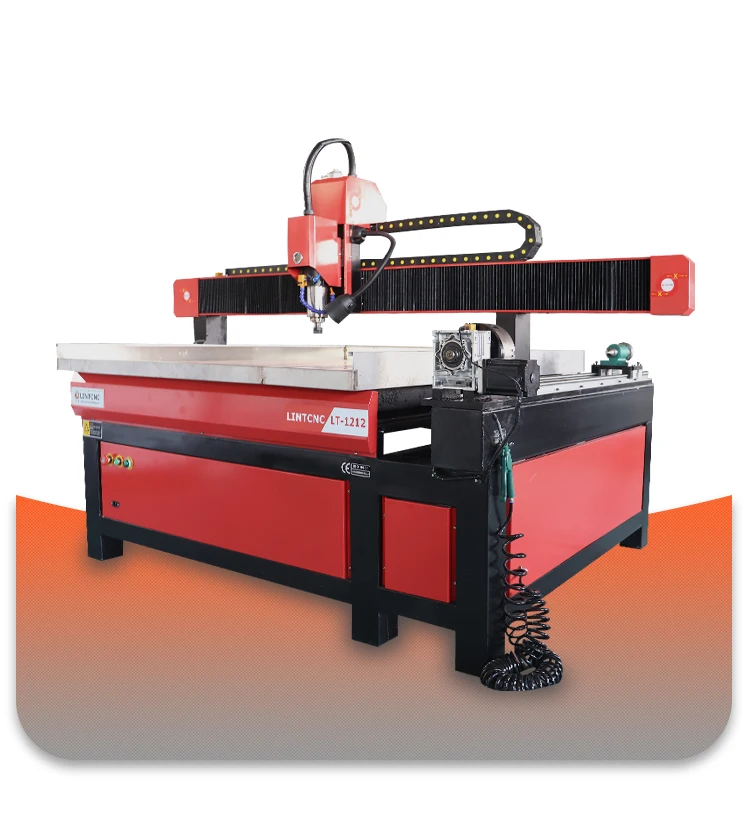

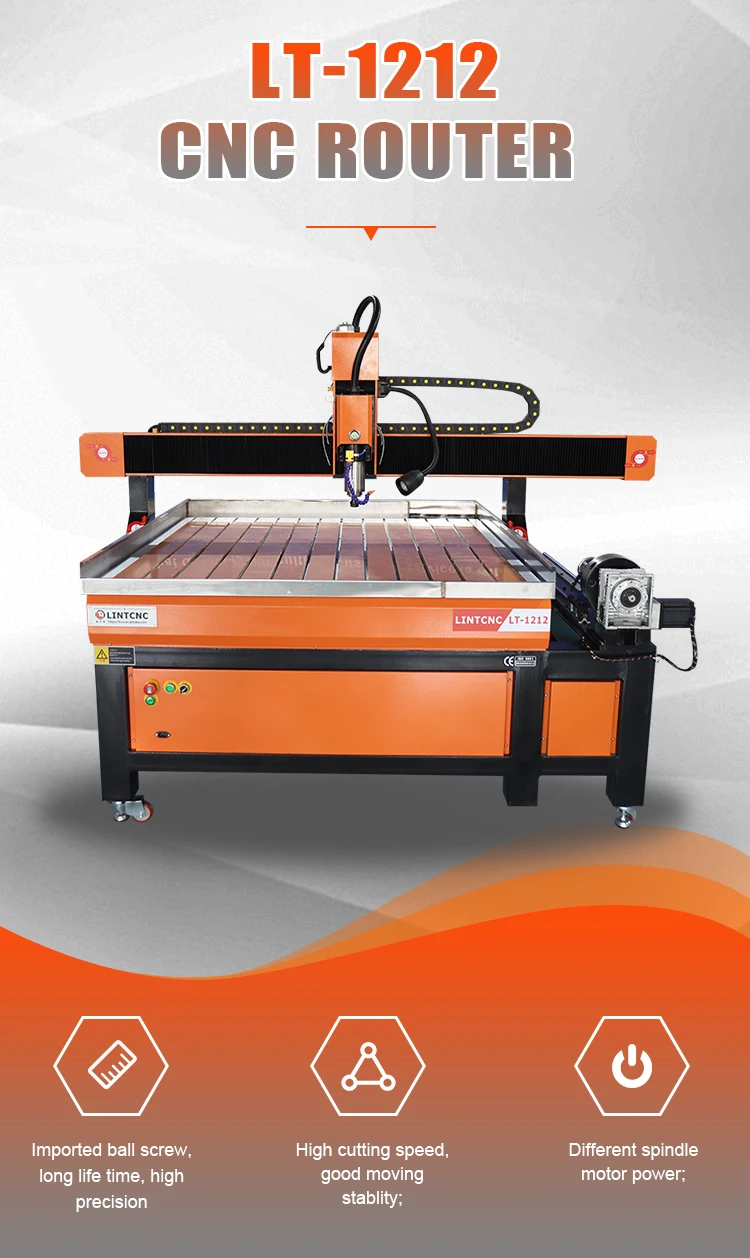

LT-1212 3d cnc carving machine
Effective working area
1200(X)*1200(Y)*200(Z)mm
Table style
Aluminum T-slot table with PVC
Guide rail
Hiwin square linear guide rail
Driving method
Taiwan Original TBI Ball screw for X,Y,Z axis
Spindle
1.5KW water cooling spindle
Invert
Shenzhen ET invert
Collet size
ER16
Spindle speed
0-24000rpm
Motors and drivers
86BYG-450B stepper motors and MA860C Leadshine drivers
Control system
NCStuido control system
Working Accuracy
<0.03/300mm
Working speed
<7000mm/min
Traveling speed
0-7000mm/min
Instruction format
G code *.u00 *.mmg *.plt
Working voltage
AC220V, Single Phase, 50-60Hz
Air gun
Air gun for the dust
Standard Software
Artcam 2018
Compatible software
Type3/Castmate/Coreldraw/AutoCAD or other CAM/CAD software
Environment temperature
0-45℃
Environment humidity
30%-75% No coagulate water
Too sensor
Yes
Others
English manual,Tool box,Tool sensor,etc.
Optional parts
 1. Rotary device for round material processing, 80mm diameter (+US$300)/100mm (+US$400)/150mm(+US$450)
2. MACH3 control system: +USD 150; DSP+US$300;
3. Water tank & water sprayer for soft metal +US$150;
4. 2.2kw spindle+US$100; 3.0kw spindle+US$200;
5. Vacuum table with 2.2kw vacuum pump+US$350

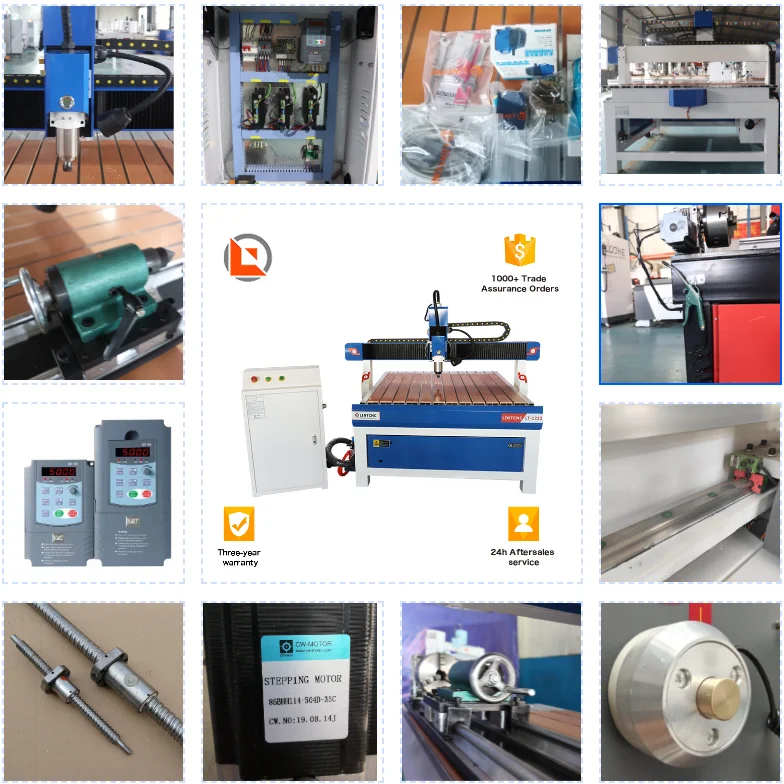

Machine details

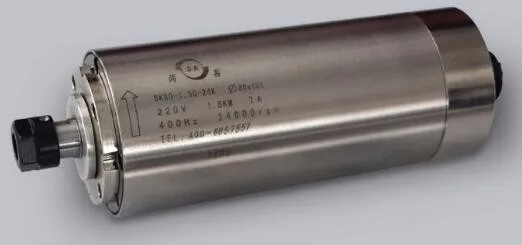

1. WATER COOLING SPINDLE
1.5kw/2.2kw,3.0kw water cooling spindle are available, low noise, high efficiency, long life and good cooling effect;

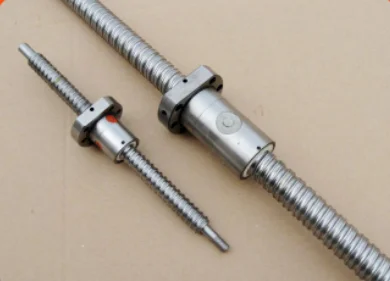

2. TBI BALL SCREW
Imported Taiwan TBI ball screw for X,Y,Z axis, 1605 for X,Z axis, 2510 for Y axis, which is high precision, heavy duty and longer life;

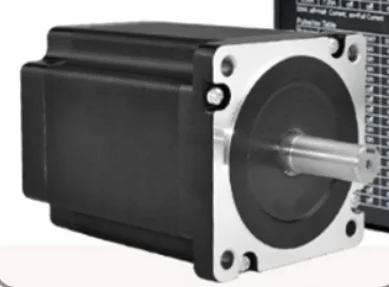

3.STEPPER MOTOR
86BYG-450B stepper motors: open loop; nema 34, , 6nM size; power about 480w/each set

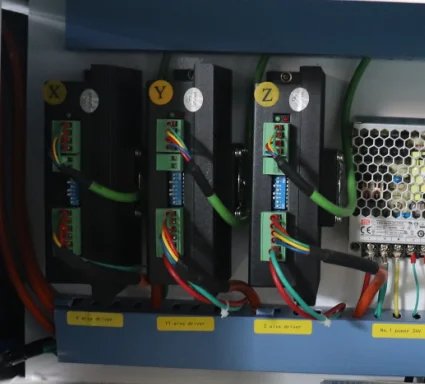

4 LEADSHINE EADSHINE DRIVER
MA860 Leadshine drivers: Built-in micro-subdivision technology and automatic tuning of power-on parameters function; low noise,
low vibration, low heat, high torque output features;

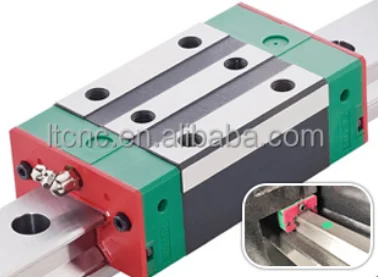

5. HIWIN SQUARE LINEAR GUIDE RAIL
Imported high precision Hiwin square linear guide rail bearings, smooth movement to ensure the machine tools higher accuracy,
higher stability, more stable;

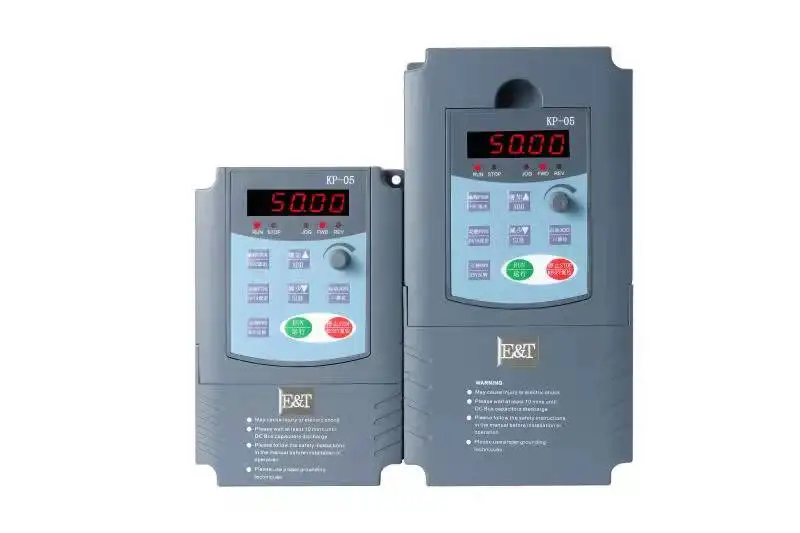

6.SHENZHEN ET INVERTER
famous brand in Chinese market, which is specialized for cnc router machine processing industry, and has special Marco code
function for cnc router, adopt reasonable wiring technology, more stable and reliable.



1. Advertising industries: engraving, milling and cutting processing for acrylic, PVC, density board, artificial stone, organic glass, plastic and soft metal sheet such as copper and aluminum
2.Arts and crafts industries: engrave on artificial stone, wood, bamboo, marble, organic board, double color board and so on for achieving effects of exquisite patterns and characters
3.Furniture industries:cabinet door, wooden door, solid wood, plate, antique furniture, door, window, desk and chair.

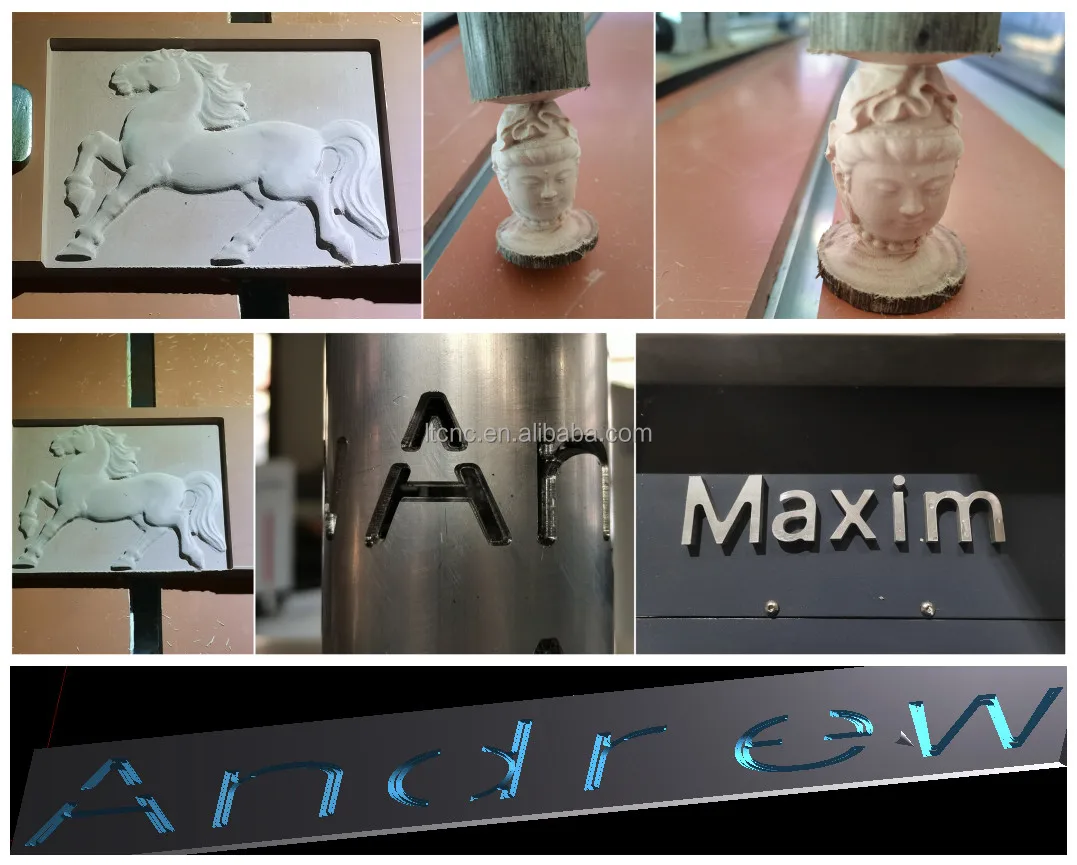

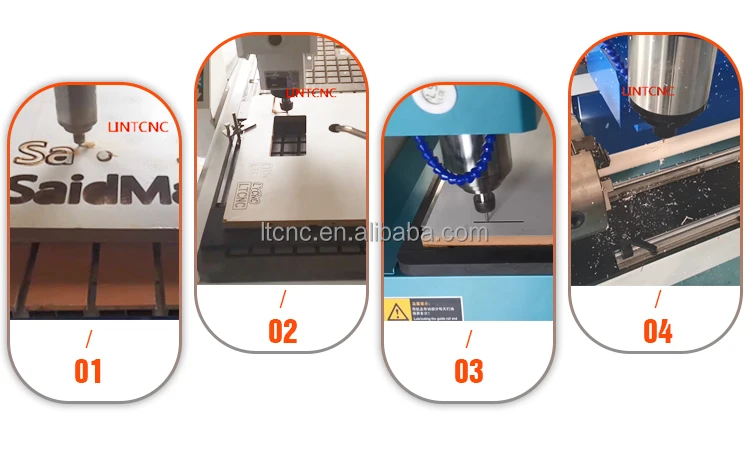

Sample exhibition

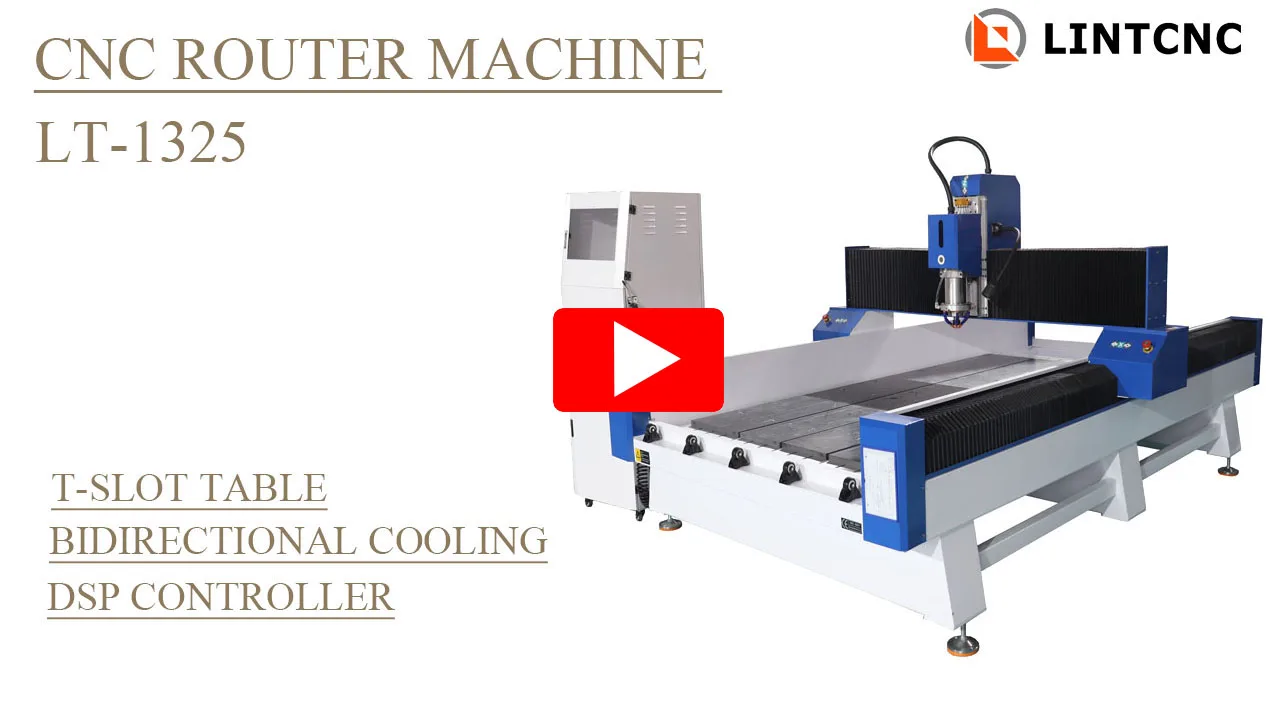

Related video






Our company


Shandong Lintianzhiyuan CNC Equipment Co.,ltd is famous CNC equipment manufacture, located in Jinan, Shangdong. Our company integrates the R&D, product, sale and maintain service. We depend on high tech and quality products to build the world brand.

Our main products:Large-scale(automatic tool change) CNC woodworking engraving machine, CNC advertising machine, CNC stone engraving machine, CNC plasma cutting machine, CNC glass engraving machine, CNC jade engraving machine, CNC metal mold machine,laser cutting&engraving machine, laser seal engraving machine and computer plotter product.

We provide one-stop service, including design, installation, training, commissioning, maintenance and consulting. Your satisfaction is always what we pursue.

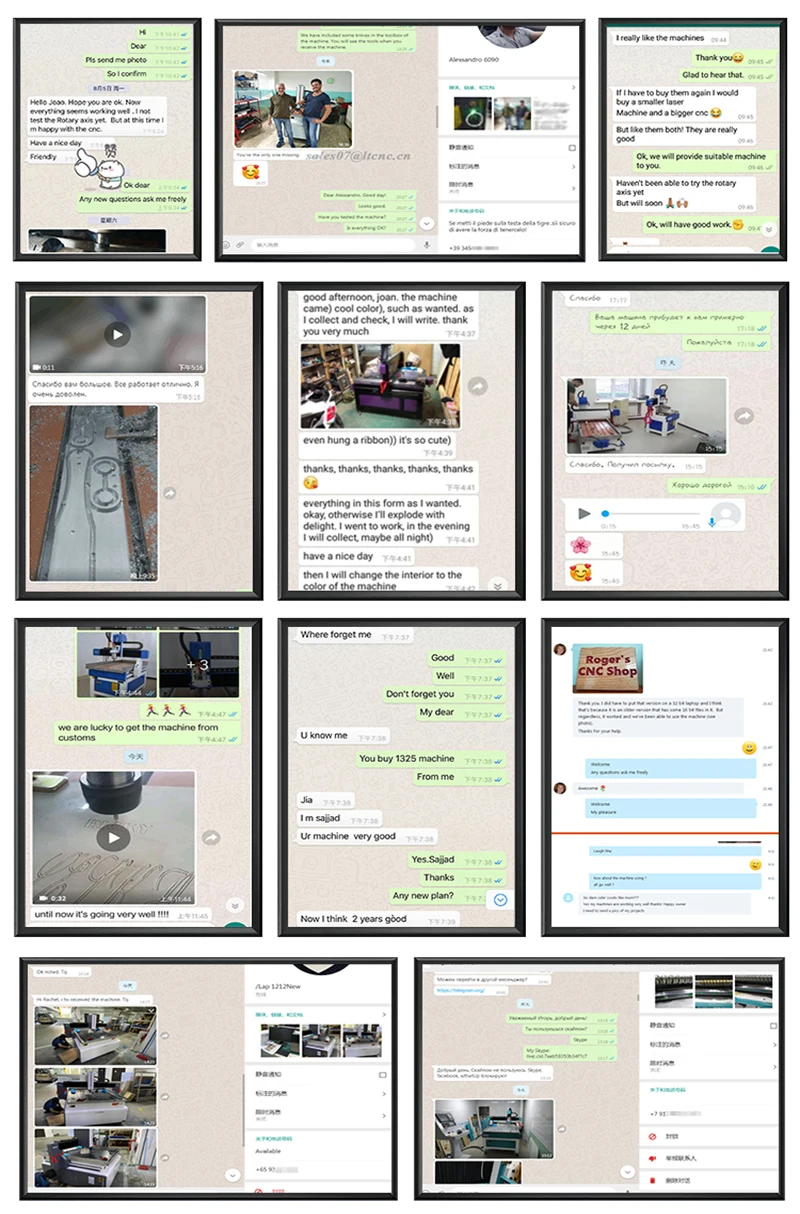

Feedback








FAQ




1. I never use this kind of machine before, is it easy to learn?
User-friendly English manual and operation video will be sent together with the machine, if there is still any question, we can talk through phone or Skype.
Morever, you could come to our factory to learn how to use it before shipment. our technicant will give you professional guidance.

2. If the machine has problem, what can you do to help?
Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone. our after-sales staff can come to your workshop if the problem still cannot be fixed.

3. How could I know if this machine is suitable for me?
Before ordering, we will provided every details of the machine for your reference, or you could tell us your work piece, our techniciant will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided.
