Unitized electrical pressure gauge used in the petroleum seismic production drilling, cementing,fracturing equipment
- Category: >>>
- Supplier: Zhige Industrial (shanghai) Co. Ltd.
Share on (1601201906339):
Product Overview
Description
Products Overview

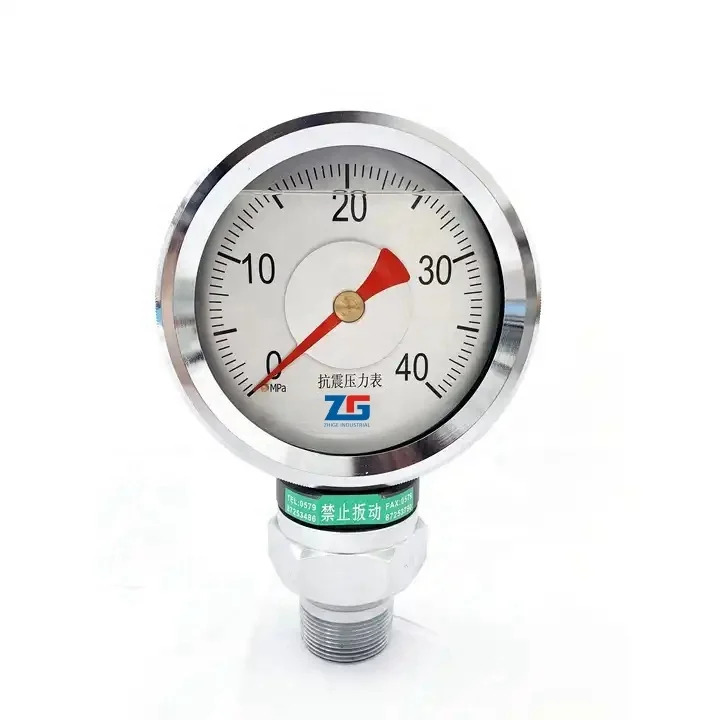

Union Pressure Gauge
The instrument can be used in the environment with strong vibration by filling the damping liquid inside and the built-in damping structure. The diaphragm isolation structure is used to measure the pressure of high viscosity, high particle and easy solidification medium. Through the core technology of dial indicator mechanism and the design of built-in fork spring elastic element, the instrument indication is clear, stable and accurate.
The measured medium acts on the sealing rubber diaphragm on the instrument joint, transmits to the membrane box body inside the instrument through the rubber diaphragm, acts on the fork spring, dislocates the two wings of the fork spring, and drives the pointer to rotate through the gear mechanism to achieve the purpose of measuring pressure. The measured medium does not enter the inside of the instrument, so as to achieve the effect of anti-blocking
and anti-solidification.
and anti-solidification.
FEATURES AT A GLANCE
40Standard pressure range | 40MPa.70MPa,105Mpa(10000psi,15000psi,12000psi) |
Other pressure units | kPa, psi, bar |
Accuracy class | 1.0% |
Operating temperature | -50℃ ~ +65℃ |
Standard flange size | 2-1/16" |
Other flange sizes can be customized | |
* Dial available dual scale divisions | |
* Threaded line pipe gauge has 2" threaded connection | |
* Hammer union style is 2” 1502 | |
* Bourdon tube style 6” Fluid Filled gauge with built-in damper with the ability to dampen signal, will see even the most minimal changes. |
Company Profile
ZhiGe Industrial(ShangHai)Co., Ltd.
We are build in 2015,it's a professional company engaged in oil and gas drilling and production, cementing, fracturing equipment
instrument supporting supply and pre-sales and after-sales technical services. Our products include as belows( but are not limited
to):
1.The large pump 1:1 pressure gauge and sensor;
2.The large pump 1:1 composite pointer pressure gauge and sensor;
3.The large pump 4:1 pressure gauge and sensor;
4.The large pump contact type 4:1 pressure gauge and sensor;
5.Circular recorder and sensor;
6.Coiled tubing vehicle wellhead electronic pressure gauge;
7.Circulating electronic pressure gauge of coiled tubing vehicle;
8.Coiled tubing vehicle electronic load table, etc.
instrument supporting supply and pre-sales and after-sales technical services. Our products include as belows( but are not limited
to):
1.The large pump 1:1 pressure gauge and sensor;
2.The large pump 1:1 composite pointer pressure gauge and sensor;
3.The large pump 4:1 pressure gauge and sensor;
4.The large pump contact type 4:1 pressure gauge and sensor;
5.Circular recorder and sensor;
6.Coiled tubing vehicle wellhead electronic pressure gauge;
7.Circulating electronic pressure gauge of coiled tubing vehicle;
8.Coiled tubing vehicle electronic load table, etc.
ZG BRAND
We are the manufacture of “ZG” Brand.Independent production，High cost performance，Stable delivery time.
MD TOTCO
We are the China area distributor of the "NOV MD TOTCO" brand.
OTHER BRAND
We can supply Wika/Murphy/Parker etc Brand
Our Advantages
Experience/Reliable
We have our own factory ,have 10 years experience,Stable supply chain.
Meet all kinds OEM/ODM inquiries.
Meet all kinds OEM/ODM inquiries.
Professional
We have professional technical service department,supply Pre-sales and after-sales technical service supporting.
Delivery
Mostly products MOQ 1pc.
Regularly products we have stock.1-3 days shipment.
Regularly products we have stock.1-3 days shipment.
MD/TOTCO FACTORY
We keep long term good business relationship with MD TOTCO. Because of the good service and credit We enjoy high reputation among customer and supplier.
Exhibition
Certifications
Successful Project
FAQ
Quality control:
* 100% pre-inspection before shipment with "PASSED" ticket;
* APT&ISO9001:2008 certificate passed ;
OEM service also available:
* APT&ISO9001:2008 certificate passed ;
OEM service also available:
Delivery:
* Sample order within 7days;
* Bulk order 15 days upon received the deposit.
After Sales Service:
* Twelve months quality guarantee;
* Provide technical suport within 24 hours.
* Bulk order 15 days upon received the deposit.
After Sales Service:
* Twelve months quality guarantee;
* Provide technical suport within 24 hours.
Payment:
*T/T,L/C,PAYPAL,Western Union.
*100% for instock goods
*30% depostion,the balance before the shipment.
*100% for instock goods
*30% depostion,the balance before the shipment.
HOW TO ORDER/INQUIRY
1.You can send by email: yangshuang@zhigechina.com
2.You can Inquiry by Aliwangwang
3.My what's app:+8615914060127
