A4 plastic playing cards PVC card ID card punching machine
- Category: >>>
- Supplier: Wuhan Sinocard Machinery Technology Co. Ltd.
Share on (1601201922873):
Product Overview
Description

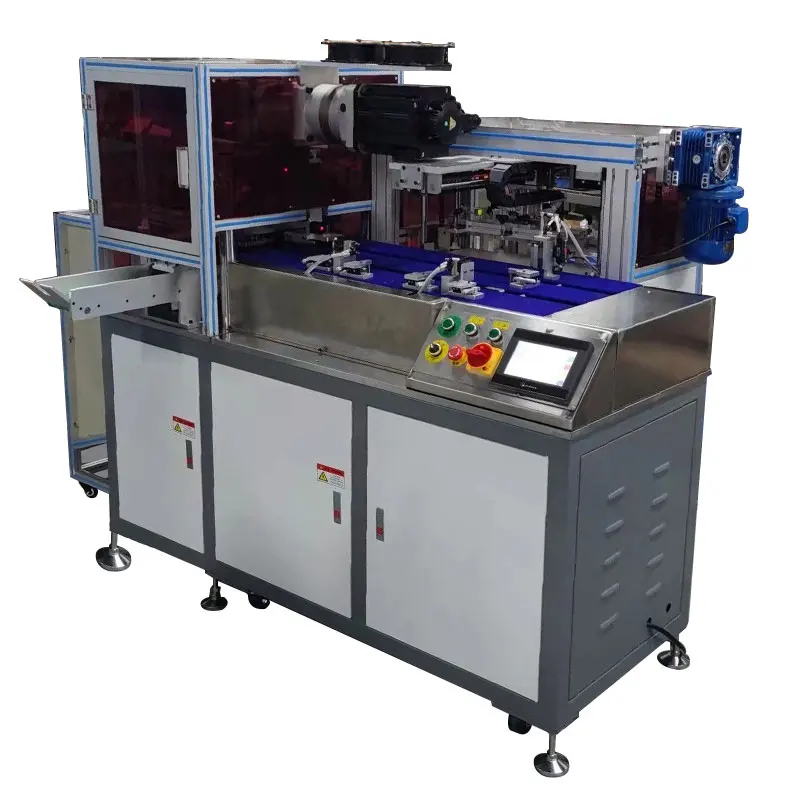

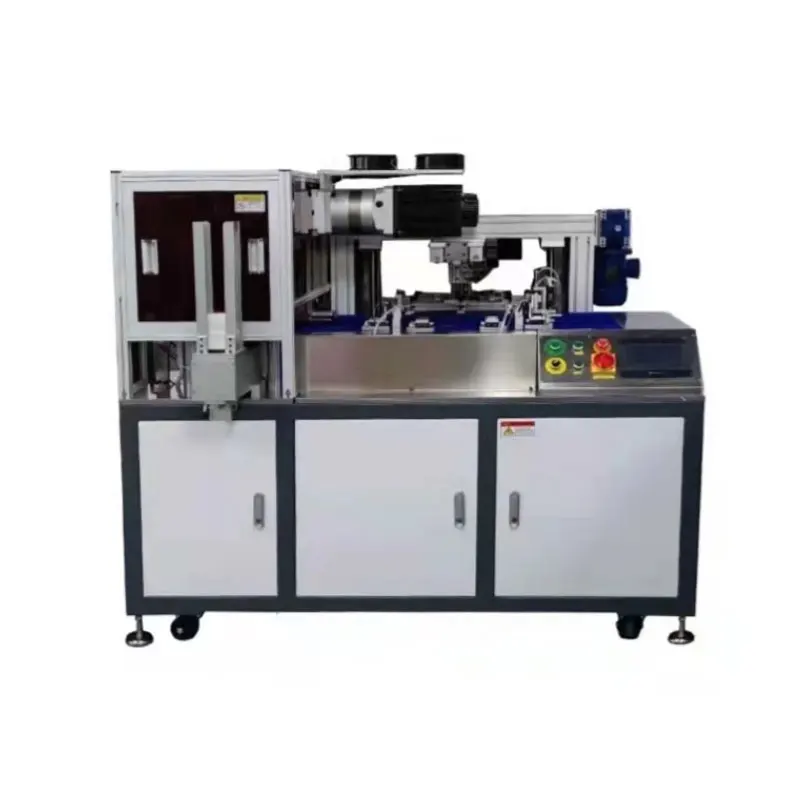

ACP120 Full automatic punching machine
Product Description
Main features:
This machine adopt PLC control, incorporating automatic feeder, automatic sheet collate,
sensor positioning, servo punching, card collecting, scrap pile up card-base punching
equipment.
! High sensitivity photoelectric sensor fit to imported servo system feed material, each
punching location parameter can be adjusted, high precision punching effect.
! Adopt import ball screw, guide rail, servo motor stepping feed material, high precision,
long operating life
! Big power, large torque servo as punching motivity, fast punching speed, big punching
motivity and punching products edge more smooth.
! Big sheet equip with loading unit, easily & quickly for sheet feeder;Automatic sheet
loading unit,cooperate with collate copies construction can fast feed the sheet to the
punching platform;
Main Technical Parameter:
| Power | AC 380V/50Hz |
| Total Power | 3.5KW |
| Air source | 6kg/cm² |
| Air consumption | About 70L/min |
| weight | 850kg |
| Available material | PVC, ABS, PET, PETG, paper card, mixed material |
| Availabe sheet | 3X8 ,4X8,5X5 etc(As per customer design ) |
| Output | 7000-16000PCS/hour(More punching heads, higher output) |
| Control way | PLC program+servo system |
| Operator | 1 person |
Packaging & Shipping
- High Speed Automatic Punching Machine Promotion Price for Plastic PVC ID Cards in Standard Export Wooden Box(case)
Company Information
Sinocard since 2000, which specializes in reaching, developing and manufacturing smart card making equipments. Equipped with the advanced production lines, professional R&D team and strict quality control system, Sinocard keeps good reputation on excellent quality, customer focus service and competitive prices.
Sinocardalways insists on "honesty first, professional concentration, in pursuit of excellent and service forever", and dedicates in technology innovation and product development.
It has researched and developed kinds of production equipments for plastic and paper card . The company always takes the lead in the industry especially in terms of automatic punching machine, automatic card packing machine, automatic IC slot milling machine and automatic chip implanting machines. Its products are highly recognized by the oversea and domestic customers for excellent qualities and reasonable prices.
