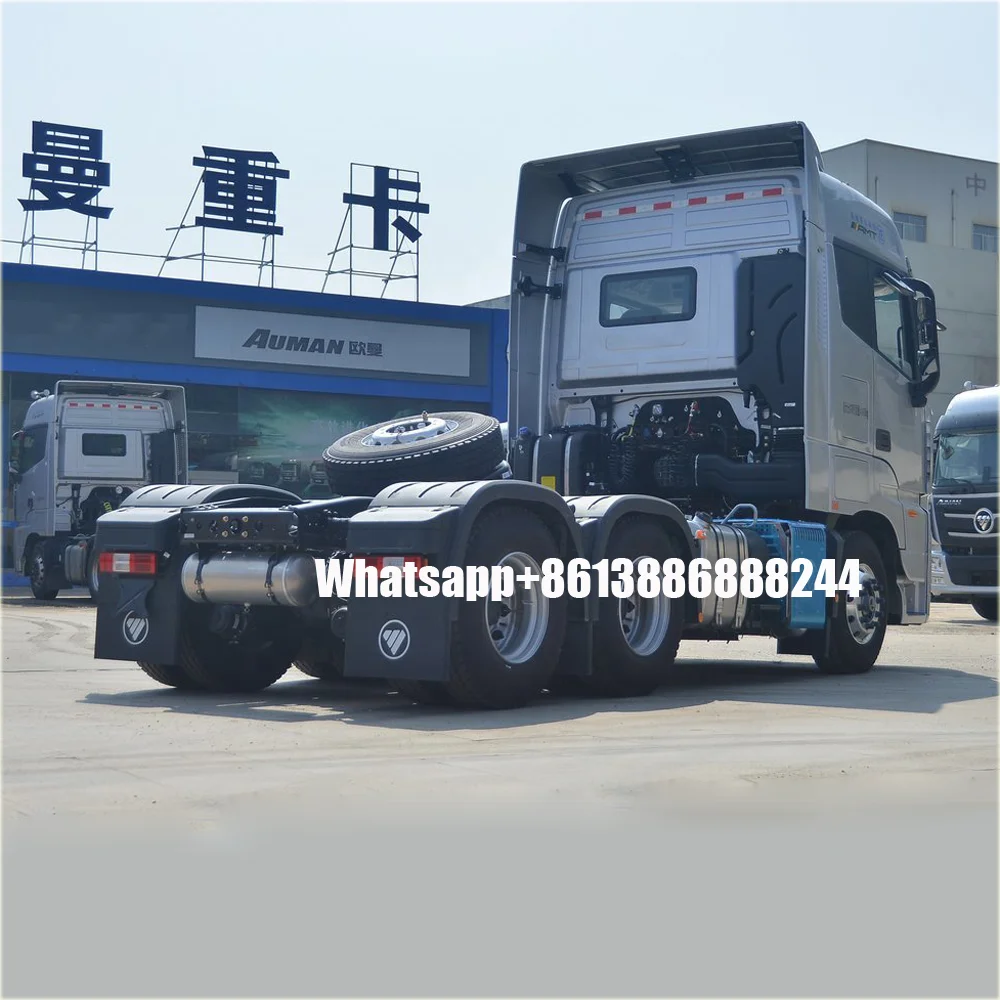

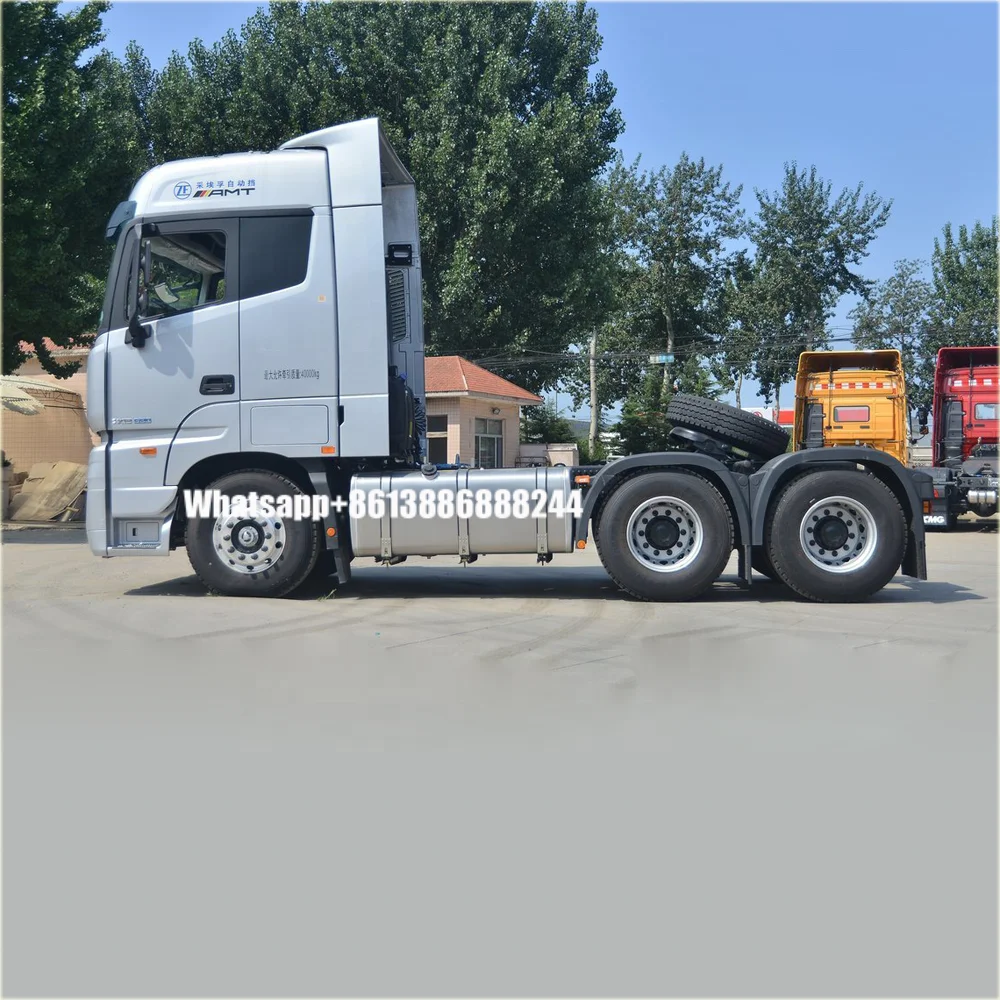

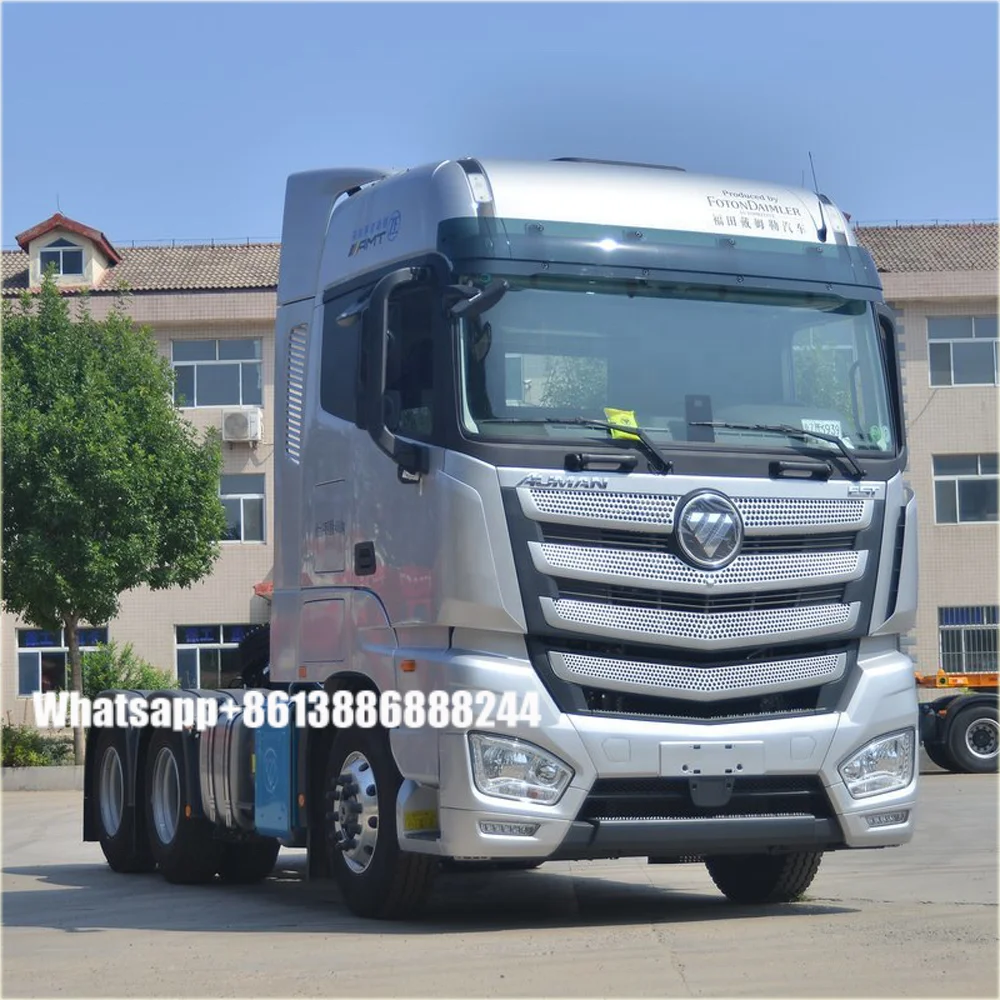

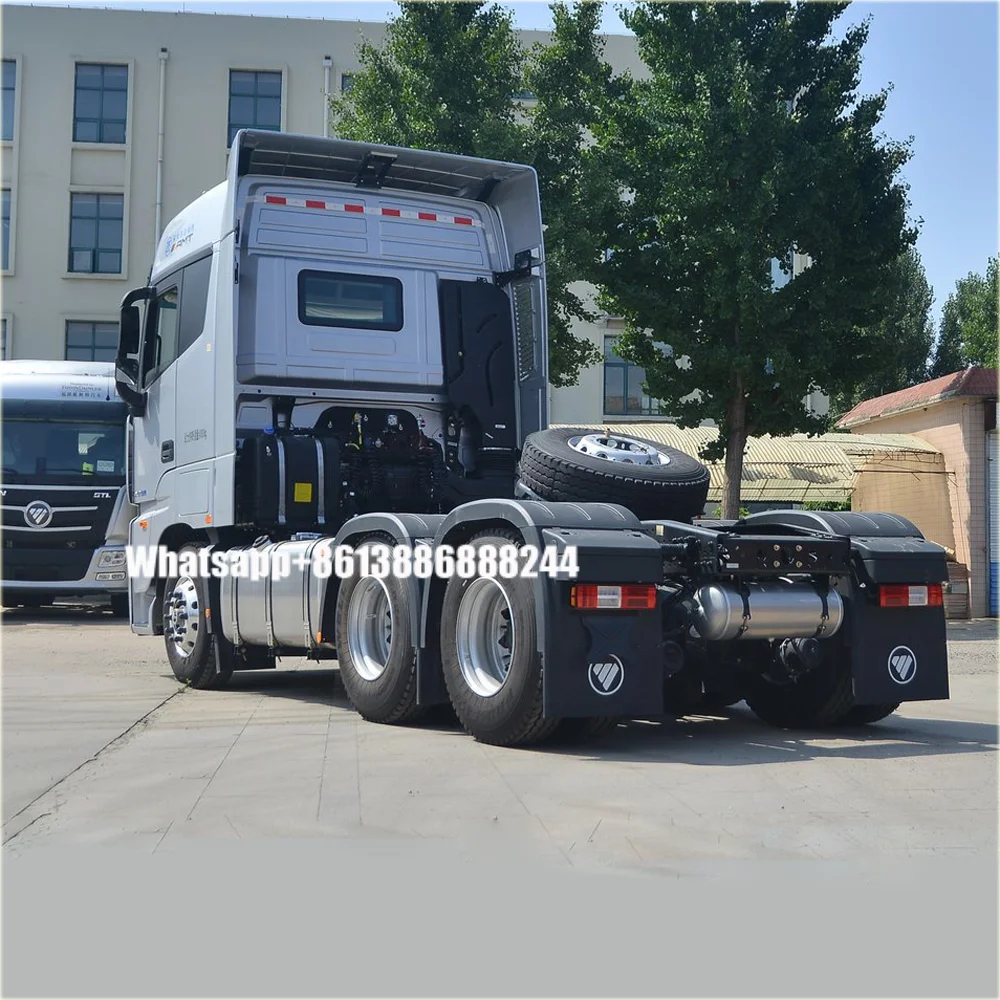

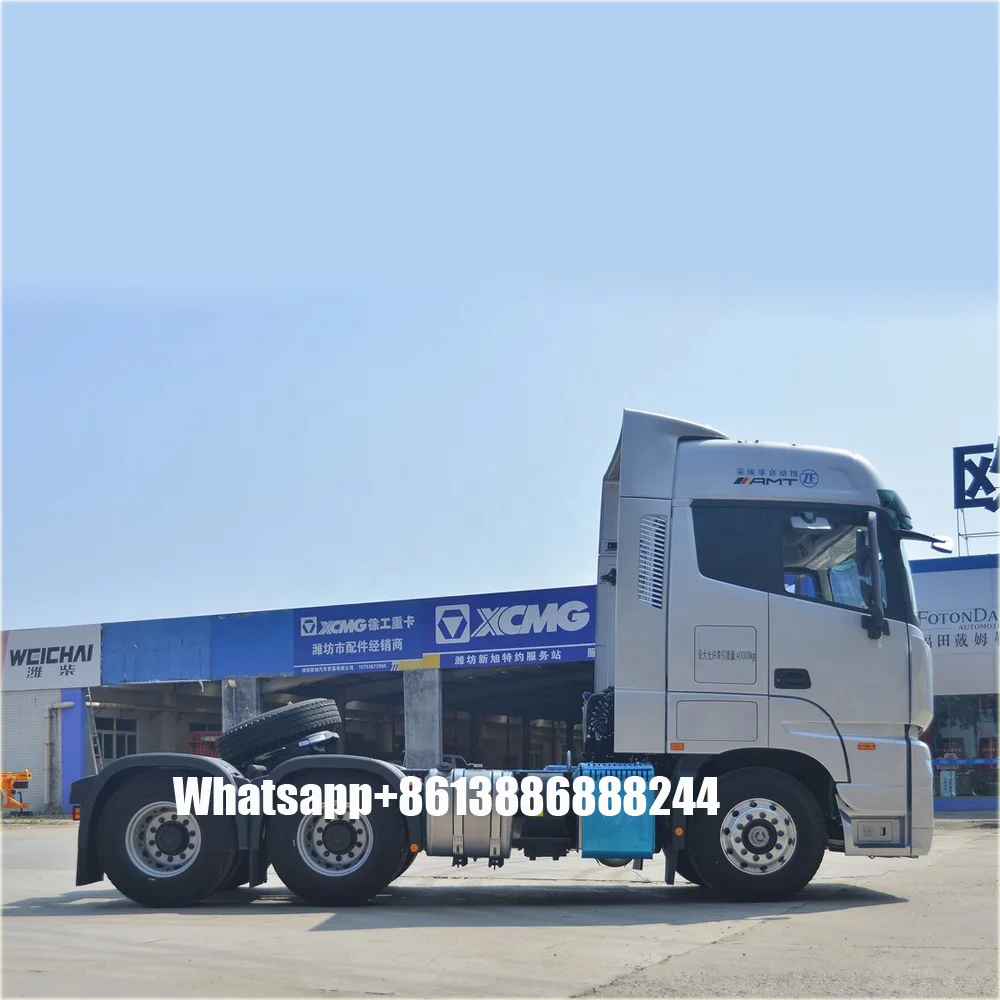

FOTON 6X4 Automatic traction head drawing head distractor

Product Overview

Description



Driving form:	6X4
Wheelbase:	3300+1350mm
Engine:	Foton Cummins X13NS6B580
Gearbox:	Zf 12TX2620TD
Rear axle speed ratio:	2.643
Body length:	7.115 m
Body width:	2.525 meters
Body height:	3.95 m
Front wheel base:	2080mm
Rear wheel base:	1865/1865mm
Vehicle weight:	8.87 tons
Total mass:	25 tons
Total traction mass:	40 tons
Maximum speed:	89km/h
Market segments:	Logistics distribution, coal transportation
Tonnage class:	Heavy truck
Engine type:	Foton Cummins X13NS6B580
Engine brand:	Foton Cummins
Number of cylinders:	6-cylinder
Fuel Type:	Diesel oil
Cylinder arrangement:	orthostitial
Displacement:	12.9 L
Emission standard:	Euro 6
Maximum horsepower:	580 horsepower
Maximum output power:	426kW
Maximum torque speed:	1000-1400rpm
Rated speed:	1800rpm
Cab:	High roof
Number of permitted passengers:	Two people
Number of seats:	Row half
Transmission model:	Zf 12TX2620TD
Shift mode:	AMT hands are one
Forward gear:	12th speed
Number of reversals:	four
Fuel tank/Gas tank material:	Aluminium alloy
Rear axle description:	440
Front axle allowable load:	7000kg
Rear axle allowable load:	18000(two-axis group)kg
Speed Ratio:	2.643
Number of tires:	ten
Tire Specifications:	12R22.5 18PR
