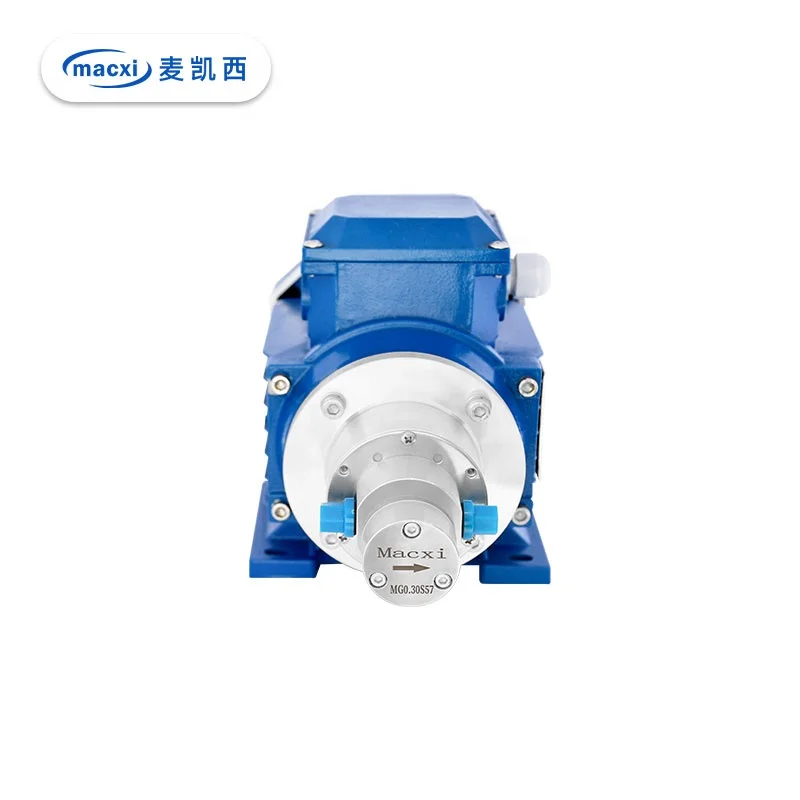

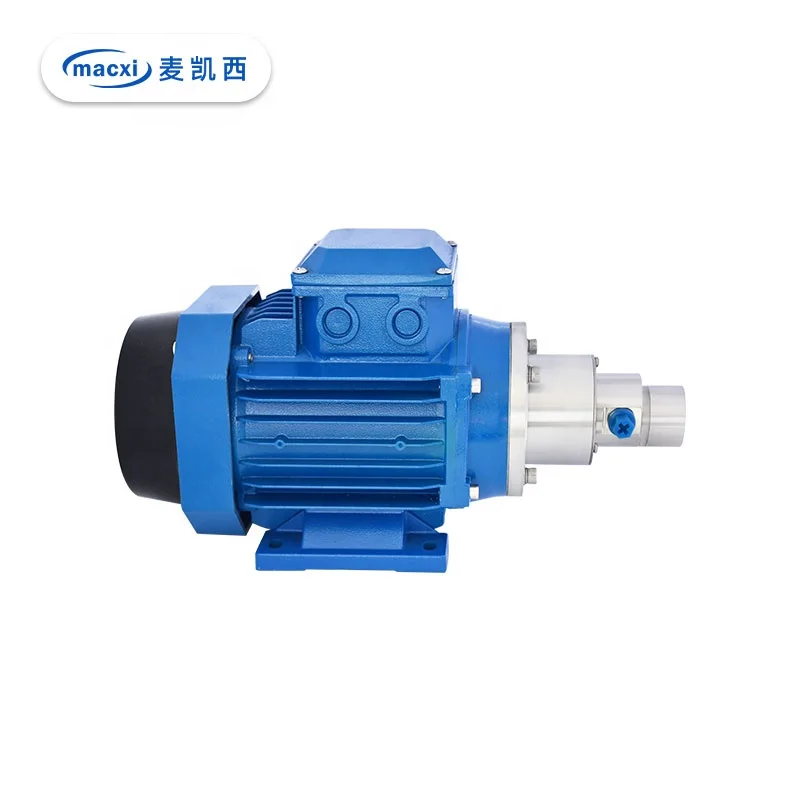

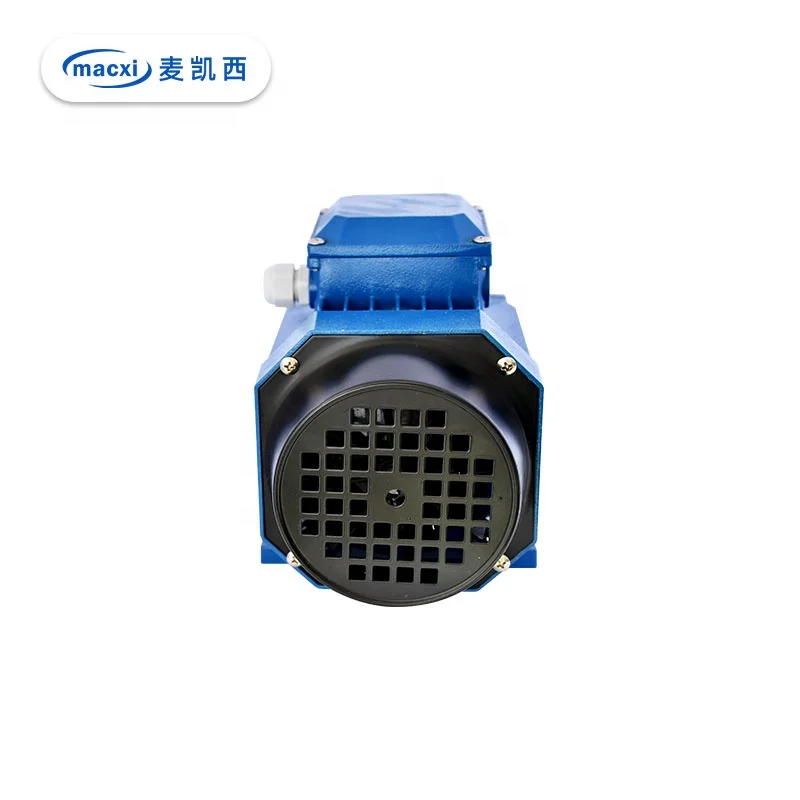

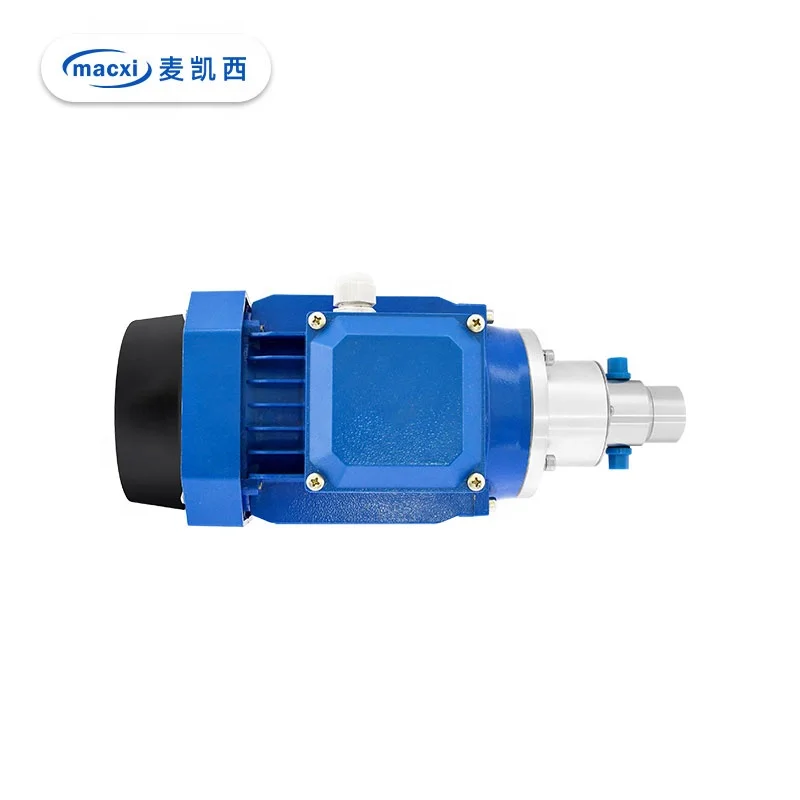

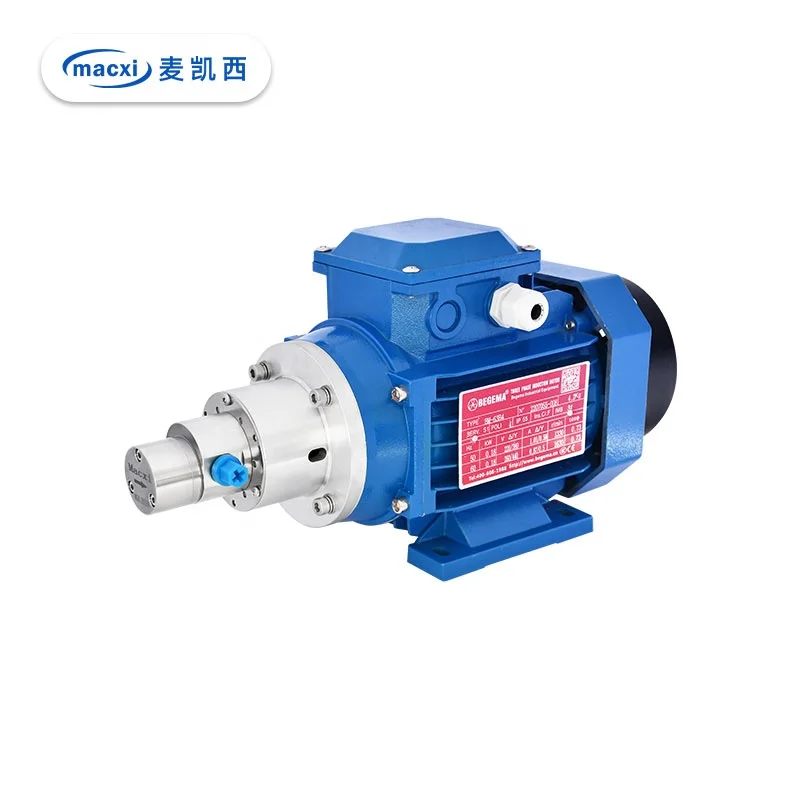

best selling Anticorrosion Zero leakage AC three phase magnetic drive gear pump
- Category: >>>
- Supplier: Suzhou Macxi Fluid Technology Co. Ltd.
Share on (1601201962732):
Product Overview
Description
Products Description
Products Description
1. This pump head is made by 316L, gear materail and shaft sleeve are PEEK, seal material is PTFE, the rest others are 316L.
2. AC asynchronous motor is used as the power to drive the gear pump to work. The speed is constant and the torque is large. It can work stably for a long time. It is easy to use and has low maintenance cost. The flow can be adjusted by the frequency converter. If used in flammable and explosive places, explosion-proof motor should be selected.
Attentions:
1.400 Mesh filter shall be installed at the inlet of gear pump.
2.Before using, squeeze in a small amount of medium to lubricate the gear from the gear pump inlet.
Product Paramenters
Pump Model | Motor Base | L1 | L2 | L3 | The max pressure (bar) (test medium: water) | ||
2 Pole | 4 Pole | ||||||
MG0.07S57Y0.18KW | 63 | 284.5 | 89.5 | 31.2 | 2 | 1 | |
MG0.15S57Y0.18KW | 286.2 | 91.2 | 33.5 | 4 | 2 | ||
MG0.30S57Y0.18KW | 286.2 | 91.2 | 33.5 | 8 | 4 | ||
MG0.60S57Y0.18KW | 290.2 | 95.2 | 37.7 | 8 | |||
MG0.90S57Y0.18KW | 294.6 | 99.6 | 41.9 | ||||
MG1.20S57Y0.18KW | 299 | 104 | 46 | ||||
MG1.50S57Y0.18KW | 303.6 | 108.6 | 52.1 | ||||
Pump Model | Weight(kg) | Imp.&Exp. Size | Rated Flow（ml/min） | temperature range | ||
2 Pole | 4 Pole | |||||
MG0.07S57Y0.18KW | 5.11 | G1/8 | 196 | 98 | -40℃～80℃ | |
MG0.15S57Y0.18KW | 5.11 | 420 | 210 | |||
MG0.30S57Y0.18KW | 5.11 | 840 | 420 | |||
MG0.60S57Y0.18KW | 5.12 | 1680 | 840 | -40℃～70℃ | ||
MG0.90S57Y0.18KW | 5.14 | 2520 | 1260 | -40℃～50℃ | ||
MG1.20S57Y0.18KW | 5.16 | 3360 | 1680 | |||
MG1.50S57Y0.18KW | 5.17 | G1/4 | 4200 | 2100 | -40℃~50℃ | |
Pump Head Parameters | Motor Paramerers | ||||
Fluid Viscosity | 0.2~1500cps | Rated Power | Three-Phase 380V/220V | ||
Ambient Temperature | -40℃-110℃(If the temperature of the conveying medium is over 70 °C, please make a special request.) | Rated frequency | 50HZ | ||
Static Sealing | FKM | Protection Level | IP55 | ||
Pump Body | 304 / 316L | Working system | Continuous | ||
Gear | Gear PEEK, gear shaft 304 / 316L | ||||
The values in this table are for reference only.
Remarks:
OEM service are avaiable according to your request.
The specifications are only for reference, for details checking, please feel free to contact us.
OEM service are avaiable according to your request.
The specifications are only for reference, for details checking, please feel free to contact us.
1.Inner-hexagon screw*3
2.Front cover
3.Shaft sleeve*6
4.Pin*2
5.Pump body
6.Teflon gasket*2
7.Driving gear
8.Driven gear
9.Rear cover
10.O-ring
11.Platen
12.Internal magnetic steel
13.Countersunk head screw*3
14.Isolation cover
Product Introduction
No pulse, high precision.
the external gear design makes the pump flow relatively unaffected by the system pressure,and the flow output has no pulsation, which can accurately measure the flow, and has strong repeatability.
Stable transmission.
Gear transmission can ensure constant instantaneous transmission ratio.
Zero leakage.
no packing seal or mechanical seal, no wearing parts, using magnetic drive, static seal,truly achieve zero leakage
Corrosion resistance.
304 / 316L, Hastelloy and engineering plastics can be selected as pump body materials,which can be used in most chemical media.
Efficient and convenient, long service life
adopt the way of motor direct drive, reduce the vulnerable parts. High efficiency and energy saving, simple maintenance, low installation cost, long service life.
Applicability.
suitable for high differential pressure, high system pressure and wide range of medium viscosity.
long service life.
The magnetic drive design of the non dynamic seal makes the shaft end no longer need the dynamic seal, which ensures the leakage free operation of the pump. The solid and stable shaft support can ensure the accurate meshing of the gear when the pump is running at high speed, ensure the smooth operation of the pump, the high accuracy of metering and the long service life of the pump.
Diversified drive mode.
magnetic drive gear metering pump can be directly connected with DC brushless motor,2-pole and 4-pole AC motor without reducer. The flow control of the pump can be realized by the controller of AC, DC, brushless DC and other motors. We can provide a variety of standard driving methods to meet the needs of customers.
A wide range of applications.
magnetic drive gear pump in the design, manufacture and application of a large number of use of magnetic drive, pump and motor technology. It has the advantages of no pulsation, long life and no leakage. These advantages make our products widely used in chemical, medical, laboratory, water treatment, food and other industries.
Applicable Conditions
All kinds of liquids, high precision fluid transportation, high repeatability, continuous small flow without pulsation
It is used in aviation equipment, aircraft, spacecraft, chemical laboratory, chemical reagent adding, film manufacturing, pharmaceutical machine equipment, various lasers, micro cooling device of sighting instrument,tobacco flavoring adding, inkjet printing machine manufacturing, inkjet printer manufacturing, high-performance color printing machine and other industries
Industrial machinery and equipment | Water treatment | Food and cosmetics |
Inkjet printing/painting | Mask making | Food and Beverage filling |
Oil transportation | Booster pressure | Filling of perfume cosmetics |
Sand mill/Grinding | Circulating cooling | Quantitative Transport |
Company Profile
Suzhou Macxi Fluid Technology Co., Ltd. was established in 2014. Since the establishment of the company, we adhere to the concept of innovation and forge ahead. Our company is mainly engaged in the development,production and sales of pumps. Main magnetic drive micro gear pump, with an annual output of 100000 gear pump production capacity.The company has been committed to the optimization of product structure, improvement of service life and customization according to customer requirements, so as to improve the competitiveness of products for supporting manufacturers. We are looking forward to providing more high-quality products and services for more domestic and foreign users.
Certifications
FAQ
1. Q: Are you a manufacturer or trading company?
A : We are a manufacturer specializing in the development, production and sales of pumps. Our product has passed the test.
2. Q:What's your products MOQ?
A: Different model has different MOQ, pleasecheck with our salesman.
3. Q: How can I get some samples?
A: Usually we can’t offer free sample, pleasepay the sample and express fee.
4 .Q: What's your delivery time?
A: 1.The samples can be sent out within 5-7 days.
2.The batch order can be shipped out within 7-15 days after get your payment.
5 .Q:What's your warranty & after sale service policy?
A: 12 Months for all products starts from delivery date.
6. Q: How many qty so I can get your OEM service with myself brand name?
A: Different Models have different MOQ requirement, please consult our salesman.
7 .Q: What's the payment can you accept?
A:Usually we accept T/T , also RMB transfer in China.
A : We are a manufacturer specializing in the development, production and sales of pumps. Our product has passed the test.
2. Q:What's your products MOQ?
A: Different model has different MOQ, pleasecheck with our salesman.
3. Q: How can I get some samples?
A: Usually we can’t offer free sample, pleasepay the sample and express fee.
4 .Q: What's your delivery time?
A: 1.The samples can be sent out within 5-7 days.
2.The batch order can be shipped out within 7-15 days after get your payment.
5 .Q:What's your warranty & after sale service policy?
A: 12 Months for all products starts from delivery date.
6. Q: How many qty so I can get your OEM service with myself brand name?
A: Different Models have different MOQ requirement, please consult our salesman.
7 .Q: What's the payment can you accept?
A:Usually we accept T/T , also RMB transfer in China.
