Product Overview

Description

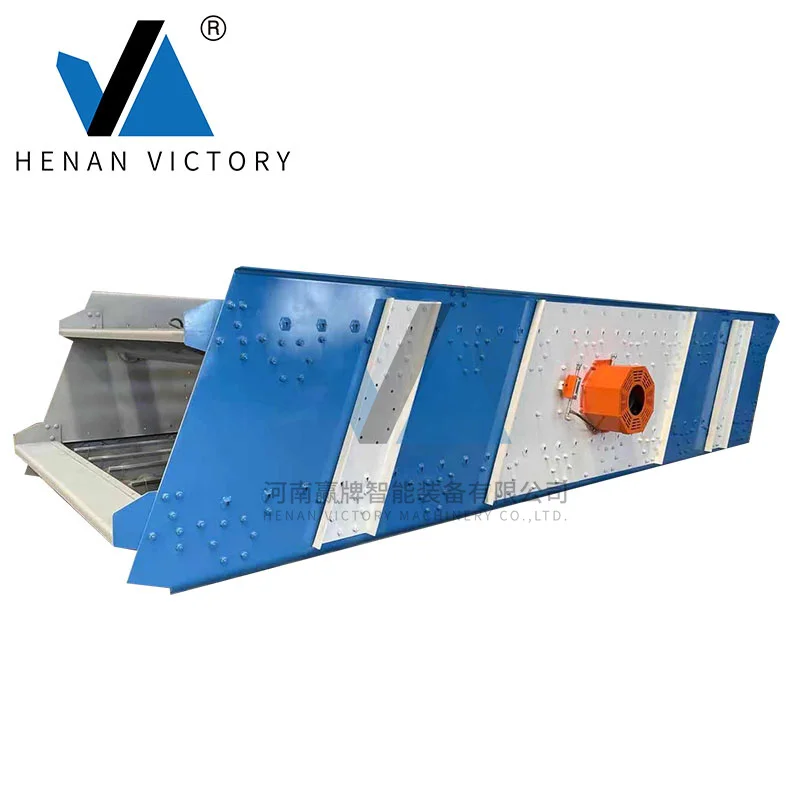

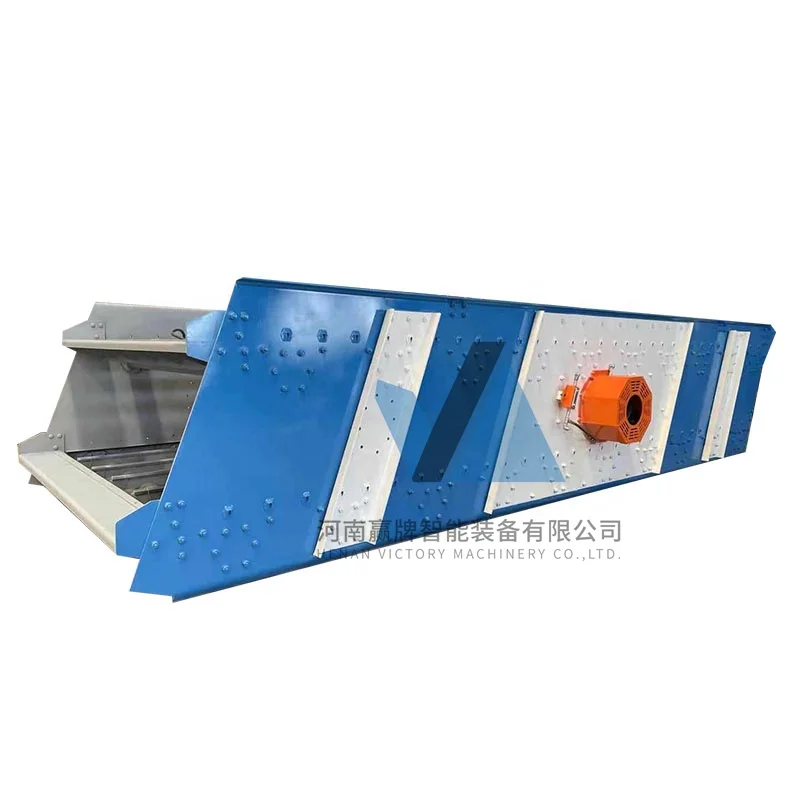

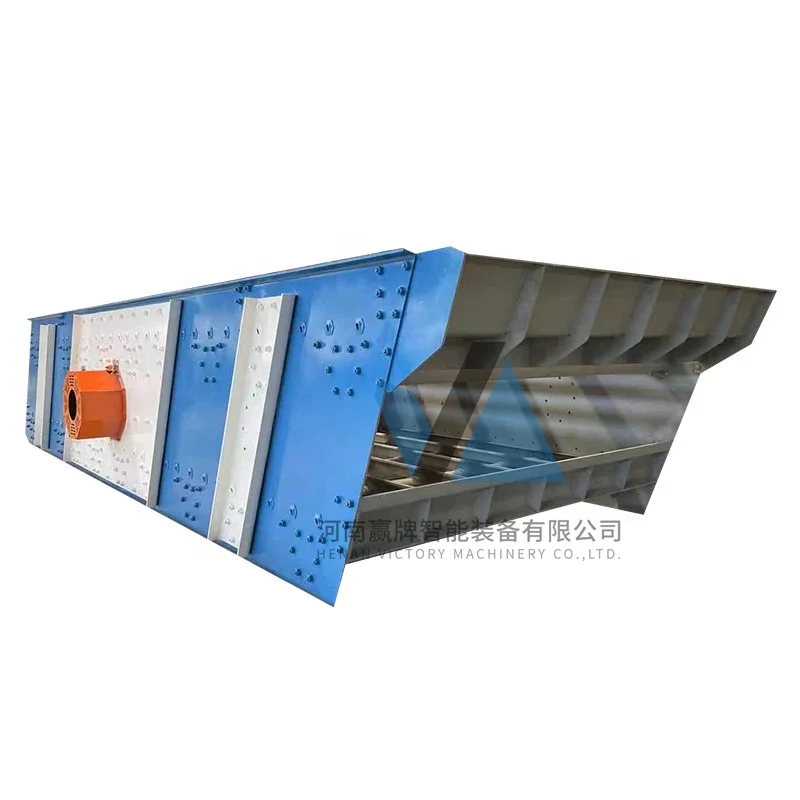

High efficiency linear vibrating screen machine vibrating sieve



Product Introduction



 The linear vibrating screen is a screening equipment. According to the particle size, the broken material is sieved into different levels and sieved. The product is mainly used for mining, coal, smelting, building materials, refractory materials, chemical industry. , medicine, food and other industries





Advantages



1. Simple structure and easy to manufacture
2. Large number of layers and high screening efficiency
3. Adopt small amplitude, high frequency, large dip structure, low power consumption and low noise
4. Stable and reliable, easy to maintain



Working principle



Dispersing the material with different particle sizes, passing through the single or multi-layer sieve surface of the uniform sieve multiple times, into several different levels of processes, and sieving the particles larger than the sieve hole to remain on the sieve surface, the sieve called the sieve surface The upper object, the particles smaller than the mesh hole pass through the mesh hole, and the sieve material called the sieve surface



Application







Round Vibrating Screen widely used in the classification of products in mining, building materials, transportation, energy, chemical, and other industries, it is the ideal equipment for crushing and screening units.



Technical Data of Round Vibrating Screen



2YA1237	2	3-50	300	10-80	8	Y160M-4	11	1200×3700
3YA1237	3	3-50	300	10-80	8	Y160M-4	11	1200×3700
4YA1237	4	3-50	300	10-80	8	Y160M-4	11	1200×3700
2YA1540	2	3-100	300	22-160	8	Y160L-4	15	1500×4000
3YA1540	3	3-100	300	22-160	8	Y160L-4	15	1500×4000
4YA1540	4	3-100	300	22-160	8	Y160L-4	15	1500×4000
2YA1845	2	3-100	300	32-276	8	Y180M-4	18.5	1800×4500
3YA1845	3	3-100	300	32-276	8	Y180M-4	18.5	1800×4500
4YA1845	4	3-100	300	32-276	8	Y180M-4	18.5	1800×4500
2YA1860	2	3-100	300	65-586	8	Y180M-4	22	1800×6000
3YA1860	3	3-100	300	65-586	8	Y180M-4	22	1800×6000
4YA1860	4	3-100	300	65-586	8	Y180M-4	22	1800×6000
2YA2160	2	3-100	300	81-720	8	Y200L-4	30	2100×6000
3YA2160	3	3-100	300	81-720	8	Y200L-4	30	2100×6000
4YA2160	4	3-100	300	81-720	8	Y200L-4	37	2100×6000
2YA2460	2	3-150	300	90-810	8	Y225S-4	37	2400×6000
3YA2460	3	3-150	300	90-810	8	Y225S-4	37	2400×6000
4YA2460	4	3-150	300	90-810	8	Y225S-4	37	2400×6000
2YK2870	2	3-200	300	150-1000	8	Y225S-4	37	2800×7000
3YK2870	3	3-200	300	150-1000	8	Y225S-4	37	2800×7000
4YK2870	4	3-200	300	150-1000	8	Y225M-4	45	2800×7000
2YK3073	2	3-200	300	180-1300	8	Y200L-4	30×2	3000×7300
3YK3073	3	3-200	300	180-1300	8	Y200L-4	30×2	3000×7300
4YK3073	4	3-200	300	180-1300	8	Y200L-4	30×2	3000×7300
3EL1860	3	3-100	400	180-580	14-19	Y200L-4	30×2	1800×6000
