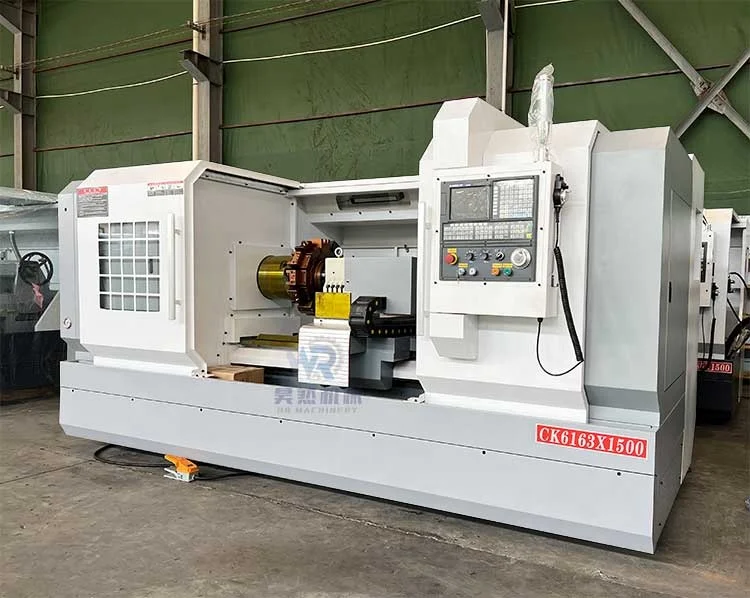

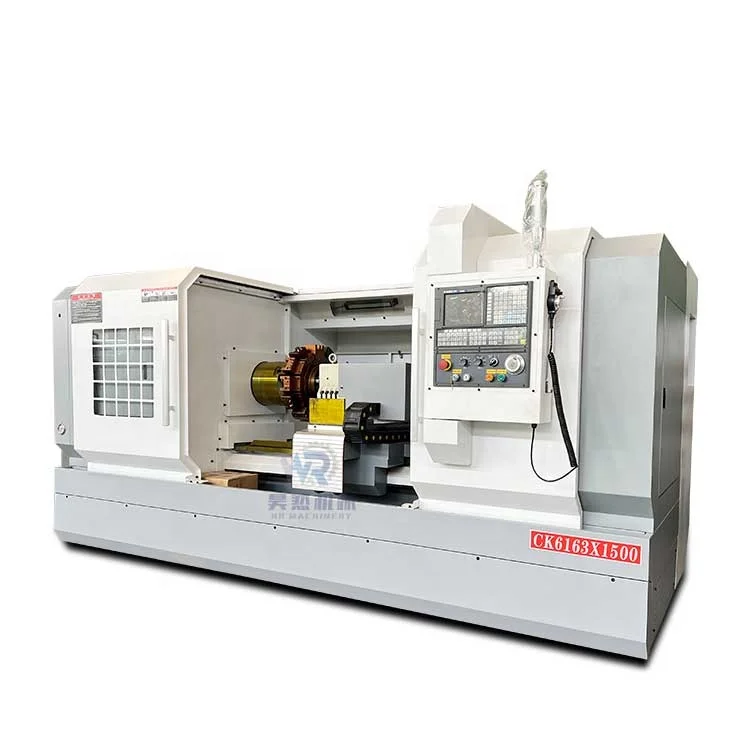

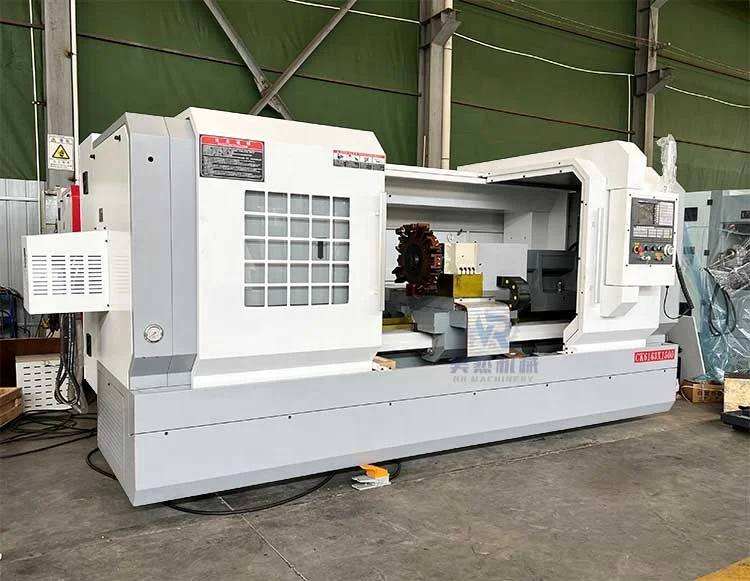

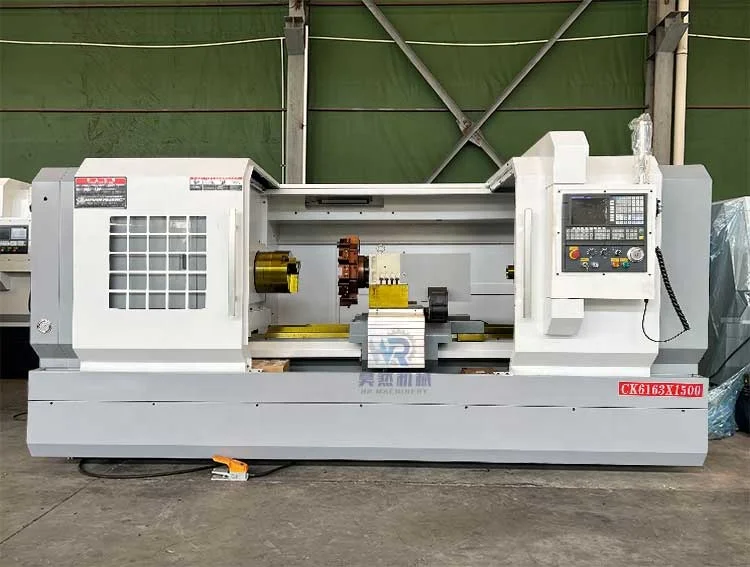

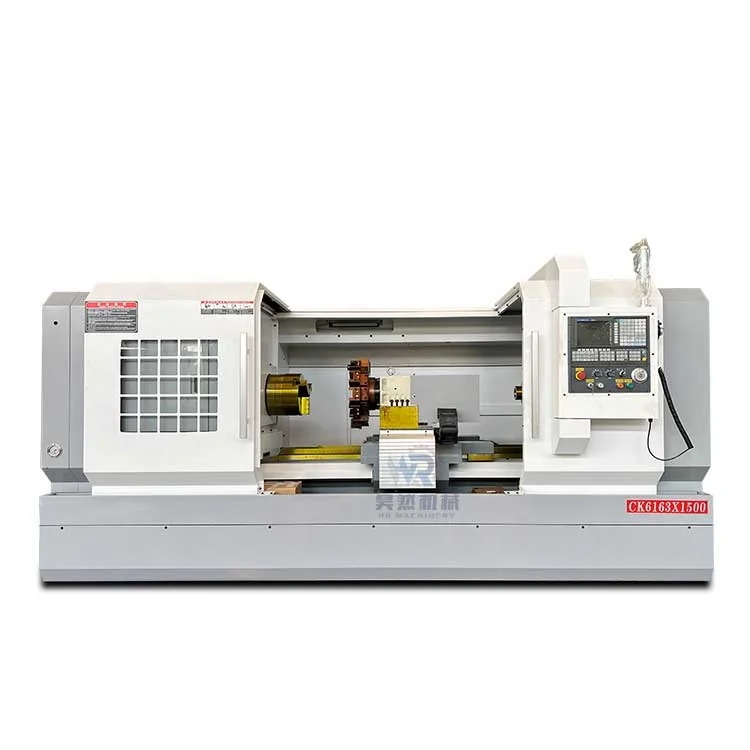

flat bed lathe machine ck6163 Factory price high accuracy cnc lathe Automatic CNC lathe
- Category: >>>
- Supplier: Shandong HR Machinery Co. Ltd.
Share on (1601201991544):
Product Overview
Description
flat bed lathe machine ck6163 Factory price high accuracy cnc lathe Automatic CNC lathe
Product Introduction
CNC lathe developed according to the actual needs of the majority of machining users. It has the characteristics of practicality, convenient operation, high processing accuracy, and can realize the processing of complex parts such as straight line, taper, arc, thread, etc. It is especially suitable for single and batch production products with complex shape of parts, such as various instruments, meters, electronic products, micro components, connectors, glasses, clocks, lighters, and various hardware accessories. Reliable performance. It is optimized according to the specific situation. Since the CNC lathe was put into the market, it has been used well by users and has been widely praise
Specification | ck0640 | ck6130 | ck6132 | ck6432 | ck6136 | CK6140 | |||||
Max. swing dia. over bed | Φ300mm | Φ300mm | Φ360mm | Φ360mm | Φ360mm | Φ400mm | |||||
Max. swing dia. over cross slide | φ130mm | 100mm | 150mm | Φ150mm | Φ190mm | Φ225mm | |||||
Max. processing length | 240mm | 400mm | 450mm | 450/700mm | 750/1000mm | 750/1000mm | |||||
Spindle bore | Φ42mm | 48mm | 40mm | Φ60mm | Φ60mm | Φ60mm | |||||
Spindle speed | 50~2500rpm | 150-2500mm | 150-2500mm | 150-2500mm | 150-2500rpm | 150-2500rpm | |||||
X/Z axis fast feeding speed | 6/8 M/MIN | 8/10 M/MIN | 6/8 M/MIN | 8/10 M/MIN | 6/8 m/min | 6/8 M/MIN | |||||
X/Z axis position accuracy | 0.01/0.015mm | ||||||||||
X/Z-axis repeatability | 0.012/0.013mm | ||||||||||
clamping | Pneumatic collet | 3 Jaw Manual Chuck | |||||||||
tool post type | gang-type tool holder | 4 station electric tool holder | |||||||||
Main motor power | 3KW | 4kw | 4kw | 4kw | 4/5.5KW | 5.5KW | |||||
Tailstock taper | MT4 | MT3 | MT4 | MT4 | MT4 | ||||||
Tailstock sleeve dia. | / | 60mm | 60mm | 60mm | 60mm | ? | |||||
Tailstock sleeve travel | / | 100mm | 100mm | 100 | 120mm | ||||||
Overall dimensions(L×W×H) | 1550×920×1450 | 1750*1200*1570 | 1820×1100×1550 | 1660/1940×1400×1700 | 1850/2120/2370/x1400x1700mm | 2120/2370×1400×1700mm | |||||
Net weight | 850 kg | 1220kg | 1200kg | 1250/1450kg | 1500/1650/1750 | 1800/1950 | |||||
Item | CK6150A | ck6150B | CK6163 | CK6180 | CK61100 | CK61125 | |||||
Max. swing dia. over bed | Φ500mm | Φ500mm | φ630mm | φ800mm | Φ1100mm | Φ1250mm | |||||
Max. swing dia. over cross slide | Φ280mm | Φ280mm | φ350mm | φ500mm | Φ820mm | Φ900mm | |||||
Processing length | 750/1000/1500/2000mm | 1000/1500/2000/3000mm | 1500/2000/3000/5000mm | ||||||||
Dia. of spindle | Φ82mm | φ105mm | φ105mm | ||||||||
Spindle speed step | step-less | Three gear speed manual change,frequency conversion stepless | Four gears No grade to change frequency | Four gears No grade to change frequency | |||||||
Spindle speed | 14-1500 rpm | 30-150、100-500、 320-1100rpm | 30-84/53-150/125-350/300-835 | 30-84/53-150/125-350/300-835rpm | |||||||
Taper of spindle bore | 1:20/Φ90 | (Metric)120 1:20 | |||||||||
Tool holder | 4 station electric tool post | ||||||||||
Tool bar section | 25X25mm | 30×30mm | 40×40mm | ||||||||
Main motor power | 7.5KW | 11KW | 11KW | ||||||||
X/Z axis position accuracy | 0.02/0.025mm | ±0.006mm | ±0.006mm | ||||||||
X/Z-axis repeatability | 0.01/0.012mm | ±0.007mm | X：0.008 mm | ||||||||
X/Z axis fast feeding speed | 8/10 M/MIN | 4/5 M/MIN | 4/6 M/MIN | ||||||||
Tailstock sleeve travel | 150mm | 250mm | 300mm | ||||||||
Tailstock taper | MT5 | MT6 | MT8 | ||||||||
Dimension | 2410/2660/3160×1560×1730mm | 3200/3700/4200/5200 ×1820×1710mm | 3300/3800/4300 × 1940 × 1800mm | 2800/3700/4200/5200/6200/7200*1820*1780 | |||||||
Net weight(kg) | 2800/3200/3500 | 3900/4300/4800 | 4100/4500 | 4300/4700/5500/6500 | 4500/5000/5500/6000/6500 | ||||||

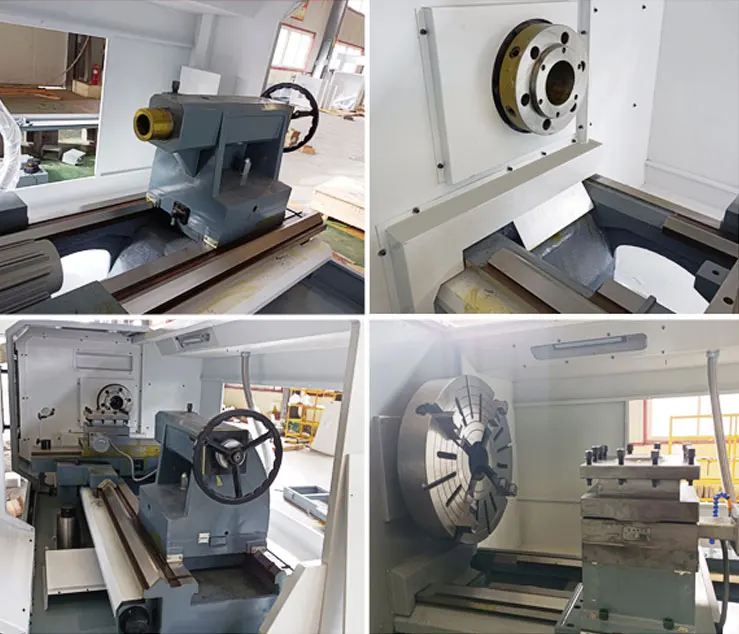

Details Images
Packing&Shipping
1.Port: Qingdao port or Shanghai port
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.
5.Non-fumigation packaging, we use seaworthy plywood.
6. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
7.Water-proof and damp proof, water resistant film wraped all the machine.
8.Fully sheathed case,prevention of collision and keep the goods intact.
6. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
7.Water-proof and damp proof, water resistant film wraped all the machine.
8.Fully sheathed case,prevention of collision and keep the goods intact.
Certifications
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
Customer Photos
We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you.
Shandong HR is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
Shandong HR is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
Company Introduction
Shandong HR machine Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement
brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while
meeting the personalized needs of users.
brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while
meeting the personalized needs of users.
FAQ
Q1: How to buy the right product for you ？
A1: You can pass on your requirements to me, and we will reply to you in time.
Q2: About our after-sales service ?
A2: One-year warranty for all kinds of products after sale service; If you find any defective parts in the first time, we will
timely deal with the free new parts for you to replace the next order.
Q3: How can I choose the most suitable machines ?
A3: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model ,You can also send us the products drawing ,we will choose the most suitable machines for you .
Q4: What are the terms of payment ?
A4: We support a variety of payment methods, such as online bank transfer, prepaid card, carrier billing, domestic bank exchange,credit card, etc
Q5: How long is the machine warranty?
A5: warranty is one year.If you need to replace accessories or parts after the warranty period, we will provide them to you at the cost price.
Q2: About our after-sales service ?
A2: One-year warranty for all kinds of products after sale service; If you find any defective parts in the first time, we will
timely deal with the free new parts for you to replace the next order.
Q3: How can I choose the most suitable machines ?
A3: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model ,You can also send us the products drawing ,we will choose the most suitable machines for you .
Q4: What are the terms of payment ?
A4: We support a variety of payment methods, such as online bank transfer, prepaid card, carrier billing, domestic bank exchange,credit card, etc
Q5: How long is the machine warranty?
A5: warranty is one year.If you need to replace accessories or parts after the warranty period, we will provide them to you at the cost price.
