BRD Energy Saving and Environmental Protection Ball Mill Gold
BRD Energy Saving and Environmental Protection Ball Mill Gold
BRD Energy Saving and Environmental Protection Ball Mill Gold
BRD Energy Saving and Environmental Protection Ball Mill Gold
BRD Energy Saving and Environmental Protection Ball Mill Gold
BRD Energy Saving and Environmental Protection Ball Mill Gold
BRD Energy Saving and Environmental Protection Ball Mill Gold

BRD Energy Saving and Environmental Protection Ball Mill Gold

Share on (1601201999978):


Price:

Quantity:


Product Overview

Description





Products Description


The ball mill is the key equipment for crushing the material after it is broken. Ball mill is widely used in cement, silicate products, new building materials, refractory materials, fertilizer, black and non-ferrous metal mineral processing and glass ceramics and other production industries, for a variety of ores and other grillable materials dry or wet grinding








Product Display

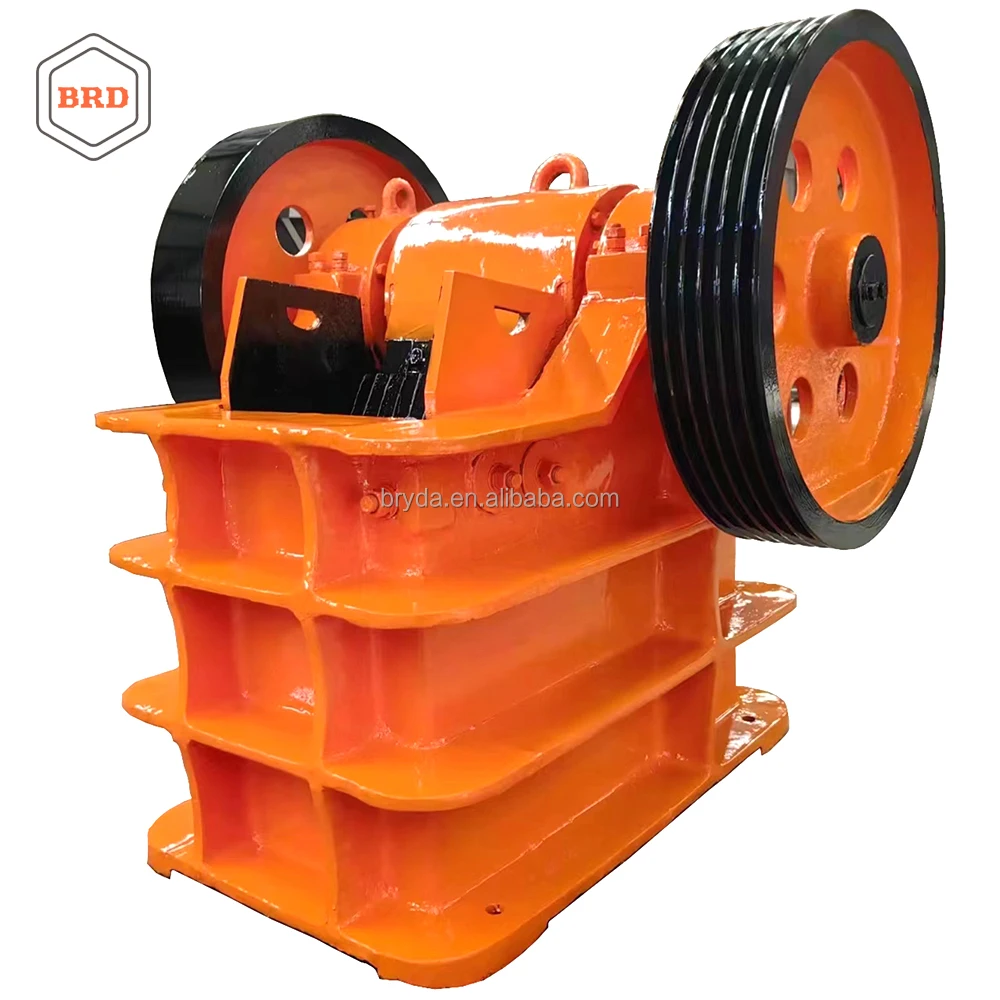

1. Jaw crusher
The motor drives the belt and pulley, making the moving jaw move back and forth and up and down through the eccentric shaft. When the movable jaw plate moves with the movable jaw towards the fixed jaw, the raw material is flattened or split.




Model
250x400
400x600
500x750
600x900
750x1060
Spindle power(kw)
15
30
55
75
90-110
Feed port size(mm)
250x400
400x600
500x750
600x900
750x1060
Feed particle size(mm)
210
340
425
500
630
Feed port adjustment(mm)
20-60
40-100
50-100
65-160
80-140
Yield(t/h)
5-20
16-60
40-110
50-180
110-230
Eccentric shaft speed(mm)
300
275
275
250
250
Overall dimensions(mm)
1300x1090x1270
1730x1730x1630
1980x2080x1870
2190x2206x2300
2660x2430x2800
Weight(t)
2
5
9
14
25
Please contact us for specific needs and we customize the most suitable machine for you

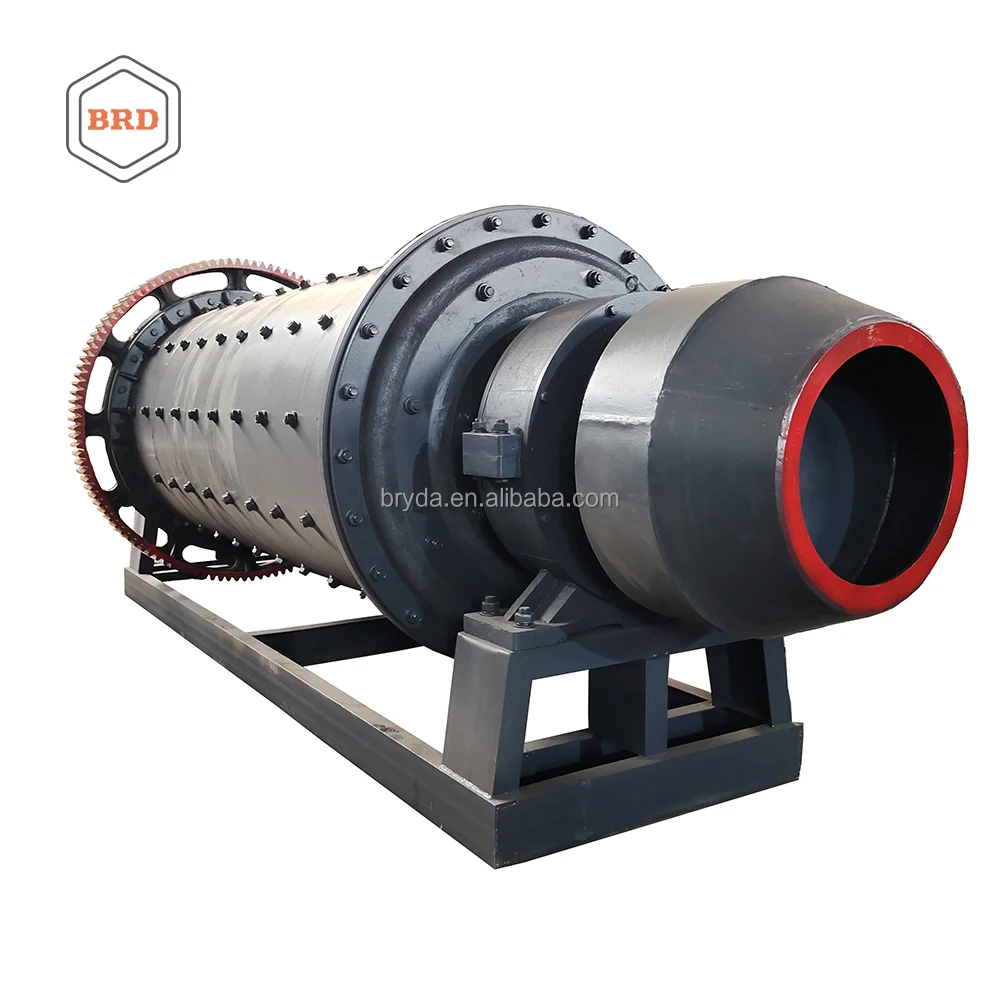

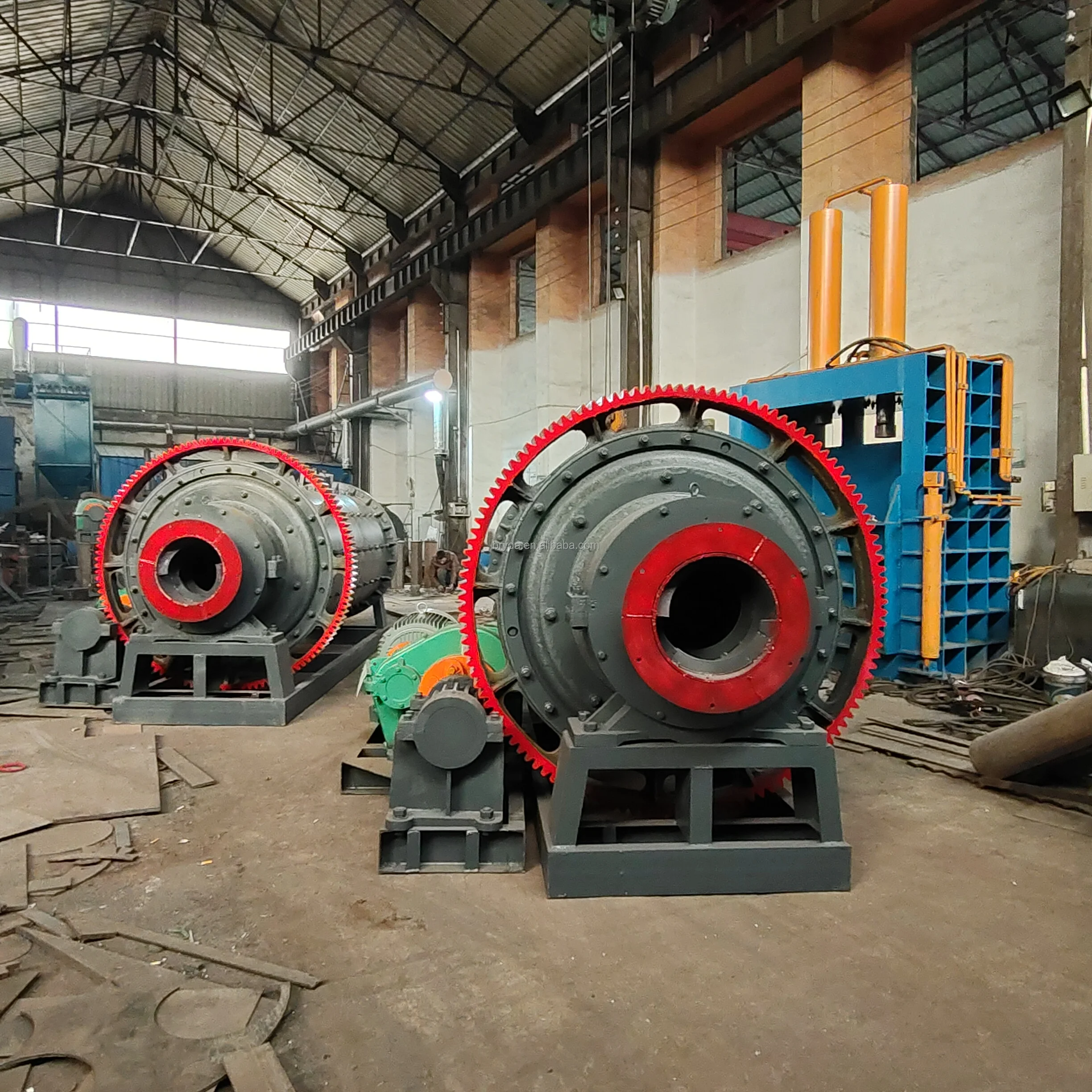

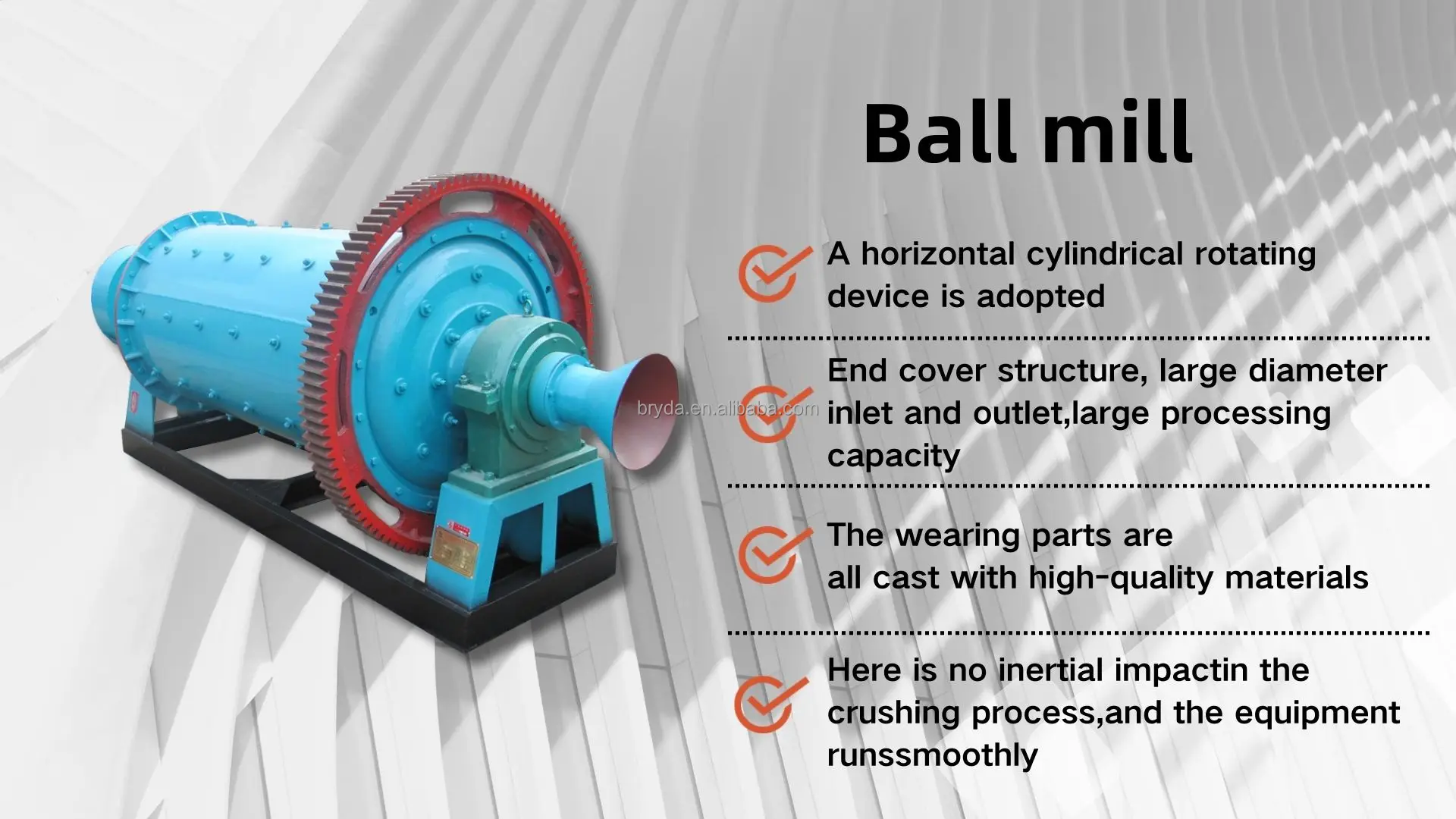

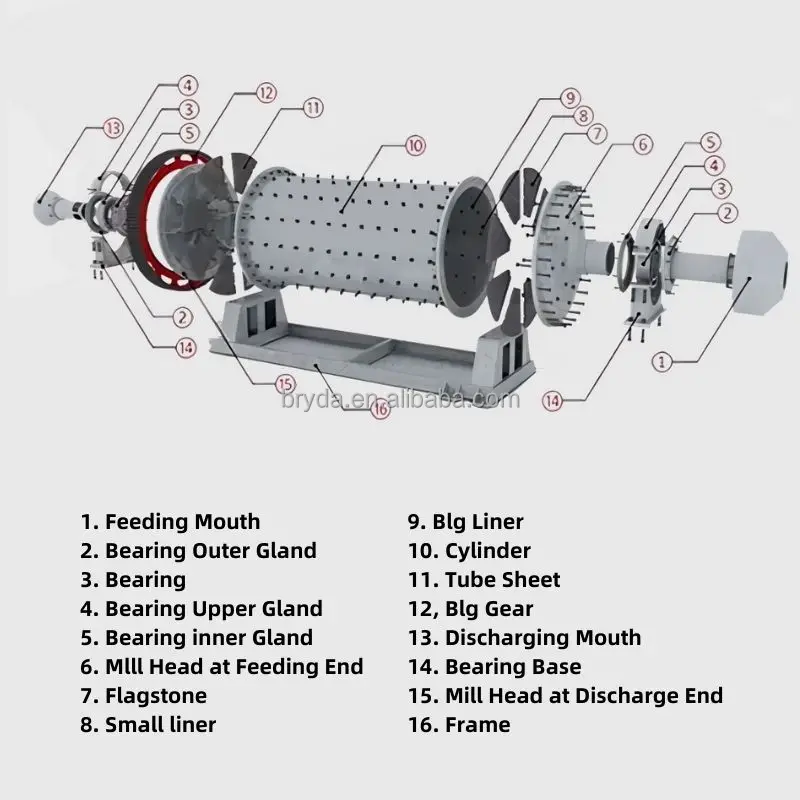

2.Ball mill

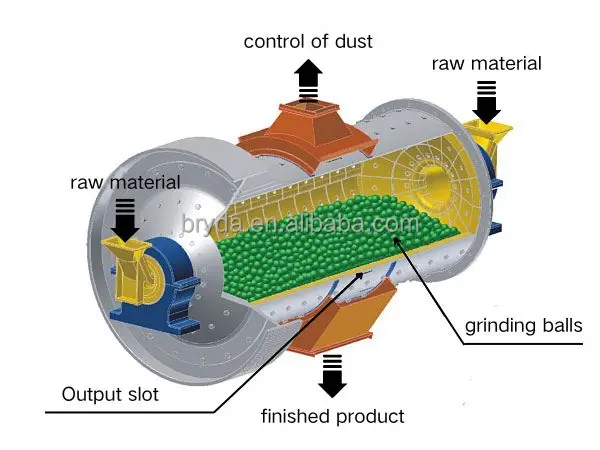

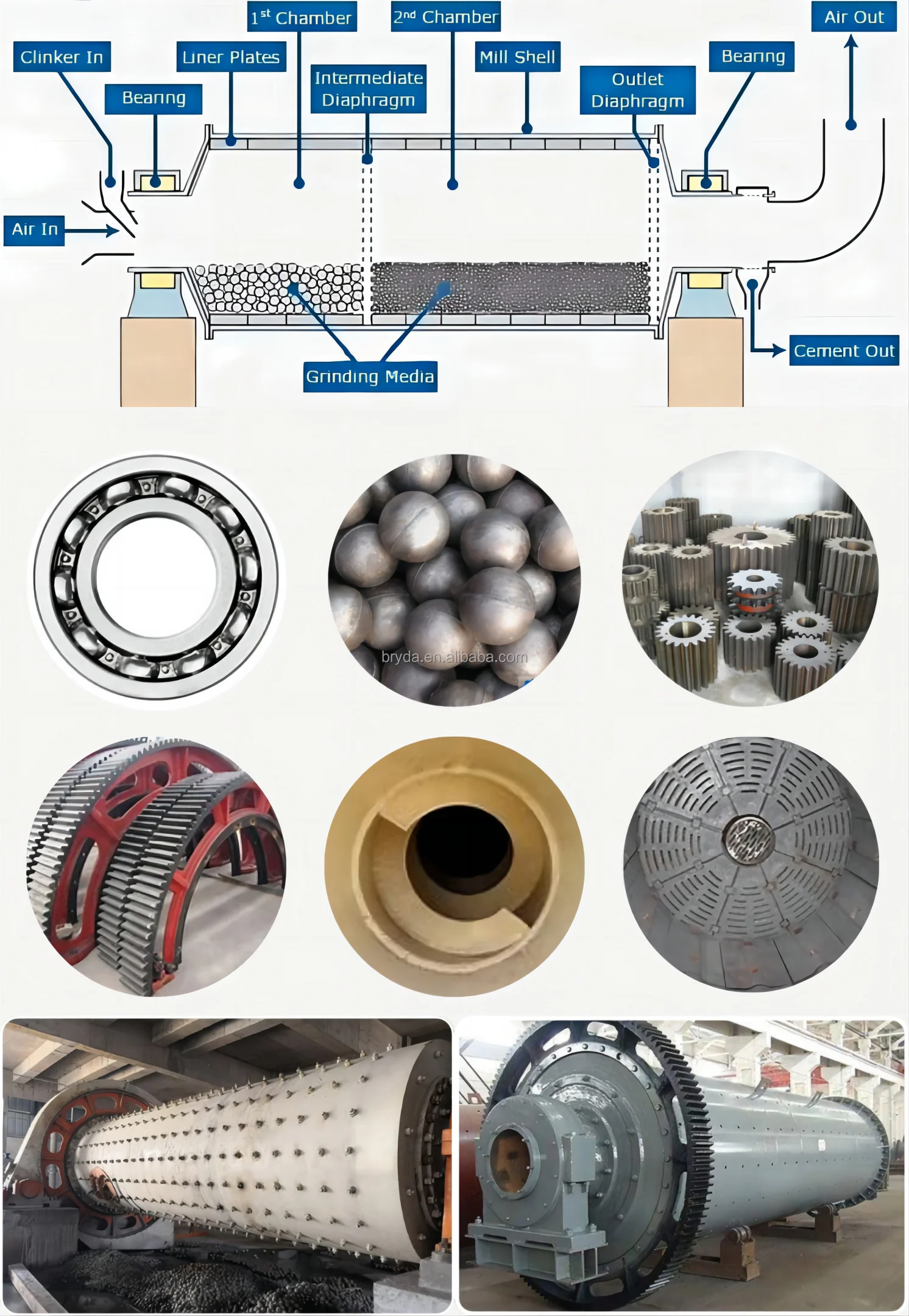

The material is uniformly spiraled into the first warehouse of the milling machine along the hollow shaft of the input material through the input material device. In this warehouse, steel balls of different specifications are installed, and when the barrel body rotates and generates centrifugal force, the steel balls are lifted to a certain height and fall, causing the material to grind and hit.




Model
900x2100
1200x4500
1500x5700
1830x6500
2200x7500
Barrel diameter
900
1200
1500
1830
2200
Barrel lenght
2100
4500
5700
6500
7500
Rotational speed(r/min)
41
32
25
24
21
Feed size(mm)
<25
<25
<25
<25
<25
Discharge size(mm)
0.075-0.4
0.075-0.4
0.075-0.4
0.075-0.4
0.075-0.4
Ball load(t)
1.73
5
10
21
33
Yield(t/h)
0.6-1.8
2-5
4-12
6-17
16-29
Motor type
Y160L-6
Y280M-6
JR127-8
JR139-8
JR500L3-8
Motor power
15
55
130
210
380
Weight(t)
4
12
16
28
42
Please contact us for specific needs and we customize the most suitable machine for you

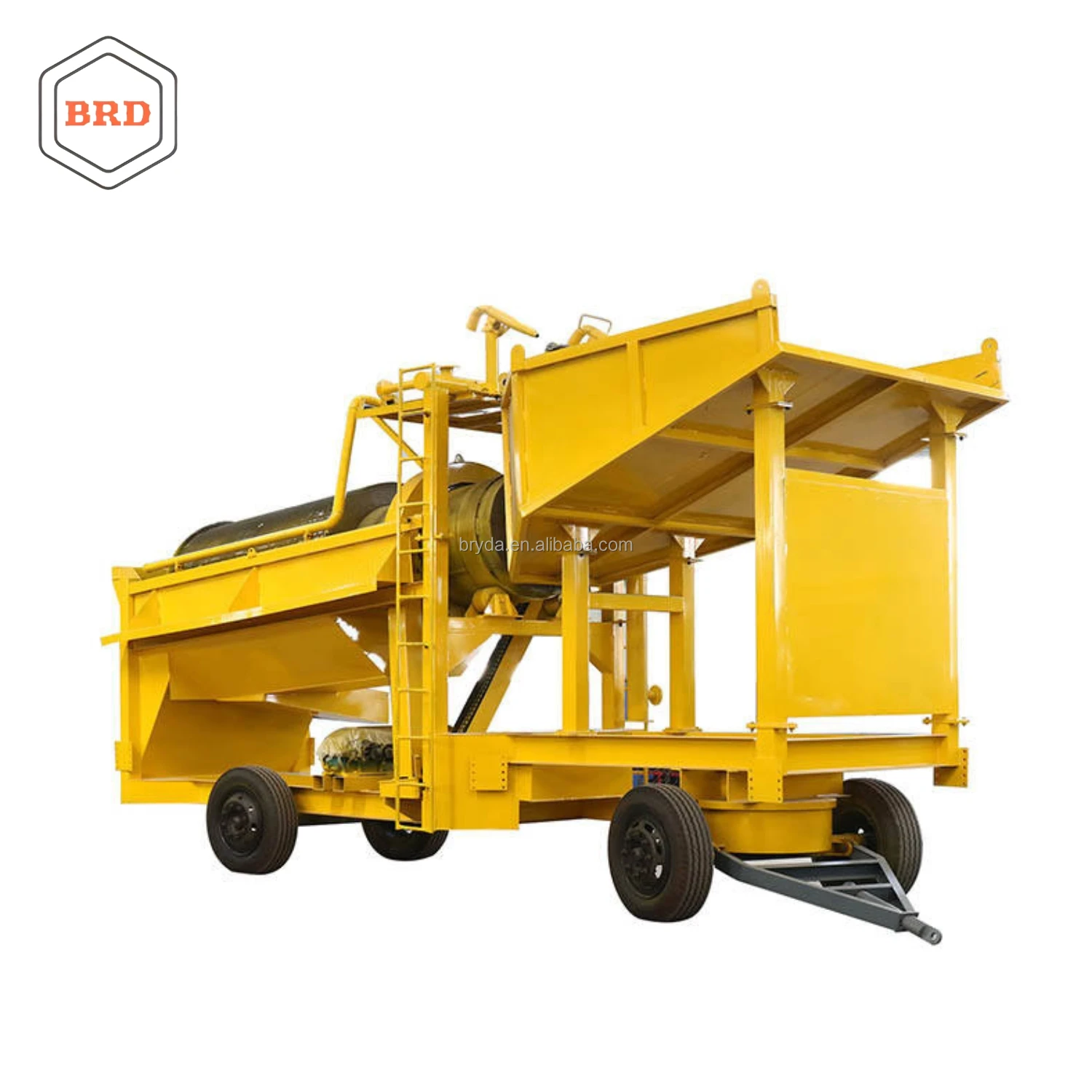

3.Mobile gold mining machine
The Mobile gold mining machine adopts the principle of gravity separation to sift the raw ore through one layer and enter the mixing gate tank under the impact of water for the next rough selection




Model
MT50
MT100
MT150
MT200
Overall size(mm)
7000x2000x3000
8300x2400x3500
9800x3000x4000
11500x2300x4000
Yield(t/h)
50
100
150
200
Power(kw)
24
50
75
100
Feeder Hopper(mm)
2000x2200
3000x2200
3500x3000
3800x3000
Weight(t)
4.8
9.5
14
18
Please contact us for specific needs and we customize the most suitable machine for you

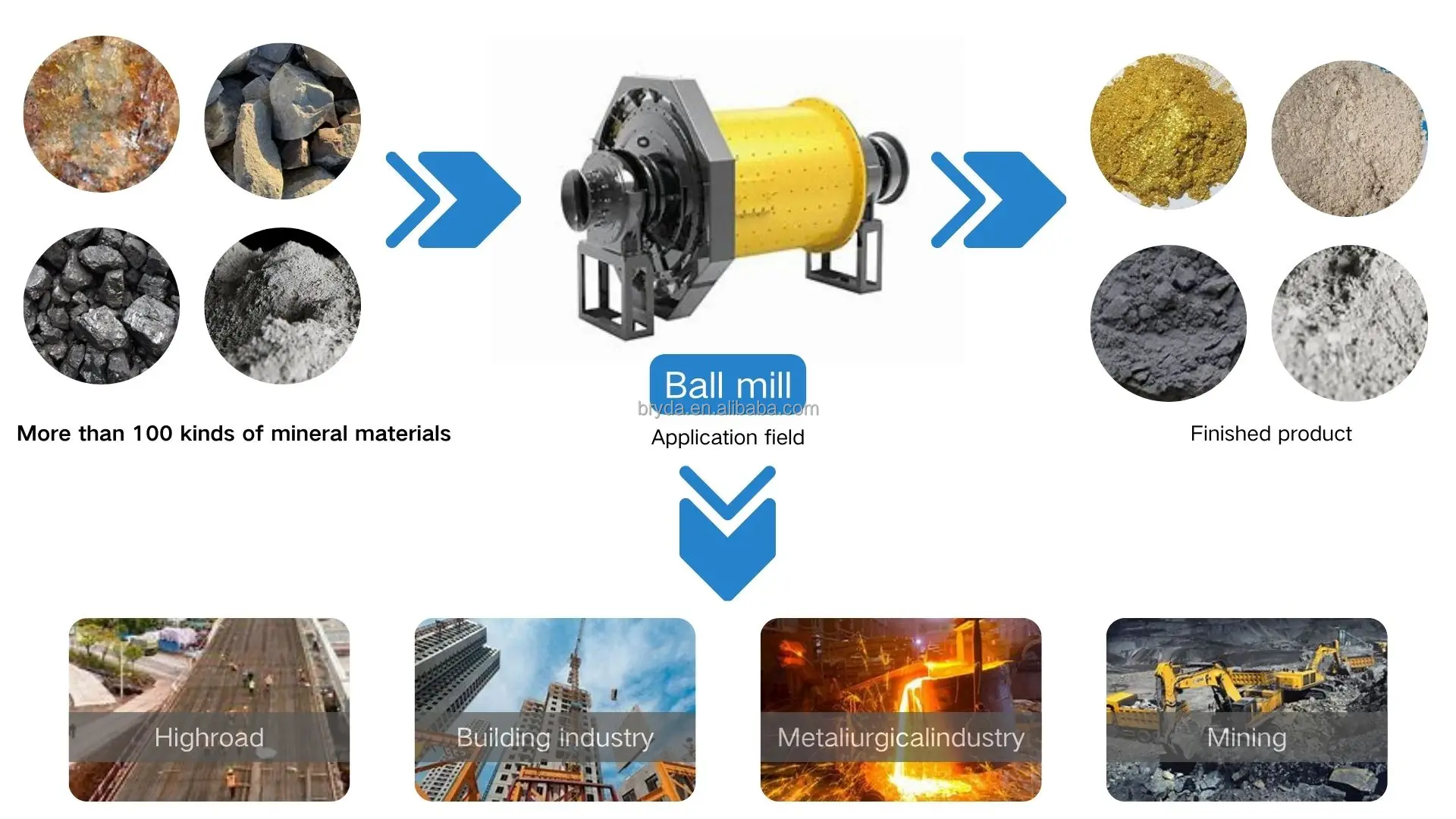

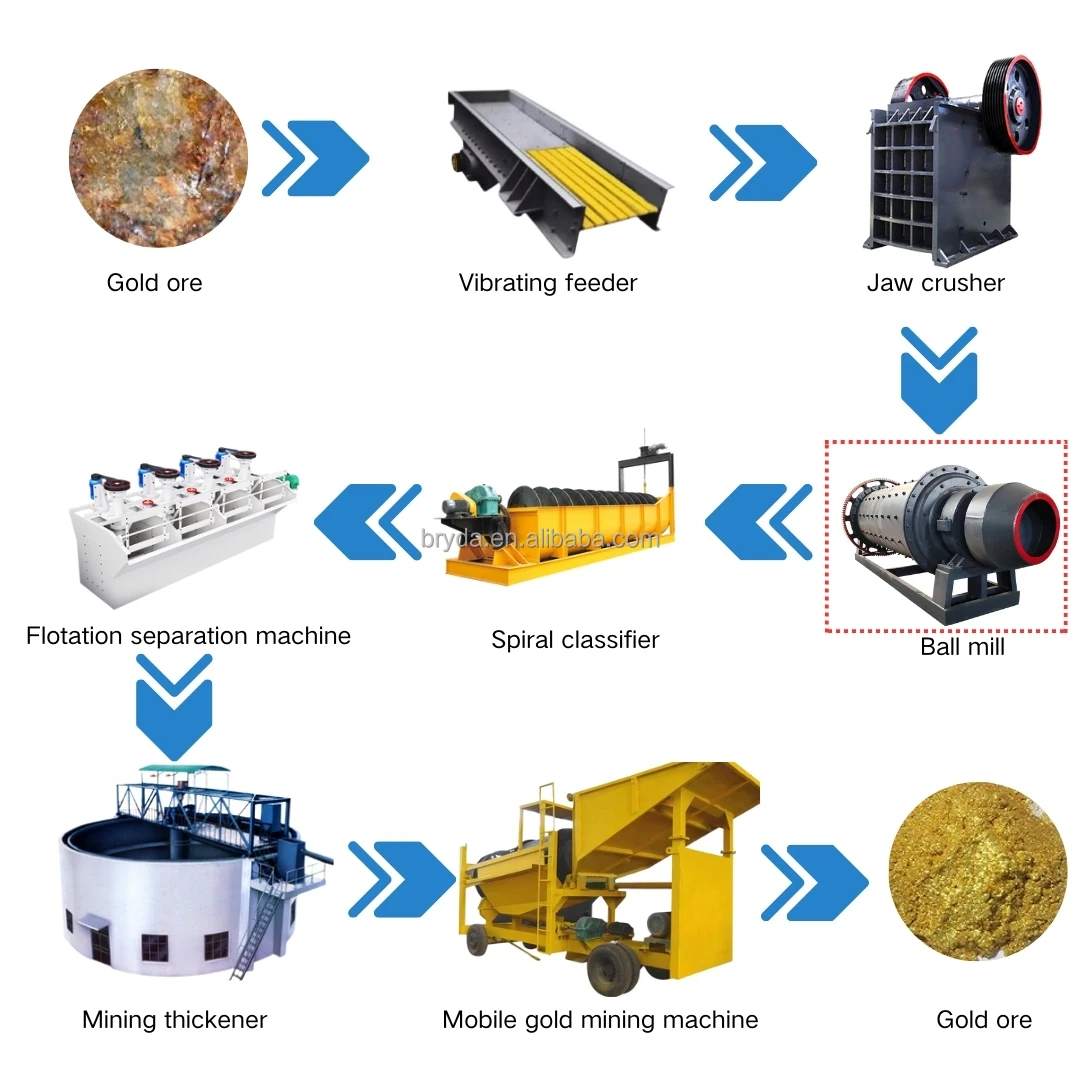

Scope Of Application






Our Advantages


1. Rich experience
Our team has years of industry experience and a deep understanding and mastery of the mechanical field, which enables us to provide professional services and solutions to our customers.


2. Leading technology
We continuously innovate and research and develop core technologies with independent intellectual property rights, which can provide customers with efficient, stable, and reliable products and services.


3. Quality assurance
We focus on product quality and brand building, and have won the trust and praise of customers through strict quality control and professional brand marketing.


4. Thoughtful service
We are committed to providing customers with comprehensive services and support, including technical support, after-sales service, training, etc., to ensure that customers receive the best experience and benefits during use.

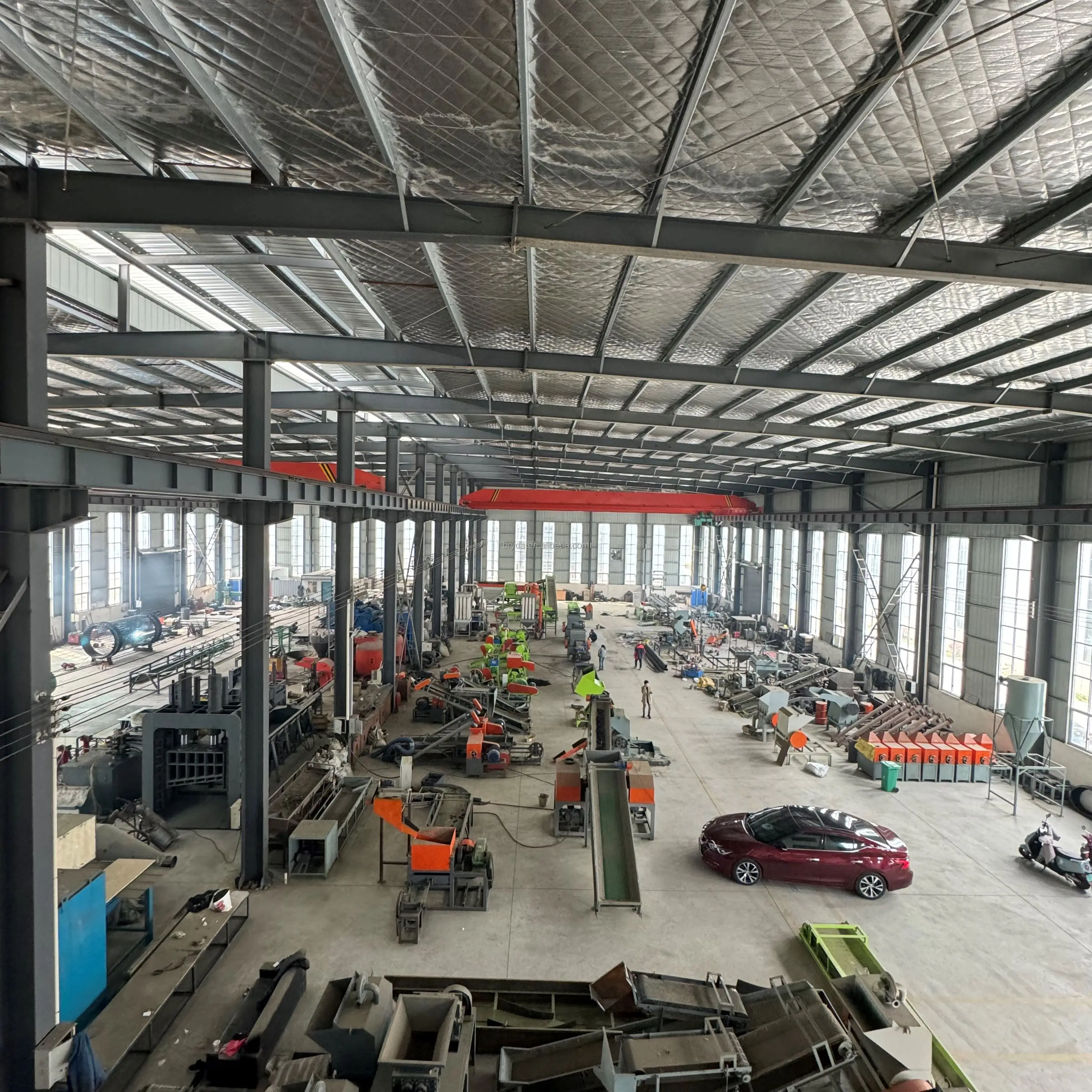

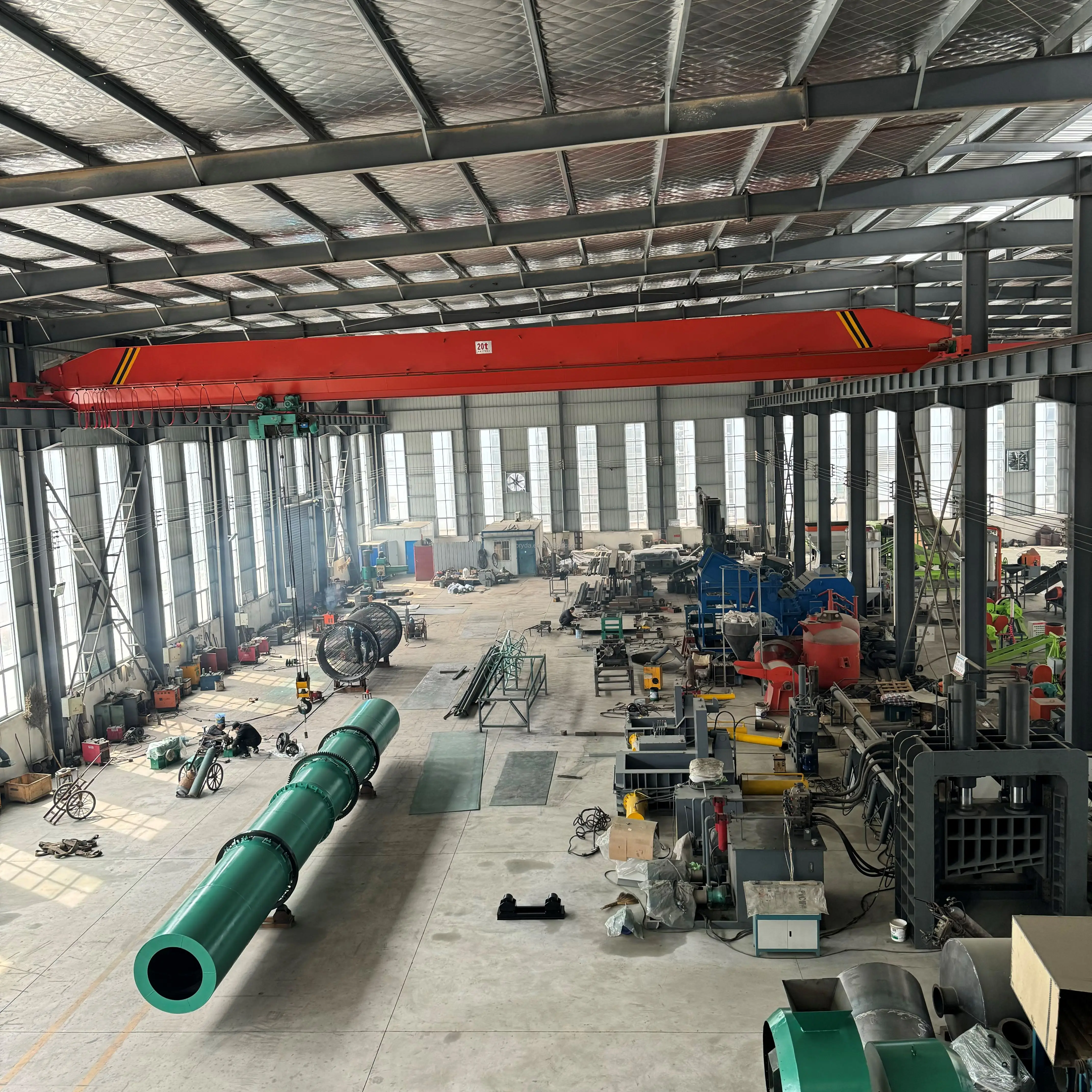

Company Introduction




Henan Bryda Machinery Equipment Co., LTD is a leading enterprise focused on mechanical manufacturing, committed to providing customers with high-quality products. We have an experienced and skilled team, with meeting customer needs as our top priority. We are dedicated to providing customers with comprehensive solutions, while also providing customers with one-stop services from
product design, user instructions to installation and debugging. Through continuous innovation and improving service quality, we have achieved outstanding results and won the trust and reputation of our customers




Our Team


Provide customers with the most professional service
Customize the most suitable machinery
Arrange the most thoughtful after-sales service

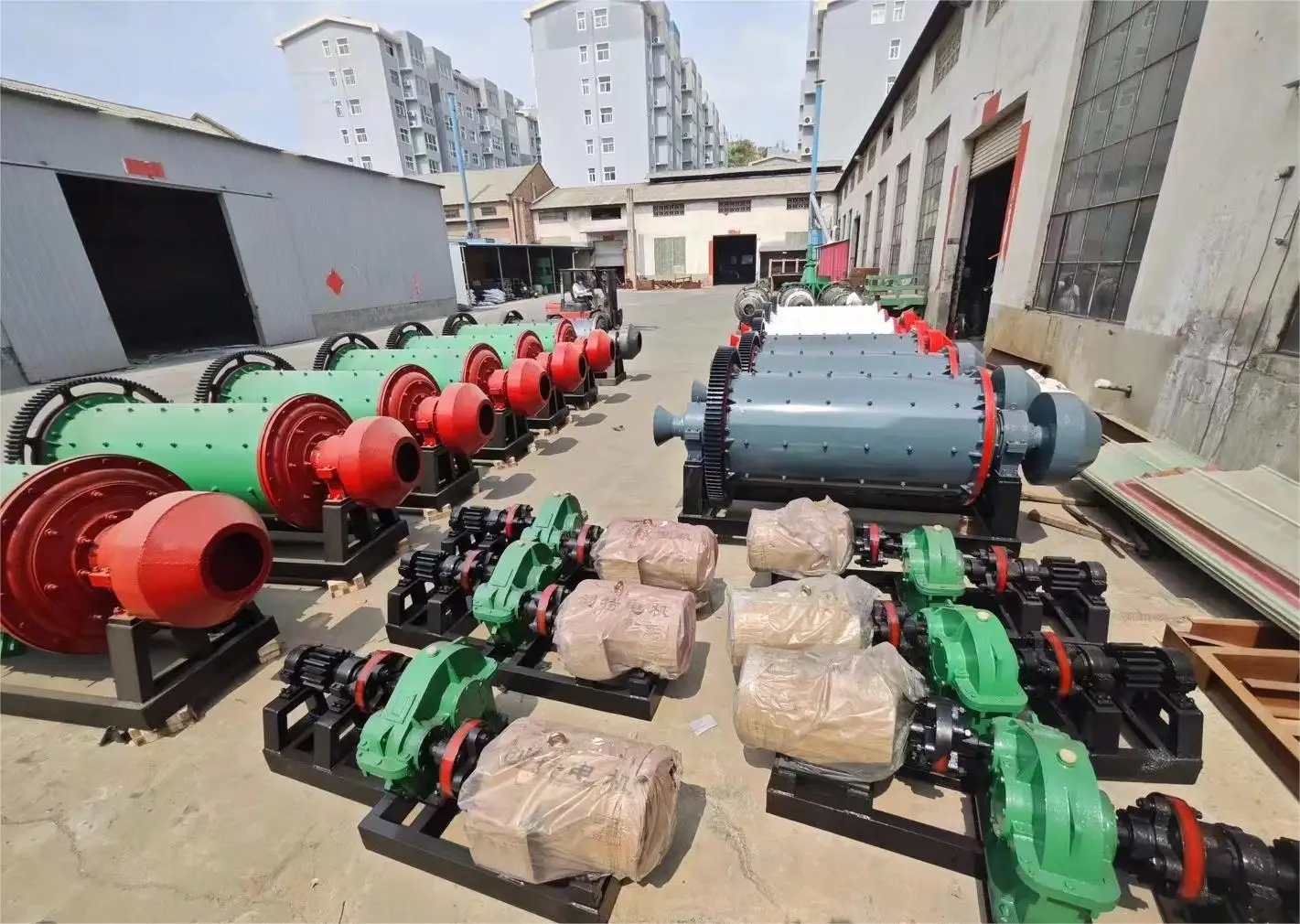

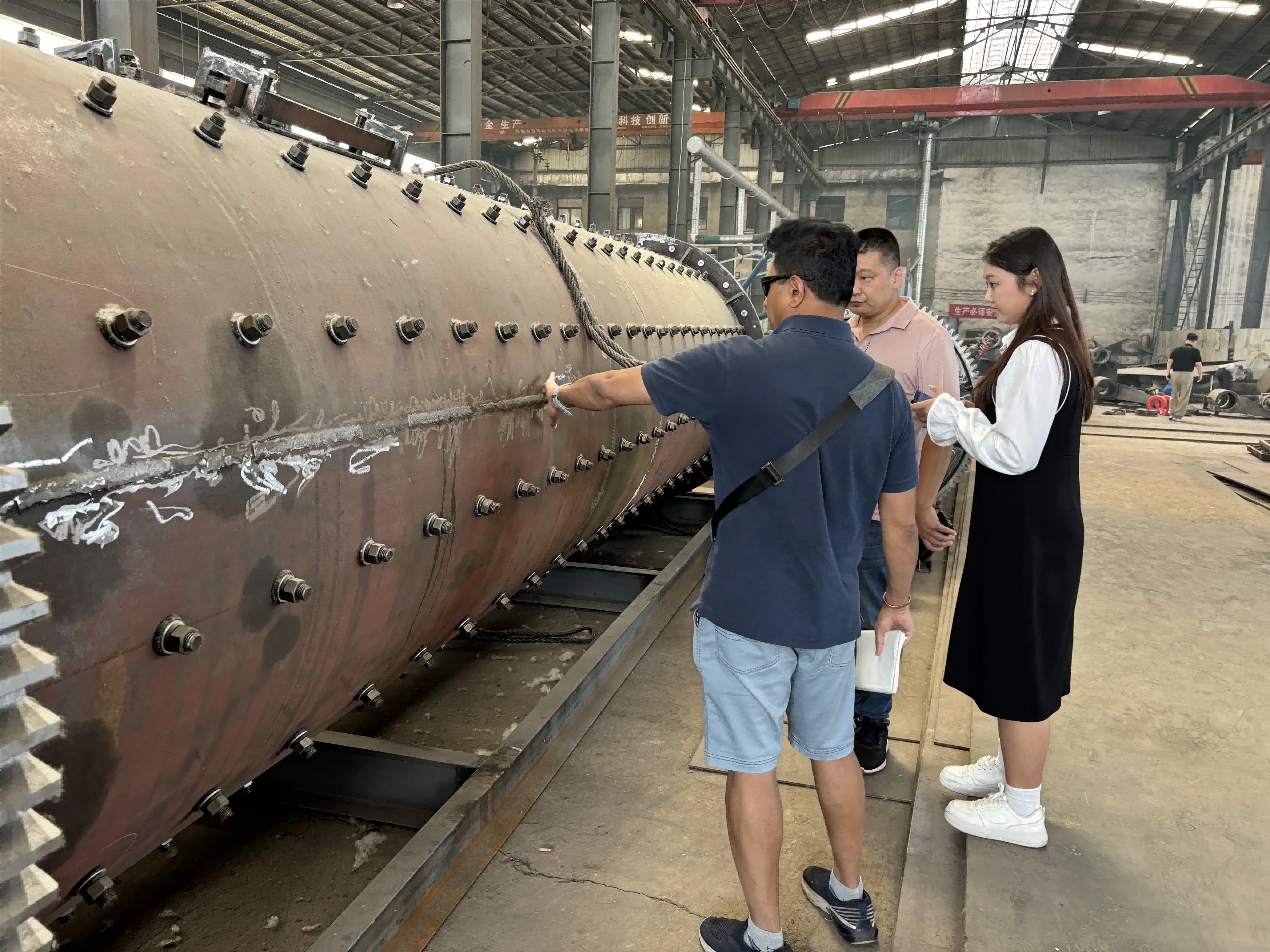

Product Delivery






FAQ


Q: Are you a manufacturer?
A: We are a professional manufacturer with 23 years of experience in R&D and manufacturing
Q: Do mechanical products support customization?
A: Support customization, please tell us your needs, we will create the most suitable products for you
Q: Is the mechanical product easy to operate and maintain?
Our machinery products are equipped with detailed operating manuals and maintenance guides to ensure that customers can quickly get started and use them correctly.
Q: How long is the warranty period for mechanical products?
We offer a one-year warranty on product quality and promise to provide free repair and replacement services during the warranty period.
Q: What about the price of mechanical products?
The price of our mechanical products depends on the specific model, specifications, configuration and other factors of the product.
