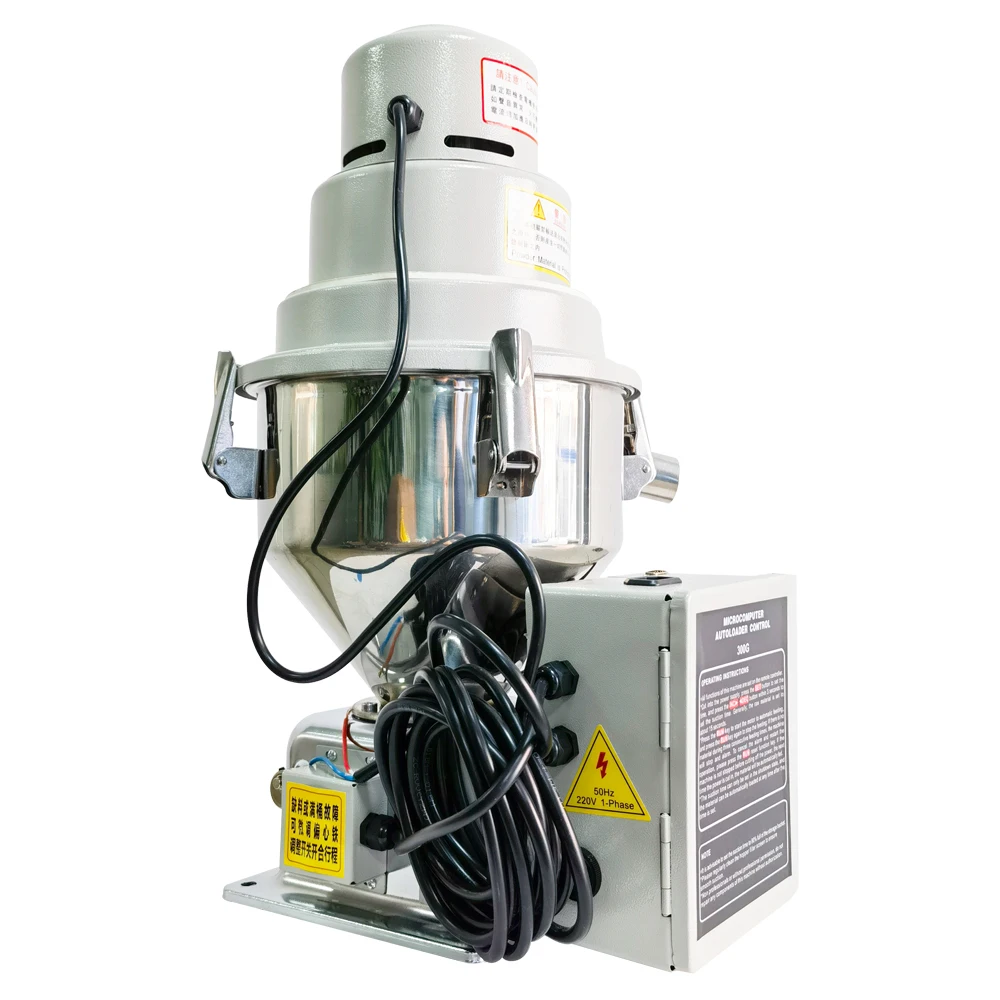

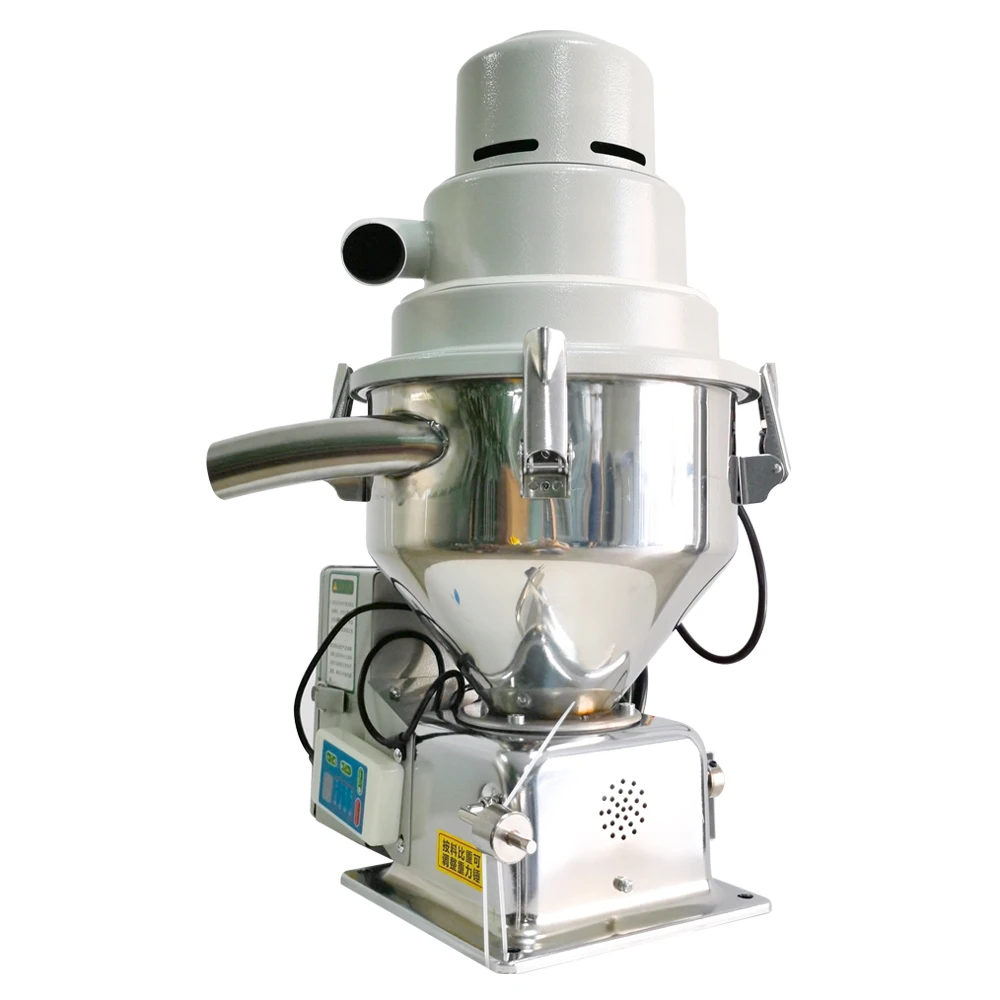

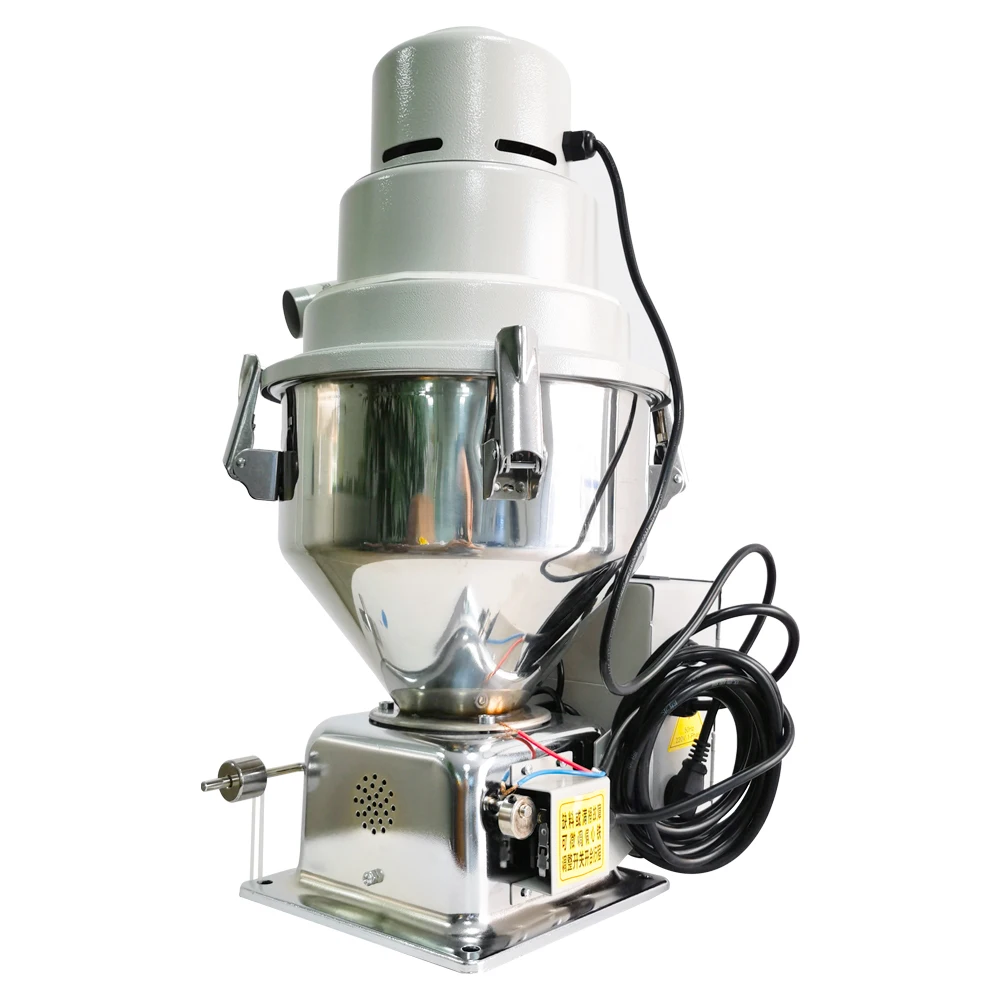

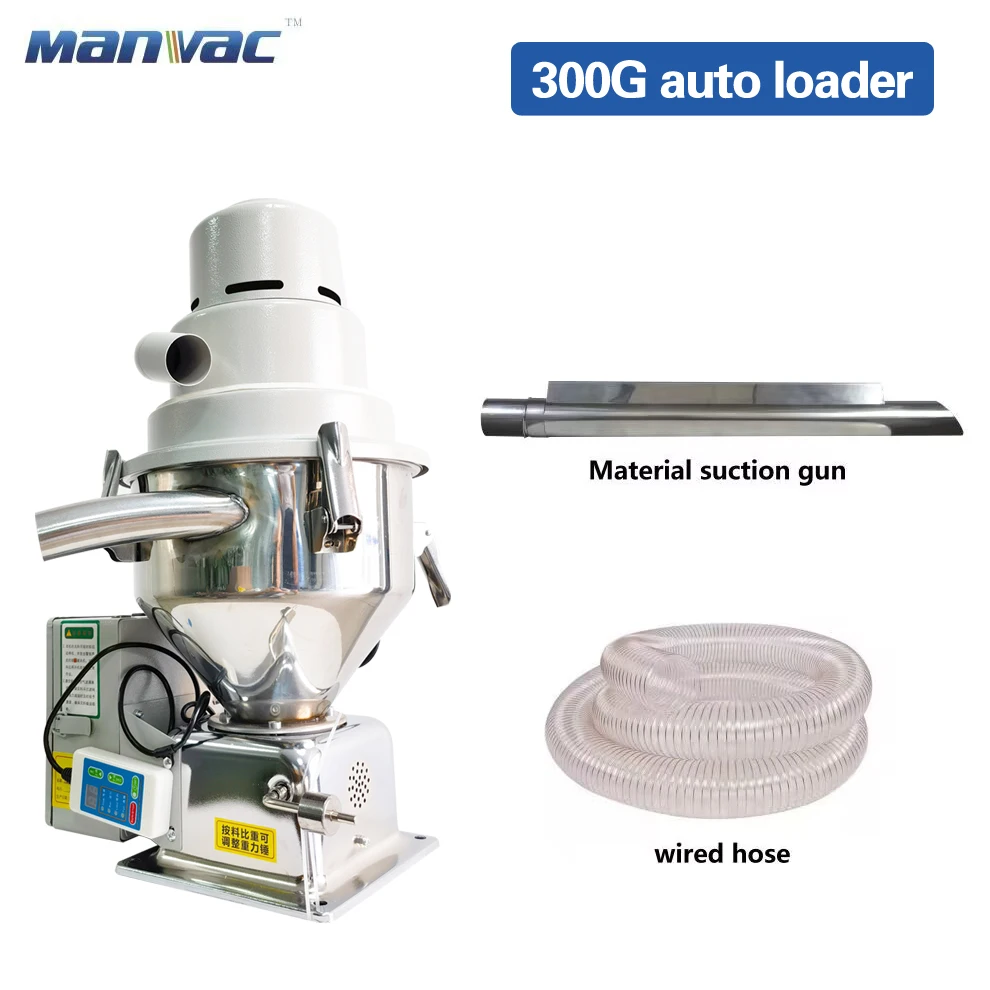

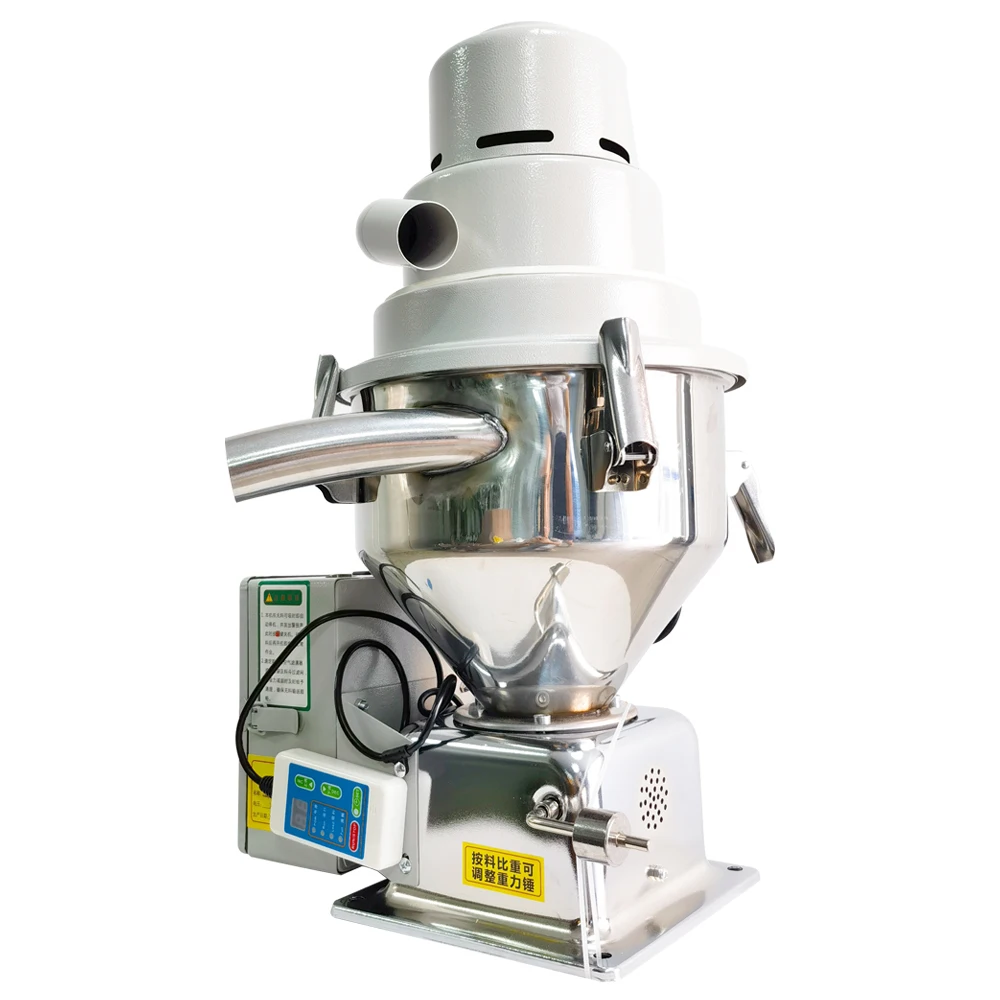

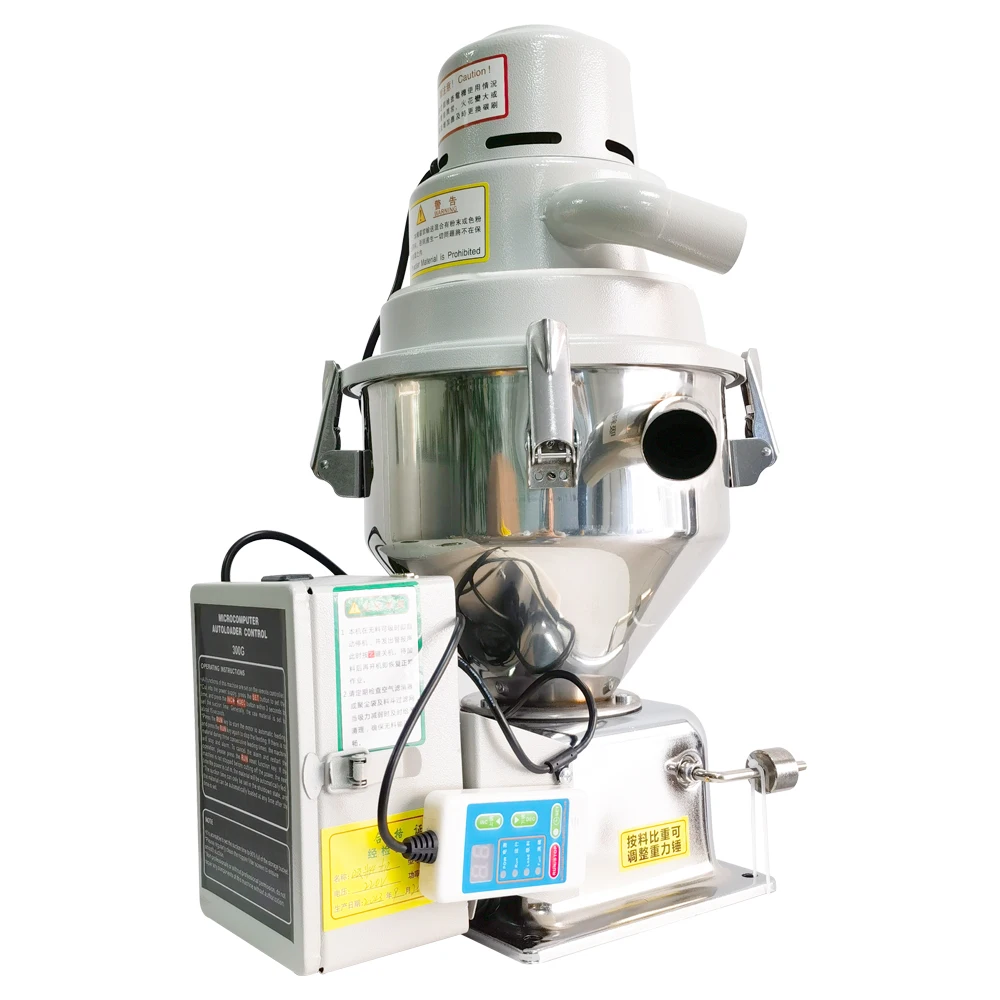

300G 1.5HP/1.1KW Self Contained Hopper Loaders Green Coffee Vacuum Hopper Loader
- Category: >>>
- Supplier: Dongguan Mingkai Electromechanical Co. Ltd.
Share on (1601202029125):
Product Overview
Description
Factory Price High Power Recycling Hopper Plastic Loader Suction Machine Automatic Dust Removal Vacuum Plastic
Manvac A pair or tow/four separation type automatic material feeding machine series,suitable for the transport of plastic particles,the main use of motor operation to produce a vacuum,so that the material can produce a pressure difference to transport the plastic.
Product Description
Stainless steel hopper, to ensure that the raw material is not contaminated. Microcomputer control, simple operation, precise control, and there are a number of alarm indicator.
Motor protection device, can increase its service life.
Lack of alarm, can take the initiative to inform customers of the situation.
Independent filter device to facilitate the removal of dust; filter view window, to facilitate customers to view the use of filter, and regular cleaning.
Vacuum hopper (JMH) can be directly installed in the molding machine hopper; electric eye hopper (JVH) can be directly installed in the molding machine feeding port. Optional cyclone dust collector, reducing filter cleaning times, suitable for crushing and conveying.
Optional JPV-U Europeanization of material two proportional valve (including purchase control box), for new material and powder mixture use or crushed material immediate recovery.
When transporting raw materials, crushing material accounted for more than 30%, the proposed selection of14 mesh stainless steel mesh.
Lack of alarm, can take the initiative to inform customers of the situation.
Independent filter device to facilitate the removal of dust; filter view window, to facilitate customers to view the use of filter, and regular cleaning.
Vacuum hopper (JMH) can be directly installed in the molding machine hopper; electric eye hopper (JVH) can be directly installed in the molding machine feeding port. Optional cyclone dust collector, reducing filter cleaning times, suitable for crushing and conveying.
Optional JPV-U Europeanization of material two proportional valve (including purchase control box), for new material and powder mixture use or crushed material immediate recovery.
When transporting raw materials, crushing material accounted for more than 30%, the proposed selection of14 mesh stainless steel mesh.
Model | Motor Type | Motor Power (KW) | Dimensions (MM) | Net weight (KG) | Hopper (MM) | Hopper capacity (L) | Suction Diameter (MM) | Conveying Diameter (MM) | Transmission Capacity (KG/HR) |
CAL-300G | Carbon Brush | 1.1 | 420*340*570 | 13.5 | 420*350*270 | 7.5 | 38 | 38 | 300 |
CAL-700G | Carbon Brush | 1.1 | 530*295*360 | 18 | 420*350*270 | 6 | 38 | 38 | 300 |
CAL-800G | 0.75 | 620*370*410 | 40 | 420*350*270 | 7.5 | 38 | 38 | 300 | |
CAL-800G2 | 1.5 | 620*370*410 | 47 | 480*360*330 | 7.5 | 38 | 38 | 500 | |
CAL-900G | 0.75 | 600*370*700 | 50 | 420*350*270 | 7.5 | 38 | 38 | 500 | |
CAL-900G2 | 1.5 | 600*370*700 | 57 | 480*360*330 | 1.2 | 38 | 38 | 700 |
CERTIFICATE
SUCCESSFUL PROJECT
Company Profile
Dongguan Mingkai Electromechanical Co., Ltd.is located in Dongguan, a garden city with the reputation of "world factory".Established in July 2002, Factory space 6000m2. In the field of plastics industry, food industry, chemical or pharmaceutical industry or even in the sector of environment. Wide range of Products: side channel blower, high speed turbo blower, industrial air products with high efficiency motor, NSK and SKF bearings. More than 10 years, experience for industrial air products. Dia casting machine, CNC machining equipment, automa tic wire winding machine, electric test machine, rotor balancing machining machinejmpeller balancing testing and machining machine etc.
