Coloured BIPV Building Integrated Photovoltaics Solar Tiles DSolar System For Home 10 Roof Solar Panel System Set Or Houses
- Category: >>>
- Supplier: Beijing Changsheng International New Energy Co. Ltd.
Share on (1601202052176):
Product Overview
Description
Product Description
Product Type | CS-CST32-B01 | CS-CST28-R01 |
Color | Black | Red |
Maximum Power [W] | 32 | 28 |
Maximum Power Tolerance [W] | 0/+2 | 0/+2 |
Open Circuit Voltage [V] | 10.7 | 10.3 |
Short Circuit Current [A] | 4 | 4 |
Maximum Power Point Voltage [V] | 8.8 | 8.1 |
Maximum Power Point Current [A] | 3.5 | 3.45 |
Weight per pc. [kg] | 6.5 (±0.5) | 6.5 (±0.5) |
Thickness [mm] | 8(±1) | 8(±1) |
Dimension L*W*H [mm] | 721*500*33(±1) (Curve Arch Height) | 721*500*33(±1) (Curve Arch Height) |
Maximum System Voltage [V] | 1,000 | 1,000 |
Maximum Fuse Rating [A] | 7 | 7 |

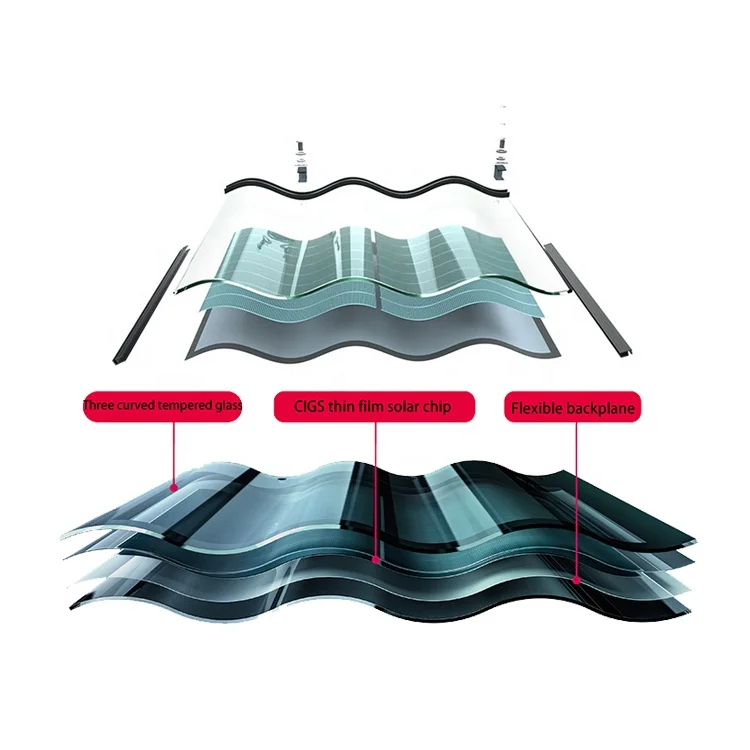

Front plate | Super white tempered embossing | Super white tempered embossing |
Back plate | Super white tempered embossing | Super white tempered embossing |
Frame | Anodized Aluminium Alloy | Anodized Aluminium Alloy |
Juntion Box | IP67, MC4 connector | IP67, MC4 connector |
Maximum positive static load [Pa[] | 5400 | 5400 |
Operating temperrature [℃] | -40 to +80 | -40 to +80 |
Hail resistance | Maximum diameter 25mm impact speed 23m/s | Maximum diameter 25mm impact speed 23m/s |
Fire rating | A | A |
NOCT | 45℃ | 45℃ |
Peak power （Pmpp）temperature coefficient | 0.40%/℃ | 0.40%/℃ |
Open Circuit Voltage [Voc] temperature coefficient | 0.35%/℃ | 0.35%/℃ |
Short Circuit Current [Isc] temperature coefficent | 0.03%/℃ | 0.03%/℃ |

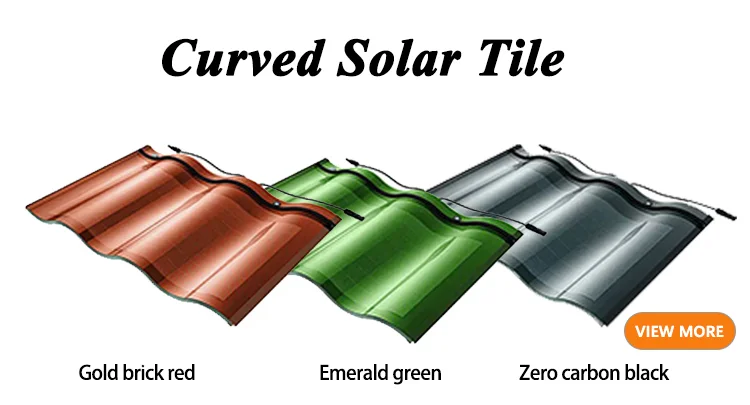

Hot selling product

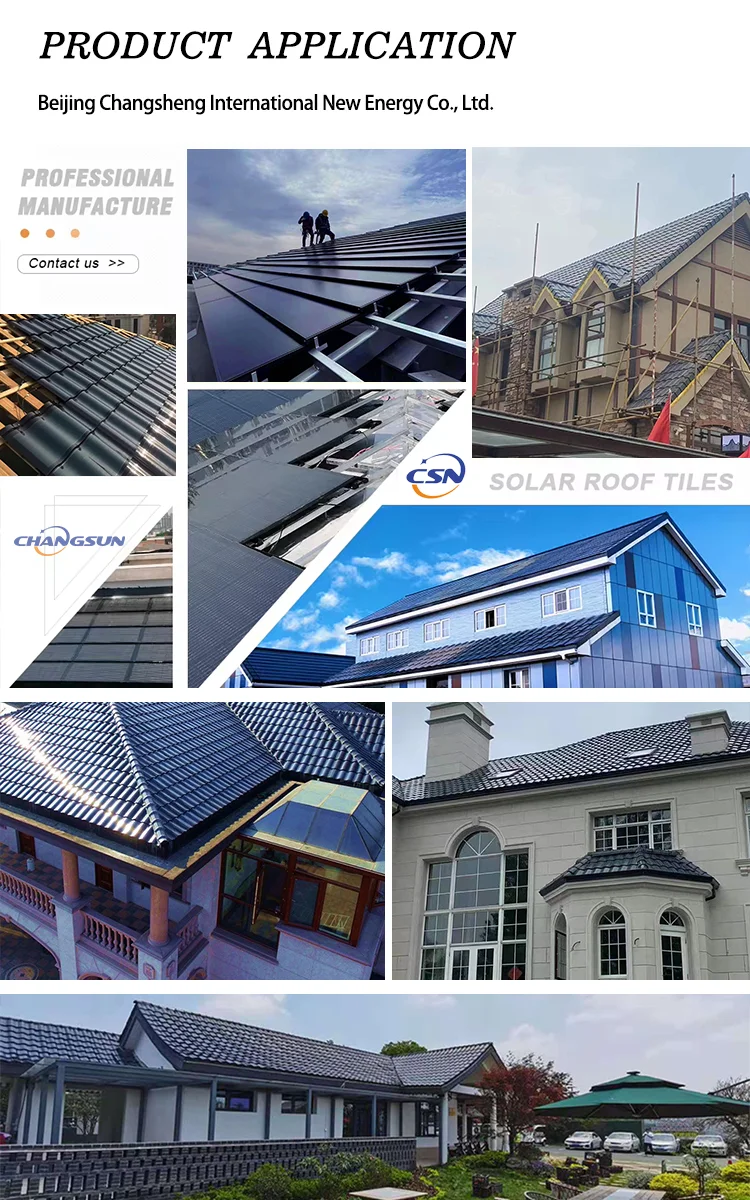

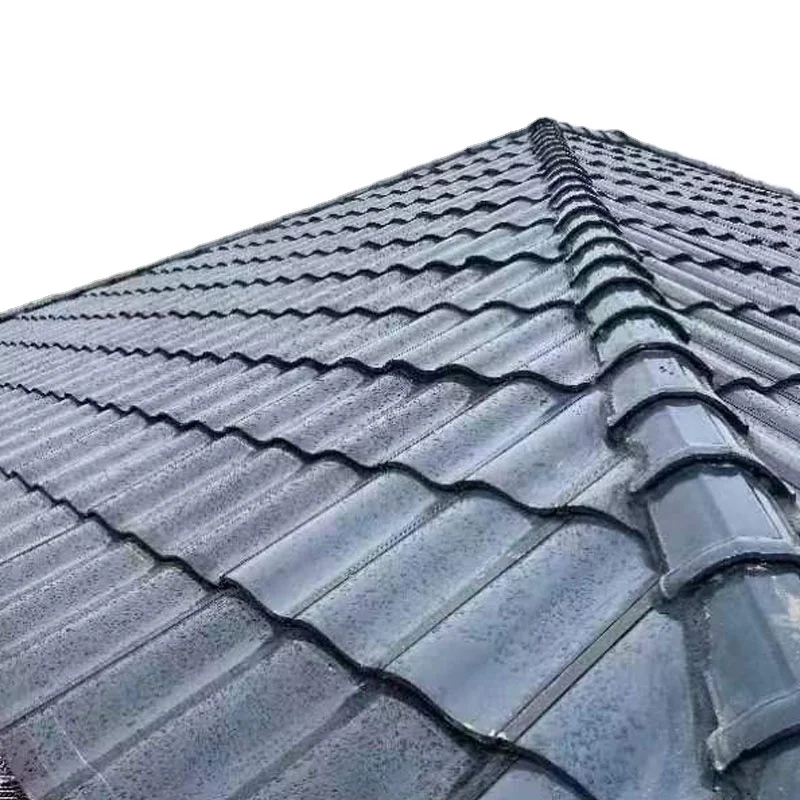

Our Projects
Product packaging
About us
Changsun International manufactures and sells solar panels,Solar Shingle ,curved photovoltaic tiles, energy storage batteries and other photovoltaic products. At the same time, we focus on overseas photovoltaic power plant projects.
At the same time, we have sufficient stock of goods and our products have passed the certification of relevant international organizations, the product quality is reliable. we can also provide you with factory prices,also,we ship from China to your port within 15days.
we Improve the pre-sale, sale and after-sales system construction, has established channel partners in many countries.Welcome to cooperate with us!
At the same time, we have sufficient stock of goods and our products have passed the certification of relevant international organizations, the product quality is reliable. we can also provide you with factory prices,also,we ship from China to your port within 15days.
we Improve the pre-sale, sale and after-sales system construction, has established channel partners in many countries.Welcome to cooperate with us!
