Infitek Lab and Medical Equipments CFGR 6DL Low Speed Refrigerated Centrifuge With CE
- Category: >>>
- Supplier: Infitek Bioscience Co. Ltd.
Share on (1601202064242):
Product Overview
Description

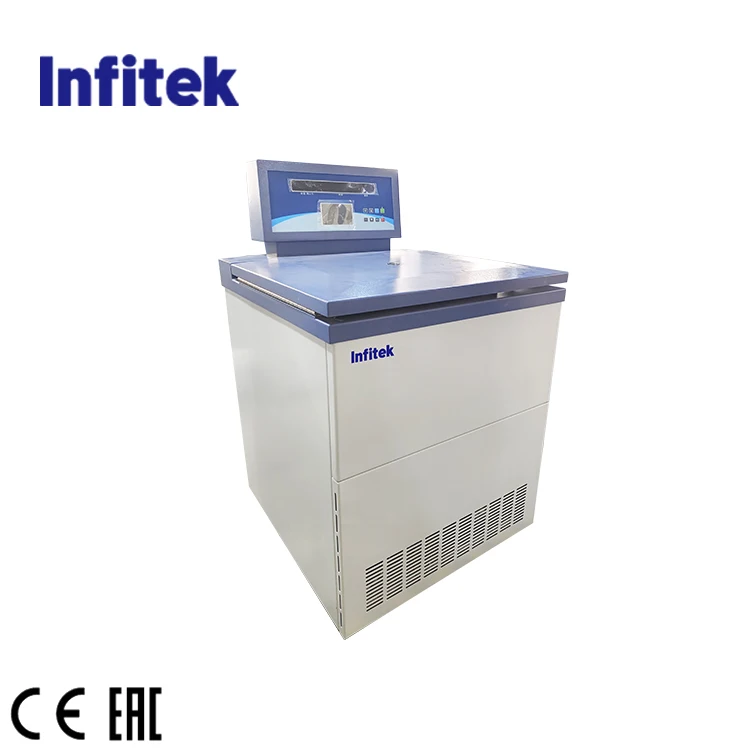

Infitek Low Speed Refrigerated Centrifuge with CE
Model: CFG-6DL
Product Parameters
Refrigerated Centrifuge, Low Speed, CFGR-6DL：
Max RCF: 6680×g
Max Capacity: 6×1000ml
Max Speed: 6000r/min
Max RCF: 6680×g
Max Capacity: 6×1000ml
Description:
This series of centrifuges is an advanced intelligent instrument with large capacity and refrigeration system. It is widely used for technology research and development in the fields of biochemistry, medical care, food safety, farming, blood bank, biological pharmacy, medicine productivity and so on.Features:
Drive: Drived by brushless AC frequency motor with SOFT brake to avoid suspension.
Speed Control: The acceleration time to the maximum rotational speed is approx 14 s; The deceleration time from maximum rotational speed is approx 15 s.
Display: Microcomputer controlled with touching pad and LED & LCD display. The programs are stored automatically and RCF can be directly set.
Cooling: Totally CFC-free compressor with controlling valve for environment protection. It has features such as small vibration,fast cooling, low noise.
Rotor: With standby cooling, the rotor remains at the required temperature. Rotors are autoclavable at 121℃ for 20 minutes.
Body Structure: Premium steel housing and stainless steel chamber.
Safety Protection: Rotor recognition system(Optional function).It contains various safety protections including lid locking andholding during rotor on, over speed, over temp., unbalance.
Control: 10 rates of acceleration and deceleration (brake). 40 programs storage and recall. It offers hold-on and transient
functions for diverse centrifugation.Cooling: Totally CFC-free compressor with controlling valve for environment protection. It has features such as small vibration, fast cooling, low noise.
Rotor: With standby cooling, the rotor remains at the required temperature. Rotors are autoclavable at 121℃ for 20 minutes.
Body Structure: Premium steel housing and stainless steel chamber.
Safety Protection: Rotor recognition system(Optional function).It contains various safety protections including lid locking and holding during rotor on, over speed, over temp., unbalance.
Control: 10 rates of acceleration and deceleration (brake). 40 programs storage and recall. It offers hold-on and transient
functions for diverse centrifugation.
Drive: Drived by brushless AC frequency motor with SOFT brake to avoid suspension.
Speed Control: The acceleration time to the maximum rotational speed is approx 14 s; The deceleration time from maximum rotational speed is approx 15 s.
Display: Microcomputer controlled with touching pad and LED & LCD display. The programs are stored automatically and RCF can be directly set.
Cooling: Totally CFC-free compressor with controlling valve for environment protection. It has features such as small vibration,fast cooling, low noise.
Rotor: With standby cooling, the rotor remains at the required temperature. Rotors are autoclavable at 121℃ for 20 minutes.
Body Structure: Premium steel housing and stainless steel chamber.
Safety Protection: Rotor recognition system(Optional function).It contains various safety protections including lid locking andholding during rotor on, over speed, over temp., unbalance.
Control: 10 rates of acceleration and deceleration (brake). 40 programs storage and recall. It offers hold-on and transient
functions for diverse centrifugation.Cooling: Totally CFC-free compressor with controlling valve for environment protection. It has features such as small vibration, fast cooling, low noise.
Rotor: With standby cooling, the rotor remains at the required temperature. Rotors are autoclavable at 121℃ for 20 minutes.
Body Structure: Premium steel housing and stainless steel chamber.
Safety Protection: Rotor recognition system(Optional function).It contains various safety protections including lid locking and holding during rotor on, over speed, over temp., unbalance.
Control: 10 rates of acceleration and deceleration (brake). 40 programs storage and recall. It offers hold-on and transient
functions for diverse centrifugation.
Product Description
Model | CFGR-6DL |
Max Speed | 6000r/min |
Max RCF | 6680×g |
Max Capacity | 6×1000ml |
No.34 Angle Rotor | 6×300ml(6000r/min)RCF:5650×g |
No.38 Angle Rotor | 6×500ml(6000r/min)RCF:6680×g |
No.70 Swing Rotor | 6×1000ml(4200r/min)RCF:5100×g（Circular cup） |
No.70 Swing Rotor | 6×1000ml(4200r/min)RCF:5100×g（Square cup） |
Speed Accuracy | ±20r/min |
Time Setting | 1s～99h59min59s |
Temp. Range | -20℃～40℃ |
Temp. Accuracy | ±1℃ |
Compressor | High-performance compressor with CFC-free refrigerant |
Noise | ≤65dB |
Motor | Brushless AC frequency motor and microcomputer control |
Power Supply | AC 220V 50Hz 35A |
Dimension (W×D×H) | 830×720×1250mm |
Weight | 268kg |
