DOT Approved Japanese car Motorcycle Front Rear black PVC cover 304 Stainless Steel wire braided Banjo End Brake Hose Line Kits
- Category: >>>
- Supplier: Qingdao Guosong Machinery Parts Co. Ltd.
Share on (1601202077192):
Product Overview
Description
Product Description

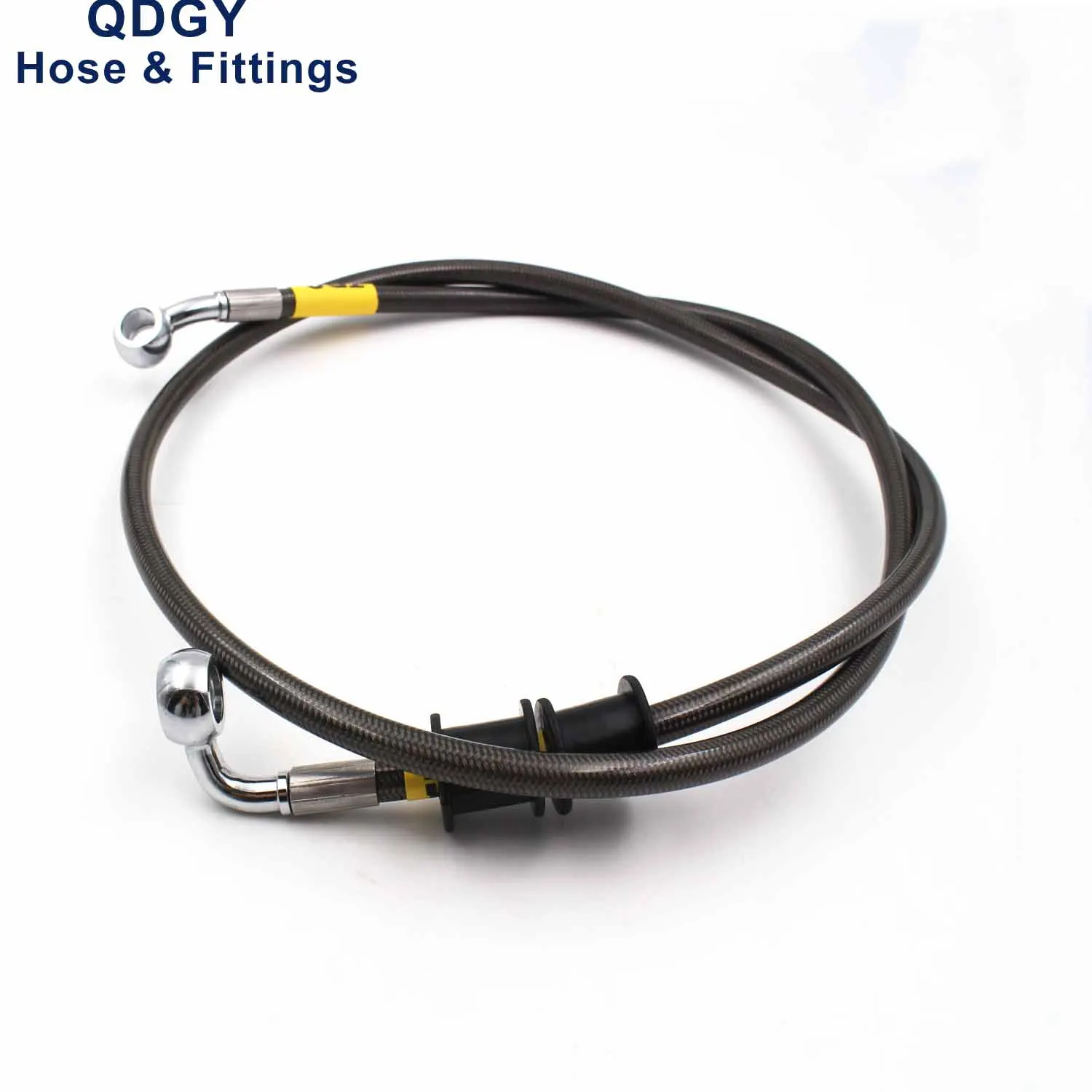

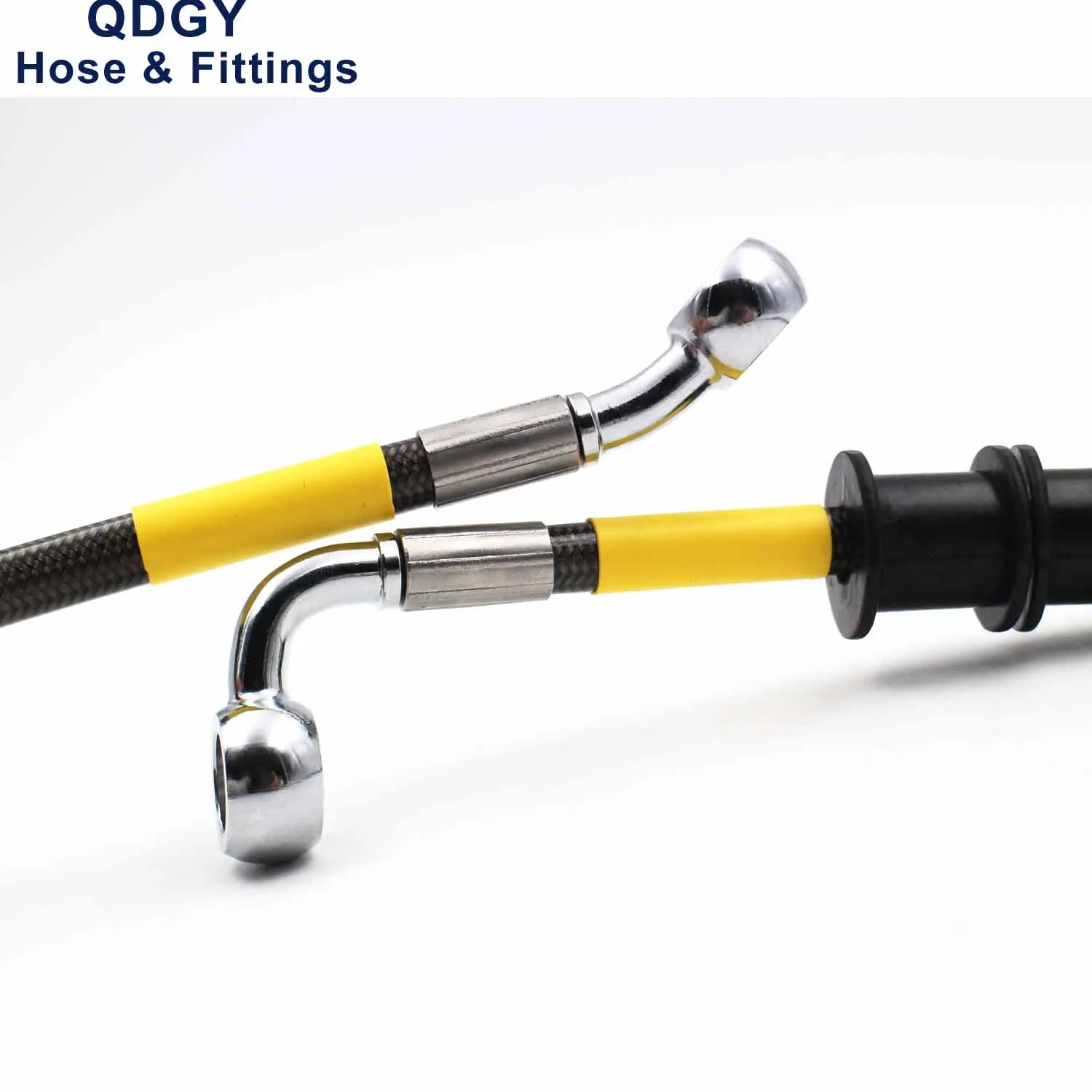

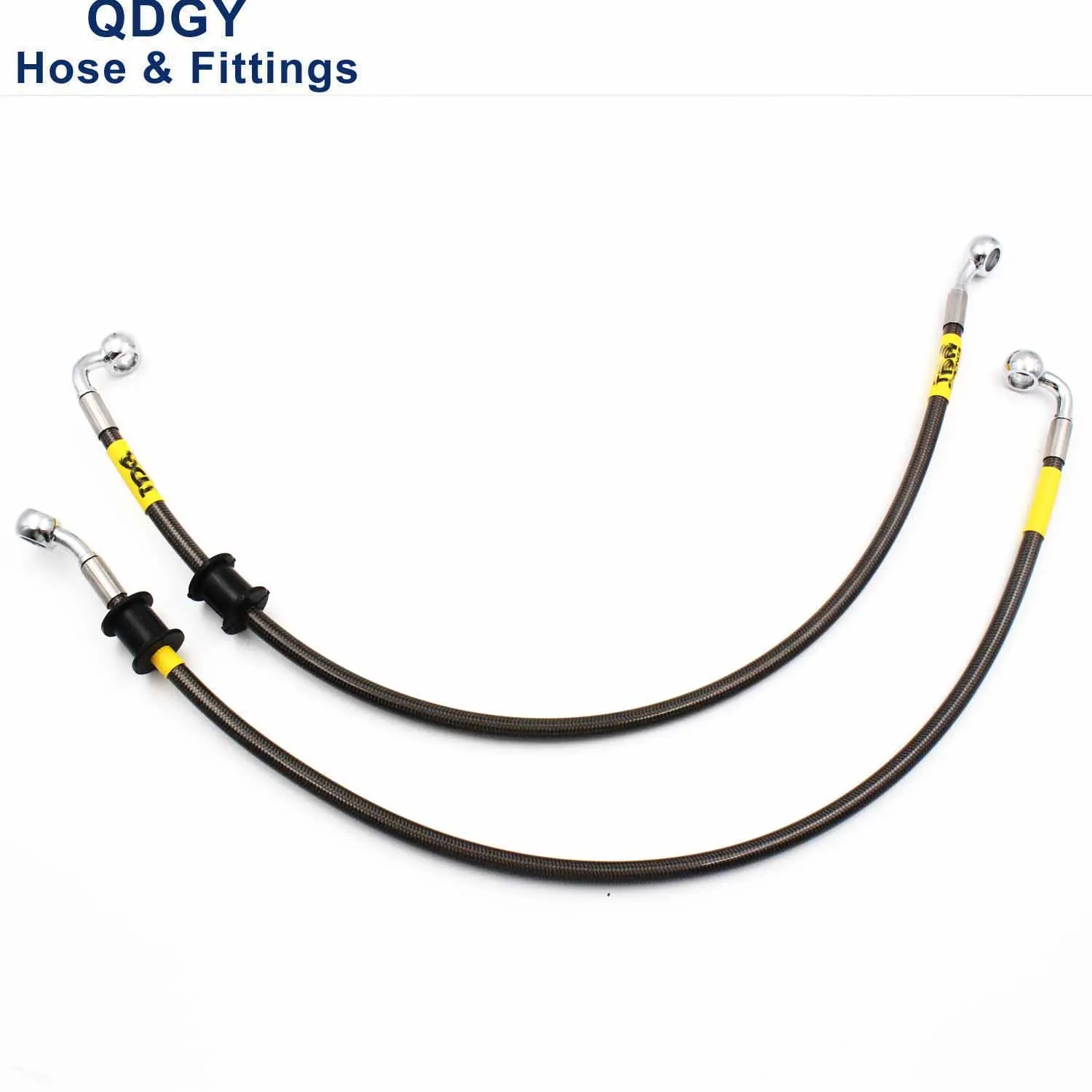

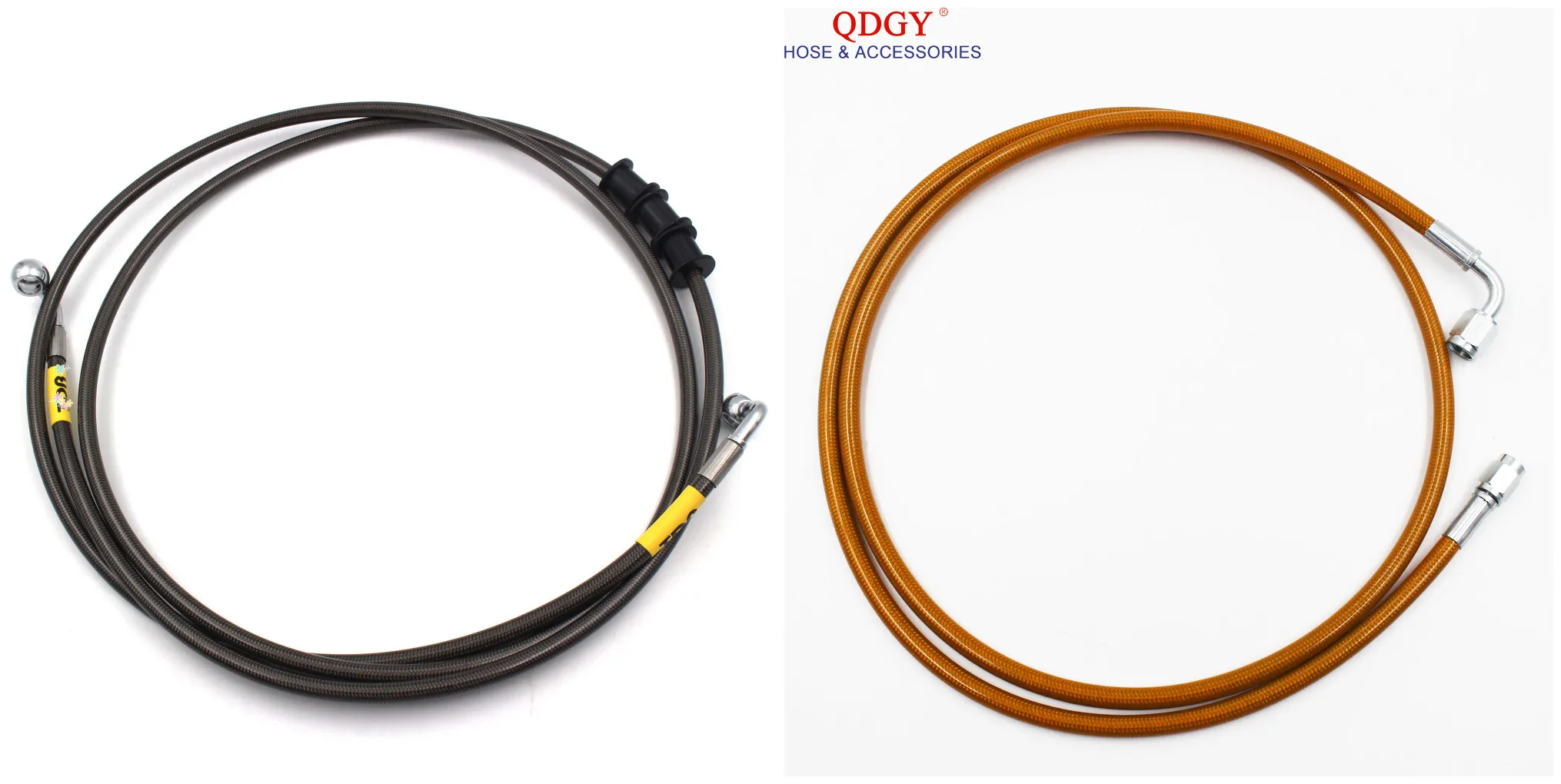

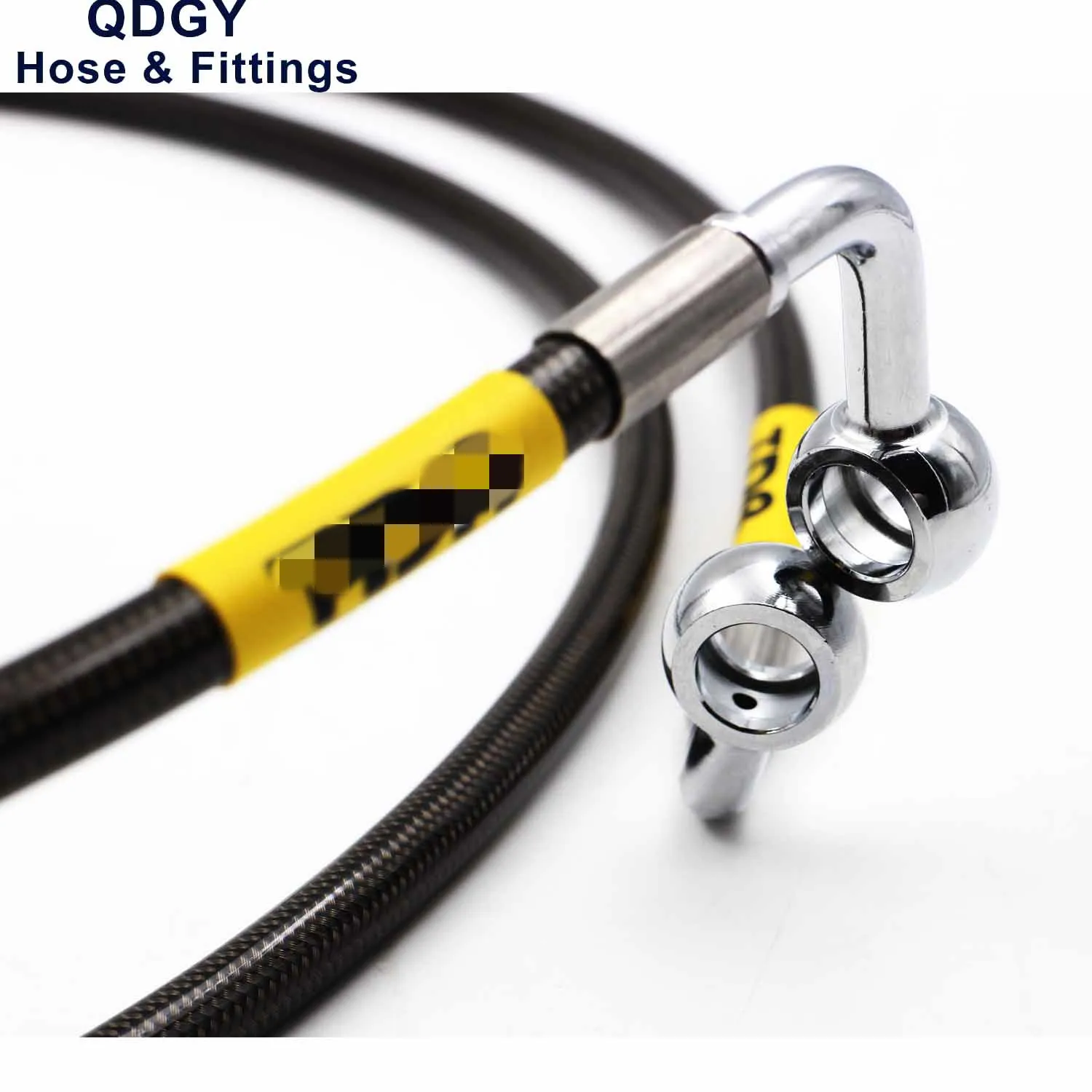

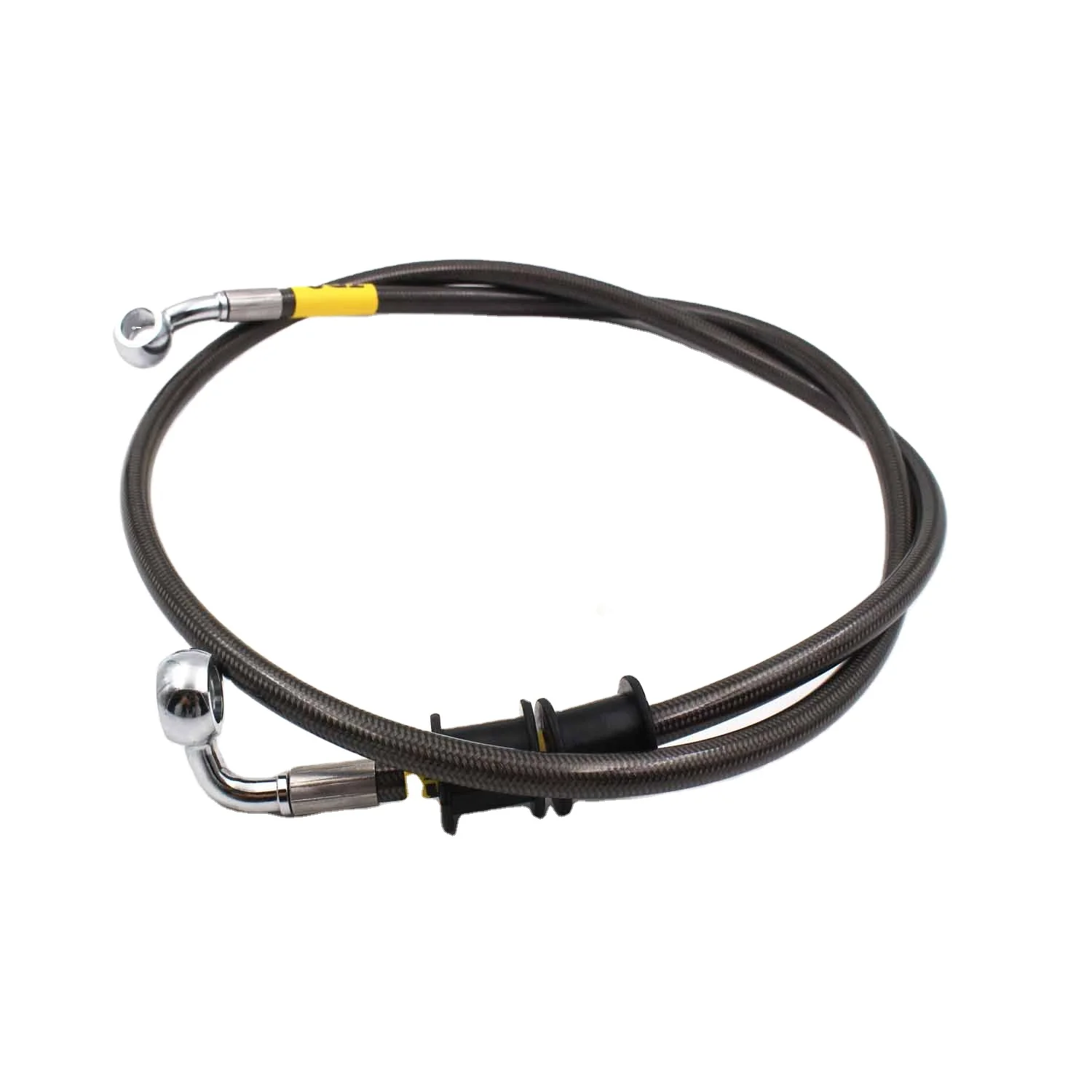

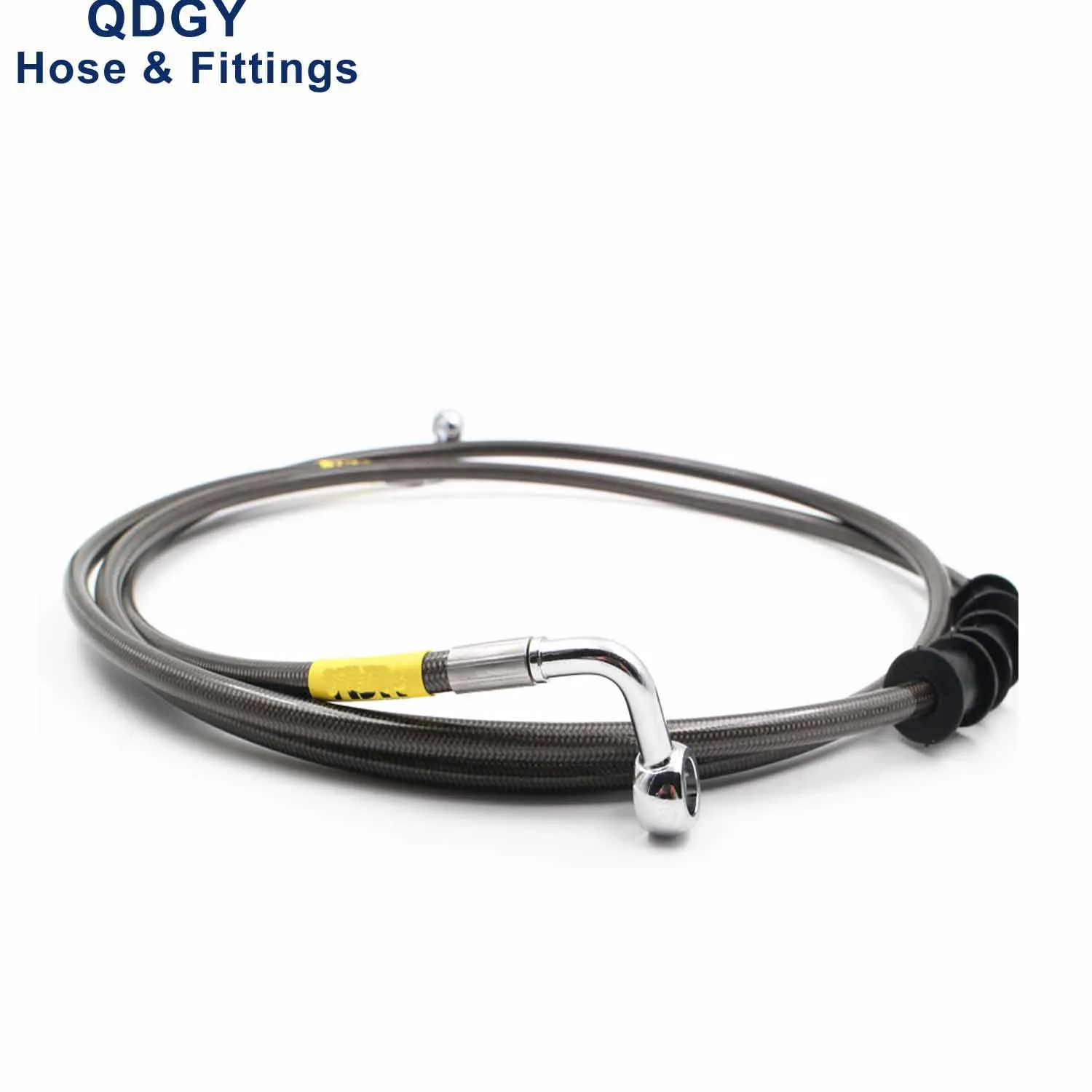

DOT Approved Japanese car Motorcycle Front Rear black PVC cover 304 Stainless Steel wire braided Banjo End Brake Hose Line Kits
DOT Approved Japanese car Front Rear Red black Blue PU PVC cover 304 Stainless Steel wire braided Banjo End Brake Hose Line Kits
STAINLESS-STEEL BRAIDED BRAKE HOSES
QDGY is on a mission to deliver an ea
sy and affordable way for any driver to upgrade their brakes - no matter where or how they use their vehicle.

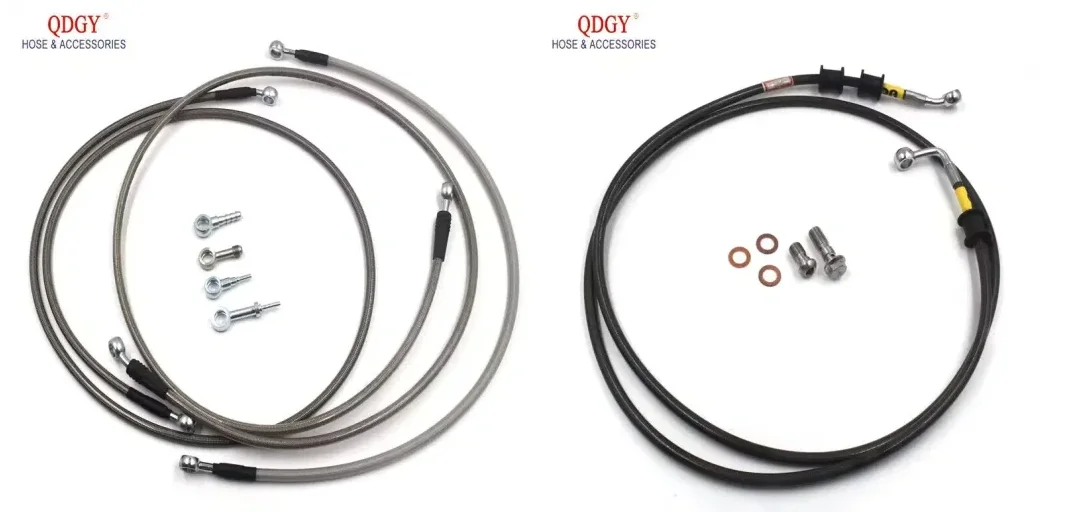

QDGY stainless-steel brake line kit is a performance replacement for your OE rubber brake hoses.
Our stainless-steel brake line kits are DOT FMVSS106 certified.
They are made with premium PTFE material with permanently crimped-on zinc plated steel fittings.
They are encased in a stainless-steel braid and red PVC outer cover to provide superior protection against abrasion and corrosion.
Our hoses have passed numerous vigorous tests such as expansion and burst strength, whip resistance, water absorption, and tensile strength just to name a few.
| QDGY Part NO. | Inner Diameter | Outer Diameter | Outer layer | Stainless steel braid | Inner layer |
| GSG020 | 1/8"(3.2mm) | 0.295"(7.5mm) | PVC/TPU | 304 stainless steel | Teflon/PTFE |
| GSG026 | 3/16"(4.8mm) | 0.374"(9.5mm) | |||
| GSG028 | 1/8"(3.2mm) | 0.255"(6.5mm) | no covering | ||
| GSG024 | 3/16"(4.8mm) | 0.3"(7.6mm) |
Inner layer | PTFE Teflon Stainless steel braided brake hose Line Assembly |
| Enhancement layer | stainless steel wire braid ( AISI Steel 304 316 ) |
| Outer layer | PVC, PU(black, red, blue, yellow, purple, clear, gray, orange, ect.) |
| Temperature range | −65ºC ~ +260ºC |
| Product performance | high temperature resistance,low temperature resistance,long lasting and good durabilityacid and alkali resistance,ozone resistance, low coefficient,anti friction, long using life and non-aging |
| Purpose | widely used in Automotive, Bicycle, Motorcycle, Racing, Brake Lines, Clutch Lines,Fuel Systems, Turbo oil feed Hose, Coolant Systems, Oil Pressure Systems Gauge lines & Power Steering |
| Compatibility | Brake Fluids, Unleaded Petrol, Methanol, Water, & Oil. Ideal for use with Unleaded fuel, ect. |
We custom make each brake line to your exact specifications
Custom stainless steel braided hose assembliesOur stainless steel braided brake lines are compatible with
all brake fluids and are D.O.T. approved for street applications.
Each brake hose assembly we make is tested to 3,000 PSI to make sure it is safe to install on your vehicle.
Plus you get to choose your desired color – black, silver, red or blue.
We not only replace the OEM rubber brake hoses with stainless steel braided lines, we can custom make any brake or clutch hose to your specifications.
If your vehicle is modified and the original OEM brake hoses do not fit, Motion & Flow Control Products, Inc. is your place to get your custom brake hoses.
How much can you expect to pay? Far less than a dealer’s price.
Our offering is not limited to just cars and motorcycles – if it has hydraulic brakes, we can make a brake hose assembly for it.
We can fabricate brake lines for your trucks, ATVs, rock crawlers, go-carts or any other vehicle.

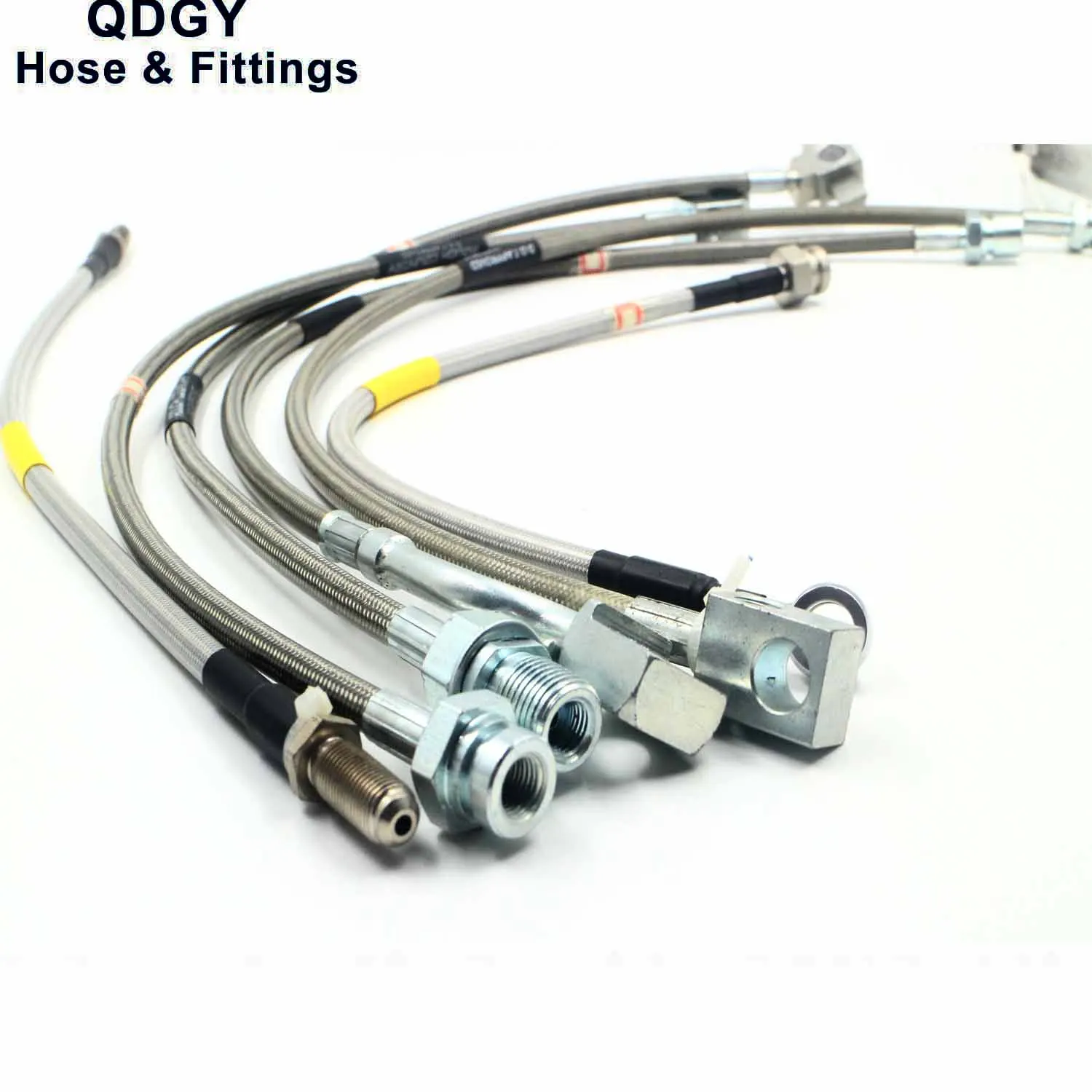

Stainless steel braided PTFE Teflon brake hose Features:
304 stainless steel braid reinforced hose
Meets FMVSS-106 and SAE J1401 specifications
Every brake hose pressure tested to 3000 psi( 207 bar or 20.7Mpa )
Burst pressure:minimum 7250 psi ( 500 bar or 50Mpa )
Temperature range -73°C to 232°C
Compatible with DOT3,DOT4 and DOT4+ brake fluides

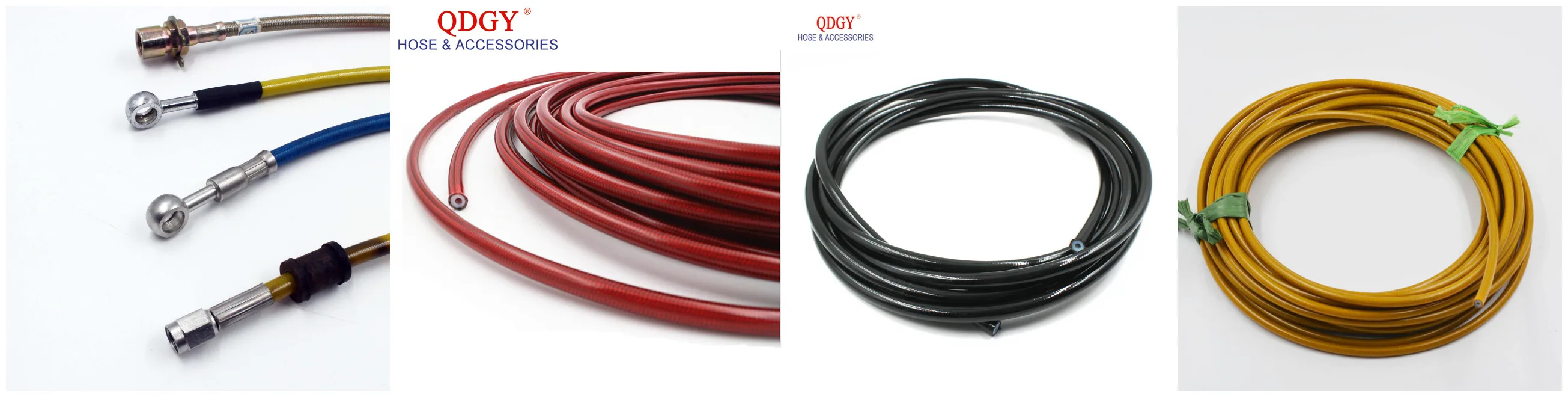

Avaliable PVC /TPU color covering :
Application:
For use in braking system of the vehicle.
1.These Hoses are teflon lined and are compatible with all brake fluids and feature a braided stainless outer covering to resist abrasion and corrosion.
These lines are designed to withstand high pressure and are very flexible and can be used in the tightest of situations. These hoses can be used for many other applications such as gauge, turbo and vacuum lines
2.Production under ISO 9001:2008 and CE control. High quality product and customer's
3.satisfaction is our pursuit. Good faith cooperation. Bright future.
4.A reinforcement 304/316 stainless steel wire cover adds strength and durability to withstand high working pressures and harsh environments.Burst pressure reaches to 12,000 psi

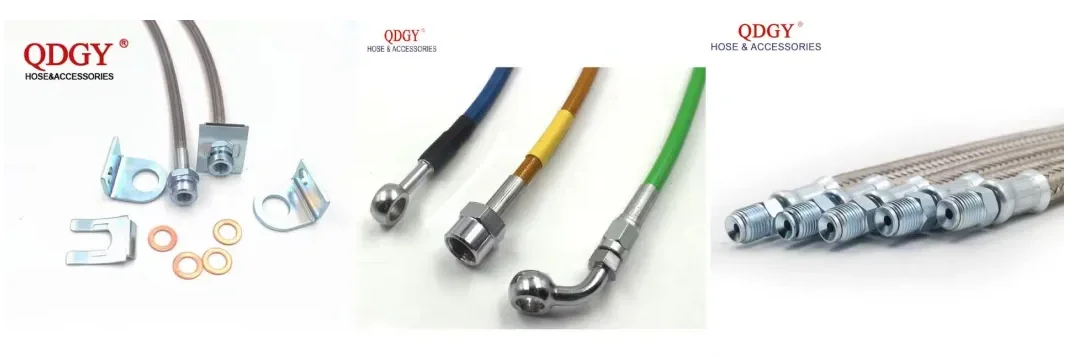

We can produce fitting according to your drawings or samples ,or your description .We have our design and research department
to cooperate with you that to meet your any demond for your market development .We can accept usual practice fittings ,also we like the new fittings development and we have capacity to help you to research and develop the new products.

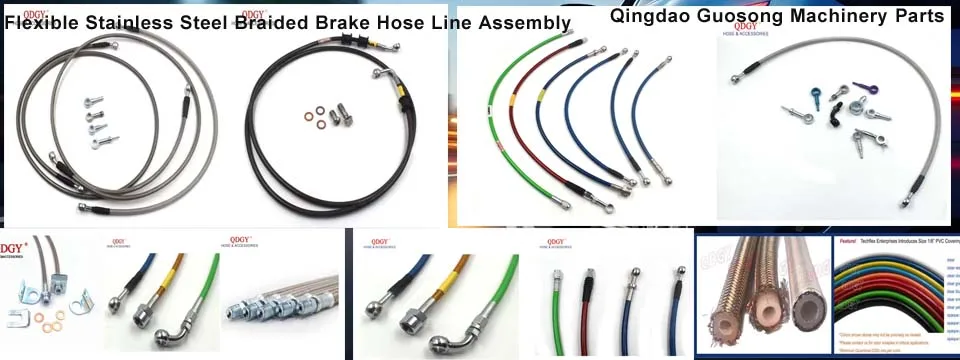

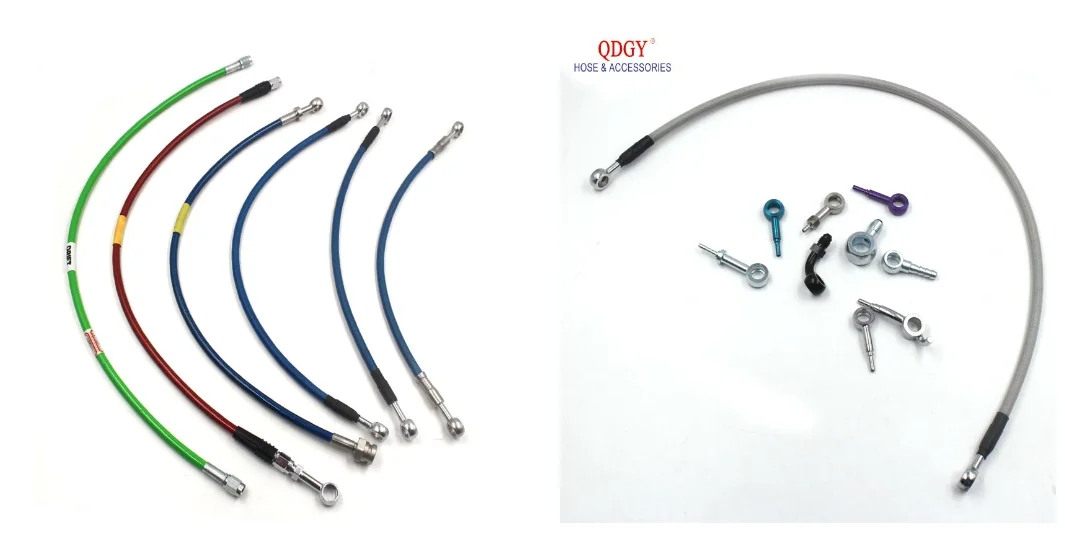

Related Products
Stainless Steel Braided PTFE Hose AN3,AN4,AN6,AN8,AN10,AN12,AN16

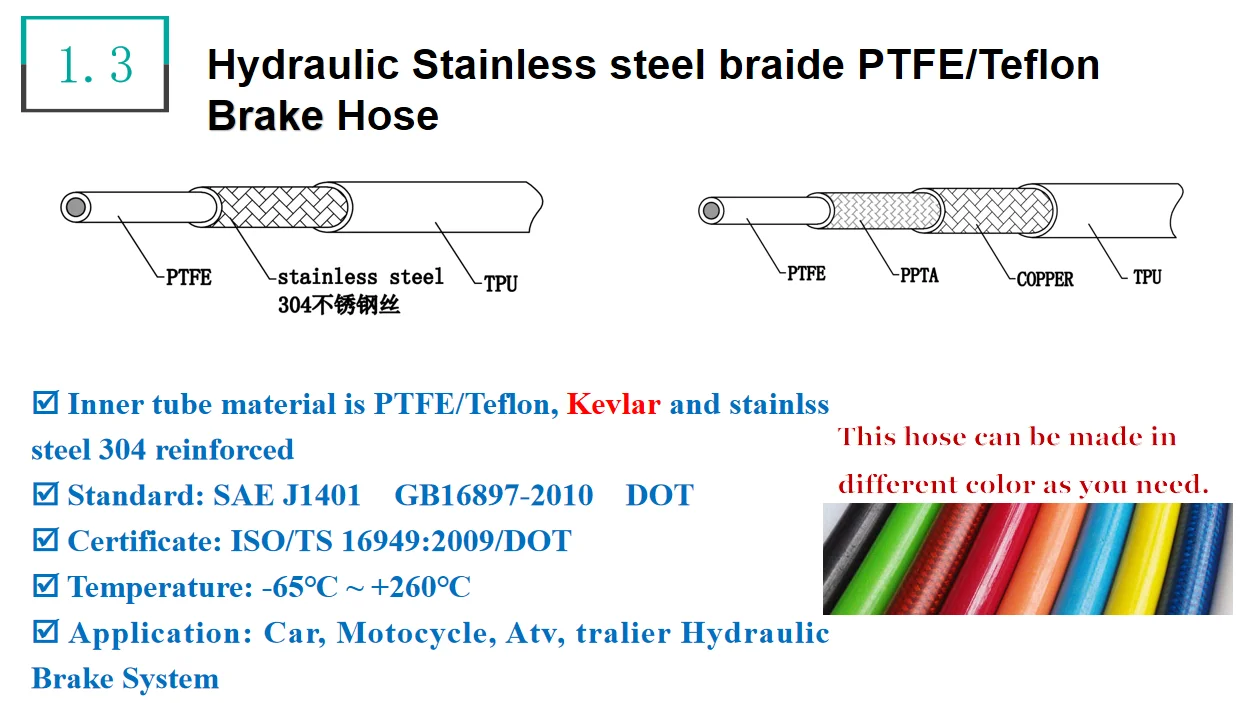

Hydraulic Stainless steel braided PTFE/Teflon Brake Hose Size List
| Hydraulic Brake Hose Size List | |||||||
| SN. | Inch | Specification MM | I.D MM | O.D MM | Thickness MM | Wall Diff. MM | Burst Pressure Min.PSI. |
| AN3 | 1/8 | 3.2×6.5 | 3.30±0.20 | 6.50±0.30 | 1.60 | 0.25 | 12000 |
| AN3 | 1/8 | 3.2×7.5 | 3.30±0.20 | 7.50±0.30 | 2.00 | 0.25 | 12000 |
| AN3 Kevlar | 1/8 | 3.2×8.0 | 3.30±0.20 | 8.0±0.30 | 2.35 | 0.25 | 12000 |
| AN4 | 3/16 | 4.8×8.0 | 4.80±0.20 | 8.0±0.30 | 1.6 | 0.25 | 12000 |
| AN4 | 3/16 | 4.8×9 | 4.80±0.20 | 9±0.50 | 2.1 | 0.3 | 12000 |
| 1/4 | 6.3x15.0 | 6.3±0.20 | 15.0±0.30 | 7.35 | 0.3 | 12000 | |
| AN6 | 21/64 | 8.13x11.0 | 8.13±0.2 | 11.0±0.3 | 1.5 | 0.2 | 10000 |
AN8, AN10, AN11,AN12, AN16, AN20 hose details please find Rita he ,
all we have .
Packaging & Shipping
Our QDGY product SAE J1401 brake hose,Teflon brake hose,Steel tube,OE No. rubber brake hose assembly,
Teflon brake line kits,bundy tube assembly and accessories exported to more than 56 contries and districts by sea ,by air or by express post as customer's prefer.
Brake hose assembly package:
- 10-50pcs in one plastic bag
- Single package by plastic bag
- Single package by plastic bag with sticker and label
- Single package by paper box
- PVC box with label
- Final package is 5 layer carton then in pallet
Quality Control
Burst Pressure test Machine,Hot & Cold test machine,Tensile test machine,Valumeteric expansion test machine ,
Slat Spray test machine,Flex whip test machine.... We supply whole SAE J1401 brake hose Test process ,and stricly high quality control system promote us to go to futher bright future,if you want high quality and reasonable price ,find us,we will satisfy you.
Test Items | Test Condition | Standard | Test Results |
ID | Normal | 3.2mm | 3.15~3.45mm |
OD | Normal | 10.5mm | 10.30~10.70mm |
Expansion | 1000psi | 0.33cc/ft max. | 0.14~0.16cc/ft |
1500psi | 0.42cc/ft max. | 0.20~0.22cc/ft | |
2900psi | 0.61cc/ft max. | 0.41~0.43cc/ft | |
Burst | 4000psi×2min;pressure rated 25,000±10,000psi/min | >7000psi No seepage | >10,500psi |
Whip | 235~250psi | >35h | >70h |
Tensile | tensile speed:218±3mm/min | >1446N | 2400N |
Cold Bend | -45°C ~-48°C× 72h, 3-5s,bending180° | No cracking | No cracking |
Ozone | 100pphm×70h×40°C, 7X | No cracking | No cracking |
Impulse | 146°C 1±0.1min at 1600psi+70 | >7000psi No crack | >7500psi |
Compatibility | 120°C × 70h | >7000psi No seepage | >8800psi |
Salt Spray | 5%NaCl, 24h,water cleanout in 35°C | No red rust | No red rust |
Water Aging | Water in 85±2°C,after 70h~72h 4000psi × 2min;pressure rated 25,000±10,000psi/min | >7000psi; >35h; >1446N | >10250psi;>60h; >2200N |
Certificate:
Our Certifications
We are a member of Trade Assurance service in //alibaba.com. that is new service provided by alibaba,which can provides buyers with a number of trade safeguards protect buyers' payment to suppliers, and to ensure suppliers fulfill their obligations regarding order and delivery time and product quality.

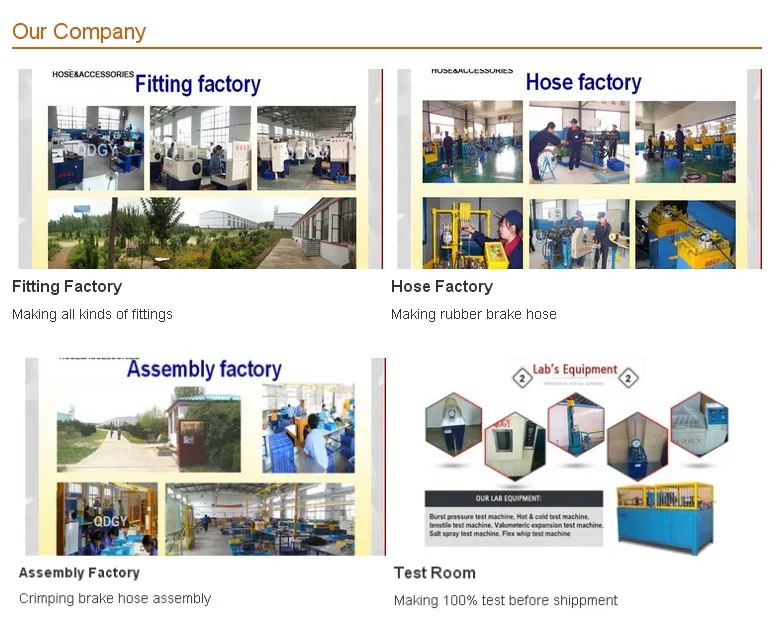

Company Information
QDGY founded at 1998, the Co. has been expanded to the leading brake hose manufacturer in China now. It has more than 300 staff, buildings occupying area about 6,000 square meters . The sections include Marketing Department, Hose Factory and Fitting Factory.
Our QDGY brake hose, hose assembly and fittings are manufactured with variety of superior materials to meet varied requirements of Automobile and Motorcycle Industry especially in aftermarket even OEM market. Now our products 90% are being regularly exported to Europe, U.S.A., South East Asia, altogether over 56 countries and win a high reputation and honor for us.
Our QDGY brake hose, hose assembly and fittings are manufactured with variety of superior materials to meet varied requirements of Automobile and Motorcycle Industry especially in aftermarket even OEM market. Now our products 90% are being regularly exported to Europe, U.S.A., South East Asia, altogether over 56 countries and win a high reputation and honor for us.
Qingdao Guosong Machinery Parts Co.,Ltd first began brake hose & fitting & assembly operations in China in 1996.The premier OEM's rely on the service ,quality and performance of the brake hose assemblies.QDGY has the capability to design and provide complete validation testing to the customers requirements.
We offer the most comprehensive assortment of brake hoses and PA and plating coated steel line in the industry. In addition, we offer a complete line of fittings and unions to complete the job.
QDGY factory is the professional manufacturer of rubber brake hose,stainless steel braided teflon brake hose,all kinds of fitting,brake hose assembly,bundy tube,and all kinds of accessory.
Welcome to visit our website:www.qdgybrakehose.com
QDGY factory is the professional manufacturer of rubber brake hose,stainless steel braided teflon brake hose,all kinds of fitting,brake hose assembly,bundy tube,and all kinds of accessory.
SAE J1401 brake hose:
3.2x10.5mm rubber brake hose
4.8x12.5mm DOT approved brake hose
Teflon brake hose:
3.2x7.5mm -3AN teflon braid brake hose
3.2x6.5mm stainless steel braid brake line
4.8x8.0mm -4AN teflon brake line
Steel tube:
3/16" steel pipe
1/4" bundy pipe
3/8" bundy tube
5/16" steel tube..single wall bundy tube

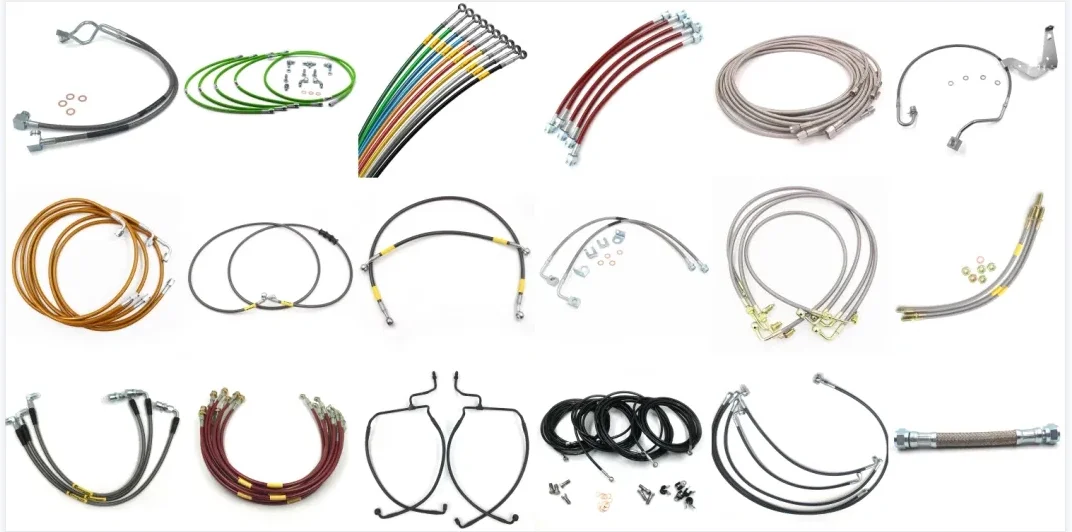

OE No. rubber brake hose assembly,Teflon brake line kits,bundy tube assembly
Accessory:
Rubber accessory,steel accessory,plasitc accessory.
How to Contact Us:
Sales Manager : Rita He
empolder(at)qdgybrakehose.com
Qingdao Guosong Machinery Parts Co.,Ltd
#16-1-301 Huada Mansion,No.6 Yaner Dao RD,266071,Qingdao China
Tel: +86-532-85779141 Fax: +86-532-85760225
Cell Phone: +86-15066792971
MSN: qdgy_rita(at)hotmail.com Skype: qdgyrita
Website://www.qdgybrakehose.com
alibaba website: //www.qdgybrakehose.cn
QDGY is resourceful for brake hose,brake hose fittings and banjo bolts and nuts ! welcome you to visit our company website or Alibaba homepage !
Welcome to visit our website:www.qdgybrakehose.com
