Cheap Competitive hexagonal grid Chicken wire mesh for sale
US $5.00-$50.00

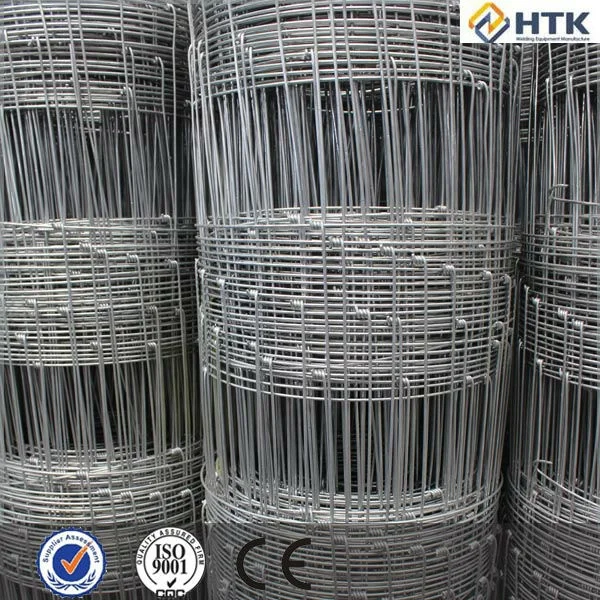

Factory price galvanized steel wire mesh/grassland fence/iron lock fence for confining cattle and sheep
- Category: >>>
- Supplier: HEBEI HTK TECHNOLOGY CO. LTD
Share on (1601202080847):
Product Overview
Description
Product Description

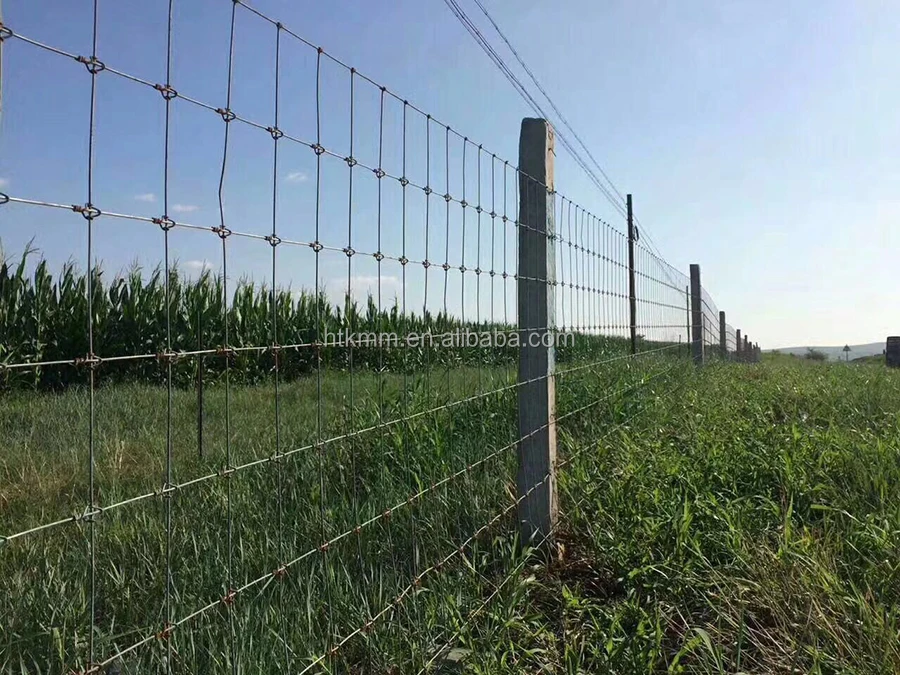

Fixed knot deer fence
Fixed knot Field Fence also called Deer fence, Cattle fence, Horse fencing,cattle wire, is a grassland grazing, closed forest, grassland ecological protection fence. It is made up with high-strength galvanized steel wire by advanced machinery.
Product Paramenters
Product Name | Fixed knot deer fence |
Maximum fence width | 2072mm(82'), 2438mm(96'') |

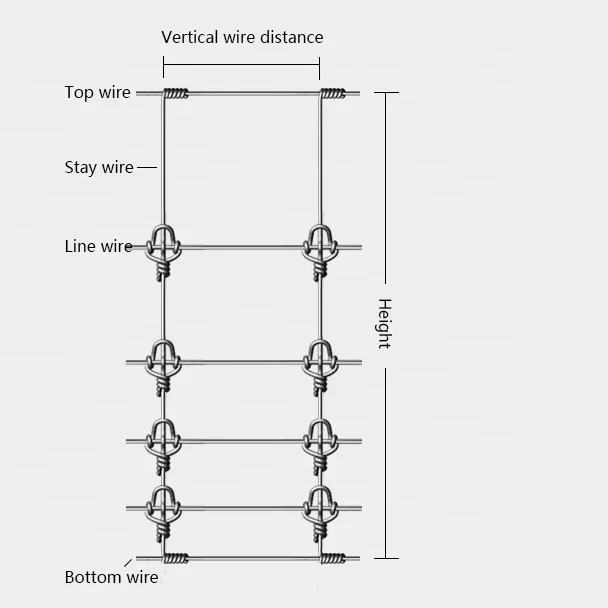

Line wire spacings | Height:2072mm(82''): 18 line wires: 76mm(3'')*6+100mm(4'')*2+127mm(5'')*2+152mm(6'')*3+178mm(7'')*4 Height:2438mm(96''): 20 line wires: 76mm(3'')*6+100mm(4'')*2+127mm(5'')*2+152mm(6'')*3+178mm(7'')*6 |
Stay wire spacings | 75mm,150mm,225mm,300mm,450mm |
Material | low carbon steel wire,middle carbon steel wire |
Surface Treatment | Hot dipped galvanized(zinc coated:220-260 g/m2) Hot dipped galvanized(zinc coated:60-70 g/m2) Electro galvanized(zinc coated:15-20 g/m2) |
Wire diameter | Bottom/top wire diameter: 2.5mm-3.0mm Stay/line wire diameter: 2.0mm-2.5mm Knot wire diameter: 2.0mm,2.2mm |
Tensile range | Line wire tensile:850-1350N/mm2 Stay wire tensile:525-850N/mm2 Knot wire tensile:400-525N/mm2 |
Max length of roll | 100m/roll |

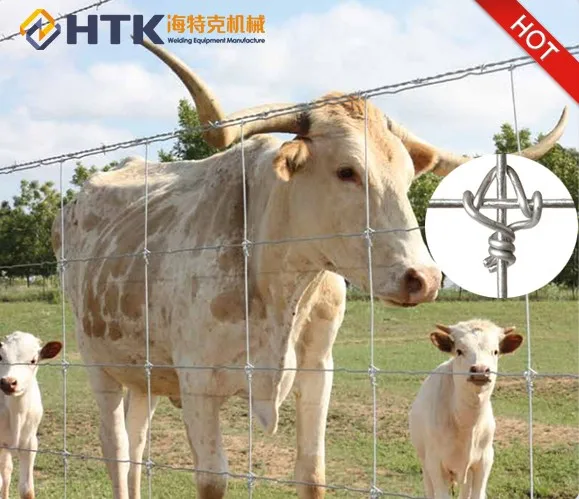

Application | deer fence, sheep fence, cattle fence, horse fence |
Feature | Eco-friendly, Corrosion resistant, easy-installing, Long service life, strong structure, precise surface, High tensile, beautiful and good safety performance |

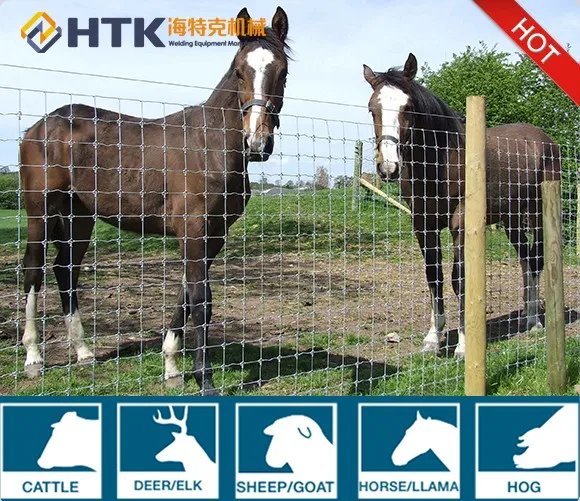

Applications
deer fence
horse fence

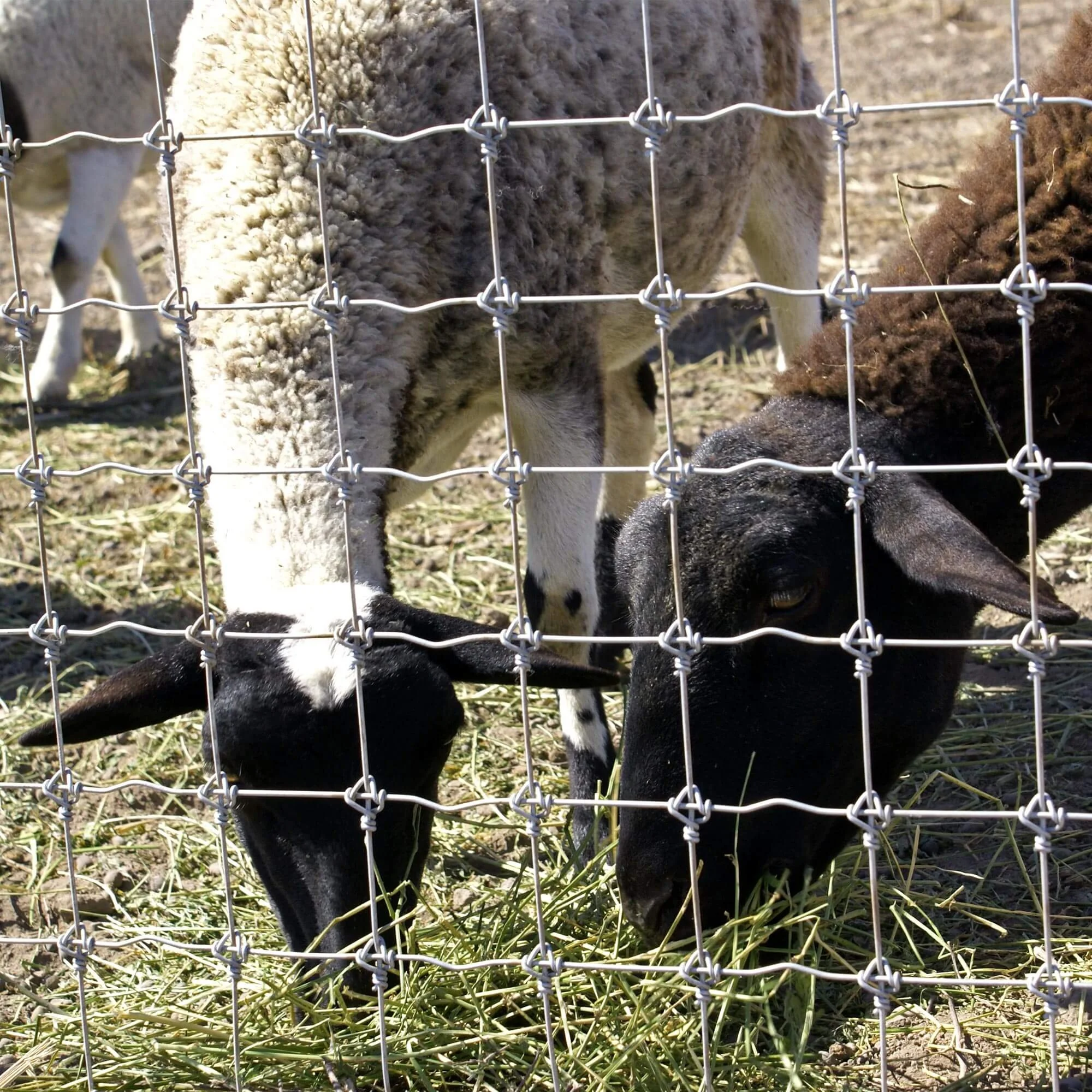

sheep fence
cattle fence
farm/field/grassland fence
Details Images

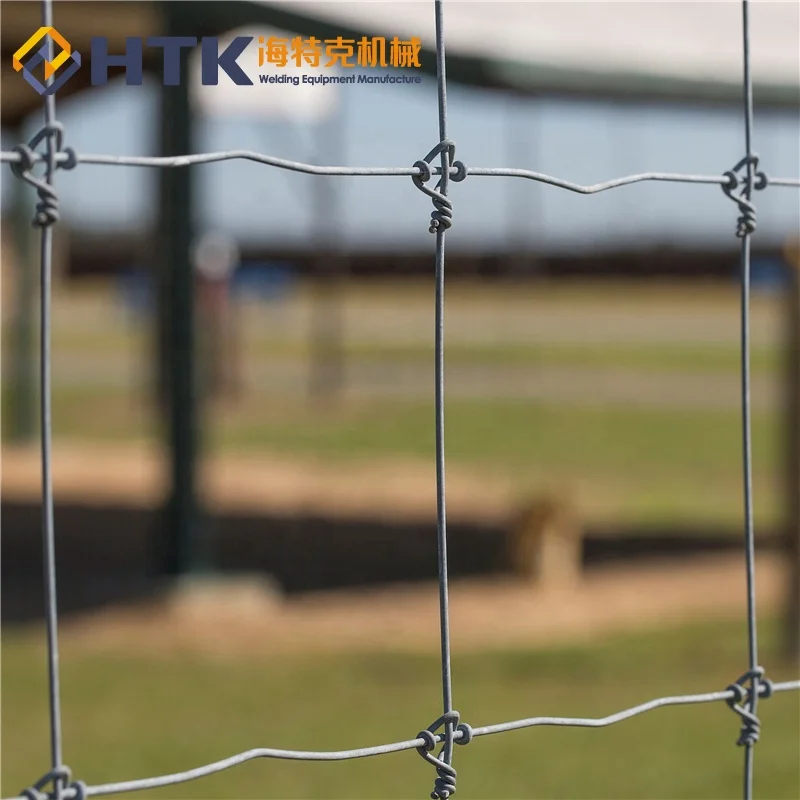

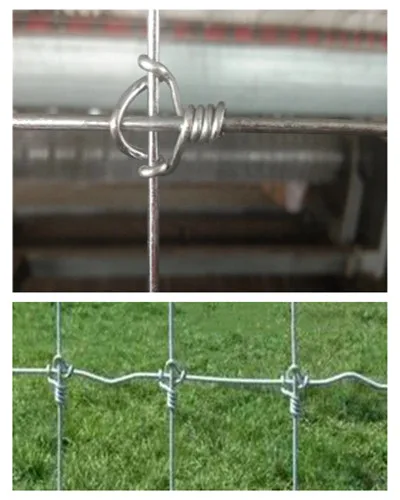

Edge wire is made up of hinge joint knot.

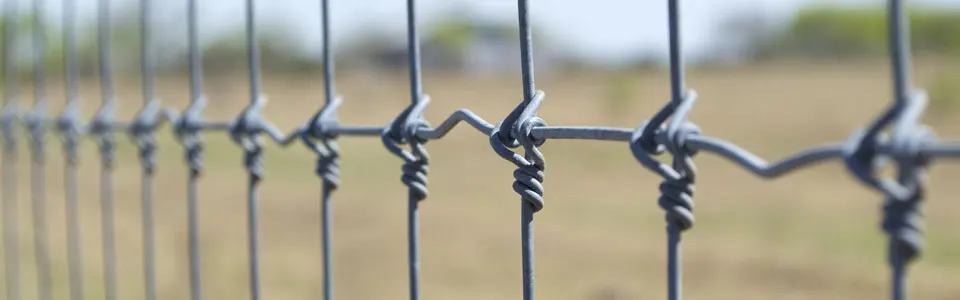

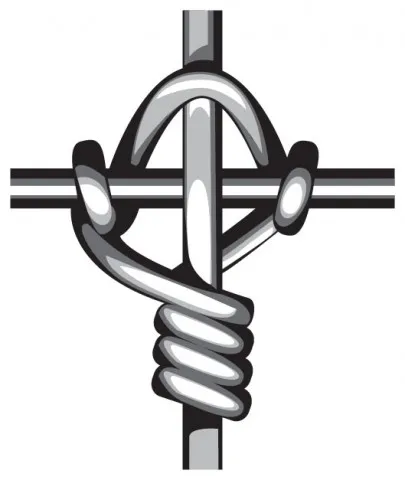

Inner wire is made up of fixed knot to add the stability and the impact-resistance.
The fixed knot is designed to protect the animals safety. It is combined with the curve bending design to be stable and beautiful.

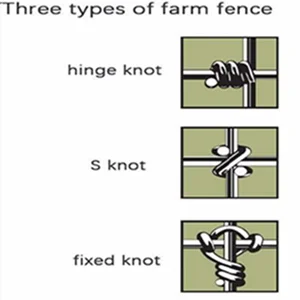

There are three types of knot to choose from.

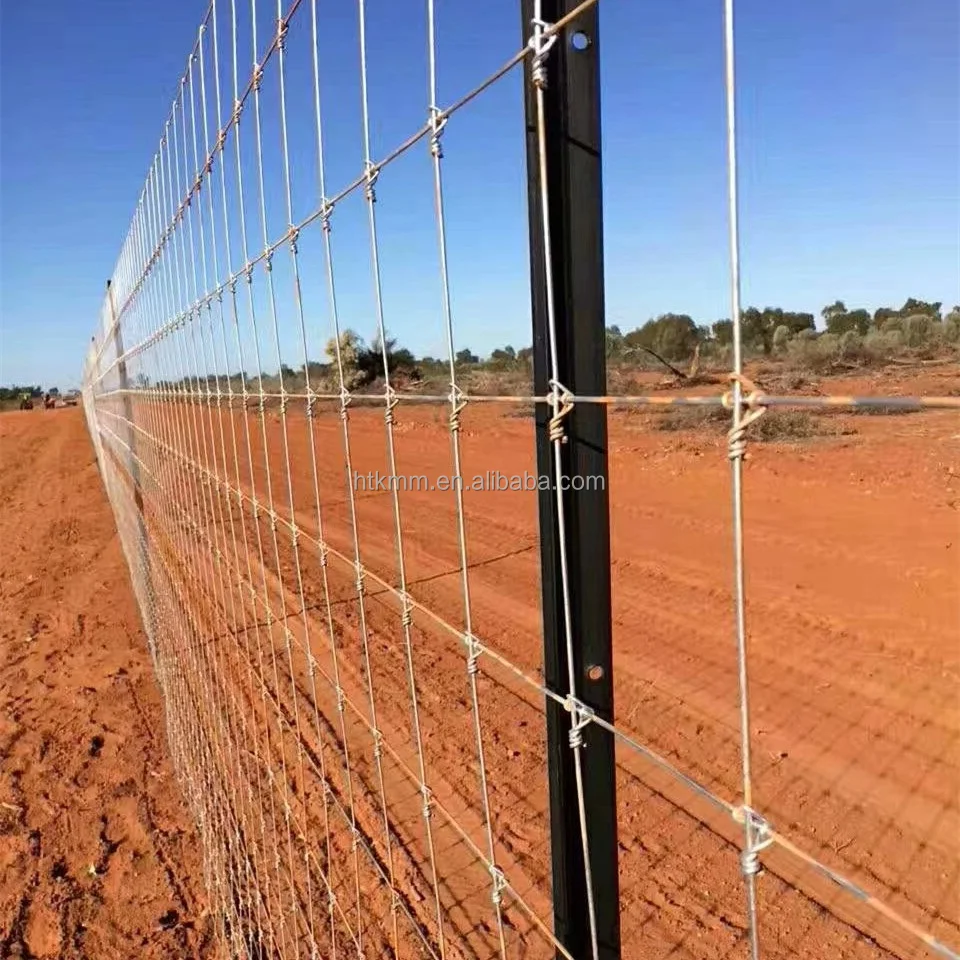

The fixed knot fence is proper to match with the Y post to install.

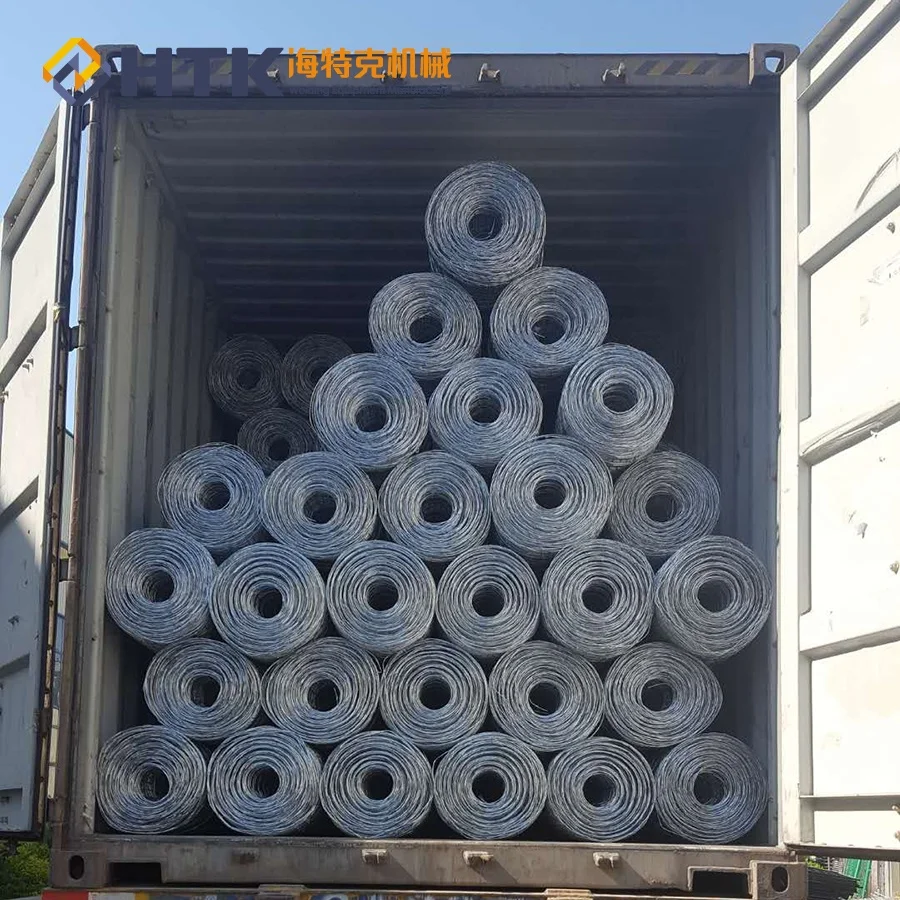

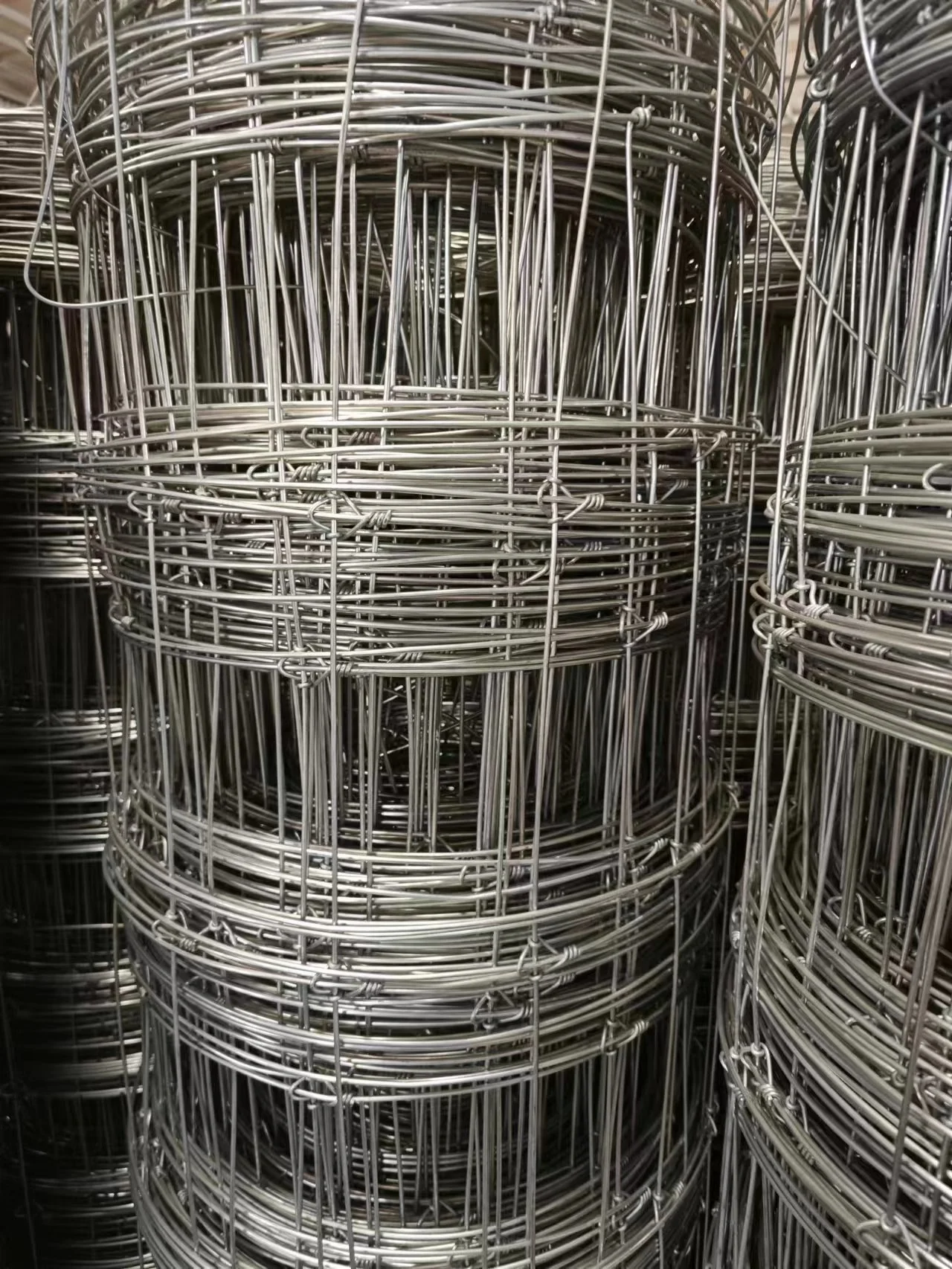

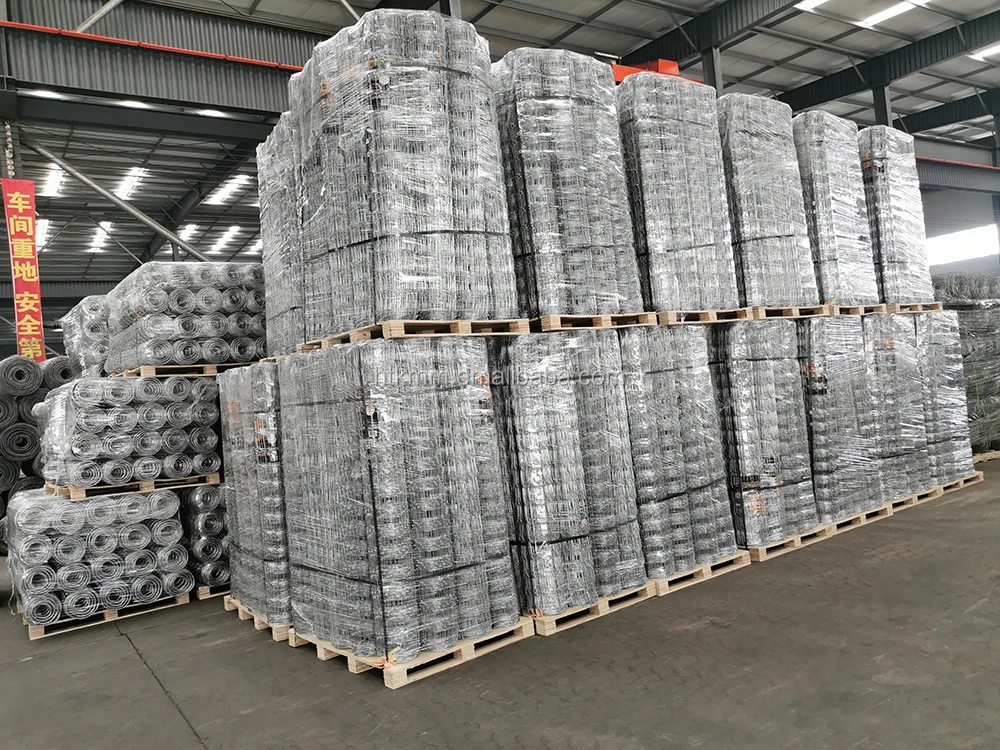

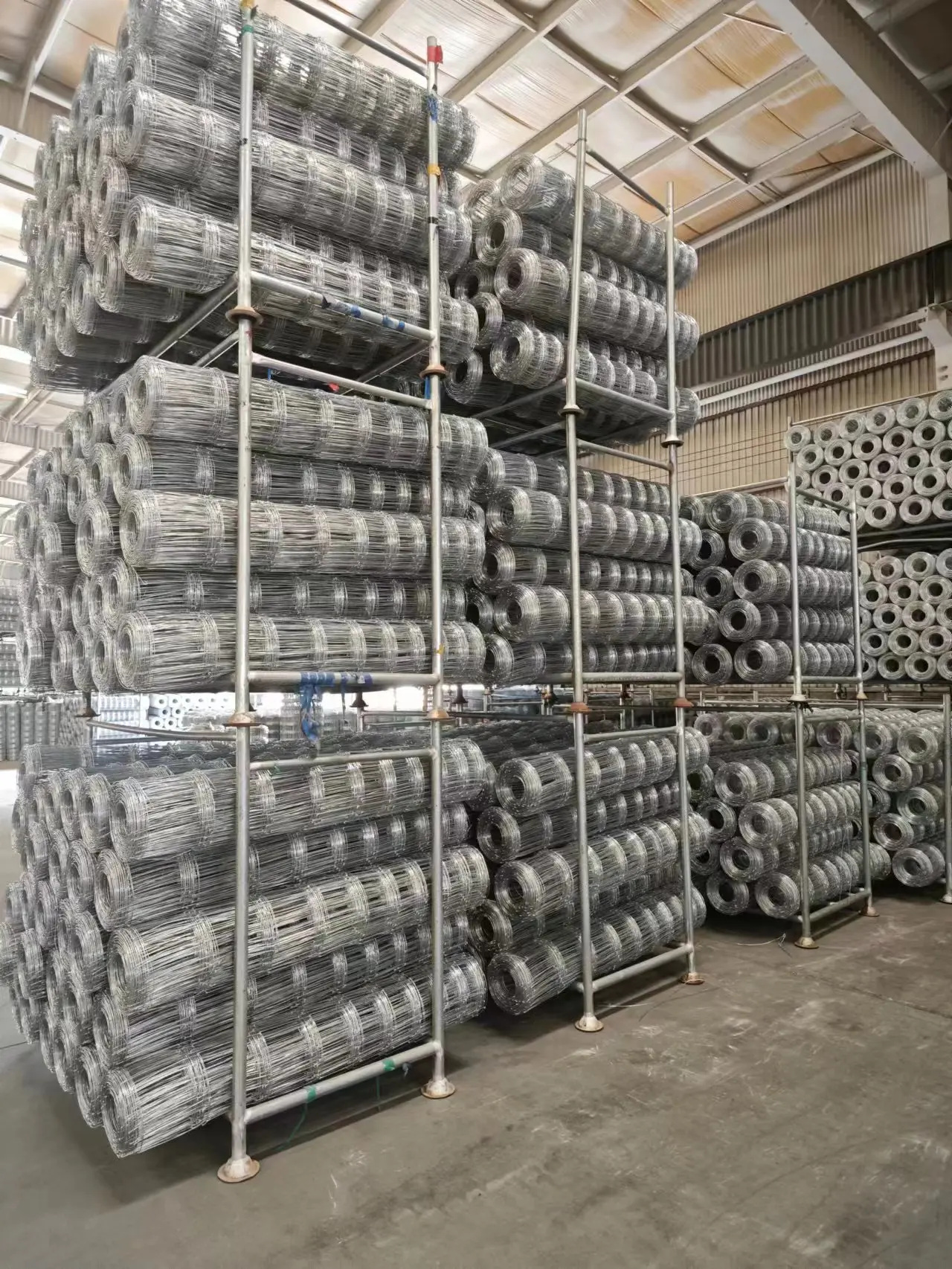

Product packaging
