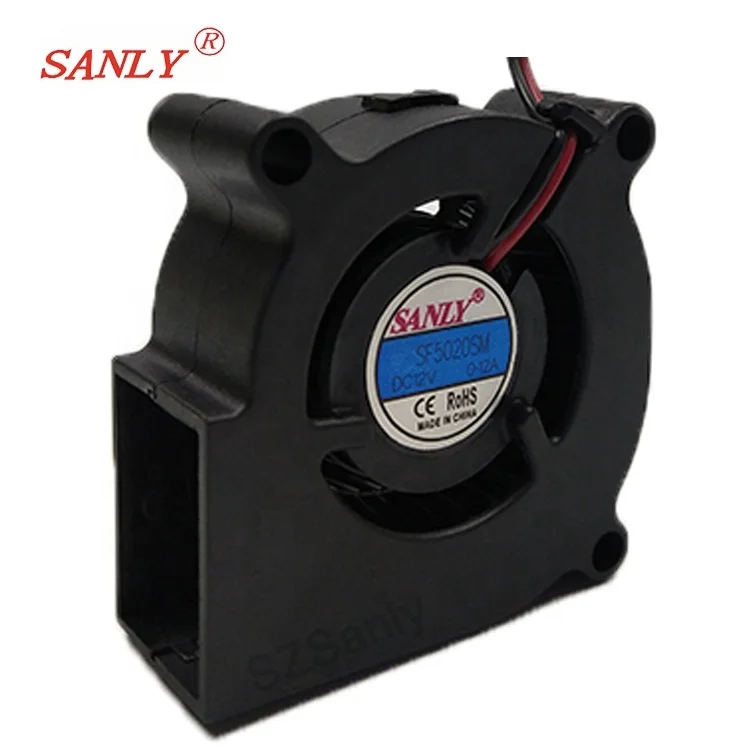

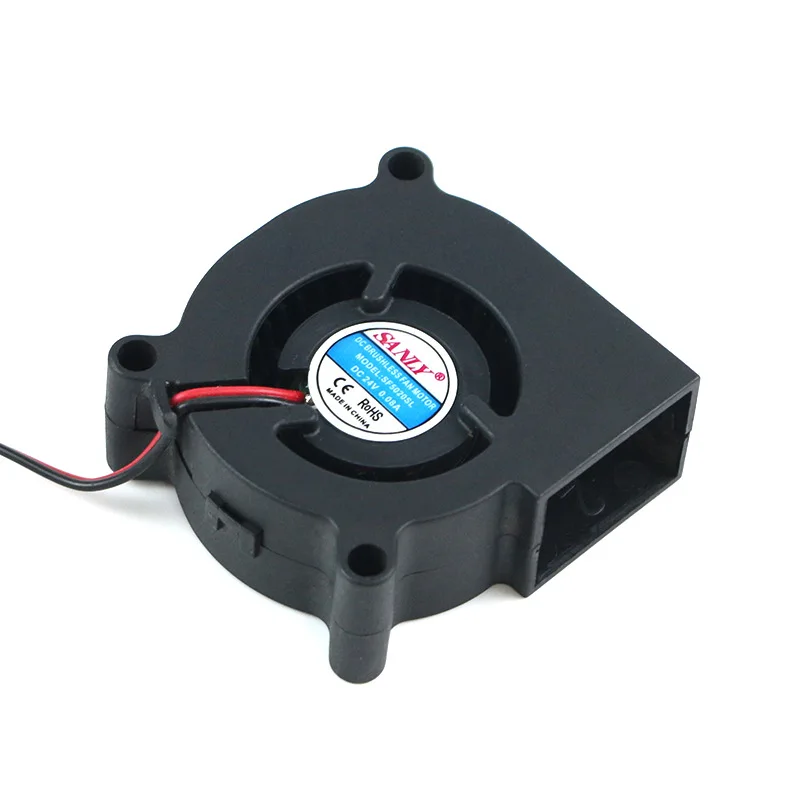

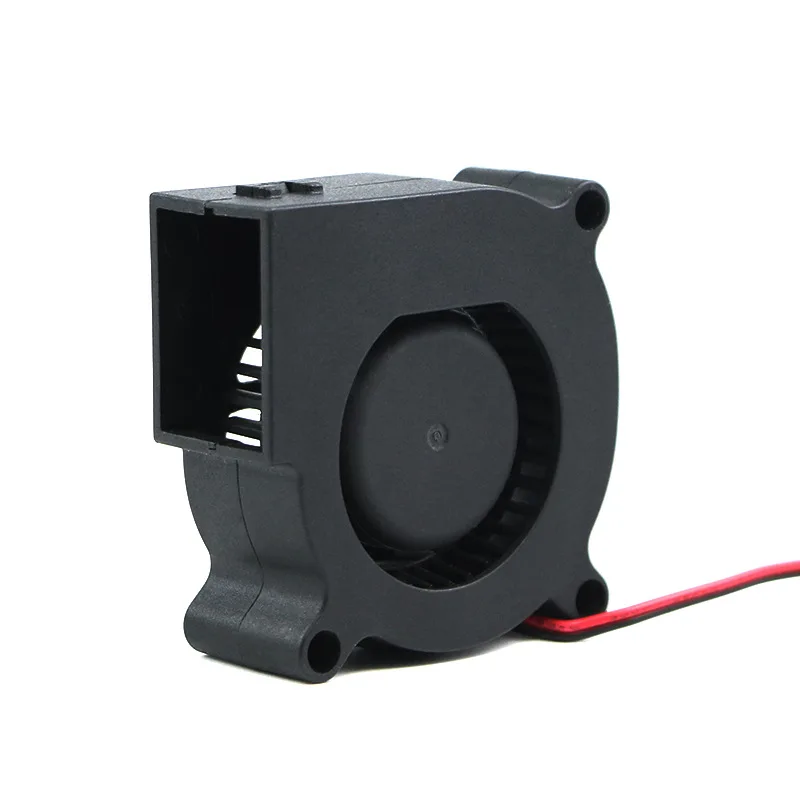

5020 12v Rated Voltage Cooling Fan 3000rpm Speed Ventilation Small Centrifugal Blower 50x50x20mm
- Category: >>>
- Supplier: Shenzhen Sanly Electronic Co. Ltd.
Share on (1601202089508):
Product Overview
Description

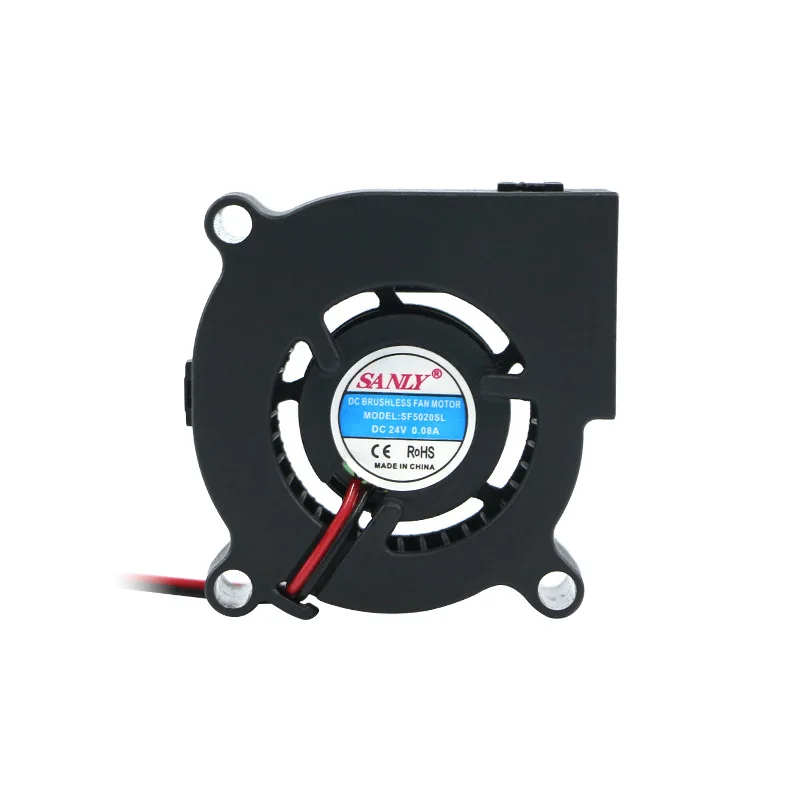

DC Blower Fan
Applications
3D Printer, Refrigerator, Freezer, Wine Refrigerator, Air purifier,Toy, Electric Equipment, Notebook, Laptop, Mini-projector, Humidifier, Medical Device, etc.
Introduction
1. Bearing Type: High precision Sleeve bearing
2. Frame & Impeller: Termoplastic PBT UL 94V-0
3. Operating Temperature: -10℃ ~ 60℃
4. Waterproof Grade: IP44
5. Insulation Grade: Standard grade is B grade
6. Motor: DC brushless motor
8. Fan Rotation: Clockwise
9. Lead Wire: RED: (+), BLACK: (-); 2.5-2P / NOP(Tin exposed 5mm) wire connector
10. Protection: Reverse protection; Auto Re-start protection.
11. Certification: CE, RoHS
Note
1. Life expectancy: 15000~20000 hours
2. Possible special version:
(1) High intelligent PWM speed control function;
(2) TC temperature control, RD alarm, FG signal feedback;
(3) IC protection, with blocking, automatic restart function;
(4) Waterproof function;
(5) Environmental protection function;
3. Features of the cooling fan: large air volume, long life, low noise, low vibration and good running stability.
4.After-sales service: In case of quality problems, the company promises to guarantee one year.
FAQ
Q1: Are you a factory or trading company ?
A1: We are a factory.
Q2: What is DC Fan and AC fan?
A2: DC fan is powered by DC voltage,normal voltage is 5V 12V 24V.
AC fan is powered by AC voltage,normal voltage is 110V,220V and 380V.
Q3:How about the lifetime of fan?
A3:
Q4: What effects the quoted price for the fan?
1 size of the fan, 2 voltage, 3 current,
4 speed, 5 air flow, 6 noise,
7 bearing type, 8 two wire or three wire, 9 cable length,
10 connector type, 11 function, 12 quantity
