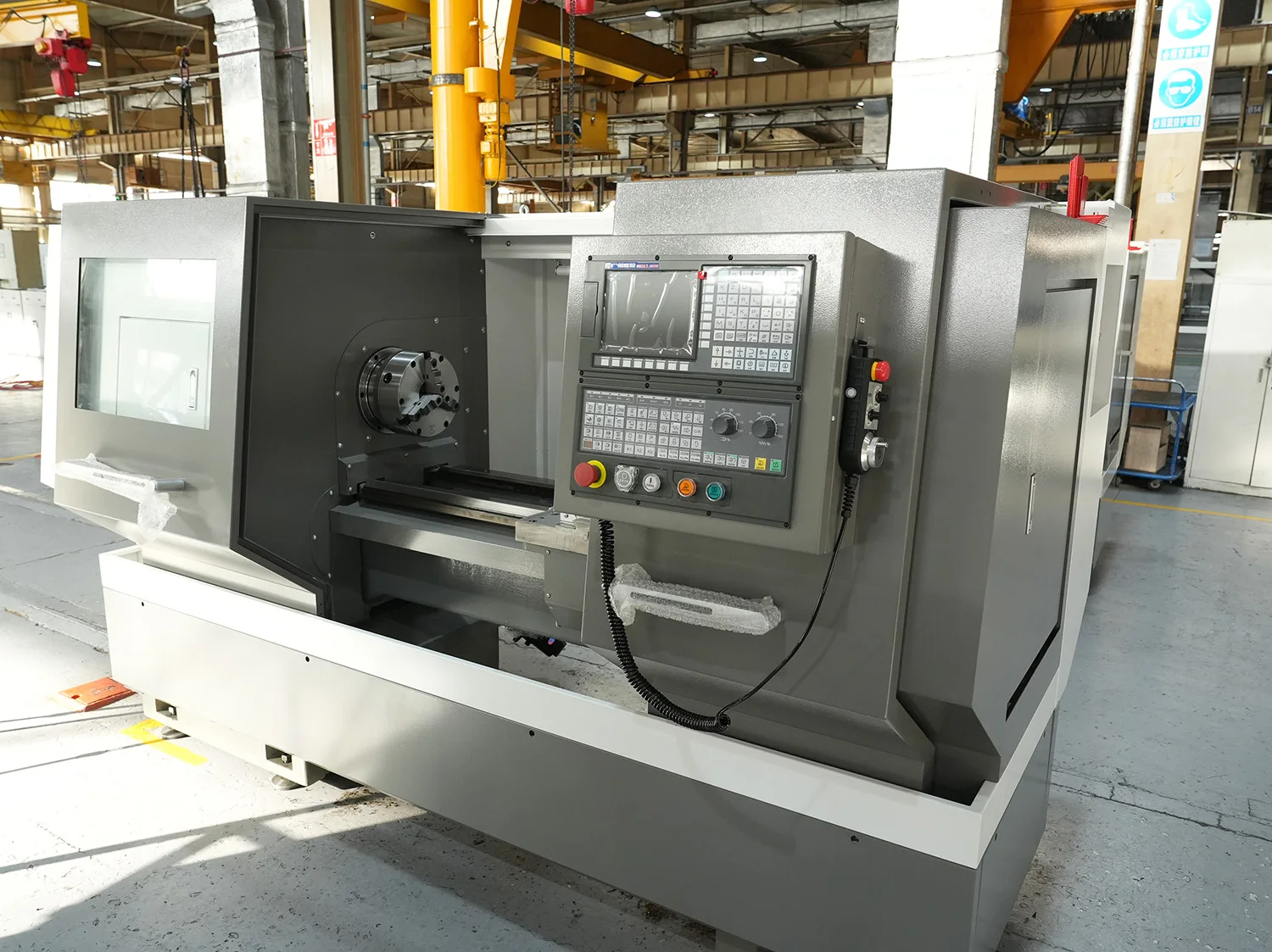

GT SMTCL CAK5085 Automatic Mini Lathe Cnc Torno Cnc Lathe Prices Lathe Machine Cnc
- Category: >>>
- Supplier: Genertec Dalian Machine Tool(Wafangdian) Co. Ltd.
Share on (1601202090465):
Product Overview
Description
VR
Product Details
Item | Unit | CAK50 | ||||
Specification | 85L | 85P | 85 | |||
Max.parts length | mm | 900 | 890 | 890 | ||
Max cutting length | mm | 850 | 770 | 850 | ||
Max swing diameter over bed | mm | Φ500 | Φ500 | Φ500 | ||
Max.swing diameter over slide | mm | Φ280 | Φ300 | Φ300 | ||
Max cutting diameter | mm | Φ500 | Φ400 | Φ500 | ||
Spindle nose type | A2-8 | A2-8 | A2-8 | |||

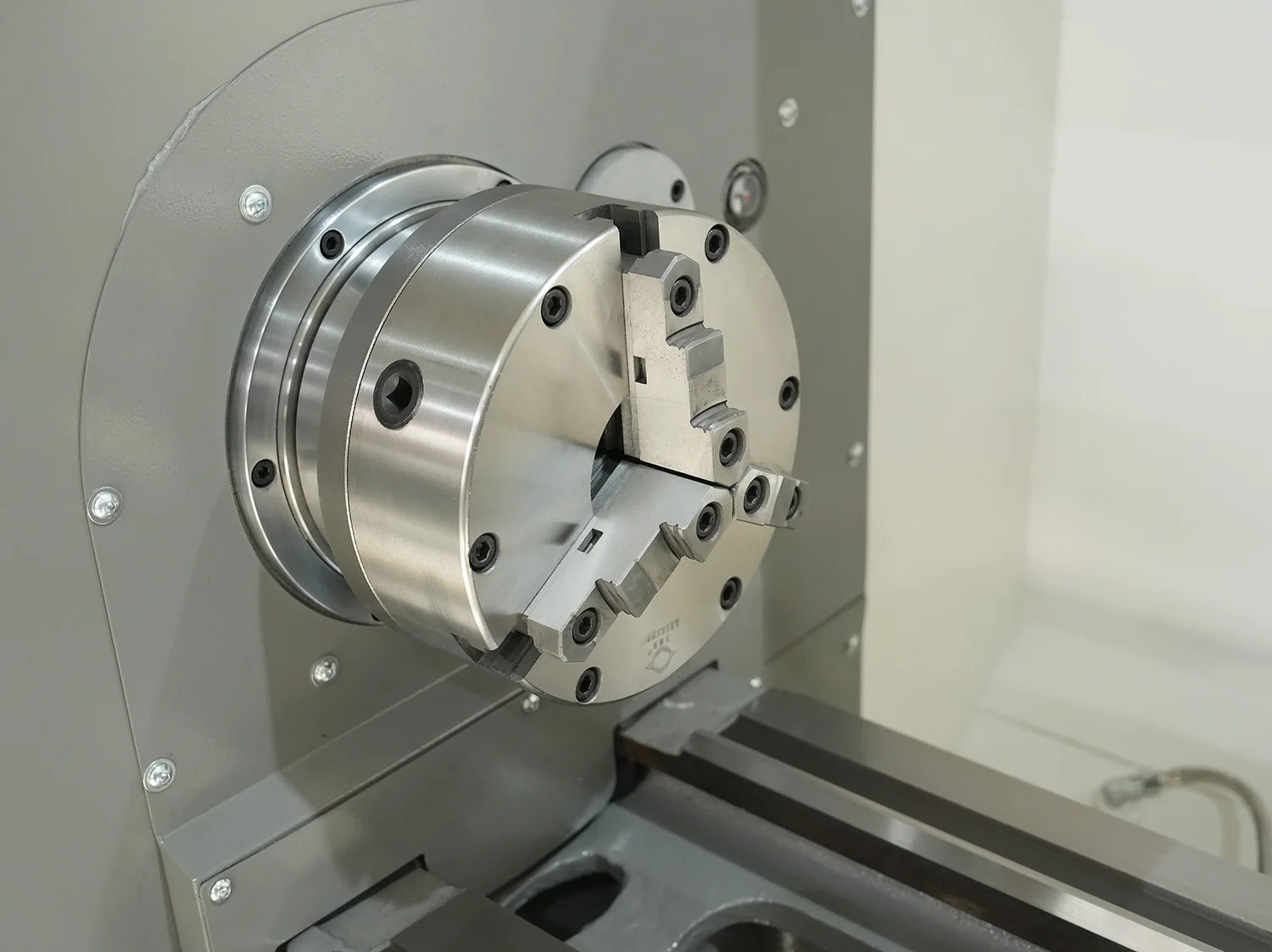

Chuck diameter | mm | Φ250 | Φ250 | Φ250 | ||
Spindle bore | mm | Φ53 | Φ80 | Φ78 | ||
Spindle speed range (Auto 3 step) | r/min | 15-2200 | ||||
Spindle speed range (manual stepless) | r/min | 100-1800 | 22-1800 | |||
Spindle speed range (Auto 3 step,12 grades) | r/min | 40-1800 | ||||
Spindle speed range (Single spindle) | r/min | 30-2500 | ||||
Rated power of main motor | kw | 7.5 (frequency conversion) | 11 (Main servo motor) | 7.5 (Main servo motor) | ||
Rated power of main motor(S series) | kw | 6.5/8(Dual-speed) | ||||
Tailstock quill diameter | mm | Φ75 | Φ75 | Φ75 | ||
Tailstock quill travel | mm | 150 | 150 | 150 | ||

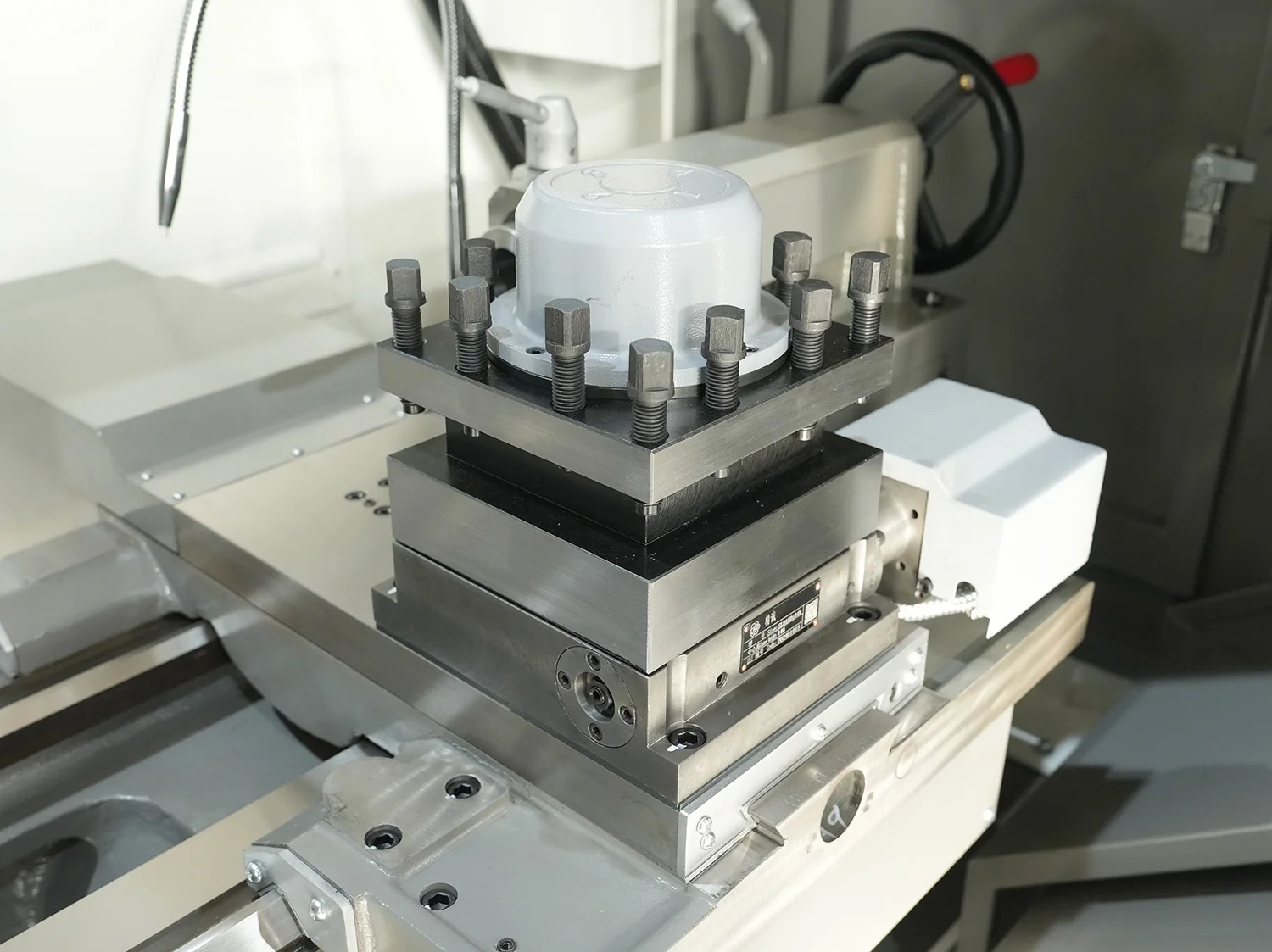

Turret type | Vertical 4 positions | Horizontal 6 positions | Vertical 4 positions | |||
Tool shank size | mm | 25×25 | 25×25 | 25×25 | ||
X/Z axis rapid traverse | m/min | 6/12 | 6/12 | 6/12 | ||
Machining accuracy | IT6~IT7 | IT6~IT7 | IT6~IT7 | |||
X Axis Travel | mm | 260 | 270 | 270 | ||
Z Axis Travel | mm | 850 | 850 | 850 | ||
X axis Positioning | mm | 0.018 | 0.018 | 0.018 | ||
Z axis Positioning | mm | 0.024 | 0.024 | 0.024 | ||
X axis Repeat positioning | mm | 0.006 | 0.006 | 0.006 | ||
Z axis Repeat positioning | mm | 0.011 | 0.011 | 0.011 | ||
Machine net weight | kg | 2200 | 2800 | 2800 | ||
Overall dimension (LxWxH) | mm | 2470*1500*1580 | 2770*1700*1735 | 2770*1700*1735 | ||

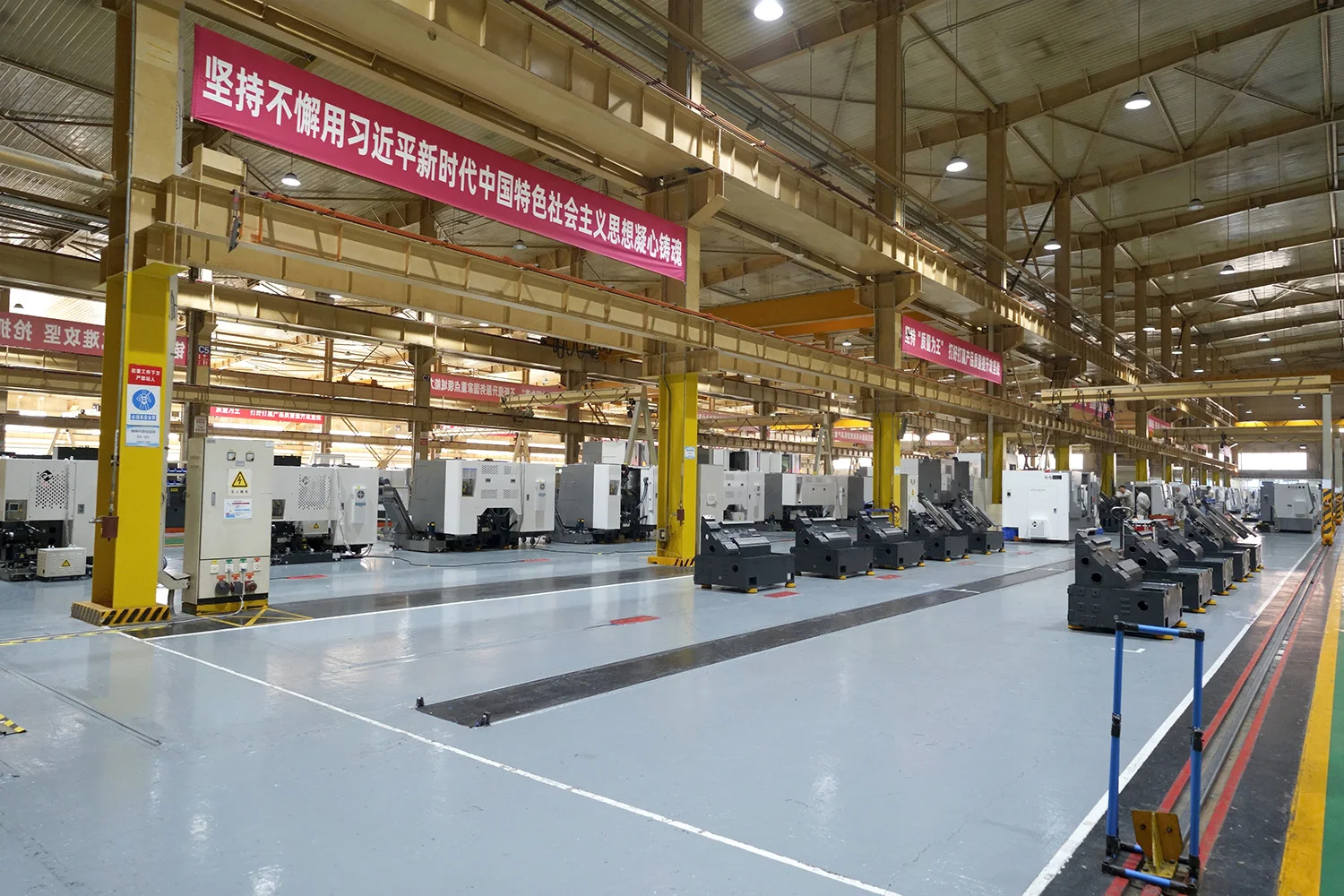

7 Production Bases
