NeoDen YS350 Solder Pasting Semi Auto Smt Pcb Printing Smt Soldering Machine
- Category: >>>
- Supplier: Zhejiang Neoden Technology Co. Ltd.
Share on (1601202131964):
Product Overview
Description
PCB Screen Printing Machine SMD Printer
Product Description
YS350 is a high precision semi-automatic stencil solder printer for PCB board, which is used for PCB solder paste printing in SMT assembly production line.
Features
1. PC control, touch screen display and menu operation interface.

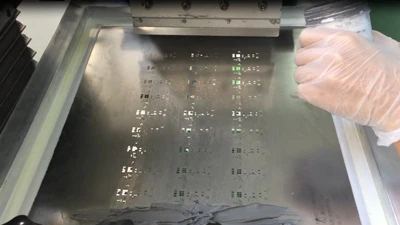

2. Floating scraper, which is similar to automatic printer, the scraper can be floated freely up and down and can be adjusted automatically to level with the steel grid.
3. The pressure of the scraper is adjustable. The pressure of the scraper on the steel grid is adjustable according to the length of the scraper.
4. The process of the steel grid removing from the PCB can be adjustable from 0 to 5 seconds.
5. Use both of your hands to press the button to operate so that the safety and reliability are ensured.
6. The stopping time of the scraper at top left or bottom left, and top right or bottom right, as well as the overall stopping time of the steel gird at top or bottom can be independently set in the touch screen menu.

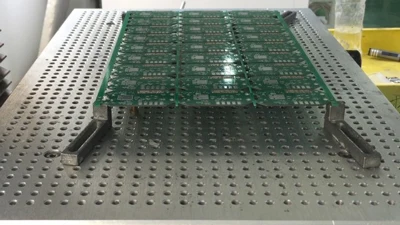

7. The PCB can be localized and fastened by base hole, base side, both base hole and base side, and template localization.
8. Time can be displayed on the touch screen and the count of the printing time can be recorded. The scraper speed at left and right is adjustable and can be stopped in emergency.
2. Floating scraper, which is similar to automatic printer, the scraper can be floated freely up and down and can be adjusted automatically to level with the steel grid.
3. The pressure of the scraper is adjustable. The pressure of the scraper on the steel grid is adjustable according to the length of the scraper.
4. The process of the steel grid removing from the PCB can be adjustable from 0 to 5 seconds.
5. Use both of your hands to press the button to operate so that the safety and reliability are ensured.
6. The stopping time of the scraper at top left or bottom left, and top right or bottom right, as well as the overall stopping time of the steel gird at top or bottom can be independently set in the touch screen menu.
7. The PCB can be localized and fastened by base hole, base side, both base hole and base side, and template localization.
8. Time can be displayed on the touch screen and the count of the printing time can be recorded. The scraper speed at left and right is adjustable and can be stopped in emergency.
Specification
Model | NeoDen YS350 | ||||||
PCB size | Max:400*240mm | ||||||
Printing area | 500*320mm | ||||||

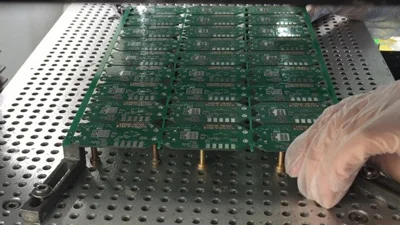

PCB fixed system | Pin positioning | ||||||

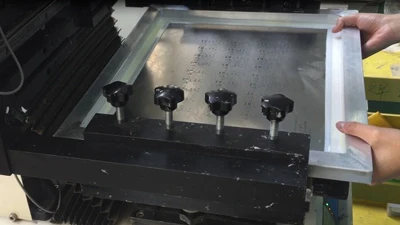

Frame size | L(550-650)*W(370-470) | ||||||
Adjusting for table | Front/rear±10mm, left/right±10mm | ||||||
Printing accuracy | ±0.2mm | ||||||
PCB thickness | 0.2-2.0mm | ||||||
Power supply | AC220V 50HZ | ||||||
Dimension | L800*W700*H1700(mm) | ||||||
Packing size | 1050*900*1850mm | ||||||
Net weight | 230Kg | ||||||
Gross weight | 280Kg | ||||||

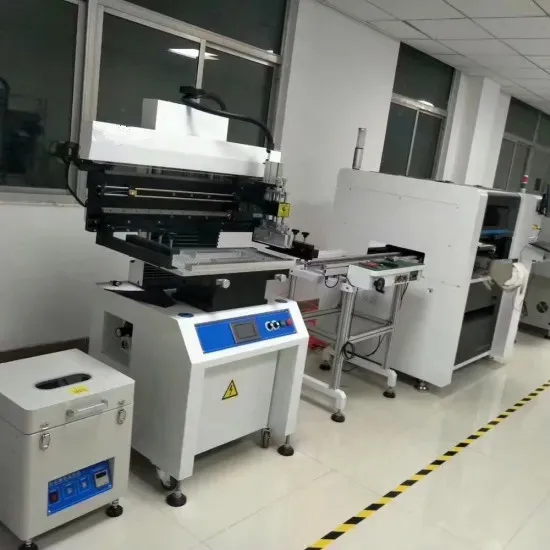

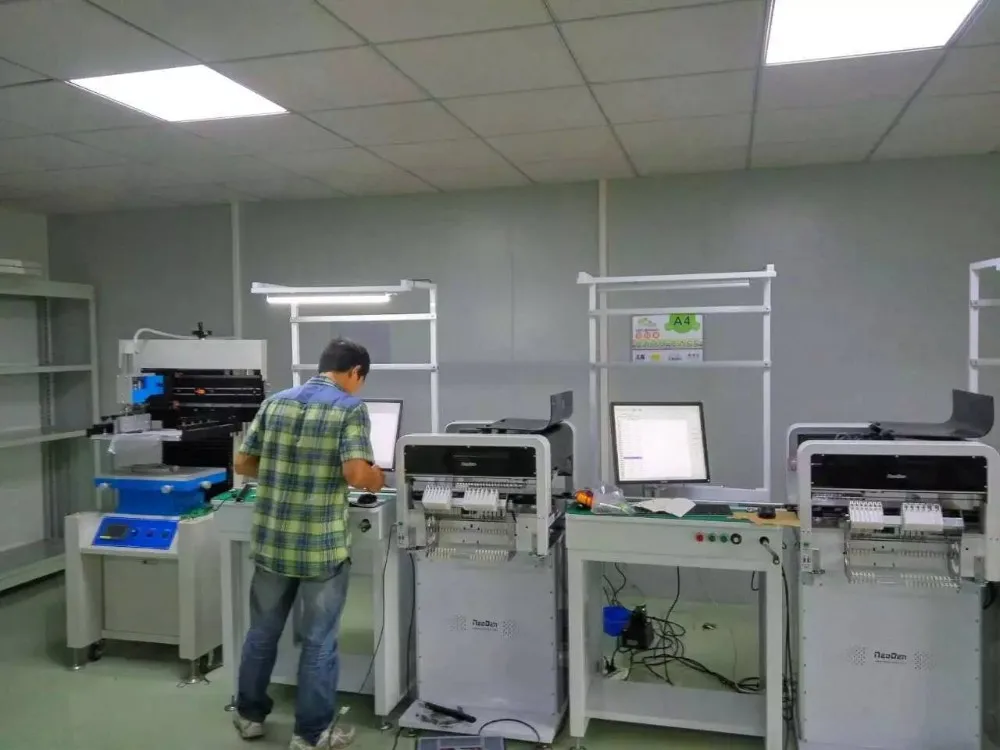

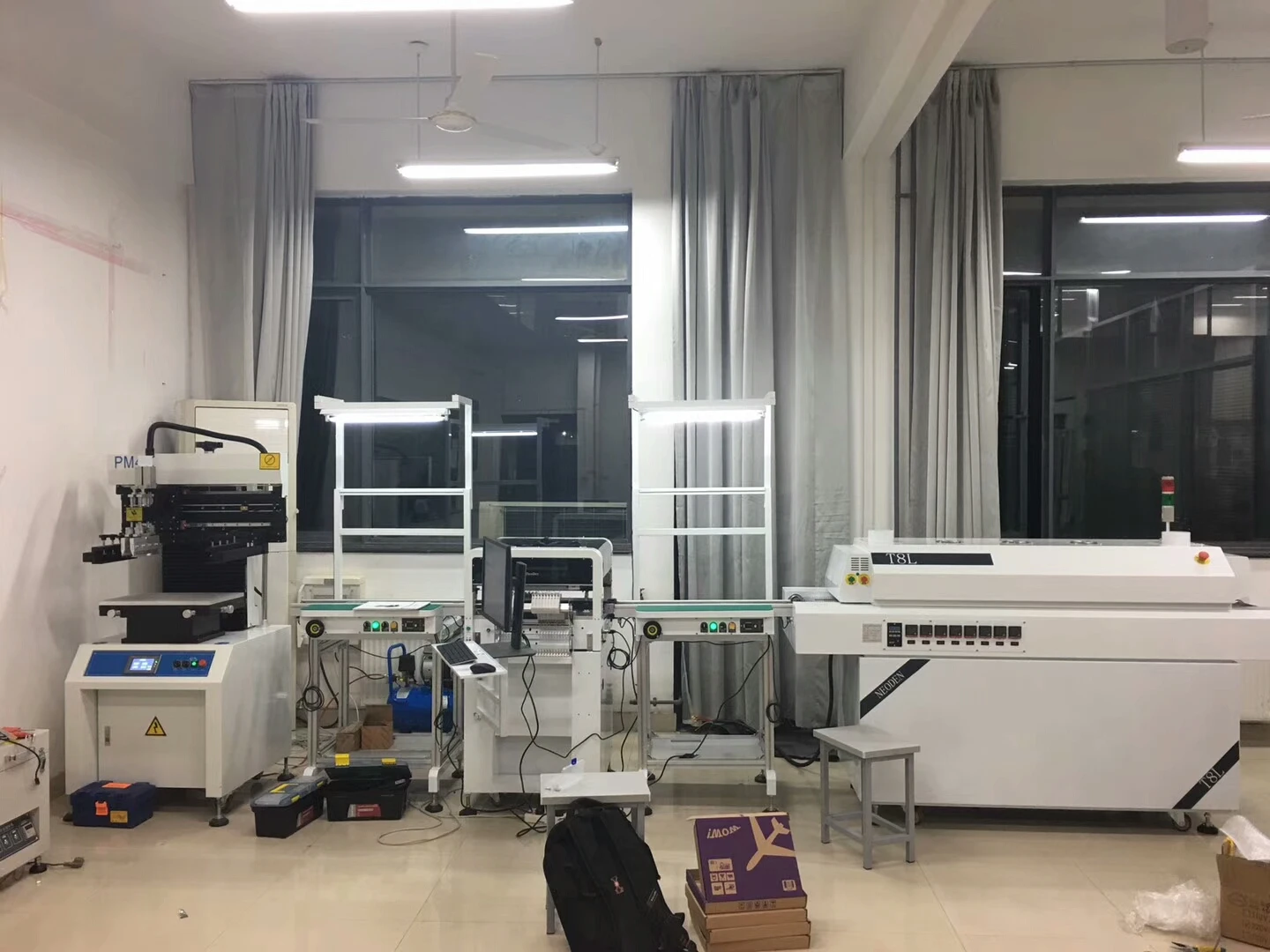

SMT Line
Related Products
About Us
「About NEODEN」
Zhejiang NeoDen Technology Co., Ltd. has been manufacturing and exporting various small pick and place machines since 2010. Taking advantage of our own rich experienced R&D, well trained production, NeoDen wins great reputation from the world wide customers.
With global presence in over 130 countries, the excellent performance, high accuracy and reliability of NeoDen PNP machines make them perfect for R&D, professional prototyping and small to medium batch production. We provide professional solution of one-stop SMT equipment.
In our global Ecosystem, we collaborate with our best partners to deliver a more closing sales service, high professional and efficient technical support.
We believe that great people and partners make NeoDen a great company and that our commitment to Innovation, Diversity and Sustainability ensures that SMT automation is accessible to every hobbyist everywhere.
Payment & Shipping
FAQ
Q1: Do you provide software updates?
For customers who buy our machine, we can offer free upgraded software for you.
Q2: Does our machine need air supply?
We have vacuum pumps inside the machine, it does not need air supply.
Q3: This is the first time I use this kind of machine, is it easy to operate?
We have English user manual and guide video to teach you how to use the machine. If you still have question, pls contact us by email/skype/phone etc for online service.
Q4: How about the warranty?
We have 2 years warranty for NeoDen4, K1830, NeoDen9, In6, IN12 and 1 year for all other models with lifetime after-sale support.
Q5: How can I buy machine from you?
(1) Consult us on line or by e-mail;
(2) Negotiate and confirm the final price, shipping, payment method and other terms;
(3) Send you the proforma invoice and confirm your order;
(4) Make the payment according to the method put on proforma invoice;
(5) We prepare your order in terms of the proforma invoice after confirming your full payment . And 100% quality check before shipping;
(6) Send your order via express or by air or by sea.
For customers who buy our machine, we can offer free upgraded software for you.
Q2: Does our machine need air supply?
We have vacuum pumps inside the machine, it does not need air supply.
Q3: This is the first time I use this kind of machine, is it easy to operate?
We have English user manual and guide video to teach you how to use the machine. If you still have question, pls contact us by email/skype/phone etc for online service.
Q4: How about the warranty?
We have 2 years warranty for NeoDen4, K1830, NeoDen9, In6, IN12 and 1 year for all other models with lifetime after-sale support.
Q5: How can I buy machine from you?
(1) Consult us on line or by e-mail;
(2) Negotiate and confirm the final price, shipping, payment method and other terms;
(3) Send you the proforma invoice and confirm your order;
(4) Make the payment according to the method put on proforma invoice;
(5) We prepare your order in terms of the proforma invoice after confirming your full payment . And 100% quality check before shipping;
(6) Send your order via express or by air or by sea.
If you have any questions, welcome to contact us!
