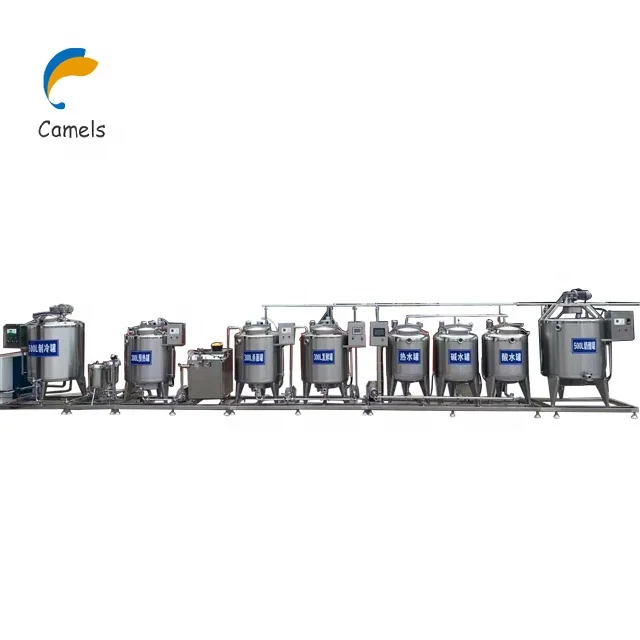

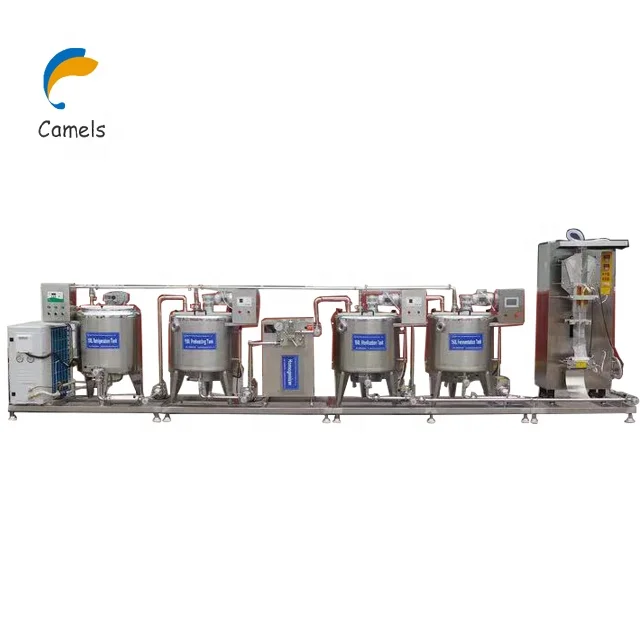

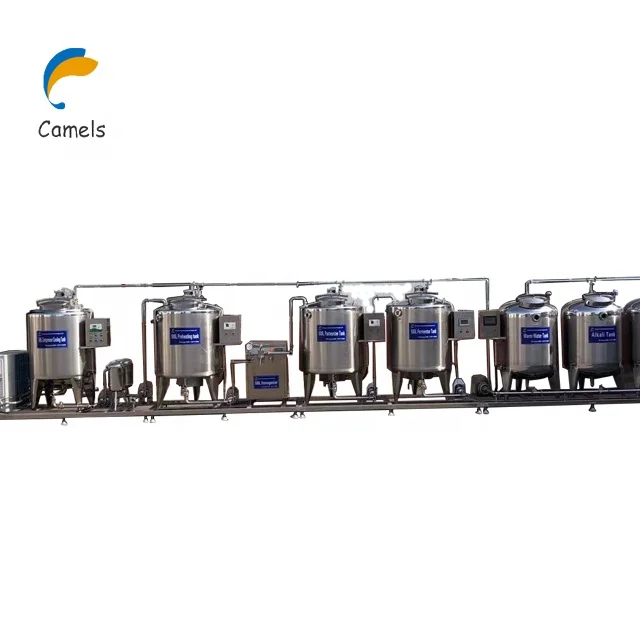

Professional Yogurt Making Machine Small Scale Yoghurt Production Line For 500L
Professional Yogurt Making Machine Small Scale Yoghurt Production Line For 500L
Professional Yogurt Making Machine Small Scale Yoghurt Production Line For 500L
Professional Yogurt Making Machine Small Scale Yoghurt Production Line For 500L
Professional Yogurt Making Machine Small Scale Yoghurt Production Line For 500L
Professional Yogurt Making Machine Small Scale Yoghurt Production Line For 500L
Professional Yogurt Making Machine Small Scale Yoghurt Production Line For 500L

Professional Yogurt Making Machine Small Scale Yoghurt Production Line For 500L

Share on (1601202147448):


Price:$8,000.00

Quantity:


Product Overview

Description



Professional Yogurt Making Machine Small Scale Yoghurt Production Line For 500L

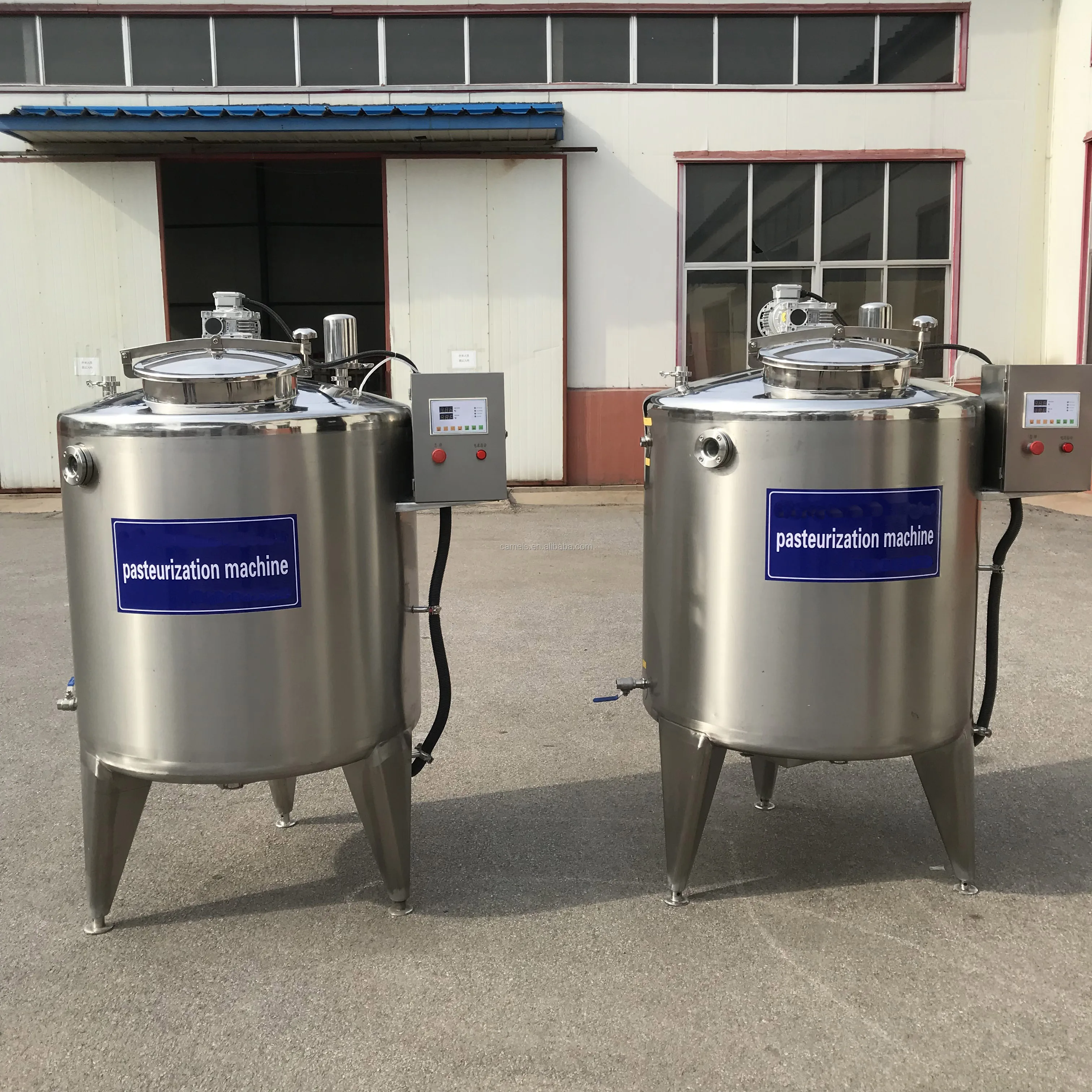

Milk pasteurizer is used to sterilize fresh milk equipment. Milk, goat milk, donkey milk, camel milk and other dairy products can be sterilized. Low-temperature pasteurization can kill harmful bacteria, retain beneficial bacteria, and sterilize milk nutrition High value, in line with pasteurized milk regulations.










Professional Yogurt Making Machine Small Scale Yoghurt Production Line For 500L Specific:


Model
CMPS-100L
CMPS-200L
CMPS-300L
CMPS-500L
Volume
100L
200L
300L
500L
Size
900*750*1350mm
1020*870*1530mm
1140*1140*1700mm
1500*1150*1900mm
Diameter
625mm
850mm
1000mm
1000mm
Power
6KW
11KW
20KW
24kw
Voltage
380V/220V
380V
380V
380V
Stirring Speed
30-36r/min
30-36r/min
30-36r/min
30-36r/min
Pasteurizer time
10-30minutes
(adjustable)
10-30minutes
(adjustable)
10-30minutes
(adjustable)
10-30minutes
(adjustable)
Pasteurizer temperature
30-99degree
(adjustable)
30-99degree
(adjustable)
30-99degree
(adjustable)
30-99degree
(adjustable)
Material
SS304
SS304
SS304
SS304

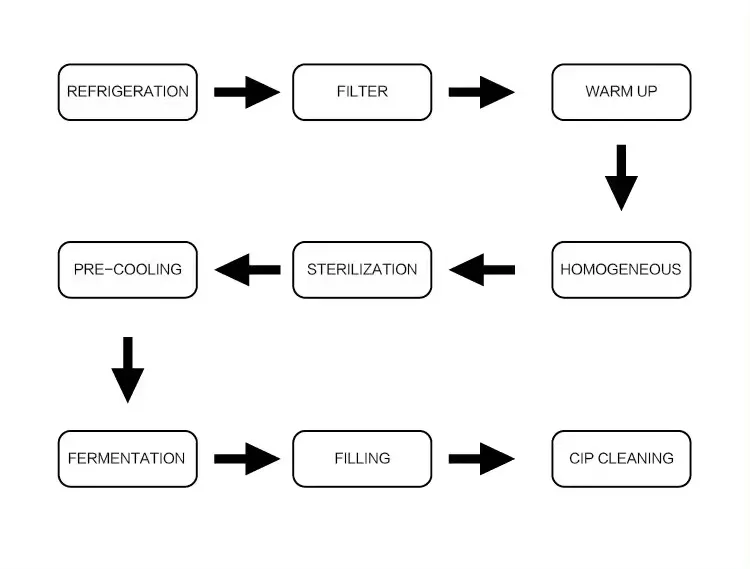

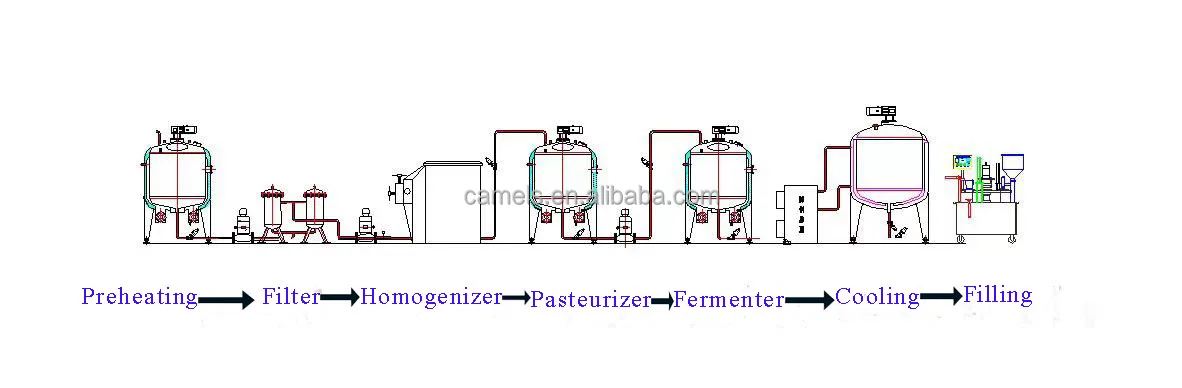

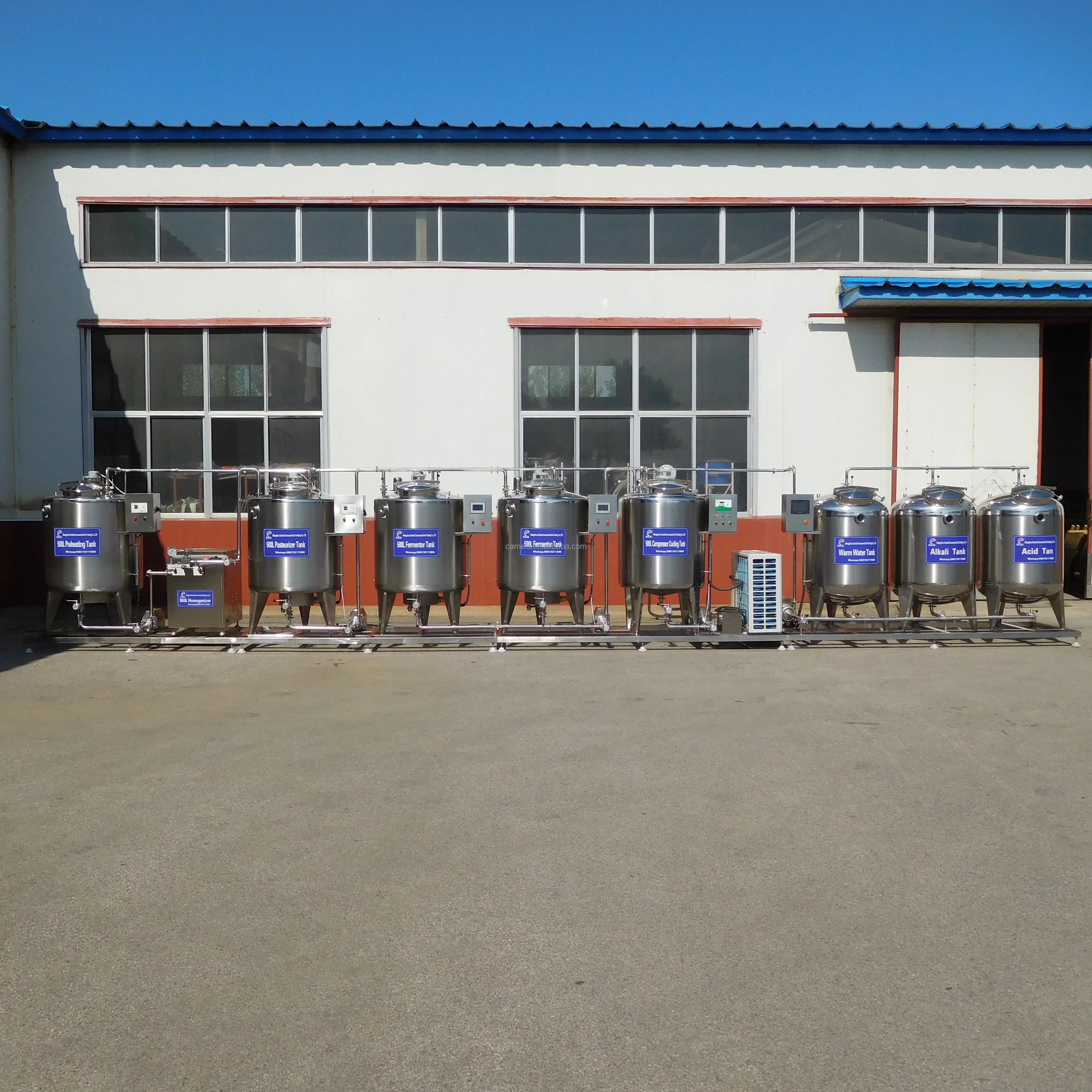

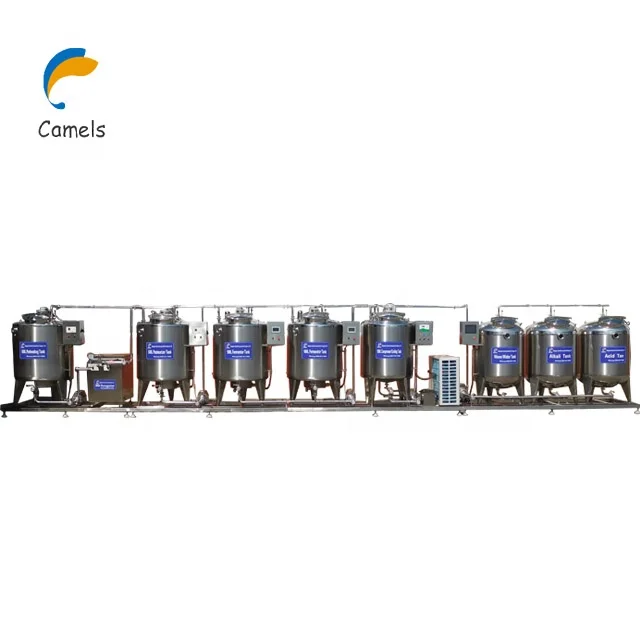

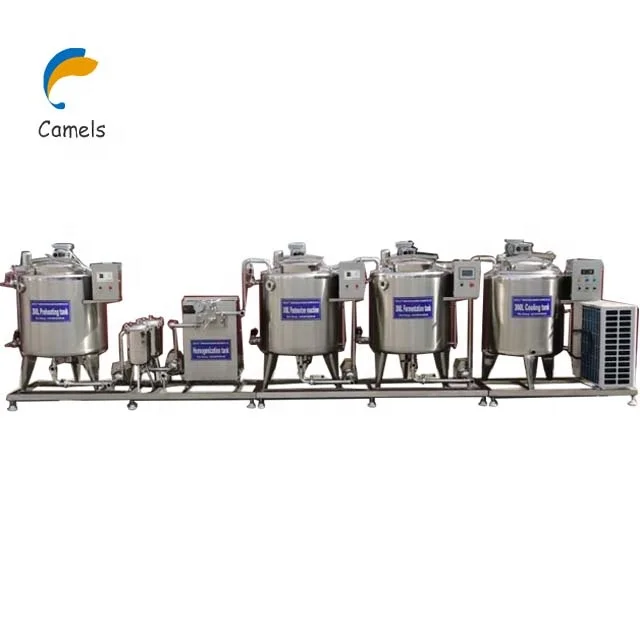

Professional Yogurt Making Machine Small Scale Yoghurt Production Line For 500L Yogurt/Cheese/Pasteurized Milk Processing Flows:

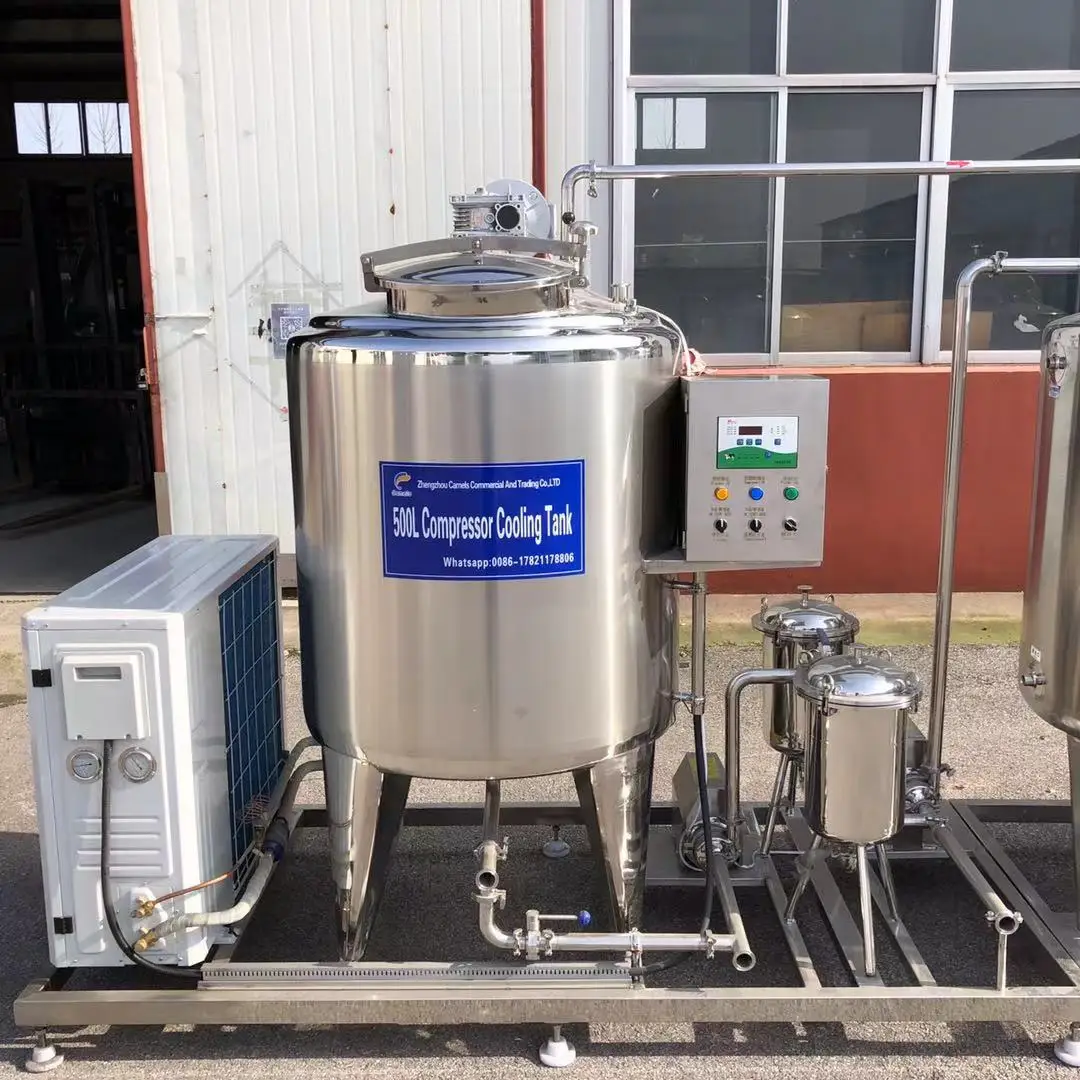

Cold Storage Tank:
Material:SUS304
Voltage:380v/50Hz
Power:2w
Cooling capacity:5000Kcal/h
Sheet thickness:inner 2 in 1 outer 1.2mm
Installation size:1550*800*1530mm
Unit manufacturer:American Copeland
Refrigeration medium:R22
Insulation performance:≤1℃/3H
Compressor power:2P
Motor power/quantity:0.75kw/1
Insulatio material/thickness: polyurethane foam/50mm
Material inlet and outlet diameter:Φ32mm/φ38mm.


Preheating Tank:
Material: SUS304
Voltage: 380v/50Hz/3Phase, 9KW
Heavy plate thickness: Inner 2 in 2 outer 1.2
Installation size: 1020 * 870 * 1530
Mixing motor: 0.55kw
Stirring speed: 36r / min
Working pressure: 0.09 Mpa
Material inlet and outlet diameter: Φ32mm / φ38mm.

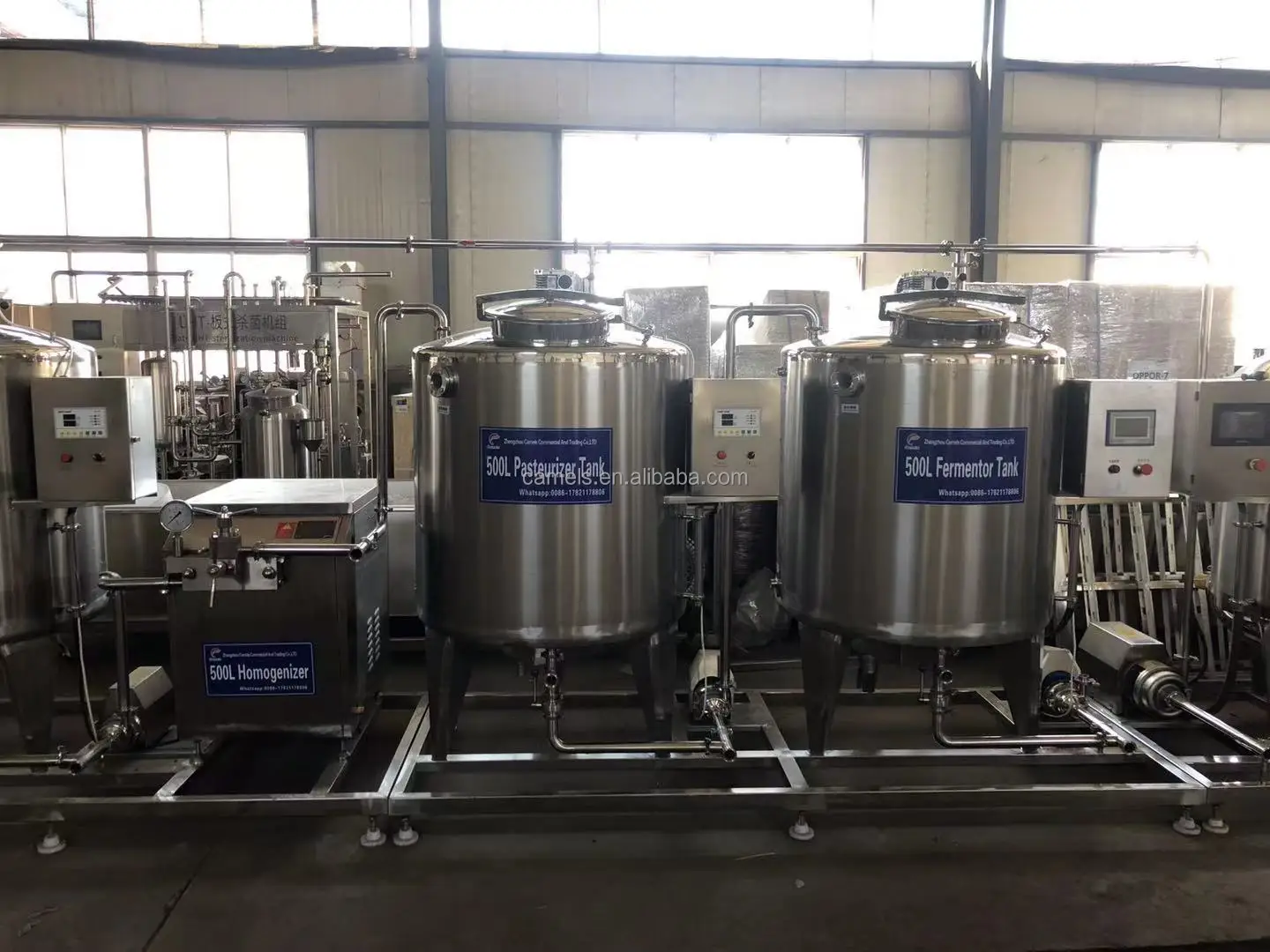

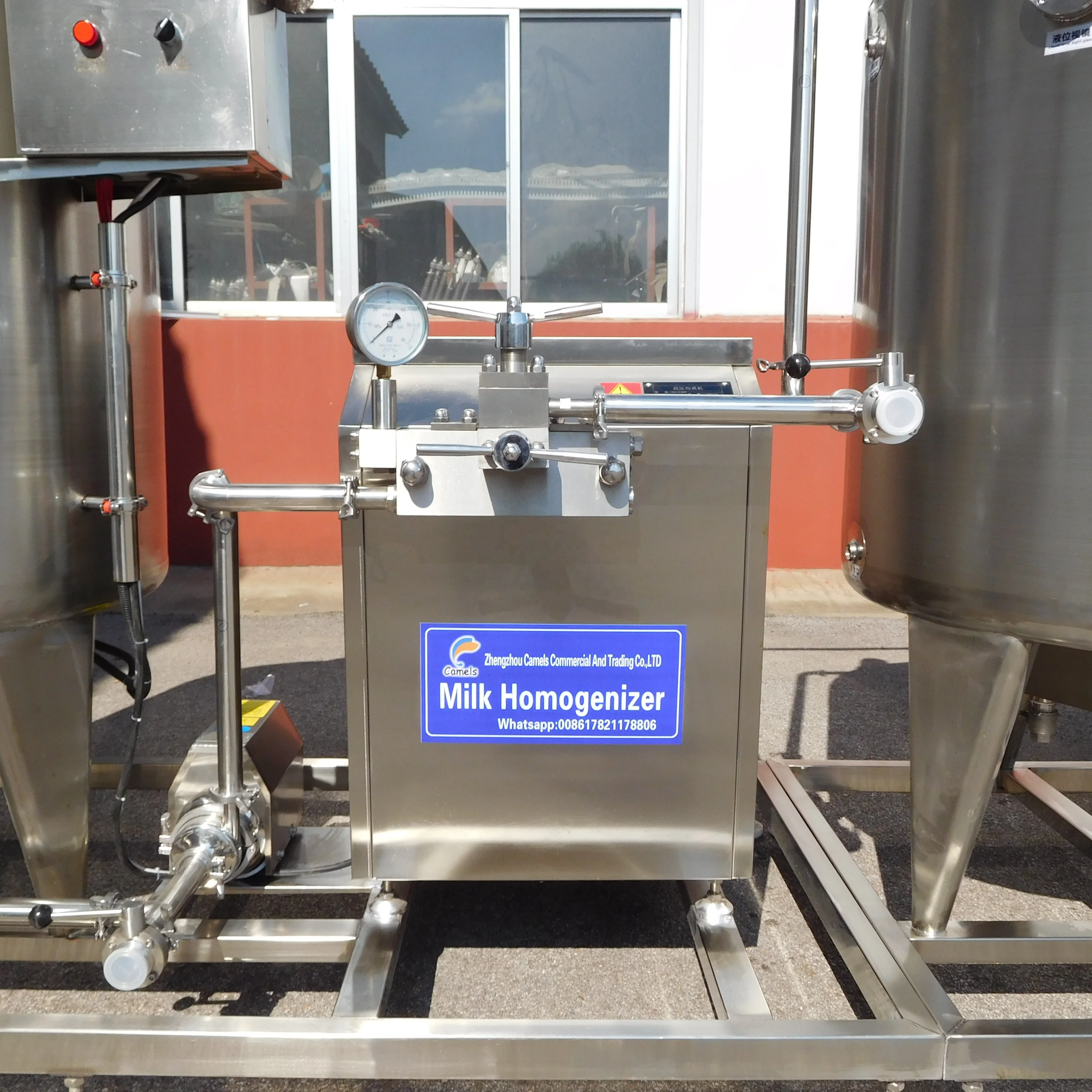

Homogenizer:
Output: 200L / H
Maximum pressure: 25Mpa
Motor power: 4kw
Dimensions: 990 * 600 * 850mm
Machine weight: 600kg.


Pasteurizer Tank:
Material: SUS304
Power: 380v/50Hz/3Phase/9kw
Heavy plate thickness: Inner 2 in 2 outer 1.2
Installation size: 1020 * 870 * 1530
Mixing motor: 0.55kw
Stirring speed: 36r / min
Working pressure: 0.09 Mpa
Material inlet and outlet diameter: Φ32mm / φ38mm.

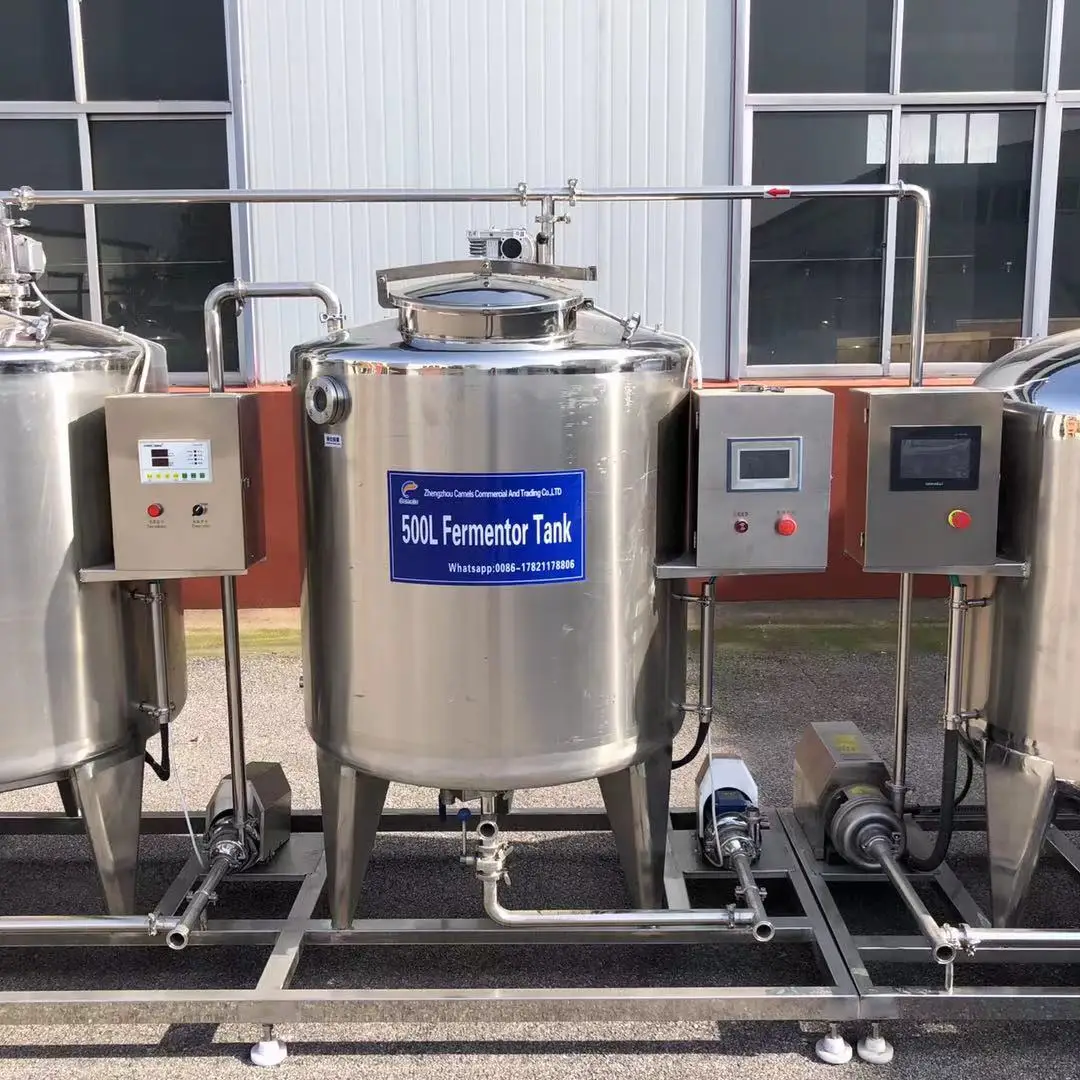

Fermenter Tank:
Material: SUS304
Power: 380v 50Hz
Sheet thickness: 3mm
Installation size: 1020 * 870 * 1530mm
Material inlet and outlet diameter: Φ32mm / φ38mm.

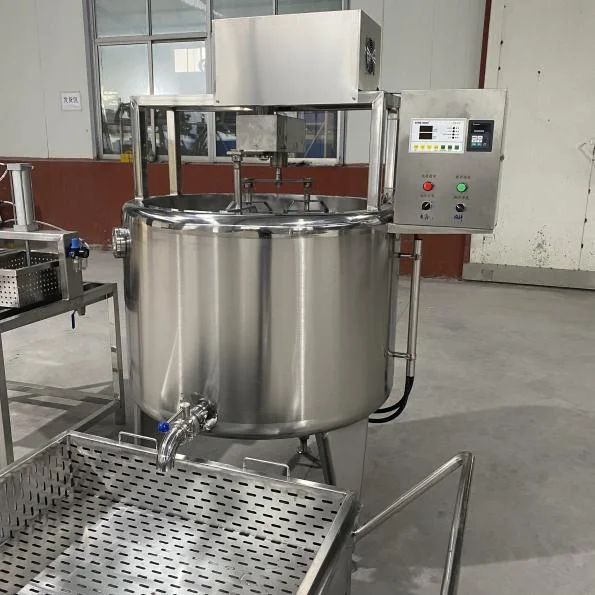

Cheese Machine:
Material: SUS304
Voltage: 380V
Heating power: 24kw
Mixing power: 1.5kw
Mixing speed: variable frequency adjustable
Speed range: 0-36R/min
Inner Diameter: 1000mm
Equipment size:1600*1300*2100mm.

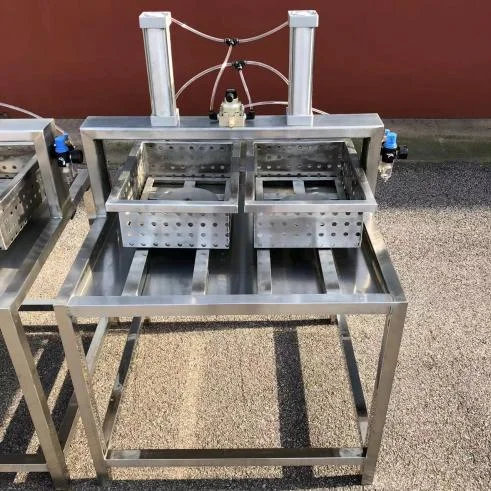

Hydraulic Press Machine:

Pneumatic double groove

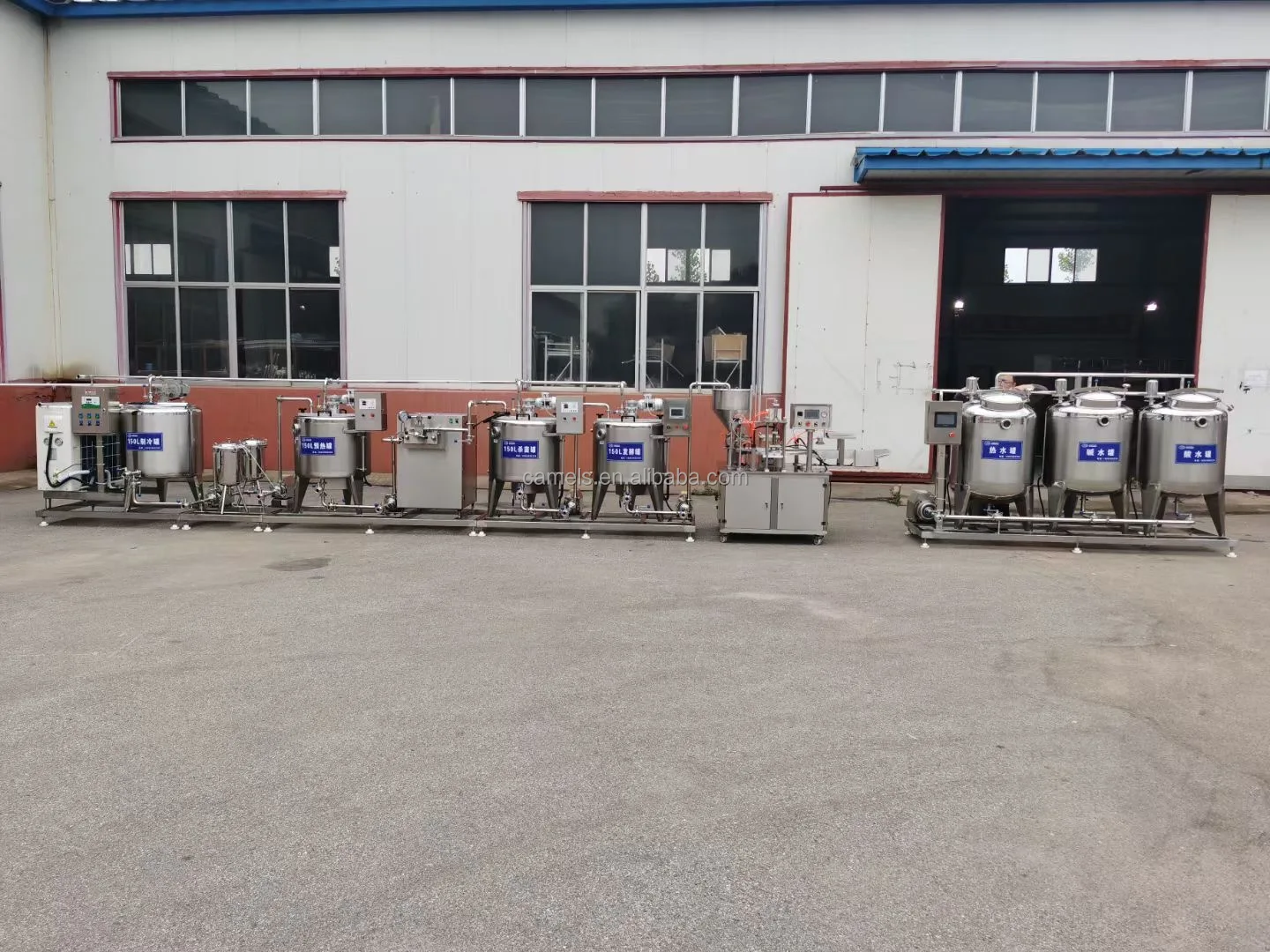

Professional Yogurt Making Machine Small Scale Yoghurt Production Line For 500L Delivery Picture:
