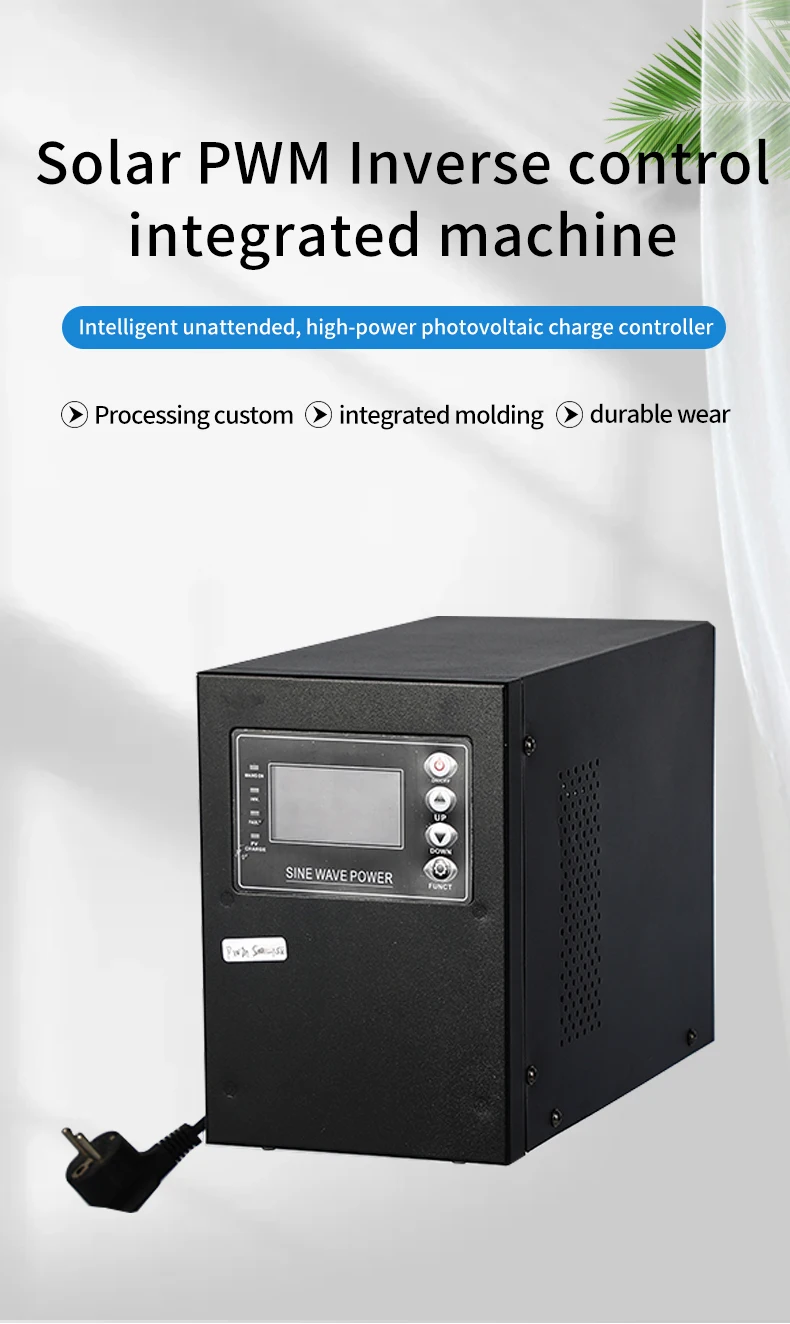

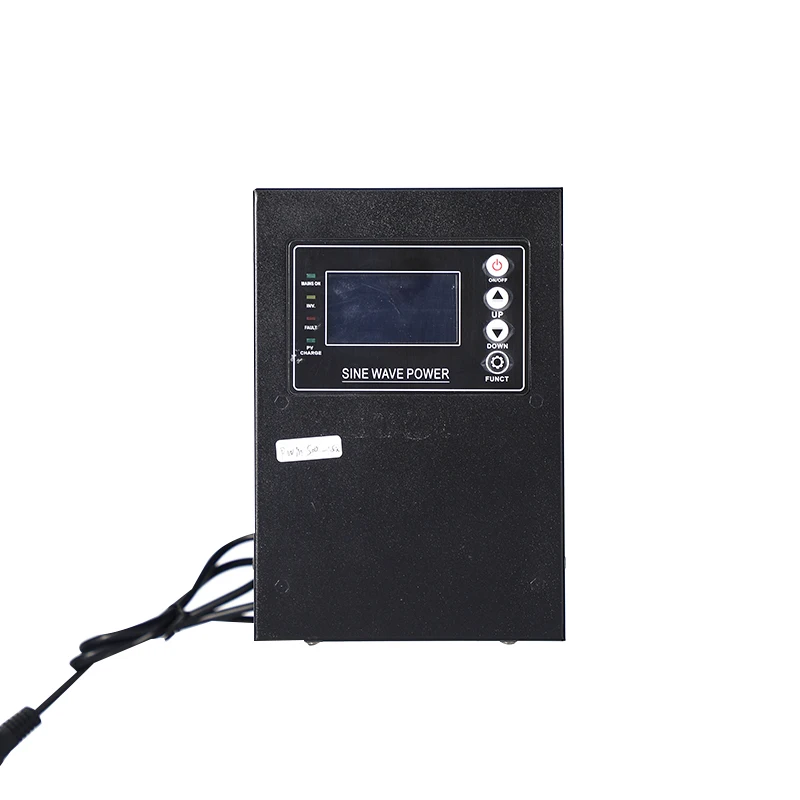

1500w 12v/24v dc to 220v ac off grid single phase solar power inverter with charger 500w 1000w 700w pwm solar inverter
- Category: >>>
- Supplier: Foshan Yingke Intelligent Electronic Technology Co. Ltd.
Share on (1601202166175):
Product Overview
Description
Products Description

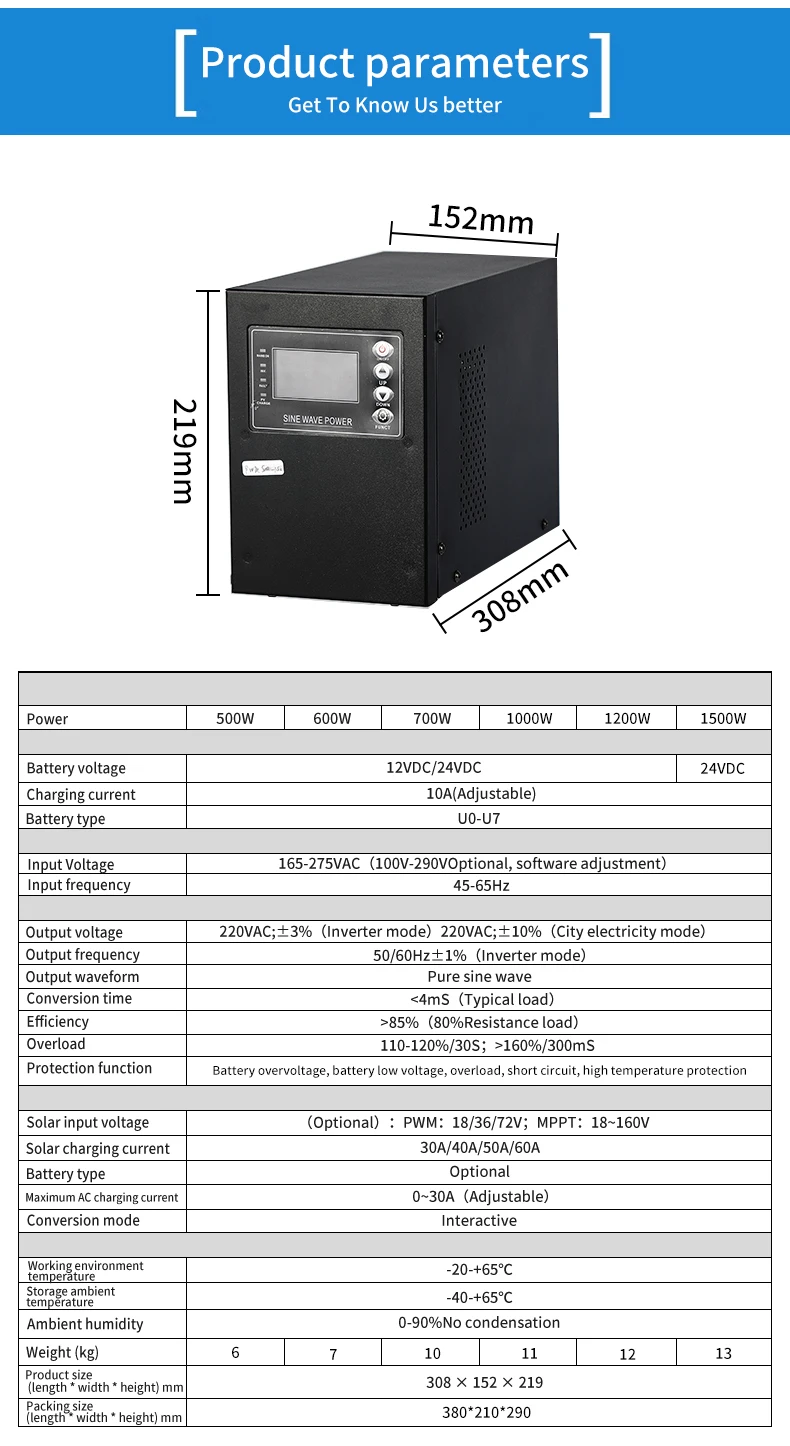

Technical Parameter | ||||||||||||
Model No. | MK-0502 | MK-0602 | MK-0702 | MK-1002 | MK-1202 | MK-1502 | ||||||
Rated Power | 500W | 600W | 700W | 1KW | 1200W | 1500W | ||||||
Battery | ||||||||||||
Rated Voltage | 12VDC/24VDC | 24VDC | ||||||||||
Charge Current | 5A-30A Adjustable (P2) | |||||||||||
Batery Type | Lead-acid, GEL, LiFeP04 | |||||||||||
Input | ||||||||||||
Voltage Range | 170-275VAC (100V-290V optional, adjusted by software) | |||||||||||
Frequency | 45-65Hz | |||||||||||
Output | ||||||||||||
Voltage Range | 220VAC; ±3% (Inverter Mode) 220VAC; ±10% (AC mode) | |||||||||||
Frequency | 50/60Hz ±1% (Inverter Mode) | |||||||||||
Output Wave | Pure Sine Wave | |||||||||||
Convertion Time | <4mS (Typical Load) | |||||||||||
Efficiency | >85% (80% Resistive Load) | |||||||||||
Overload | 110-120%/30S; >160%/300mS | |||||||||||
Protection Function | Battery Overvoltage Protection, Battery Undervoltage Protection, Overload Portection, Short Circuit Protection, Overtemperature Protection etc. | |||||||||||
Solar Controller （optional) | ||||||||||||
Solar input voltage | (Optional):PWM:18/36/72V; MPPT:18~160V | |||||||||||
Solar charging current | 30A/40A/50A/60A | |||||||||||
Maximum AC charging current | 0~30A (Adjustable) | |||||||||||
Conversion mode | Interactive | |||||||||||
Physical Parameter | ||||||||||||
Operation Temperature | -20-+65°C | |||||||||||
Storage Temperature | -40-+65°C | |||||||||||
Operation/Storage Ambient | 0-90% No Condensation | |||||||||||
Weight (kg) | 6 | 7 | 10 | 11 | 12 | 13 | ||||||
Product Size: D*W*H（mm） | 308*152 *219 | |||||||||||
Package Size: D*W*H（mm） | 380*210*290 | |||||||||||
Why Choose Us
Foshan Yingke Intelligent Electronic Technology Co., Ltd. is a professional solar controller, Inverters and other solar products supply supplier, which located in Chancheng District, Foshan City with convenient transportation. We provide the Solar Controllers, Solar Inverters supply are widely used for home, schools, streets, frontier, defense, military, pasturing areas etc. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss customer's requirements and ensure full customer satisfaction.
Our solar controllers are passed the C E and other authoritative international certification. We can provide O E M and O D M services. These Solar Controllers, Solar Inverters have the short circuit protection, over-load protection, over voltage protection and over temperature protection.
We have professional engineer support, high efficiency sales team and competitive price superiority, and attract customers from all over the world, we export to over 40 countries, including Europe, Poland, Serbia, Turkey, Russia, U S A, Mexico, Brazil, India, Thailand ,Middle east and South Africa.
We are Solar Controllers and Solar Inverters reliable supplier; our products have 3 years warranty. Our aim is customer-oriented, providing comprehensive technical guidance and after-sales service. We are looking forward to get more cooperation. We can supports one-piece order, O E M processing services, delivery on time. Our goal is the same quality with lowest price, the same price with best quality, sincerely welcomes you visiting our company and contacting us for cooperation.
FAQ
Q1: Does your company also provide other solar products except MPPT Solar Controller?
A1: Yes, we also provide other solar products, like Pure Sine Wave Inverter, poly solar panel, off grid solar inverter, battery, portable solar system, solar charger and other accesories related to the solar power system.
Q2:What is our advantage ?
A2:We have professional R&D team, can customized the products you want.
Q3: How to choose a right inverter?
A3: Tell us your demand, then our sales manage will recommend a suitable inverter to you.
Q4: How about the delivery time?
A4: 3 days for sample; 5-15 days for bulk order.
Q5: What is the warranty of inverter?
A5: 3 year warranty.
Q6: How can we guarantee quality? How to solve the technical problem?
A6: Always a pre-production sample before mass production;Always final Inspection before packing.
24 hours after-service consultancy just for you and to make your problem to solve easily.
