Sps305 30V 5A Digital Display High Precision Switching DC Power Supply Mobile DC Power Supply for Electronic Maintenance
- Category: >>>
- Supplier: Shenzhen Kuaiqu Electronic Co. Ltd.
Share on (1601202181729):
Product Overview
Description
Product Description

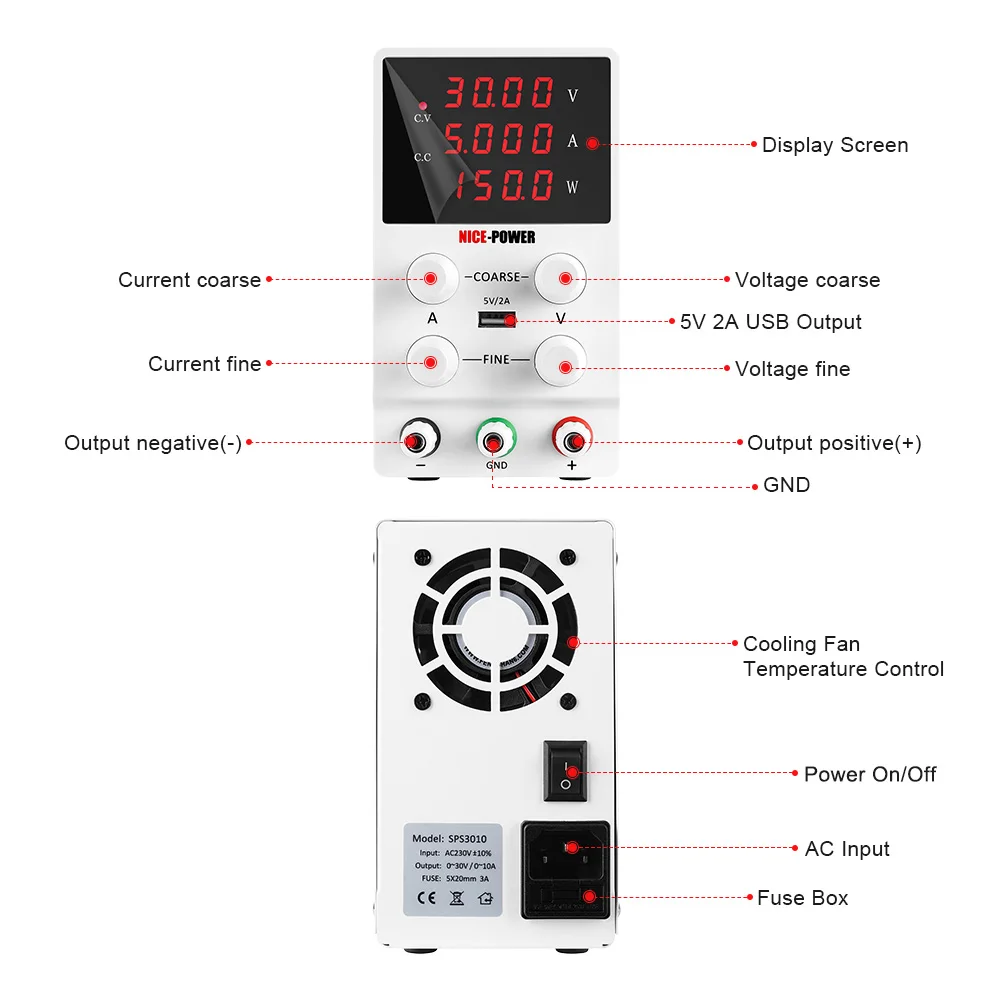

Sps305 30V 5A Digital Display High Precision Switching DC Power Supply Mobile DC Power Supply for Electronic Maintenance
The SPS series of adjustable regulated DC power supplies are designed for use in laboratories, schools and production lines. Both output voltage and output current are continuously adjustable between 0 and nominal.

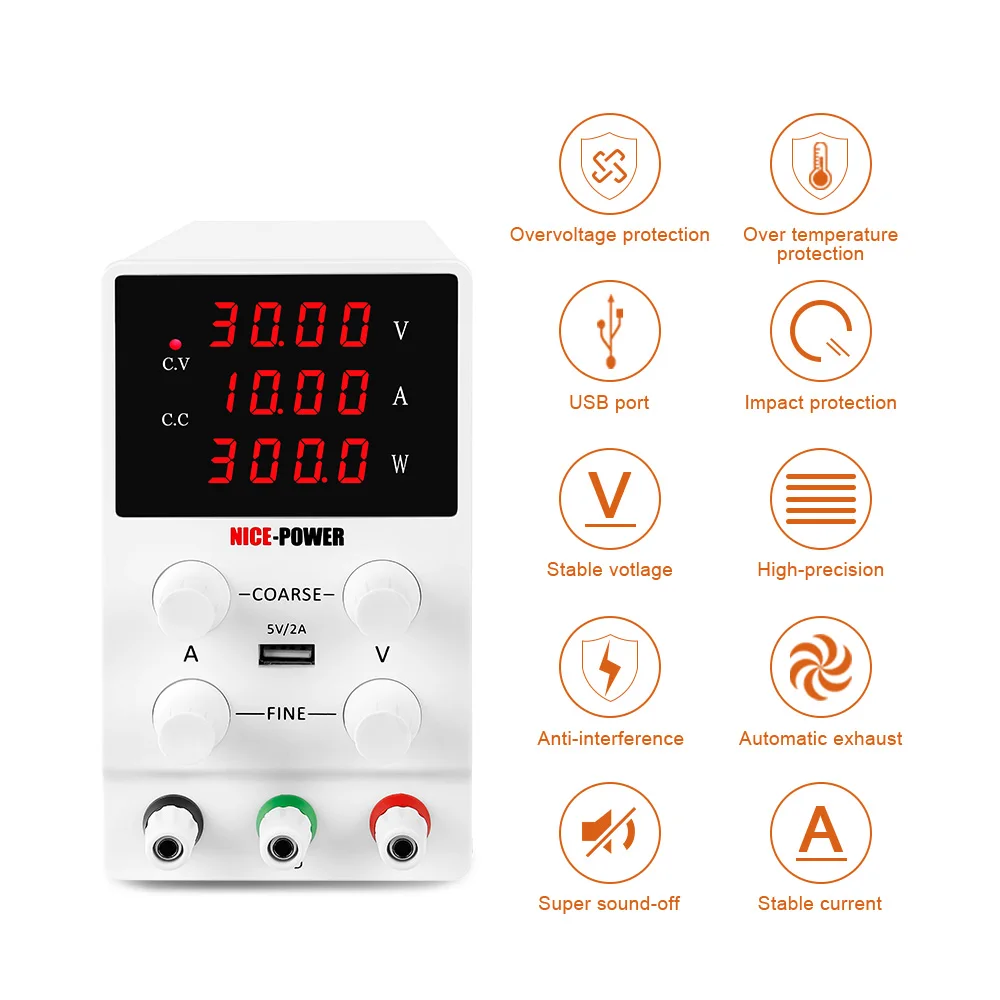

The stability and ripple factor of the power supply are very good and have a perfect protection circuit. It can work at full load for a long time. This power supply can be used as both a regulated power supply and a regulated current supply.
Application Field
1. Production line testing.
2. Mobile phone, computer, electrical maintenance.
3. aging products, electroplating.
4. Charge the battery.
5. laboratories, research and teaching.
6. all other situations require DC power supply.
1. Production line testing.
2. Mobile phone, computer, electrical maintenance.
3. aging products, electroplating.
4. Charge the battery.
5. laboratories, research and teaching.
6. all other situations require DC power supply.
Product Name | DC POWER SUPPLY |
Model Number | SPS305 |
Output Voltage | 0-30V |
Output Current | 0-5A |

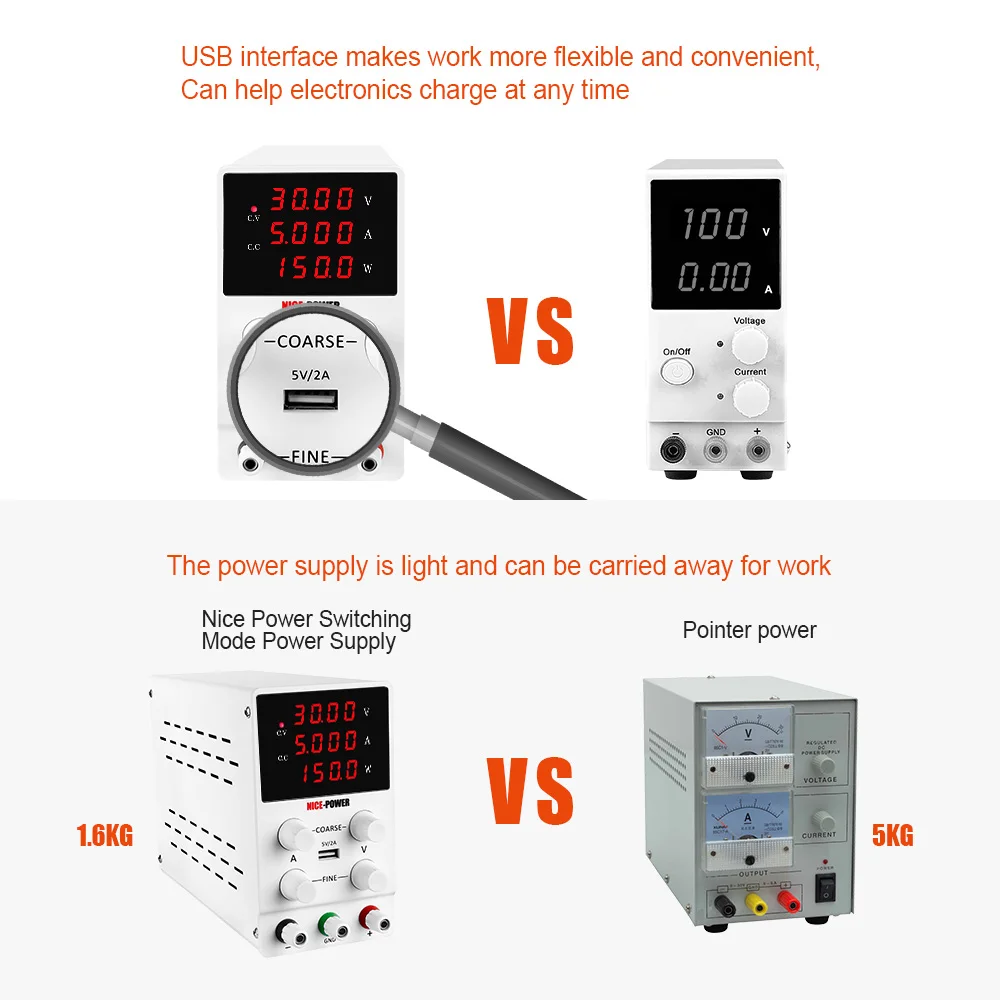

USB Output | Fixed on 5V-2A output |
Input Voltage | 230V±10% 50Hz or 115V±10% 60Hz (Alternative) |
Working Temperature | 0℃-40℃; Relative Humidity: <80%RH |
Storage Temperature | -10℃-70℃; Relative Humidity: <70%RH |
Constant Voltage State | Voltage stability ≤0.1%+3mV |
Load stability≤0.1%+3mV | |
Ripple noise≤20mVrms | |
Constant Current State | Current stability≤0.2%+3mA |
Load stability≤0.01%+3mA | |
Ripple noise≤20mArms (valid value) | |

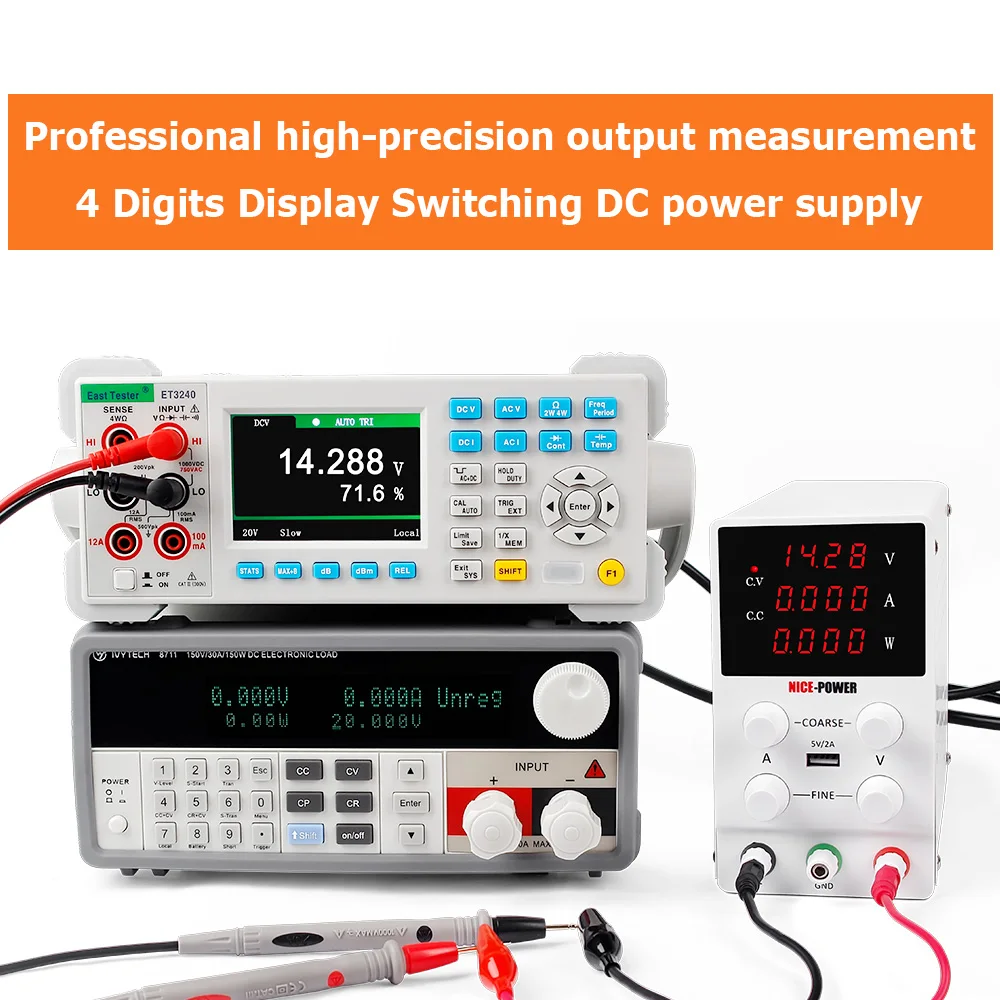

Display Accuracy | 0.5%+2digits |
Display Resolution | Voltage:0.1V Currenrt:0.001A |
