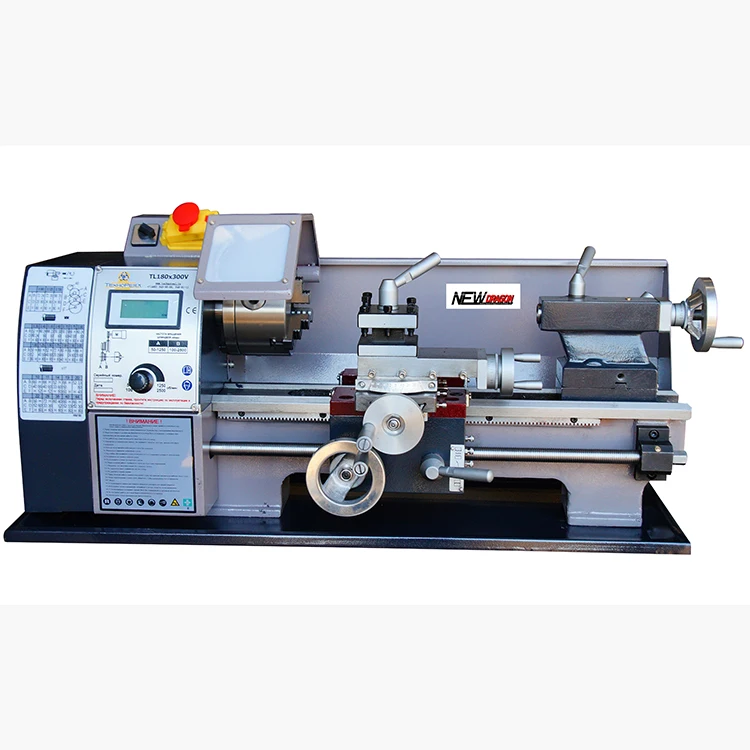

Mini metal lathe machine for hobby manual metal lathe TL180X300V
- Category: >>>
- Supplier: Chizhou New Dragon Machinery Co. Ltd.
Share on (1601202190065):
Product Overview
Description
Product Description
Features:
1.widely used, simple operation, and a wide range of processing
2.Guarantee the concentricity of the spindle is less than 0.009mm
3.Chuck runout accuracy of less than 0.05mm
4.Strong power, maintenance-free DC motor
5.After quenching and precision grinding of cast iron bed
6.High precision, quenching spindle
Application
Suitable for turnings of metal, wood, jade, etc.
Ideal for use in labs, workshops, engineering and education.
Can be turned within foreign aid, turning thread, turning taper and so on.
Technical data
Model No. | TL-180×300 V | TL-210×400 V |
Distance between centers | 300mm | 400mm |
Swing over bed | 180mm | 210mm |
Width of bed | 100mm | 100mm |
Taper of spindle bore | MT3 | MT3 |
Spindle bore | 21mm | 21mm |
Spindle speeds | 50-2500rpm | 50-2500rpm |
Longitudinal feeds | 0.08-0.16mm/r | 0.08-0.16mm/r |
Imperial threads | 10-44TPI | 10-44TPI |
Metric threads | 0.3-3mm | 0.3-3mm |
Top slide travel | 55mm | 55mm |
Cross slide travel | 75mm | 75mm |
Tailstock quill travel | 65mm | 65mm |
Taper of tailstock quill | MT2 | MT2 |
Max.tool dimension | 10mm | 10mm |
Motor | 600W | 600W |
Packing size | 800×480×450mm | 910×480×470mm |
Net weight | 60kg/80kg | 76kg/96kg |
