Chinese factory alkaline water electrolysis hydrogen production plant

Product Overview

Description

Chinese factory  alkaline water electrolysis hydrogen production plant



The production of hydrogen plays a key role in any industrialized society, since hydrogen is required for many chemical processes. Although electrolysis of water accounts for 4% of the world's hydrogen production, water electrolysis can use any source of electricity including renewable energy. Hydrogen generation systems have been widely used in industries like power plants, steel mills, glass, polysilicon, chip manufacturing, precise instruments and etc.





We mainly supply below types of electrolysis of water hydrogen generators.

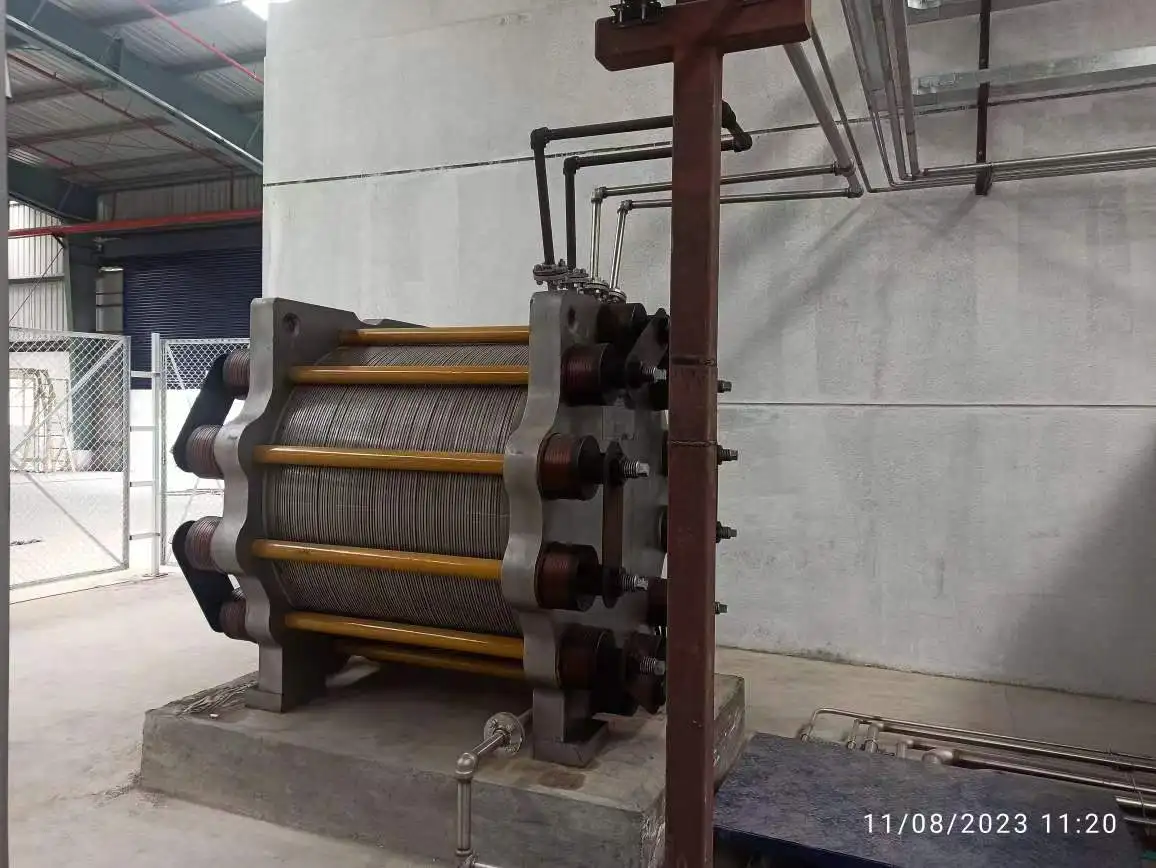

Alkaline Type Hydrogen Generation System



Advantages:

Stack output pressure 1.5-3.2MPa (without compressor);

Large capacity of single stack (2000Nm3/hr = 10MW);

Large capacity of single purification unit (8000Nm3/hr);

High efficiency DC power consumption: 4.3~4.6kwh/Nm3 H2

                        AC power consumption: 4.6~5.0kwh/Nm3 H2

Independent intellectual property rights

Fully automatic operation

Less construction area and investment cost

Less operation and maintenance costs



PEM Type Hydrogen Generation System



Advantages:

Both normal and pressurized stack (0-4.0Mpa)

Large capacity of single stack (300Nm3/hr = 1.5MW);

Large capacity of single system (1.5MW×4 stacks = 6MW);

Area saving (1/5 compared with ALK)

High efficiency DC power consumption: ≤ 4.3kwh/Nm3 H2

                        AC power consumption: ≤ 5.0kwh/Nm3 H2

Independent intellectual property rights

Fully automatic operation



We supply modularized hydrogen generators for end users easy to install and operate.



- 40FT Containerized 5~100Nm3/hr

- Skid-mounted 16~4000Nm3/hr



We have supplied about 1000 hydrogen generator and purification systems within China, and exported to more than 20 countries around the world like United States, Germany, Norway, etc. Our customers include the world’s leading gas producers such as Air Products, Air Liquide, Linde and Praxair etc.
