S7712 03033ATA 002 LSS7X48SX6S0 48 Port 10GE SFP interface card (X6S,SFP )
- Category: >>>
- Supplier: Shenzhen Baorui Internet Technology Service Limited
Share on (1601202248552):
Product Overview
Description
Product Description

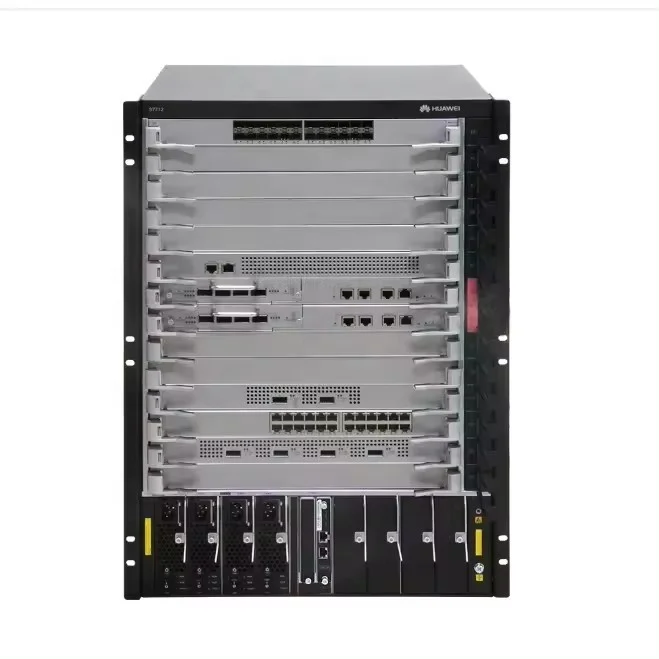

S7712

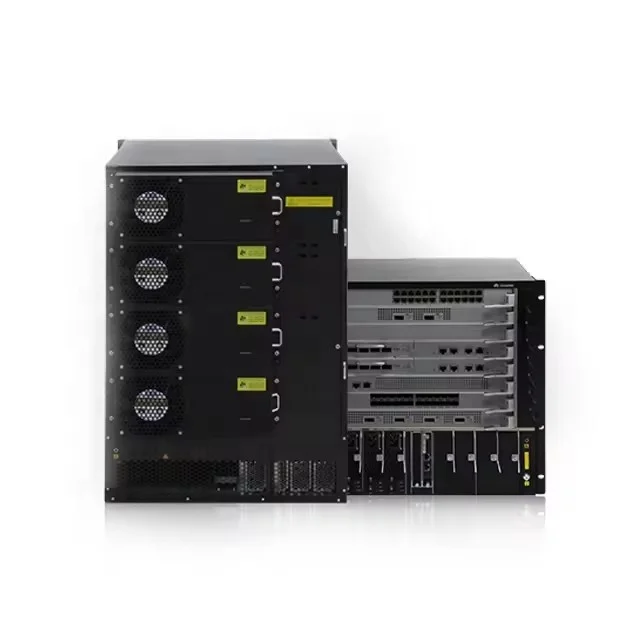

S7700 series switches are high-end smart routing switches designed for next-generation enterprise networks. The S7700 series can function either as an aggregation or core node on a campus network or in a data center to provide integrated wireless access. The S7700 series also offers voice, video, and data services, helping enterprises build routing and switching integrated end-to-end networks.
Products Specification

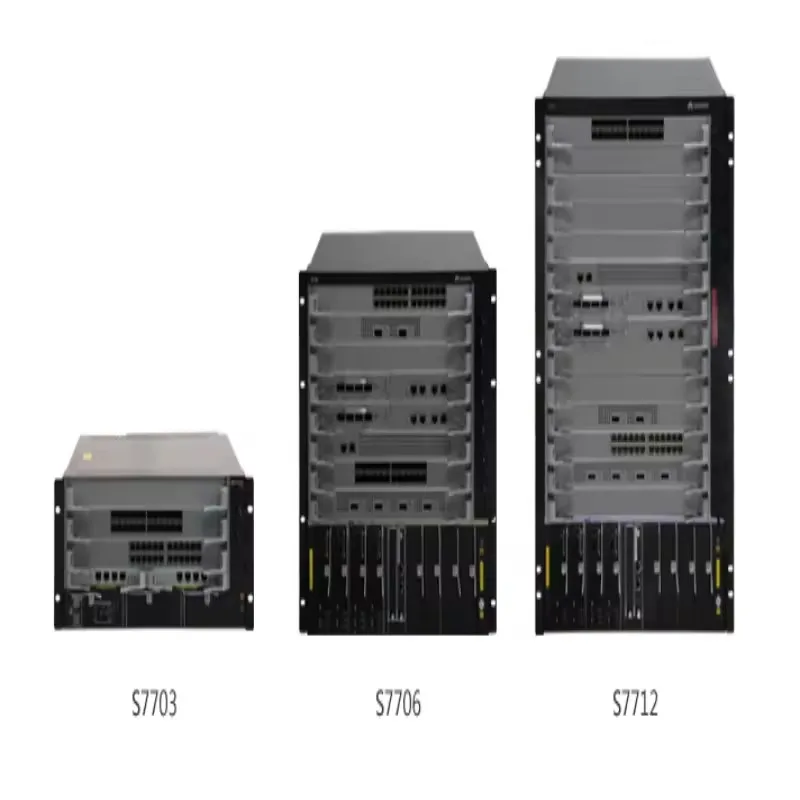

Item | S7703 | S7703 PoE | S7706/S7706 PoE | S7712 | |||
Switching capacity | 1.92 Tbit/s | 4.8 Tbit/s | 4.32 Tbit/s | 4.64 Tbit/s | |||
Forwarding performance | 1440 Mpps | 3600 Mpps | 3240 Mpps | 3480 Mpps | |||
Redundancy Design | Supervisors, power modules, CMUs, and fan trays | ||||||
Wireless Network Management | Native AC | ||||||
AP access control, AP region management, and AP profile management | |||||||
Radio profile management, uniform static configuration, and centralized dynamic management | |||||||
Basic WLAN services, QoS, security, and user management | |||||||
Deployment of ACs on different network layers | |||||||
User Management | Unified user management | ||||||
802.1x, MAC address, and Portal authentication | |||||||
Traffic-based and time-based accounting | |||||||
User authorization based on user groups, domains, and time ranges | |||||||
Routing | IPv4 static routes, RIP, OSPF, IS-IS, and BGP4 | ||||||
IPv6 static routes, RIPng, OSPFv3, IS-ISv6, and BGP4+ | |||||||
IPv4/IPv6 equal-cost routes, policy routing, and route policy | |||||||
IPv4 and IPv6 stack | |||||||
Pingv6, Telnetv6, FTPv6, TFTPv6, DNSv6, and ICMPv6 | |||||||
IPv4-to-IPv6 transition technologies, such as IPv6 manual tunnel, 6 to 4 tunnel, ISATAP tunnel, GRE tunnel, and IPv4-compatible | |||||||
automatic tunnel | |||||||
iPCA | Adds marks on service packets in order to measure the number of lost packets and packet loss ratios in real time with zero payload | ||||||
Measures the number of lost packets and packet loss ratios at the network and device levels on Layer 2 and Layer 3 networks | |||||||
SVF | Up to 256 clients (access switches) and 4,096 APs聽virtualized into a single device | ||||||
2-level AS structure | |||||||
Unified management on Huawei and non-Huawei devices | |||||||
Buffer Capacity | Up to 200 ms per port | ||||||
Interoperability | VLAN-Based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST) | ||||||
Link-type Negotiation Protocol (LNP) (similar to DTP) | |||||||
VLAN Central Management Protocol (VCMP) (similar to VTP) | |||||||
Ordering information
The following table lists ordering information for the CloudEngine S7700 series switches.
Part Number | Model | Description |
02113087 | LE0BN66EDC | N66E DC Assembly Rack(Four 40A outputs,maximum 1600W per output,600X600X2200mm) |
02113563 | LE2BN66EA000 | N66E AC Assembly Rack(Four 16A Outputs,maximum 2500W per output,600X600X2200mm) |
02113562 | LE2BN66ED000 | N66E DC Assembly Rack(Eight 60A outputs,maximum 2200W per output,600X600X2200mm) |
02113306 | ES0B00771200 | S7712 Assembly Chassis |
02113308 | ES0B017712P0 | S7712 POE Assembly Chassis |
02120760 | ES0E2FBX | Wide Voltage Fan Box |
Monitoring Board | ||
03030NWB | EH1D200CMU00 | Centralized Monitoring Board |
Main Control Unit | ||
03034HXQ-001 | LSS7SRUHX101 | S7706/S7712 main control unit H(X1) |
03034HXQ-002 | LSS7SRUHX101 | S7706/S7712 main control unit H(X1) |
100/1000BASE-X Interface Card | ||
03033ATD-004 | LSS7G48SX6S0 | 48-port GE SFP interface card (X6S,SFP) |
03033ATG-002 | LSS7G48SX6E0 | 48-port GE SFP interface card (X6E,SFP) |
100/1000BASE-T Interface Card | ||
03034DGW-004 | LSS7G48TX6E0 | 48-port 100/1000BASE-T interface card (X6E,RJ45) |
03034DGN-003 | LSS7G48VX6E0 | 48-port 100/1000BASE-T interface card (X6E,RJ45,PoE++) |
10GBASE-X Interface Card | ||
03033DAG-002 | LSS7X24BX6S0 | 24-port 10GE SFP+ interface and 24-port GE SFP interface card (X6S,SFP+) |
03033DAL-002 | LSS7X24BX6E0 | 24-port 10GE SFP+ interface and 24-port GE SFP interface card (X6E,SFP+) |
03033ATA-002 | LSS7X48SX6S0 | 48-Port 10GE SFP+ interface card (X6S,SFP+) |
03032YGD-002 | LSS7X48SX6E0 | 48-Port 10GE SFP+ interface card (X6E,SFP+) |
100M/1/2.5/5/10G BASE-T interface card | ||
03034DGL-003 | LSS7M24VX6S1 | 24-port 100M/1G/2.5G/5G/10G and 24-port 100M/1G interface card (X6S,RJ45,PoE++) |
03034DGK-003 | LSS7M24VX6E1 | 24-port 100M/1G/2.5G/5G/10G and 24-port 100M/1G interface card (X6E,RJ45,PoE++) |
03034DGV-003 | LSS7M24BX6S0 | 24-port 100M/1G/2.5G/5G/10G and 24-port 100M/1G interface card (X6S,RJ45) |
03034DGQ-003 | LSS7M24BX6E0 | 24-port 100M/1G/2.5G/5G/10G and 24-port 100M/1G interface card (X6E,RJ45) |
40GBASE-X Interface Card | ||
03034DHE-002 | LSS7L12QX6E0 | 12-port 40GE QSFP+ inferface card (X6E,QSFP+) |
100GBASE-X Interface Card | ||
03033DBC-002 | LSS7C06HX6S0 | 6-port 100GE QSFP28 interface card (X6S,QSFP28) |
03033CVS-002 | LSS7C06HX6E0 | 6-port 100GE QSFP28 interface card (X6E,QSFP28) |
03033UGQ-002 | LSS7C02BX6E0 | 2-port 100GE QSFP28 interface and 4-port 40GE QSFP28 inferface card (X6E,QSFP28) |
Optical Transceiver | ||
FE-SFP Optical Transceiver | ||
2315205 | eSFP-FE-LX-SM1310 | Optical Transceiver,eSFP,100M/155M,Single-mode Module(1310nm,15km,LC) |
GE-SFP Optical Transceiver | ||
2314171 | SFP-1000BaseT | Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45) |
02313URG | SFP-1000BaseT | Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45) |
2315204 | eSFP-GE-SX-MM850 | Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.55km,LC) |
02313URD | eSFP-GE-SX-MM850 | Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.55km,LC) |
2315200 | SFP-GE-LX-SM1310 | Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC) |
02313URF | SFP-GE-LX-SM1310 | Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC) |
2317346 | S-SFP-GE-LH40-SM1310 | Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,40km,LC) |
2317347 | S-SFP-GE-LH40-SM1550 | Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,40km,LC) |
2317348 | S-SFP-GE-LH80-SM1550 | Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,80km,LC) |
02314BDD | SFP-1000BaseT-G2 | Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45) |
10GE-XFP Optical Transceiver | ||
2315208 | XFP-STM64-LX-SM1310 | Optical Transceiver,XFP,10G,Single-mode Module(1310nm,10km,LC) |
10GE-SFP+ Optical Transceiver | ||
02310MNW | SFP-10G-USR | 10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.1km,LC) |
02313URN | SFP-10G-USR | 10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.1km,LC) |
2318169 | OMXD30000 | Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC) |
02313URC | OMXD30000 | Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC) |
2318170 | OSX010000 | Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC) |
02313URK | OSX010000 | Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC) |
02310CNF | OSX040N01 | Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,40km,LC) |
02314KKG | OSX040N01 | Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,40km,LC) |
02310SNN | SFP-10G-ZR | 10GBase-ZR Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,80km,LC) |
02311BJJ | SFP-10G-iLR | Optical Transceiver,SFP+,9.8G,Single-mode Module(1310nm,1.4km,LC) |
40GE-QSFP+ Optical Transceiver | ||
02310MHR | QSFP-40G-iSR4 | 40GBase-iSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.15km,MPO)(connecting to one QSFP+ or four SFP+) |
02313URW | QSFP-40G-iSR4 | 40GBase-iSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.15km,MPO)(connecting to one QSFP+ or four SFP+) |
02310RMB | QSFP-40G-eSR4 | 40GBase-eSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.3km,MPO)(connecting to one QSFP+ or four SFP+) |
02313URU | QSFP-40G-eSR4 | 40GBase-eSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.3km,MPO)(connecting to one QSFP+ or four SFP+) |
02310MHS | QSFP-40G-LR4 | 40GBASE-LR4 optical transceiver, QSFP+, 40G, single-mode module (1310nm, 10km, LC) |
02313URY | QSFP-40G-LR4 | 40GBASE-LR4 optical transceiver, QSFP+, 40G, single-mode module (1310nm, 10km, LC) |
100GE-QSFP+ Optical Transceiver | ||
02311MNN | QSFP-100G-CWDM4 | 100GBase-CWDM4 Optical Transceiver,QSFP28,100G,Single-mode module (1310nm,2km,LC) |
02311KNU | QSFP28-100G-LR4 | 100GBase-LR4 Optical Transceiver,QSFP28,100G,Single-mode module (1310nm,10km,LC) |
02313URT | QSFP28-100G-LR4 | 100GBase-LR4 Optical Transceiver,QSFP28,100G,Single-mode module (1310nm,10km,LC) |
02311GBW | QSFP28-100G-SR4 | 100GBase-SR4 Optical Transceiver,QSFP28,100G,Multi-mode (850nm,0.1km,MPO) |
02313URQ | QSFP28-100G-SR4 | 100GBase-SR4 Optical Transceiver,QSFP28,100G,Multi-mode (850nm,0.1km,MPO) |
02311MNM | QSFP28-100G-PSM4 | 100GBase-PSM4 Optical Transceiver,QSFP28,100G,Single-mode module (1310nm,0.5km,MPO) |
02313HLU | QSFP-100G-ER4 | 100GBase-ER4 Optical Transceiver,QSFP28,100G,Single-mode module (1310nm,40km,LC) |
BIDI-SFP Optical Transceiver | ||
2315286 | SFP-GE-LX-SM1490-BIDI | Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,10km,LC) |
02314KKH | SFP-GE-LX-SM1490-BIDI | Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,10km,LC) |
2315285 | SFP-GE-LX-SM1310-BIDI | Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,10km,LC) |
02314KKJ | SFP-GE-LX-SM1310-BIDI | Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,10km,LC) |
2315203 | SFP-FE-LX-SM1310-BIDI | Optical Transceiver,eSFP,FE,BIDI Single-mode Module(TX1310/RX1550,15km,LC) |
2315202 | SFP-FE-LX-SM1550-BIDI | Optical Transceiver,eSFP,FE,BIDI Single-mode Module(TX1550/RX1310,15km,LC) |
02310KVU | LE2MGSC40ED0 | Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,40km,LC) |
02310KVV | LE2MGSC40DE0 | Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,40km,LC) |
BIDI-SFP+ Optical Transceiver | ||
02310QBJ | SFP-10G-BXU1 | 10GBase,BIDI Optical Transceiver,SFP+,10G,Single-mode Module(TX1270nm/RX1330nm,10km,LC) |
02310QDT | SFP-10G-BXD1 | 10GBase,BIDI Optical Transceiver,SFP+,10G,Single-mode Module(TX1330nm/RX1270nm,10km,LC) |
02311BJB | SFP-10G-ER-SM1330-BIDI | Optical Transceiver,SFP+,10G,BIDI Single-mode Module(TX 1330nm/RX 1270nm,40km,LC) |
02311BJC | SFP-10G-ER-SM1270-BIDI | Optical Transceiver,SFP+,10G,BIDI Single-mode Module(TX 1270nm/RX 1330nm,40km,LC) |
Power | ||
2270117 | W2PSD2200 | 2200W DC Power Module(Black) |
2130979 | W2PSA0800 | 800W AC Power Module(Black) |
02312FFP-001 | PAC3KS54-CE | 3000W AC Power Module(Black) |
2131712 | PAC3KS54-NE | 3000W AC Power Module(Black) |
2355416 | LE0W01DPDB | DC Power Distribution Unit(Four 40A outputs,maximum 1600W per output,include power cable) |
2355418 | IM1W24APD | AC Power Distribution Unit(Four 16A outputs,maximum 2500W per output,include power cable) |
2355419 | EH1M00PDBS01 | DC Power Distribution Unit(Eight 60A Outputs,maximum 2200W per output,include power cable) |
Software | ||
81401078 | ES1SVXLAN000 | VXLAN enhanced function license(used in S7700 series) |
81400242 | ES0SMPLS7700 | MPLS Function License |
81400241 | ES0SNQAF7700 | NQA Function License |
81400240 | ES0SIPV67700 | IPV6 Function License |
81400239 | ES0S0SSP7700 | Service Splitting Platform Function License |
81400651 | ES0SSVFF7700 | SVF Function License(with S7700 used) |
82400515 | ES1SFIB128K0 | X-series LPU FIB Resource License-128K |
82400512 | ES1SWL128AP0 | WLAN Access Controller AP Resource License-128AP (with the X-series LPU used) |
82400513 | ES1SWL64AP00 | WLAN Access Controller AP Resource License-64AP (with the X-series LPU used) |
82400514 | ES1SWL16AP00 | WLAN Access Controller AP Resource License-16AP (with the X-series LPU used) |
88032BGV | L-ACU2-128AP | ACU2 Wireless Access Controller AP Resource License(128 AP) |
License | ||
88035HQG | N1-S77-F-Lic | N1-CloudCampus,Foundation,S77 Series,Per Device |
88062GXC | N1-S77-F-SnS-3Y | N1-CloudCampus,Foundation,S77 Series,SnS,Per Device,3 Year( Annual fee validity period:3 years from " 90 days after PO signed " ) |
88035HQH | N1-S77-A-Lic | N1-CloudCampus,Advanced,S77 Series,Per Device |
88062GXG | N1-S77-A-SnS-3Y | N1-CloudCampus,Advanced,S77 Series,SnS,Per Device,3 Year |
88035HQJ | N1-S77-FToA-Lic | N1-Upgrade-Foundation to Advanced,S77 Series,Per Device |
88062GXL | N1-S77-FToA-SnS-3Y | N1-Upgrade-Foundation to Advanced,S77 Series,SnS,Per Device,3 Year |
88036KSK | N1-AM-30-Lic | N1-CloudCampus, Add-On Package, Access Management, Per 30 Endpoints |
88062GMD | N1-AM-30-SnS-3Y | N1-CloudCampus, Add-On Package, Access Management, Software Subscription and Support, Per 30 Endpoints,3 Years |
88036KSL | N1-EPNP-30-Lic | N1-CloudCampus, Add-On Package, Endpoints Plug and Play, Per 30 Endpoints |
88062GMH | N1-EPNP-30-SnS-3Y | N1-CloudCampus, Add-On Package, Endpoints Plug and Play, Software Subscription and Support, Per 30 Endpoints,3 Years |
88036KSM | N1-APP-X7MSwitch | N1-CloudCampus, Add-On Package, Intelligent Application Analysis, X7 Series Modular Switch, Per Device |
88062GMT | N1-APP-X7MSwitch-SnS-3Y | N1-CloudCampus, Add-On Package, Intelligent Application Analysis, X7 Series Modular Switch, Software Subscription and Support, Per Device,3 Year |
Installation Material | ||
21150722 | BRACKET-ASM/N6XE-270mm-410mm | N6XE Support Mount Kit (Adjustable Height 270mm~410mm) |
21150713 | WDKBRACK0003 | N6XE Support Mount Kit (Adjustable Height 410mm |
21150747 | BRACKET-ASM/N6XE-200mm-270mm | N6XE Support Mount Kit (Adjustable Height 200mm~270mm) |
21150715 | E0UTFMK01 | Upper Fixing Bracket Component |
21150259 | E00RSRC00 | Q/DKBA4.070.0236MX,Rack Shockproof Reinforcement Components,All Racks |
21240437 | E0N68RA00 | N68 rail assembly |
21240438 | E0N66RA00 | N66 rail assembly |
21242247 | RAIL-02 | Extension Guide Rail |
21242246 | E00TSLD00 | Extension Guide Rail |
21030104 | CR5M000FWB01 | Fiber Winding Box |
Optional Patch Cord | ||
14130197 | SS-OP-LC-FC-S-10 | Patch cord-FC/PC-LC/PC-Single mode-G.652D-2mm-10m-PVC-Yellow |
14130274 | SS-OP-LC-FC-S-20 | Patch cord-FC/PC-LC/PC-Single mode-G.652D-2mm-20m-PVC-Yellow |
14130278 | F000OPS01 | Patch cord-FC/PC-LC/PC-Single mode-G.652D-2mm-30m-PVC-Yellow |
14130196 | SS-OP-LC-SC-S-10 | Patch cord-LC/PC-SC/PC-Single mode-G.652-2mm-10m-PVC-Yellow |
14130280 | SS-OP-LC-SC-S-20 | Patch cord-LC/PC-SC/PC-Single mode-G.652-2mm-20m-PVC-Yellow |
14130276 | SS-OP-LC-SC-S-30 | Patch cord-LC/PC-SC/PC-Single mode-G.652D-2mm-30m-PVC-Yellow |
14130199 | SS-OP-D-LC-S-10 | Patch cord-LC/PC-LC/PC-Single mode-G.652D-2mm-10m-PVC-Yellow |
14130251 | SS-OP-D-LC-S-20 | Patch cord-LC/PC-LC/PC-Single mode-G.652-2mm-20m-PVC-Yellow |
14130282 | SS-OP-D-LC-S-30 | Patch cord-LC/PC-LC/PC-Single mode-G.652-2mm-30m-PVC-Yellow |
14130221 | SS-OP-LC-FC-M-10 | Patch cord-FC/PC-LC/PC-Multimode-A1b-2mm-10m-PVC-Orange |
14130273 | SS-OP-LC-FC-M-20 | Patch cord-FC/PC-LC/PC-Multimode-A1b-2mm-20m-PVC-Orange |
14130277 | SS-OP-LC-FC-M-30 | Patch cord-FC/PC-LC/PC-Multimode-A1b-2mm-30m-PVC-Orange |
14130223 | SS-OP-LC-SC-M-10 | Patch cord-LC/PC-SC/PC-Multimode-A1b-2mm-10m-PVC-Orange |
14130279 | SS-OP-LC-SC-M-20 | Patch cord-LC/PC-SC/PC-Multimode-A1b-2mm-20m-PVC-Orange |
14130275 | SS-OP-LC-SC-M-30 | Patch Cord,LC/PC,SC/PC,Multi-mode,30m,A1b,2mm |
14130222 | SS-OP-D-LC-M-10 | Patch cord-LC/PC-LC/PC-Multimode-A1b-2mm-10m-PVC-Orange |
14130295 | SS-OP-D-LC-M-20 | Patch cord-LC/PC-LC/PC-Multimode-A1b-2mm-20m-PVC-Orange |
14130294 | SS-OP-D-LC-M-30 | Patch cord-LC/PC-LC/PC-Multimode-A1b-2mm-30m-PVC-Orange |
14131208 | F010MPO00 | Patch Cord,MPO/PC,MPO/PC,Multimode(OM,Bending Insensitive,GJFH 24A1a(LSZH),5.6mm,10m,24cores |
14132536 | SS-OP-MPO24-2*MPO12-M-15 | Optical Cable Assembly,MPO/PC,2MPO/PC,Multimode(OM3,Bending Insensitive),GJFH 24A1a(LSZH),15m,5.6mm,24 Cores,1m/1m,3.5mm |
14132539 | SS-OP-MPO24-10*DLC-M-15 | Optical Cable Assembly,MPO/PC,10*DLC/PC,Multimode(OM3,Bending Insensitive),GJFH 24A1a(LSZH),15m,5.6mm,24 Cores,1m/1m,2mm |
14130001 | SS-OP-AD-FC-FC | Adapter,FC-FC,2,Silvery white,Shell:Metal,Sleeve:Zirconia,Round |
14130248 | QW1P0FIBER06 | Optical adapter-LC/PC-LC/PC-Blue-Shell:Plastic-Sleeve:Zirconia-Square |
14130923-001 | SS-OP-D-MPO12-M-5 | Optical Cable Parts,MPO/PC,MPO/PC,Multi-mode,5m,8 cores,0m/0m,GJFH-8A1a.2(OM3),3.5mm,LSZH,60mm MPO,Bending insensitive |
14134486 | MPO12-MPO12-M4-10 | Optical Cable Parts,MPO/PC,MPO/PC,Multi-mode,10m,8 cores,GJFH-8A1a.3(OM4),3.5mm,0mm,LSZH,Bending Insensitive |
14130923 | SS-OP-D-MPO12-M-15 | Optical Cable Parts,MPO/PC,MPO/PC,MULTI-MODE,15m,8 CORES,0m/0m,GJFH-8A1A.2(OM3),3.5MM,LSZH,60mm MPO,Bending insensitive |
14130823-002 | FMMM03001 | Multi-Channel Optical Patchcord,MPO/PC,MPO/PC,Multimode(OM3,Bending Insensitive),30m,8 Cores,0m/0m,GJFH 8A1a,3.5mm,LSZH,42mm Short MPO,Indoor |
14130823-003 | FMMM10001 | Multi-Channel Optical Patchcord,MPO/PC,MPO/PC,Multimode(OM3,Bending Insensitive),100m,8 Cores,0m/0m,GJFH 8A1a,3.5mm,LSZH,42mm Short MPO,Indoor |
14131058 | SS-OP-MPO12-4*DLC-M-15 | Optical Cable Assembly,MPO/PC,4*DLC/PC,Multimode(OM3),GJFH 8A1a(LSZH),15m,3.5mm,8 Cores,0mm/12000mm,2mm |
14132537 | SS-OP-MPO12-4*DLC-M-5 | Optical Cable Assembly,MPO/PC,4*DLC/PC,Multimode(OM3,Bending Insensitive),GJFH 8A1a(LSZH),5m,3.5mm,8 Cores,0m/1m,2mm |
14132538 | MPO12-4DLC-SM-15 | Optical Cable Assembly,MPO/APC,4*DLC/PC,Singlemode,GJFH 8G.657A2(LSZH),15m,3.5mm,8 Cores,0m/1m,2mm |
14134759 | MPO12-MPO12-SM-10 | Optical Cable Parts,MPO/APC,MPO/APC,Single mode,10m,8 cores,GJFH-8G.657A2,3.5mm,LSZH,43mm Short MPO,Bending insensitive |
14131650-003 | SS-OP-LC/LC-M-3 | Patch Cord,LC/PC,LC/PC,Multi-mode,3m,A1a.2,2mm,LSZH,42mm LC,OM3 bending insensitive |
14131650-004 | SS-OP-LC/LC-M-5 | Patch Cord,LC/PC,LC/PC,Multi-mode,5m,A1a.2,2mm,LSZH,42mm LC,OM3 bending insensitive |
14131650 | SS-OP-LC/LC-M-10 | Patch Cord,LC/PC,LC/PC,Multi-mode,GJFJH-A1a(OM3,bending insensitive),2mm,10m,LSZH |
14131650-001 | SS-OP-LC/LC-M-20 | Patch Cord,LC/PC,LC/PC,Multi-mode,GJFJH-A1a(OM3,bending insensitive),2mm,20m,LSZH |
14131650-002 | SS-OP-LC/LC-M-30 | Patch Cord,LC/PC,LC/PC,Multi-mode,GJFJH-A1a(OM3,bending insensitive),2mm,30m,LSZH |
14131650-005 | LC-LC-M3-50 | Patch Cord,LC/PC,LC/PC,Multi-mode,50m,A1a.2,2mm,LSZH,42mm LC,OM3 bending insensitive |
14131655-003 | FMLS00301 | Patch Cord,LC/PC,SC/PC,Multi-mode,GJFJH-A1a(OM3,bending insensitive),2mm,3m,LSZH |
14131655-004 | FMLS00501 | Patch Cord,LC/PC,SC/PC,Multi-mode,GJFJH-A1a(OM3,bending insensitive),2mm,5m,LSZH |
14131655 | LC-SC-M3-10 | Patch Cord,LC/PC,SC/PC,Multi-mode,GJFJH-A1a(OM3,bending insensitive),2mm,10m,LSZH |
14131655-001 | LC-SC-M3-20 | Patch Cord,LC/PC,SC/PC,Multi-mode,GJFJH-A1a(OM3,bending insensitive),2mm,20m,LSZH |
14131655-002 | LC-SC-M3-30 | Patch Cord,LC/PC,SC/PC,Multi-mode,GJFJH-A1a(OM3,bending insensitive),2mm,30m,LSZH |
14131655-005 | LC-SC-M3-50 | Patch Cord,LC/PC,SC/PC,Multi-mode,GJFJH-A1a(OM3,bending insensitive),2mm,50m,LSZH |
14131654-003 | FMLF00301 | Patch Cord,LC/PC,FC/PC,Multi-mode,GJFJH-A1a(OM3,bending insensitive),2mm,3m,LSZH |
14131654-004 | FMLF00501 | Patch Cord,LC/PC,FC/PC,Multi-mode,GJFJH-A1a(OM3,bending insensitive),2mm,5m,LSZH |
14131654 | SS-OP-FC/LC-M-10 | Patch Cord,LC/PC,FC/PC,Multi-mode,GJFJH-A1a(OM3,bending insensitive),2mm,10m,LSZH |
14131654-001 | SS-OP-FC/LC-M-20 | Patch Cord,LC/PC,FC/PC,Multi-mode,GJFJH-A1a(OM3,bending insensitive),2mm,20m,LSZH |
14131654-002 | SS-OP-FC/LC-M-30 | Patch Cord,LC/PC,FC/PC,Multi-mode,GJFJH-A1a(OM3,bending insensitive),2mm,30m,LSZH |
14131654-005 | LC-FC-M3-50 | Patch Cord,LC/PC,FC/PC,Multi-mode,GJFJH-A1a(OM3,bending insensitive),2mm,50m,LSZH |
14130858 | SN2F01FCPC | Patch Cord,DLC/PC,DLC/PC,Multi-mode,3m,A1a.2,2mm,42mm DLC,OM3 bending insensitive |
14130859 | SN2F10FCPC | Patch Cord,DLC/PC,DLC/PC,Multi-mode,5m,A1a.2,2mm,42mm DLC,OM3 bending insensitive |
14130860 | SN2F02FCPC | Patch Cord,DLC/PC,DLC/PC,Multi-mode,10m,A1a.2,2mm,42mm DLC,OM3 bending insensitive |
14130862 | SN2F03FCPC | Patch Cord,DLC/PC,DLC/PC,Multi-mode,20m,A1a.2,2mm,42mm DLC,OM3 bending insensitive |
14130863 | SN2F11FCPC | Patch Cord,DLC/PC,DLC/PC,Multi-mode,30m,A1a.2,2mm,42mm DLC,OM3 bending insensitive |
14130865 | FC-OM3-50m | Patch Cord,DLC/PC,DLC/PC,Multi-mode,50m,A1a.2,2mm,42mm DLC,OM3 bending insensitive |
14137113 | SN2F03DLCPC4 | Patch Cord,DLC/PC,DLC/PC,Multi-mode,3m,A1a.3,2mm,42mm DLC,OM4 bending insensitive |
14137113-001 | SN2F10DLCPC4 | Patch Cord,DLC/PC,DLC/PC,Multi-mode,10m,A1a.3,2mm,42mm DLC,OM4 bending insensitive |
14137113-002 | SN2F20DLCPC4 | Patch Cord,DLC/PC,DLC/PC,Multi-mode,20m,A1a.3,2mm,42mm DLC,OM4 bending insensitive |
14137113-003 | SN2F50DLCPC4 | Patch Cord,DLC/PC,DLC/PC,Multi-mode,50m,A1a.3,2mm,42mm DLC,OM4 bending insensitive |
Cable & Converter | ||
25050014 | C0000FE00 | Twisted-Pair Cable,100ohm,Category 5e UTP,0.51mm,24AWG,8Cores,PANTONE 430U,Use with Plug:14080082 |
14080082 | Connector | Network Interface Connector,8Bit 8Pin,Crystal Plug,Matching 25050014 |
4040497 | CAB-E1-120ohm-2 | Trunk Cable,3m,120ohm,1E1,0.4mm,MP8-II,120CC4P0.4P430U(S),MP8-II,Expert 2.0 |
4040261 | CAB-E1-120ohm-15 | Trunk Cable,15m,120ohm,1E1,0.4mm,MP8-II,120CC4P0.4P430U(S),MP8-II |
4040496 | CAB-E1-120ohm-30 | Trunk Cable,30m,120ohm,1E1,0.4mm,MP8-II,120CC4P0.4P430U(S),MP8-II,Expert 2.0 |
4026814 | CAB-SMB | Single Cable,120ohm,75ohm Converter Box(With SMB Socket 14040127),PCB03022834+Box Body 21210634) |
4025686 | CAB-DL4362 | Trunk Cable,2.00m,75ohm,2.2mm,SMB75SF-V,SYFVZ75-1.2/0.25,SMB75SF-V,HONET,DL4362 |
4060391 | CSMBN0100 | Trunk Cable,10.00m,75ohm,2.2mm,SMB75SF-V,SYFVZ75-1.2/0.25,BNC75SM-V,STP |
4023275 | DL2761 | Traditional Signal Cable,Straight Through Cable,10.00m,MP8-I,(CC4P0.5GY),MP8-I,Unshield,DL2761 |
4025540 | CAB-DL4217-30 | Traditional Signal Cable,30.00m |
High Speed Cable | ||
02310MUN | SFP-10G-CU1M | SFP+,10G,High Speed Direct-attach Cables,1m,SFP+20M,CC2P0.254B(S),SFP+20M,Used indoor |
02310MUP | SFP-10G-CU3M | SFP+,10G,High Speed Direct-attach Cables,3m,SFP+20M,CC2P0.254B(S),SFP+20M,Used indoor |
02310QPR | SFP-10G-CU5M | SFP+,10G,High Speed Cable,5m,SFP+20M,CC2P0.254B(S),SFP+20M,LSFRZH For Indoor |
02310MUL | QSFP-4SFP10G-CU3M | QSFP+,4SFP+10G,High Speed Direct-attach Cables,3m,QSFP+38M,CC8P0.32B(S),4*SFP+20M,Used indoor |
02310MUM | QSFP-4SFP10G-CU5M | QSFP+,4SFP+10G,High Speed Direct-attach Cables,5m,QSFP+38M,CC8P0.4B(S),4*SFP+20M,Used indoor |
02310QWH | SFP-10G-AOC10M | AOC Optical Transceiver,SFP+,850nm,1G~10G,10m |
02311KNQ | QSFP-100G-AOC-10M | Active Optical Cable ,QSFP28,100G,(850nm,10m,AOC) |
02310MUG | QSFP-40G-CU1M | QSFP+,40G,High Speed Direct-attach Cables,1m,QSFP+38M,CC8P0.254B(S),QSFP+38M,Used indoor |
02310MUH | QSFP-40G-CU3M | QSFP+,40G,High Speed Direct-attach Cables,3m,QSFP+38M,CC8P0.32B(S),QSFP+38M,Used indoor |
02310MUJ | QSFP-40G-CU5M | QSFP+,40G,High Speed Direct-attach Cables,5m,QSFP+38M,CC8P0.40B(S),QSFP+38M,Used indoor |
02311KNW | QSFP28-100G-CU1M | QSFP28,100G,High Speed Direct-attach Cables,1m,(QSFP28),CC8P0.254B(S),QSFP28,Used indoor |
02311KNX | QSFP28-100G-CU3M | QSFP28,100G,High Speed Direct-attach Cables,3m,(QSFP28),CC8P0.254B(S),QSFP28,Used indoor |
02311KNY | QSFP28-100G-CU5M | QSFP28,100G,High Speed Direct-attach Cables,5m,(QSFP28),CC8P0.4B(S),QSFP28,Used indoor |
Power Cable & PGND Cable | ||
25030419 | C1035YG00 | Power Cable,450V/750V,60227 IEC 02(RV),35mm^2,Yellow/Green,138A,CCC,CE (Unit:meter) |
25030024 | CPWR00606 | Power Cable,450V/750V,60227 IEC 02(RV),6mm^2,Blue,46A,CCC,CE (Unit:meter) |
25030026 | C1006BK00 | Power Cable,450V/750V,60227 IEC 02(RV),6mm^2,Black,46A,CCC,CE (Unit:meter) |
25030191 | C1006YG00 | Power Cable,450V/750V,60227 IEC 02(RV),6mm^2,Yellow/Green,46A,CCC,CE (Unit:meter) |
25030190 | C1010YG00 | Power Cable,450V/750V,60227 IEC 02(RV),10mm^2,Yellow/Green,63A,CCC,CE (Unit:meter) |
25030429 | C1016YG00 | Power Cable,450V/750V,60227 IEC 02(RV),16mm^2,Yellow/Green,85A,CCC,CE (Unit:meter) |
25030074 | C1010BL00 | Power Cable,450V/750V,60227 IEC 02(RV),10mm^2,Blue,63A,CCC,CE (Unit:meter) |
25030017 | C1010BK00 | Power Cable,450V/750V,60227 IEC 02(RV),10mm^2,Black,63A,CCC,CE (Unit:meter) |
25030430 | C1016BL00 | Power Cable,450V/750V,60227 IEC 02(RV),16mm^2,Blue,85A,CCC,CE (Unit:meter) |
25030428 | C1016BK00 | Power Cable,450V/750V,60227 IEC 02(RV),16mm^2,Black,85A,CCC,CE (Unit:meter) |
25030101 | C1025BL00 | Power Cable,450V/750V,60227 IEC 02(RV),25mm^2,Blue,112A,CCC,CE (Unit:meter) |
25030432 | C1025BK00 | Power Cable,450V/750V,60227 IEC 02(RV),25mm^2,Black,112A,CCC,CE (Unit:meter) |
25030199 | C1035BL00 | Power Cable,450V/750V,60227 IEC 02(RV),35mm^2,Blue,138A,CCC,CE (Unit:meter) |
25030420 | C1035BK00 | Power Cable,450V/750V,60227 IEC 02(RV),35mm^2,Black,138A,CCC,CE (Unit:meter) |
25030431 | C1025YG00 | Power Cable,450V/750V,60227 IEC 02(RV),25mm^2,Yellow/Green,112A,CCC,CE (Unit:meter) |
25030423 | C3016BK00 | Power Cable,300V/500V,60227 IEC 10(BVV),3x16mm^2,Black(3Cores:Brown,Blue,Yellow/Green),85A,Outdoor Cable,CCC,CE (Unit:meter) |
25030422 | C3018BK00 | Power Cable,300V/500V,60227 IEC 10(BVV),3x6mm^2,Black(3Cores:Brown,Blue,Yellow/Green),46A,Outdoor Cable,CCC,CE (Unit:meter) |
Recommend Products
S16700-4
S16700-8
S8700-4
Company Profile
Baorui Internet Technology Service Limited (HongTelecom) is a leading professional equipment distributor and service provider in telecommunication infrastructure and solution field, and now is extending our business to ICT (Information and Communication Technology) field.
Baorui & HongTelecom offers a full range of telecom infrastructure products, our business scope include Router/Switch/BRAS, GPON/EPON/FTTX, Optical TRANSMISSION (SDH/DWDM/PTN/Microwave), DSLAM/PSTN/MSAG/MSAN, Firewall/Security Gateway, Power Energy/UPS/indoor Outdoor Cabinet, Video Conference, WLAN etc., We also supply used and refurbished wireless and core network, including Hua wei/NSN/ZTE, GSM/UMTS/LTE, BBU, RRU, BTS.
Baorui & HongTelecom offers a full range of telecom infrastructure products, our business scope include Router/Switch/BRAS, GPON/EPON/FTTX, Optical TRANSMISSION (SDH/DWDM/PTN/Microwave), DSLAM/PSTN/MSAG/MSAN, Firewall/Security Gateway, Power Energy/UPS/indoor Outdoor Cabinet, Video Conference, WLAN etc., We also supply used and refurbished wireless and core network, including Hua wei/NSN/ZTE, GSM/UMTS/LTE, BBU, RRU, BTS.
Our Advantages
Certifications
Baorui Internet Technology Service Limited (HongTelecom) team comes from the famous and professional brand of telecom communication equipment manufacture mostly, so we have established very good cooperative relationship with these manufacture channel. We can provide one-stop purchasing platform for our customer with very good price and very fast delivery.
Our warehouses
Our warehouses are located in Hongkong, Shenzhen, Shandong, Dongguan and other places in China. The inventory value is over 20 million US dollars, occupies an area over 1000㎡. Our export volumes is 1 million per month. We export products to Europe, America, the Middle East and Asia, etc.
Test Lab
Strict quality control is performed in every procedure from material sourcing, processing and testing to packing.We are capable to provide our business partners bestselling products.
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
