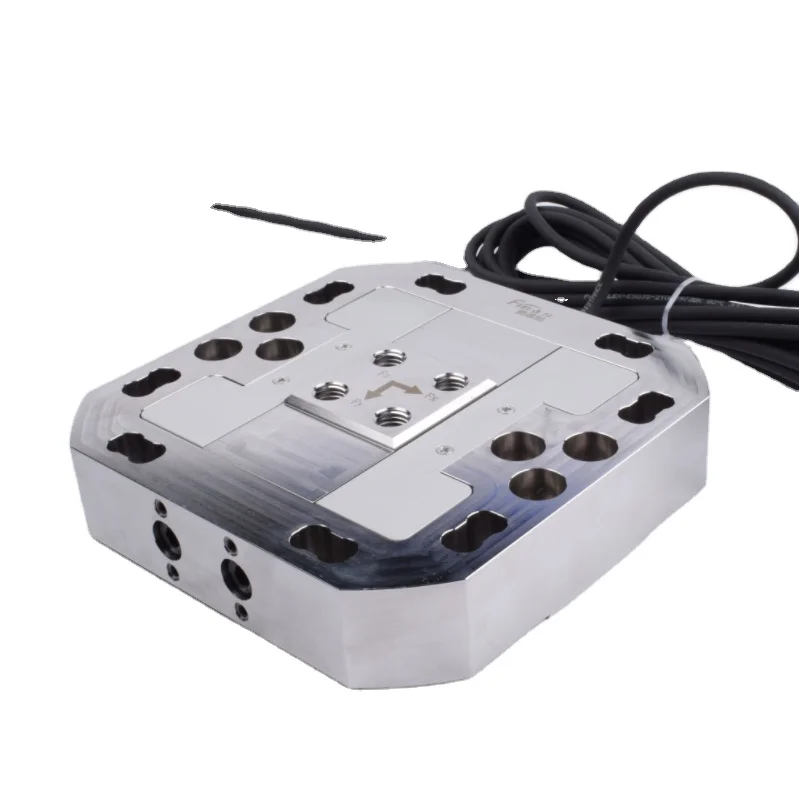

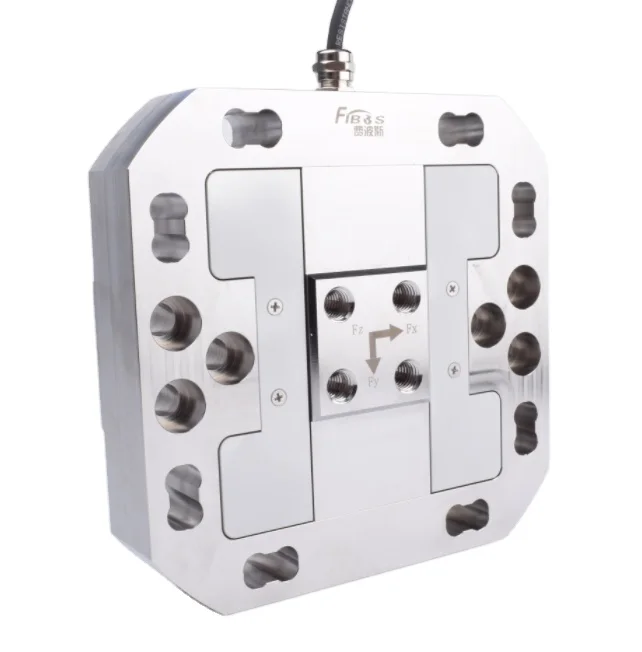

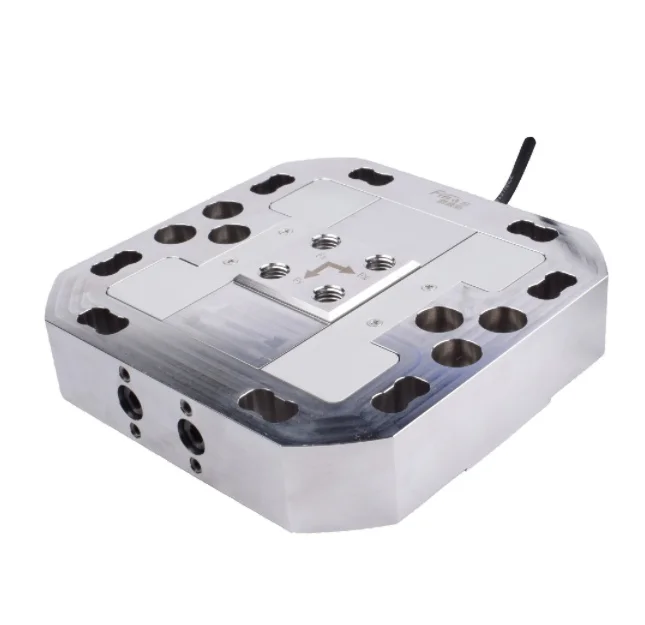

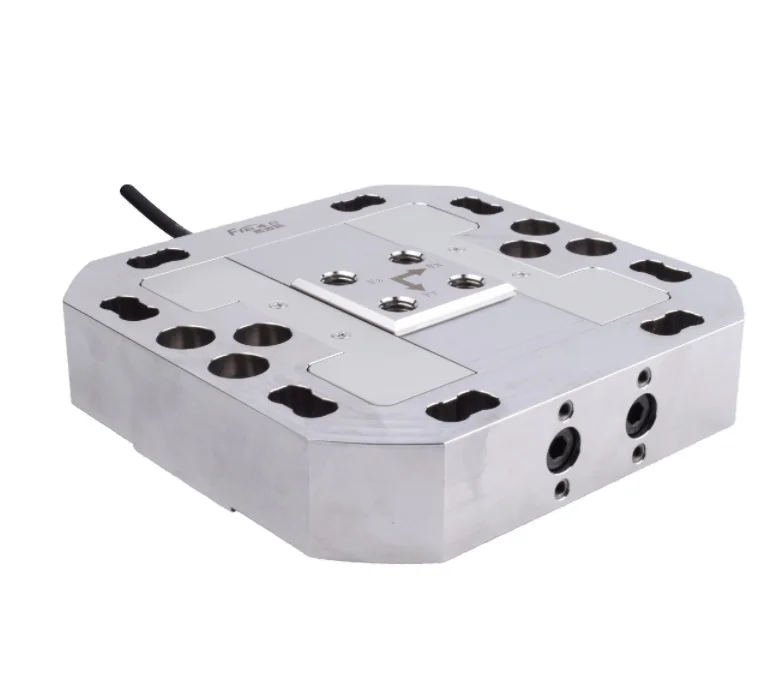

Stainless steel 5T triaxial force sensor 50kN 3 axis load cell force transducer for automotive
- Category: >>>
- Supplier: Fibos Measurement Technology (changzhou) Co. Ltd.
Share on (1601202265477):
Product Overview
Description
Product Description
Stainless steel 5T triaxial force sensor 50kN 3-axis load cell force transducer for automotive
Advantages of FIBOS multi-axis force sensors FA704D
Comparing it with a single-axis force sensor, in addition to solving the problem of forging and consistency that are sensitive to the measured force component, it can also solve the problem of interdimensional (inter-axis) interference caused by structural processing and process errors, dynamic static correction, and vector calculation. Decoupling algorithm and circuit implementation in the paper.
In projects such as structural design of elastic body, mechanical performance evaluation, and vector decoupling algorithm, the research of multi-dimensional force sensor has completely solved scientific problems, and we have mastered the key manufacturing technology with the ability to handle design from macro to microcomputer
In projects such as structural design of elastic body, mechanical performance evaluation, and vector decoupling algorithm, the research of multi-dimensional force sensor has completely solved scientific problems, and we have mastered the key manufacturing technology with the ability to handle design from macro to microcomputer
Applications of FIBOS multi-axis force sensors FA704D
It is widely used in the research of robotic fingers and grippers. Robotic surgery research; finger force research; dental research; force feedback braking test precision assembly, cutting; restoration research. Teaching Orthopedic Surgery Research Products Testing Haptic Feedback Learning. Industries include robotics, automobile manufacturing, automatic assembly line assembly, biomechanics, aerospace, light textile industry, etc.

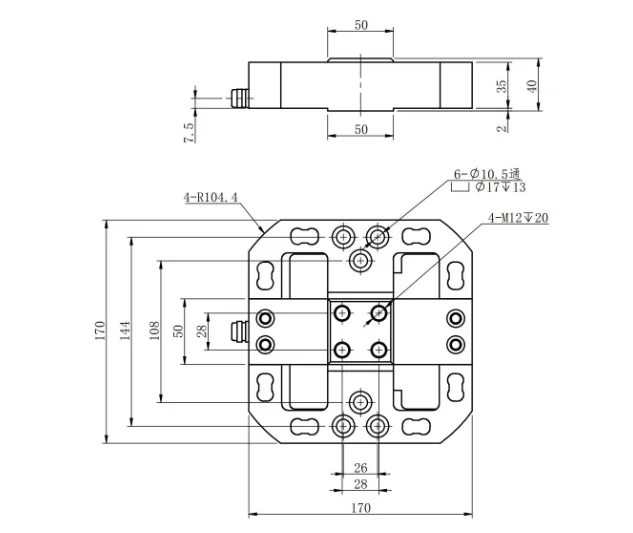

Dimension
Specification
item | Stainless steel 5T triaxial force sensor 50kN 3-axis load cell force transducer for automotive |
Series | Multi axis load cell |

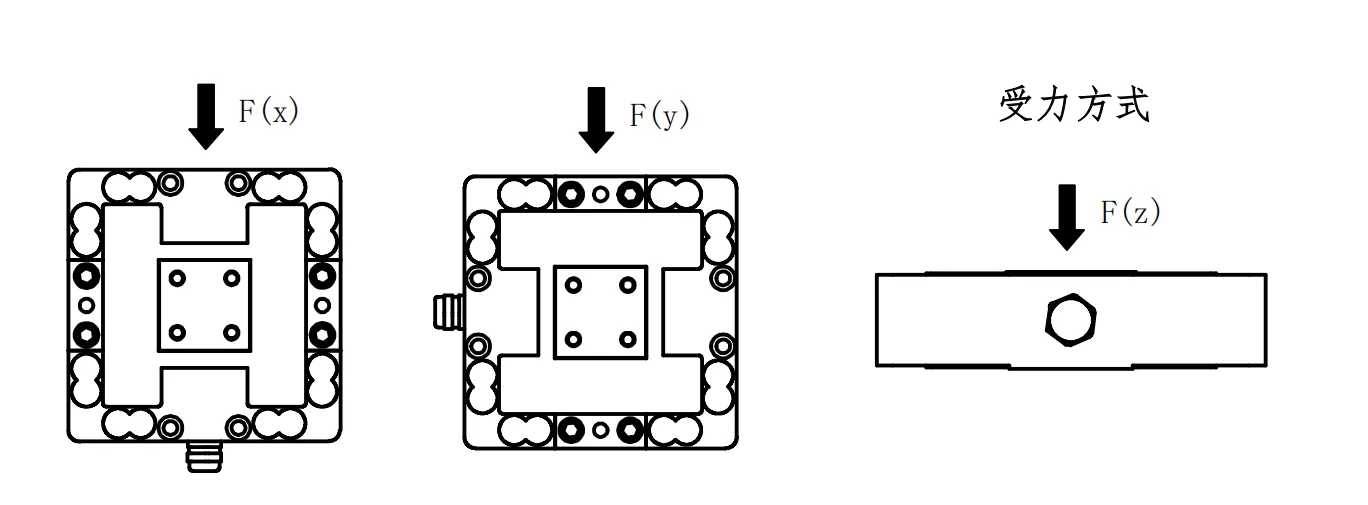

Features | can test 3 directions above force |
Mounting Type | Thread connection |
Description | Multi-axis force sensor |
Model Number | FA704D |
Type | Load Cell |
Place of Origin | China |
Jiangsu | |
Brand Name | Fibos |
Usage | For automatic industry |
Theory | Resistance strain-gage |
Output | Analog or digital signal |
Description | 3-axis force sensor |
Capacity | Fx/y/z:5T |
Sensitivity | ±1.0±10%mV/V |
Zero balance | ±0.02mV/V |
Creep(30min) | ≤0.1%F.S. |
Non-linearity | ≤0.3%F.S. |
Hysteresis | ≤0.3%F.S. |
Interference error | ≤1%F.S. |
Repeatability | ≤0.2%F.S. |
Cable size | 5*3000mm |
Material | Alloy steel |
Recommend Products
FA702
FA703
FA742

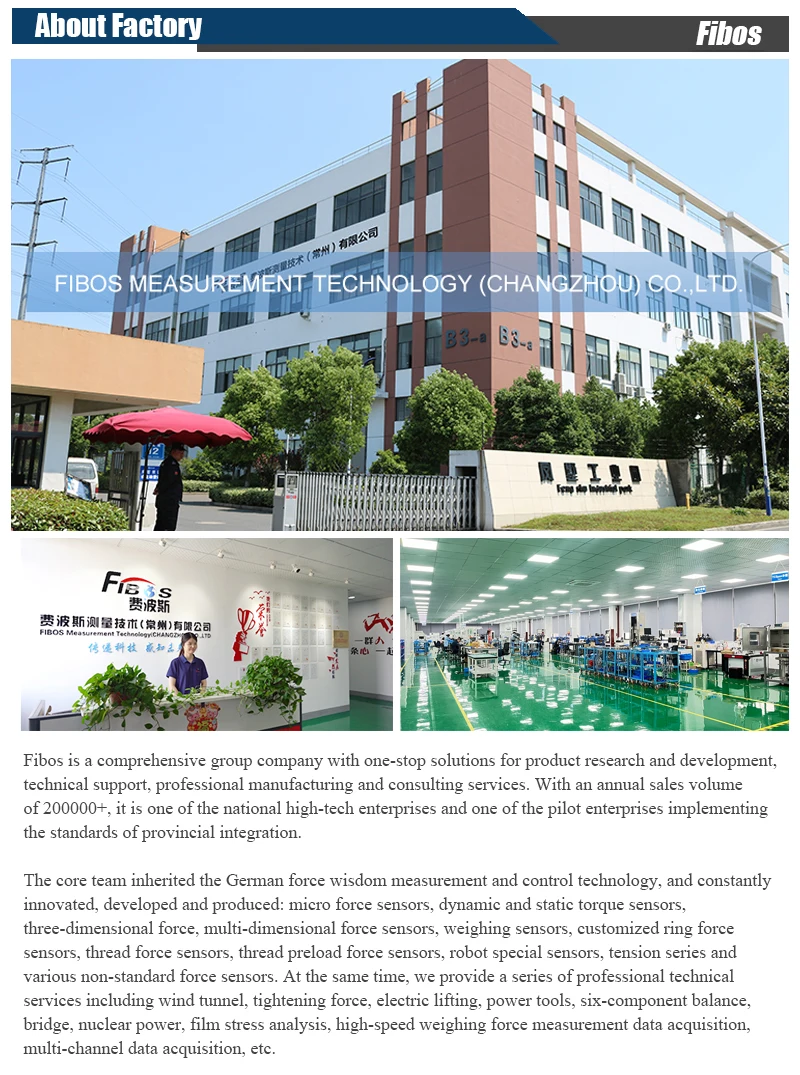

Company Profile
