Waste Tire Recycling Machine Shredded Tire into Rubber Crumbs with CE certificate
- Category: >>>
- Supplier: Qingdao Toplit Industry Co. Ltd.
Share on (1601202285040):
Product Overview
Description

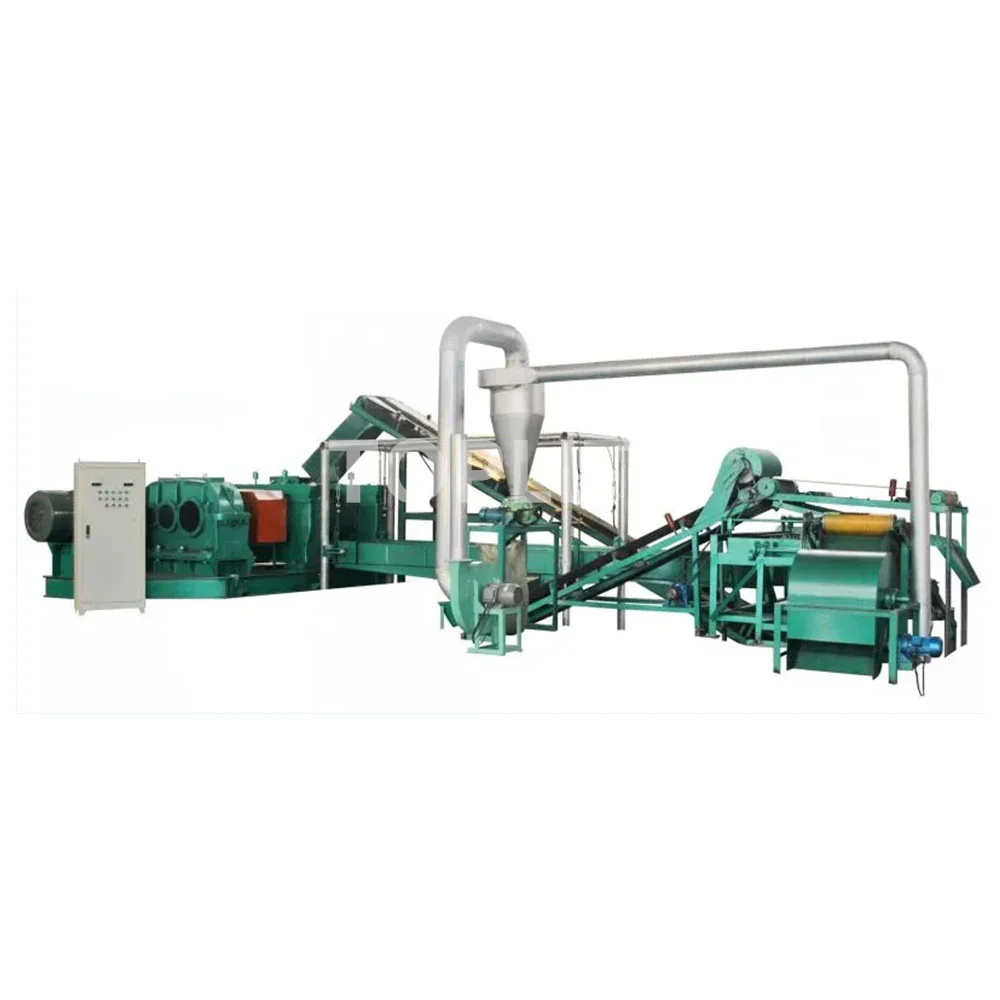

Rubber powder production line

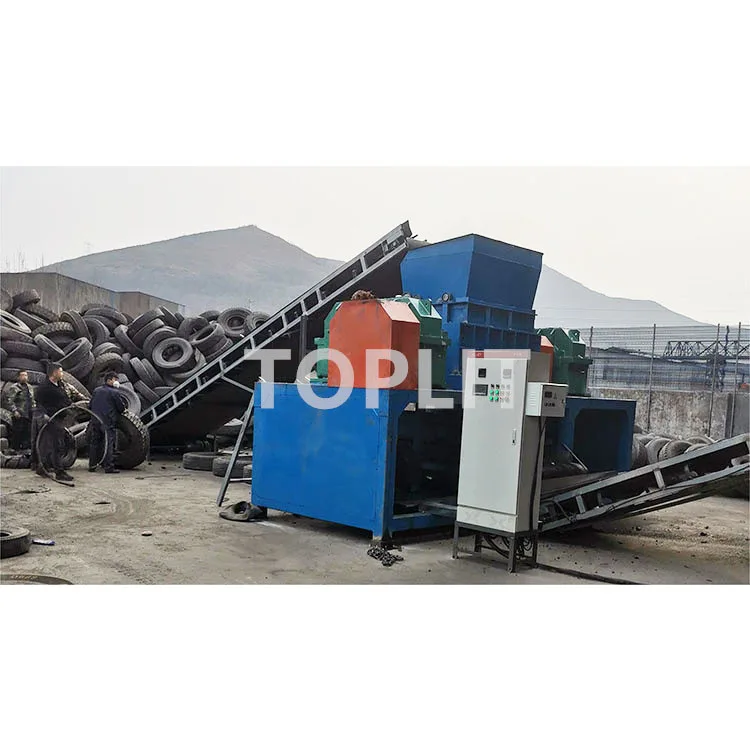

Tire shredder
Application: Tire recycling industry. (breaking whole tires to rubber block 50*50mm)
Type | LP-600 / LP-800 | LP- 1200 | LP- 1300 | |
Cracking chamber length | 600mm / 800mm | 1200mm | 1300mm | |
Blade size | Φ350mm*30mm Φ350mm*40mm/ | Φ450mm*50mm Φ450mm*40mm | Φ500×50mm Φ550×50mm | |
Blade quantity | 20pcs | 24pcs / 26pcs | 26pcs | |
Blade Rotating Speed | 20r/min | 20r/min | 19r/min | |
Main Motor | 37kw*2 / 55kw*2 | 75Kw*2 / 90Kw*2 | 110Kw*2 / 132Kw*2 / 160Kw*2 | |
Feeding | Tires strips/rubber or plastic products | Car tire or cut truck tire or passenger bus tire (removing tire bead ring) | ≤Φ1200 waste all-steel radial tire (removing tread ring) | |
Sieve pore size | Around 50mm*50mm | Around 50mm*50mm | ||
Production capacity | 1ton/hour | 2 tons/hour | 4tons/hour | |

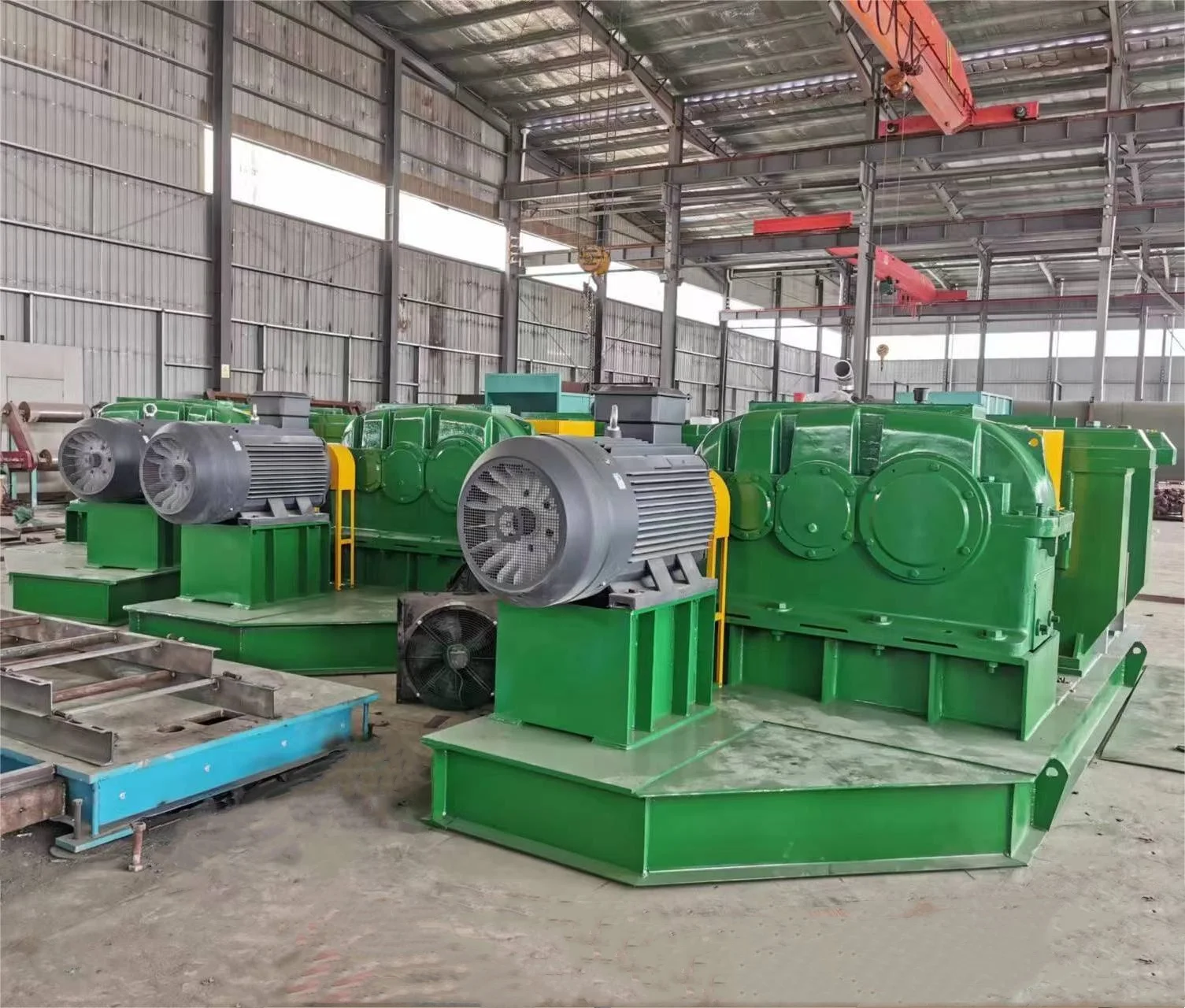

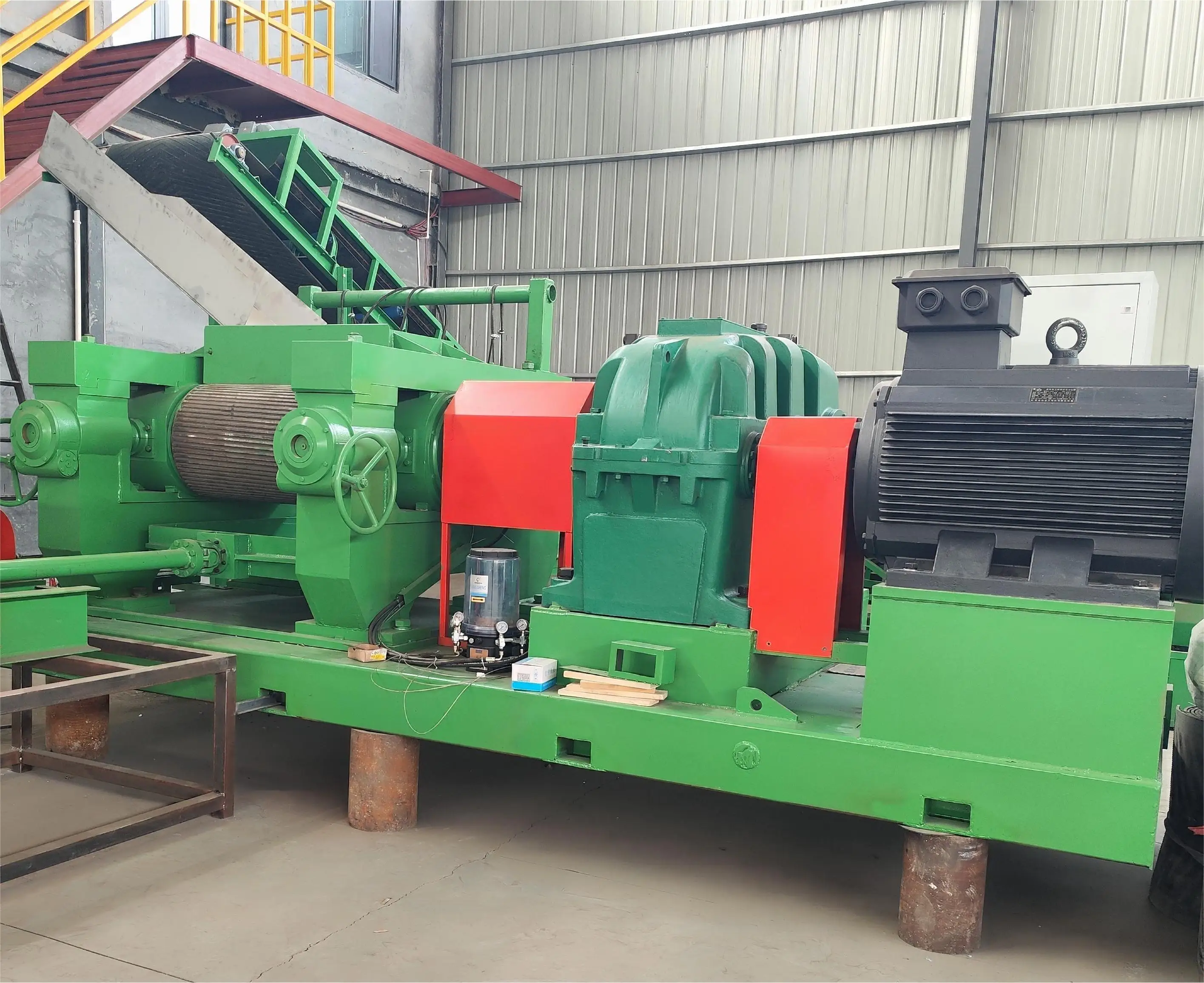

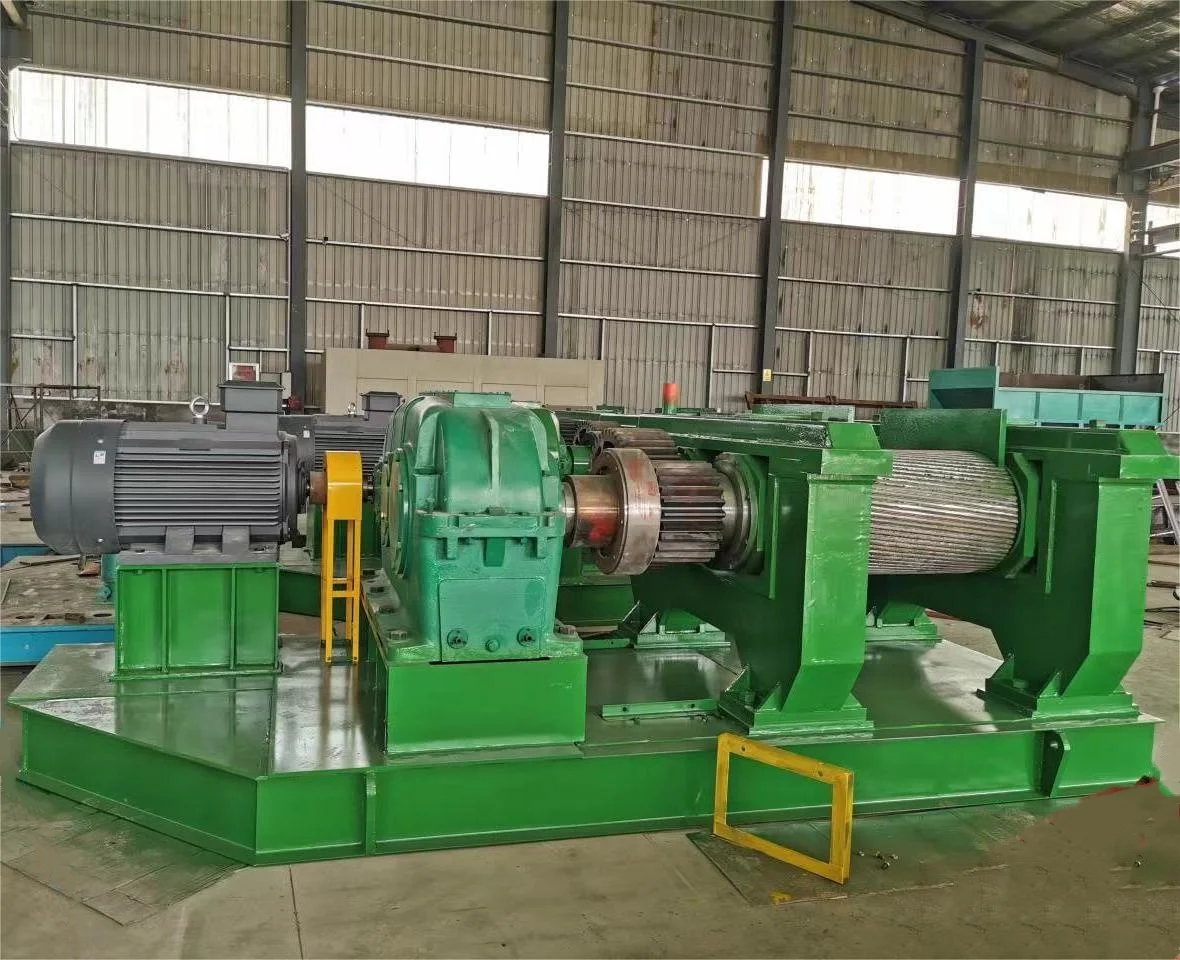

Cracker Mill

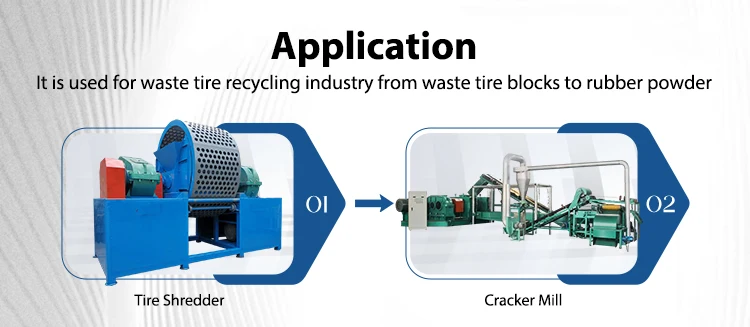

Application: Cracker mill is used for the breaking process from used tire scape to rubber powder.
Features: The rollers are made of chilled cast iron or casted steel(surfacing hard alloy) with wear-resistant hard surface. The two rollers are grooved. The bored rolls can be cooled homogeneously through inputting steam and cooling water. The two rollers rotate reversely with different speed, so that rubber material can be processed.
Features: The rollers are made of chilled cast iron or casted steel(surfacing hard alloy) with wear-resistant hard surface. The two rollers are grooved. The bored rolls can be cooled homogeneously through inputting steam and cooling water. The two rollers rotate reversely with different speed, so that rubber material can be processed.
Type | XKP-560 | XKP-610 | XKP-680 | XKP-710 |
Grooved roller dia. | 560mm | 610mm | 680mm | 710mm |
Smooth roller dia. | 510mm | 560mm | 610mm | 610mm |
Working length of rollers | 800mm | 1000mm | 1000mm | 1100mm |
Motor power | 132KW/160KW | 185KW/200KW | 250KW | 280KW |
Speed reducer | Double circular arc gear reducer /ZSY series hardened teeth reducer | Double circular arc gear reducer /ZSY series hardened teeth reducer | Double circular arc gear reducer /ZSY series hardened teeth reducer | Double circular arc gear reducer /ZSY series hardened teeth reducer |
Roller support type | Bearings | Bearings | Bearings | Bearings |
Lubricating method | Grease pump automatic lubricating | Grease pump automatic lubricating | Grease pump automatic lubricating | Grease pump automatic lubricating |
Machine weight | Around 20 ton | Around 25ton | Around 30ton | Around 32ton |
Production capacity(24mesh) | Around 900kg/h | Around 1000kg-1300kg/h | Around 1200-1500kg/h | Around 1300-1600kg/h |
Qingdao TOPLIT Industry Co.,Ltd is a professional provider of rubber machine.
Our products mainly include kneader, banbury mixer, mixing mill, refiner, calender, extruder, batch off cooler, plate curing press, microwave curing machine, cracker mill, skiving machine, extruder, tire reclaimed rubber machines, butyl reclaimed rubber machines, EPDM reclaimed rubber machines, rubber powder machines, and so on.
Our products mainly include kneader, banbury mixer, mixing mill, refiner, calender, extruder, batch off cooler, plate curing press, microwave curing machine, cracker mill, skiving machine, extruder, tire reclaimed rubber machines, butyl reclaimed rubber machines, EPDM reclaimed rubber machines, rubber powder machines, and so on.
We enjoy good reputation with reasonable price, best quality and good delivery. And we sincerely welcome clients from home and abroad to establish long and steady business relations and develop domestic and international market jointly on the base of equality and mutual benefit.
Q1.WHO ARE YOU?
A: We are Professional Provider of Rubber Machine in China for many years.
Q2.ARE YOU AN COMPREHENSIVE SUPPLIER FOR RUBBER&PLASTIC MACHINE?
A: Yes, we can provide the complete solution line to customer according to customer's requirement.
Q3. HOW ABOUT THE QUALITY CONTROL IN YOUR FACTORY?
A: We has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP.
Q4. WHAT ABOUT THE AFTER-SERVICE? WILL YOU SEND YOUR ENGINEER TO MY COUNTRY TO HELP COMMISSION AND INSTALL THE MACHINE?
A: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers.
Q5. WHAT IS THE DELIVERY TIME OF THE MACHINE?
A: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within10-60 days.
Q6. WHAT IS THE WARRANTY OF THE MACHINE?
A: The whole machine's warranty period is 12 months and spare parts will be depended.
A: We are Professional Provider of Rubber Machine in China for many years.
Q2.ARE YOU AN COMPREHENSIVE SUPPLIER FOR RUBBER&PLASTIC MACHINE?
A: Yes, we can provide the complete solution line to customer according to customer's requirement.
Q3. HOW ABOUT THE QUALITY CONTROL IN YOUR FACTORY?
A: We has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP.
Q4. WHAT ABOUT THE AFTER-SERVICE? WILL YOU SEND YOUR ENGINEER TO MY COUNTRY TO HELP COMMISSION AND INSTALL THE MACHINE?
A: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers.
Q5. WHAT IS THE DELIVERY TIME OF THE MACHINE?
A: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within10-60 days.
Q6. WHAT IS THE WARRANTY OF THE MACHINE?
A: The whole machine's warranty period is 12 months and spare parts will be depended.
