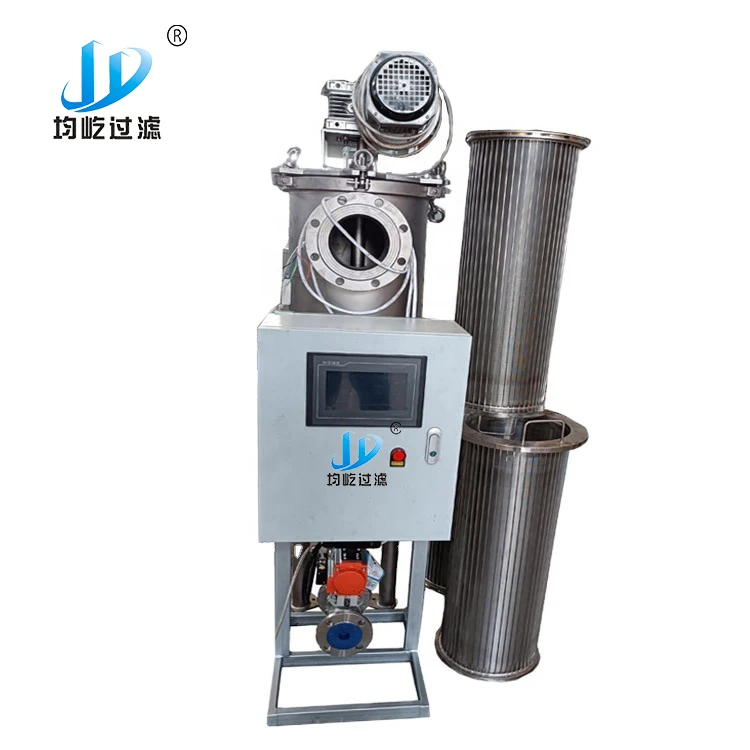

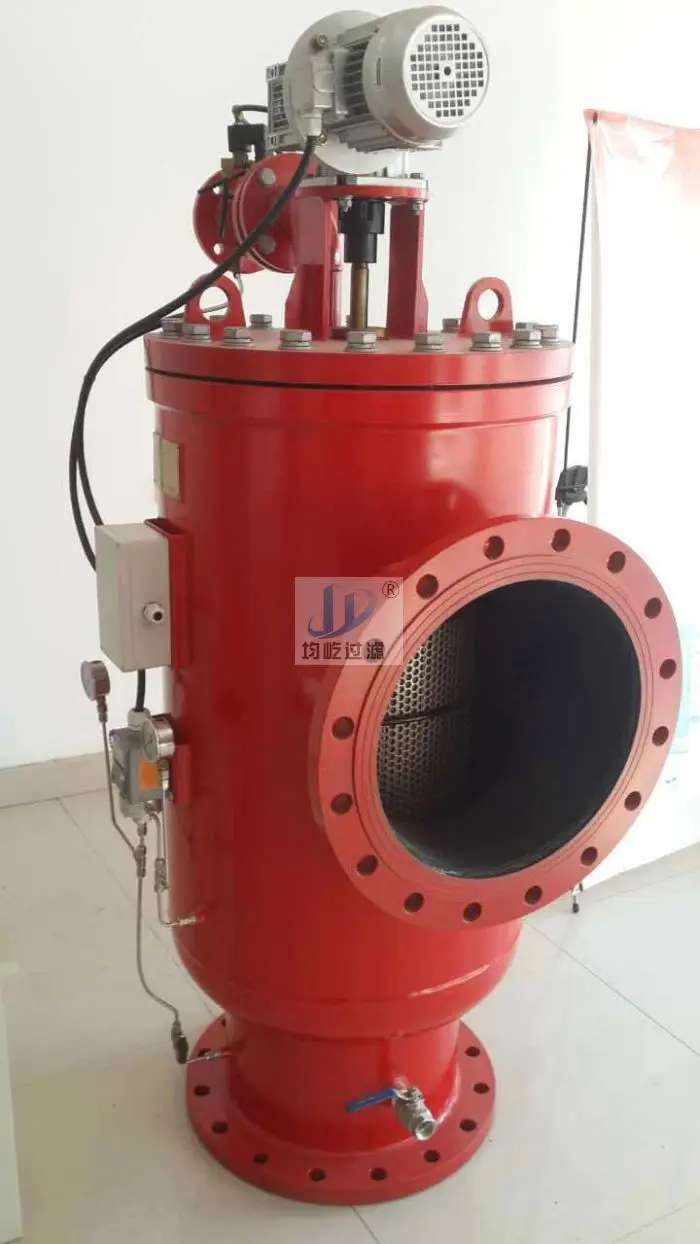

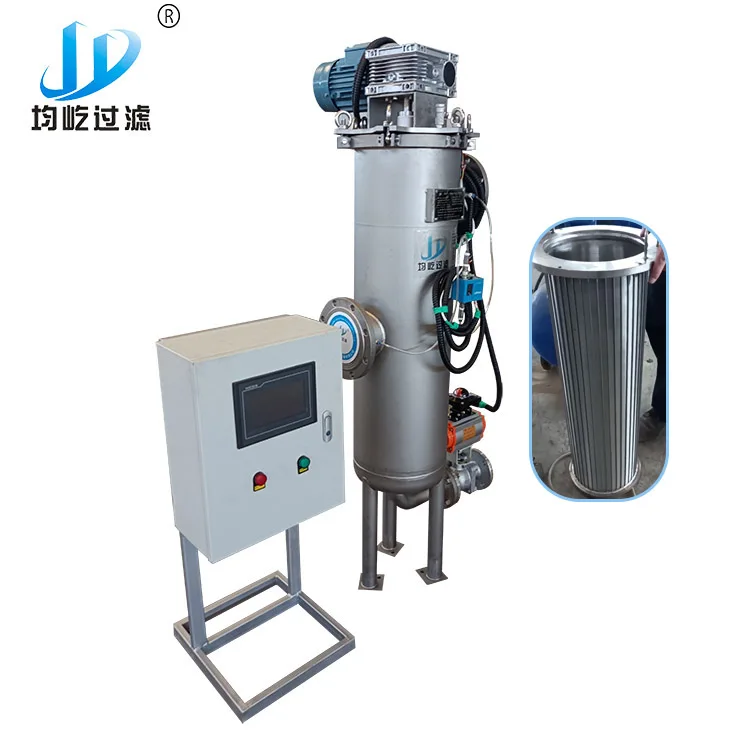

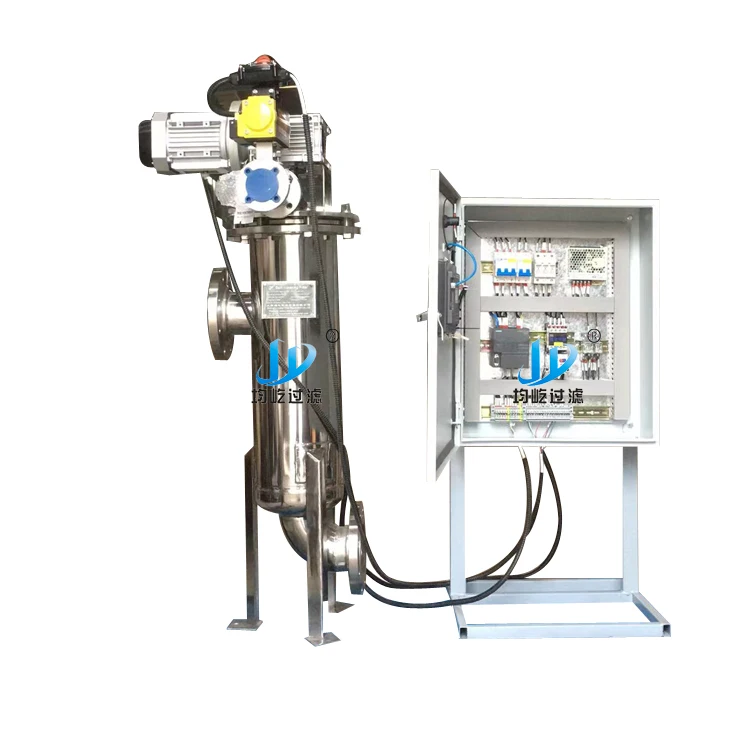

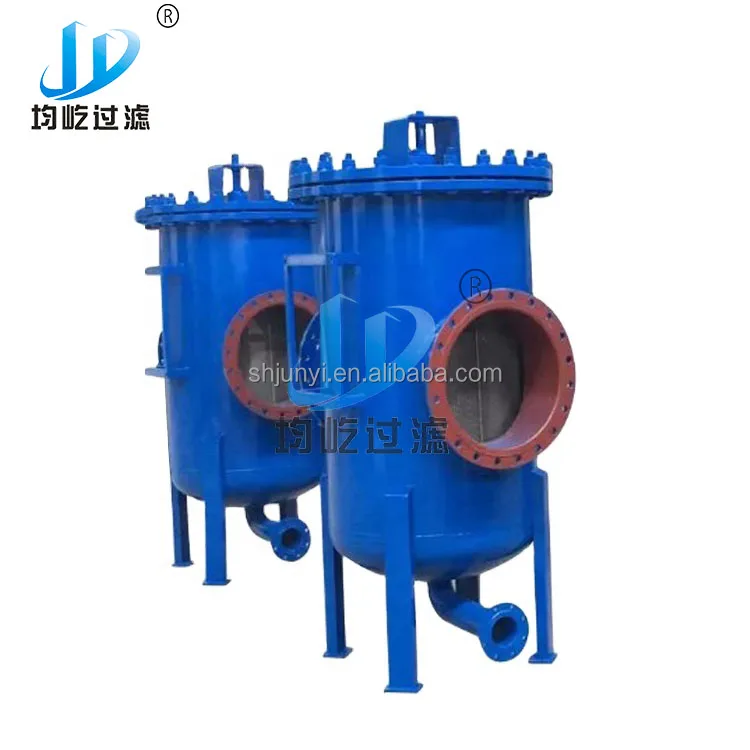

Automatic Self Cleaning Filter for Waste Water Treatment
- Category: >>>
- Supplier: Shanghai Junyi Filter Equipment Co. Ltd.Shanghai Ltd.
Share on (1601202286426):
Product Overview
Description
Product Description
Junyi series self-cleaning filter is designed for continuous filtration to remove impurities, uses a high-strength filter mesh and stainless steel cleaning components, to filter, clean and discharge automatically.

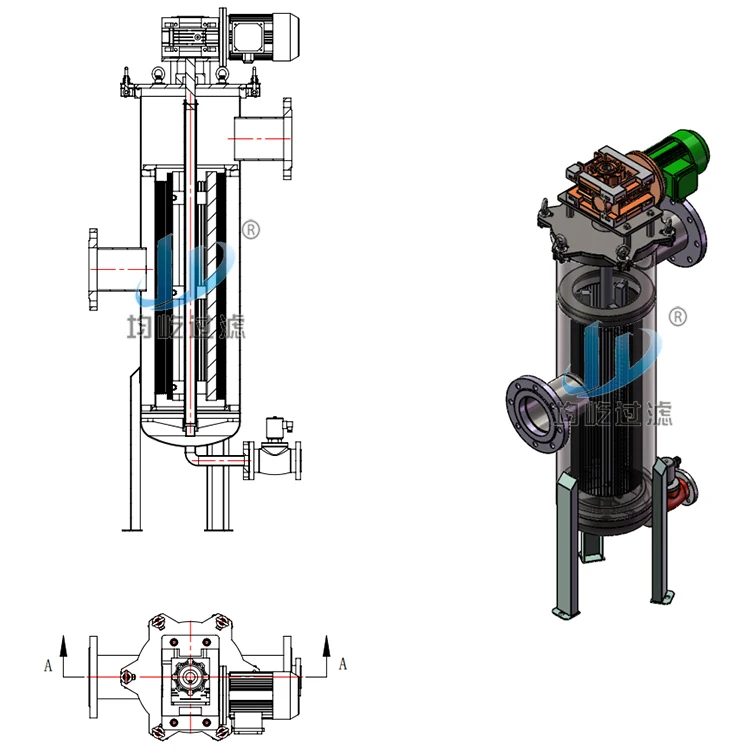

The whole process is as below:
The whole process is as below:
The liquid to be filtered flows into the filter through the inlet, then flows form inside to outside of the filter mesh, the impurities are intercepted by the mesh.
When the pressure difference between inlet and outlet reaches the set value or the timer reaches the set time, the differential pressure controller sends a signal to motor to rotate the brush/scraper for cleaning, and the drain valve opens at the same time. The impurity particles on the filter mesh are brushed by the rotating brush/scraper, then discharged from the drain outlet.
In the whole process, the filtrate does not stop flowing, realizing continuous and automatic production.
3D Animation
Product details
Product name | Automatic Self-Cleaning Filter |
Material | Carbon steel, SUS304, SUS316L |
Filter Type | Stainless steel Wedge Wire Screen Filter |
Component | Housing, driving part, PLC, control pipeline (including differential pressure control ), filter component (filter screen), cleaning component (brush type or scraper type), connection flange, etc. |
Application | Fine chemical, water treatment, paper making, petroleum, mechanical chemical, coating, etc. |
Funcation | Remove impurities, purify fluid, protect critical equipment. |

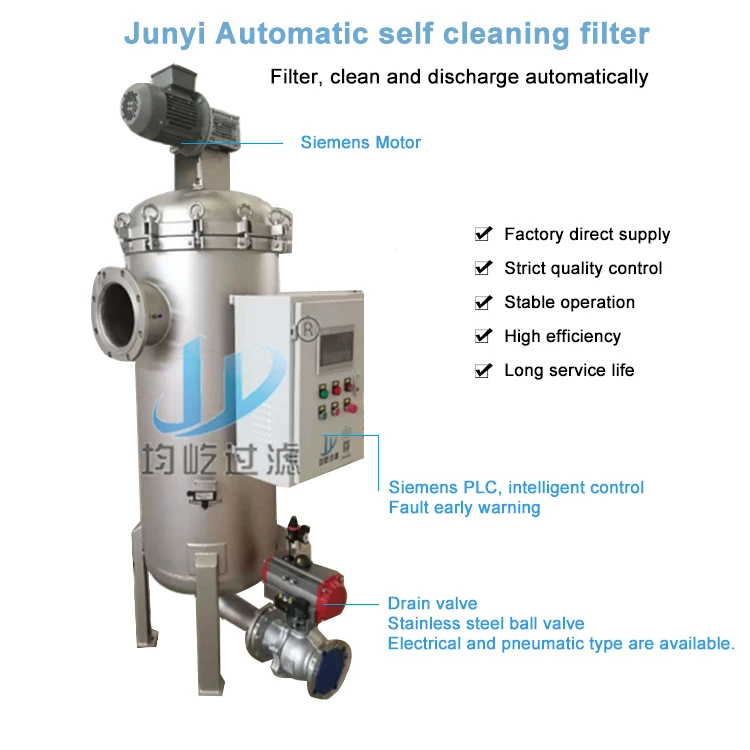

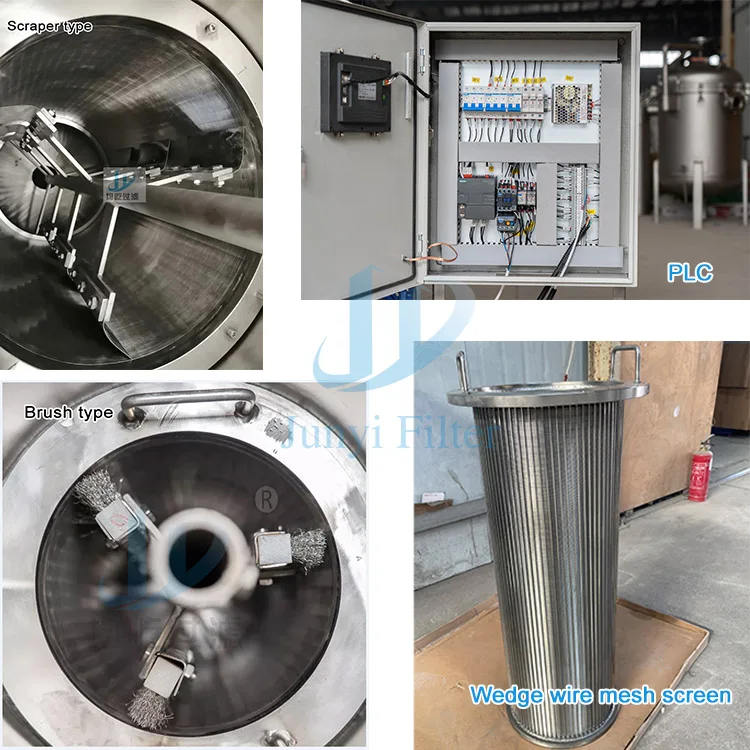

Key parts of Junyi series self cleaning filter
It has the feature of high strength, high hardness, wear and corrosion resistance, easy to clean.

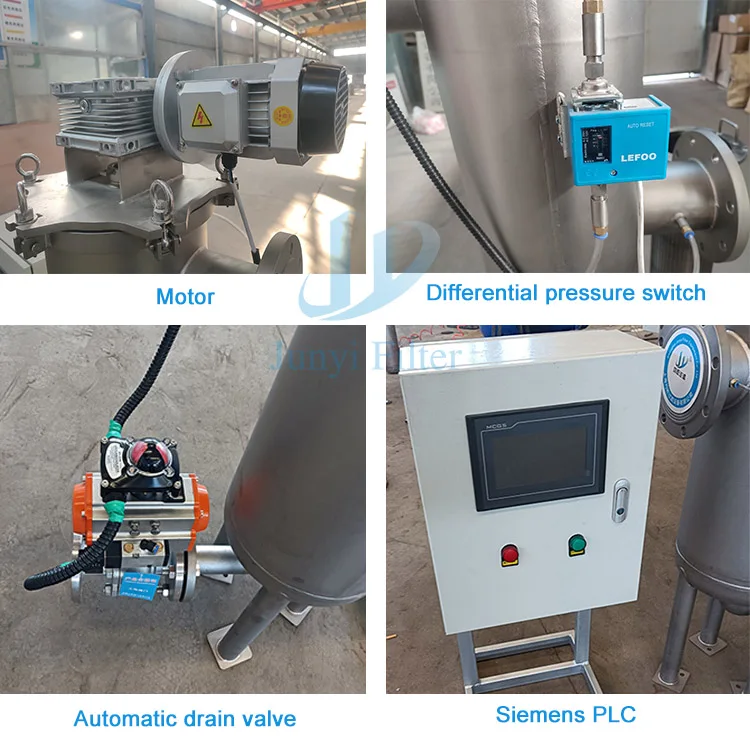

3. The filter operation system adopts Schneider electric components, Siemens PLC control system, and pneumatic/electric stainless steel ball valve to ensure the efficient and stable operation of the machine.
4. Scraper type and brush type are all available.

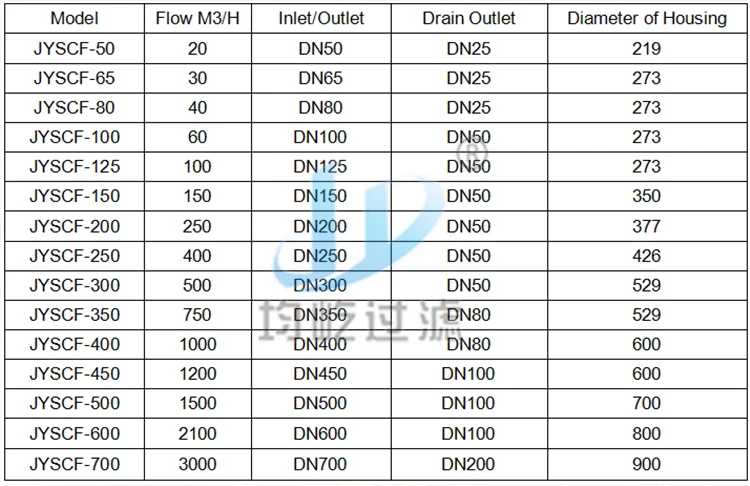

Specification

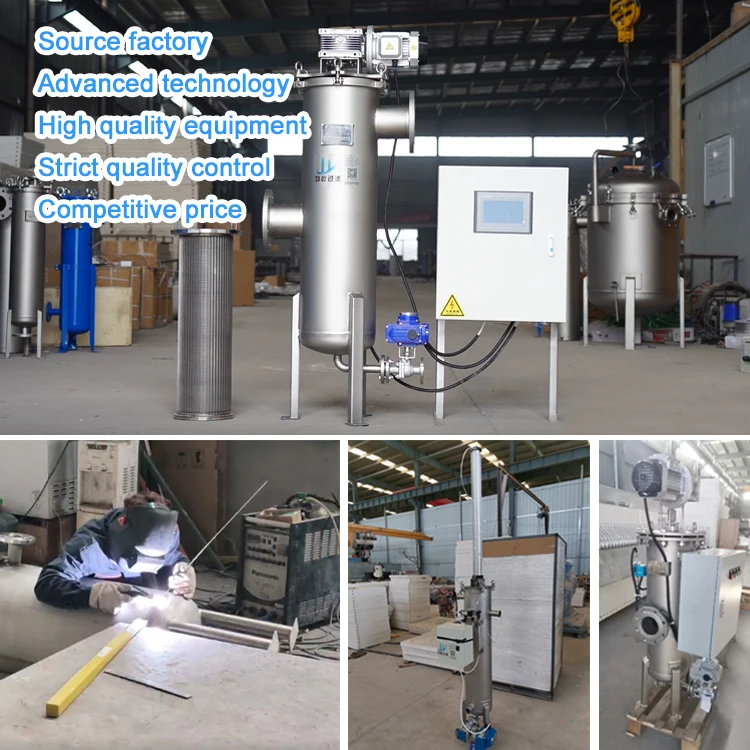

Manufacturing workshop
Shanghai Junyi Filter Equipment Co., Ltd is professional manufacturer and exporter of filtration equipment. We produce more than 200 different models of filters.
Our main products are the Press Filter / Stainless Steel Filter Housing / Self cleaning filter / Bag filter / Leaf filter / Cartridge filter / Filter Plate / Filter Cloth / Filter Cartridge /Filter Bag. These equipment are widely used for the solid-liquid separation process in the industrial of mineral processing, petroleum, chemical industry, dyestuff, metallurgy, medicine, food, coal and carbon, inorganic salts, alcohol, light industry, textiles, environmental protection, energy and so on.
Source factory / Good quality / Competitive price
Certifications
FAQ
Q: Are you manufacturer?
A:Yes
Q: What products you provide?
A: Various kinds of filter press, bag filter housing, cartridge filter housing, self cleaning filter, basket filters, filter bag, filter cartridges, filter plate, filter cloth, etc.
Q: How to select the type that needed?
A: When you contact us, we will ask some basic questions to help you select the product type. such as, what is the liquid that you want to filter, flow rate, solid content, etc.
Q: What is the delivery time?
A: It will depends on the order quantity,sometimes when you put order also will influence on the delivery time, once you order from us, we will arrange delivery the cargo as soon as possible.
Q: What is the MOQ？
A: One set
A:Yes
Q: What products you provide?
A: Various kinds of filter press, bag filter housing, cartridge filter housing, self cleaning filter, basket filters, filter bag, filter cartridges, filter plate, filter cloth, etc.
Q: How to select the type that needed?
A: When you contact us, we will ask some basic questions to help you select the product type. such as, what is the liquid that you want to filter, flow rate, solid content, etc.
Q: What is the delivery time?
A: It will depends on the order quantity,sometimes when you put order also will influence on the delivery time, once you order from us, we will arrange delivery the cargo as soon as possible.
Q: What is the MOQ？
A: One set
