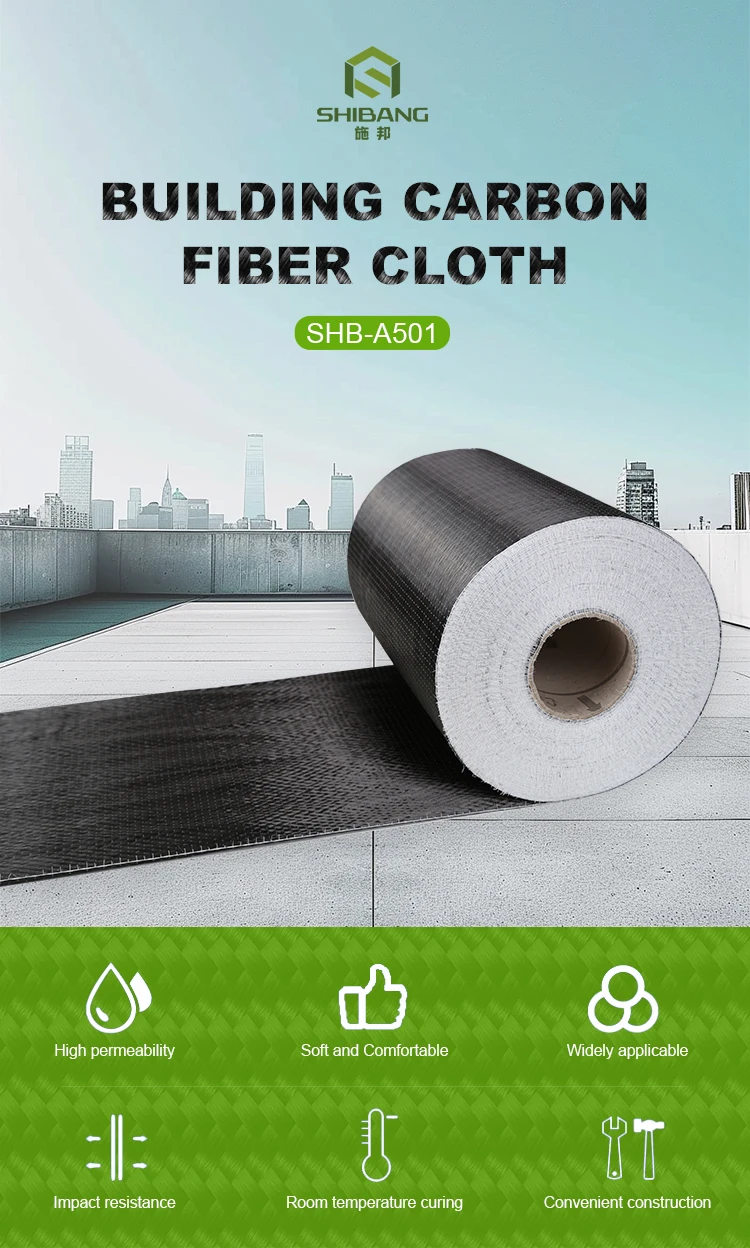

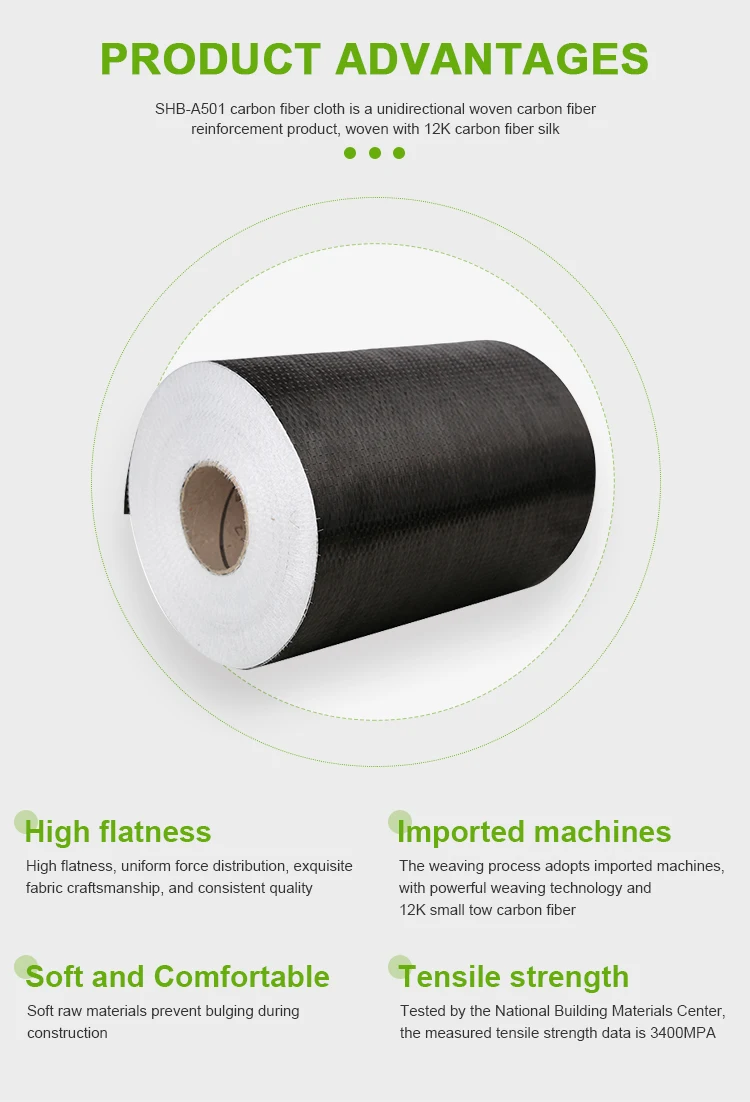

Unidirectional carbon fiber cloth 12k black woven fiber cloth industrial carbon fiber building reinforcement fabric
Unidirectional carbon fiber cloth 12k black woven fiber cloth industrial carbon fiber building reinforcement fabric
Unidirectional carbon fiber cloth 12k black woven fiber cloth industrial carbon fiber building reinforcement fabric
Unidirectional carbon fiber cloth 12k black woven fiber cloth industrial carbon fiber building reinforcement fabric
Unidirectional carbon fiber cloth 12k black woven fiber cloth industrial carbon fiber building reinforcement fabric
Unidirectional carbon fiber cloth 12k black woven fiber cloth industrial carbon fiber building reinforcement fabric
Unidirectional carbon fiber cloth 12k black woven fiber cloth industrial carbon fiber building reinforcement fabric

Unidirectional carbon fiber cloth 12k black woven fiber cloth industrial carbon fiber building reinforcement fabric

Share on (1601202293397):


Price:$6.34-6.90

Quantity:


Product Overview

Description









Type specification




Product model
Specification
Thickness
SHB-A501
200g/㎡
0.111mm
SHB-A501
300g/㎡
0.167mm
Wide width: 10/15/20/30/50cm,Other wide width can be customized.
Weaving: One way


Performance Index


Inspection item
High strength Class I
High strength Class II

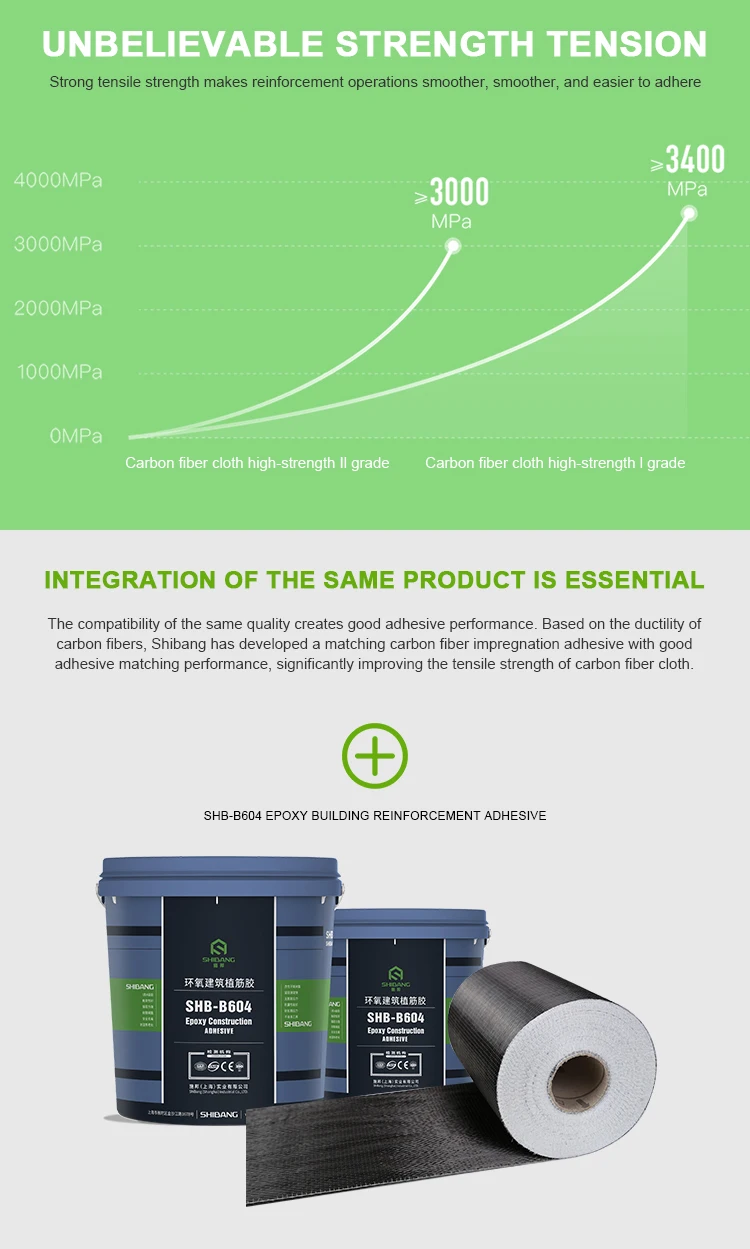

Standard tensile strength (MPa)
≥3400
≥3000
Tensile modulus of elasticity (MPa)
≥2.3×105
≥2.0×105
Elongation (%)
≥1.6
≥1.5
Bending strength (MPa)
≥700
≥600
Interlaminar shear strength (MPa)
≥45
≥35
Positive tensile bond strength between carbon fiber cloth and substrate (MPa)
≥ 2.5, and the substrate cohesion failure
Unit area - Manual paste (g/m2)
≤300
Remarks: Judgment basis: GB50728-2011 "Technical Specification for Safety Evaluation of Engineering Structural Reinforcement. Materials" (Table 8.2.4)




Related display

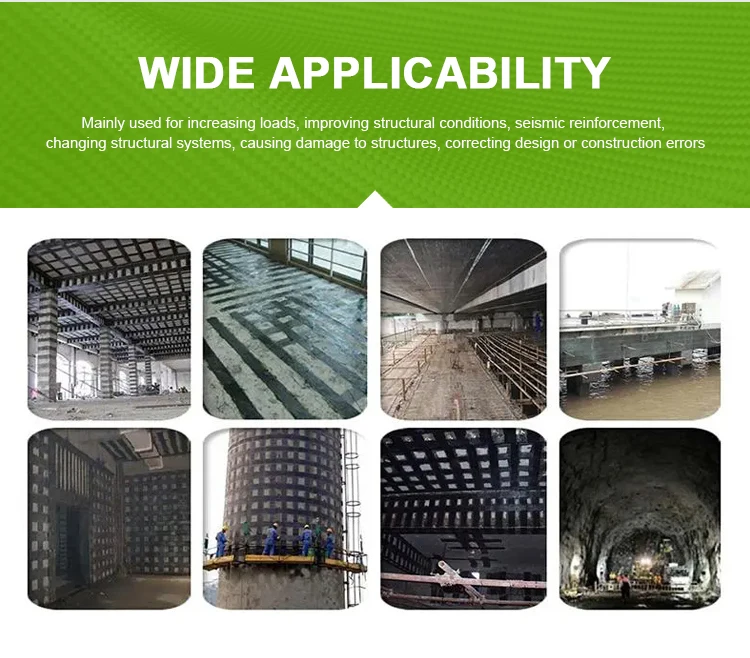

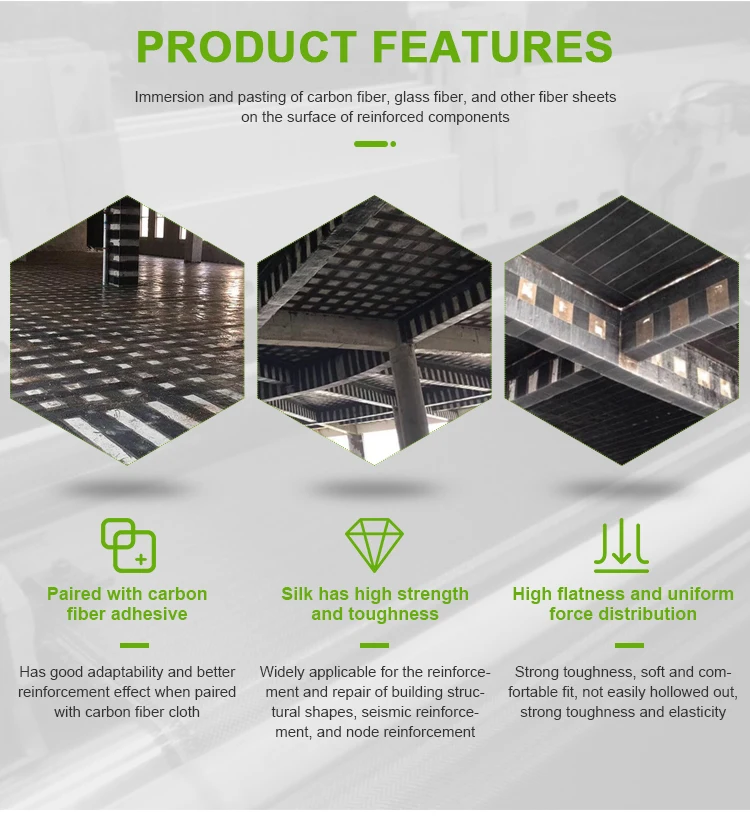

Suitable for dealing with increased building load, changes in engineering func-tionality, material aging, and coagulation Soil strength grade below designvalue, structural crack treatment, repair of components in harsh environmentalservice
Reinforcement engineering for protection.


Product Application Cases








Company Profile




Company Profile
Shibang, a leading domestic reinforcement material enterpriseIt is a comprehensive economic entity engaged in the research anddevelopment, production, sales, and engineering technical services ofnew auxiliary materials and polymer adhesives for construction andchemical engineering. lt is a member unit of the China BuildingDecoration Association, China Building Reinforcement Committee, andChina Epoxy Resin Application Technology Society, and has passed the1S09001:2000 international quality management system certification. ltsproducts are underwritten by Ping An Insurance Company of China.






Packaging & Shipping




FAQ




1. How do you guarantee quality?
We are a professional manufacturer of building reinforcement materials., has a strict quality management system. Every link from the selection of raw materials to production is strictly controlled, and each batch of products has been inspected several times before leaving the factory, and can be sent to customers after passing the inspection.


2. How to get samples?
You can contact us to obtain samples, but the freight will be borne by the customer.


3. Can you provide OEM service?
Yes, we can provide OEM service, we can also help you design packaging and other services.


4. When is the delivery time?
Generally 15-30 working days, the specific situation is subject to the order.
