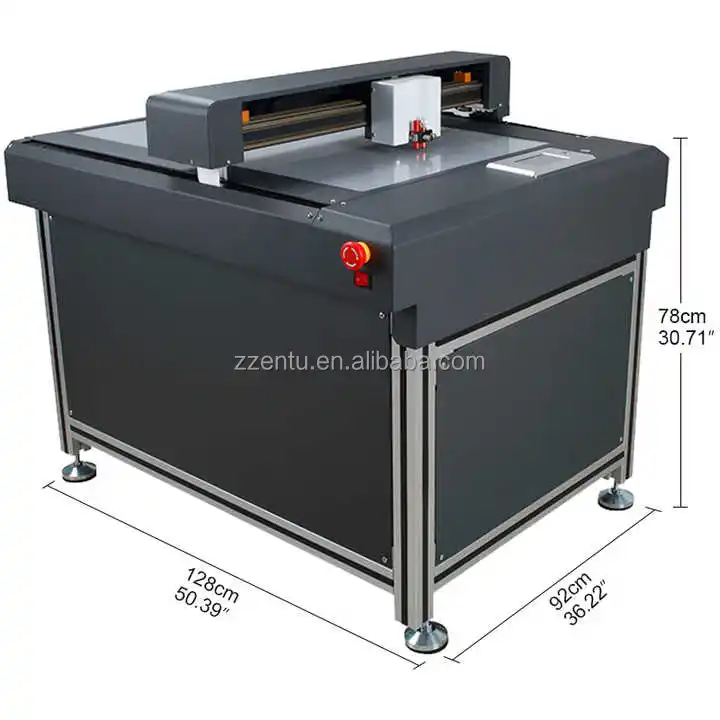

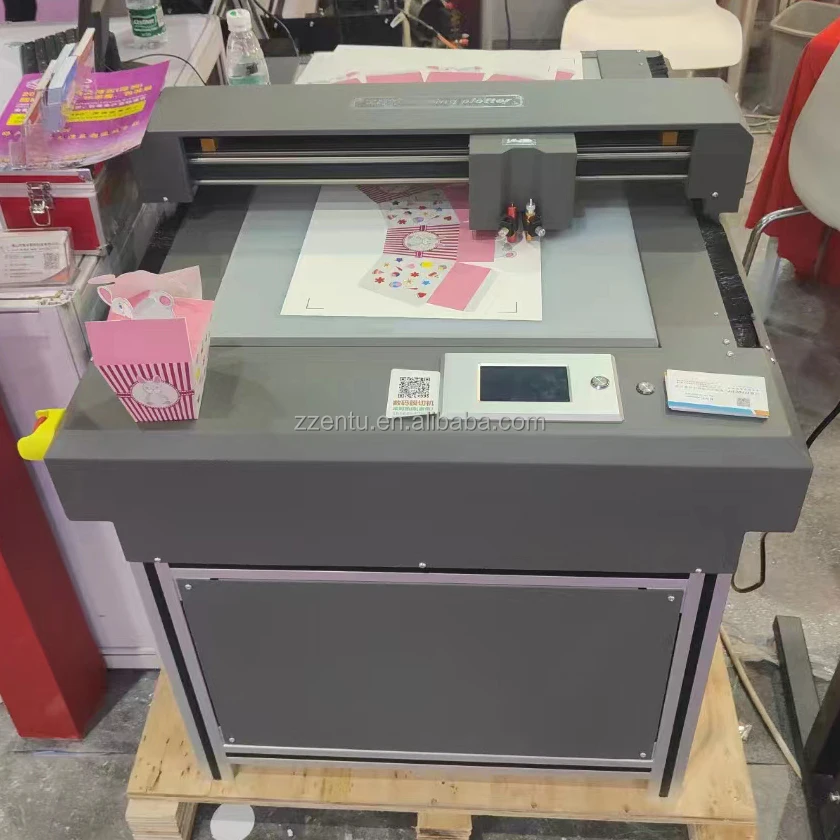

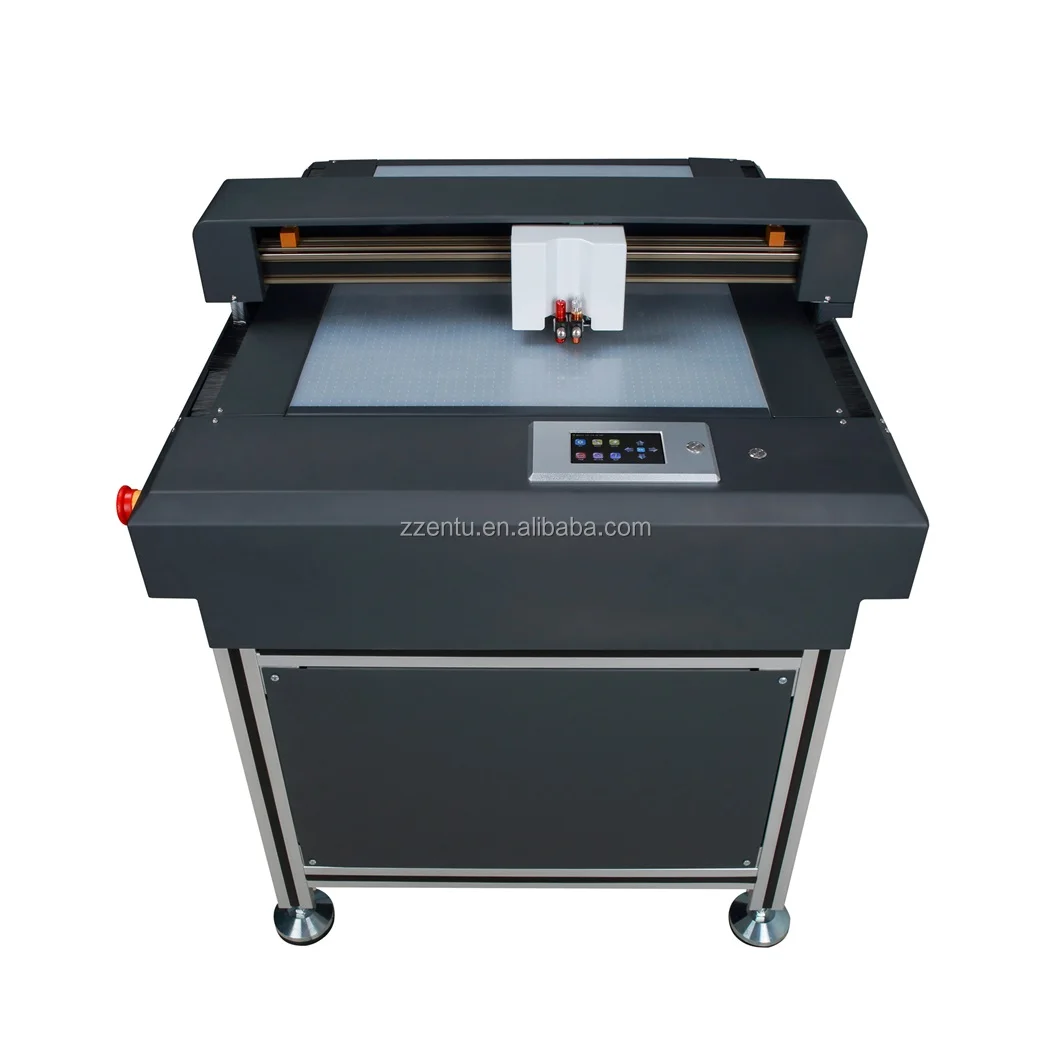

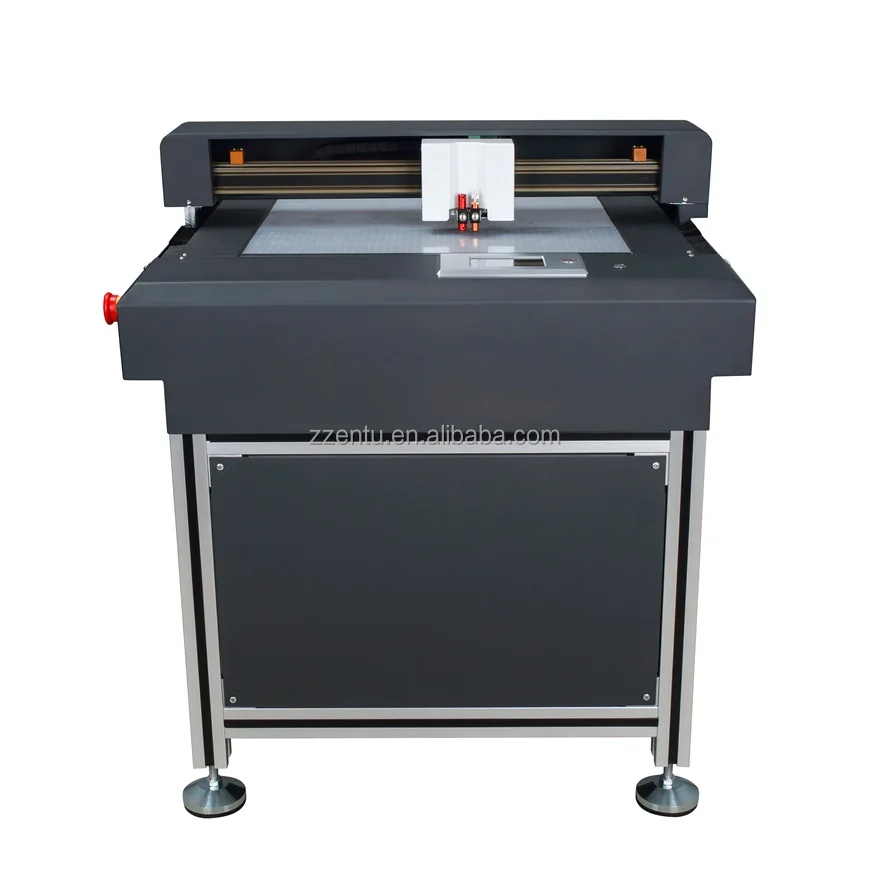

corrugated cardboard cutting plotter carton box making machine 70*90cm flatbed cutting plotter with software

Share on (1601202322073):


Price:$2,900.00 - $3,300.00

Quantity:


Product Overview

Description



Product Description









Main Features:

1, Double heads which can make cutting & creasing by one step
2, Built-in WIFI
3, 4.3" HD LCD Touch screen
4, Work Mode :Vacuum adsorbing
5, Built-in Camera,Capable for any mark (any color mark,Multi-mark) & support colorful,reflective,transparent material
6, CCD Camera Automatically contour cut ,which can Auto-snapshot and deal with mark point,fast and accurate
7, High-speed 32bit M4 arithmetic microprocessor.128M merroy. Stable and high precision,cut smooth and quiet.
8, Multi-Connection available :WIFI/ U-disk/USB cable

9, Large cutting force up to 2000g,Max cut 450gsm (2-3mm)
10, Emergency button for double protection to enhance the safty and convenience

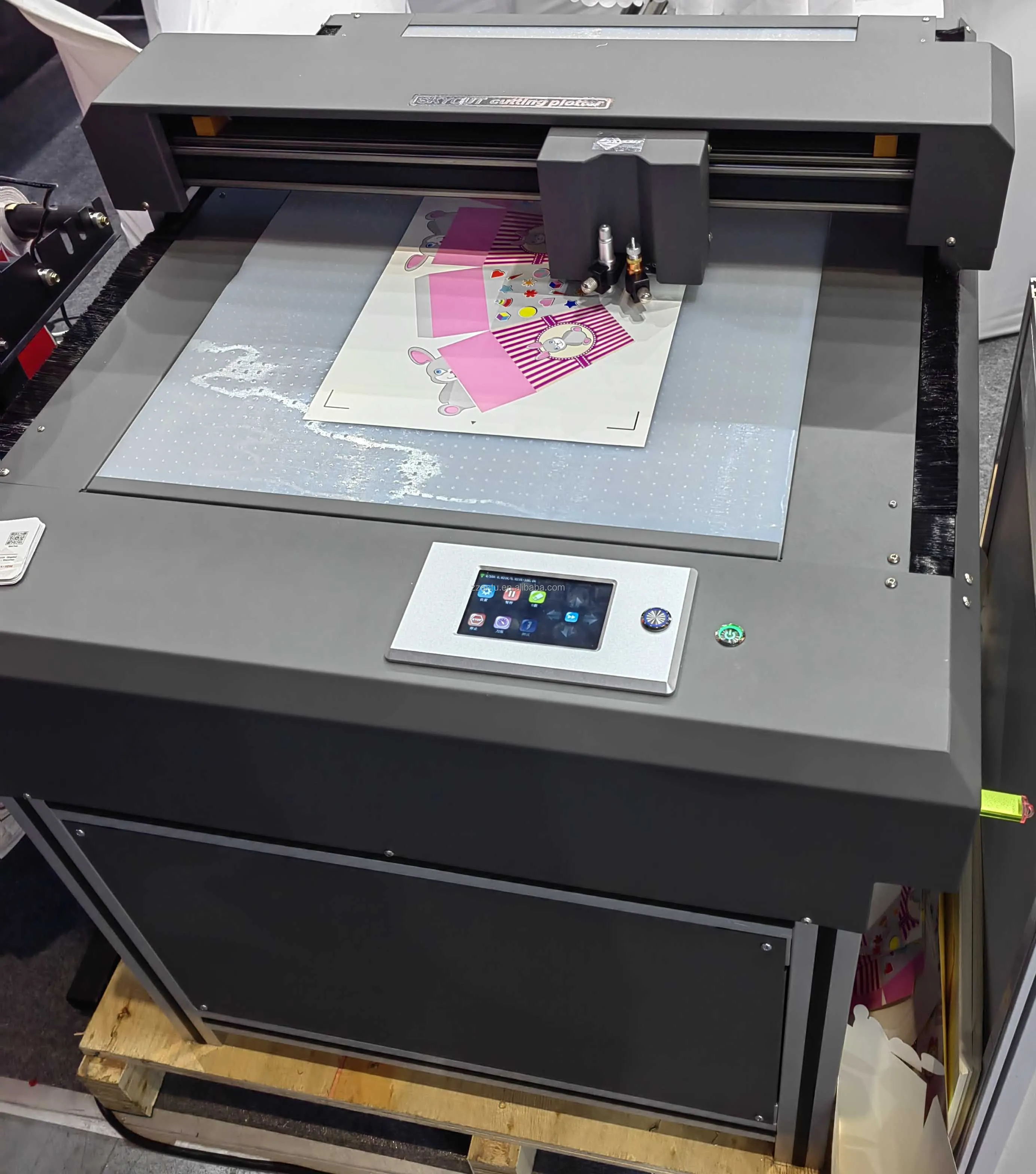

F4560 3.jpg

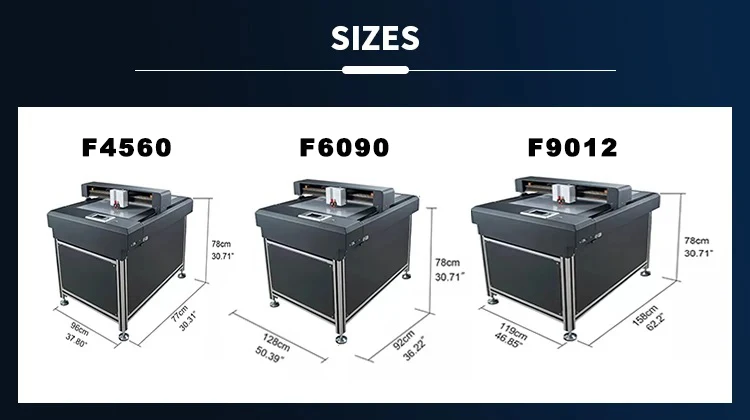

Technical Specifications



































































































Model



F4560


F6090


F9012



Max Cutting Length



600mm


600mm


900mm



Max cutting width



450mm


900mm


1200mm



Auto contour cut



camera


camera


camera



Packing size



1050*900*1020mm


1370*1020*1020mm


1700*1330*1020mm



Packing gross weight



161kg


180kg


280kg



Cutting head



cutting+creasing



Operation



4.3" TFT LCD Large touch screen



Connector interface



USB cable,USB flash drive,WIFI



Max moving speed



800mm/s



Max cutting speed



600mm/s



Force



Large cutting force up to 2000g, max cut 450gsm (2-3mm)



Cutting precision



< 0.01mm



Repeat precision



0.082mm



Work Mode



Vacuum adsorbing



Built-in Camera



Capable for any mark (any color mark,Multi-mark) & support colorful



Driver



Digital DC stepper motor,microstep driving



high speed



High-speed 32bit M4 arithmetic microprocessor.128M merroy.



Power supply



AC100~240V/50Hz~60Hz



Software



SignMaster / Flexi /Easy Cut Studio / Signcut / CorelDRAW driver Optional / Adobe illustrator driver

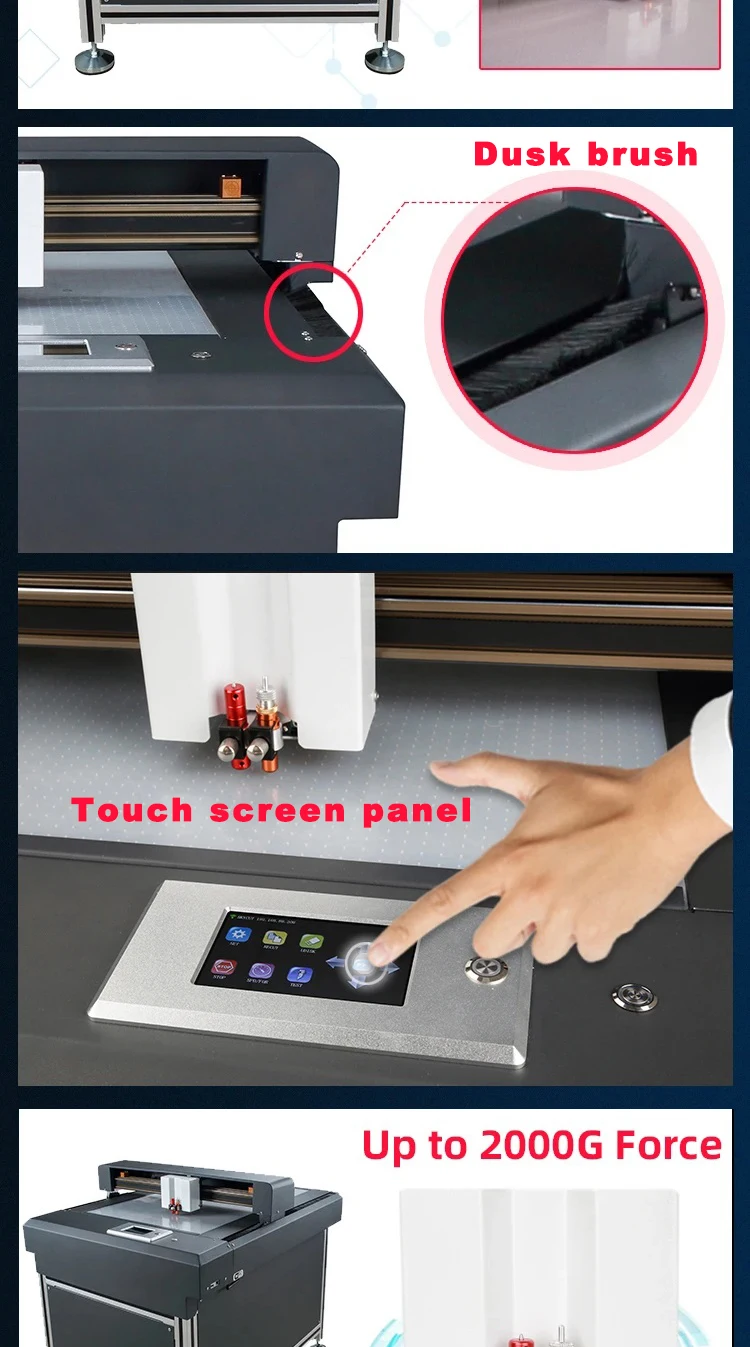

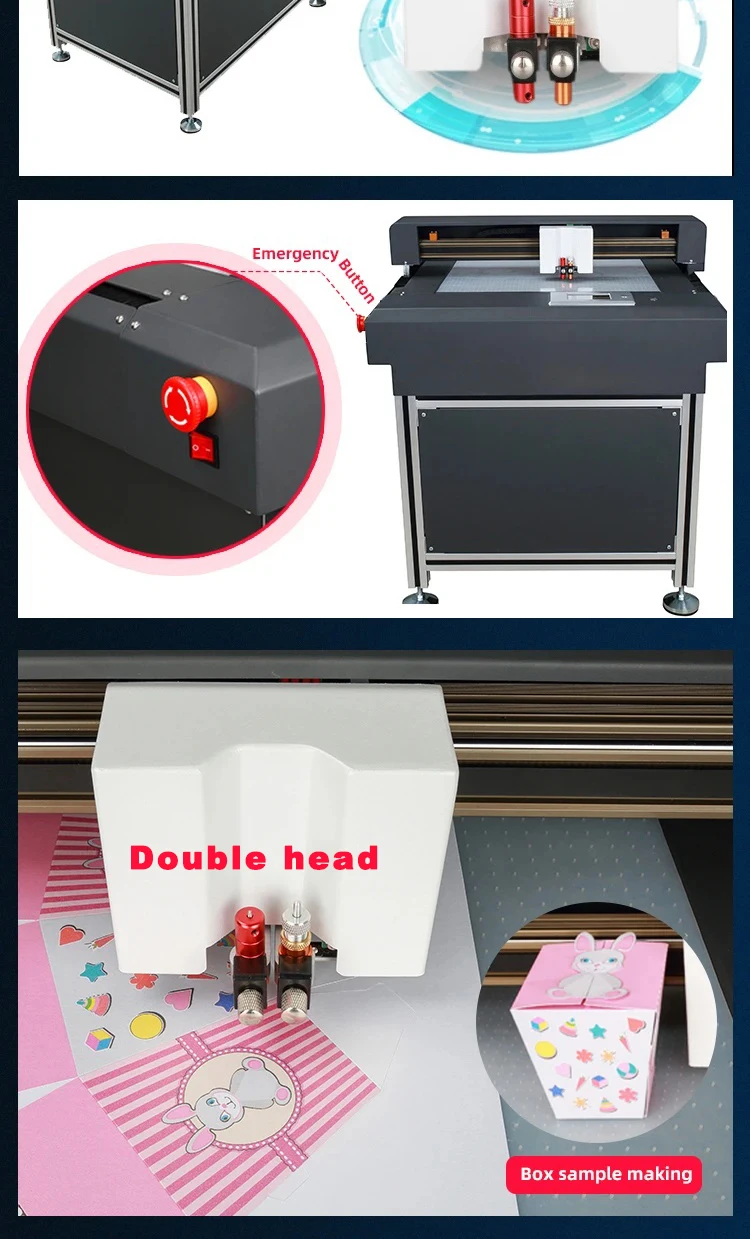

Detailed Images











Apllication




application
