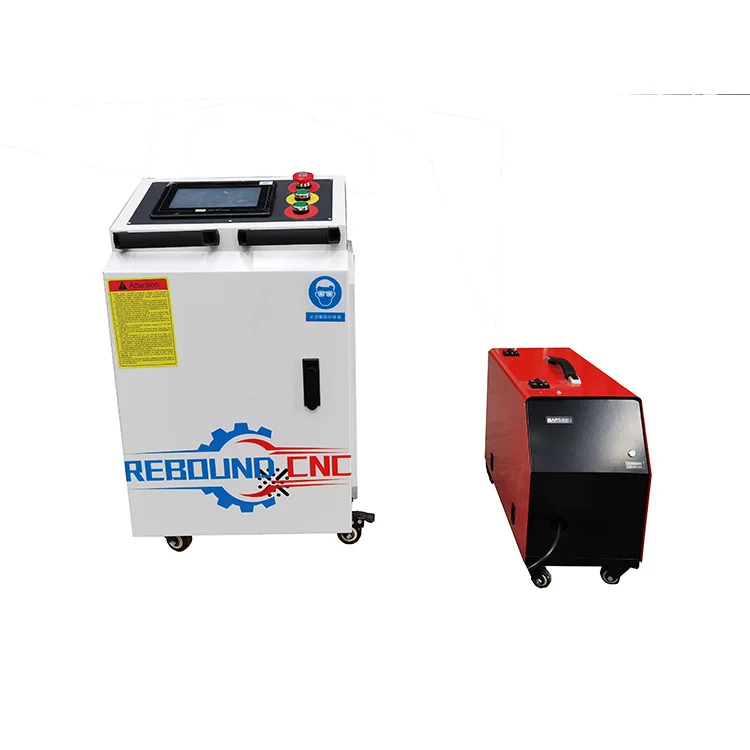

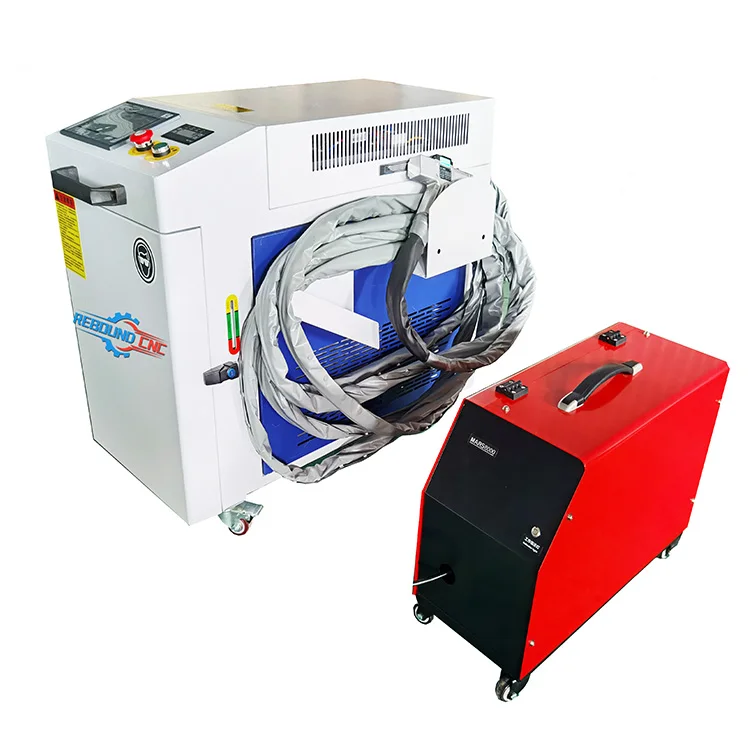

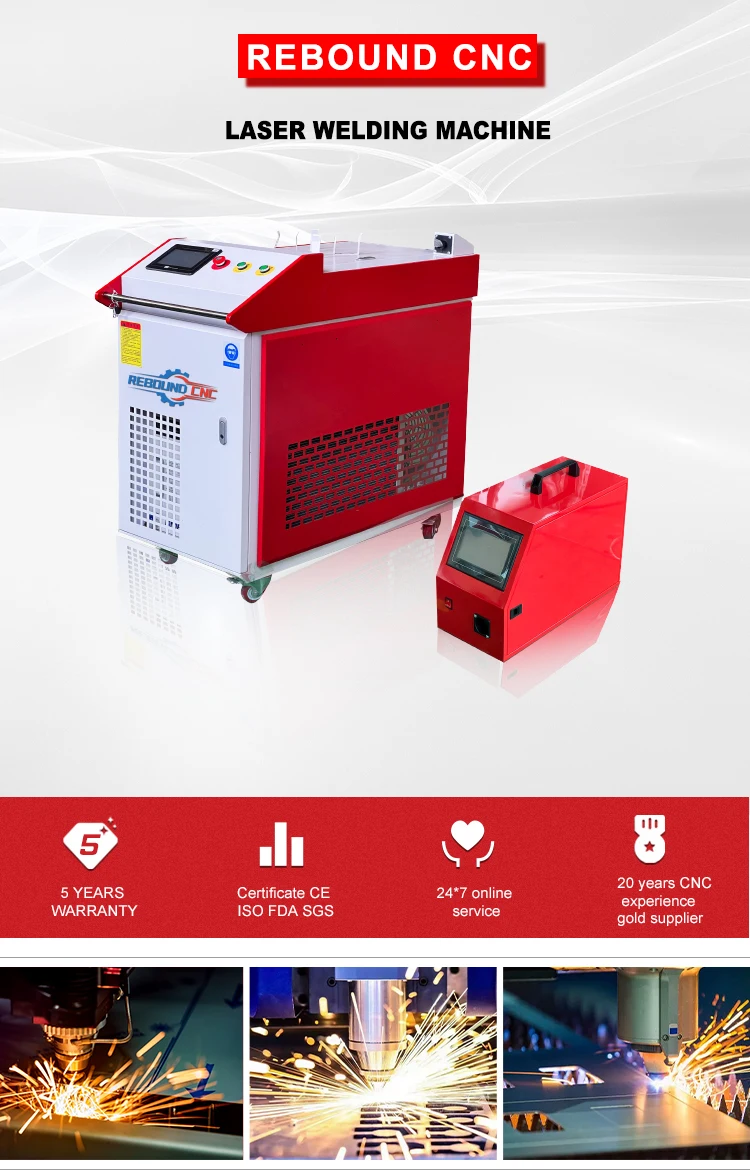

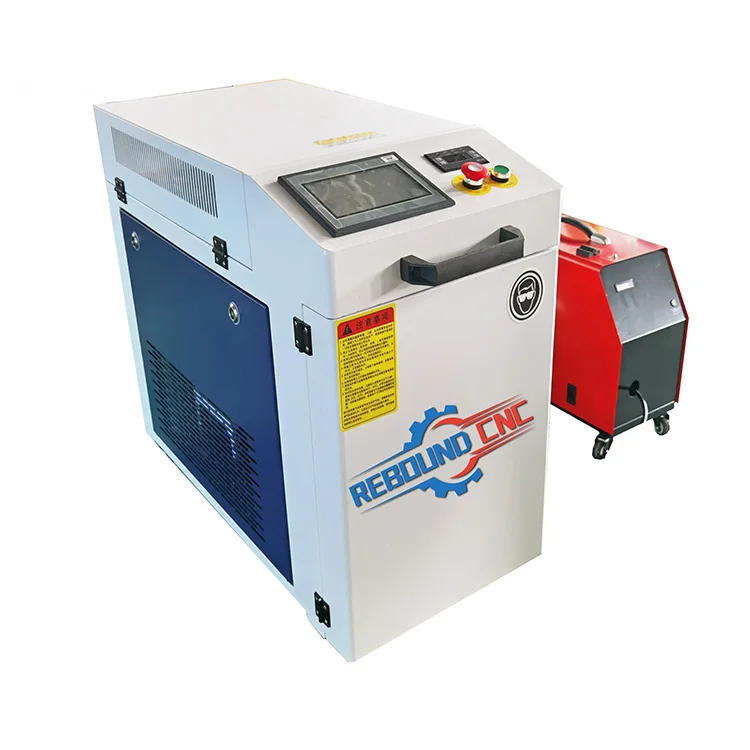

1500W pulse laser automatic welding machine galvanometer
- Category: >>>
- Supplier: Jinan Rebound Machine Co. Ltd.Jinan Ltd.
Share on (1601202362511):
Product Overview
Description
Product Paramenters
Item | Parameter |
Laser generator | RECI 1500W-3000W 100,000 hours life time, more stable, cost-efficient, free maintenance. |
Laser wavelength | 1064nm |
Laser working frequency | 50/60Hz |
Working voltage | 220V±10%, 50/60Hz 1500W, 2000W 380V±10%, 50/60Hz 3000W |
Fiber cable length | 10 M |
Welding depth | <=5 mm |
Welding seam | <=0.2 mm |
Power regulation | 10%-100% |
Cleaning width | 1-80 mm |
Cooling method | Water cooling |
Gas assist | Air, Nitrogen |
After Warranty Service | Video technical support, Online support |
Language | Chinese, English, Japanese, Korean, Russian, Spanish |
Weight | 170 KG |
Packing size | 1150mm×650mm×1430mm |
This laser machine is a multifunctional machine for metal welding cleaning and cutting, Laser welding uses high-energy laser pulses to locally heat the material in a small area. The energy of the laser radiation diffuses into the material through heat conduction, and the material is melted to form a specific molten pool. It is a new type of welding method, mainly for the welding of thin-walled materials and precision parts.Laser cleaning is a new technology for surface cleaning. Easy to install, operate and automate. Simple operation, turn on the electricity, open the equipment, you can clean withoutchemical reagents, medium, dust, and water. The focus can be adjusted manually, the surface can be cleaned, and the cleaning surface has high cleanliness. It can remove the resin on the surface of the object, Oil, stains, dirt, rust, coating, plating, paint.Laser cutting uses a high power density laser beam to irradiate the material to be cut, so that the material is quickly heated to the vaporization temperature to complete the cutting of the material.
PRODUCT CONFIGURATION
Laser head
The laser head Select high-quality precision optical components, excellent and stable beam quality. Cool appearance, ergonomic design, comfortable grip. Dual protective lens design, better dust resistance. Straight spot, easier welding operation, high welding firmness, beautiful texture. Standard D20-F600 cleaning focusing mirror box, maximum acquisition of 80mm spot.
Parameter | ||
Parameters | HW970 | |
Max Power | 3000W | |
Focus Lens | D=20mm，F=150mm | |
Collimator Lens | D=20mm，F=150mm | |
Cover Lens | D=20mm，T=3mm | |
Cleaning Lens | D=20mm，F=600mm | |
Head Weight | =0.9kg | |

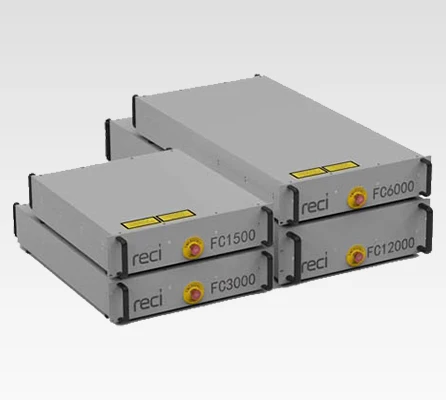

Laser generator: RECI
The fiber laser generator adopts modular design, highly integrated system, maintenance free and high reliability. With continuously adjustable laser power, high beam quality and high laser stability, it is an ideal laser source for laser cleaning, laser fine cutting, precision welding and other applications.
Laser controlling system
The latest generation of laser control system is adopted, which has strong compatibility and is more suitable for matching with manipulator. It has a variety of light output modes. Its frequency, pulse width and waveform can be set.
Automatic wire feeder
It adopts double driving wheels to feed wire, which is suitable for feeding wires of various diameters. It has the functions of wire retraction, delayed wire feeding, pulsation wire feeding and continuous wire feeding.
Control cabinet
The control cabinet has a compact design, small footprint, reasonable internal structure, and compact component layout, which can achieve powerful control functions in limited space. The control cabinet saves space while achieving control, making it suitable for situations with limited space.
Lens
The lens is made of high-quality quartz crystal material, which is resistant to high temperature and laser, and has double-sided anti-reflection film for high light transmittance.
Laser welding wire
Laser welding wire includes iron, copper, stainless steel,aluminum and aluminum alloy materials. The welding wire is made of high-quality raw materials, with no deformation, fine and no bubbles, and rust and corrosion resistance.
Nozzle
The nozzle is made of high-quality copper material, with efficient heat dissipation, exquisite workmanship and fast welding.
Water chiller
Large refrigerating capacity, stable performance, trouble free, clean water quality, good heat exchange effect with fiber laser, and linkage signal protection laser generator.2000W water chiller parameter.
Parameter | ||||||
Model | FC 1500 | FC 2000 | FC 3000 | |||
Rated output power (W) | ≥1500 | ≥2000 | ≥3000 | |||
Center wavelength (nm) | 1080±3 | |||||
Working mode | Continuous/modulation | |||||
Output Power Adjustment Range(%) | 10-100 | |||||
Maximum Modulation Frequency (kHz) | 20 | |||||
Power instability | <3% | |||||
Indicated red light power (mW) | >0.5 | |||||
Optical output interface | QBH | |||||
Output Fiber Core Diameter (um) | 30/50 | |||||
Output Fiber Length (m) | 10/15 | 20 | ||||
Operating Voltage (VAC) | 220V±10% 50/60HZ | 380V±10% 50/60HZ | ||||
Maximum Power Consumption (W) | <5300 | <7820 | <10600 | ||||
Control mode | External/local AD | |||||
Operating Ambient Temperature (℃) | 5~40 | |||||
Working environment humidity (%) | <70 | |||||
QBH Cooling Water Temperature (℃) | Room temperature | |||||
Cooling water temperature of the whole machine (℃) | 25(Summer 27) | |||||
Cooling water flow (L/min) | >15 | >20 | >30 | ||||
Size WxHxD(mm3) (without hands) | 483x125x506 | 483x125x626 | ||||
Machine weight (kg) | <36 | < 37 | <57 | ||||

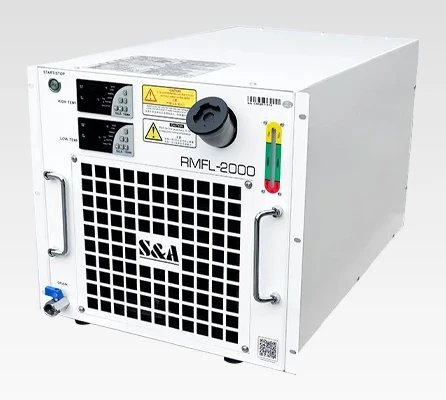

Parameter | ||||
Model | RMFL-2000ANT03 | RMFL-2000BNT03 | ||
Voltage | AC1P220~240V | AC 1P 220-240V | ||
Frequency | 50Hz | 60Hz | ||
Current | 1.8~13.1A | 1~13A | ||
Max.power consumption | 3.08kW | 2.76kW | ||
Compressor power | 1.7kW | 1.33kW | ||
2.28HP | 1.78HP | |||
Refrigerant | R-410a | |||
Precision | ±0.5℃ | |||
Reducer | Capillary | |||
Pump power | 0.25kW | |||
Tank capacity | 16L | |||
Inlet and outlet | Φ6+Φ12 Φ6+Φ12 Fast connector | |||
Max.pump pressure | 35M | |||
Rated flow | 2L/min+>15L/min | |||
N.W | 49Kg | 15Kg | ||
G.W | 60Kg | 56Kg | ||
Dimension | 77x48x43cm(LxWxH) | |||
Package dimension | 88x58x61cm(LxWxH) | |||
Recommend Products

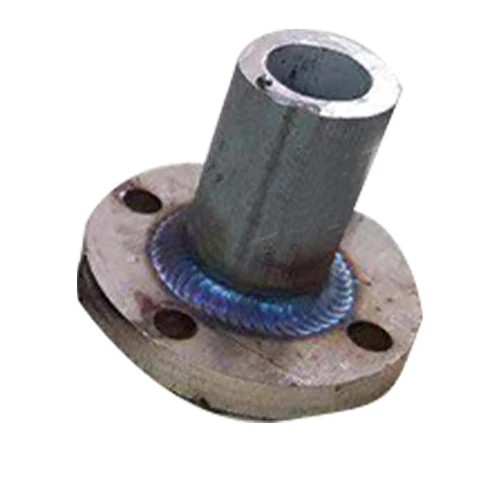

Samples

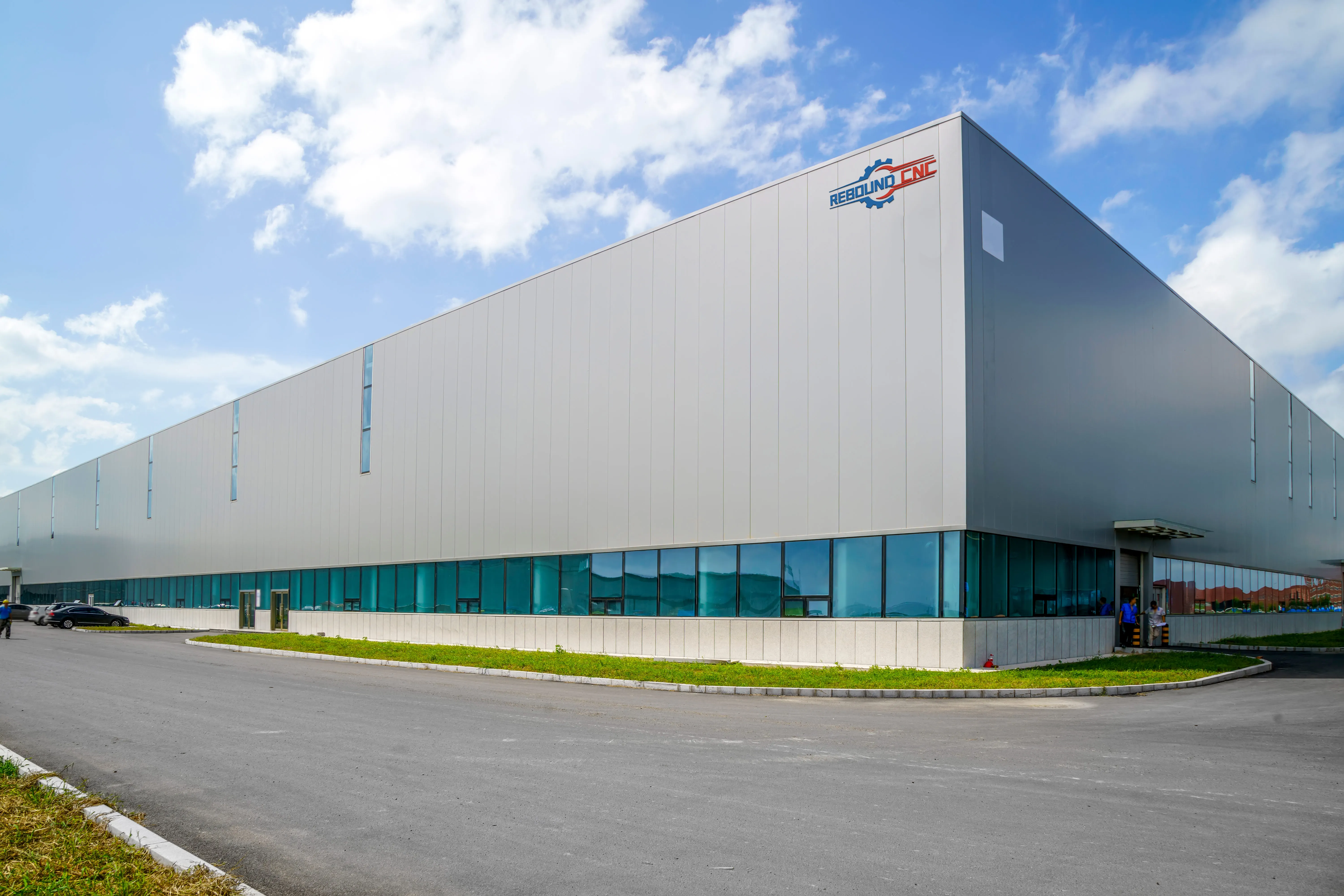

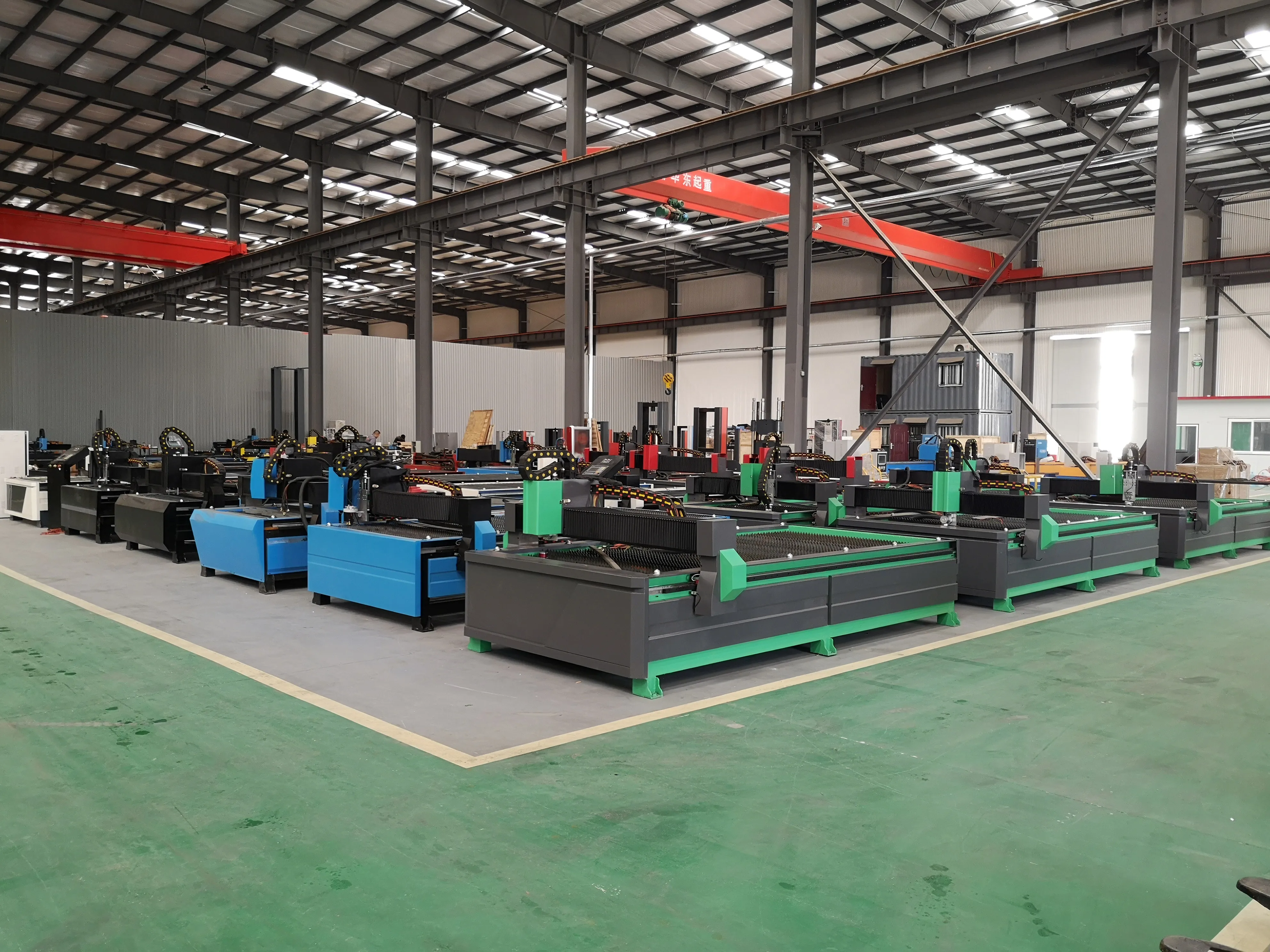

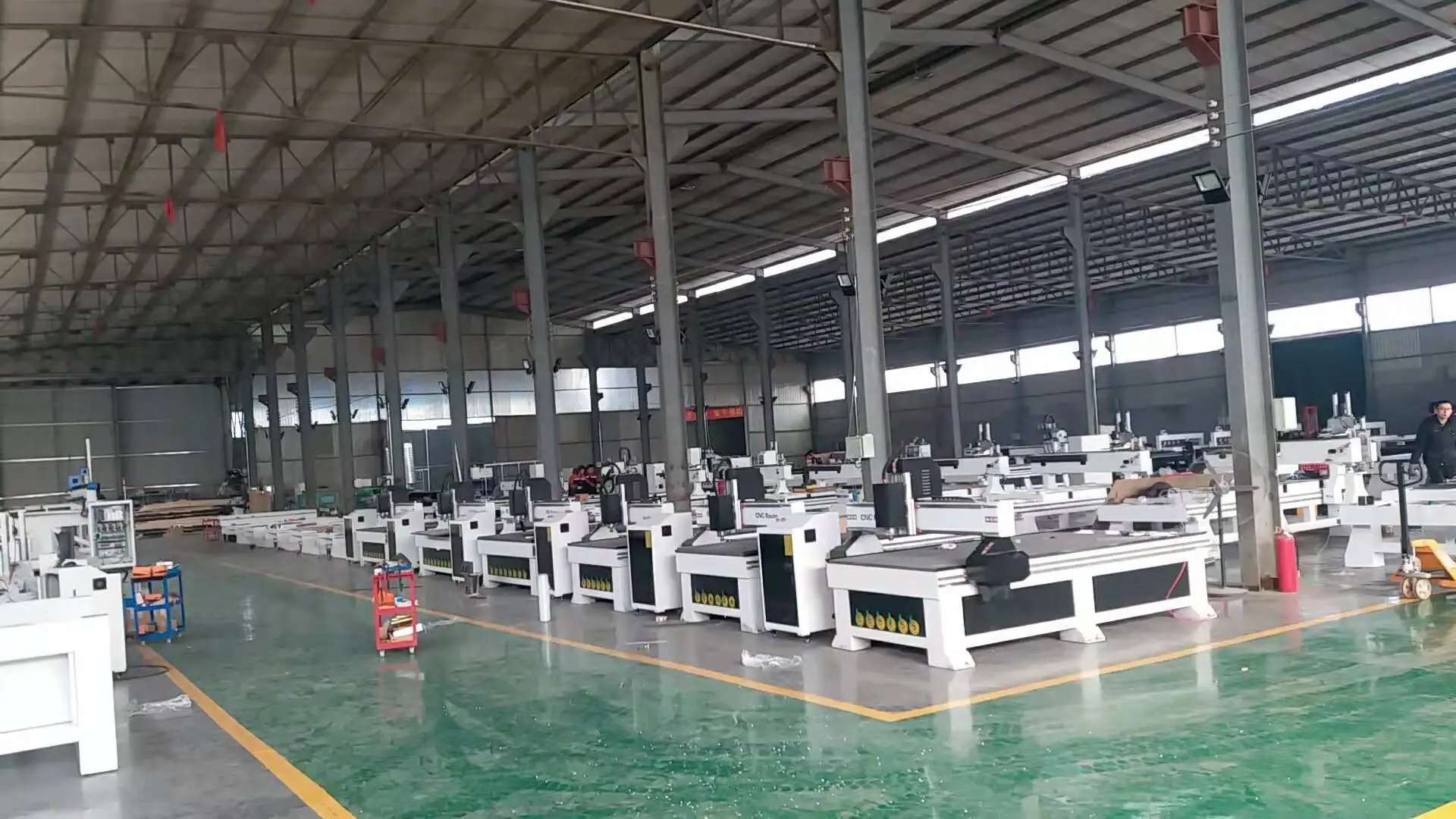

Company Profile
Jinan Rebound CNC Machine Co.,Ltd. located in Jinan City, Shandong Province, founded in 2000, is China manufacturer of CNC plasma cutting machine, CNC laser cutting machine, metal welding machine, CNC bending machine, CNC shearing machine, CNC router machine. By years of development, CNC cutting machines have been sold all over the world.
In recent years, REBOUDN CNC, in active response to the macro-situation of economic restructuring and transition, has worked out the strategy of “Innovation” and “Brand”. Science and Technology are the driving force of enterprises. Rebound Machine and local famous universities have built up an R and D base and have been carrying out a key pilot project at the provincial level. From Made in China to Created by China; Produce Better and Up-to-date Products" is the aspiration of REBOUND. “We Have Always been Working Hard to Revitalize our National Industry and Realize China Dream” reflects our strong insistence on national revival and prosperity.
Superiority originates from professionalism, Professionalism originates from unremitting pursuit. Pursuit originates from the spirit of dedication to national industry. REBOUND CNC has been trying to set up an industrial brand, turn out high-quality machine and take part in international competition. We would like to create a brilliant cause hand in hand with you!
CNC machine Exhibition

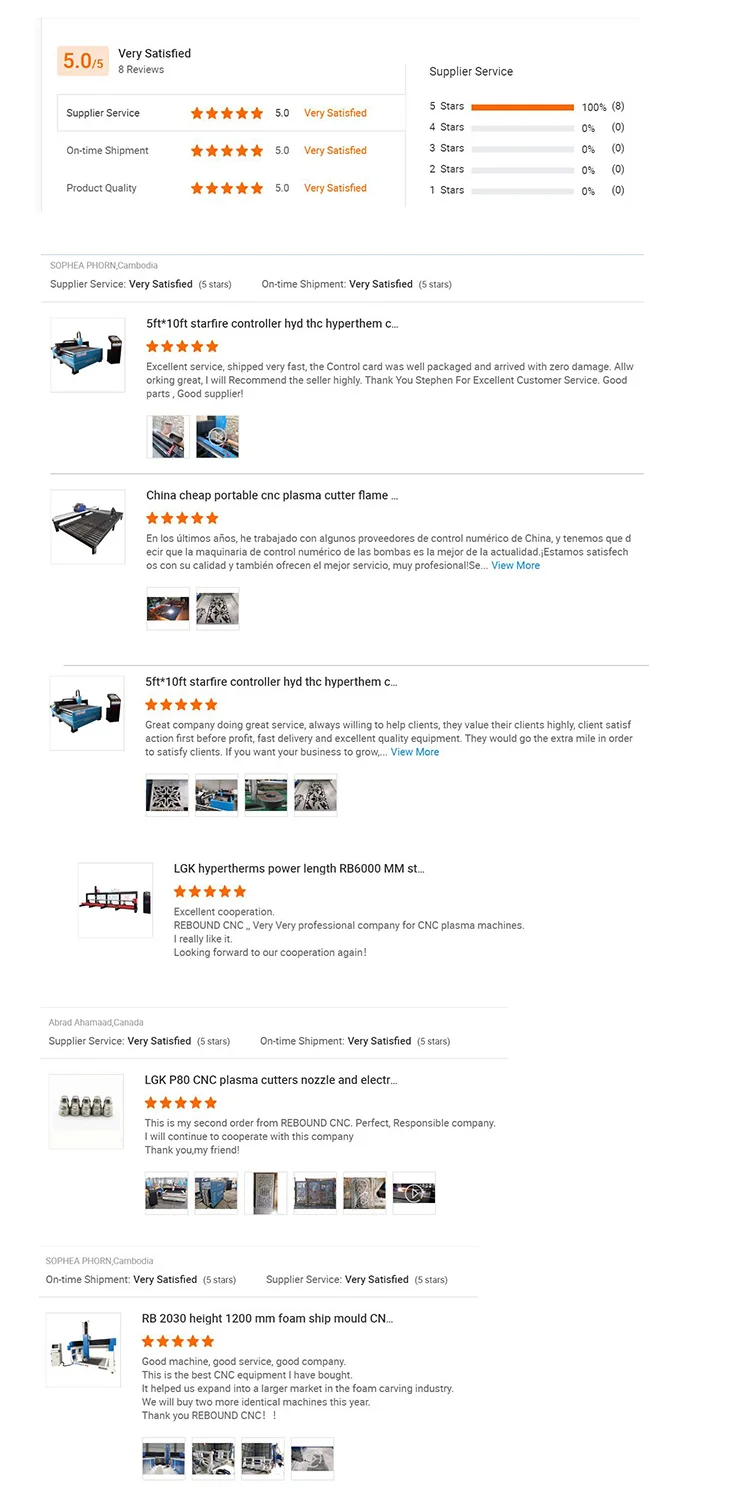

Customer Photos
