Product Overview
Description
Product Description

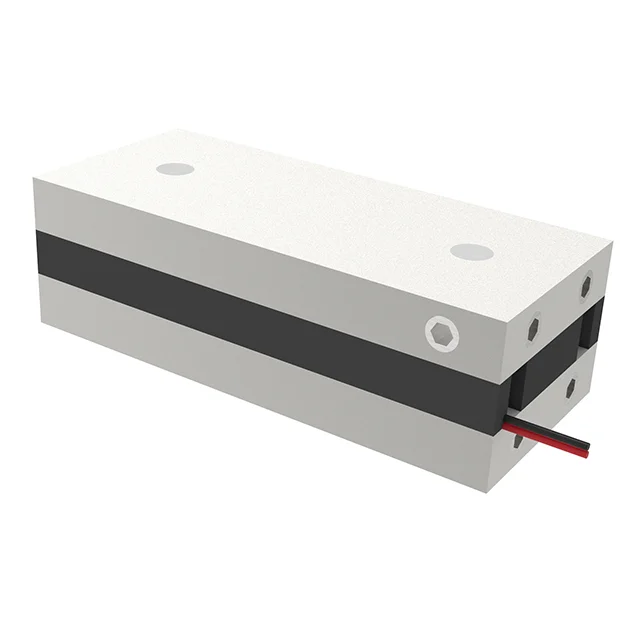

The thermoelectric cooler assembly of this product uses air-cooling forced convection to cool down the object to be cooled, providing cooling and heat dissipation. The hot end takes away the heat through forced air cooling. Widely used in medical beauty equipment, laser equipment, industrial instruments, instrumentation, food preservation and refrigeration. It has the characteristics of compact structural design, small size, high reliability, precise temperature control, DC power supply, and compliance with environmental protection standards.
Specification
Name | Thermoelectric Cooler Assembly |
Model | TP23073 |
TE60-100XFARated Operating Voltage (V) | 24VDC |
Operating Current (A) | 4.6A/5.0A |

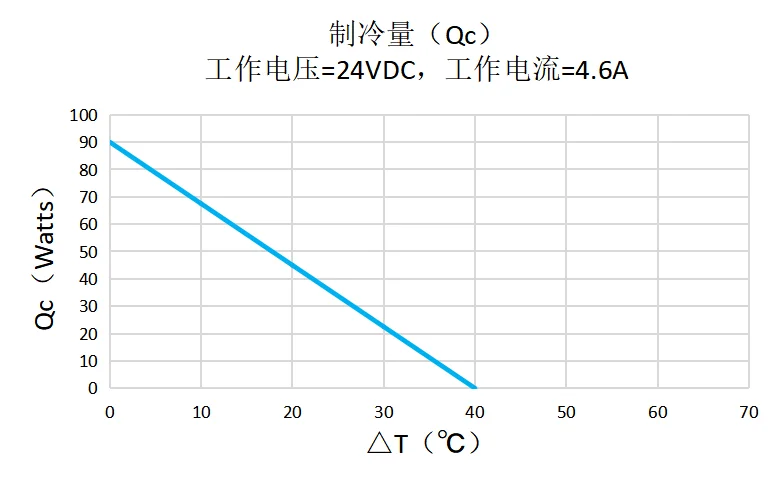

Cooling Capacity (W) | 90W（△T=0， Th=27℃） |
Noise level （dB） | ≤63dB |
Water Connection Size | Rp1/8 |
Heat Transfer Medium | Deionized Water |

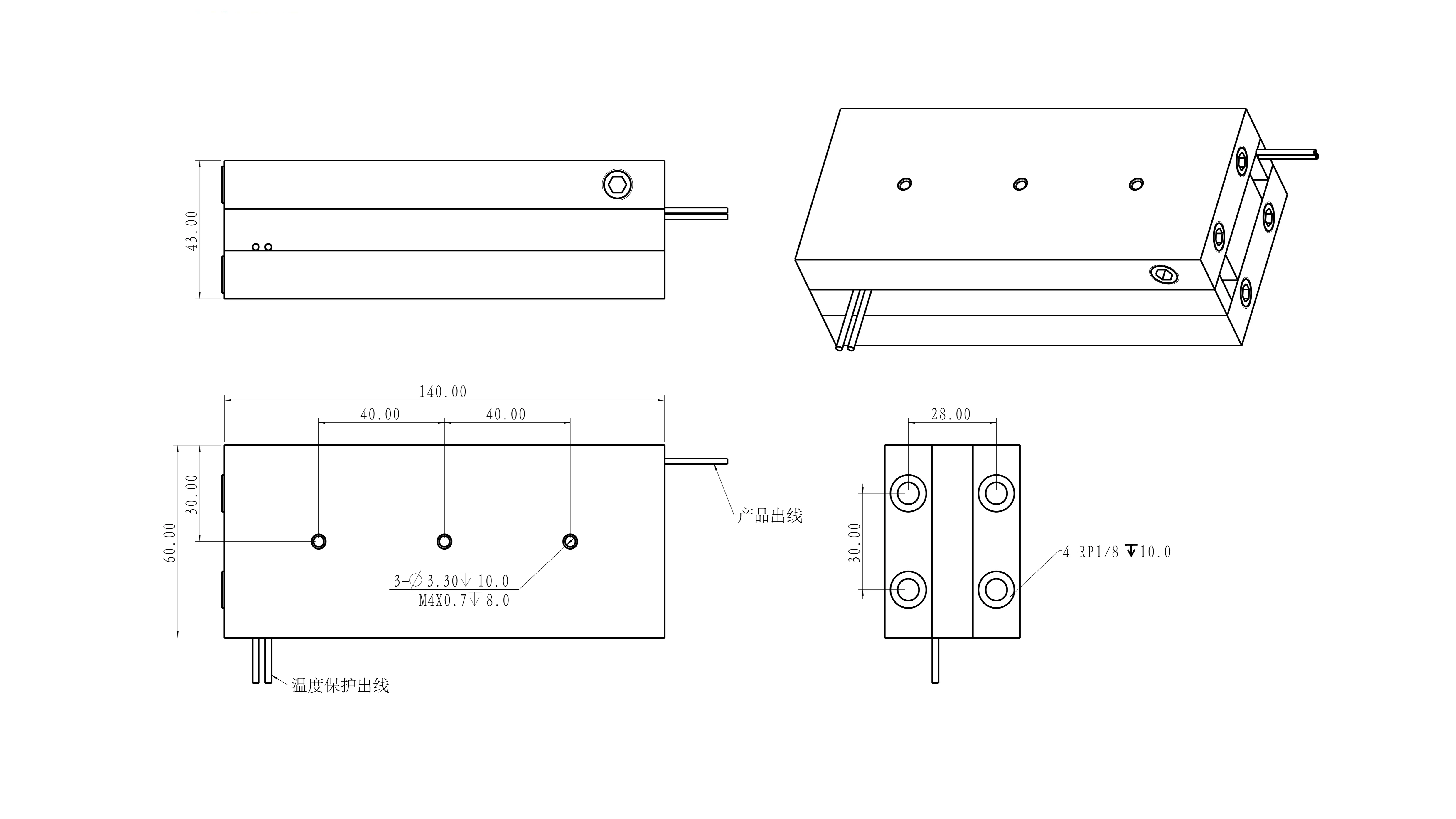

Dimension (mm，L x W x H） | 140*60*43mm |
Operating Temperature（℃） | 5℃~40℃ |
Operating Humidity（%） | 15%~80% |
Storage Temperature（℃） | -20℃~60℃ |
Storage Humidity（%） | 15%~80% |
Net Weight (Kg) | 1.0kg |
Useful Life | Three years warranty, eight years design life |
Application | Laser,CNC,Medical,Cosmetology,Sensing,Testing |
Our Applications
Why Choose Us
Huajing can provide more accurate thermal solutions to meet the unique needs of customers. Design and development are carried out
based on specific customer requirements to effectively solve their problems. Providing satisfactory service to customers with more
personalized and precise solutions
based on specific customer requirements to effectively solve their problems. Providing satisfactory service to customers with more
personalized and precise solutions
High Efficiency and Energy Saving.
By adopting semiconductor cooling technology, the product's cooling efficiency has been greatly improved.
Good Sealing Effect.
Our thermoelectric cooler assemblies feature excellent sealing performance to prevent air leakage, ensuring reliable and stable operation in various environments.
Modular Design.
The modular design of our thermoelectric cooler assemblies provides flexibility for customization and easy maintenance, allowing for quick and efficient replacement of parts if needed.
Compact Structure.
With a compact structure, our thermoelectric cooler assemblies are space-saving and easy to integrate into different systems or devices, providing efficient temperature control in limited spaces
