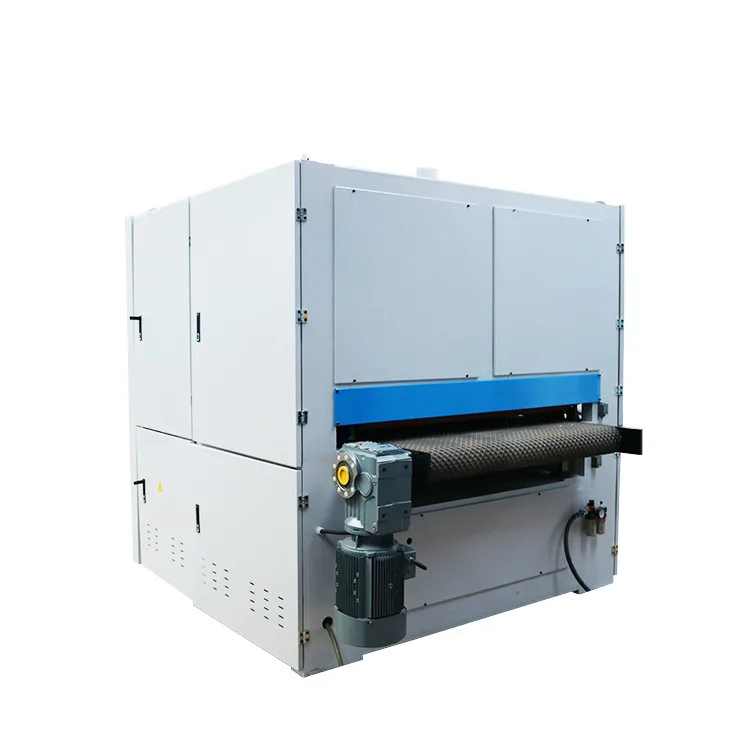

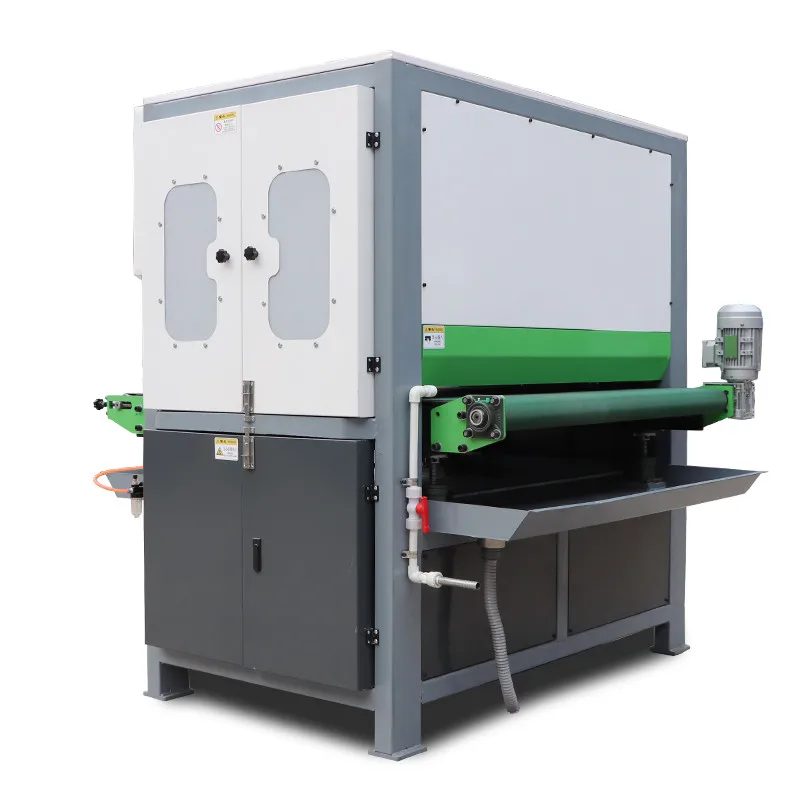

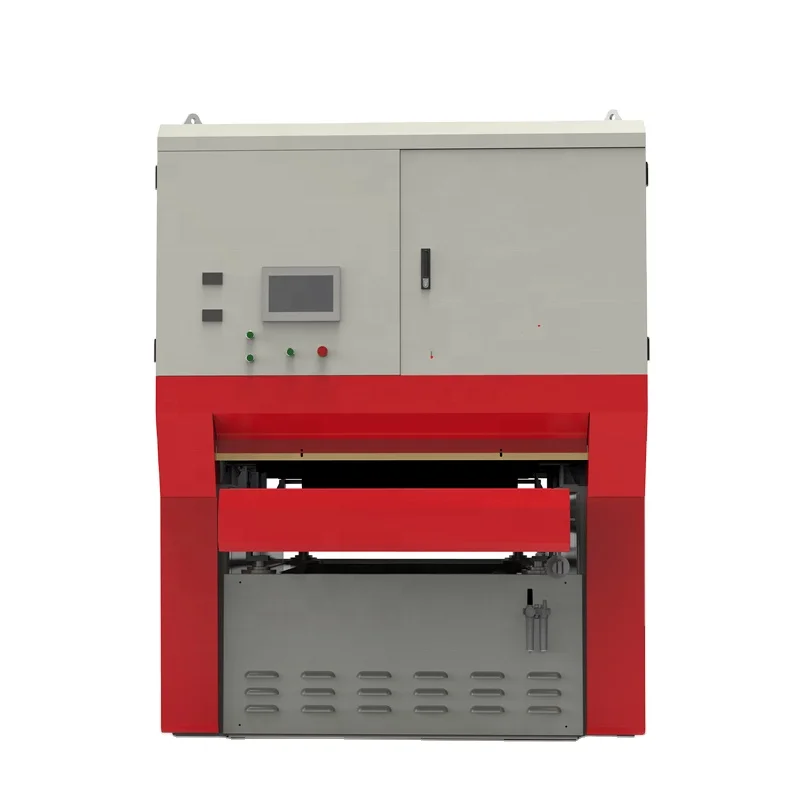

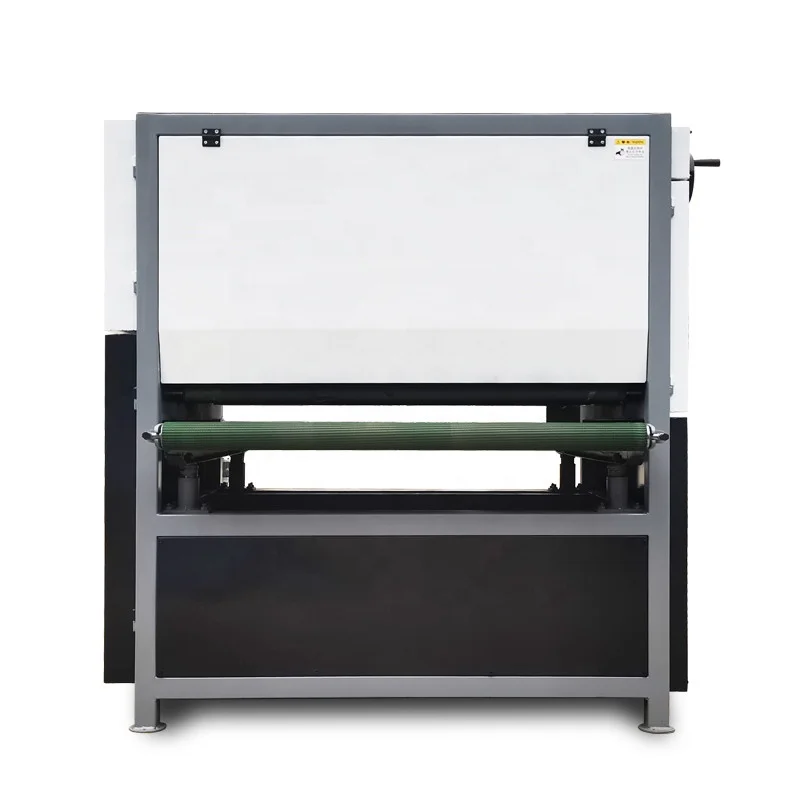

Efficient Stainless Steel Square Tubes Metal Rust Cleaning Belt Grinding Machine
- Category: >>>
- Supplier: Jinan Rising International Trading Co. Ltd.
Share on (1601202393353):
Product Overview
Description
同标题
Products Description
Flat Polishing Machine
The plane polishing machine produced by Rising Factory is equipped with a machine for ultra-precision machining of the plane
workpiece, removing scratches, spots and falling edges on the surface of the workpiece, and making the surface of the workpiece
bright, smooth, mirror-like and even reaching a certain precise coarse degree value.
Parameter specification | KL- PM630 | KL- PM1000 | KL- PM1300 |
Machining width （mm） | <630 | <1000 | <1300 |
Processing thickness （mm） | 2-110 | 2-110 | 2-110 |
Length of processed sheet （mm） | >400 | >400 | >400 |
The abrasive belt size （mm） | 650*1920 | 1020*2020 | 1320*2020 |
First sand motor power （KW） | 11 | 15-18.5 | 37 |
Second sand motor power （KW） | 7.5 | 11.0-15 | 22 |
Transmission motor power （KW） | 1.1 | 1.5 | 4 |
Lifting motor power （KW） | 0.37 | 0.37 | 0.37 |
Work pressure （Mpa） | 0.5 | 0.6 | 0.6 |
Conveyor speed （m/s） | 5--25 | 5--25 | 5--25 |
Aspiration air volume（m³/h） | 5000 | 5000 | 5000 |
Overall dimensions (length width height) （mm） | 1600*1250*2150 | 1600*1250*2150 | 2700*2200*2150 |
Weight （Kg） | 1400 | 2400 | 3400 |

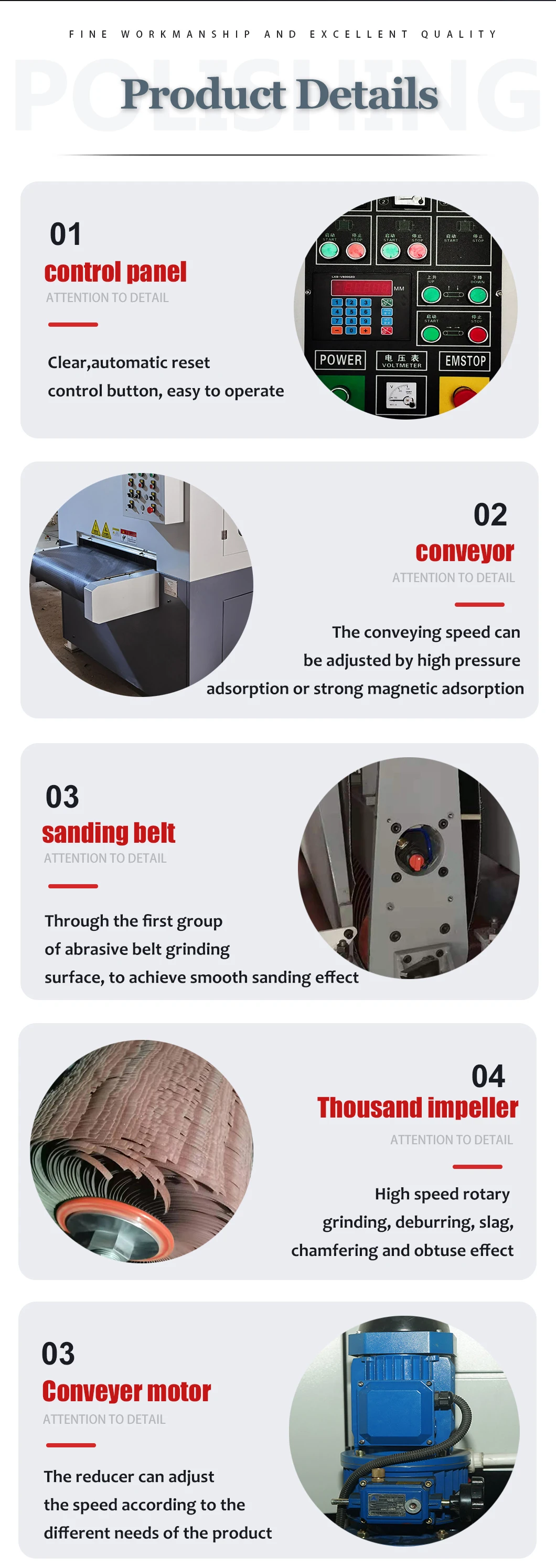

Product details
Application Industry
Our Advantages
Company information ＆ certificate
FAQ
Q: Do you have CE certification and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service. At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: If we are interested in your machine, how do we choose?
A: Please tell us the details of the products you need polishing and the polishing effect you want. We can provide you with the solution and machine suitable for you.
Q: How about warranty?
A: 2 years quality guaranty. Lifetime technical support and consumables at the lowest price.
Q: Do you have after sales support?
A: Yes, we have rich experience in handling after-sales issues via video or email. Meanwhile the engineers are available to service overseas. We have agents in different countries too if you want local service or sample testing.
A: Yes, we have CE, Provide you with a one-stop service. At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: If we are interested in your machine, how do we choose?
A: Please tell us the details of the products you need polishing and the polishing effect you want. We can provide you with the solution and machine suitable for you.
Q: How about warranty?
A: 2 years quality guaranty. Lifetime technical support and consumables at the lowest price.
Q: Do you have after sales support?
A: Yes, we have rich experience in handling after-sales issues via video or email. Meanwhile the engineers are available to service overseas. We have agents in different countries too if you want local service or sample testing.
